Modern Garage with Living Space Floor Plan
Designing a house addition or standalone structure with both functionality and style has never been easier. This modern garage plan offers three spacious bays and a living area above, ideal for homeowners, architects, and builders looking for a versatile design. With detailed CAD blueprints and architectural layouts, this plan is a perfect blend of practicality and modern aesthetics.
Key Features of the Plan
Indoor Features
* Three garage bays: Spacious and functional for multiple vehicles or workshop use.
* Living space above: Great for a guest suite, house office, or recreational room.
* 9ft+ ceilings: Enhance the sense of space and luxury.
* Modern Craftsman style: A timeless design that complements a variety of landscapes.
Benefits
* Offers a compact footprint for narrow lots.
* Maximizes the use of space with a functional design.
* Crafted with durable materials, ensuring long-lasting quality.
Why Choose This house Plan?
This garage and living space design is perfect for those needing additional room while maintaining a small overall footprint. Its 23′-0″ width and 23′-4″ depth make it suitable for smaller lots, yet the interior space is maximized for efficiency. Whether you're seeking to add value to your property or design a new house addition, this plan delivers on all fronts.
Benefits Included with Every Plan
All house plans include CAD files and PDF formats for easy modifications. Purchases come with an unlimited-build license and free foundation changes. Unlike other providers, our plans offer transparent viewing of all sheets before purchase. We also provide affordable modification options, ensuring your dream design is fully customized.
Ready to design your dream space? Reach out to us at support@https://myhomefloorplans.com for expert guidance and to start planning today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

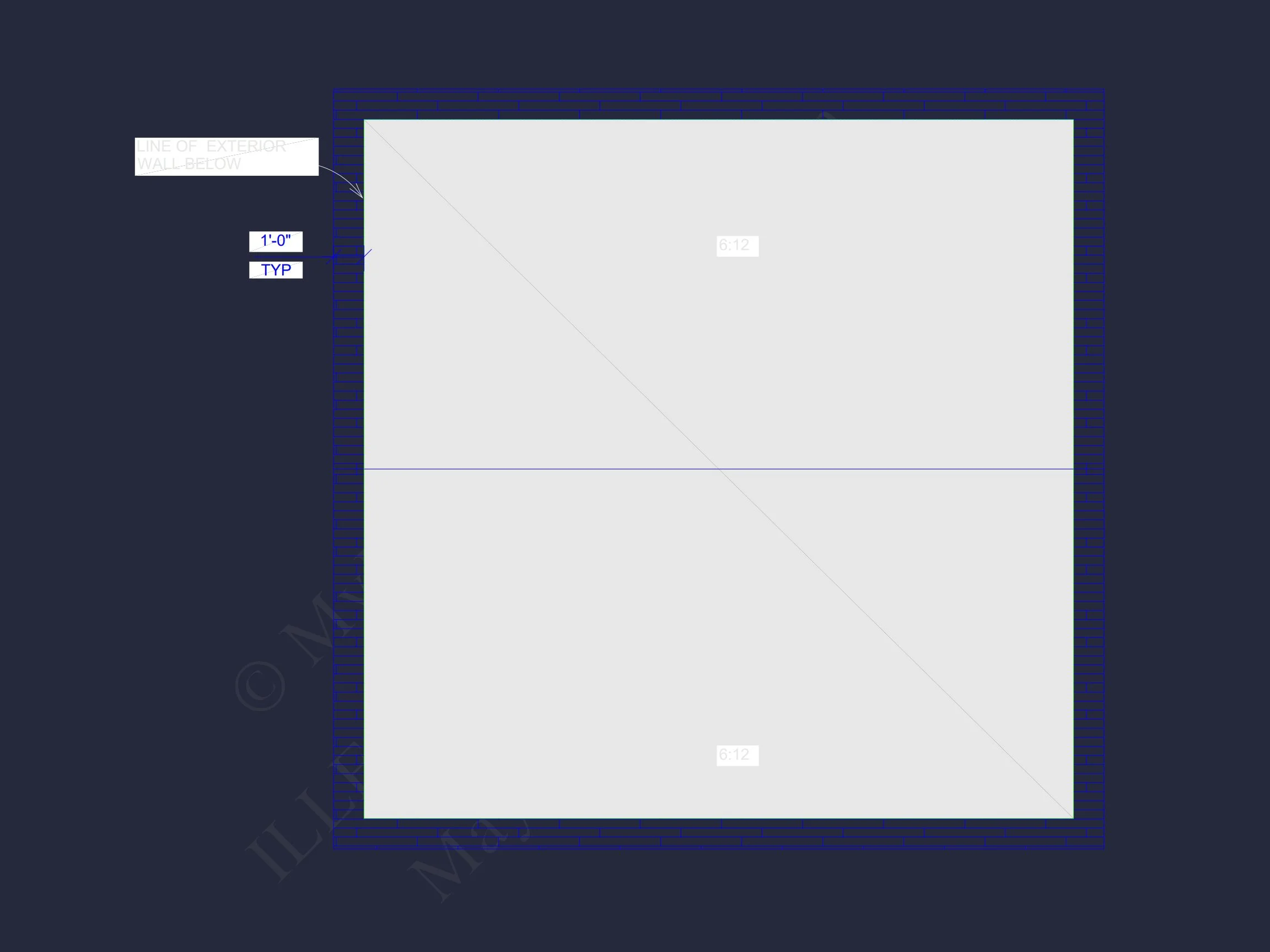

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
16-1351 GARAGE
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
