Contemporary 2-Story Townhome Design with Open Layout
Explore this 3-bedroom 2-story townhome design with open living, modern kitchen island, and CAD blueprint files—perfect for narrow lots and urban builds.
This townhome floor plan offers a smart mix of modern architecture and practical living. With clean lines and efficient design, it’s ideal for today’s homeowners, builders, and architects working with compact or narrow lots.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: Approximately 1, 500–1, 800 sq. ft. across two stories.
- Unheated extras: Includes garage bay, porch, and optional balcony.
Bedrooms & Bathrooms
- 3 well-sized bedrooms are thoughtfully placed upstairs for privacy.
- Includes 2.5 bathrooms: a guest half bath downstairs and two full baths upstairs.
Interior Highlights

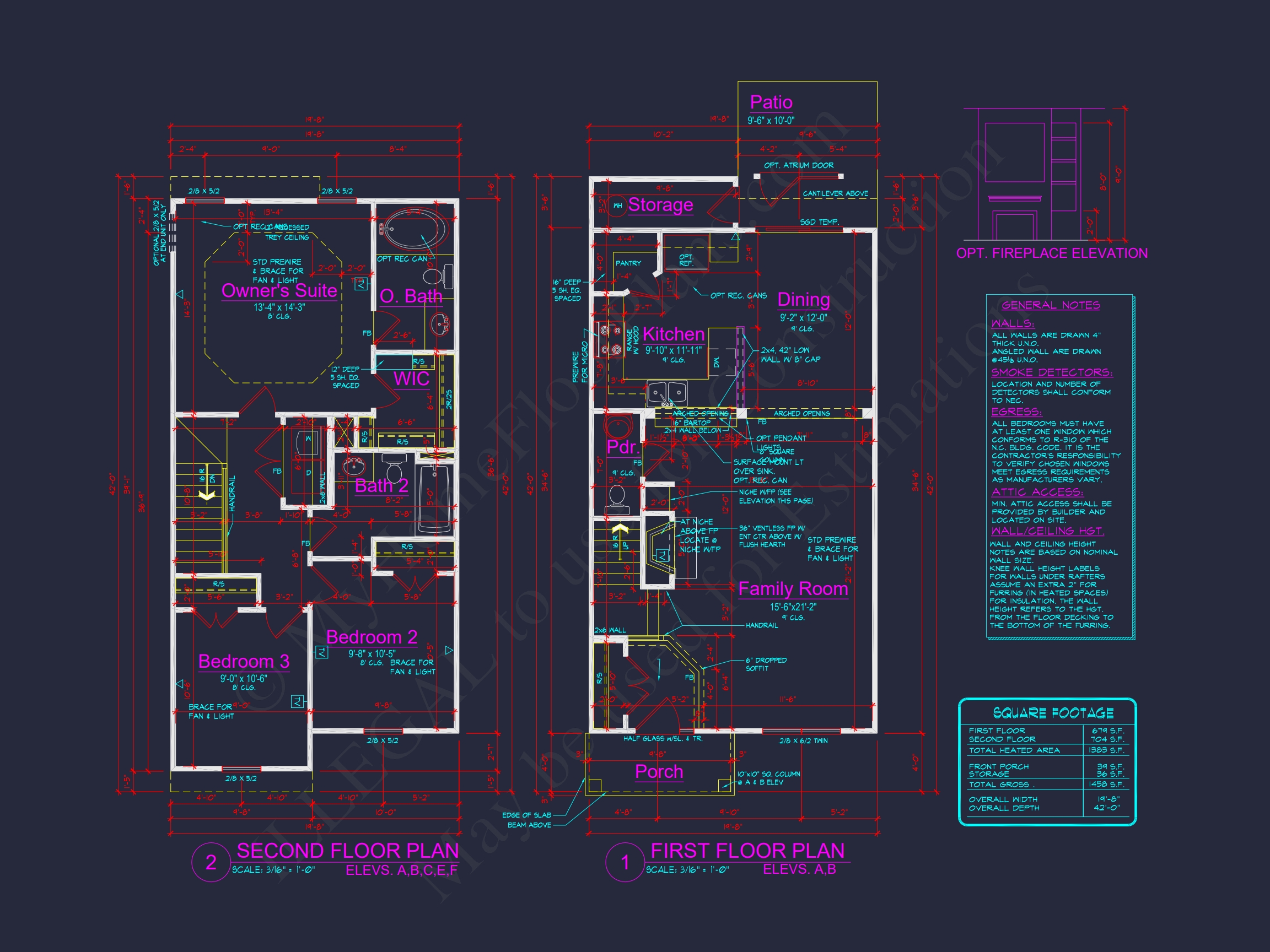

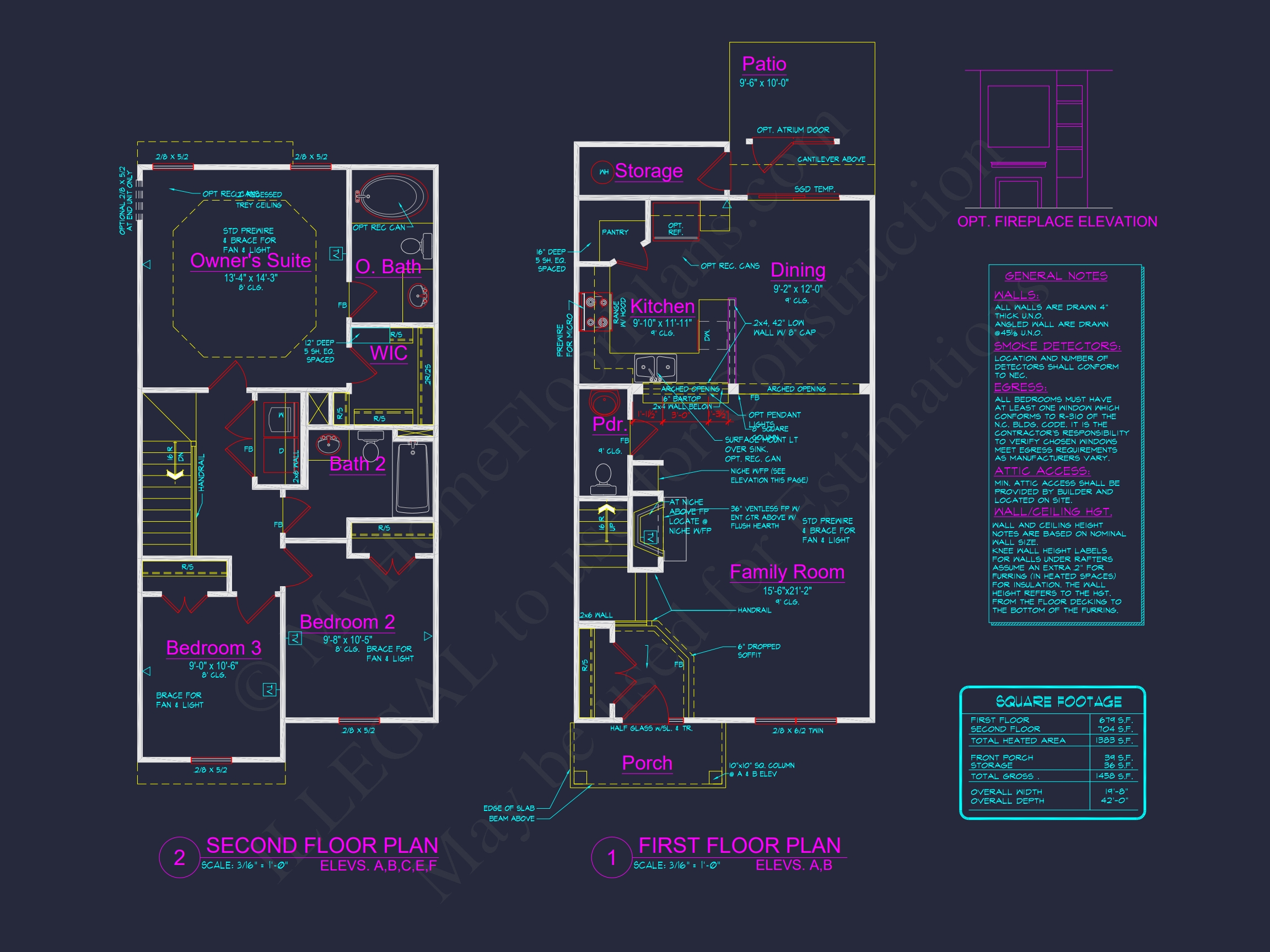

- Open floor plan seamlessly connects the kitchen, family room, and dining area. Explore open-concept layouts.
- Modern kitchen island ideal for food prep, gathering, and extra seating. Browse plans with kitchen islands.
- Walk-in pantry enhances storage and kitchen efficiency.
- Upstairs laundry area adds convenience near bedrooms.
Garage & Storage Details
- Garage Bays: 1- to 2-car options depending on selected elevation.
- Garage Type: Front-entry attached garage—perfect for narrow urban lots.
- Storage: Linen closets, kitchen cabinetry, and walk-in bedroom closets.
Outdoor Living Features
- Optional covered front porch or balcony depending on elevation choice.
- Exterior combines brick and siding for lasting style and durability.
Architectural Style: Urban Traditional Townhome
This design blends streamlined townhome architecture with customizable finishes and elevation options. Learn more about townhome floor plans or discover architectural insights on ArchDaily.
Bonus Features

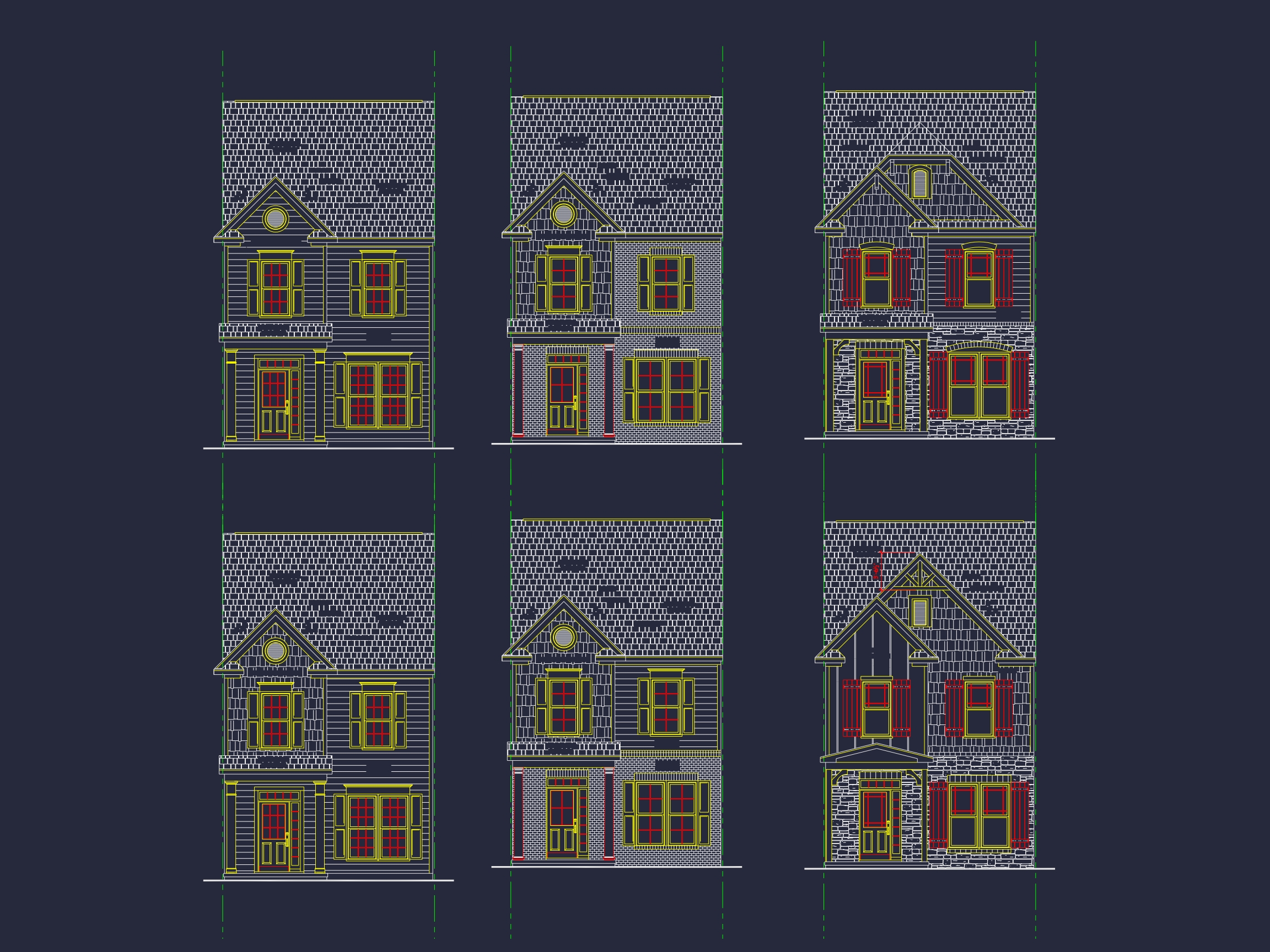

- 6 Elevation Styles: Choose from multiple façade options for curb appeal.
- Compact Width: Works beautifully on tight or infill lots.
- Loft or Flex Space: Optional second-floor bonus area for office, study, or gaming.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and printable for your builder or engineer.
- Unlimited Build License: No extra charge to build more than once.
- Free Foundation Changes: Easily switch between slab, crawl, or basement foundations. Learn more.
- Structural Engineering Included: Stamped drawings for peace of mind and code compliance.
- Lower Modification Costs: Up to 50% less than other providers.
- View Before You Buy: Preview all sheets before purchase.
Similar Collections You Might Love
- Narrow Lot House Plans
- Plans with Walk-in Closets
- 3-Bedroom House Plans
- Covered Porch Designs
- First Floor Owner Suite Plans
Frequently Asked Questions
Is this house plan good for narrow lots? Yes! Its compact design and front-entry garage make it ideal for narrow or city lots.
Can I choose between different elevations? Absolutely. This townhome plan includes 6 façade options for a personalized exterior.
What rooms are on the main floor? The main level includes the open-concept kitchen, dining, family room, and a guest powder bath.
Are the bedrooms all upstairs? Yes, all 3 bedrooms are located on the second floor for added privacy.
Can I preview the entire plan before purchase? Yes. You can view all plan sheets here.
Start Building Your Dream Home Today
Have questions or want to personalize your townhome layout? Reach out to us at [email protected] or connect with our team.
Your perfect townhome starts with a solid plan—customize it and start building today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

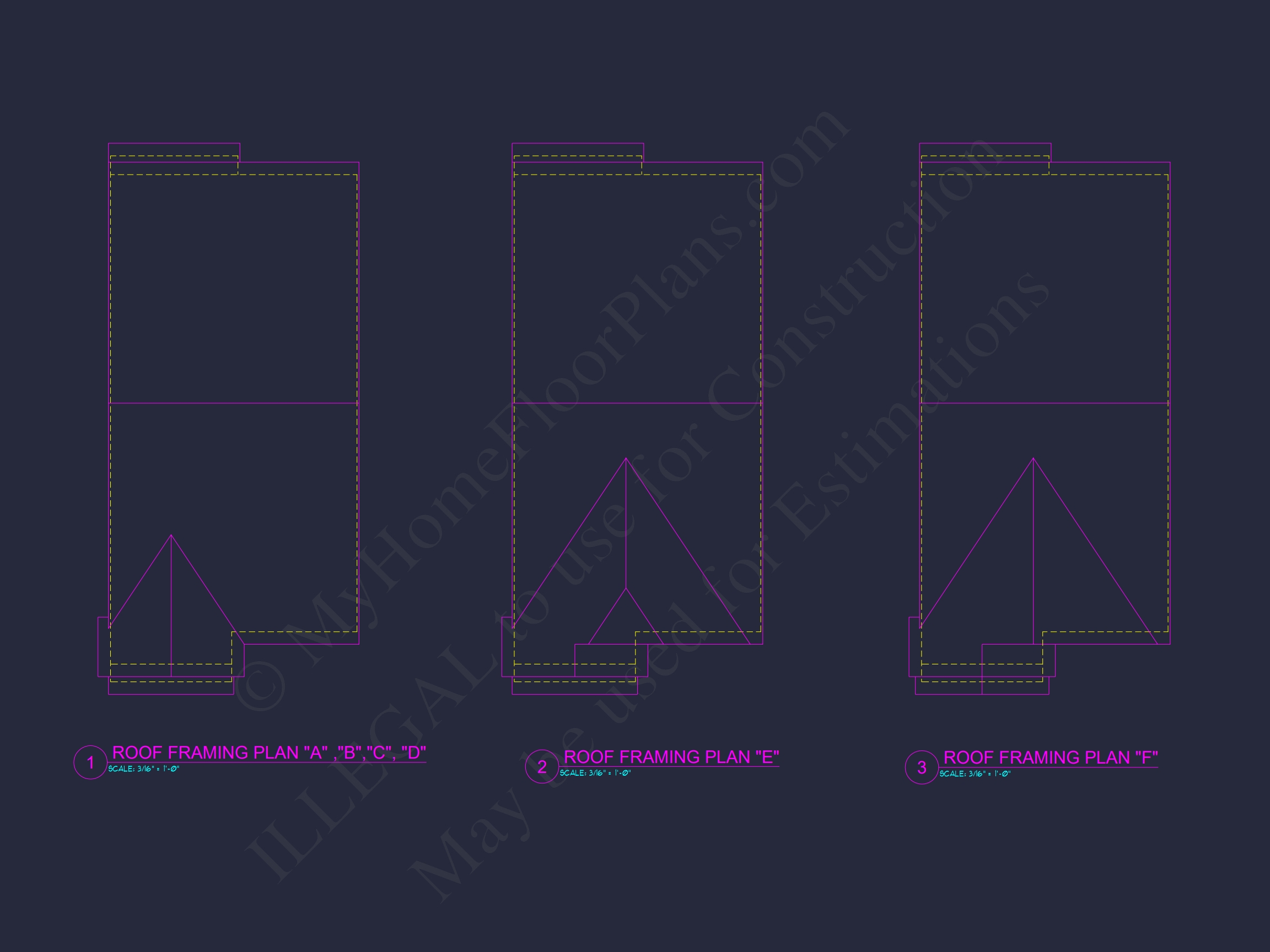

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

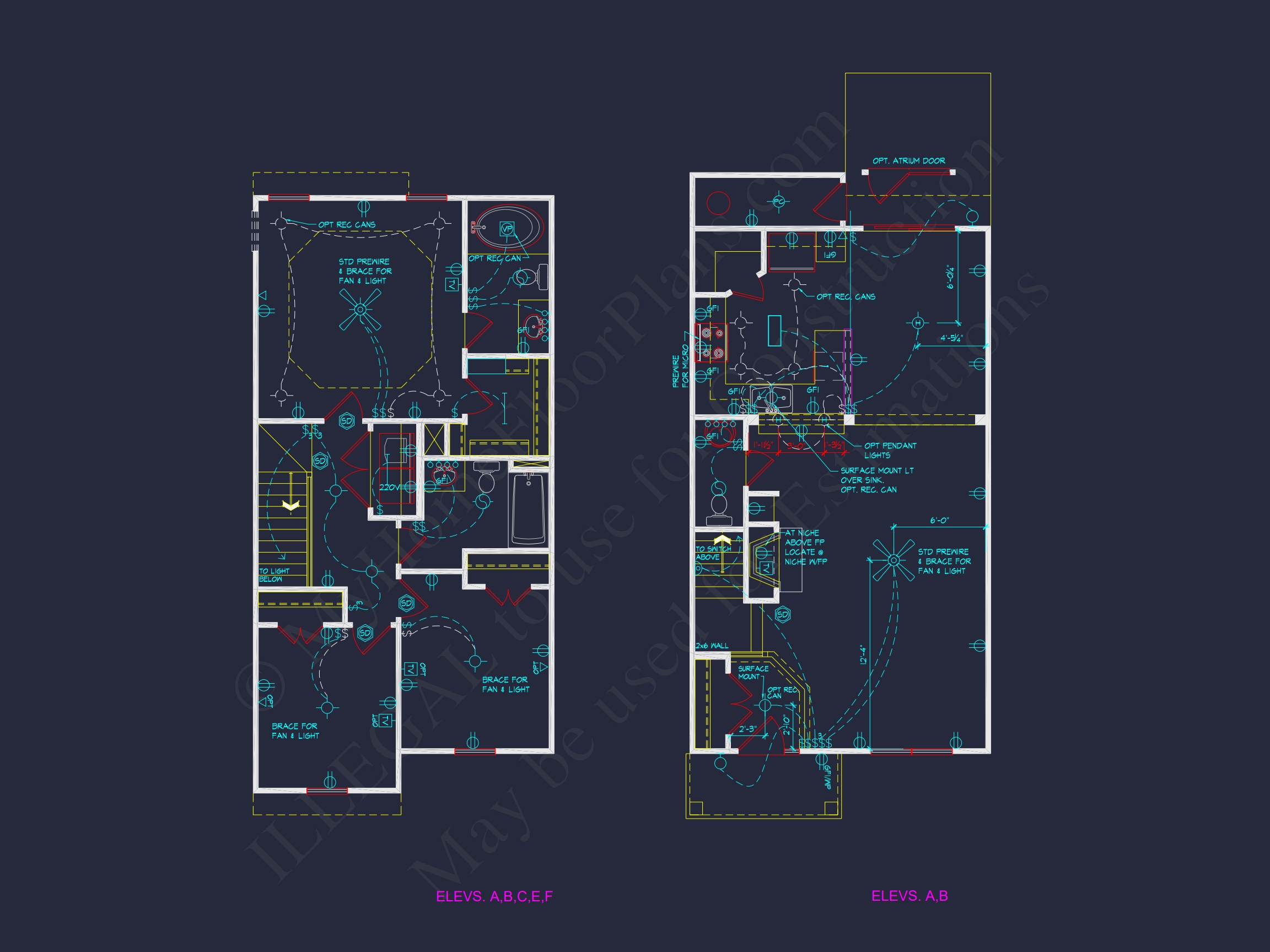

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
