Spacious 6-Bedroom Townhouse Floor Plan with CAD Designs
Explore a modern 6-bedroom, 2-story townhouse blueprint with CAD designs. Features include an open floor plan, ultimate kitchens, and a great room.
Original price was: $1,870.56.$1,059.99Current price is: $1,059.99.
999 in stock
| Width | 169'-8" |
|---|---|
| Depth | 58'-0" |
| Htd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bedrooms on the Second Floor, Great Room, Open Floor Plan, s |
| Outdoor Features | |
| Bed and Bath Features | |
| Kitchen Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
6-Unit Townhome Floor Plan with CAD Designs & Modern Features
Discover this professionally designed 6-unit, 2-story townhome plan with 3, 965 heated sq. ft. per unit—includes open layouts, CAD blueprints, and developer-ready files.
This multi-unit townhome plan offers a perfect mix of modern comfort and investment value. Designed for urban developments, it combines smart architectural layout with contemporary design for builders and investors alike.
Key Features of the Townhome Plan
Living Areas – Heated & Unheated
- Heated area (per unit): 3, 965 sq. ft. across two floors.
- Total heated area: 23, 790 sq. ft. across 6 attached units.
- Unheated extras: Private porches, shared exterior walkways, patios, and covered entries.
Bedrooms & Bathrooms (per unit)
- Each unit includes 3 well-sized bedrooms for family or roommate-friendly configurations.
- 2–3 bathrooms per unit, designed for comfort, privacy, and convenience.
Interior Highlights
- Open floor plan concept connects the great room, dining, and kitchen zones for modern living. Explore open concepts.
- Great room serves as a central gathering point for tenants or families.
- Ultimate kitchen layout with a center island and storage—ideal for renters and buyers. Browse kitchen island designs.
- All bedrooms located on the second floor for enhanced privacy.
Garage & Storage Details
- Parking Options: Includes rear or alley-loaded garages or carport potential per unit.
- Garage Type: Designed for compact footprints and community-friendly streetscapes.
- Extra Storage: Each unit includes pantry, linen closets, and optional attic access.
Outdoor Living Features
- Each unit includes a private porch or patio, ideal for outdoor enjoyment.
- Durable stone-and-stucco exteriors provide a polished, upscale community appearance.
Architectural Style: Modern Urban Townhome
This plan blends multi-unit efficiency with bold curb appeal—perfect for infill projects, suburban developments, or college towns. Explore more townhome blueprints or see similar ideas featured on ArchDaily.
Bonus Features
- Each unit designed with optional home office or flex room.
- Private rear access for added security and tenant convenience.
- Smart plan division for easy phasing and scalable construction.
Included Benefits with Every Plan
- CAD + PDF Files: All 6 units included—easily editable, printable, and build-ready.
- Unlimited Build License: Use the plan across multiple lots or developments at no extra cost.
- Free Foundation Modifications: Choose slab, crawlspace, or basement—adjustable per site. View details.
- Structural Engineering Included: Professionally stamped and code-compliant for permit submittals.
- Lower Modification Costs: Customize any unit for less—50% cheaper than competitors.
- View Before You Buy: Preview all sheets online.
Similar Collections You Might Love
- Townhome Floor Plans
- Duplex and Multi-Family Designs
- Plans with Kitchen Islands
- Open Floor Plan Homes
- Garage and Storage-Optimized Plans
Frequently Asked Questions
Is this a single home or multiple units? This blueprint includes 6 attached townhome units—ideal for developers or investors.
Can I modify just one unit? Yes! Each unit can be adjusted independently to fit your site or buyer needs. Get a quote here.
Are garage layouts included? Yes. Options for rear-load or alley-access garages are integrated into each unit’s design.
Is this a good option for rentals? Absolutely. Its spacious layout and private entries make it a great candidate for long-term or short-term rentals.
How do I view all plan details? You can preview every sheet before purchasing.
Start Building Your Townhome Project Today
Ready to bring your development vision to life? Contact our expert team at [email protected] or send us your project details.
Your successful build begins with the right plan—customize this 6-unit townhome and start building confidently!

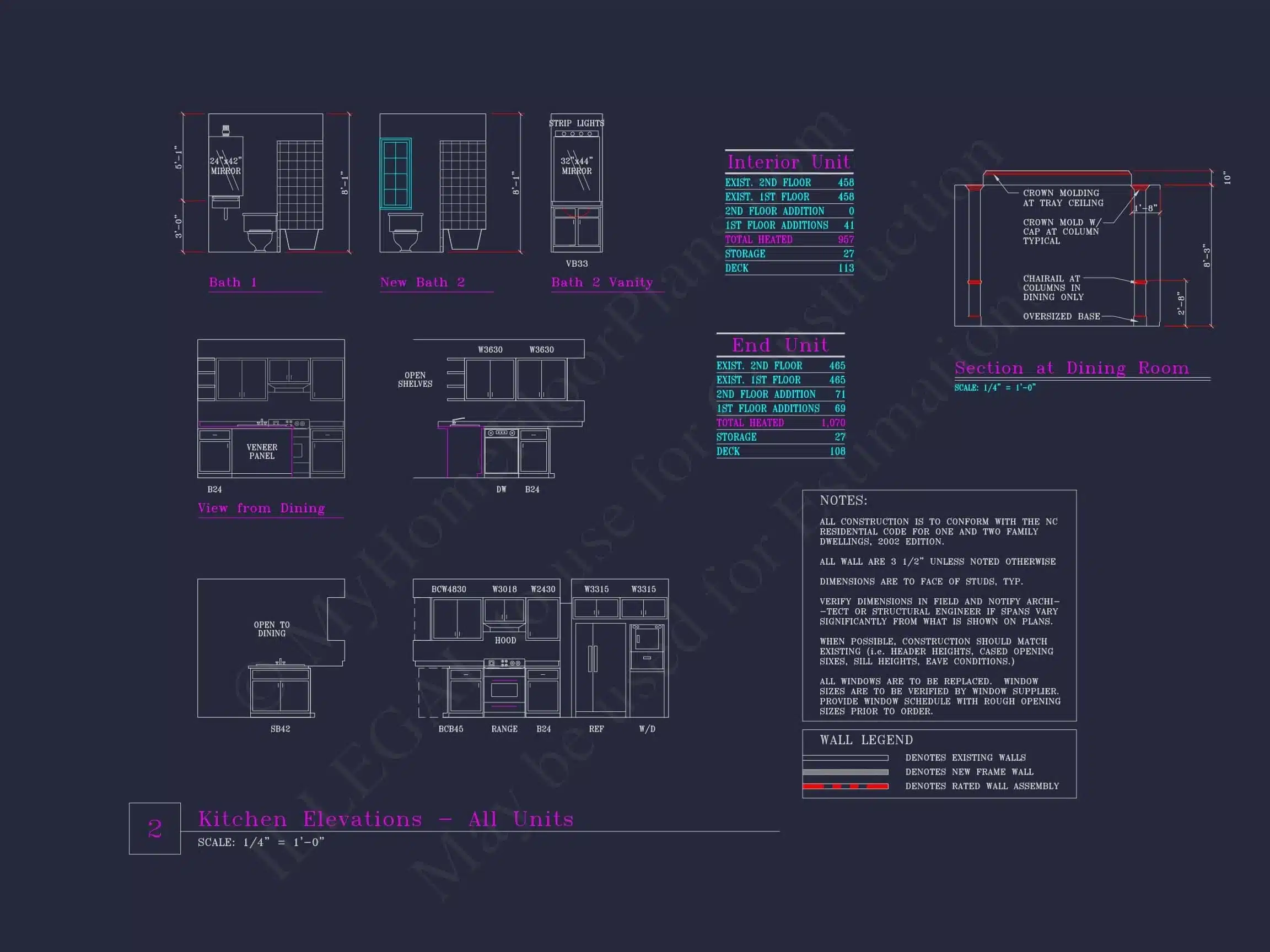

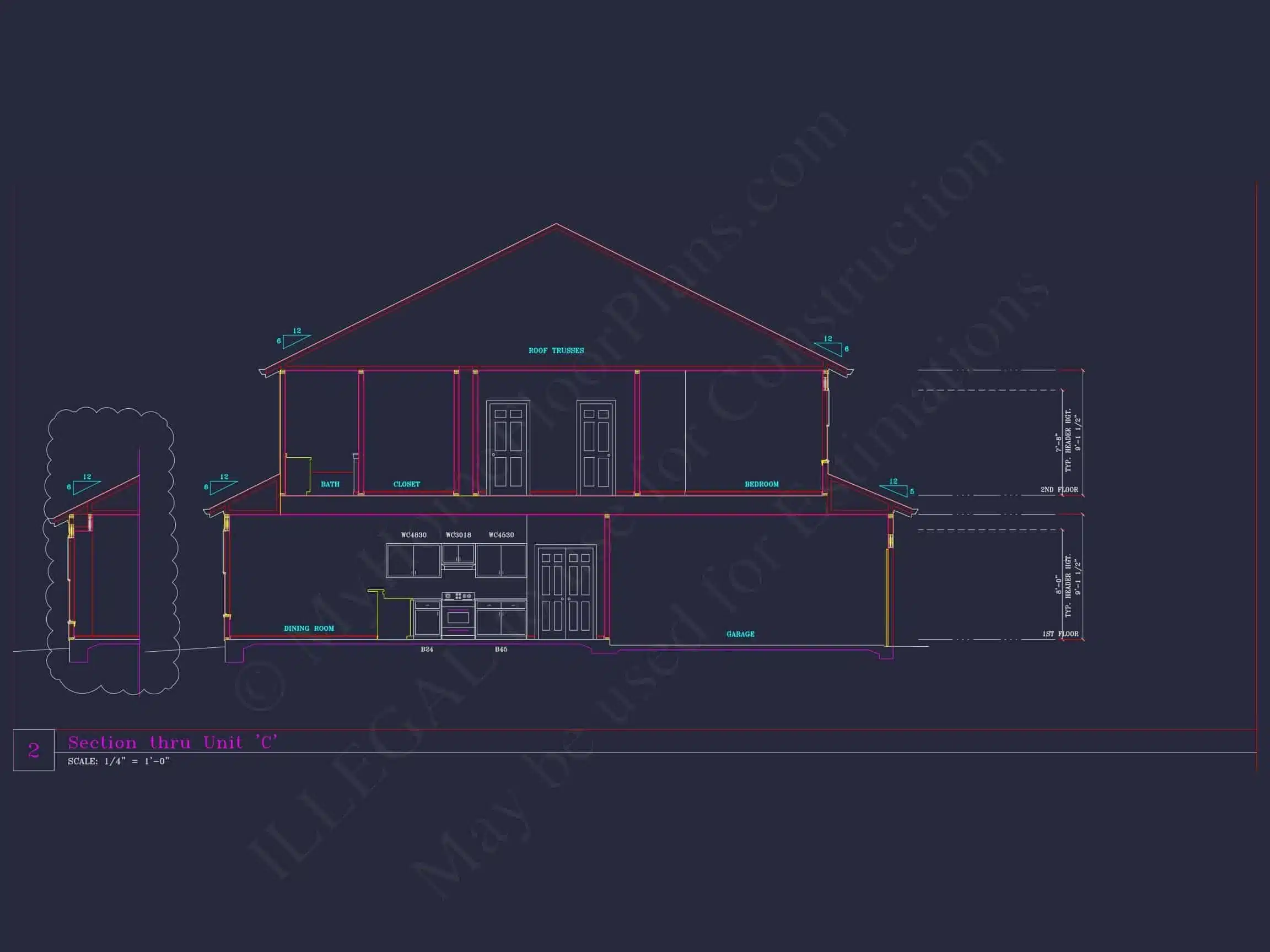

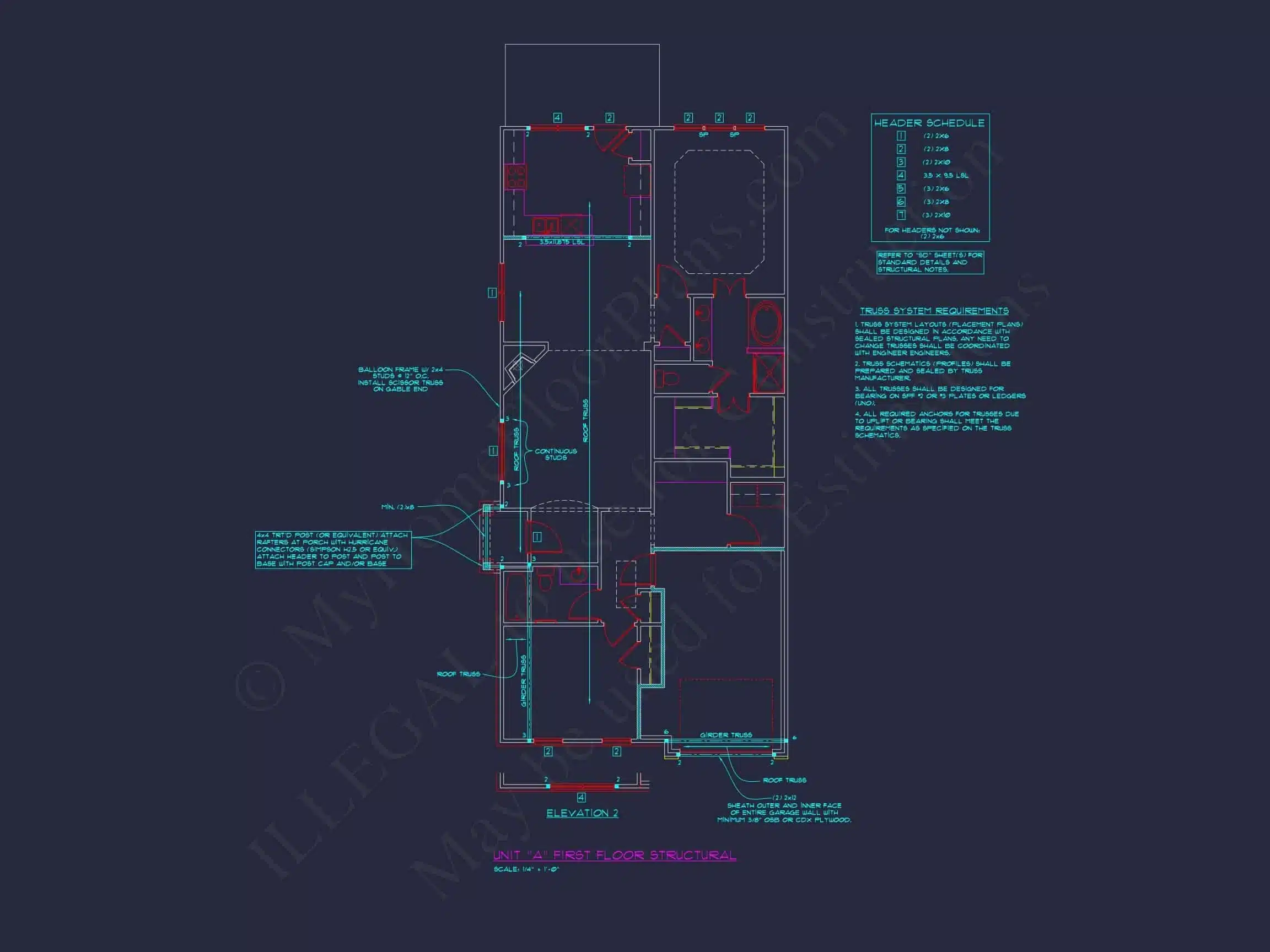

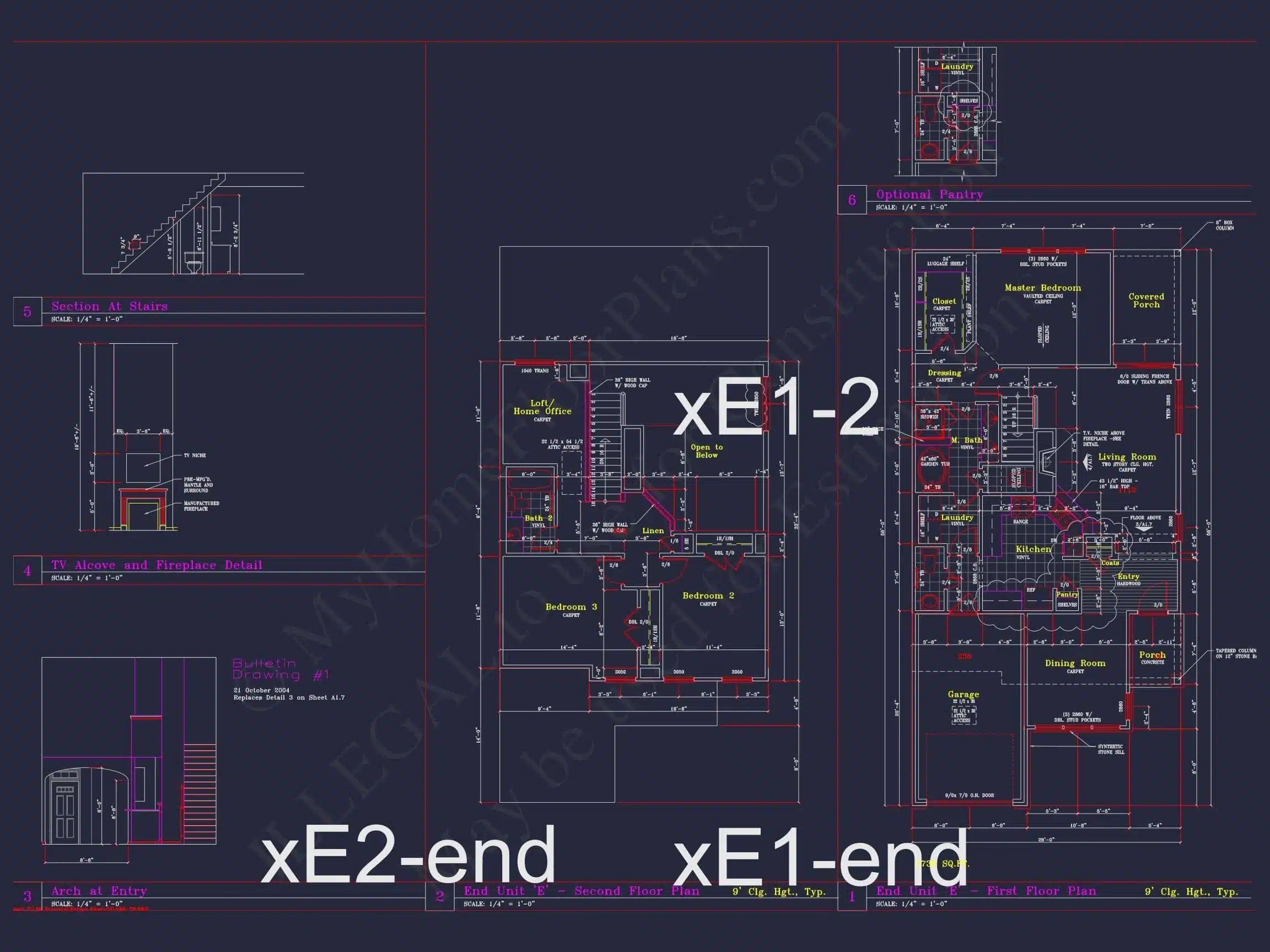

All home plans include BOTH the CAD file and PDF file.

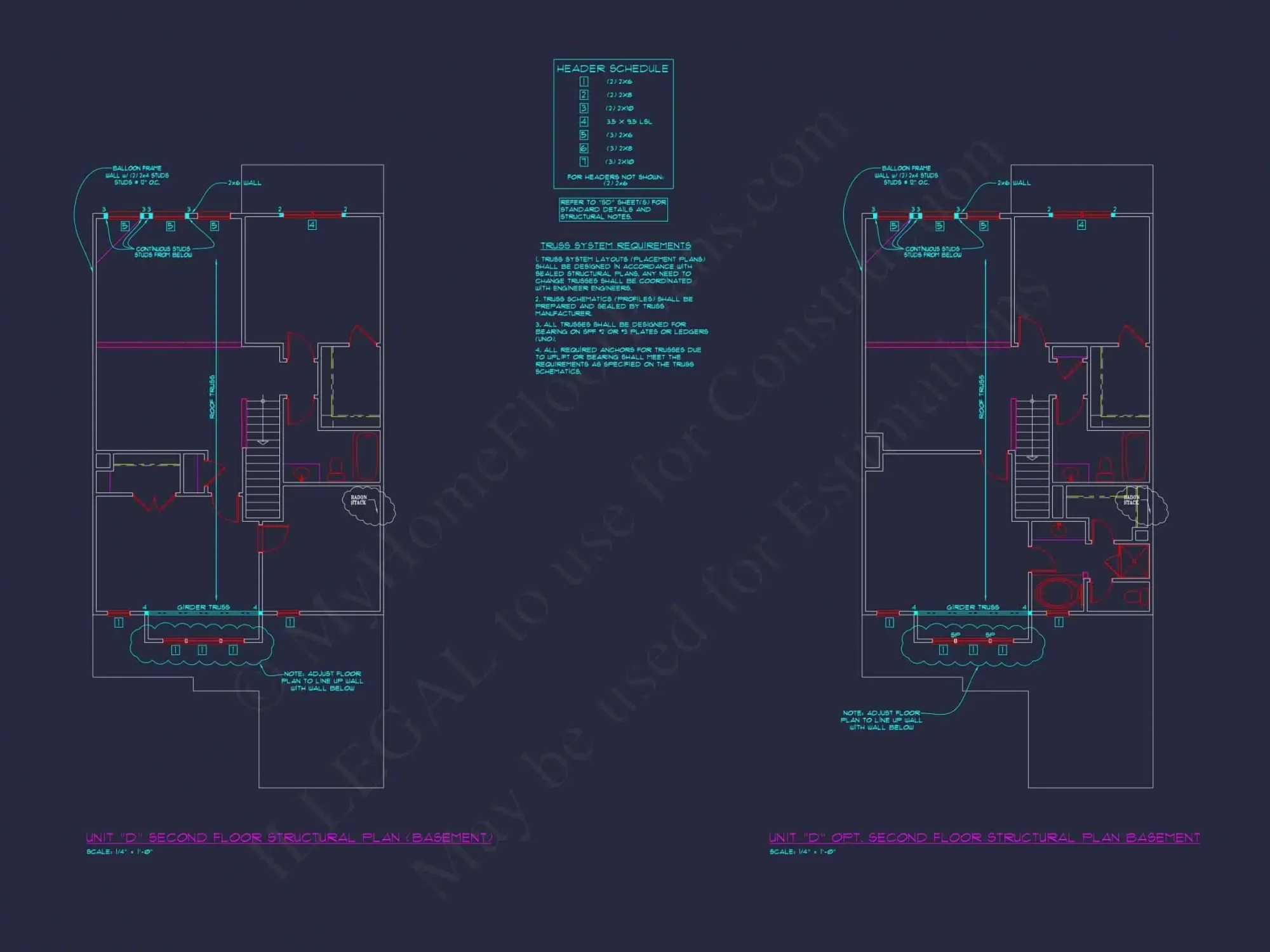

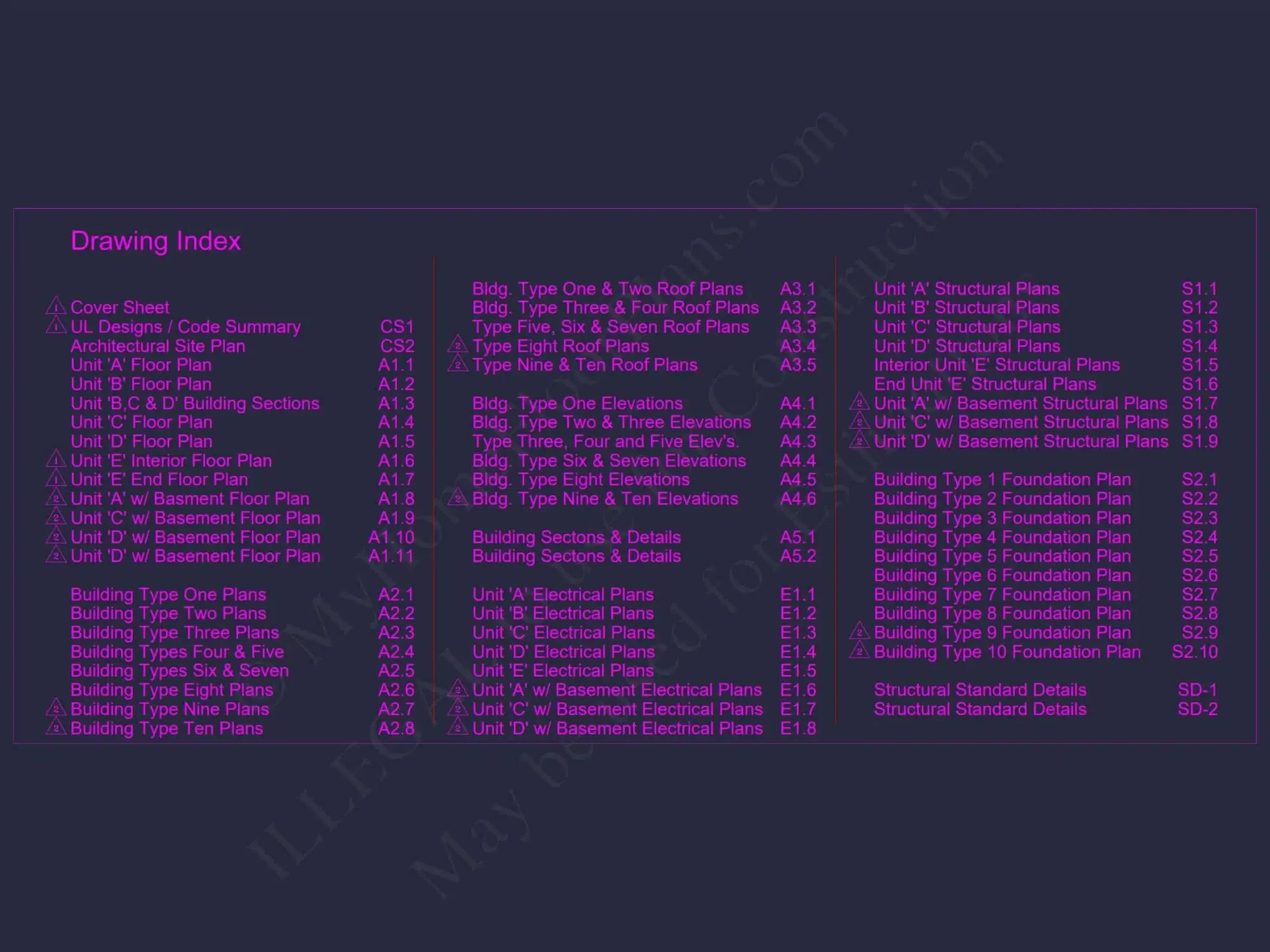

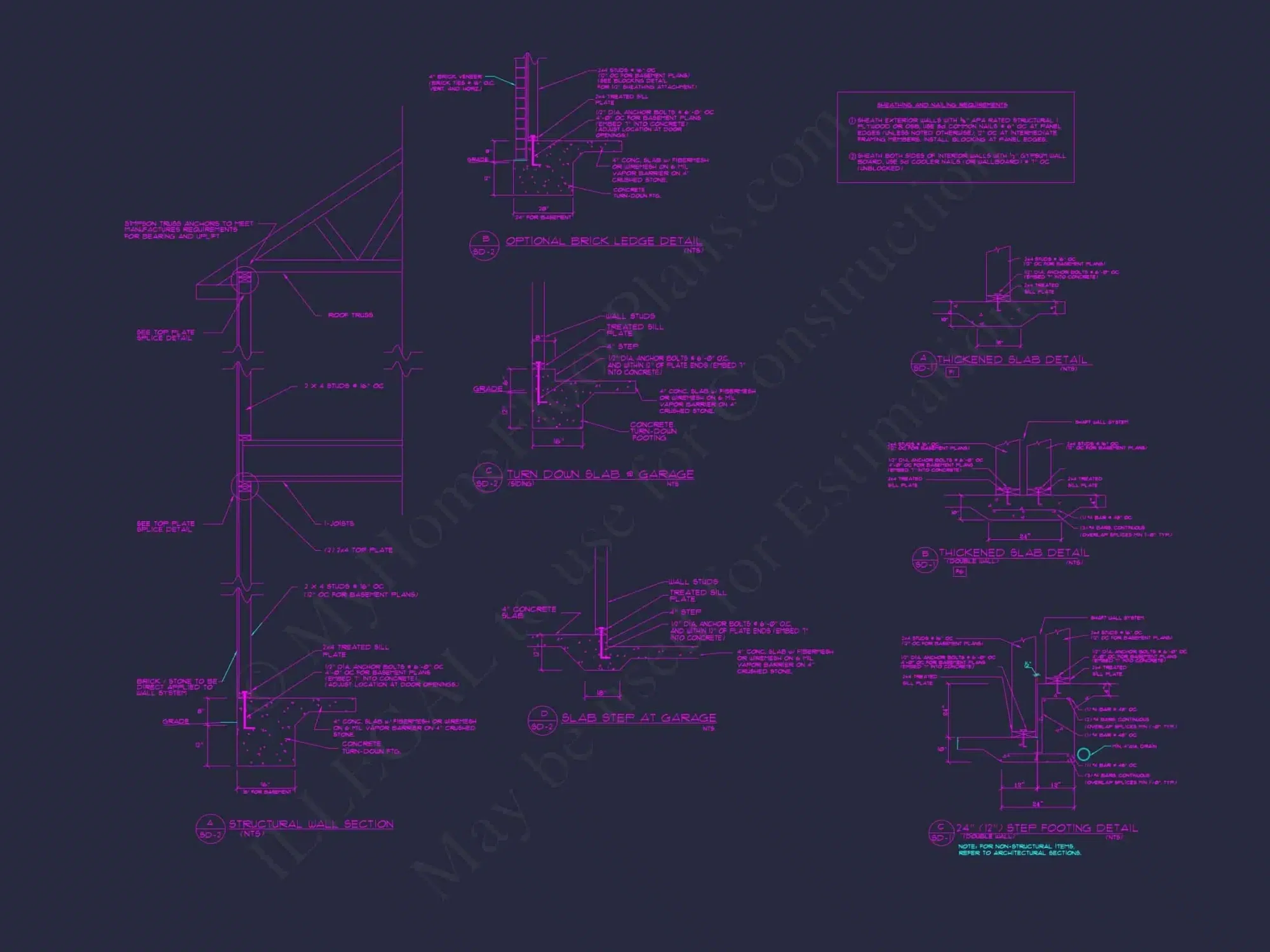

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

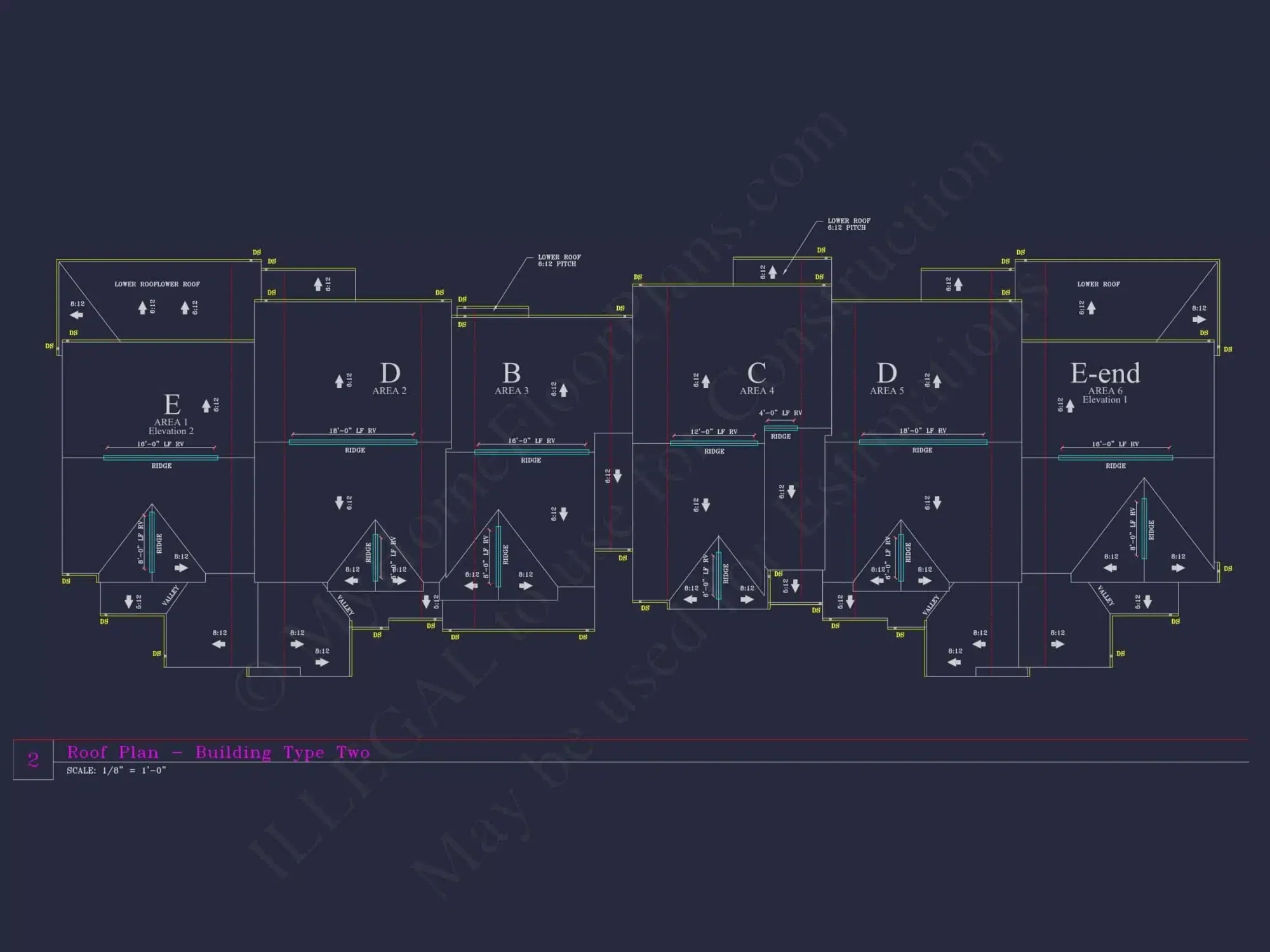

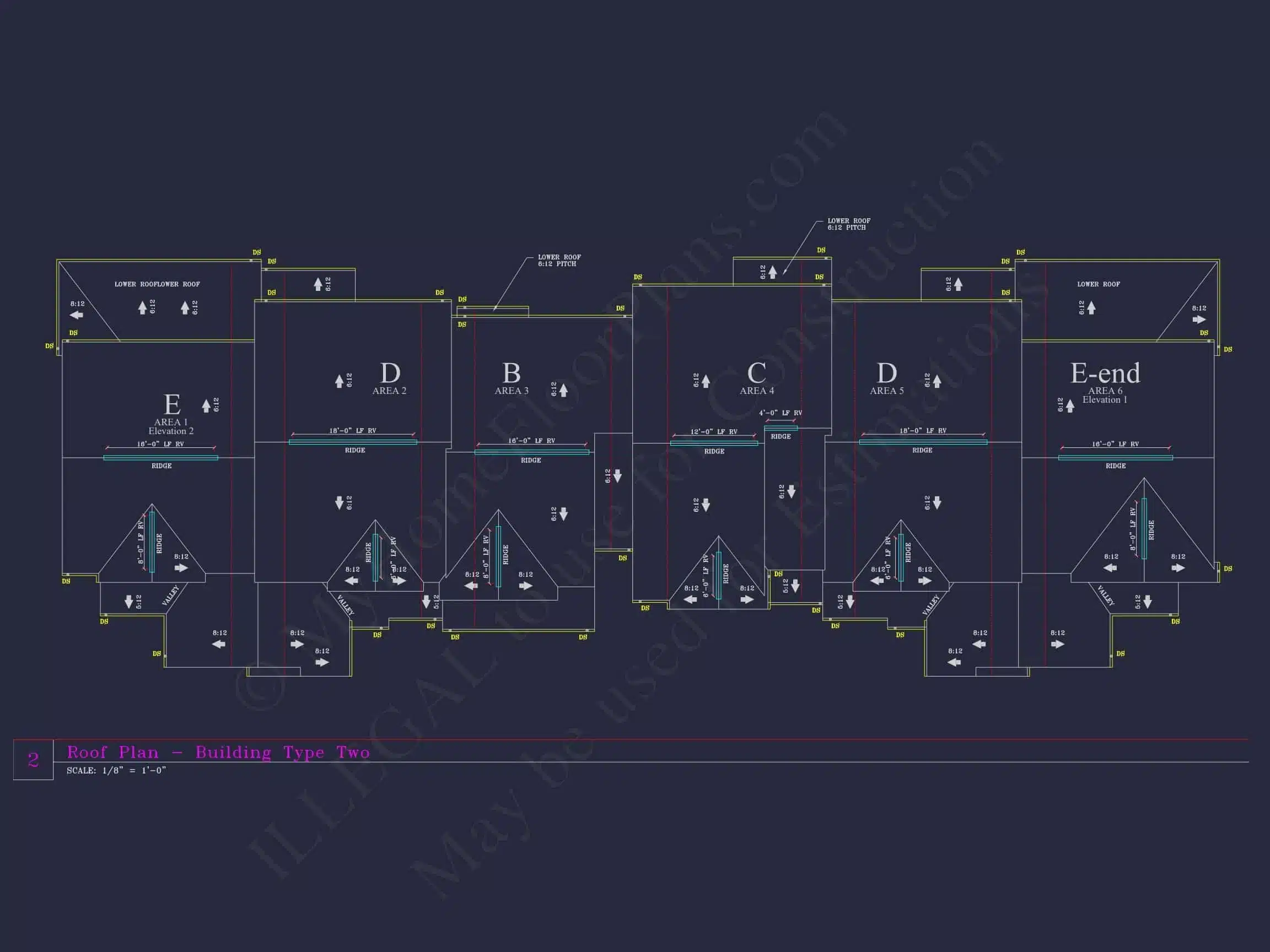

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
