10-1270 GARAGE – Garage and Living Space Plan – CAD Blueprint for Modern Designs
Explore this CAD house blueprint featuring a 2-bay garage with a study, 380 heated sq. ft., and 160 sq. ft. porch. Ideal for modern architecture designs!
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 48'-8" |
|---|---|
| Depth | 30'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Indoor Features | |
| Outdoor Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Andrea Wallace – June 14, 2024
The ability to view every sheet before purchase is a lifesaver; we avoided a plan last year that hid mechanical details behind a paywall. Here everything was transparent, and the CAD layers were so well labeled that our interior decorator adapted built-ins on day one. Unlimited builds plus the lowest price online turned a single-family idea into a long-term portfolio asset.
Save to Pinterest!
Modern Garage and Living Space Plan with 2 Bays and Study
Explore this efficient garage plan with a heated study, 2-car bay, 160 sq. ft. porch, and 380 heated sq. ft. of flexible space—includes CAD blueprints and more.

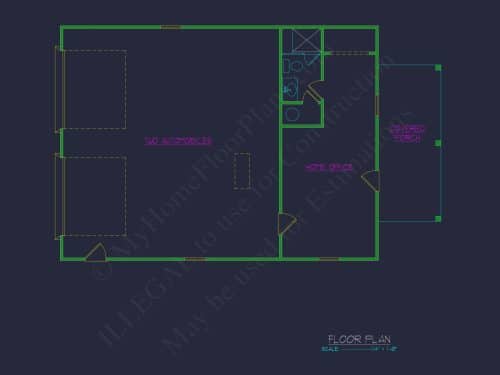

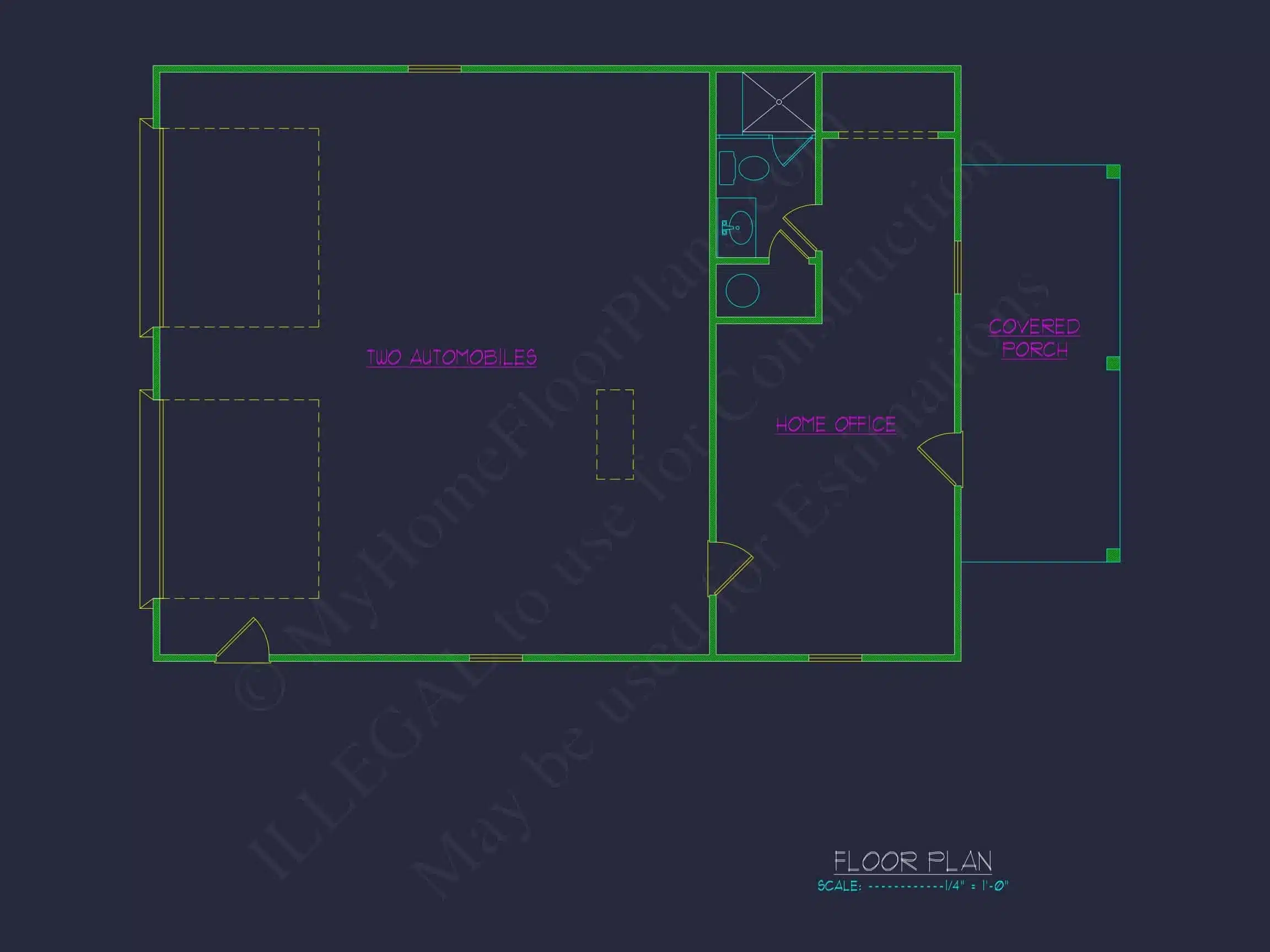

This garage and vehicle storage house plan offers a perfect mix of functionality and simplicity. Designed with modern architecture in mind, it blends compact living with high usability and efficiency.
Key Features of the Home Plan
Living Areas – Heated & Unheated

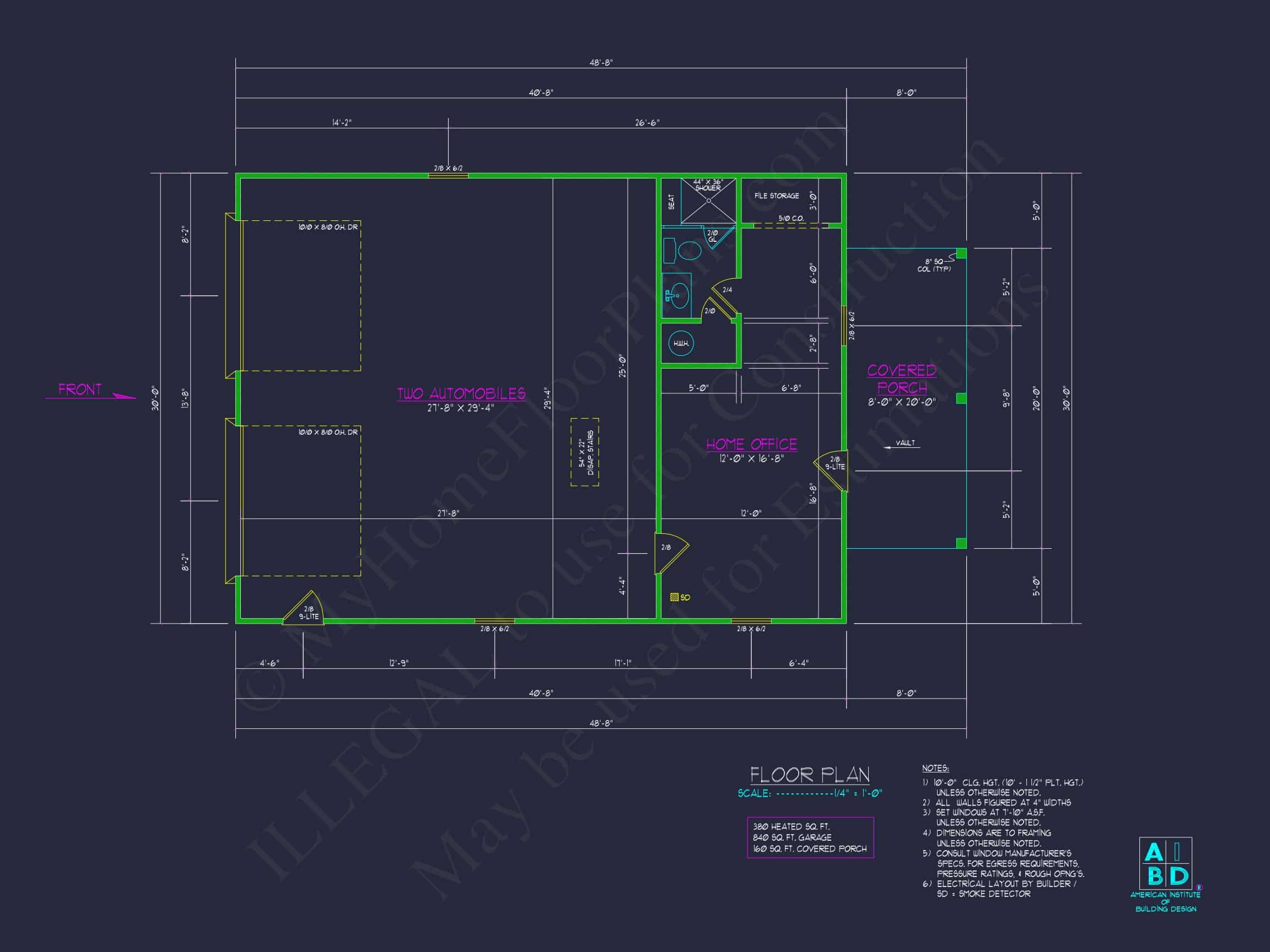

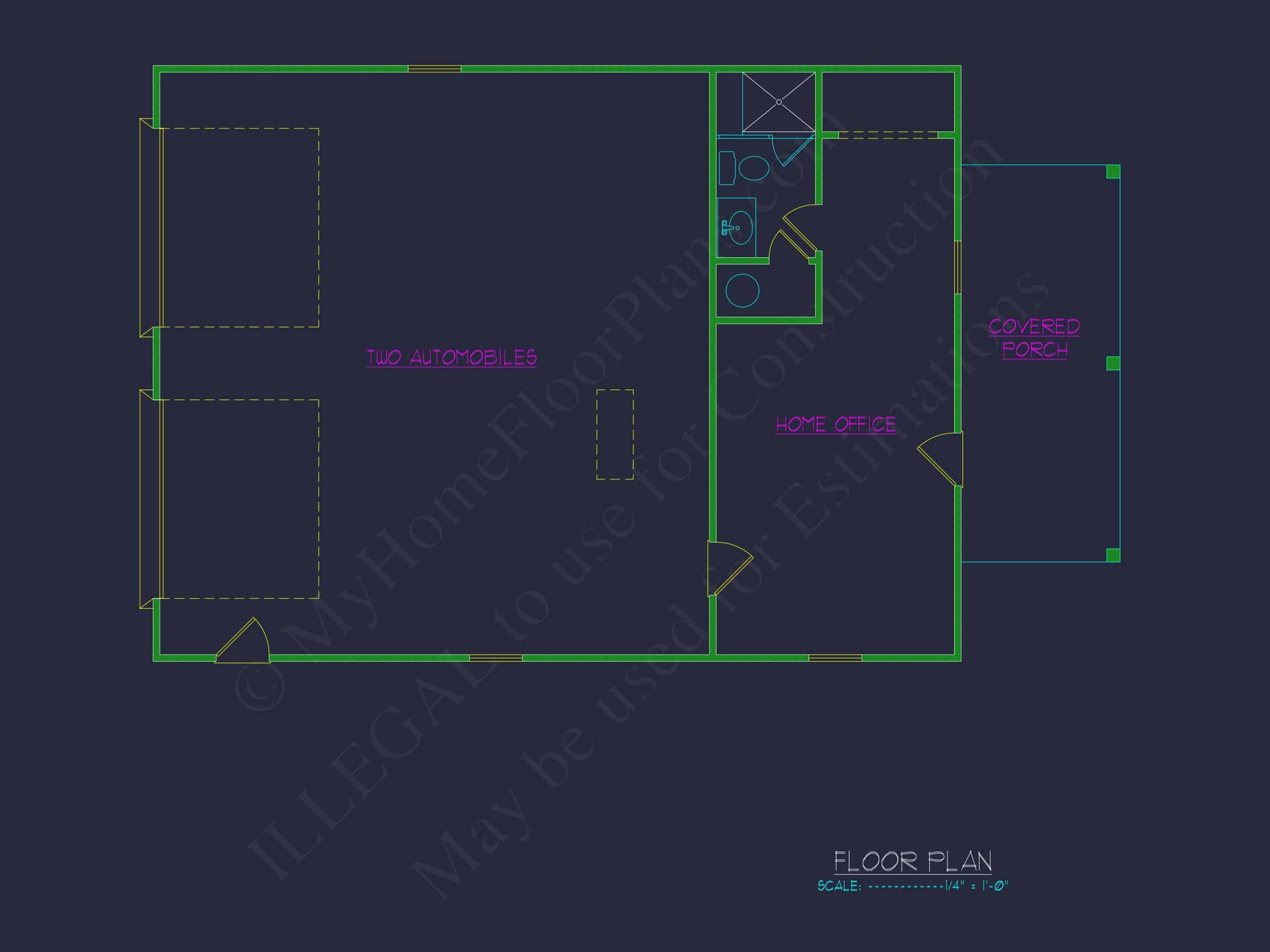

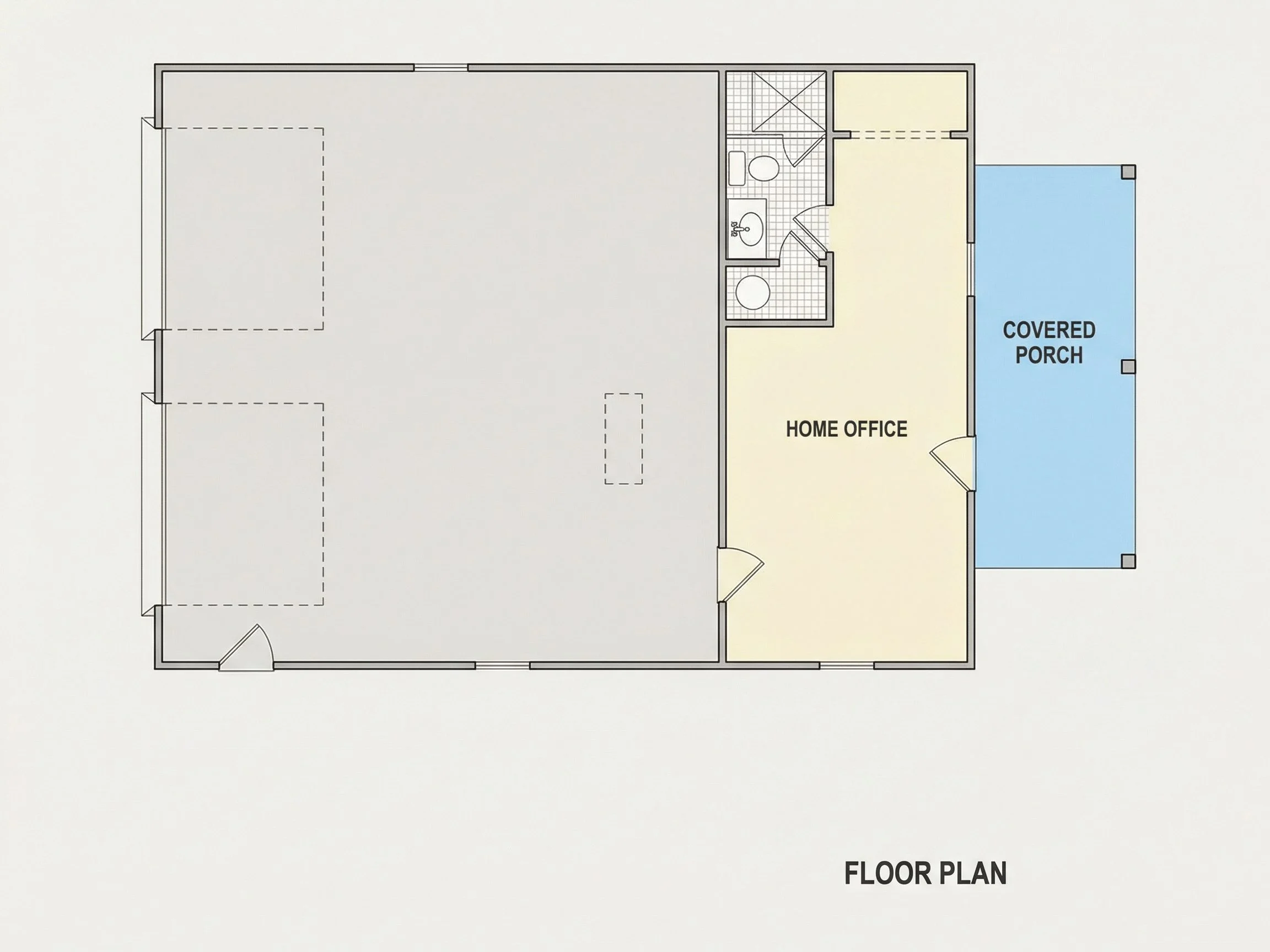

- Heated area: 380 sq. ft. on a single level.
- Unheated extras: 160 sq. ft. covered porch and a 2-car garage.
Bedrooms & Bathrooms
- This plan features a heated study or office space—ideal for remote work or creative projects.
- No dedicated bedrooms or bathrooms, keeping the footprint compact and affordable.
Interior Highlights
- 10-foot ceilings create volume in the modestly sized study area.
- Open layout allows flexibility for workspace, lounging, or multipurpose use. Browse open floor designs.
- Modern simplicity allows easy customization of the interior layout.
Garage & Storage Details

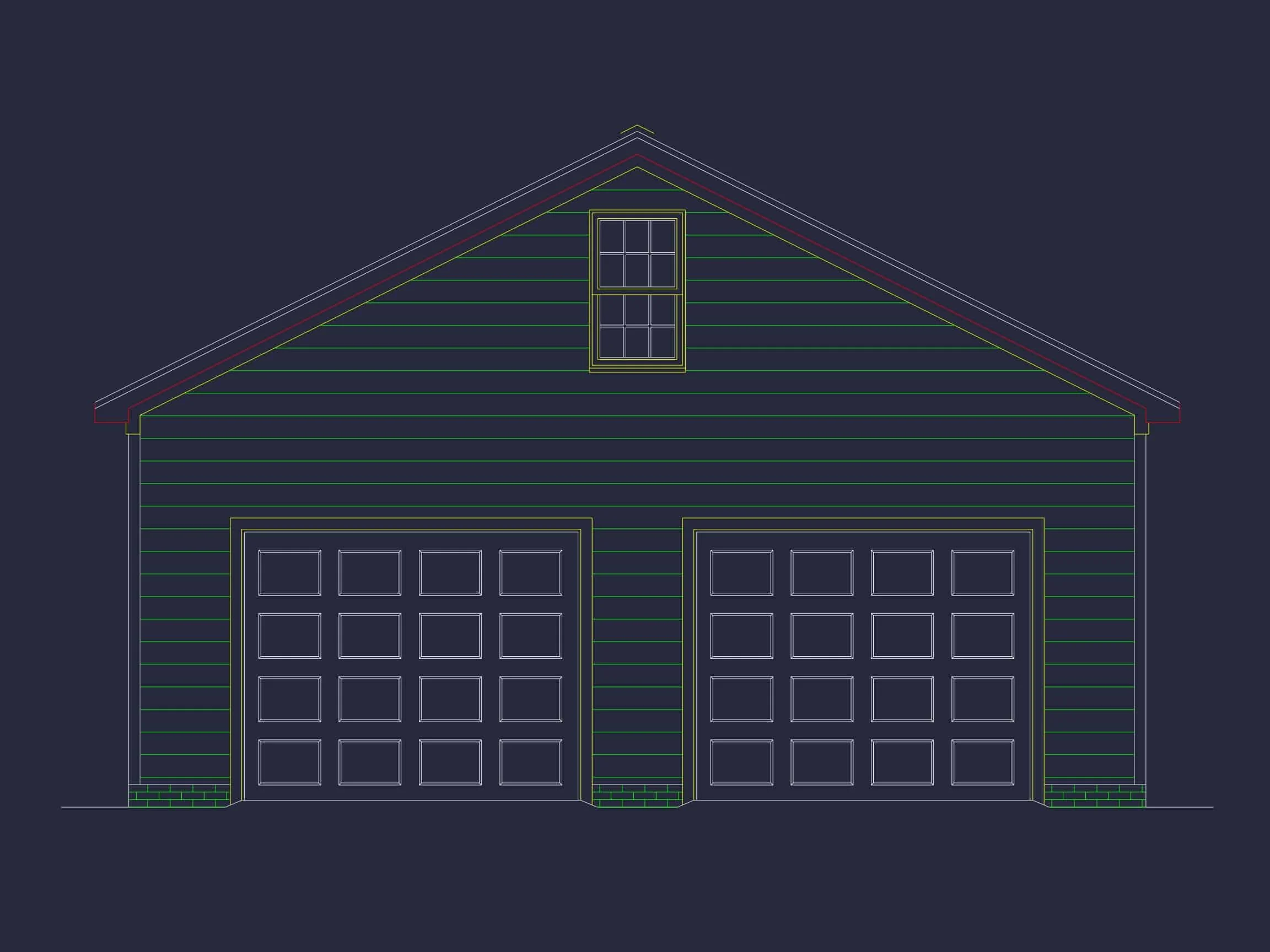

- Garage Bays: 2-car garage with front entry for easy access.
- Garage Type: Attached structure built into the primary layout.
- Storage: Plenty of space within garage bays for tools, gear, or seasonal items.
Outdoor Living Features
- Covered front porch ideal for relaxing or welcoming guests in any weather.

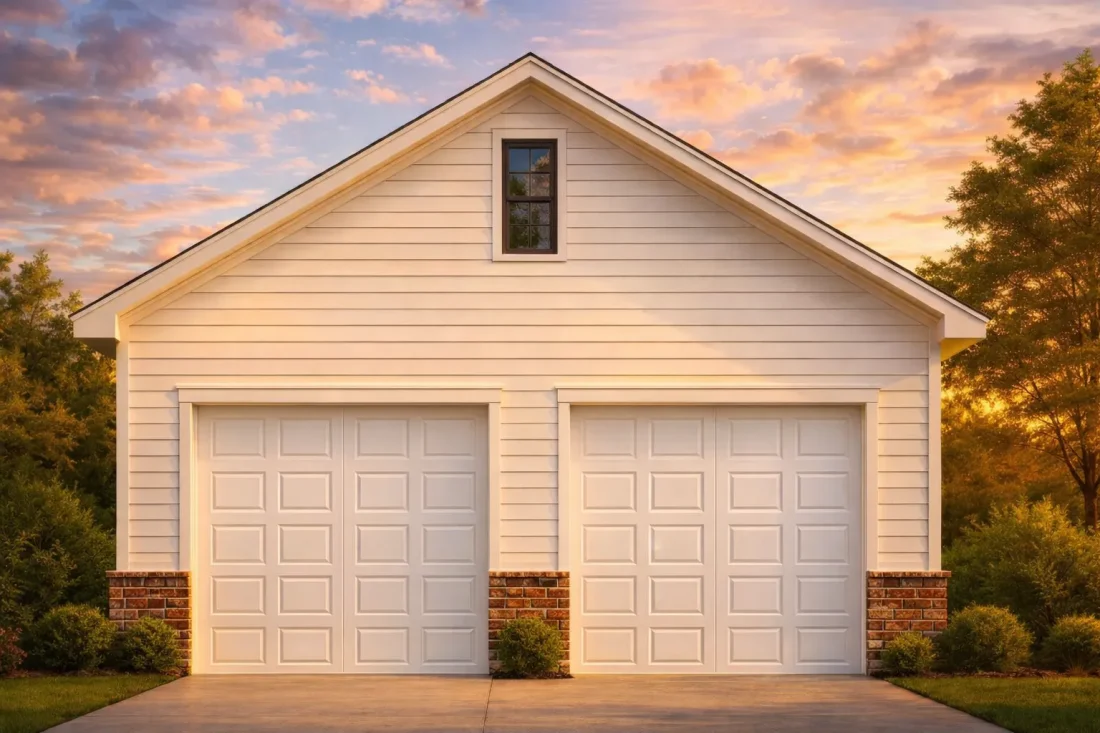

- Exterior finishes include durable siding and brick, offering low-maintenance appeal.
Architectural Style: Modern Utility
This design blends clean materials and efficient planning—perfect for modern homeowners who want a flexible, usable space. Learn more about modern-style designs or explore architectural inspirations on ArchDaily.
Bonus Features
- Front-entry porch adds extra curb appeal and weather protection.
- Ideal as a detached studio, guest retreat, or standalone garage apartment.
- Simple layout makes this design cost-effective to build on narrow lots.
Included Benefits with Every Plan

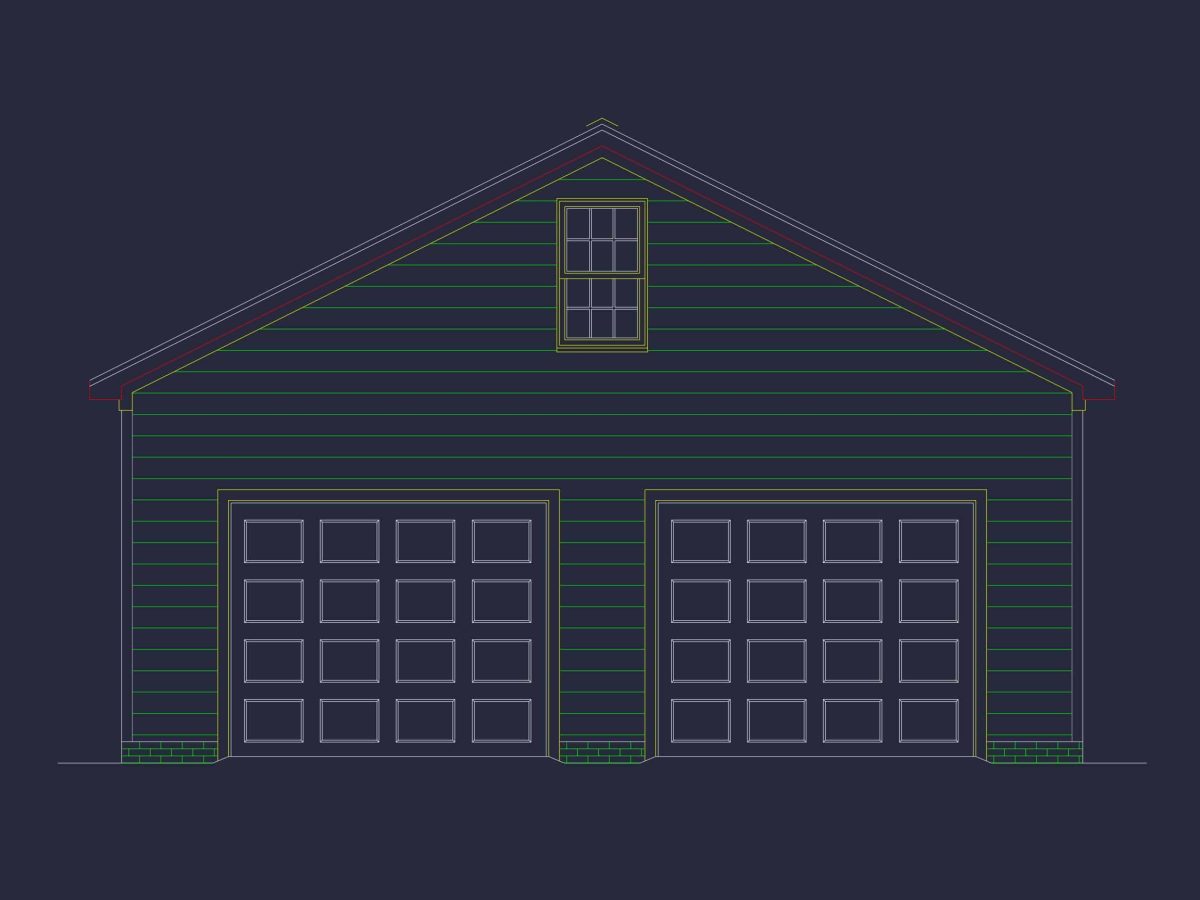

- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.

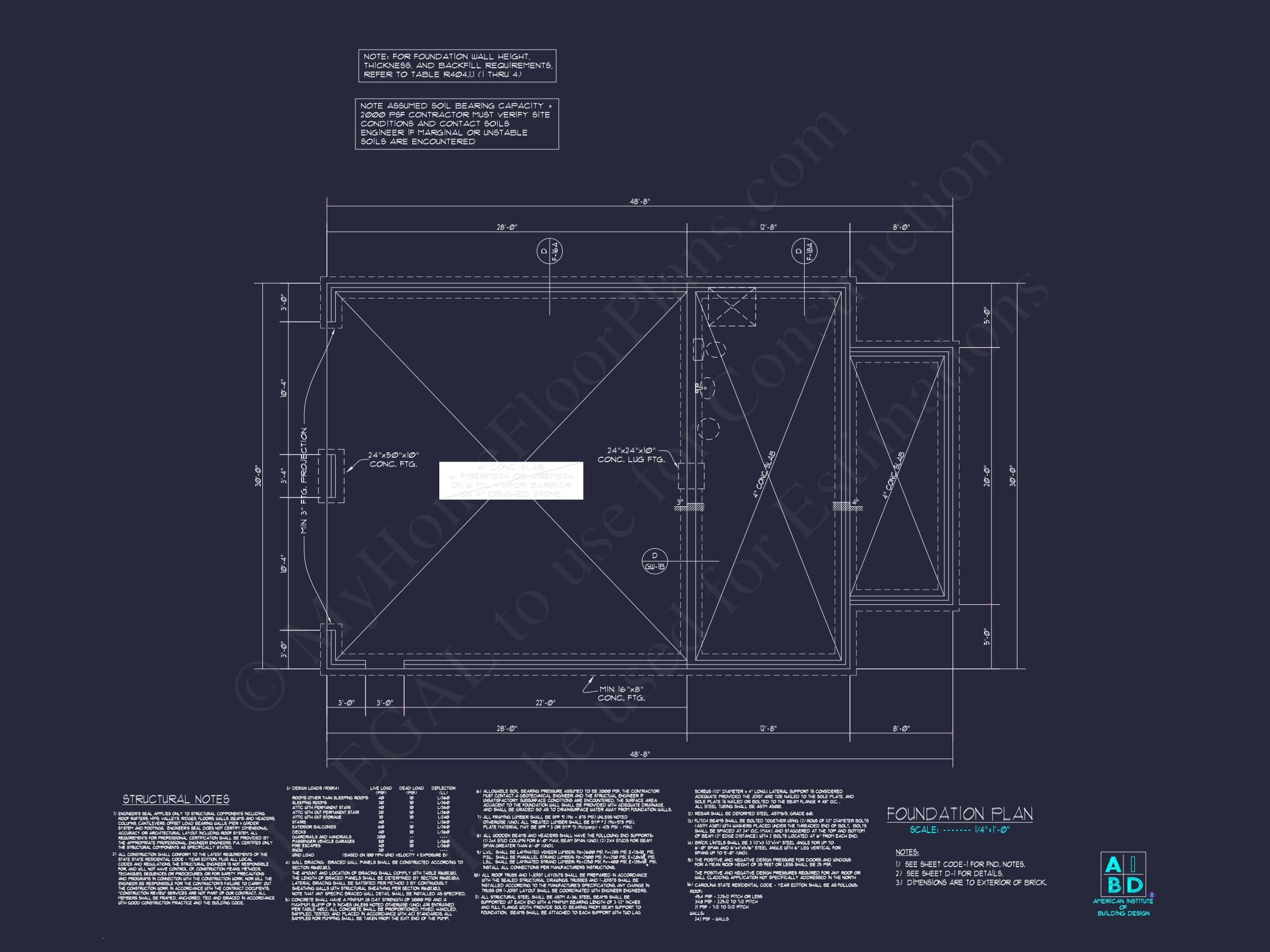

- Free Foundation Changes: Swap between slab, crawlspace, or basement.

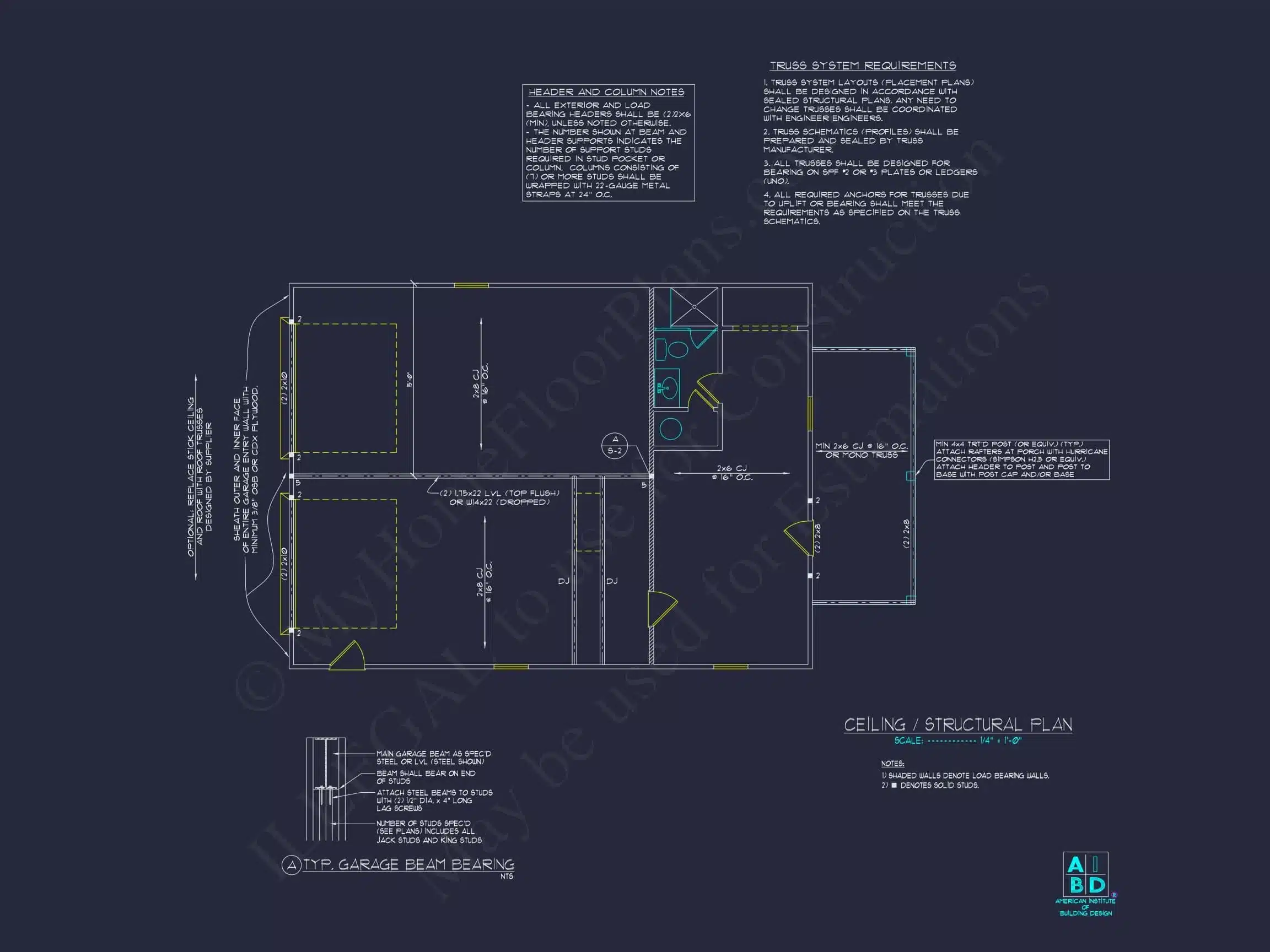

- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Garage Workshop Plans
- Garage Apartment Plans
- Small House Plans
- House Plans with Home Office
- Covered Porch House Plans
Frequently Asked Questions
What’s included with this house plan? All plans come with editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and free foundation changes.
Can I convert the study into a bedroom? Yes. Our team can help modify the plan to add plumbing and closet space. Request a quote.
Is this design good for a guest house or ADU? Absolutely. Its compact size and private layout make it perfect for ADU-style additions.
Can I preview the full set of plans? Yes. Preview every sheet before you buy.
Is structural engineering included? Yes, every plan is professionally engineered to meet residential code.
Start Building Your Dream Garage Space Today
Have questions or want to personalize this plan? Contact our expert team at [email protected] or submit a request.
Start smart—customize your garage + living blueprint today and enjoy versatile space for years to come!
10-1270 GARAGE – Garage and Living Space Plan – CAD Blueprint for Modern Designs
- BOTH a PDF and CAD file (sent to the email provided/a copy of the downloadable files will be in your account here)
- PDF – Easily printable at any local print shop
- CAD Files – Delivered in AutoCAD format. Required for structural engineering and very helpful for modifications.
- Structural Engineering – Included with every plan unless not shown in the product images. Very helpful and reduces engineering time dramatically for any state. *All plans must be approved by engineer licensed in state of build*
Disclaimer
Verify dimensions, square footage, and description against product images before purchase. Currently, most attributes were extracted with AI and have not been manually reviewed.
My Home Floor Plans, Inc. does not assume liability for any deviations in the plans. All information must be confirmed by your contractor prior to construction. Dimensions govern over scale.
