Spacious 2.5-Story Home Plan with 5 Bedrooms and Green Certified Design
Discover this elegant 3, 241 sq. ft. transitional house layout with 5 bedrooms, screened porch, fireplace, and CAD blueprints—perfect for modern living and sustainability.
This transitional-style house plan offers a perfect mix of comfort and functionality. Designed for modern families, it delivers timeless charm, smart space planning, and energy-efficient construction.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 241 sq. ft. across 2.5 stories.
- Unheated extras: Covered porch, screened patio, oversized 2-car garage, and unfinished storage room.
Bedrooms & Bathrooms
- 5 spacious bedrooms including a luxurious Owner Suite with tray ceiling and large walk-in closet (WIC).
- 5+ bathrooms including a Jack and Jill bath for convenience and privacy.
Interior Highlights
- Open floor plan ideal for entertaining and everyday living. Explore open layouts.
- Great Room with elegant fireplace centerpiece. See more fireplace plans.
- Coffered and tray ceilings add architectural interest and visual height.
- Bonus room for flexible use—perfect as a media room, guest suite, or playroom.
Garage & Storage Details
- Garage Bays: 2-car oversized garage for vehicles, tools, and equipment.
- Garage Type: Attached with convenient front-entry access.
- Storage: Large unfinished storage area and walk-in pantry.
Outdoor Living Features
- Spacious screened porch perfect for bug-free outdoor relaxation.
- Elegant covered front porch adds timeless curb appeal.
- Backyard patio area great for hosting or enjoying the outdoors.
- Built-in exterior lighting enhances security and ambiance.
Architectural Style: Transitional & Conventional
This design blends modern lines with conventional charm, featuring energy-efficient materials and green-certified upgrades. Learn more about the Transitional style or explore the architecture roots at ArchDaily.
Bonus Features
- Green certification for energy efficiency and eco-conscious living.
- Tray ceiling in Owner Suite for an elevated luxury look.
- Narrow lot design suitable for sloped or tight lot configurations. See narrow lot plans.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement at no extra cost. Learn more here.
- Structural Engineering Included: Code-compliant and professionally stamped for peace of mind.
- Lower Modification Costs: Customizations are up to 50% more affordable than competitors. Start customizing.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- 5-Bedroom House Plans
- House Plans with Screened Porches
- Plans with Jack and Jill Bathrooms
- Narrow Lot House Plans
- Kitchen Island House Plans
Frequently Asked Questions
What’s included with this house plan? You receive full CAD files, PDFs, a lifetime build license, structural engineering, and foundation customization options.
Can I modify the layout or add features? Absolutely! All plans are customizable at a fraction of competitor pricing. Contact us for a quote.
Is this design energy-efficient? Yes. It’s green certified and uses eco-conscious building practices and materials.
Will this plan work on a narrow or sloped lot? Yes! This plan is designed to accommodate narrow lots and sloped terrains with smart space planning.
Can I preview all the architectural sheets before purchasing? Definitely. View all included sheets here.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or submit your request here.
Your future house starts with a great plan—start building smarter today!
All home plans include BOTH the CAD file and PDF file.

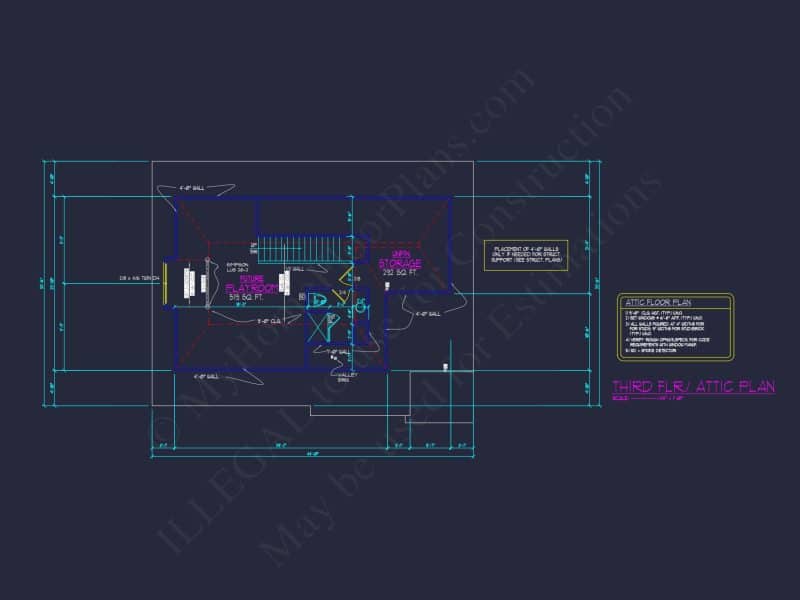

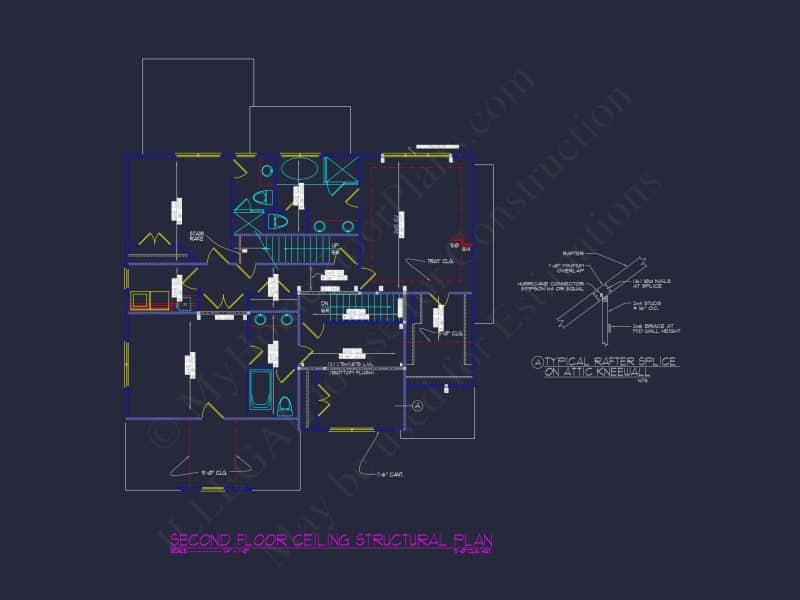

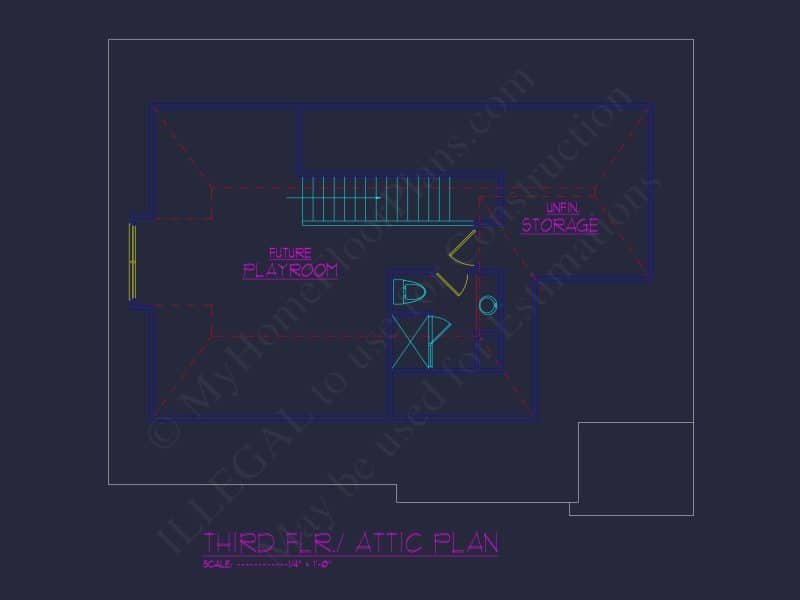

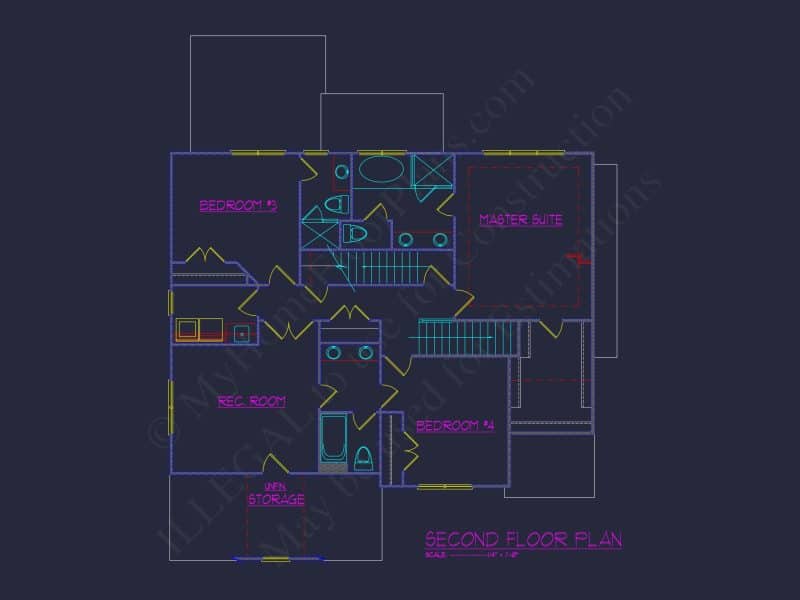

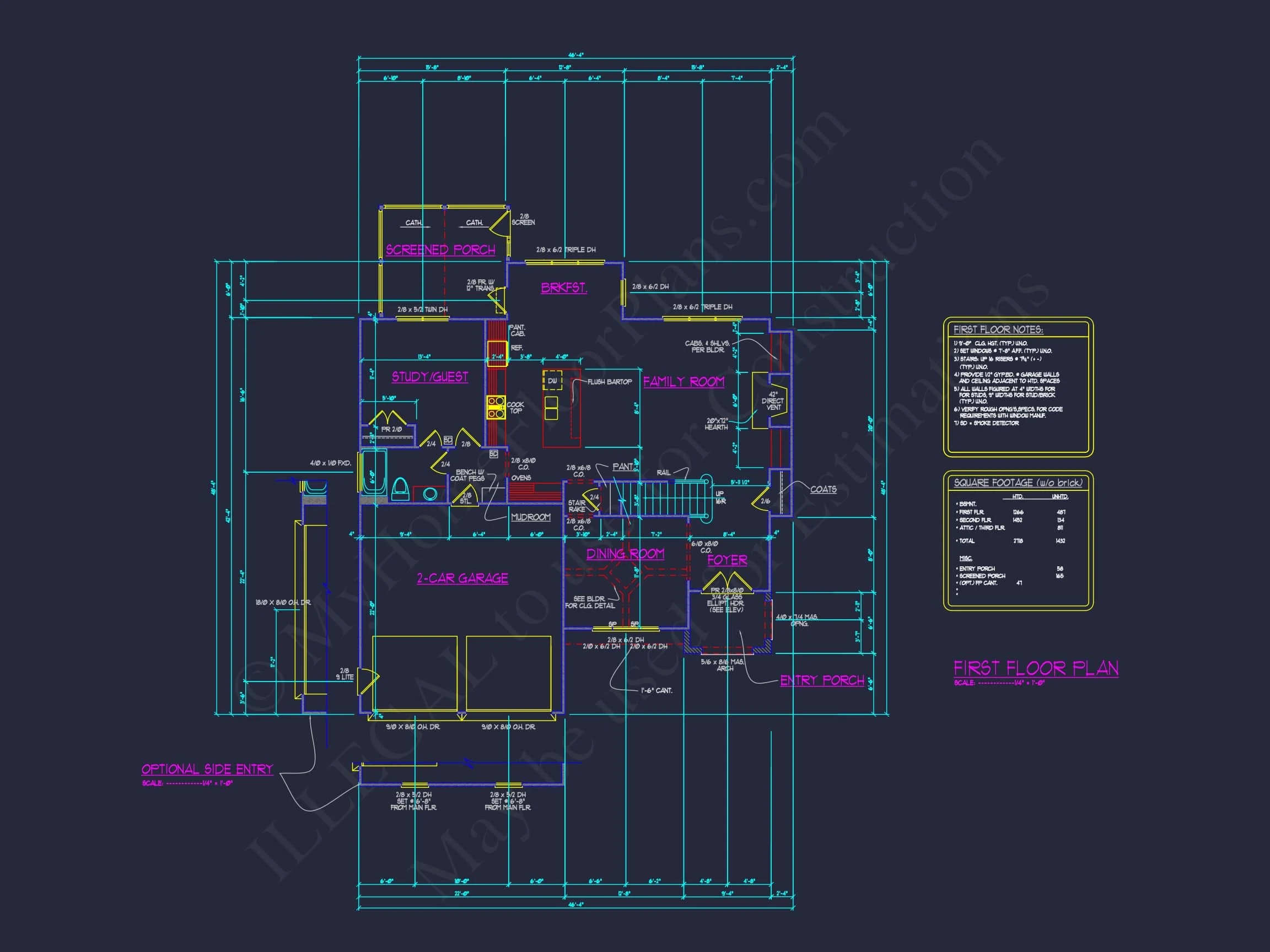

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

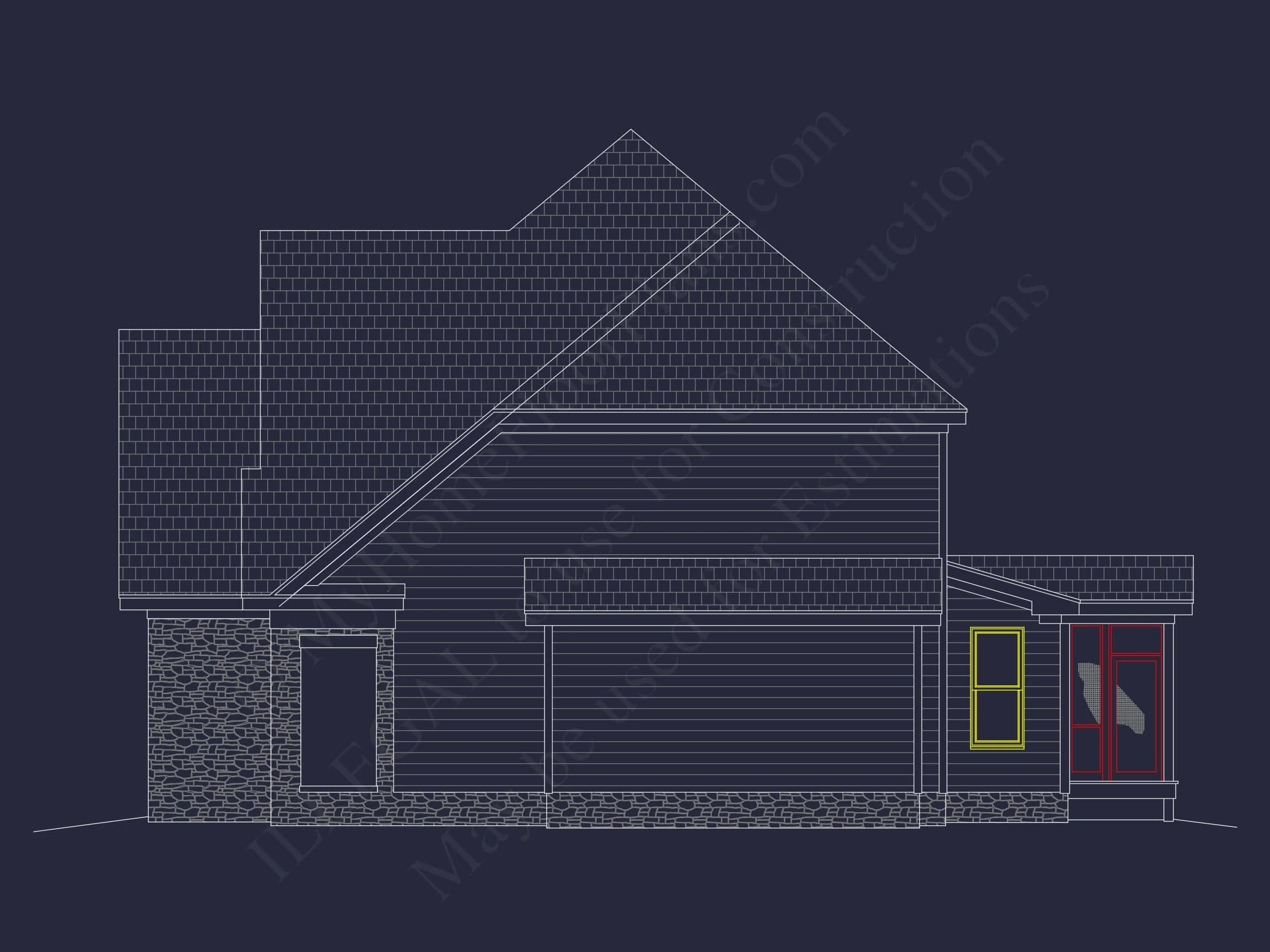

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
