Modern CAD house Design Plan with 3 Bedrooms and 2.5 Bathrooms
Explore this architectural blueprint for a modern 3-bedroom house! Features 2.5 baths,open layout,fireplace,garage,flexible 3rd floor,and CAD files included.
9 FT+ Ceilings | Affordable | Breakfast Nook | Covered Front Porch | Family Room | Fireplaces | Foyer | Front Entry | Jack and Jill | Kitchen Island | Medium | Modern Suburban | Narrow | Office/Study | Open Floor Plan Designs | Owner’s Suite on Second Floor | Patios | Second Floor Bedroom | Starter Home | Traditional | Walk-in Closet
Original price was: $1,099.00.$898.00Current price is: $898.00.
999 in stock
| Width | 36'-0" |
|---|---|
| Depth | 55'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Family Room, Fireplace, Foyer, Office/Study, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Modern CAD house Design Plan with 3 Bedrooms and 2.5 Bathrooms
Explore this architectural blueprint for a modern 3-bedroom house! Features 2.5 baths, open layout, fireplace, garage, flexible 3rd floor, and CAD files included.
Design Your Dream house with This Modern Floor Plan

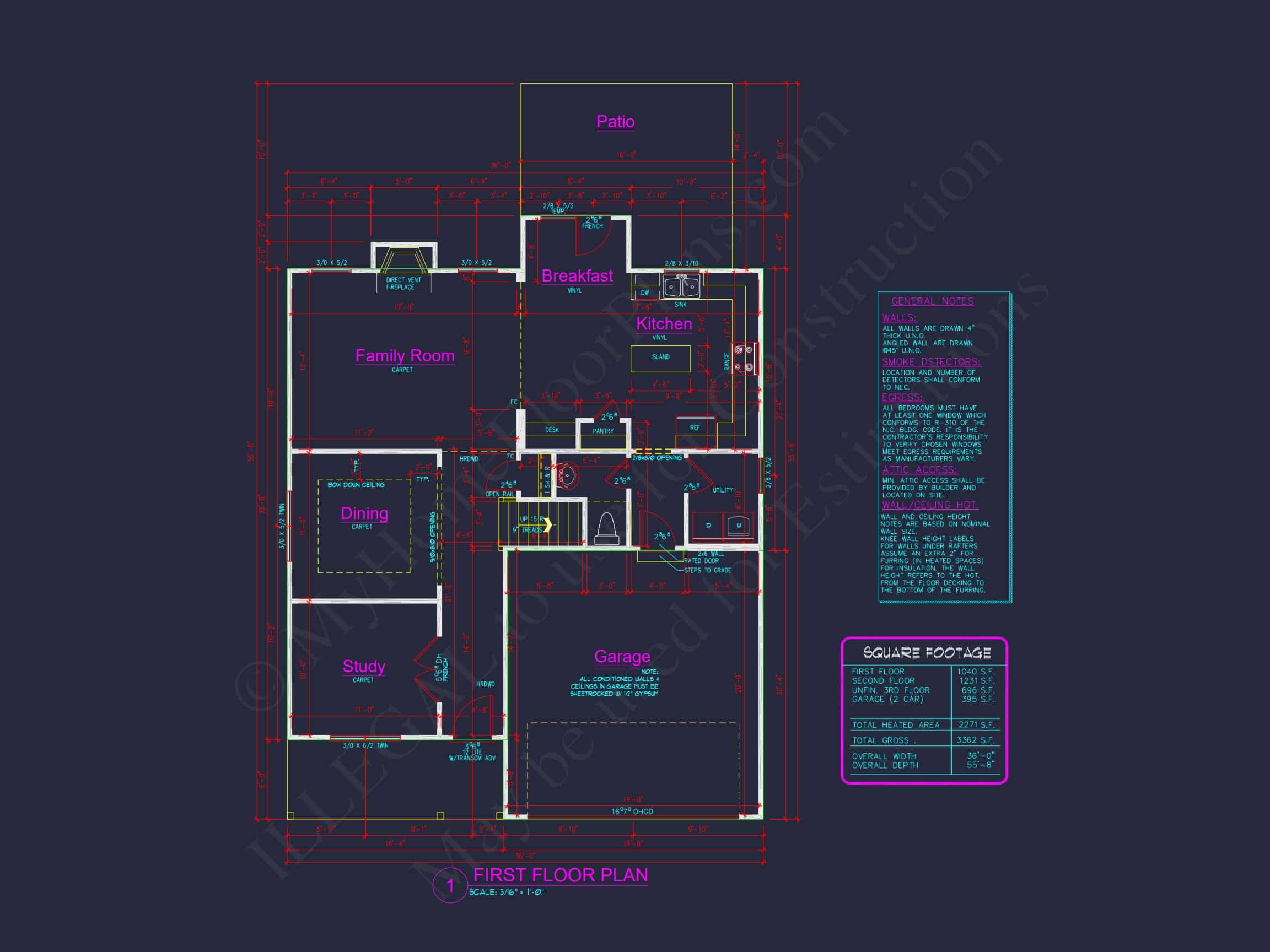

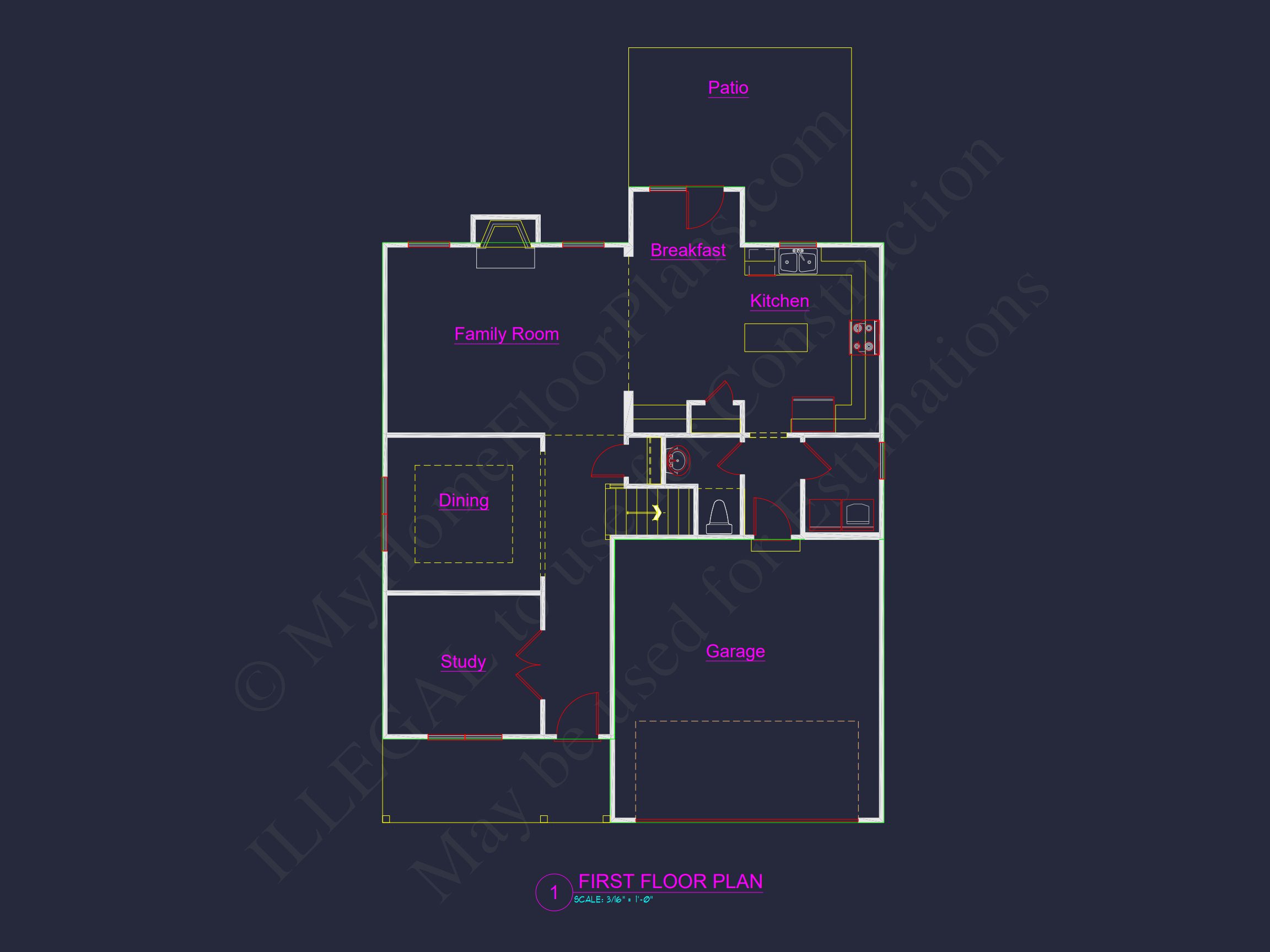

If you're dreaming of building a perfect family house, look no further. With an adaptable and efficient CAD-based house design plan, this 3-bedroom architectural blueprint has it all. Featuring a medium-sized space of 2, 271 heated square feet and additional unfinished areas for flexibility, this plan combines modern aesthetics and functionality to meet your needs.
Flexible Design for Modern Families

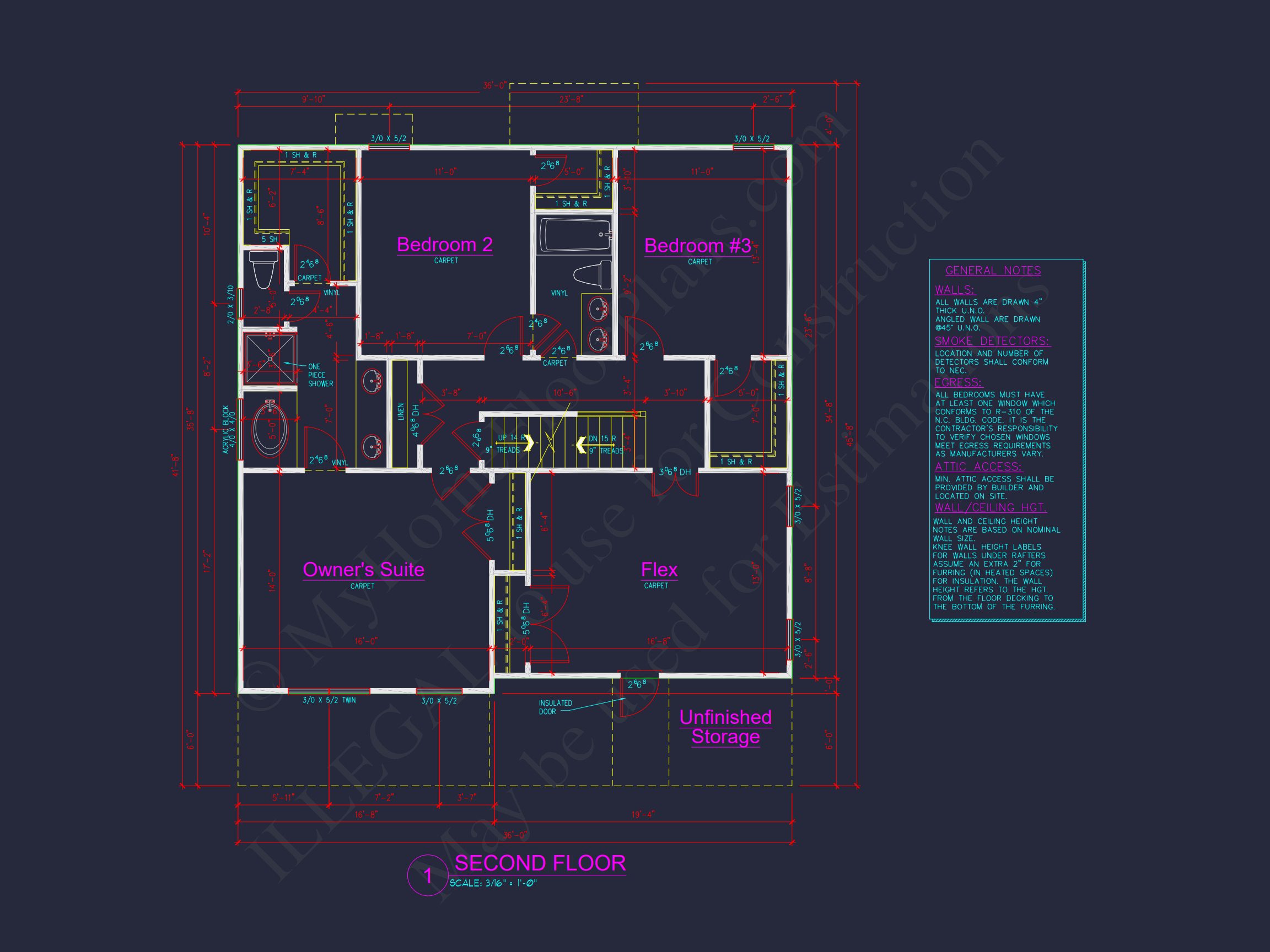

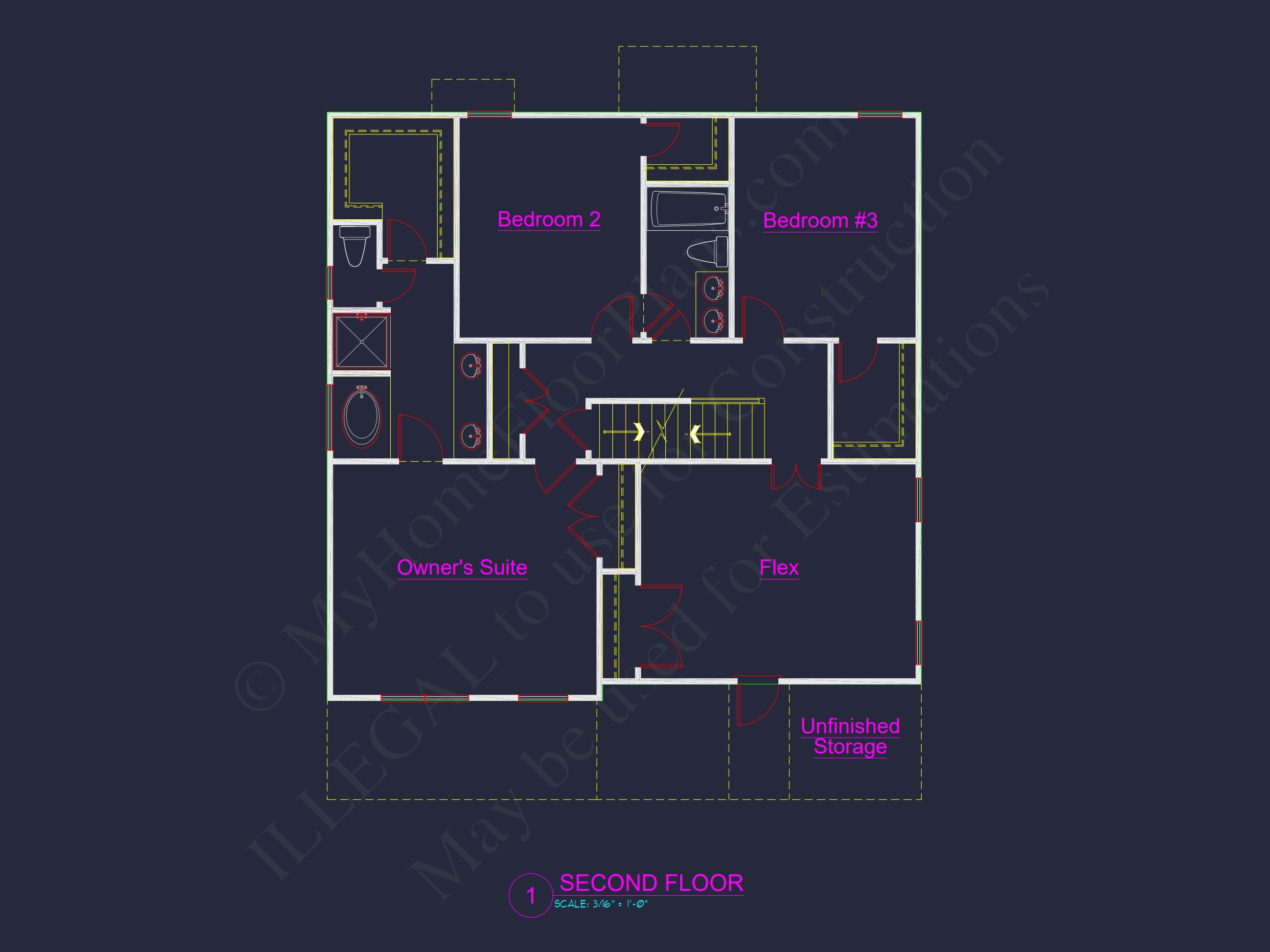

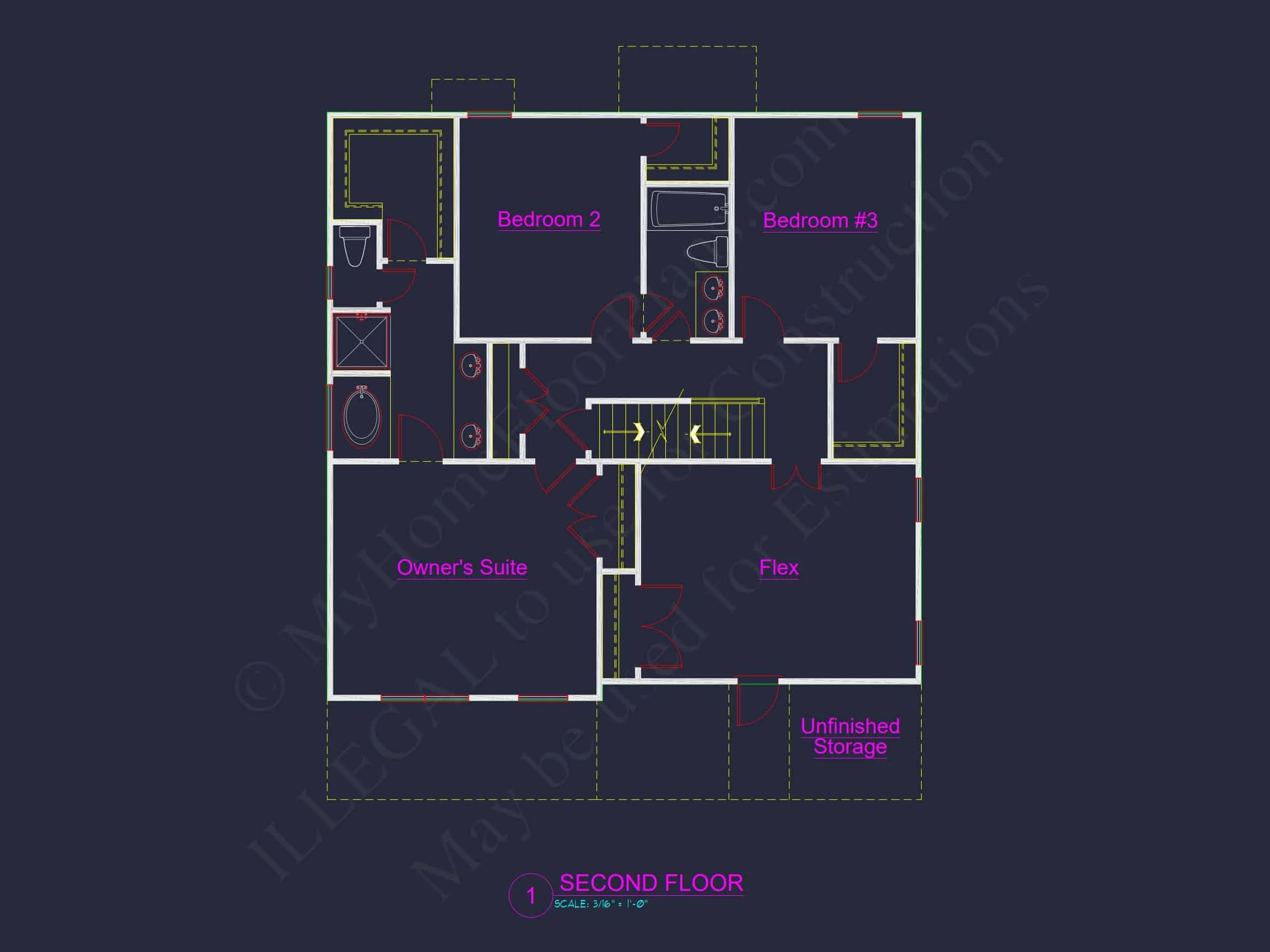

This two and a half-story house boasts a stunning 36-foot wide architectural style, perfect for narrow lots while maximizing interior space. With three spacious bedrooms and two and a half bathrooms, this design elegantly balances private and shared areas. Upstairs, the large owner's suite offers an attached bathroom, a walk-in closet, and proximity to other bedrooms for convenience. Additional unfinished 3rd-floor space opens the door to endless possibilities like a recreational room, guest suite, or house office.
Indoor Features You'll Love
From floor to ceiling, this design offers modern amenities for a comfortable and stylish living experience:
* Open Floor Plan maximizing natural light and space.
* Inviting family room centered around a cozy fireplace.
* Functional kitchen island and breakfast nook for food prep and casual dining.
* Dedicated office/study for work-from-home ease.
* Convenient unfinished 3rd-story space for customization or storage flexibility.
* Relaxing 9-foot ceilings for an open and spacious vibe.
A Cozy Outdoor Living Space
Step outside onto a covered front porch or relax on the patio in the rear, perfect for quiet mornings or gatherings with loved ones. The 2-car garage ensures convenience and plenty of storage for vehicles or a workshop.
Eye-Catching Exterior

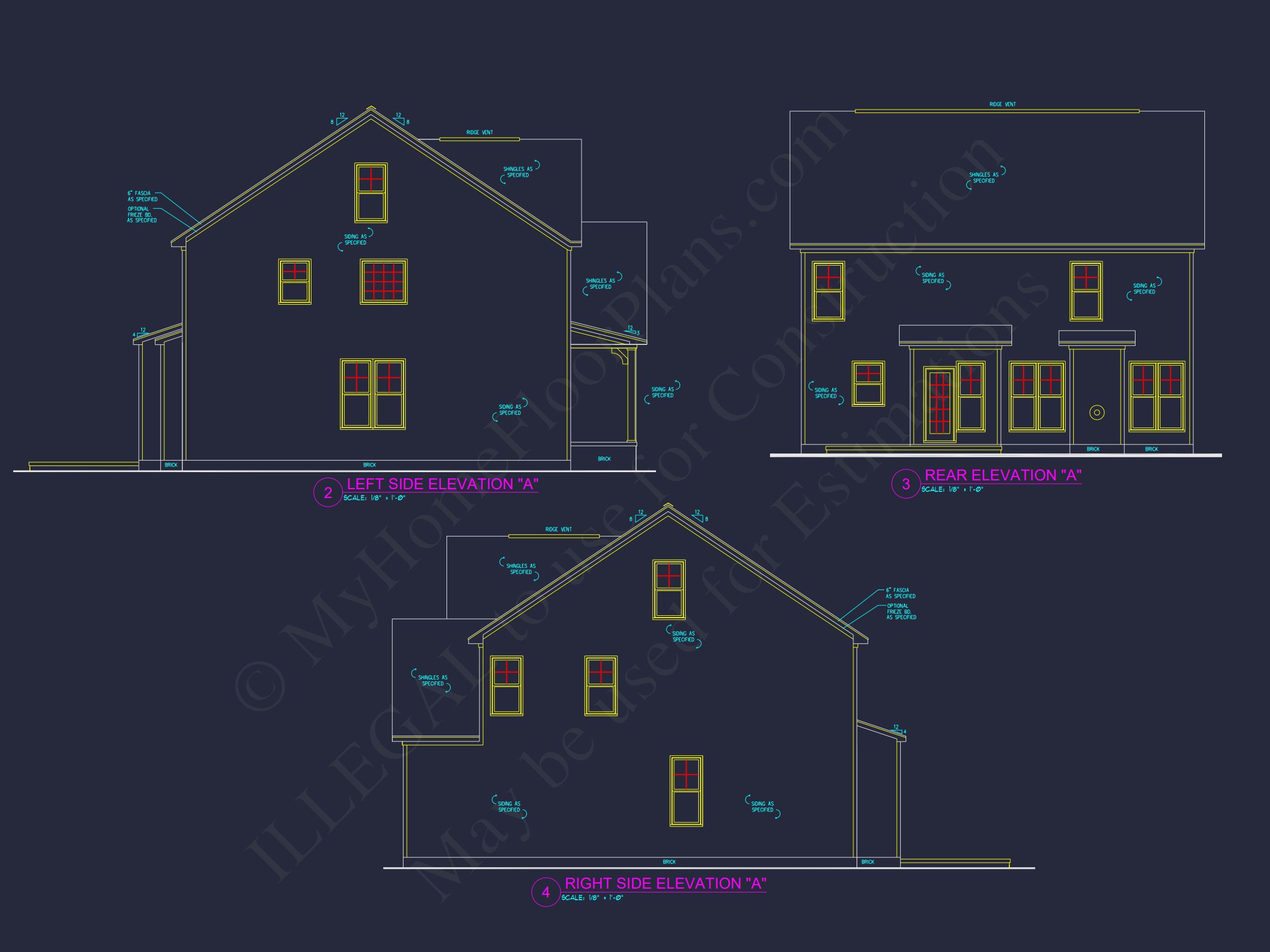

This modern suburban house design combines brick accents with board and batten siding and shingles to create a timeless and aesthetic curb appeal. Whether you prefer traditional charm or modern vibes, this house can adapt beautifully to your neighborhood.
Unique Benefits with Every Plan

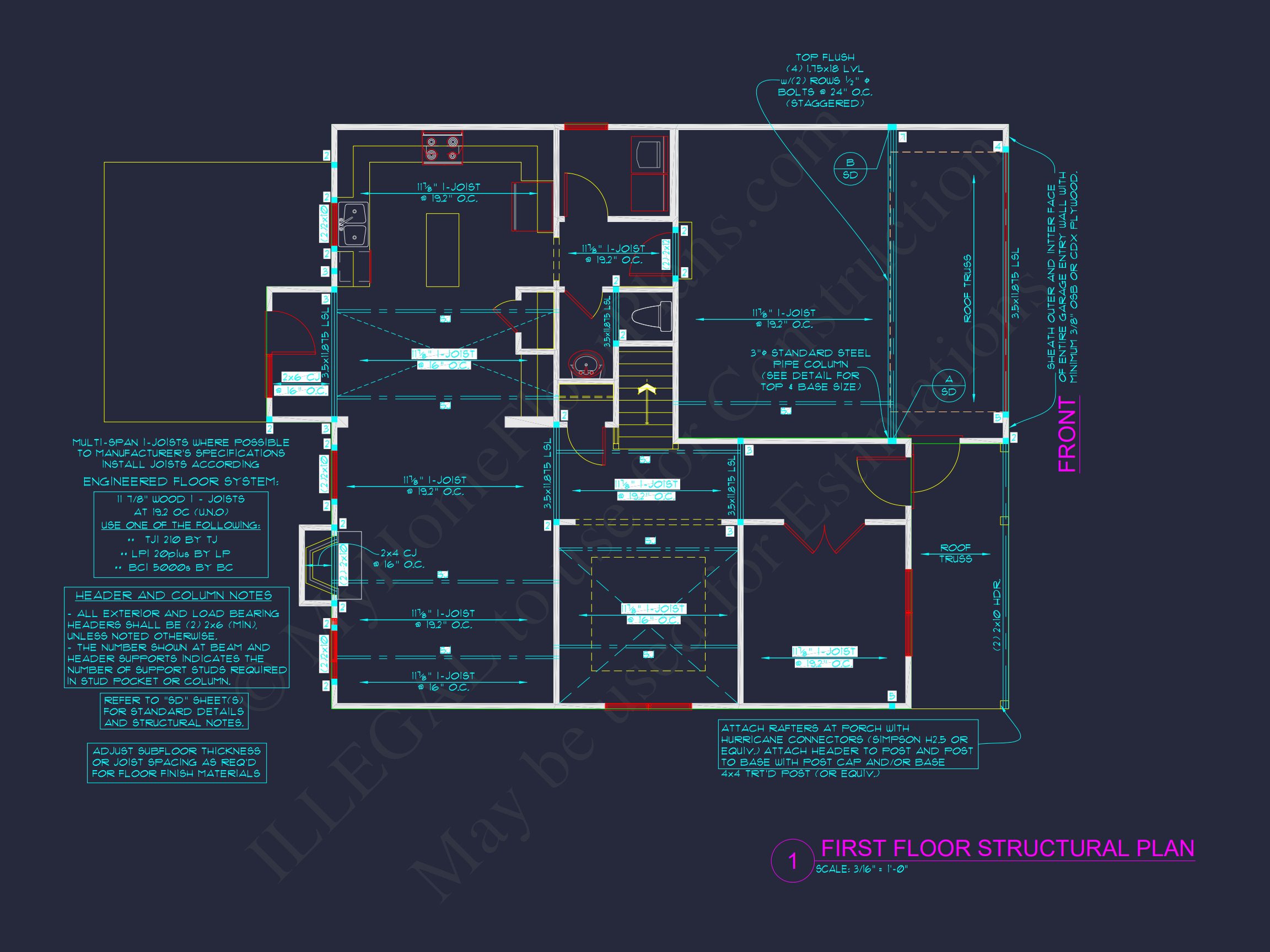

All architectural plans come with a comprehensive CAD blueprint and a PDF version, ensuring ease of customization. Structural engineering details are included, and every purchase features free foundation changes. Unlike other providers, you have access to all plan components before committing, and our modification options are competitively priced!
Start designing your future house today. Email us at support@https://myhomefloorplans.com to make your custom dream house a reality!
All home plans include BOTH the CAD file and PDF file.

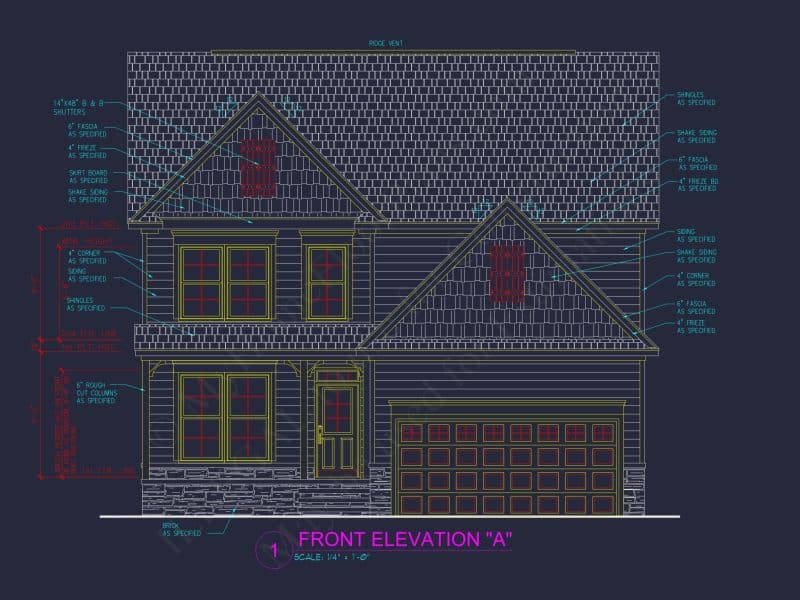

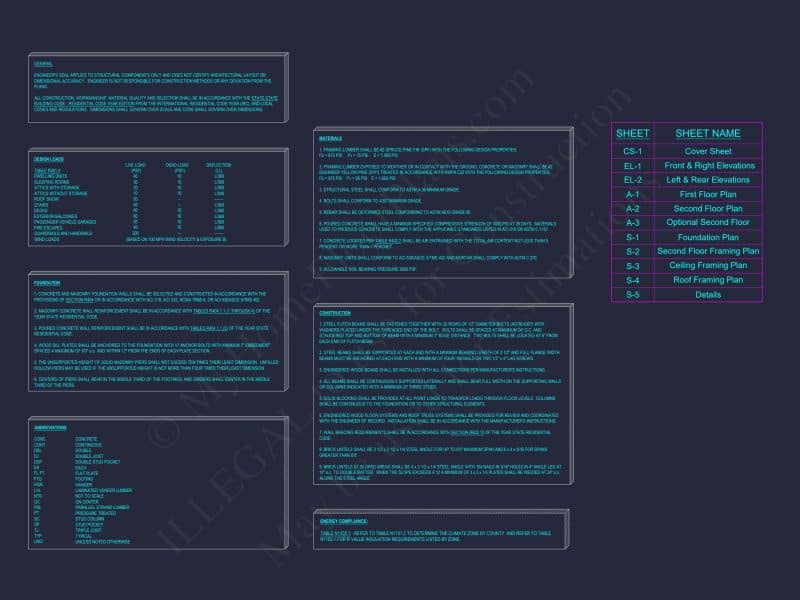

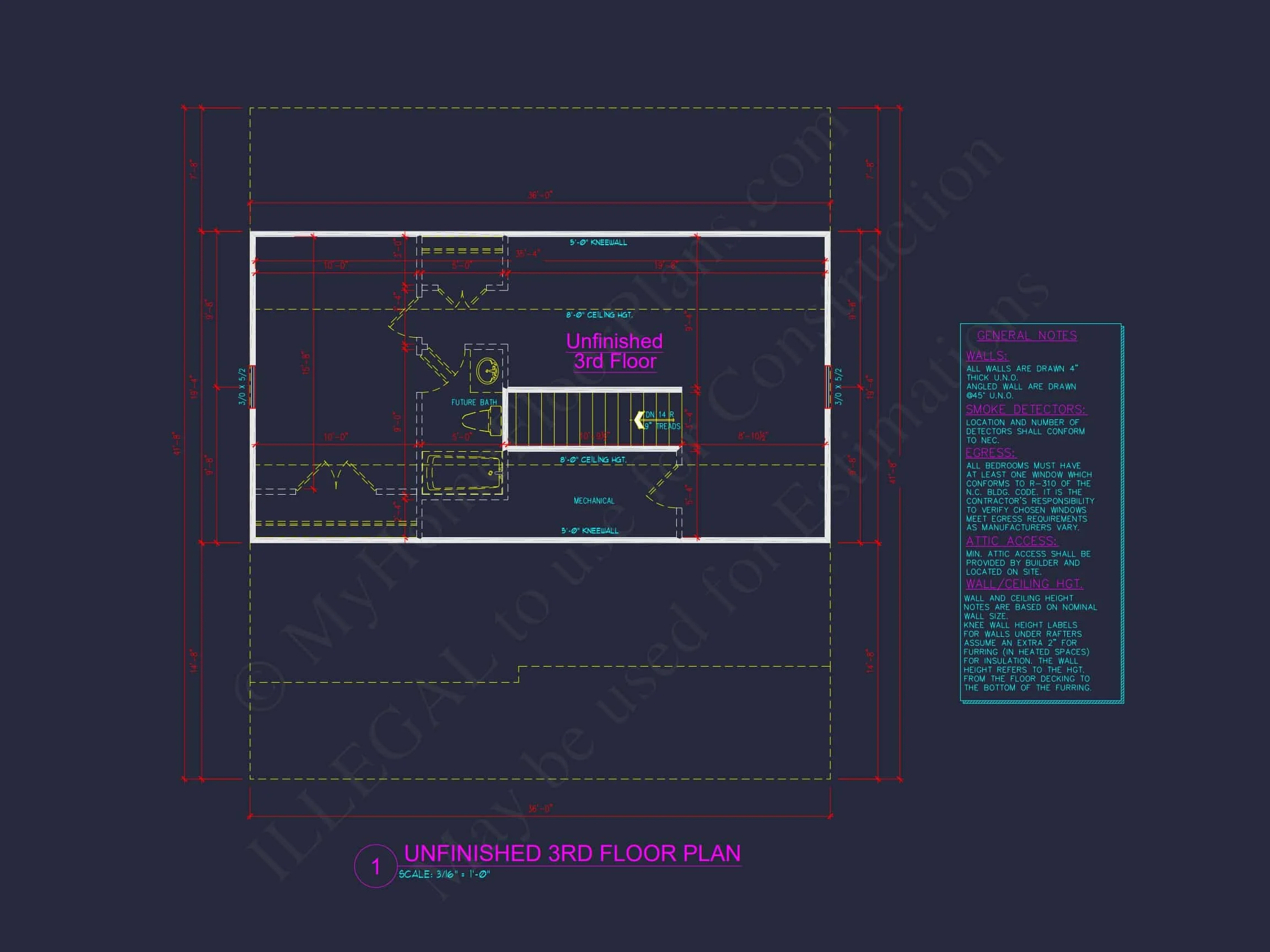

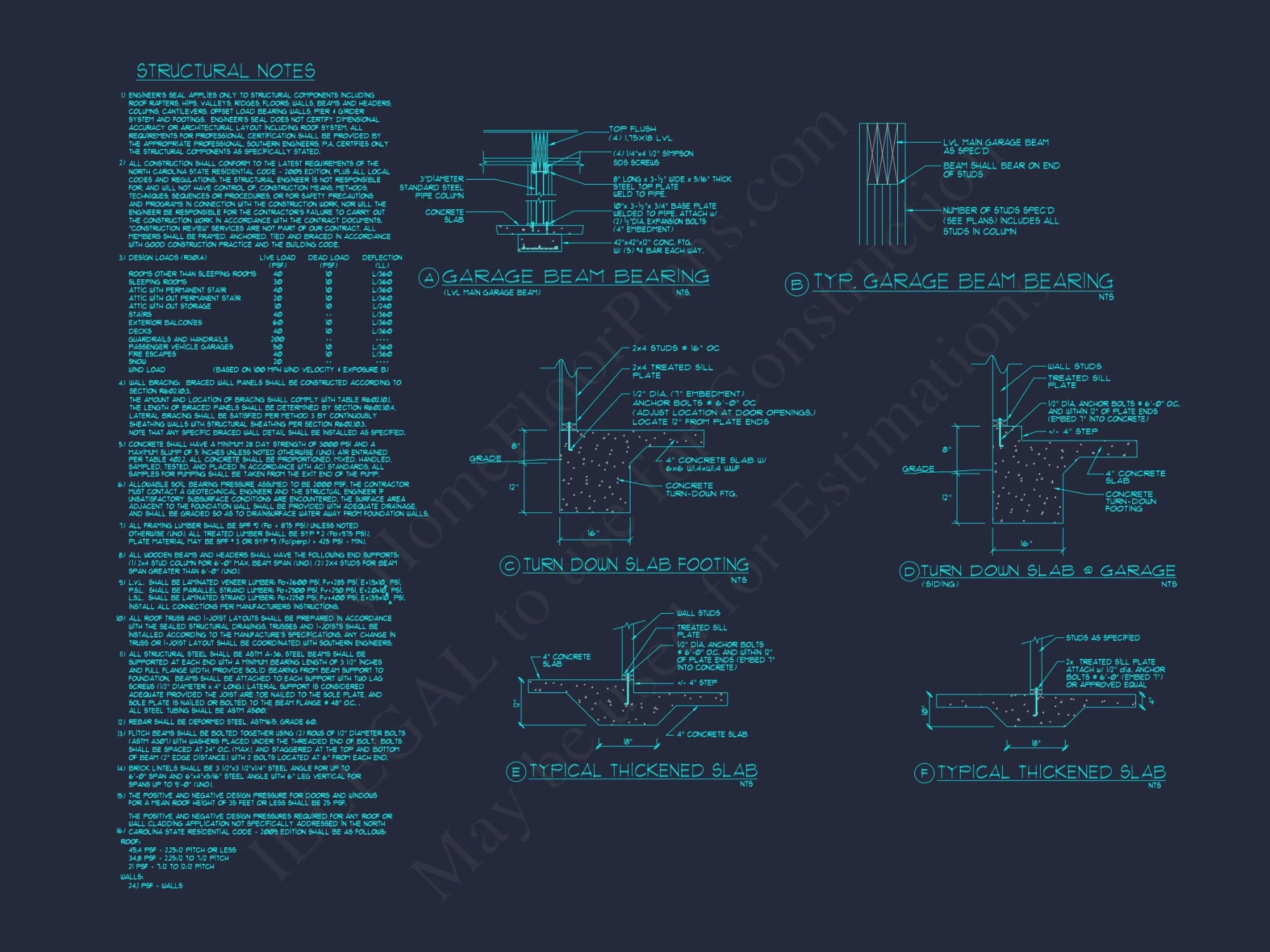

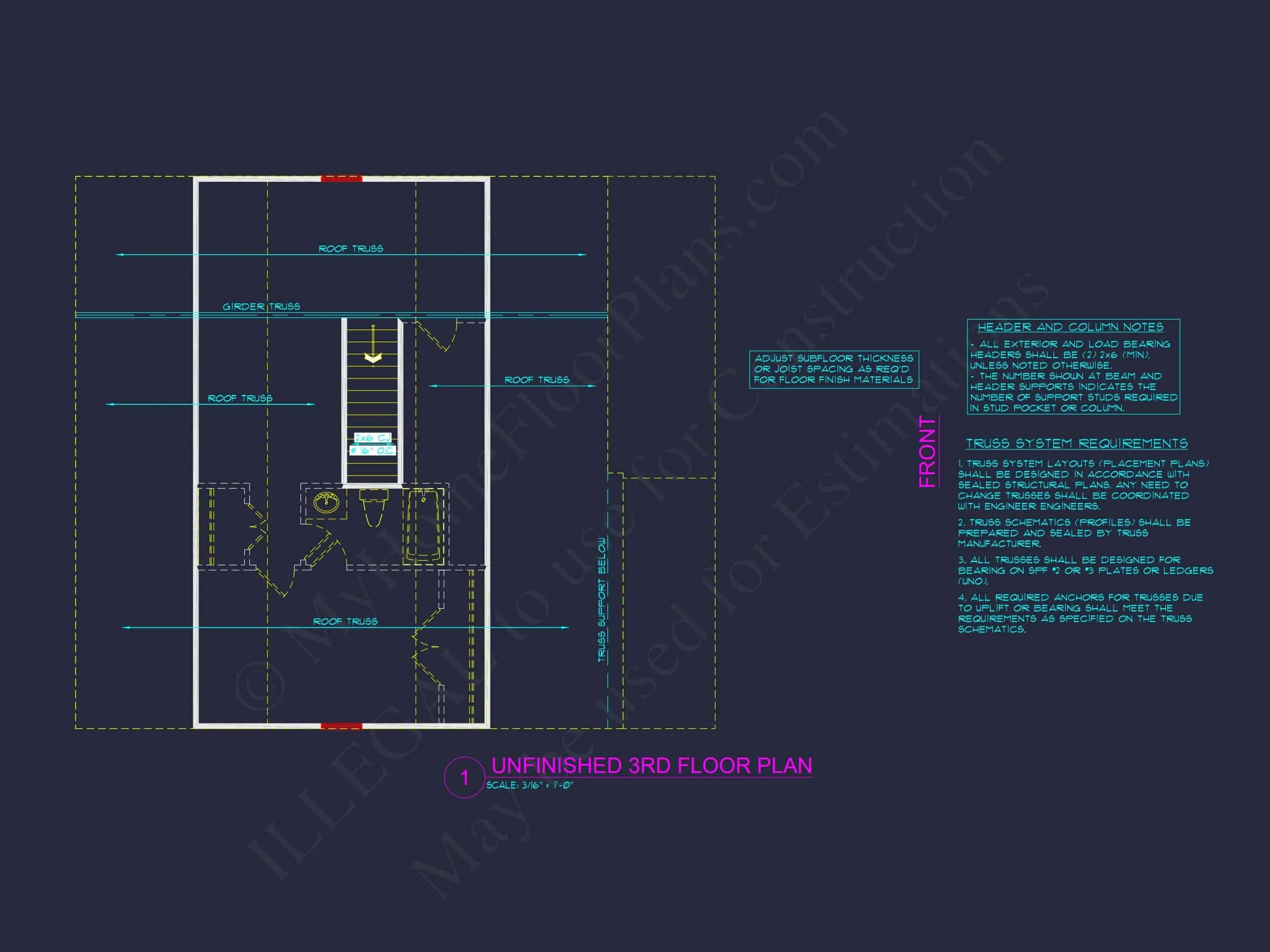

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

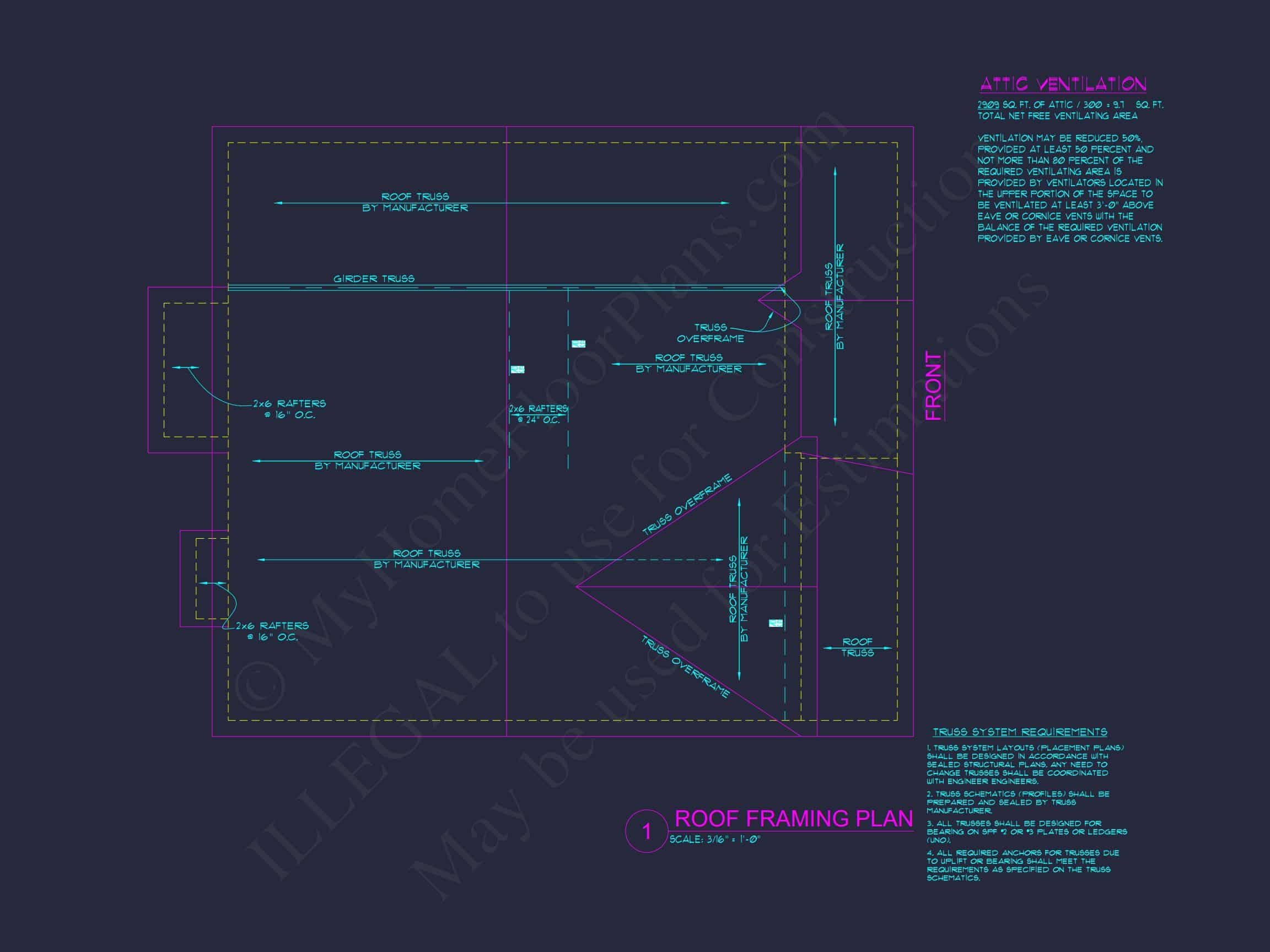

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

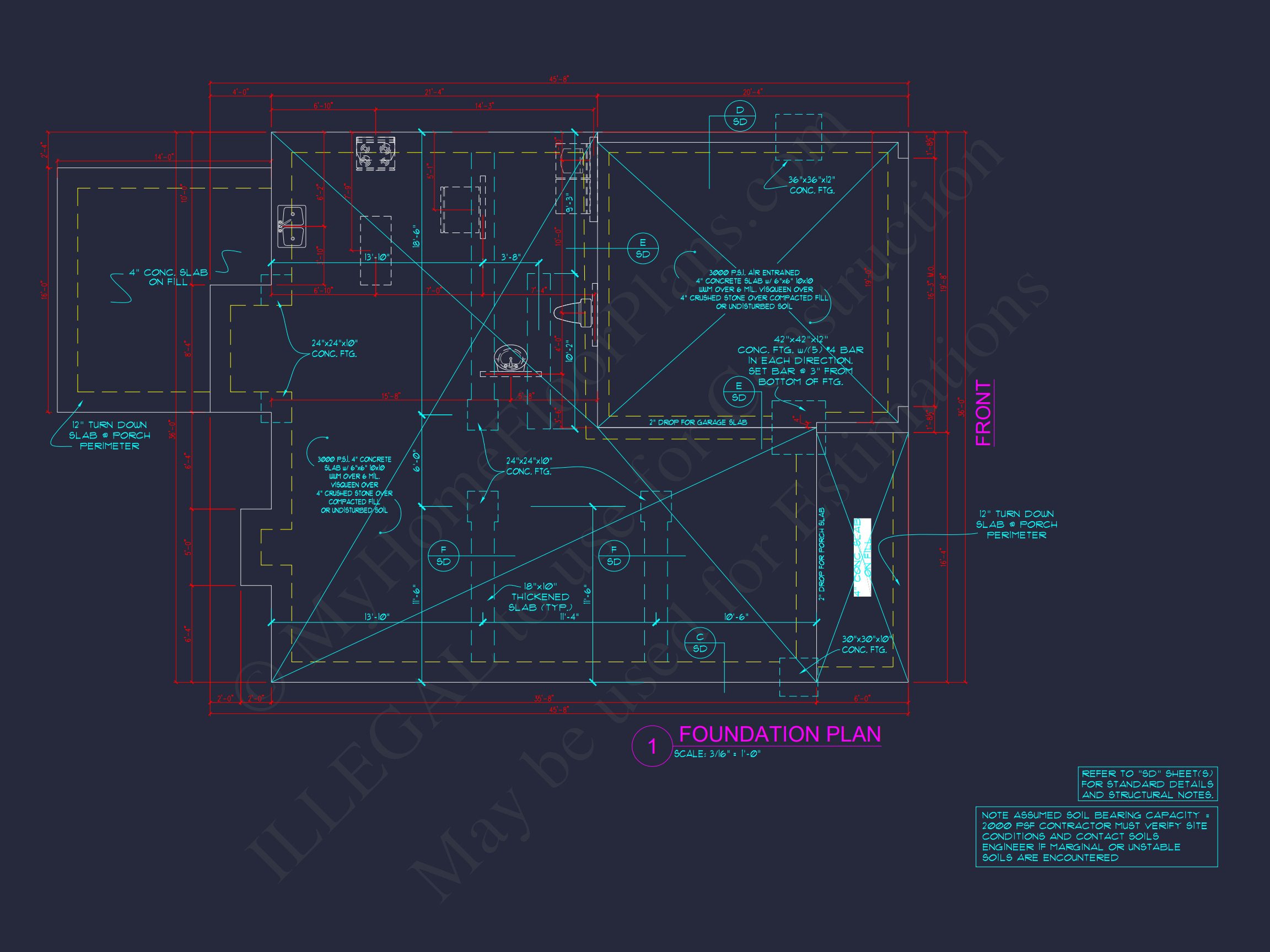

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
