Customizable house Plan with Spacious Floor Layout, CAD-Ready Designs
Discover this customizable house plan featuring 1.5 stories, a spacious floor layout, CAD-ready blueprints, vaulted ceilings, and charming Craftsman designs.
Explore This Stunning Craftsman house Plan
If you’re dreaming of a cozy yet spacious single-family house, this Craftsman-inspired floor plan might be the perfect match. With a width of 40′-11″ and a depth of 70′-0″, this house is ideal for a narrow lot and offers a perfect blend of style and functionality.
Features That Set This house Apart
Elegant Indoor Layout

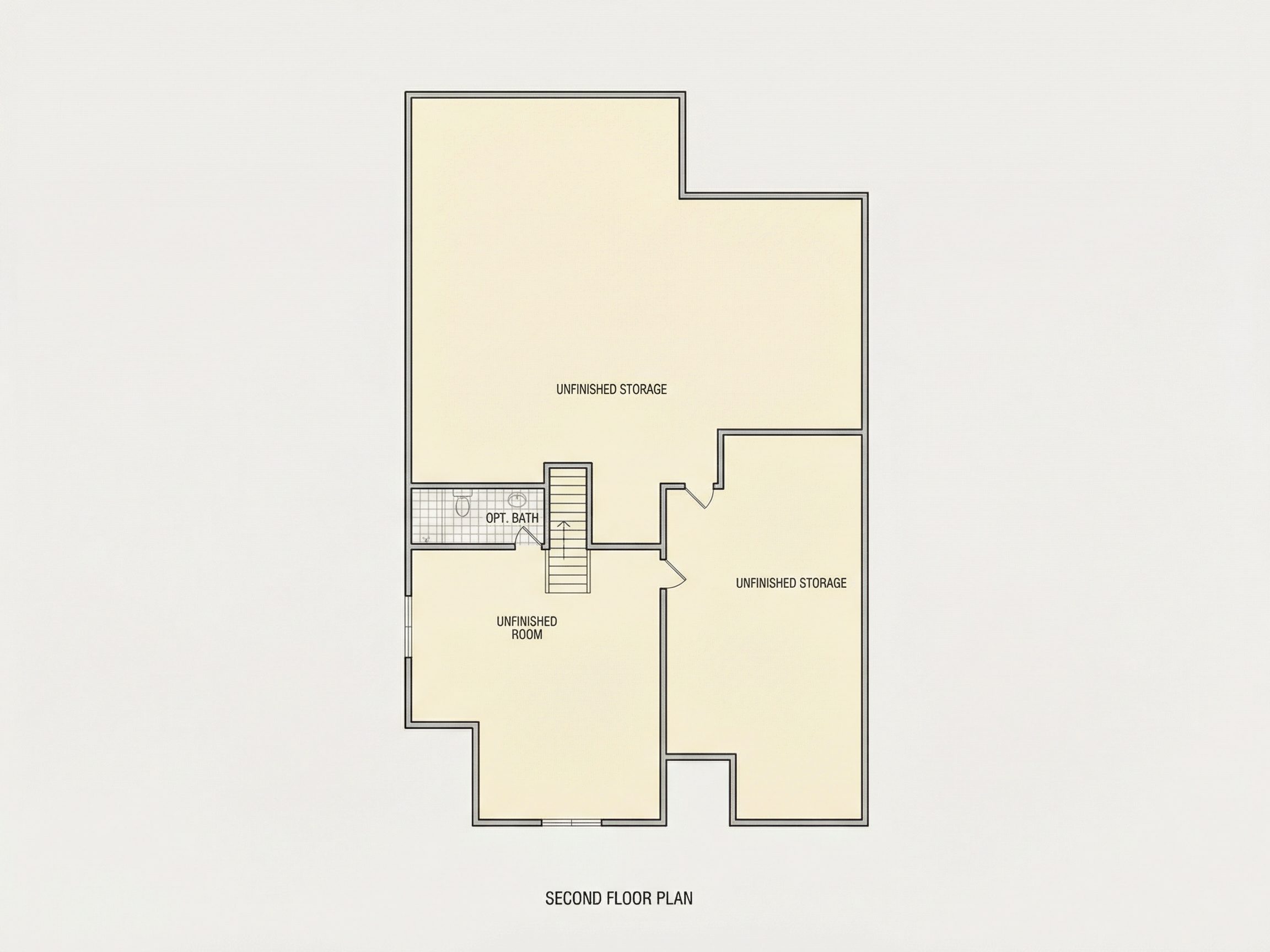

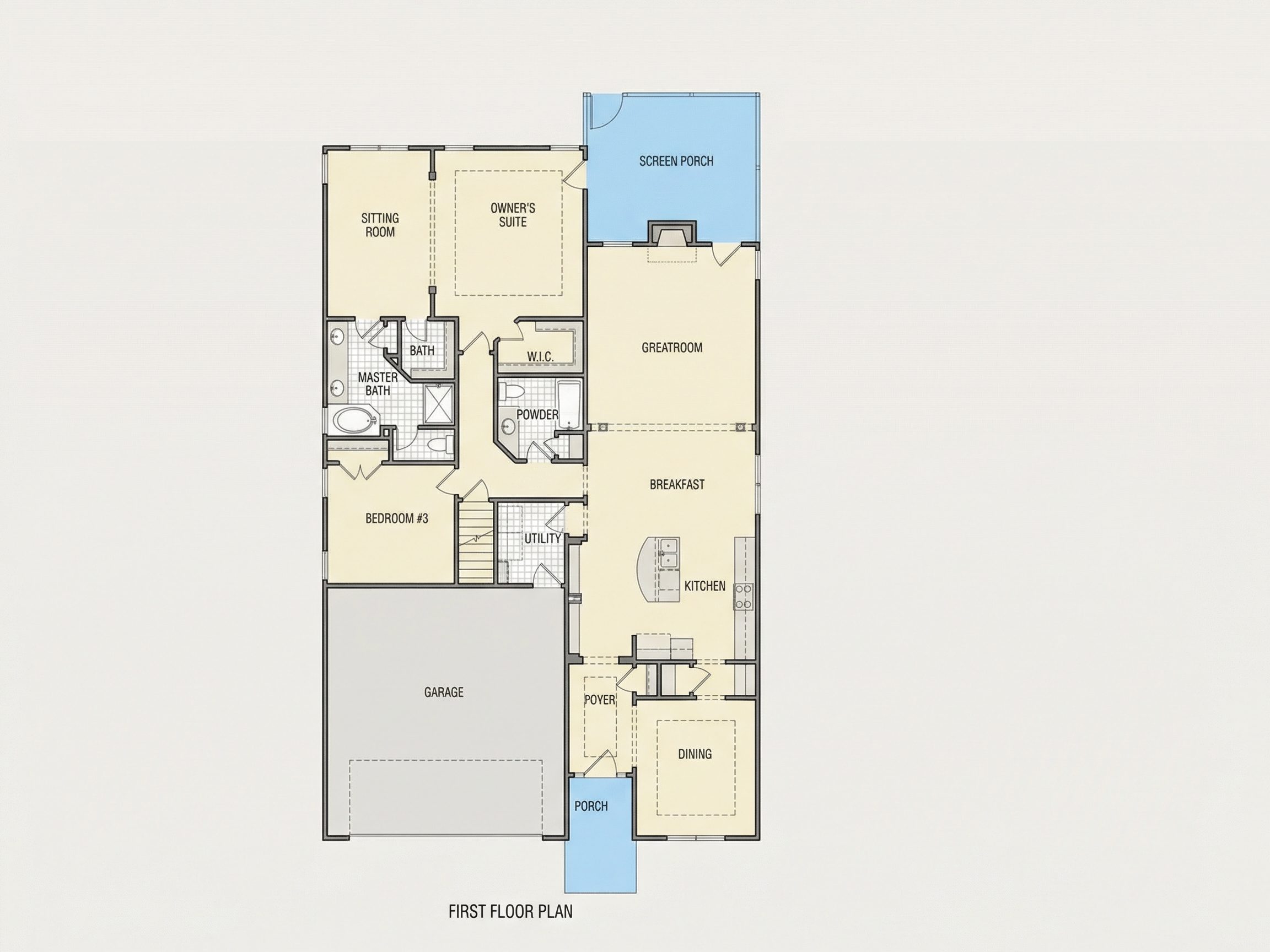

This house offers 1, 940 heated square feet and an optional 519 square feet on the second floor. The open floor plan connects a vaulted-ceiling great room to a well-designed kitchen with a breakfast nook and kitchen island. The Owner suite on the first floor features a walk-in closet, ensuring both privacy and convenience. With three bedrooms and two full bathrooms, plus an optional half-bath, this layout suits families of all sizes.
Key indoor features include:
* Spacious Great Room with natural light
* Open floor plan for seamless connectivity
* Breakfast Nook perfect for casual meals
* Walk-in Closet (WIC) in the Owner suite
* Optional second-floor storage or bedrooms
Outdoor Appeal
The house features a covered front porch and a screened porch, perfect for enjoying the outdoors in any weather. These additions add charm and practicality to the design, making it great for hosting friends or relaxing in solitude.
Exterior and Materials
The Craftsman-style architecture shines with a combination of stone, siding, and shingles. These materials provide durability and aesthetic appeal, ensuring your house stands the test of time.
Benefits Included With Every Plan
When you purchase this plan, you’ll receive CAD files and a PDF version, along with an unlimited-build license and complimentary foundation changes. Unlike other providers, we offer detailed previews of every sheet before purchase, ensuring complete transparency. Plus, you can modify the designs at a fraction of the cost of competitors.
Ready to Design Your Dream house?
Reach out to us at [email protected] to start customizing your dream house today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
11-1493 house PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
