11-1801 GARAGE – Stylish 24×28 Garage Plan with Living Space and CAD Design
Explore this 24x28 garage floor plan with living space featuring 429 heated sq. ft., 2 car bays, CAD files, and architectural designs perfect for any builder.
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 24'-0" |
|---|---|
| Depth | 28'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Bed and Bath Features | |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
David Gaines – February 9, 2025
Our appraiser said the structural stamp added real value to the banks collateral file.
Save to Pinterest!

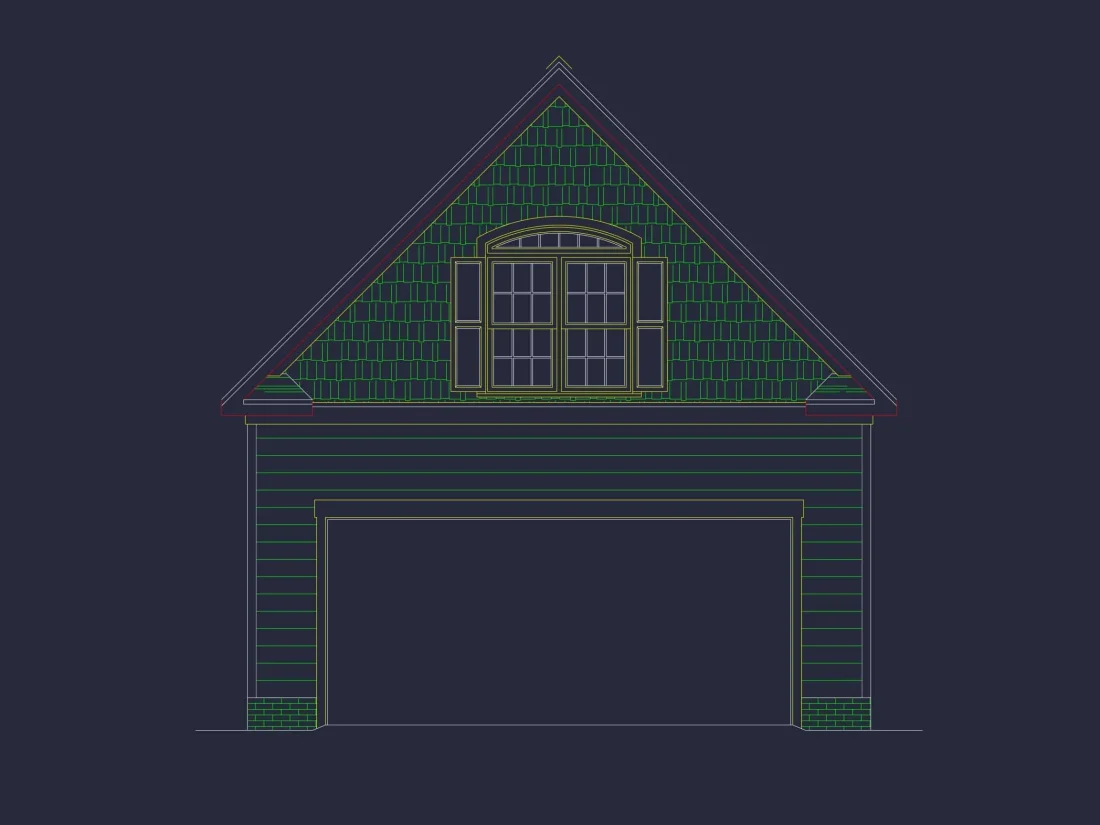

Stylish 24×28 Garage Plan with Living Space and CAD Design
Explore this 24×28 garage floor plan with living space featuring 429 heated sq. ft., 2 car bays, CAD files, and architectural designs perfect for any builder.
This garage apartment plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning in a compact footprint.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 429 sq. ft. across a functional upper-level layout.
- Unheated extras: 612 sq. ft. garage bays with durable slab foundation.
Bedrooms & Bathrooms
- 1 cozy upstairs bedroom with a walk-in closet for added storage.
- 1 full bathroom located for privacy and convenience.
Interior Highlights
- 16’x16′ recreational room ideal for entertainment, hobbies, or a lounge.
- Upstairs laundry area keeps chores efficient and localized.
- Compact kitchenette with wet bar—great for short-term stays or guests.
- Spacious 10-foot ceilings enhance openness and natural light.
Garage & Storage Details
- Garage Bays: 2-car front-entry garage bays with generous width.
- Garage Type: Attached with direct access to living quarters.
- Storage: Garage-level storage and flexible upstairs closets.
Outdoor Living Features
- Sturdy exterior detailing with a blend of brick, shake, and siding materials.
- Shingle Style curb appeal adds a charming, finished look to any property.
Architectural Style: Shingle Style
This design blends durable materials and smart vertical space usage—perfect for compact lots or accessory dwelling needs. Learn more about the Shingle Style or explore its roots on ArchDaily.
Bonus Features
- Wet bar doubles as a kitchenette—perfect for short-term guests or studio use.
- Recreational room creates multifunctional value for work or relaxation.
- Walk-in closet in the bedroom offers exceptional storage.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Garage and Vehicle Storage Plans
- Detached Garage Plans
- ADU House Plans
- Plans with Recreation Rooms
- Small House Plans
Frequently Asked Questions
What’s included with this garage plan? You’ll receive full CAD and PDF blueprints, an unlimited build license, structural engineering, and free foundation swaps.
Can this plan be modified? Absolutely. Our team can customize the floor plan to meet your needs—get a quick quote.
Is this suitable for an ADU or guest house? Yes! The private bedroom, full bath, and recreational space make it ideal for guest use or a short-term rental.
How high are the ceilings? The design includes 10-foot+ ceilings for a spacious, airy feel throughout.
Can I use this plan on a narrow lot? Definitely. The 24′ wide footprint is ideal for tighter lot configurations or back-lot garage installations.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
