Versatile Garage house Plan with CAD Designs & Storage Options
Explore a detailed garage house plan with CAD designs, a spacious 2-car bay, and attic storage. Perfect for functional and affordable architectural designs.
Affordable | Attics | Detached | Front Entry | Simple | Vaulted Ceiling
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 23'-0" |
|---|---|
| Depth | 26'-0" |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Indoor Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Versatile Garage House Plan with CAD Designs & Storage Options
Explore a detailed garage house plan with CAD blueprints, a spacious 2-car bay, and attic storage—perfect for functional and affordable architectural designs.
This garage house plan offers a perfect mix of practicality and thoughtful design. Created for homeowners, builders, and designers, it combines long-term utility with a clean, modern layout.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: None—this is a non-living garage plan optimized for vehicle and equipment storage.
- Unheated extras: Spacious 2-car garage bay and attic storage.
Bedrooms & Bathrooms
- No bedrooms or bathrooms—this is a dedicated garage structure with extra space above for storage or a future loft.
Interior Highlights
- Vaulted ceilings add vertical volume and make the attic easily accessible.
- Open garage bay simplifies vehicle parking and tool access.
- Attic space provides ideal seasonal or overflow storage options.
Garage & Storage Details

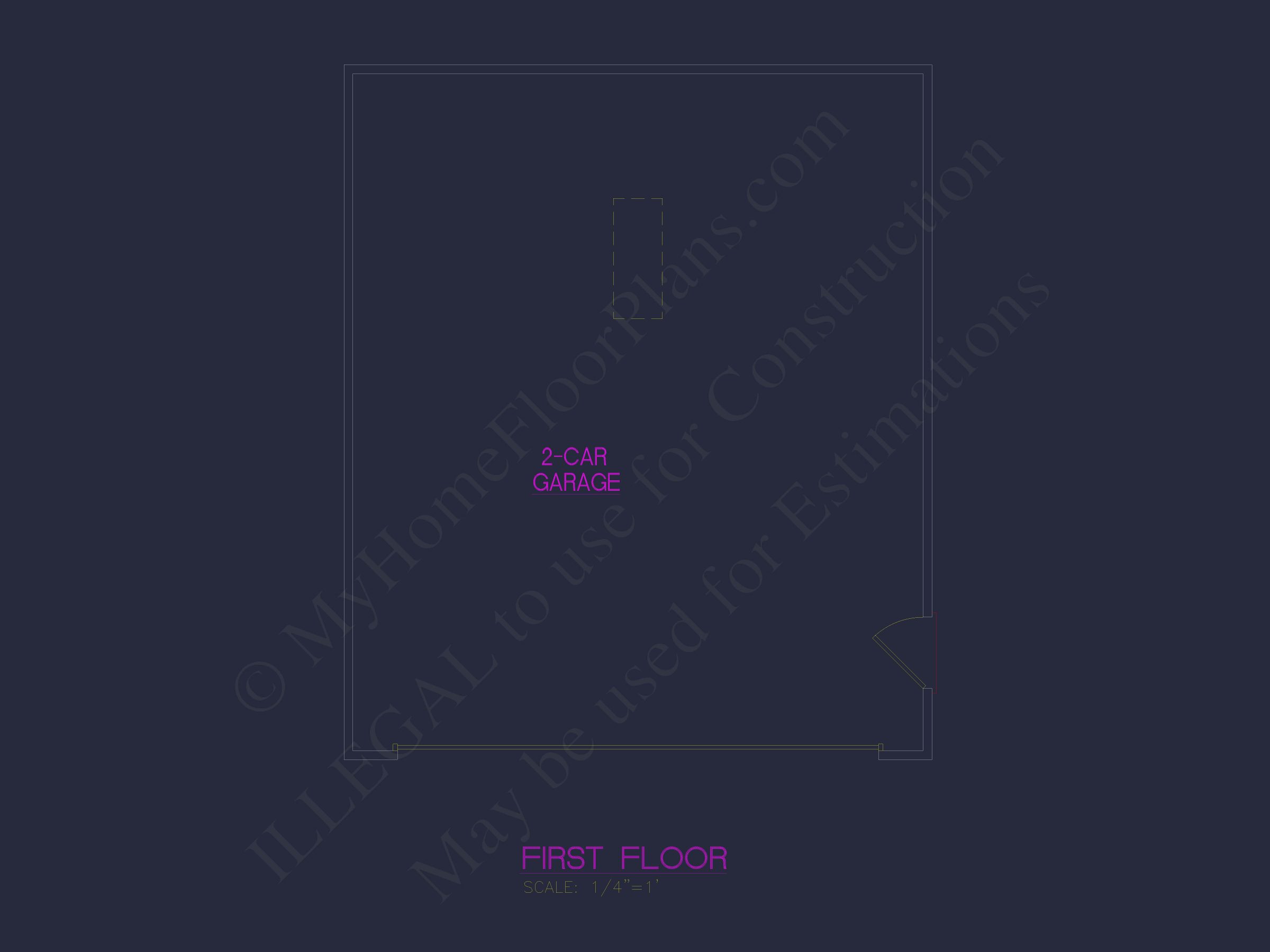

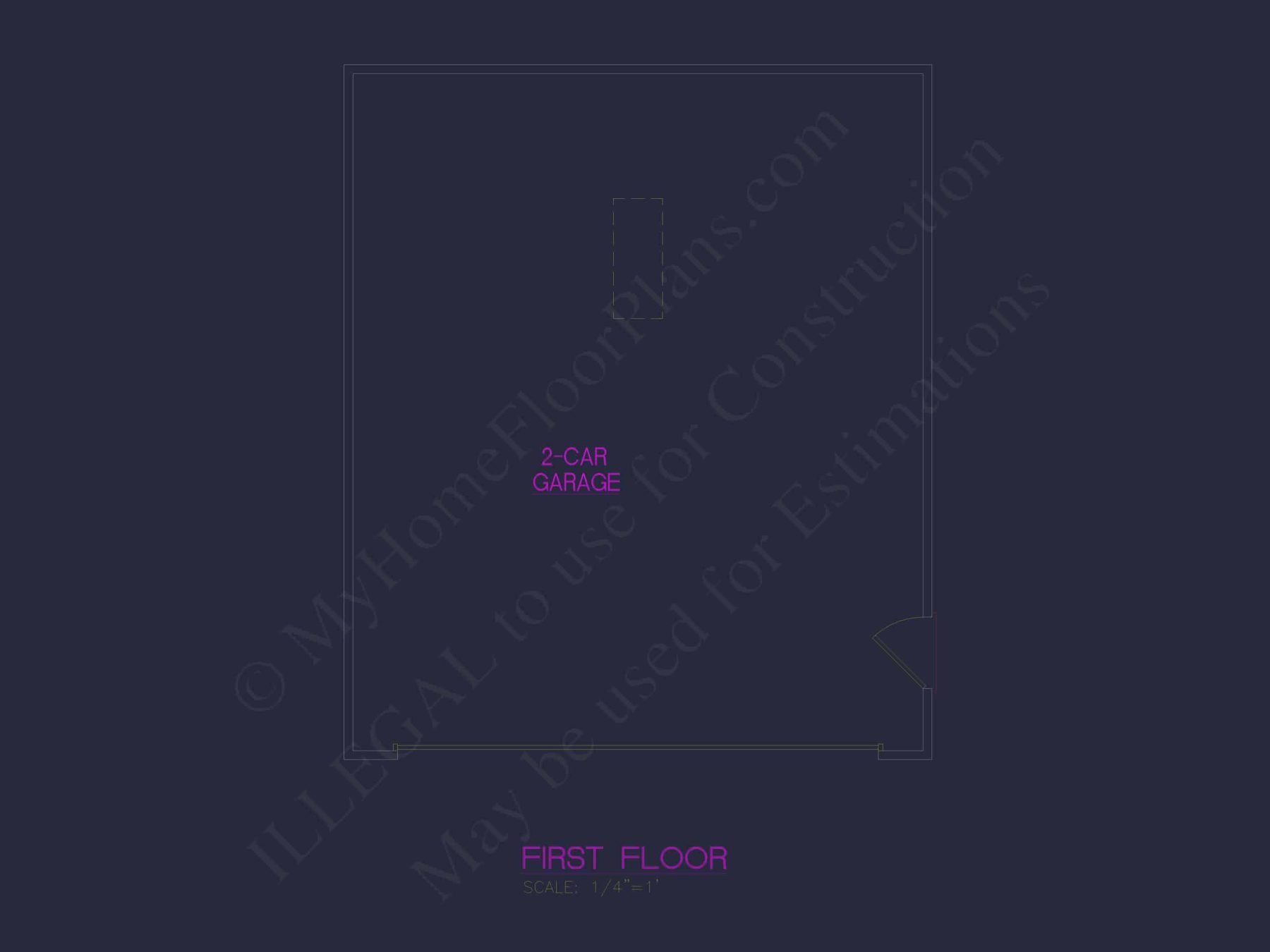

- Garage Bays: 2-car bay—sized for standard and large vehicles.
- Garage Type: Detached with a front-entry configuration.
- Storage: Full attic with pull-down access, ideal for homeowners who need extra space without a full addition.
Outdoor Living Features

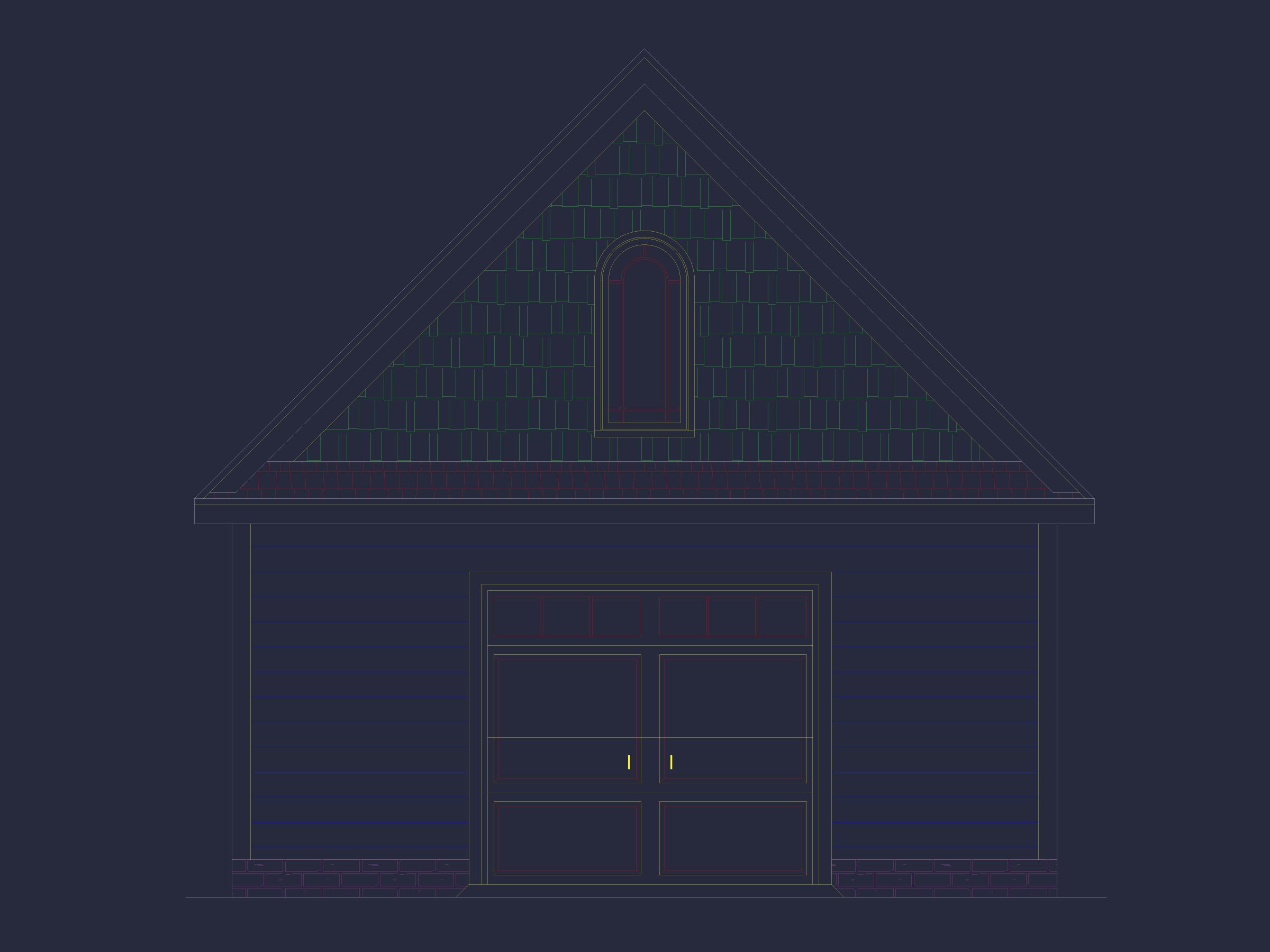

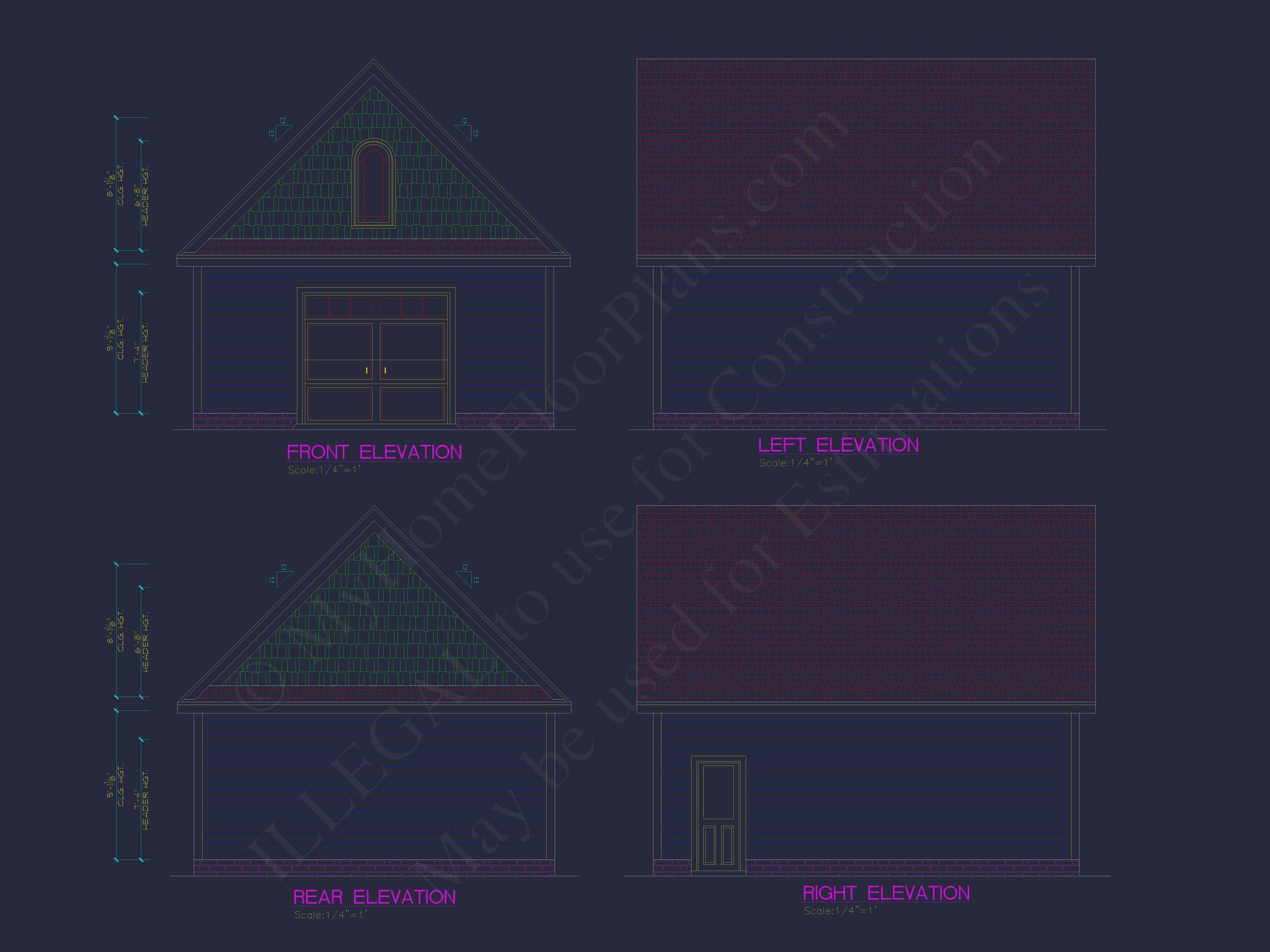

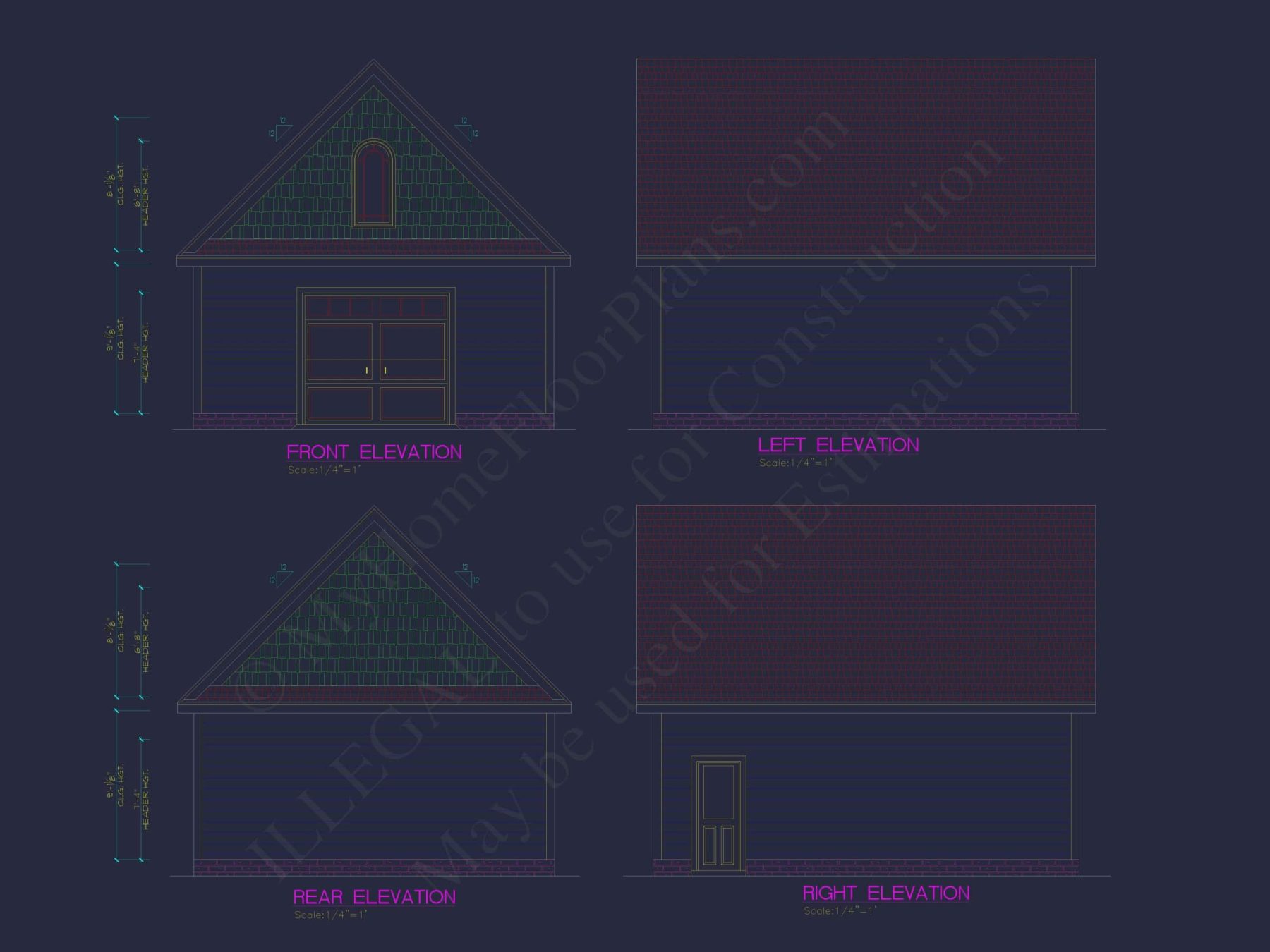

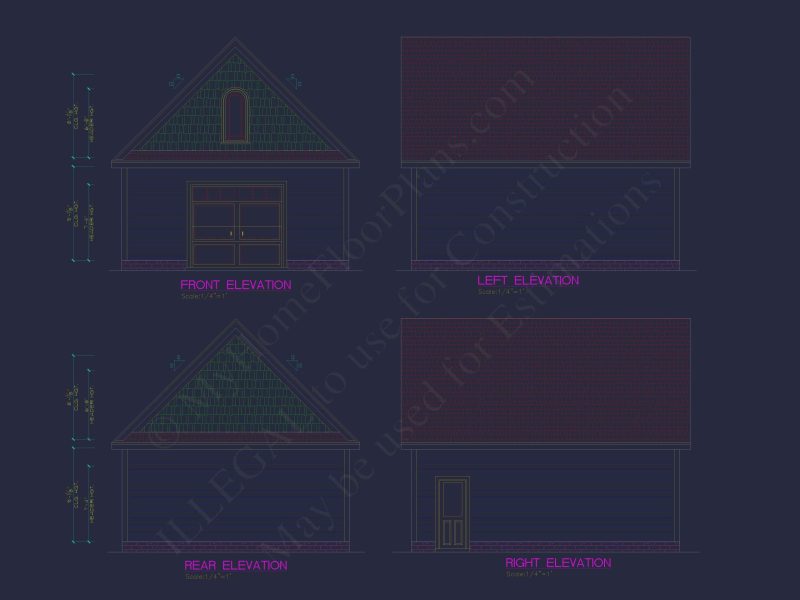

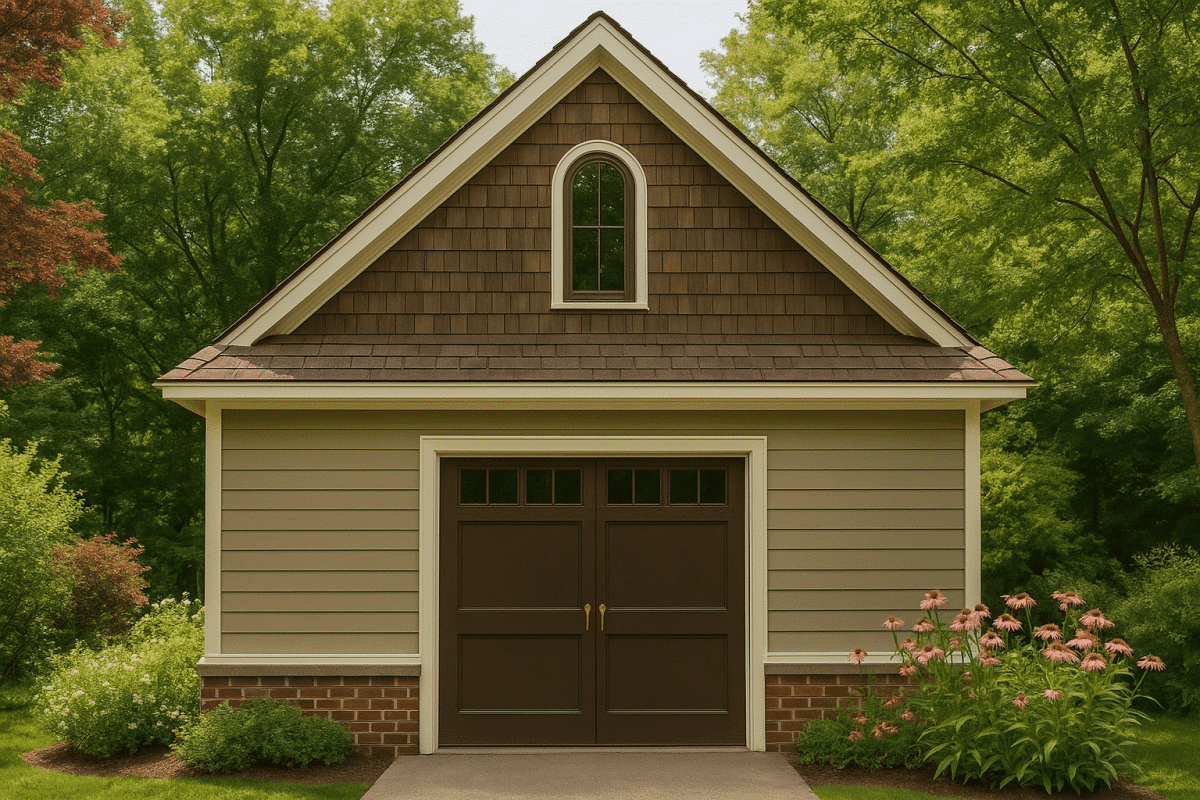

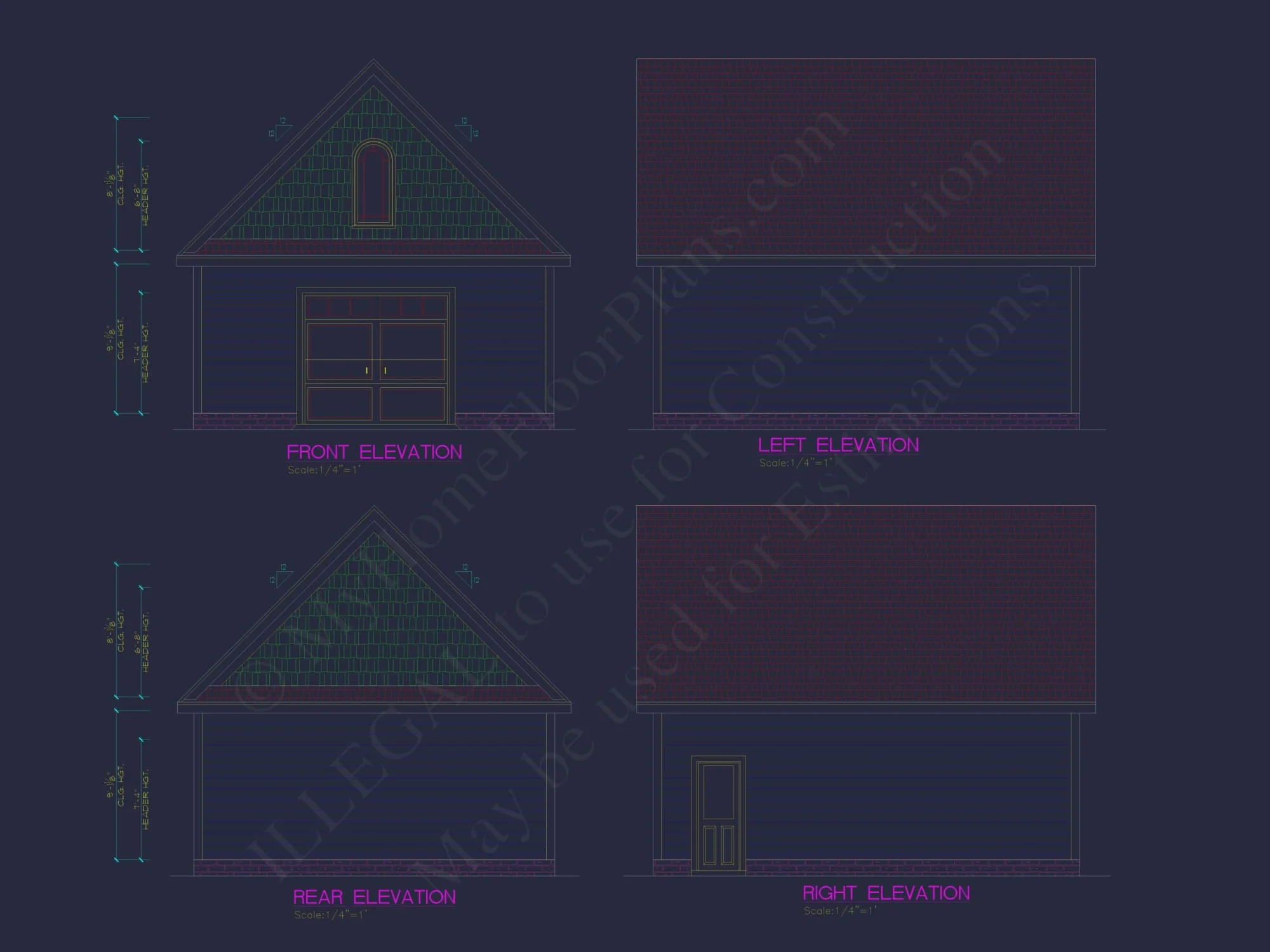

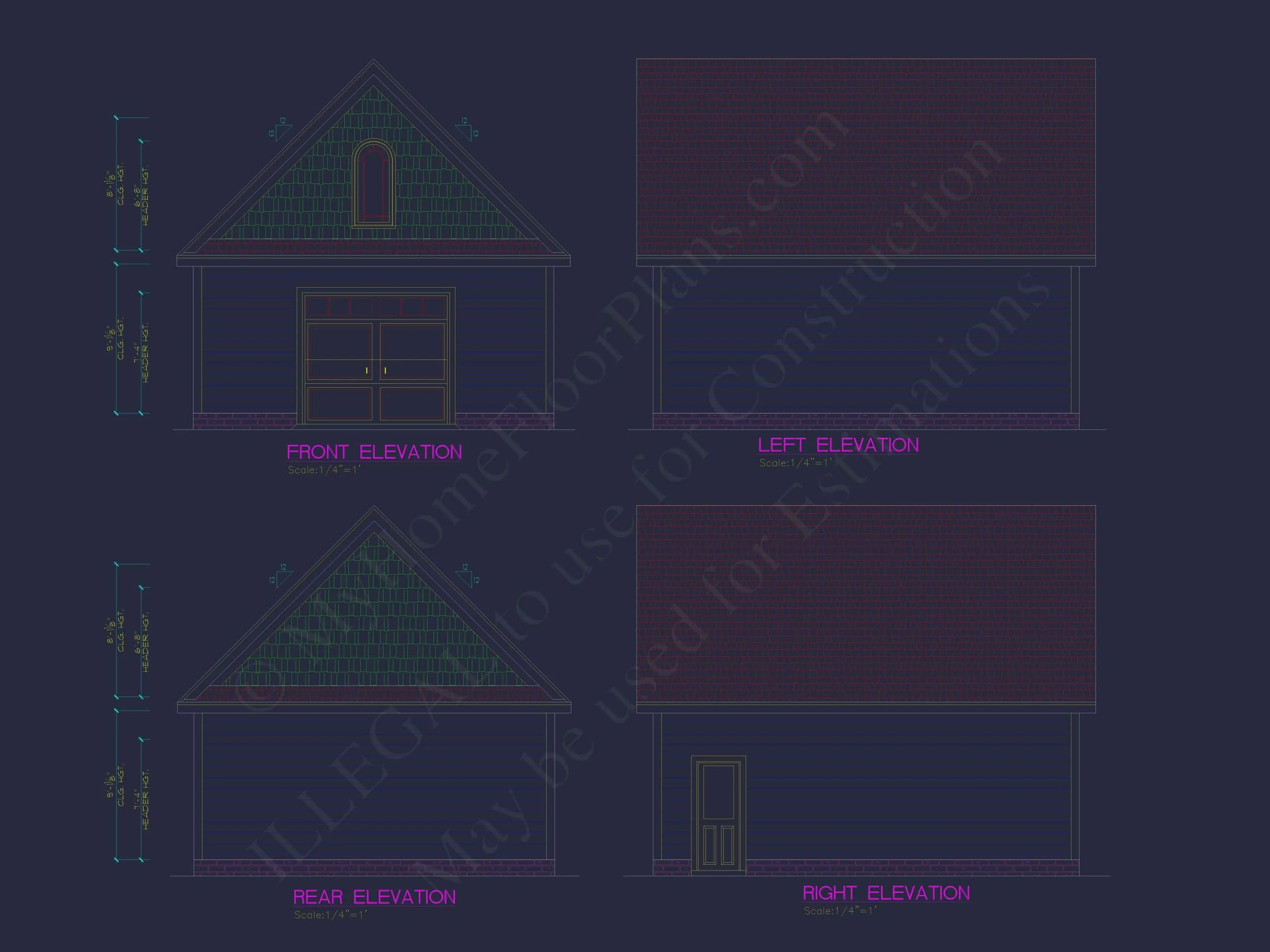

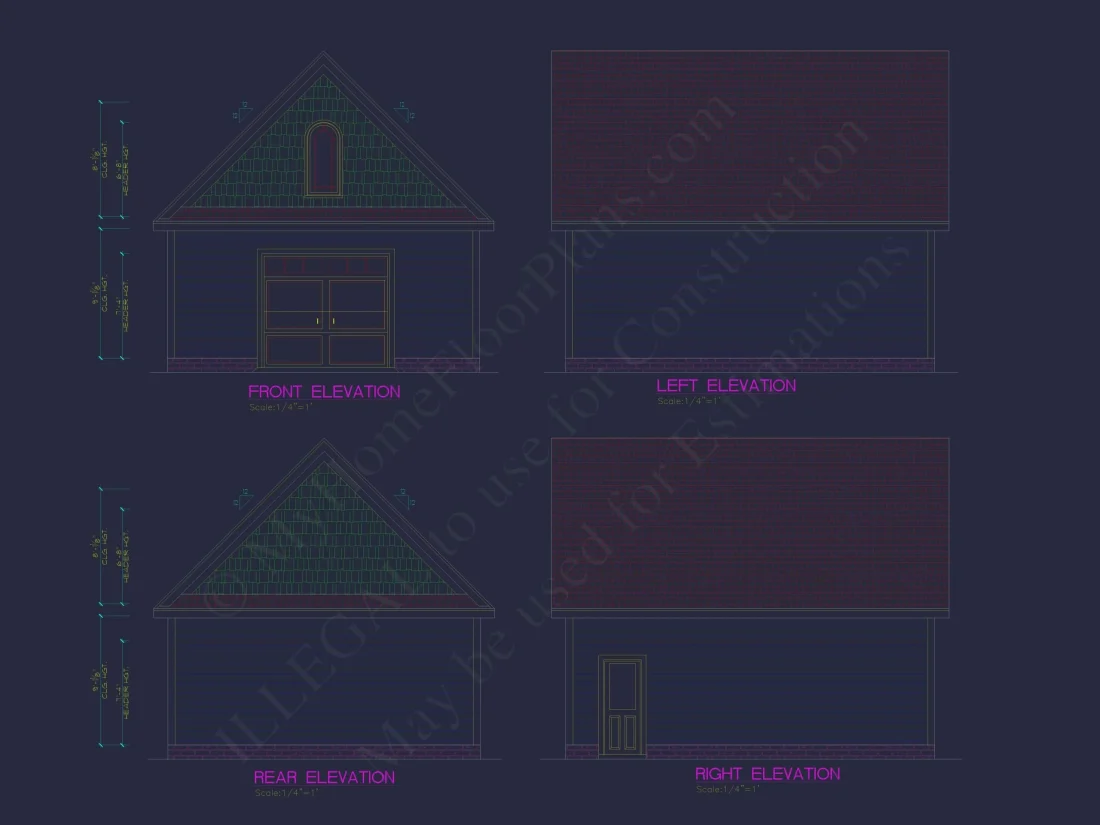

- Exterior finished with shingles and horizontal siding for low-maintenance durability.
- Simple, timeless design complements a variety of primary residences.
Architectural Style: Detached Garage
This plan reflects the flexibility and efficiency of a detached garage style, perfect for builders who need a standalone unit that blends with modern or traditional houses. Learn more about functional outbuildings on ArchDaily.
Bonus Features
- Optional workbench layout for hobbyists or DIY mechanics
- Roofline can accommodate solar panel installation
- Flexible attic space—upgrade to a finished loft in future builds
Included Benefits with Every Plan
- CAD + PDF Files: Editable files ready for permits and builders.
- Unlimited Build License: Construct as many garages as you need.
- Free Foundation Changes: Choose slab, crawlspace, or full basement.
- Structural Engineering Included: Professionally stamped and code-compliant.
- Lower Modification Costs: Custom changes at up to 50% less than competitors.
- View Before You Buy: Preview every drawing and detail first.
Similar Collections You Might Love
- Garage Workshop Plans
- RV Garage Plans
- Split Garage House Plans
- House Plans with Attic
- Detached Garage House Plans
Frequently Asked Questions

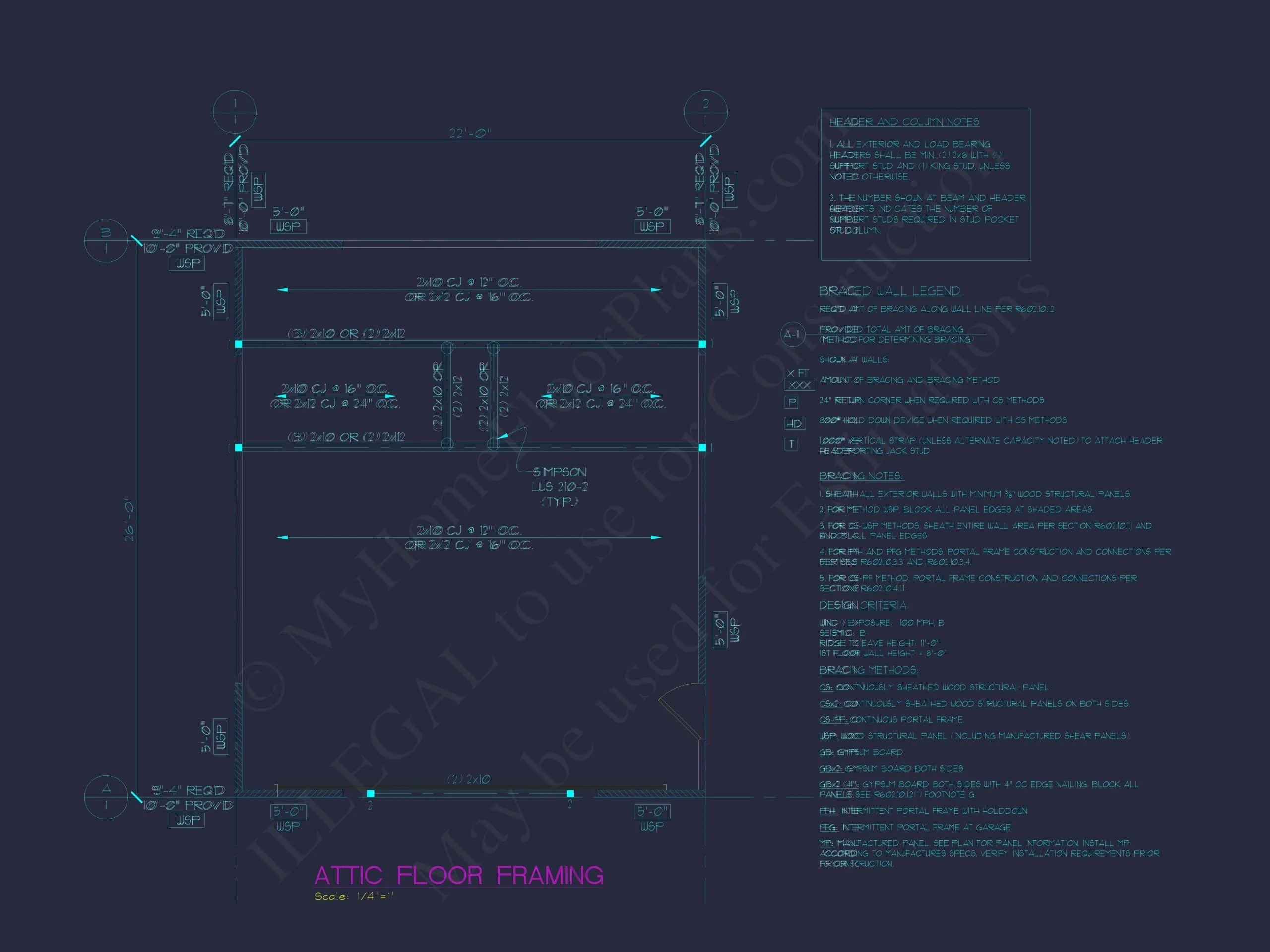

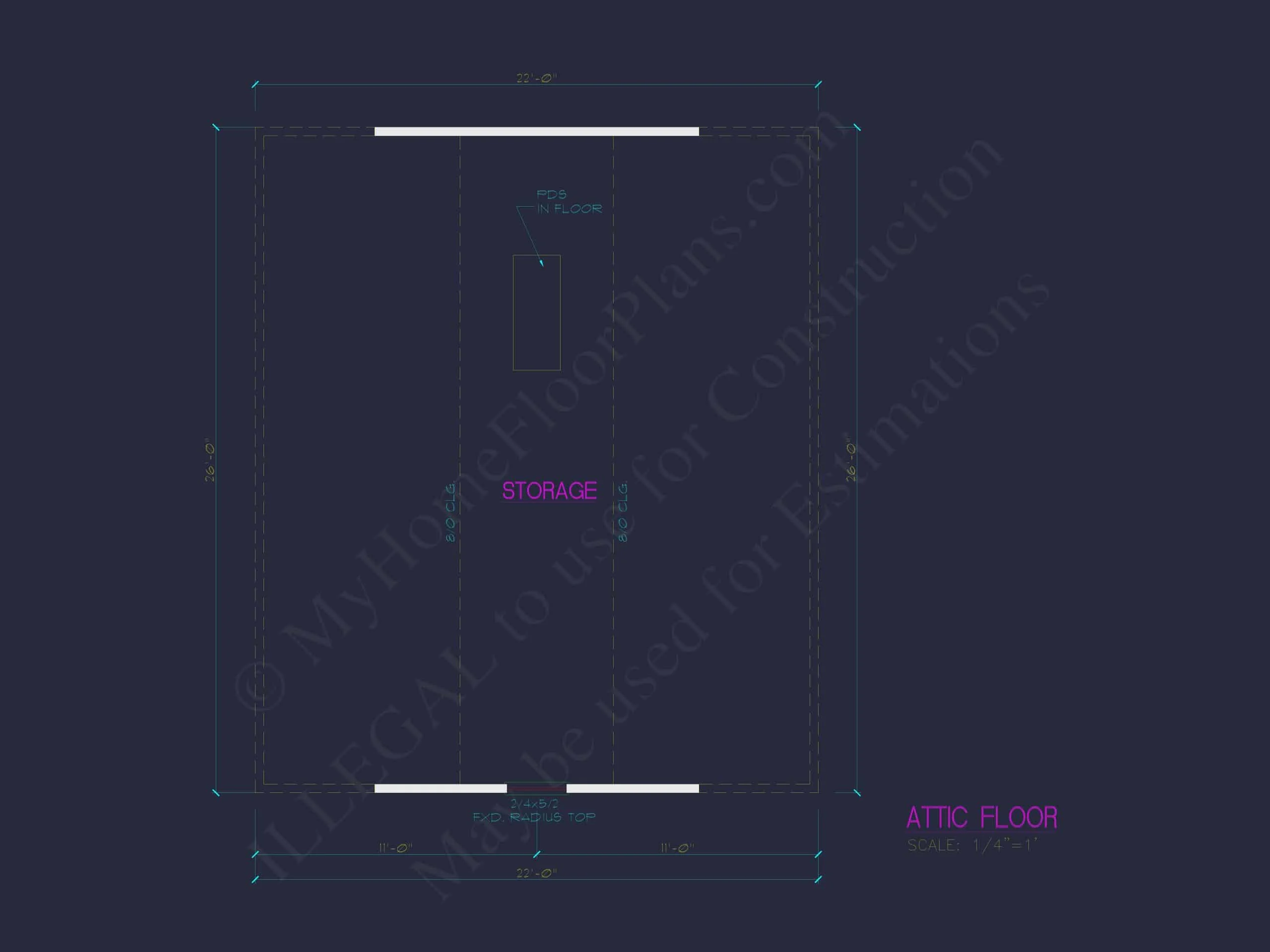

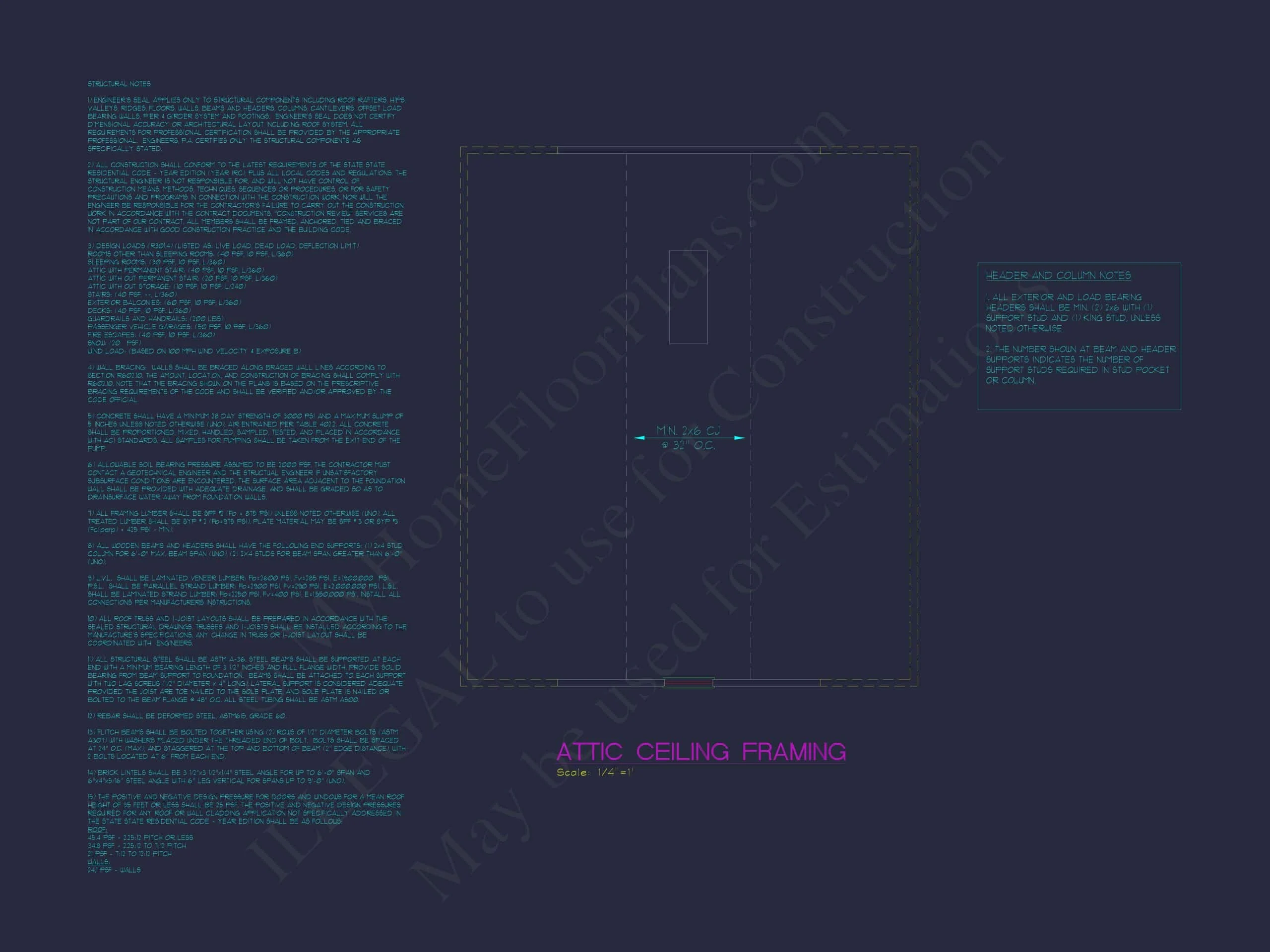

Does this plan include the attic layout? Yes, the attic space and its framing details are included in both the CAD and PDF formats.
Can I add a second-story loft? Absolutely. The plan is designed with attic trusses that can easily be modified into a livable loft—contact us for a quote.
Is the garage insulated? The plan is drawn uninsulated by default, but can be easily adapted for climate-controlled usage.
What kind of vehicles will fit? The bays are designed for two full-size vehicles, including SUVs or trucks.
Is this plan good for tight lots? Yes. Its rectangular footprint and detached format offer great flexibility for placement on smaller properties.
Start Building Your Dream Garage Today
Have questions or need modifications? Email us at [email protected] or fill out our contact form.
Let’s turn your garage vision into reality—download your plan and start building with confidence!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

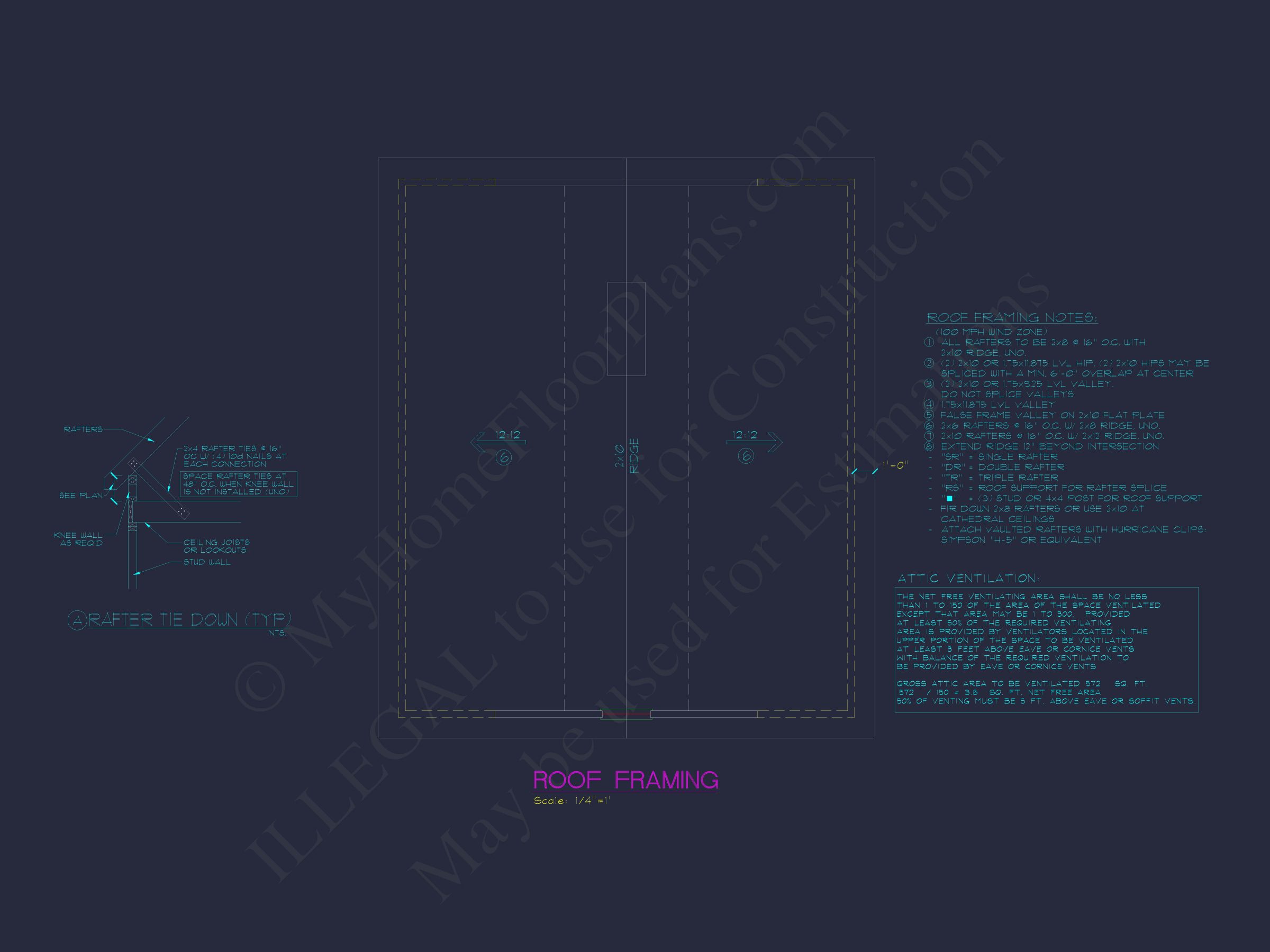

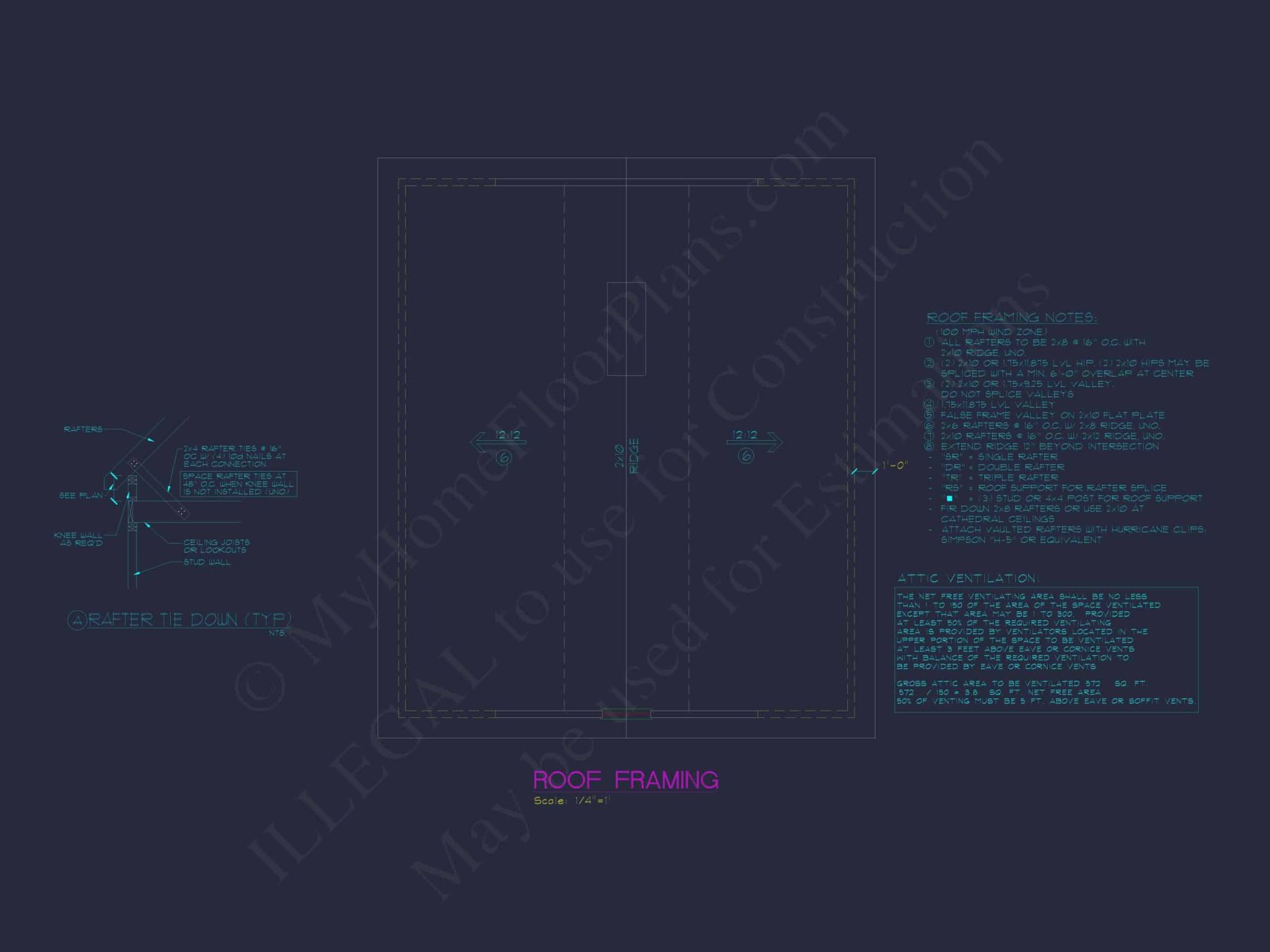

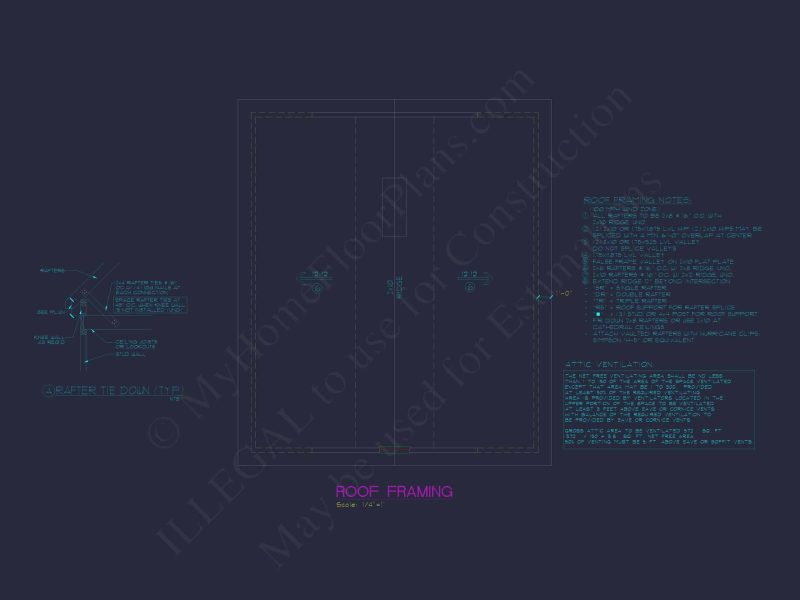

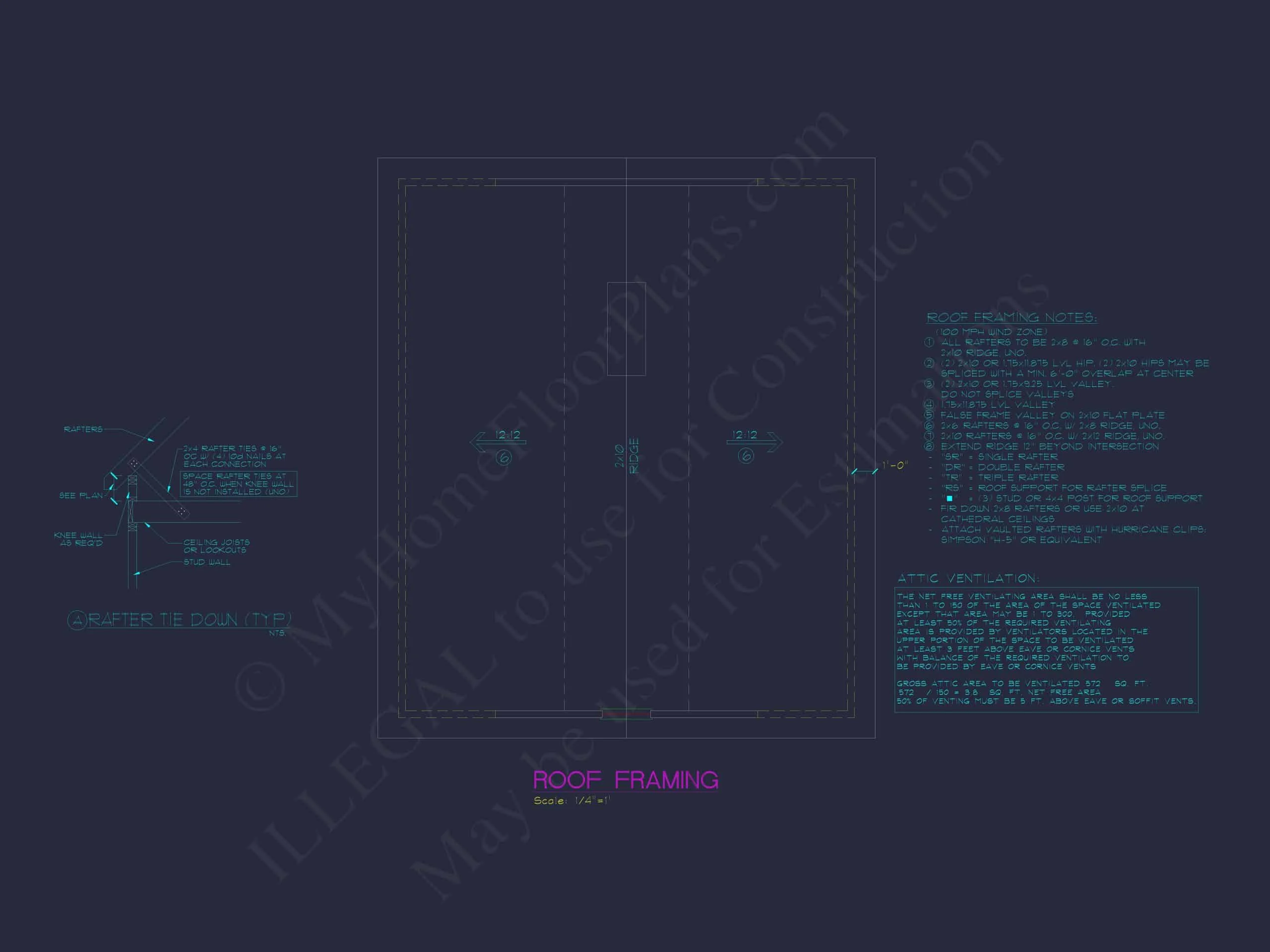

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

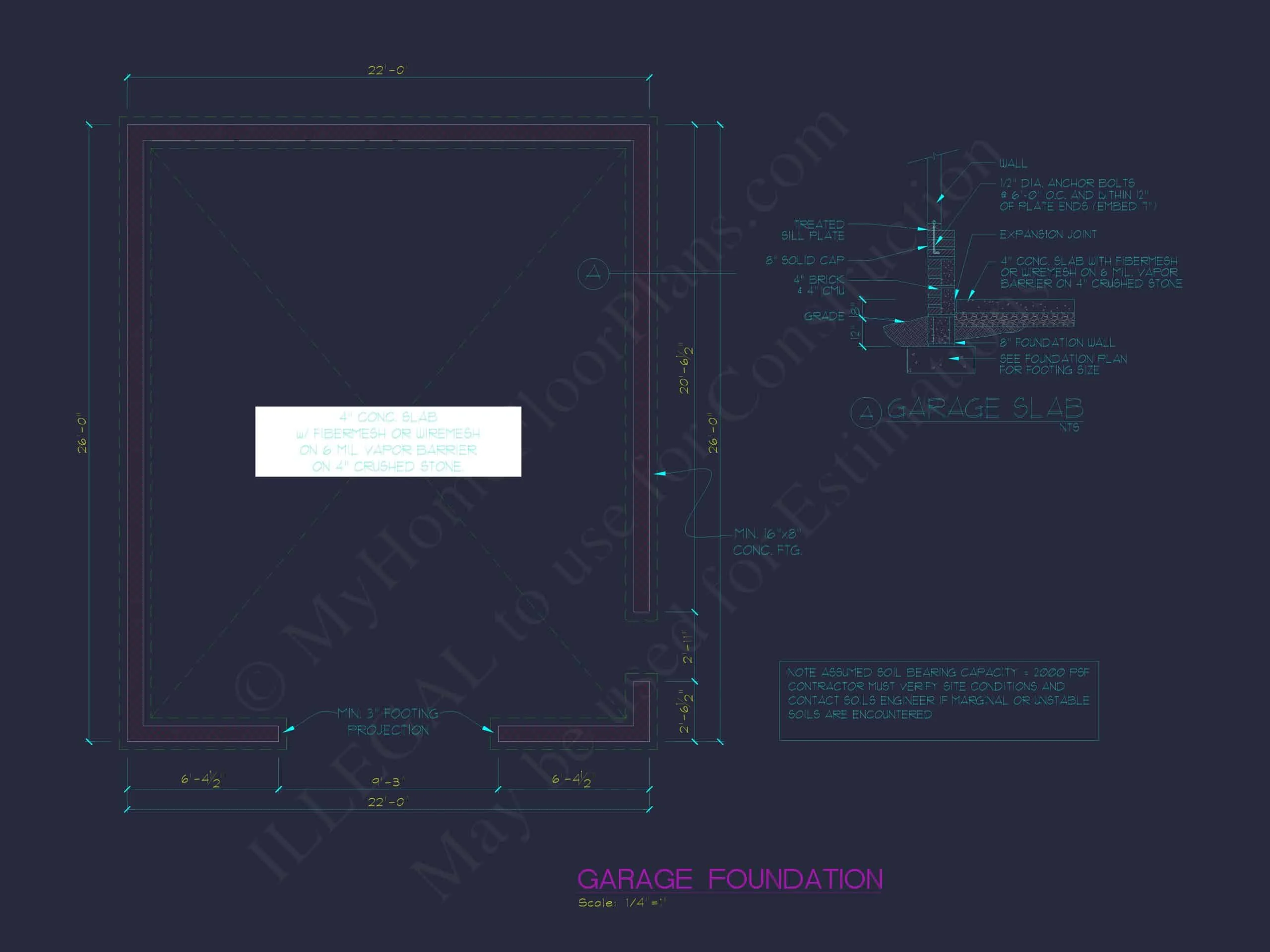

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
12-2074 GARAGE
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
