15-1616 HOME PLAN
Original price was: $1,099.00.$898.00Current price is: $898.00.
| Width | 32'-0" |
|---|---|
| Depth | 30'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Modern Home Floor Plan with Blueprint Designs and CAD Files
Discover this modern 2-story home plan featuring 4 bedrooms, a Owner suite, open floor plan, and detailed CAD blueprints for architects, builders, and designers.
Modern 2-Story Home Plan with Functional Layout
An Architectural Design that Balances Space and Style
This beautifully designed 2-story home plan combines modern aesthetics with practical layout features, making it ideal for families, architects, and builders alike. With a total of 1, 866 heated square feet, this design offers ample space without sacrificing comfort or functionality. The Craftsman and Traditional architectural styles add charm to the exterior, while the interior layout maximizes efficiency.
Thoughtfully Designed Floor Plans

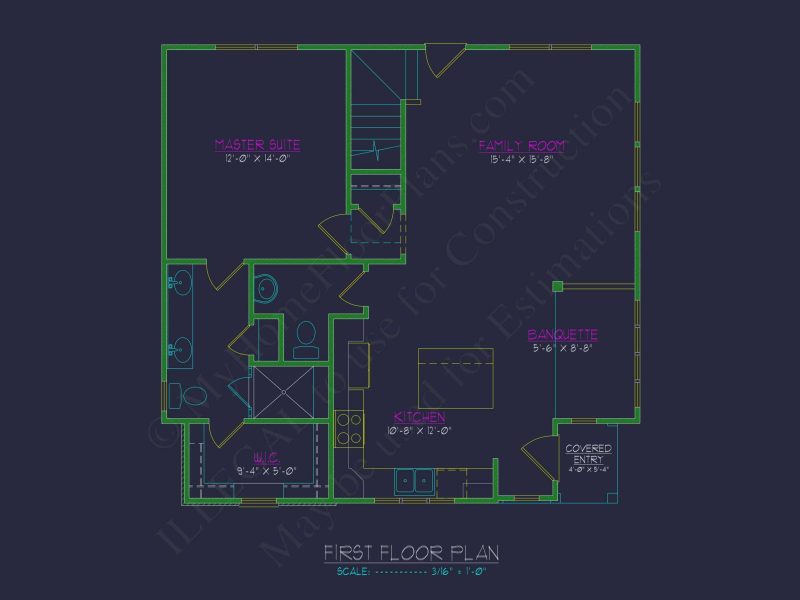

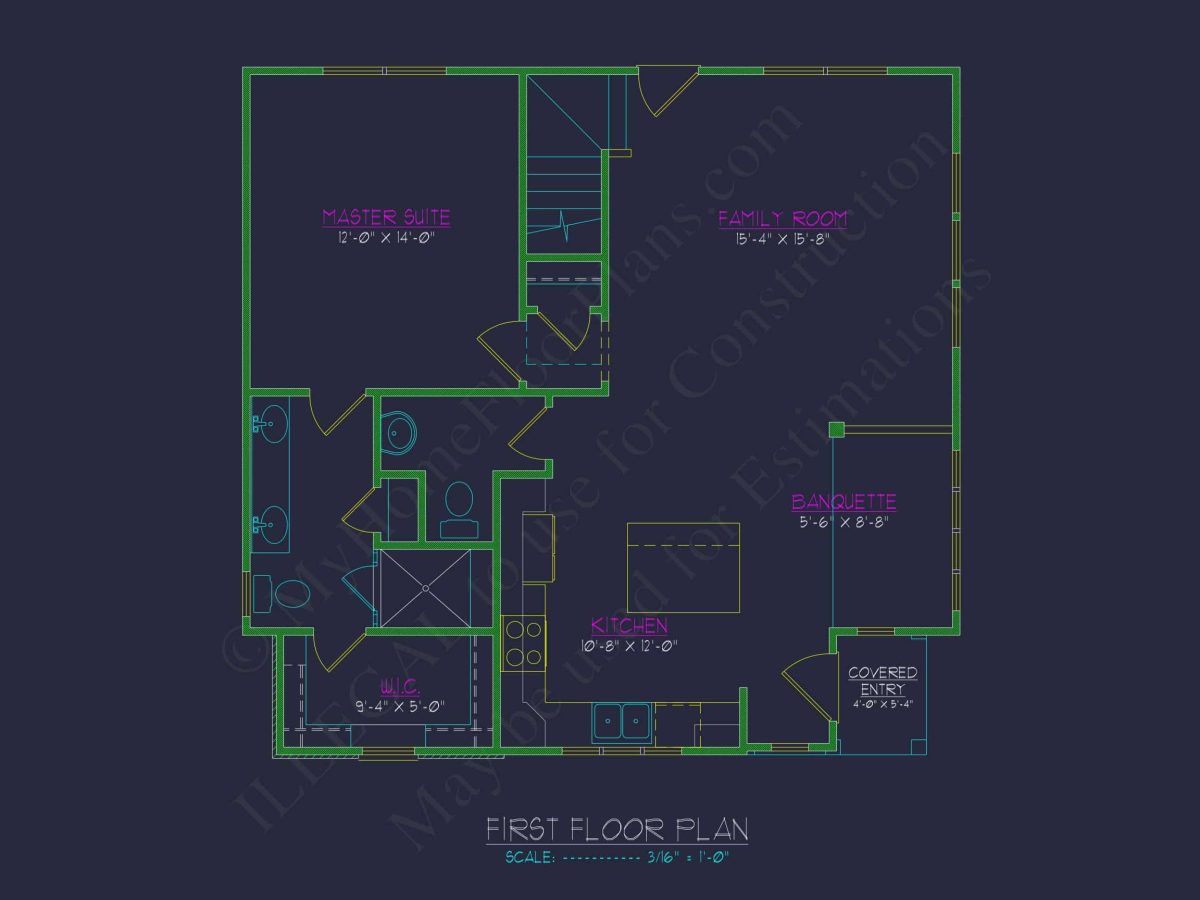

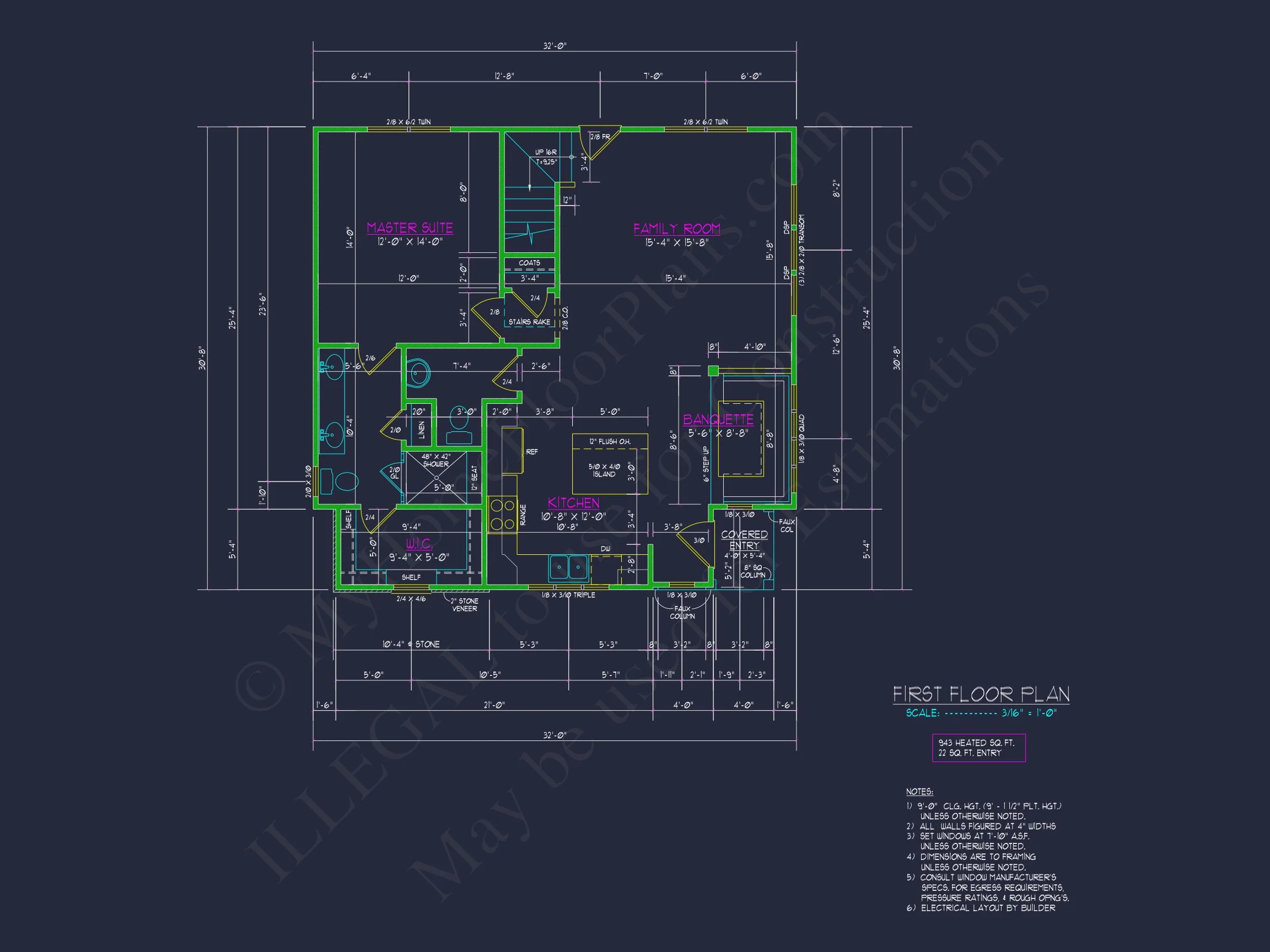

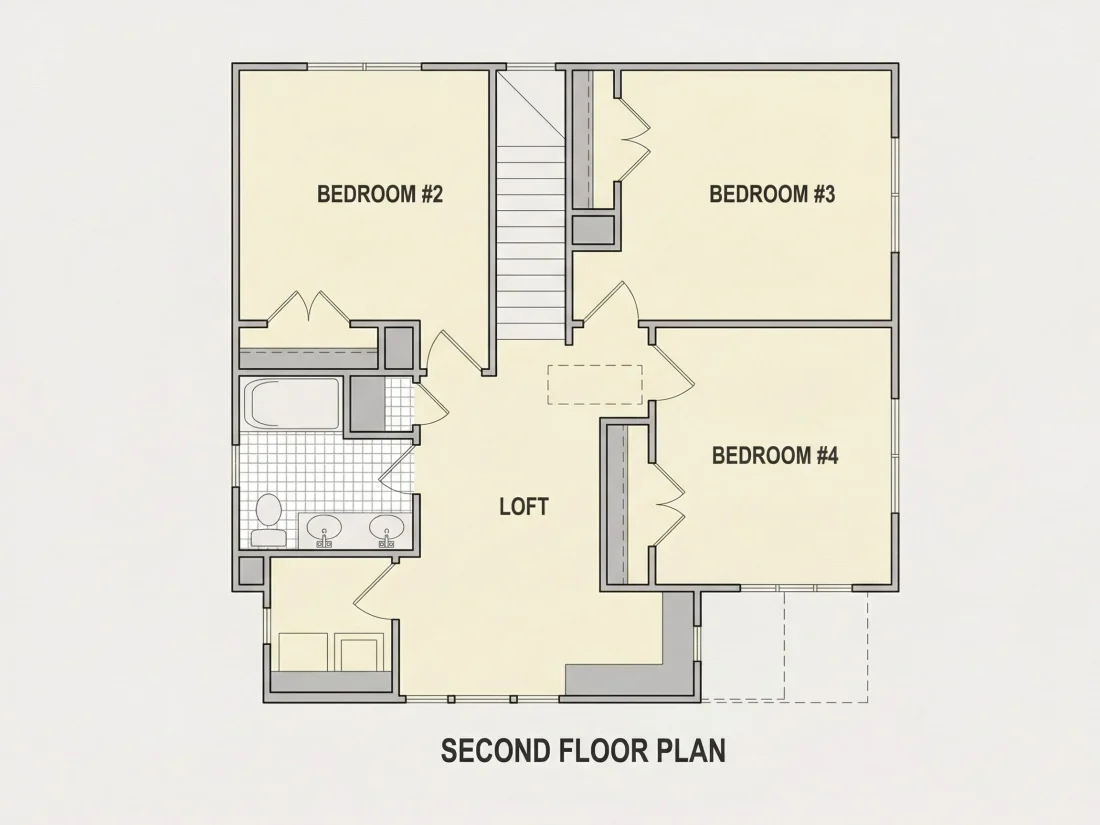

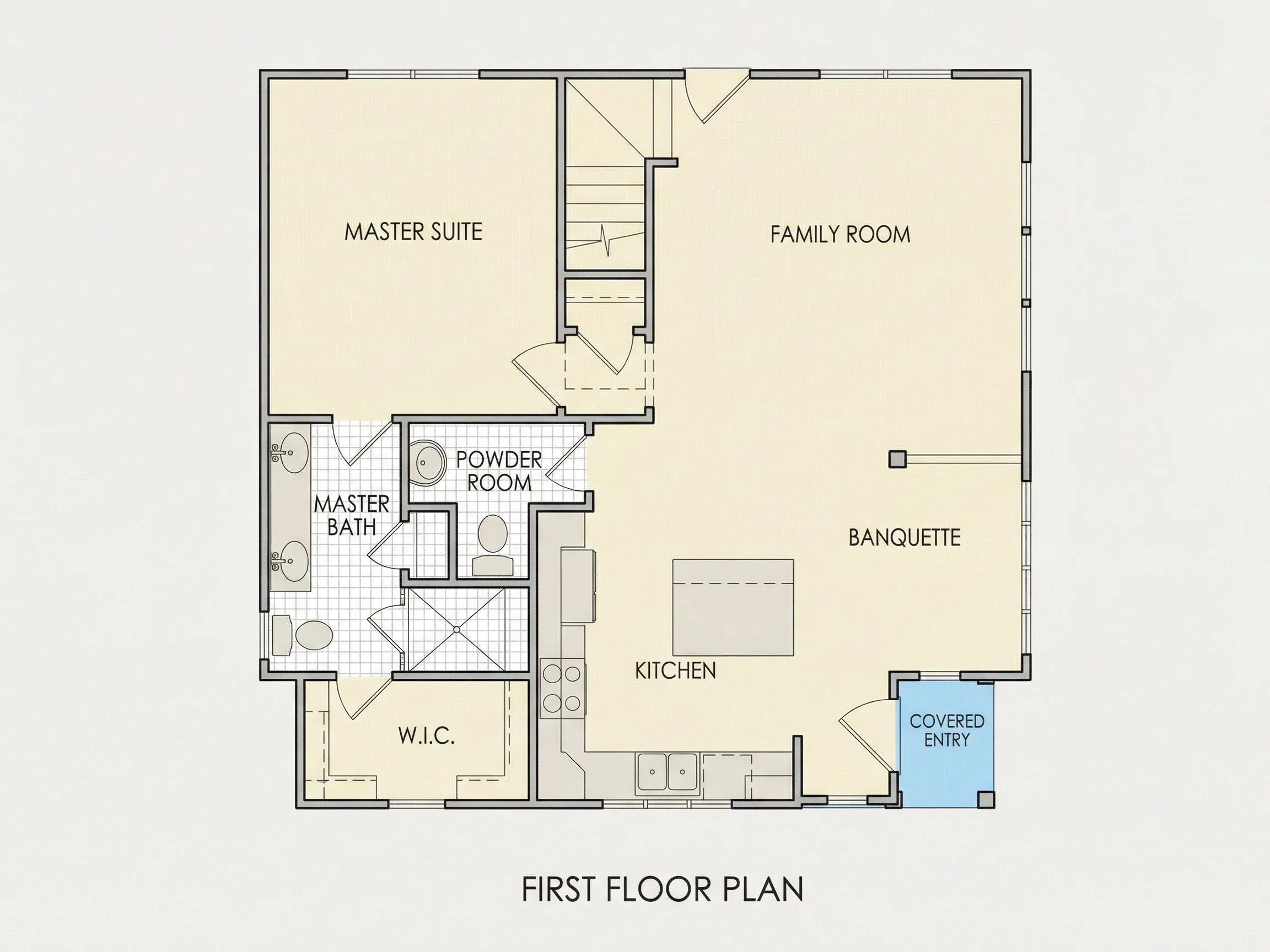

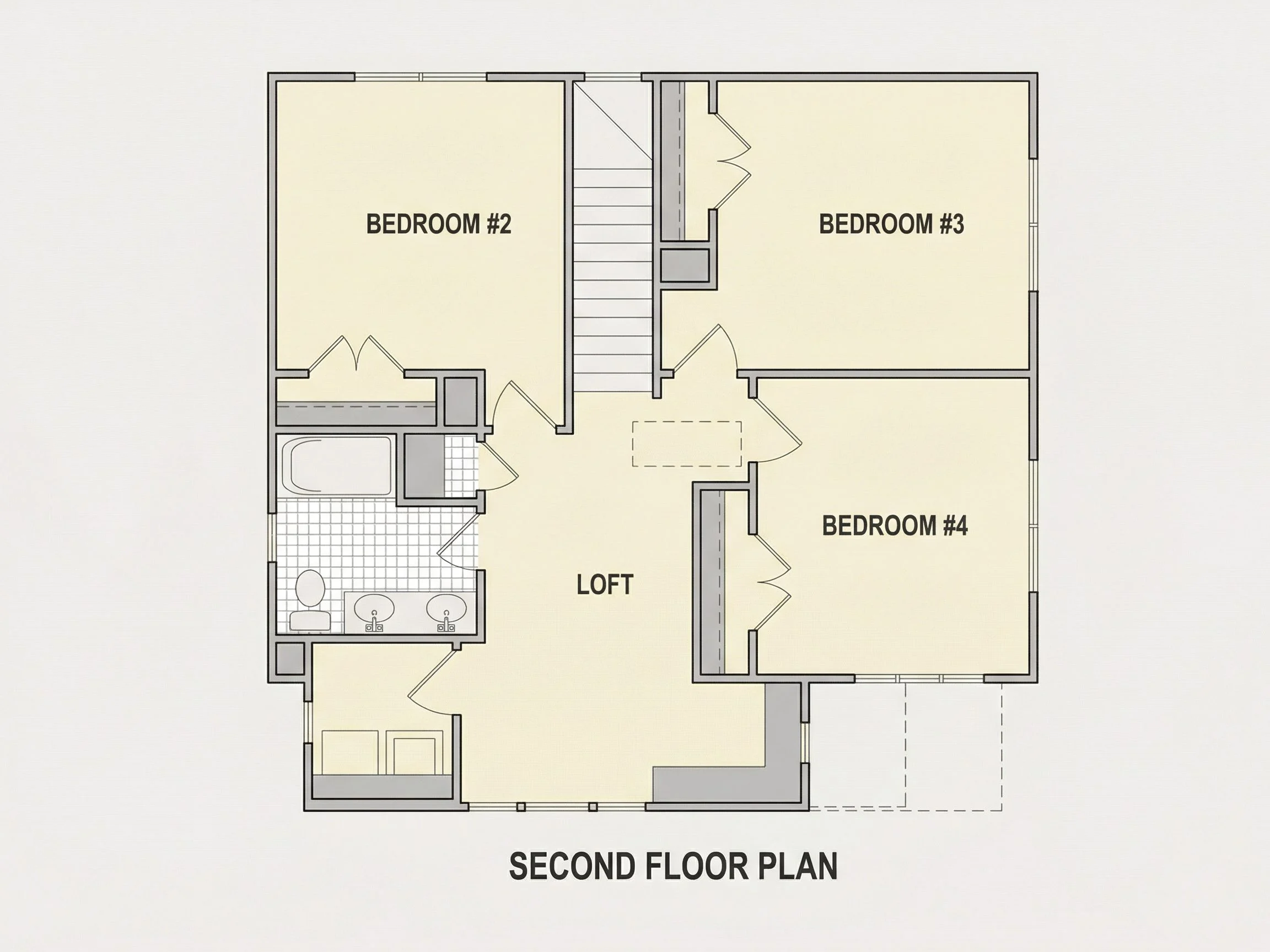

The first floor includes a Owner suite, perfect for homeowners who desire single-level living convenience. The family room and open floor plan connect seamlessly to the kitchen, creating a welcoming atmosphere for gatherings. The second floor offers additional bedrooms and a loft, providing private retreats for the entire family.
Key Indoor Features and Benefits
* Owner Suite on the First Floor: Convenient and private Owner bedroom with ample space.
* Walk-In Closet (WIC): Provides generous storage space.
* Family Room: A large, comfortable area for entertainment and relaxation.
* Loft Area: Versatile space that can be used as a study, play area, or additional lounge.
* Open Floor Plan: Encourages connectivity between living spaces.
* Kitchen Island & Breakfast Nook: Enhances the functionality and aesthetics of the kitchen.
Exterior and Foundation Features

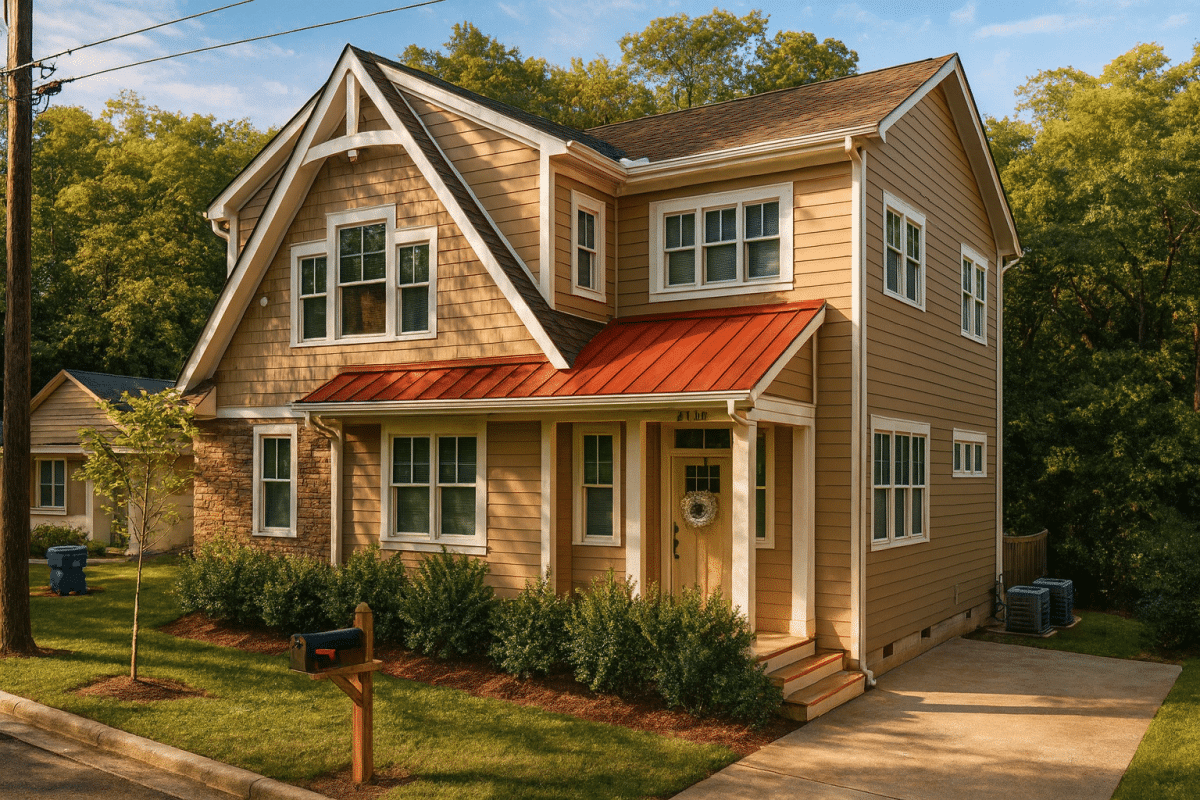

The exterior showcases a beautiful mix of shingles, stone, and siding, adding durability and curb appeal. A covered front porch greets visitors and creates a charming outdoor space to relax. The crawlspace foundation ensures a strong structural base while remaining cost-effective.
Perfect Size and Flexibility for Families
With 4 bedrooms and 2 bathrooms spread across two floors, this plan is ideal for growing families. Its medium size of 1, 866 heated square feet provides just the right balance of space and efficiency.
Benefits Included with Every Plan
Every home plan includes detailed CAD files and PDFs, ensuring precision for builders and designers. Plus, all plans come with a free unlimited-build license and complimentary foundation changes to meet your needs.
Are You Ready to Design Your Dream Home?
Inquire at support@https://myhomefloorplans.com to bring this beautiful design to life and start building your dream home today!
What's Included
What's NOT Included
Modifications
Plan Pricing
All home plans include BOTH the CAD file and PDF file.

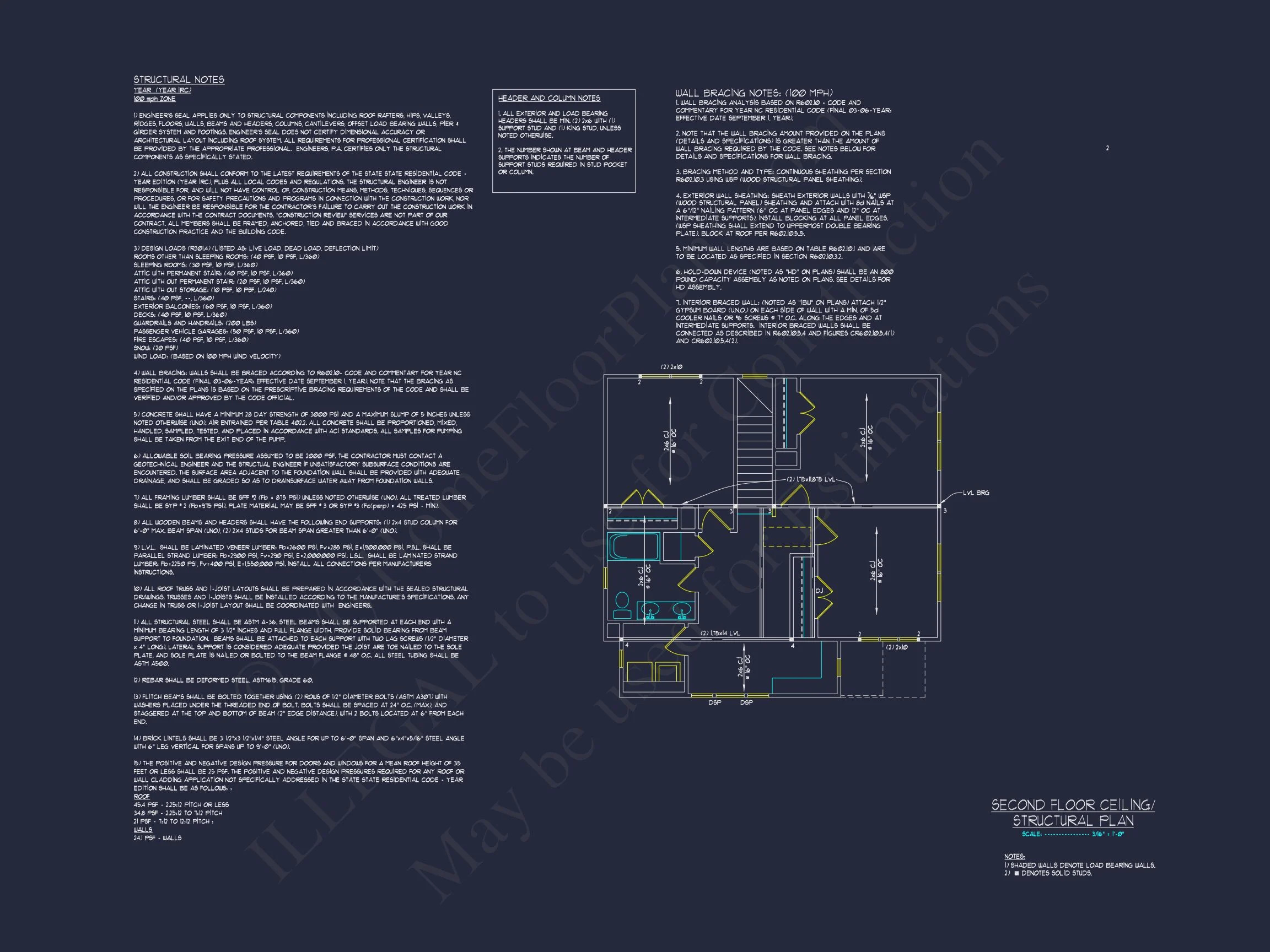

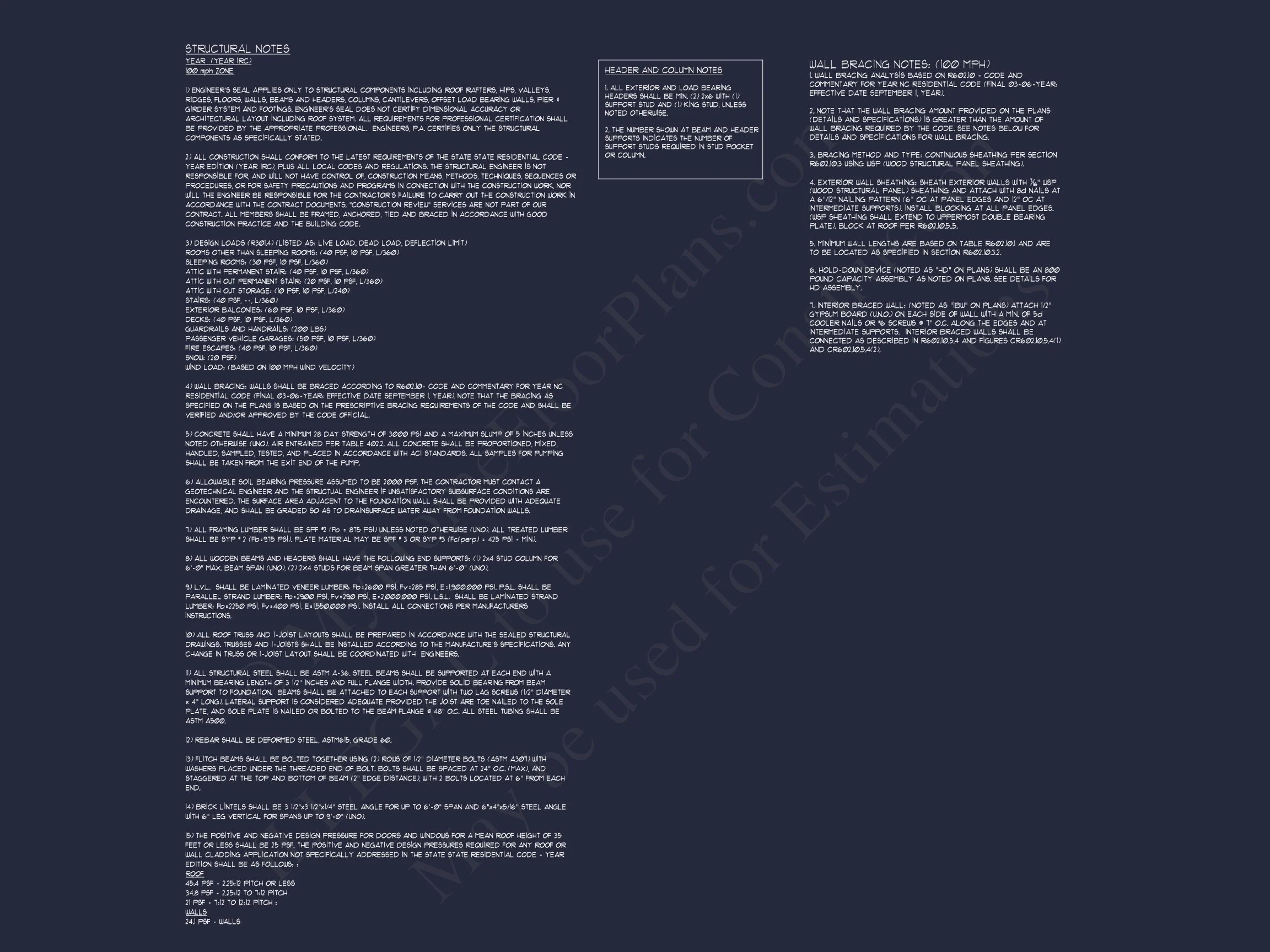

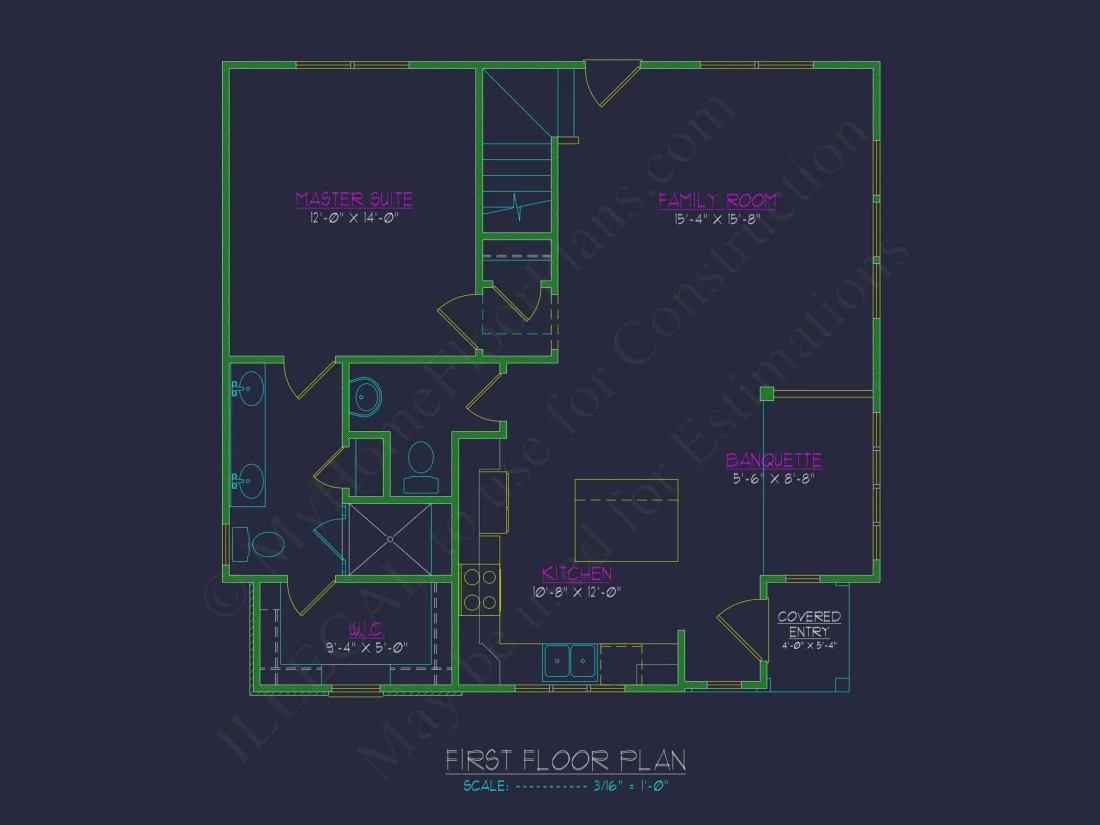

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

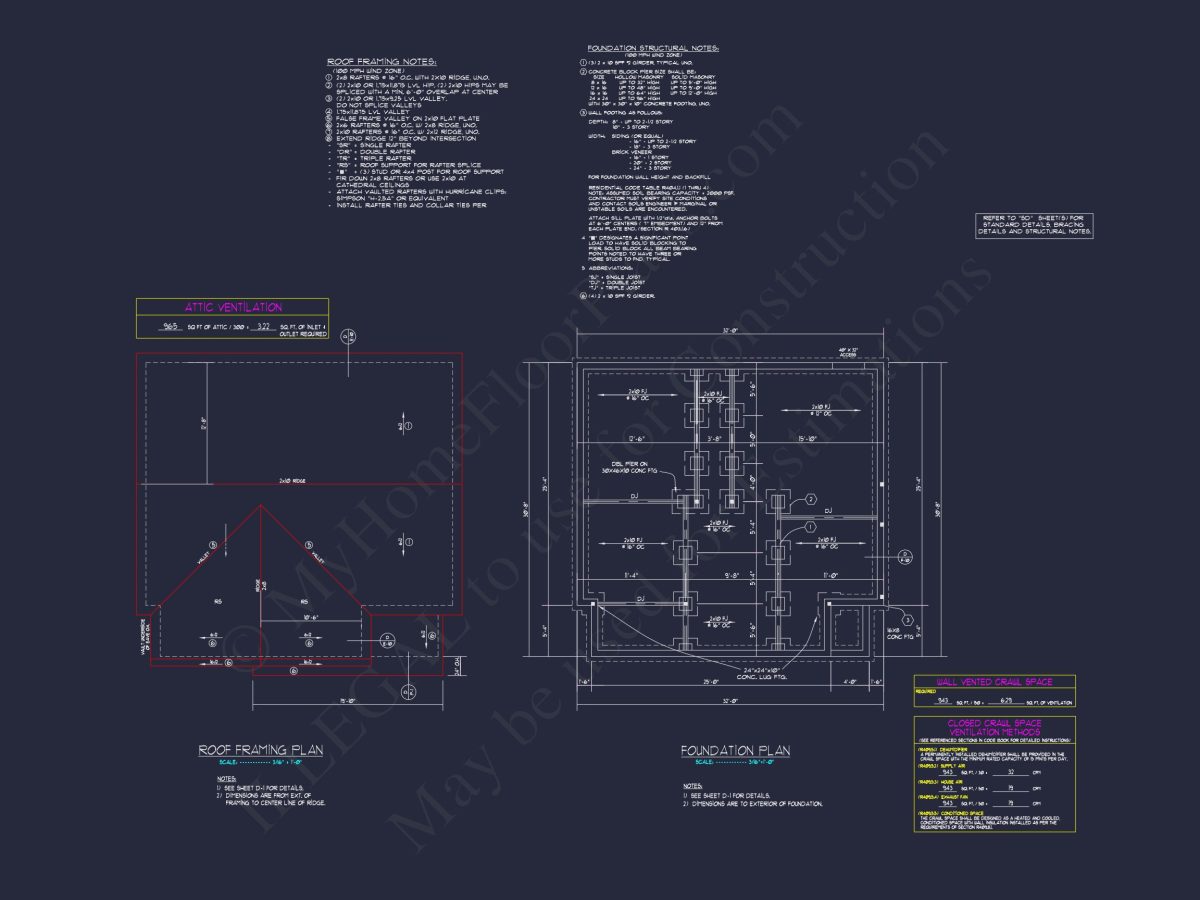

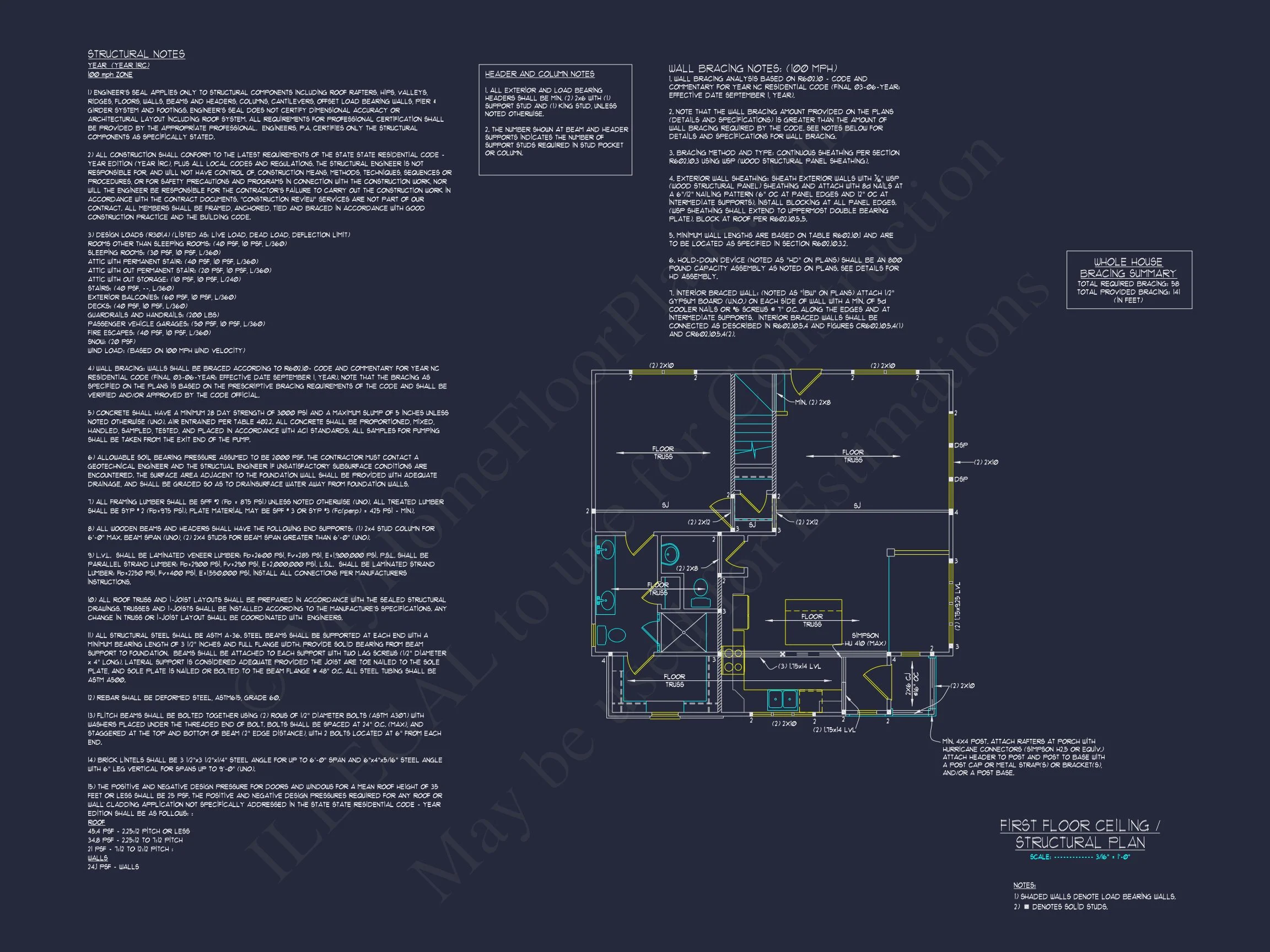

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
