Garage Floor Plan with Blueprint for CAD Architecture Designs
Discover this versatile garage floor plan with detailed blueprint designs. Perfect for architects, builders, and houseowners, featuring CAD-ready files.
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 24'-0" |
|---|---|
| Depth | 24'-0" |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Outdoor Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Versatile Garage Floor Plan with CAD Blueprint Designs

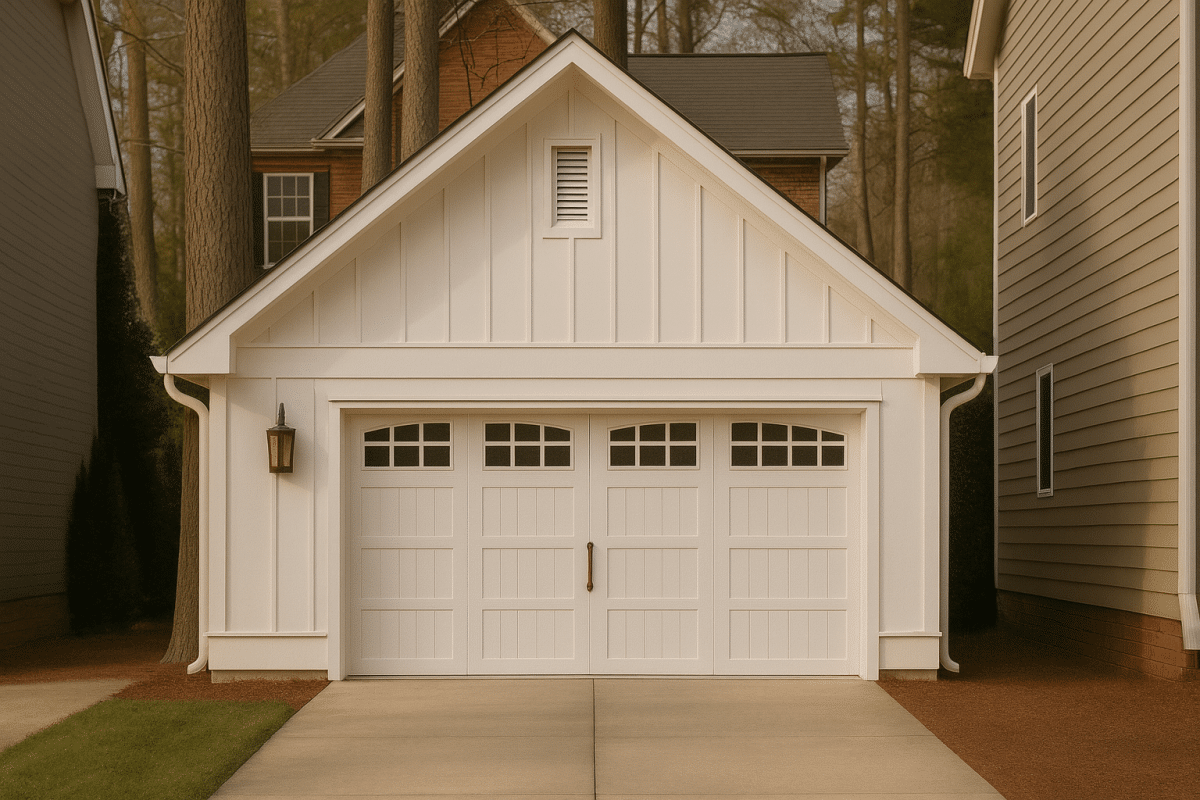

Discover this 576 sq. ft. barn-style garage plan with 2-car capacity, vaulted ceilings, and CAD-ready architecture—perfect for builders and homeowners.
This detached garage floor plan offers a blend of rustic charm and modern utility. Designed with a compact footprint and straightforward construction, it’s ideal for architects, contractors, or DIY homeowners alike.
Key Features of the Garage Plan
Living Areas – Heated & Unheated
- Heated area: None—this is a non-heated structure for flexible use.
- Unheated extras: 576 sq. ft. garage space with optional workshop setup.
Garage & Storage Details
- Garage Bays: 2-car capacity with generous maneuvering room.
- Garage Type: Detached front-entry layout for flexible property placement.
- Storage: Vaulted ceilings allow potential overhead storage or future loft addition.
Interior Highlights
- Open layout: Optimized for vehicles, equipment, or hobby space.
- Vaulted ceiling: Increases interior height and enhances airflow.
- Simple floor plan: Easy to customize or expand. Learn about modifications.
Outdoor Features

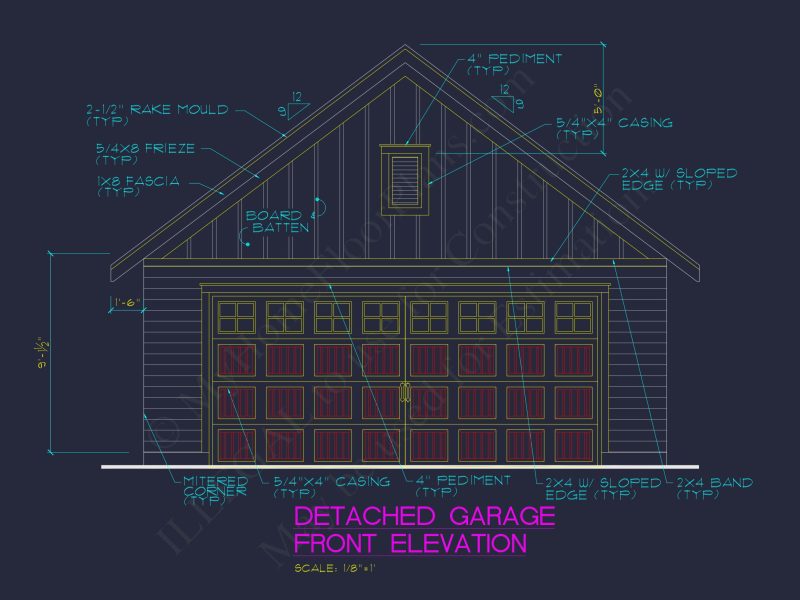

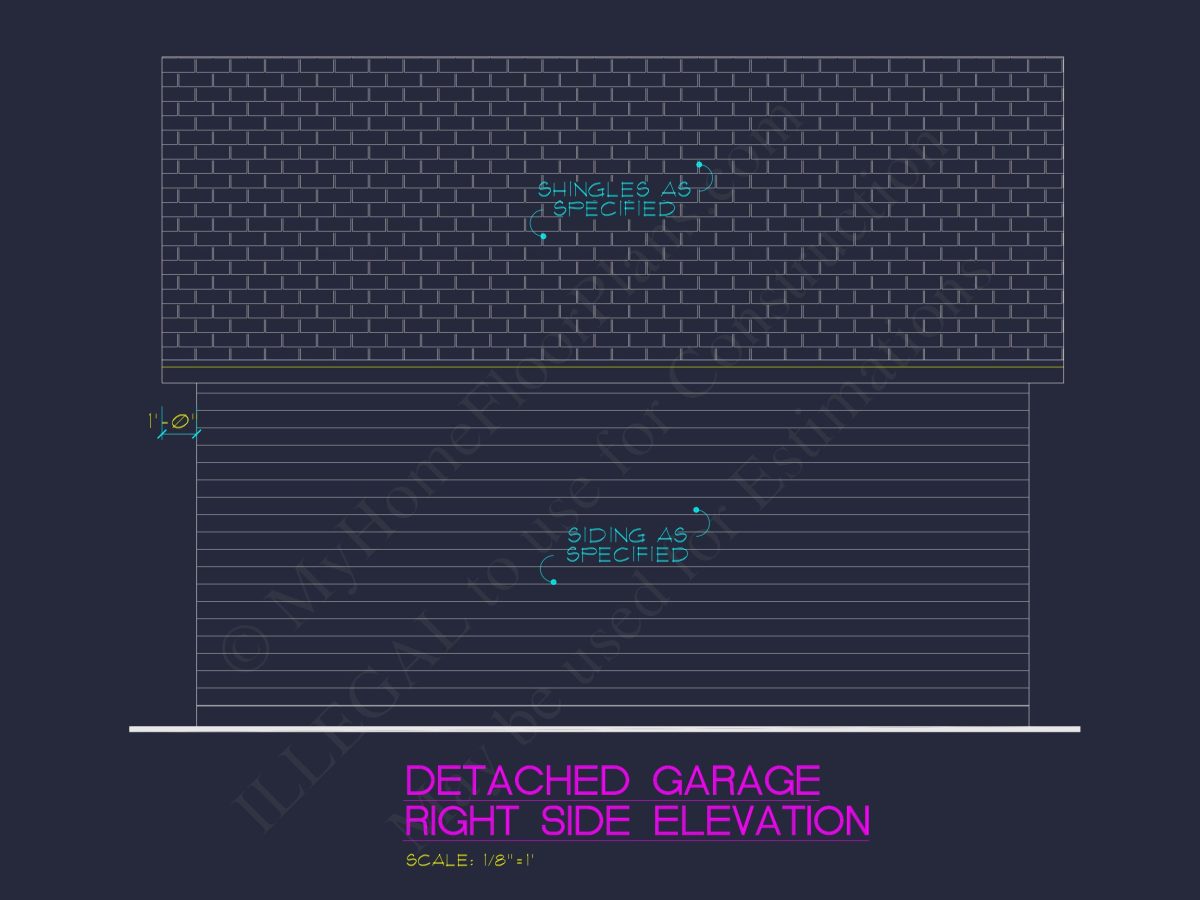

- Board & Batten siding: Adds character and rustic charm.
- Slab foundation: Durable and low-maintenance construction base.
Architectural Style: Barn-Inspired Garage Design
This design blends simple construction with traditional rural style—ideal for clients seeking functionality with aesthetic flair. Learn more about barn-style architecture or explore related designs on ArchDaily.
Bonus Features
- Vaulted roof suitable for future attic or loft additions
- Detached footprint ideal for flexible lot positioning
- CAD files allow easy customization and resizing
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable for permits, customization, and printing.
- Unlimited Build License: Use the plan on multiple projects at no additional cost.
- Free Foundation Changes: Choose slab, crawlspace, or basement—your call.
- Structural Engineering Included: Code-compliant and ready for permitting.
- Lower Modification Costs: We beat competitors by up to 50% on plan changes.
- View Before You Buy: See the full blueprint before purchase.
Similar Collections You Might Love
- Garage & Vehicle Storage Plans
- Garage Workshop Plans
- RV Garage Plans
- House Plans with Large Garage
- Detached Garage House Plans
Frequently Asked Questions

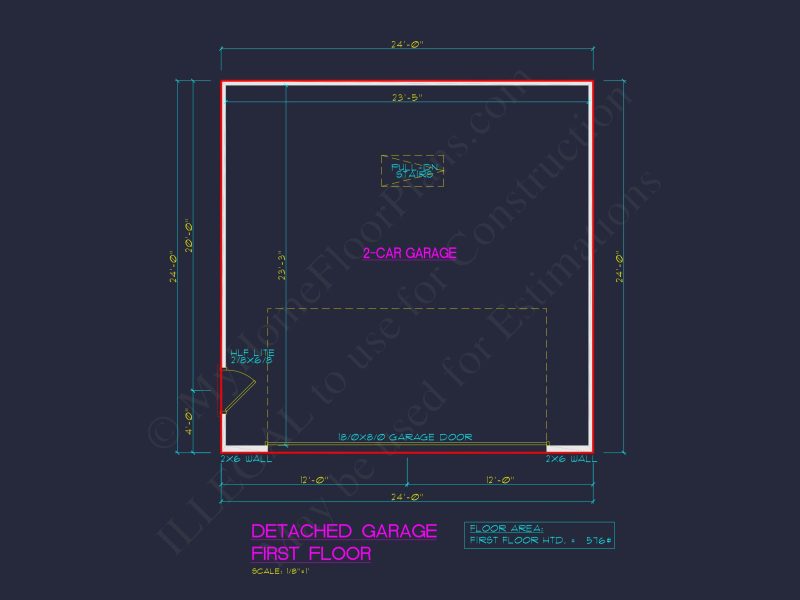

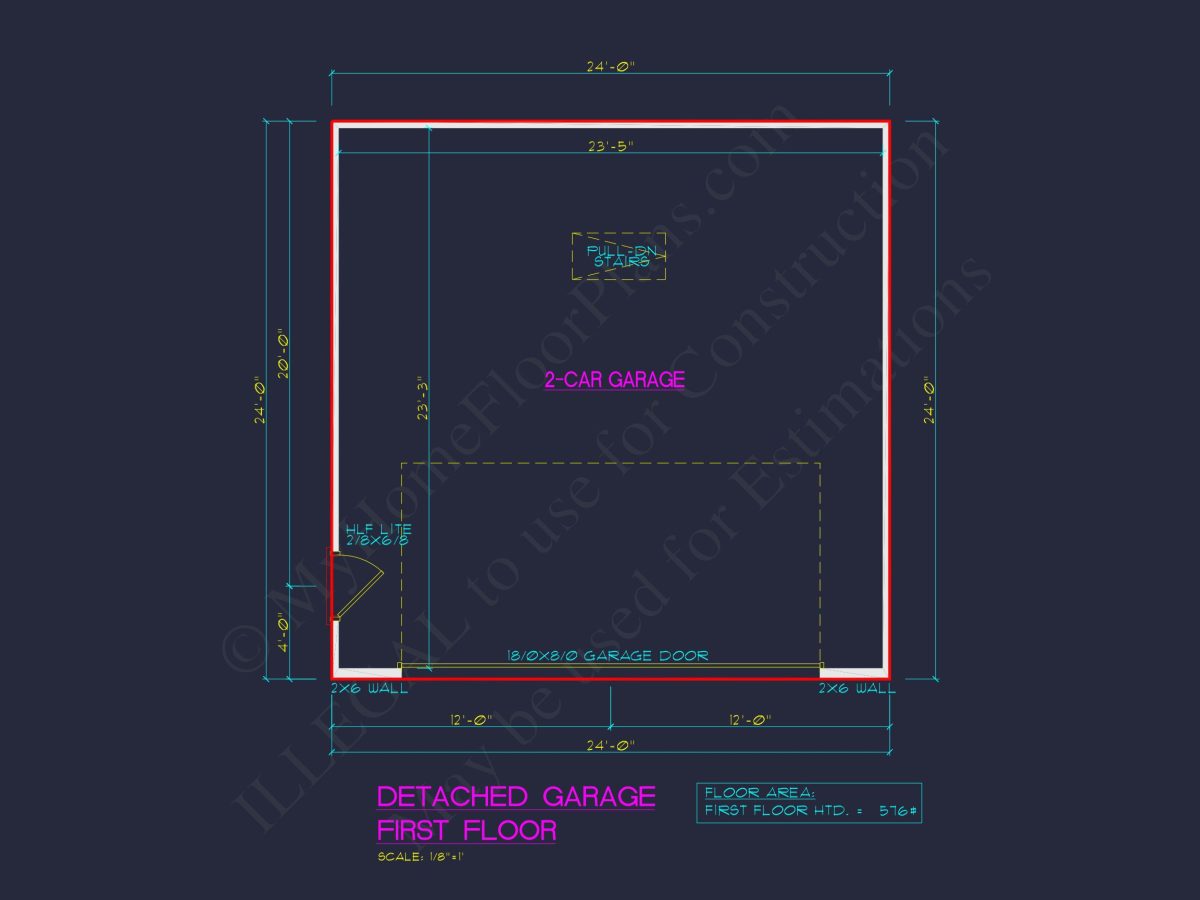

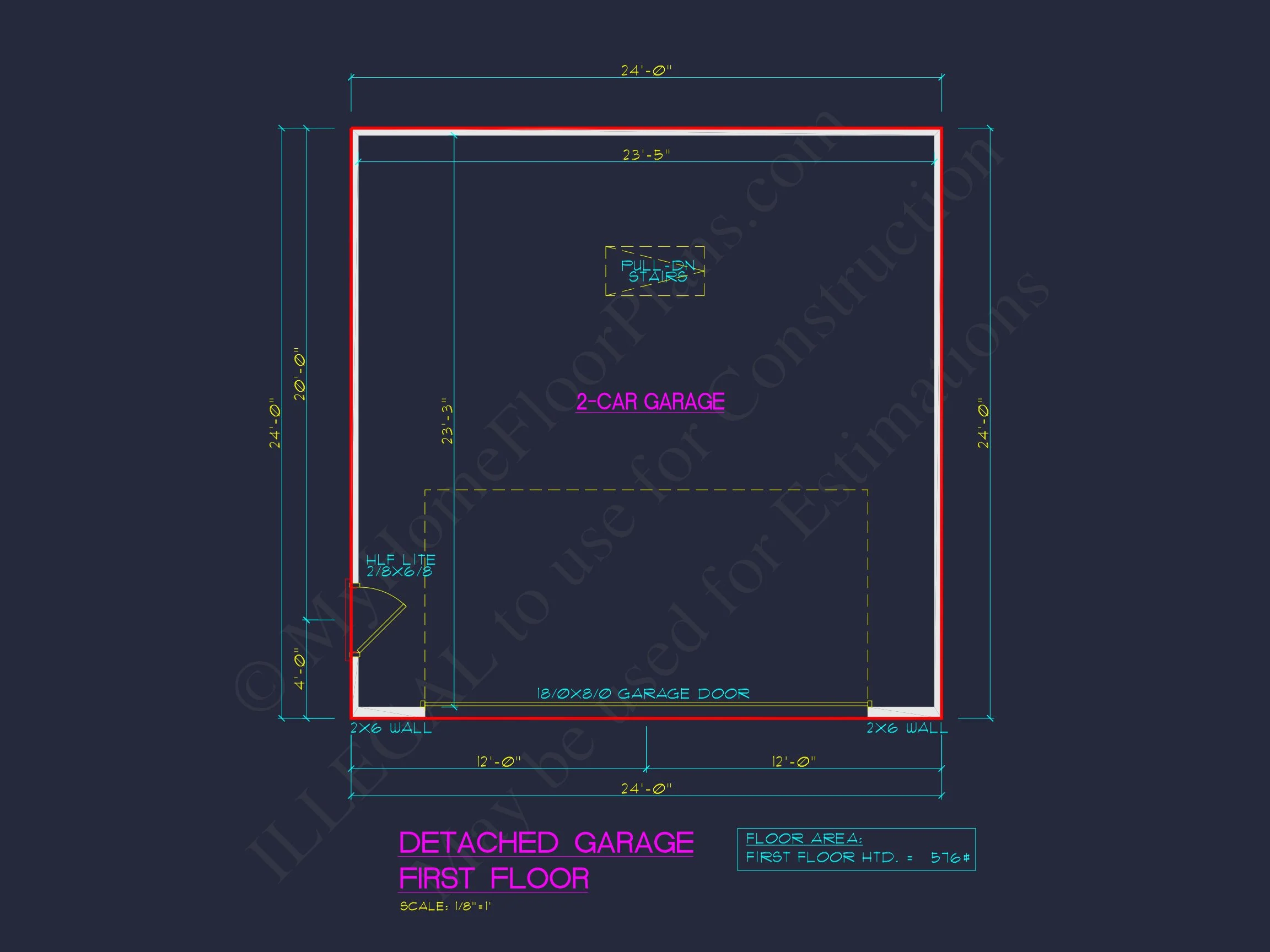

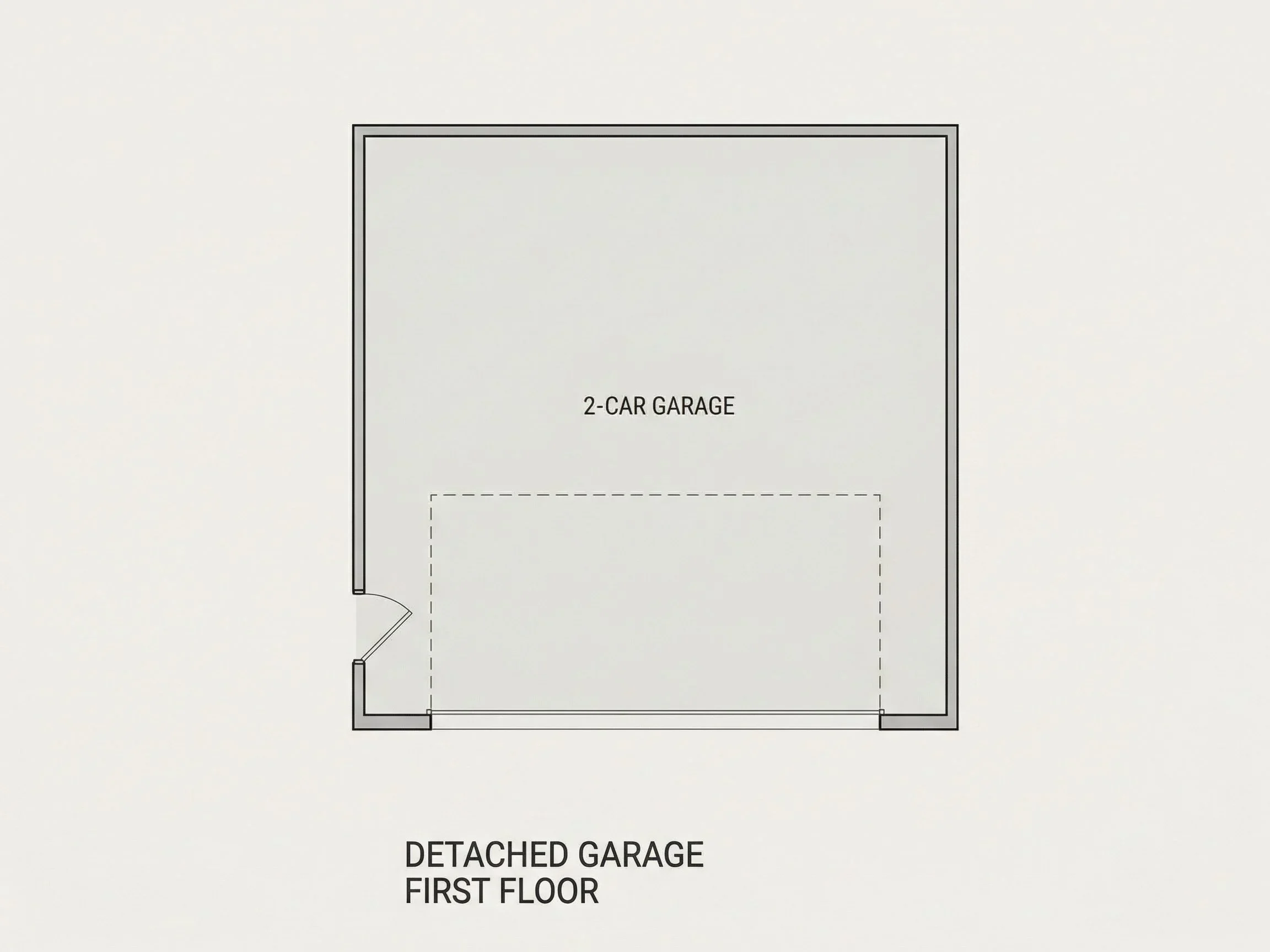

What size is this garage? It’s a 24’ x 24’ design, totaling 576 sq. ft. of usable space.
Is the plan editable? Yes! The CAD files are included and fully modifiable.
Can I use this as a workshop? Absolutely. The open layout and vaulted ceilings provide a great space for tools and hobby use.
Is this garage suitable for narrow lots? Yes—its square footprint and detached design work well on most lot shapes.
Are the engineering and foundation details included? Yes. All structural and foundation elements are part of the plan package.
Start Building Your Garage Today
Have questions or want help modifying this plan? Reach out to our expert team at [email protected] or use our contact form.
Build smarter, faster, and with full confidence—your dream garage starts here!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

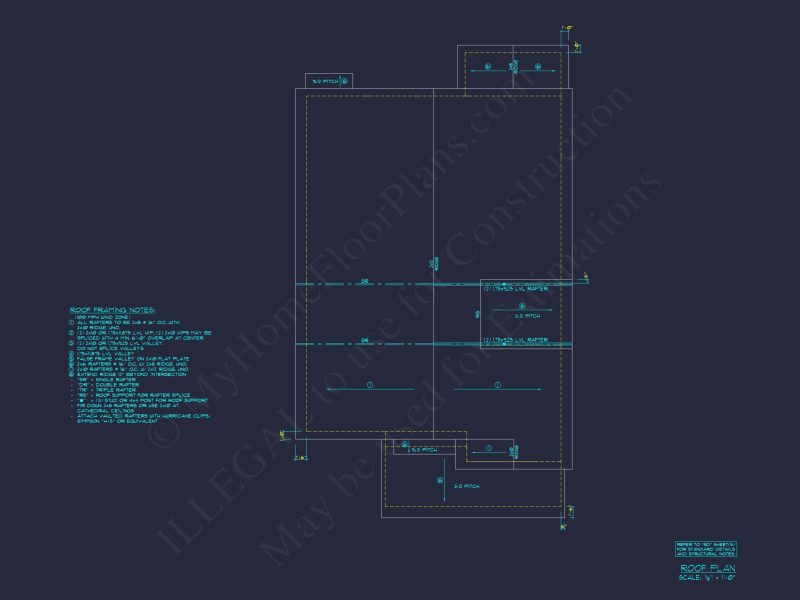

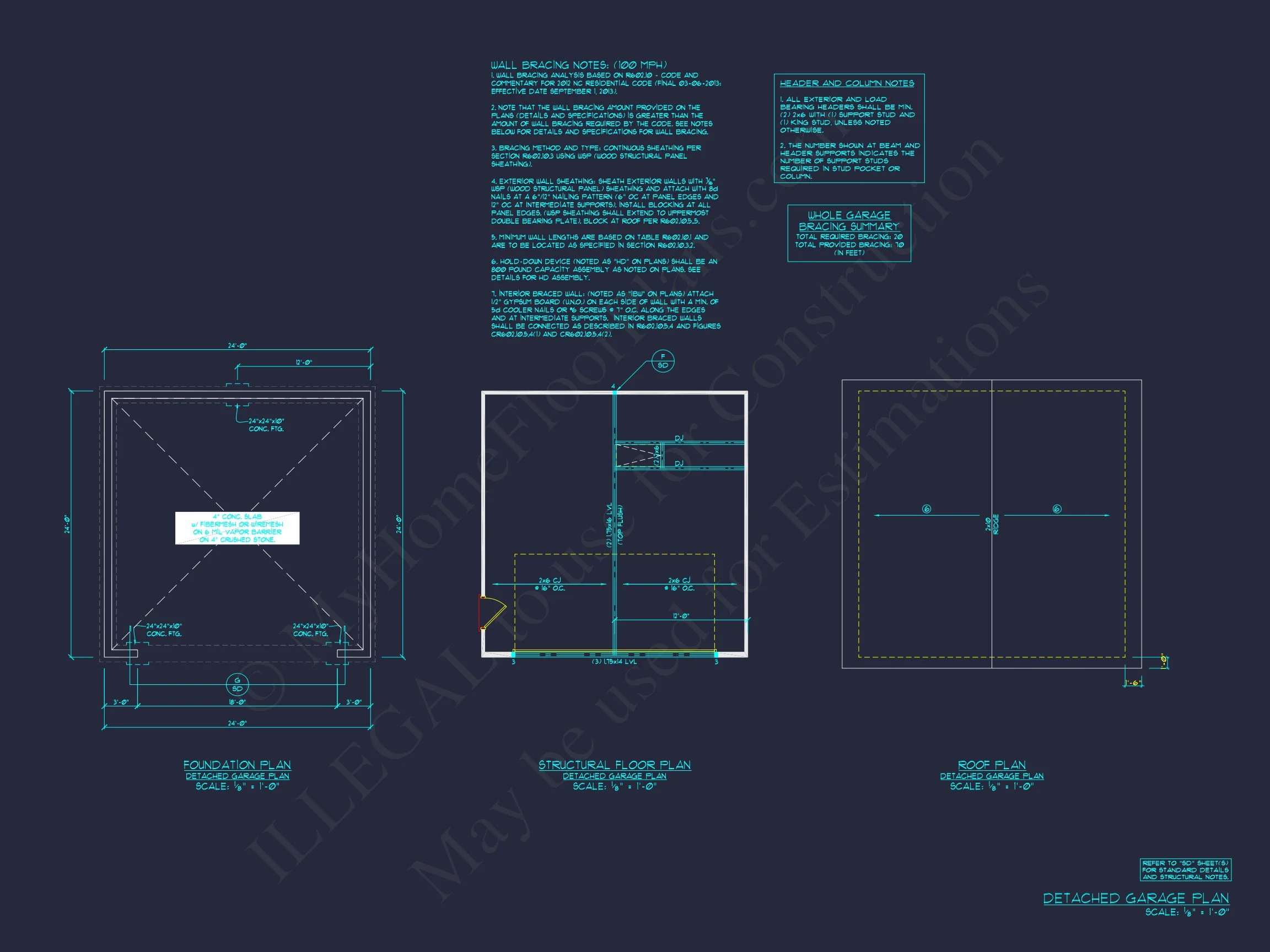

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
15-1926 GARAGE
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
