Barn-Style Floor Plan with 2 Garage Bays and Workshop Space
Discover this barn-style floor plan featuring 2 floors, 2 garage bays, and 1, 590 unheated SF. Includes CAD blueprints and versatile workshop designs.
Original price was: $1,582.56.$896.79Current price is: $896.79.
999 in stock
| Width | 33'-0" |
|---|---|
| Depth | 35'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |

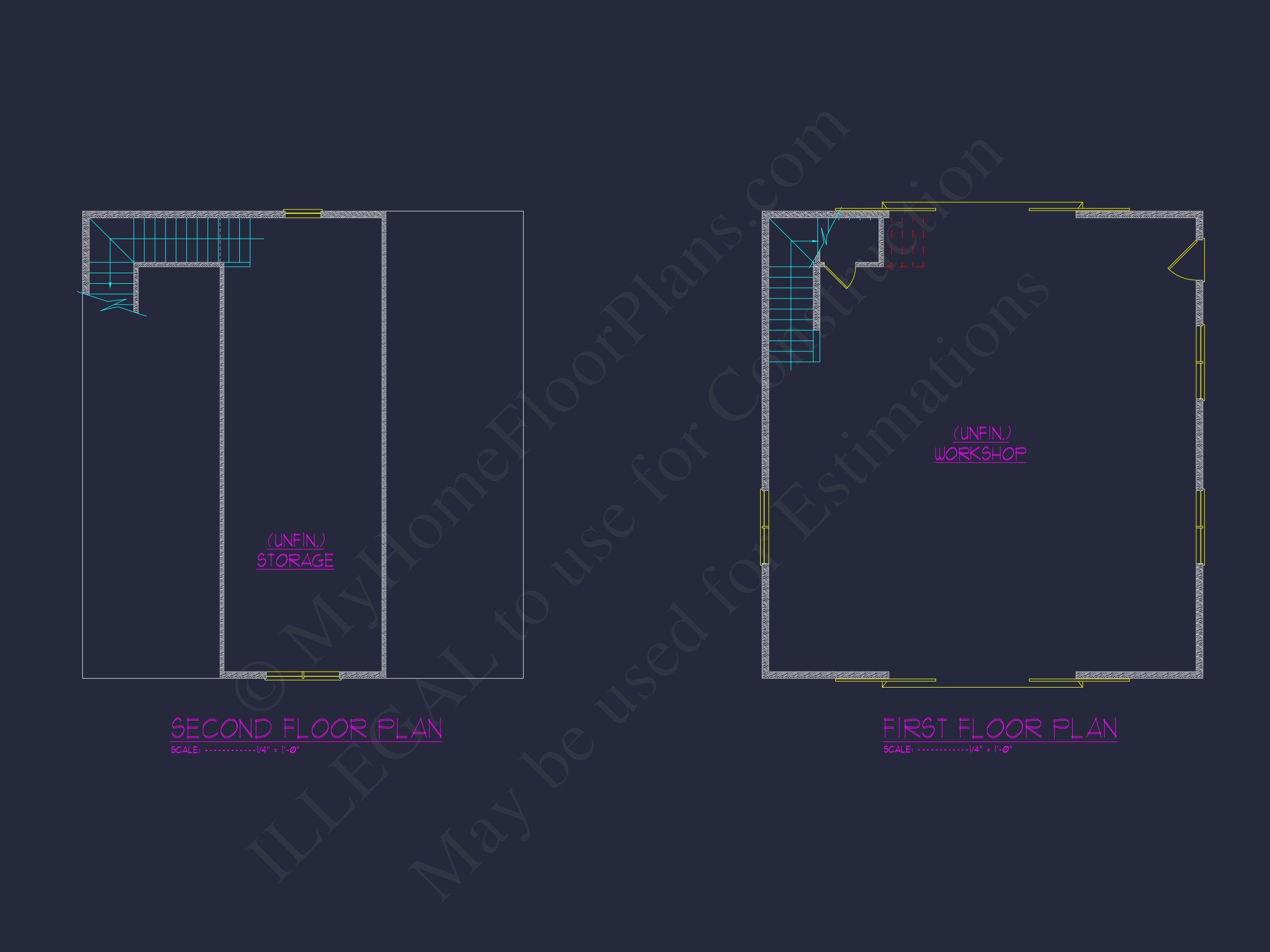

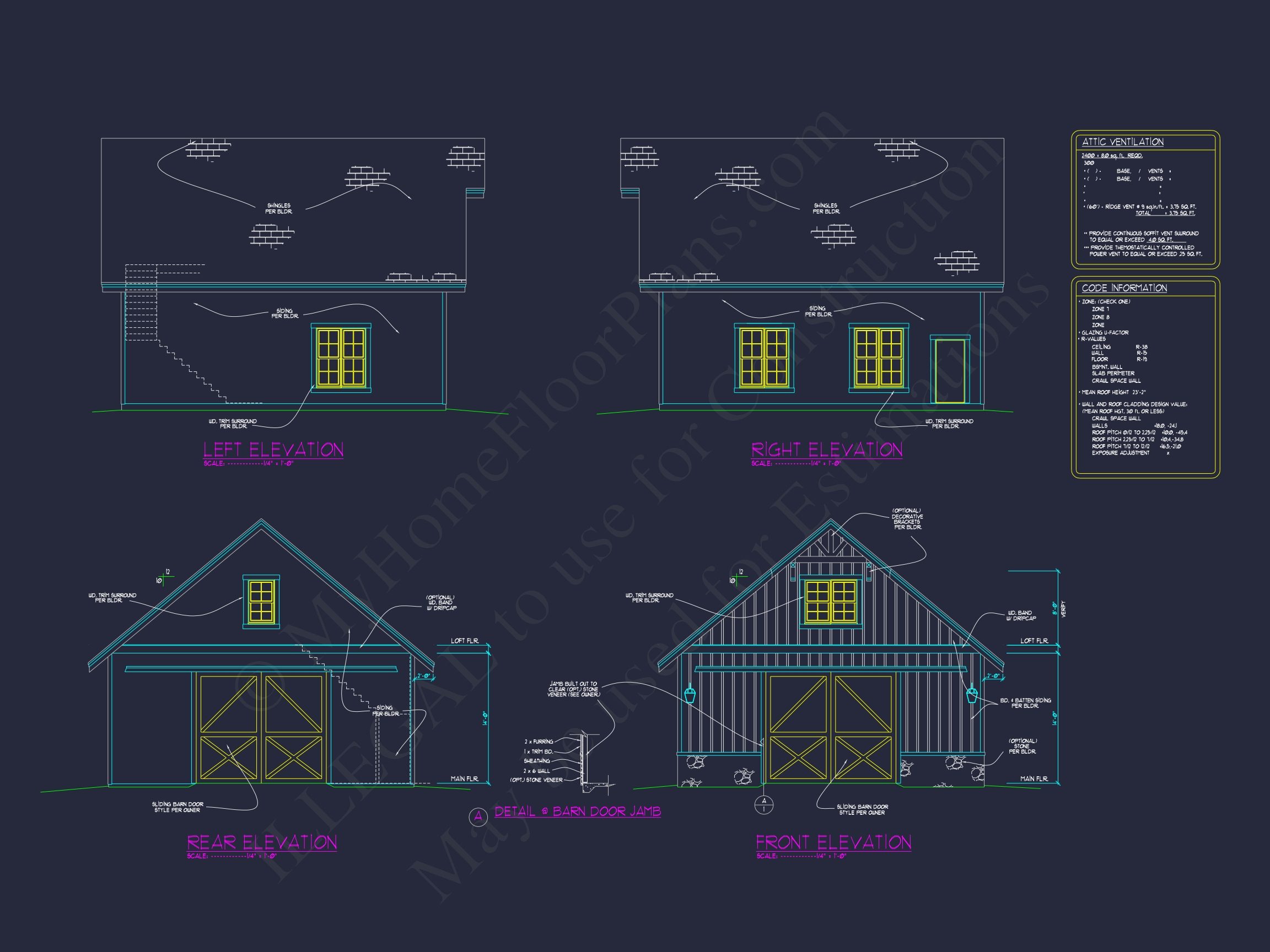

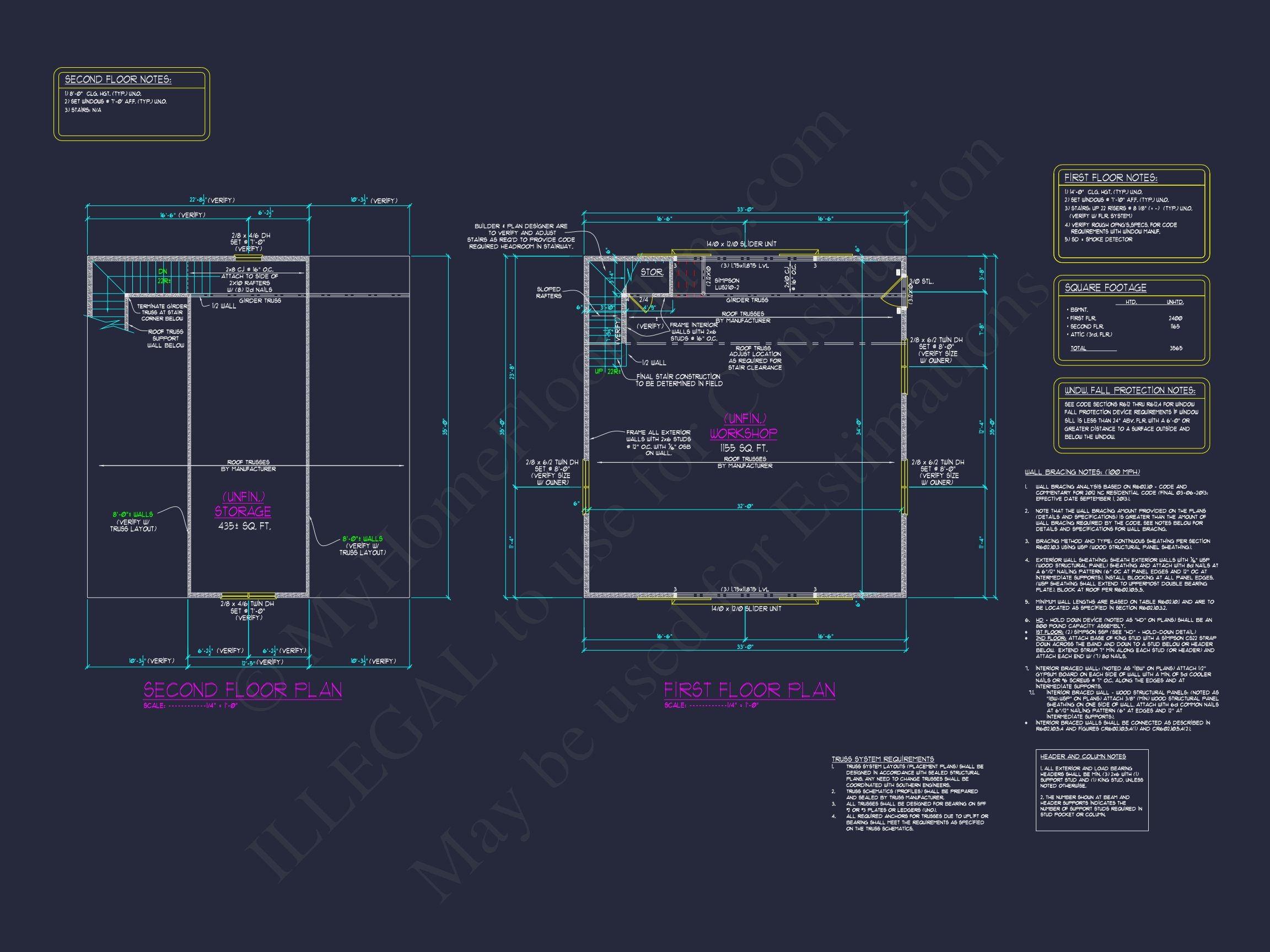

Barn-Style Floor Plan with 2 Garage Bays and Workshop Space
Discover this barn-style floor plan featuring 2 floors, 2 garage bays, and 1, 590 unheated sq. ft. Includes CAD blueprints and versatile workshop designs.
This barn-style house plan offers a practical blend of classic style and functional space. Whether you’re a DIY enthusiast, hobbyist, or contractor, this blueprint brings your vision to life with efficient layout and timeless design.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 0 sq. ft. – perfect as an accessory structure or add-on to your main home.
- Unheated extras: 1, 590 sq. ft. of open-use space across two floors including garage and workshop.
Bedrooms & Bathrooms
- No dedicated bedrooms or bathrooms—fully open interior for workshop, storage, or flexible repurposing.
Interior Highlights
- 10-foot ceilings on the first level create volume and flexibility for large equipment or lofted storage.
- Dedicated workshop space offers plenty of room for tools, workbenches, and creative projects.
- Open floor plan concept throughout both levels makes layout customization easy.
Garage & Storage Details
- Garage Bays: 2-car garage bays, ideal for standard vehicles, farm equipment, or project cars.
- Garage Type: Detached structure for stand-alone usage or addition to your main residence.
- Storage: Unfinished second floor storage area—ready for shelving, bins, or future build-out.
Outdoor Living Features

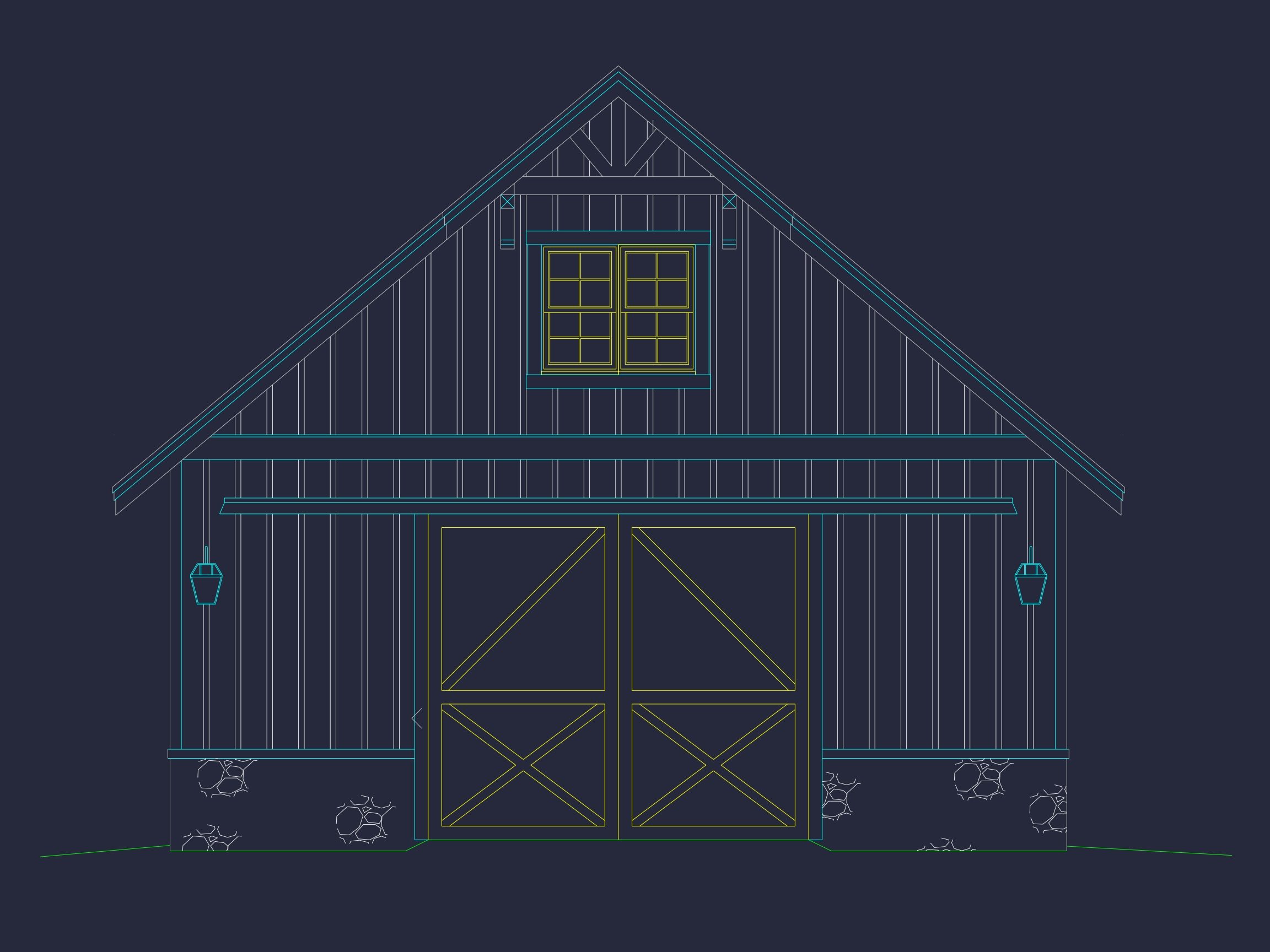

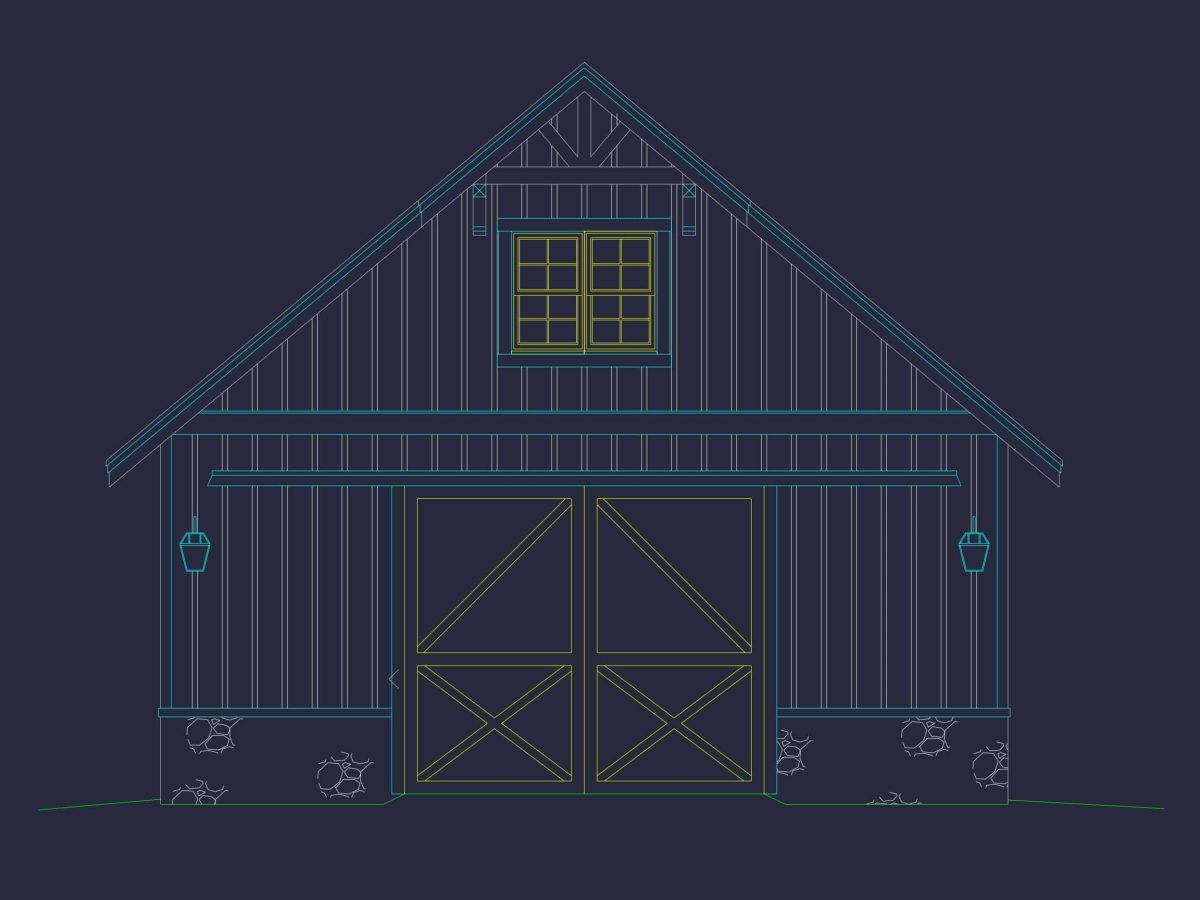

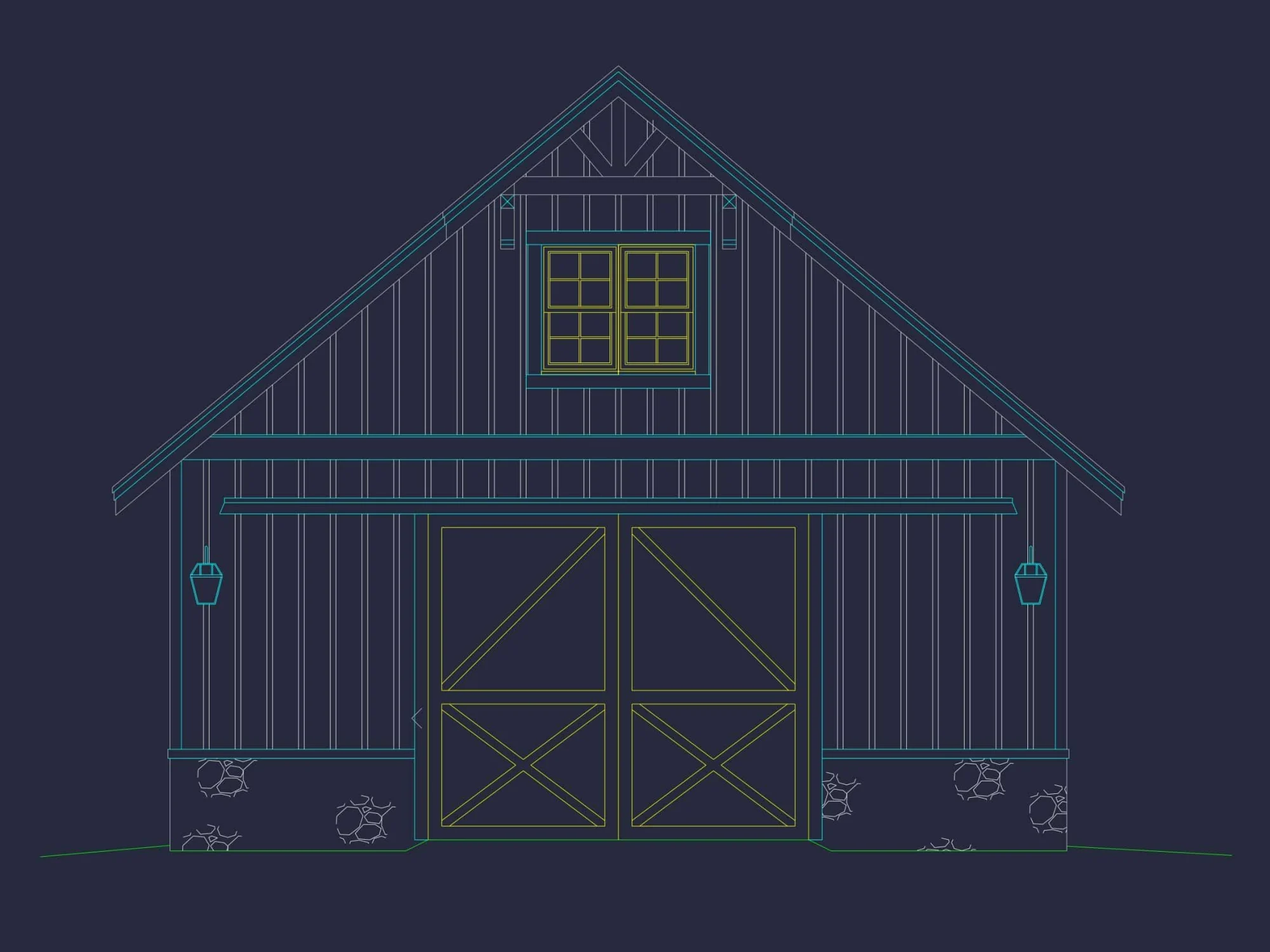

- Board & batten siding provides rustic barn aesthetics and curb appeal.
- Compact 33′ x 35′ footprint perfect for narrow lots or side-yard additions.
Architectural Style: Barn-Style
This design draws inspiration from classic American barn architecture with a functional footprint and elevated ceilings. Ideal for rural lots or modern homesteads, it’s a great choice for those who love hands-on projects. Learn more about the barn-style house plan collection or see its history on ArchDaily.
Bonus Features
- Flexible workshop layout: Use it for woodworking, crafts, metalworking, or vehicle maintenance.
- Lofted second story: Build out a future guest suite, studio, or keep for long-term storage.
- Expandable design: Easy to connect with your main residence or another detached structure.
Included Benefits with Every Plan
- CAD + PDF Files: Instantly downloadable and editable blueprints with precision details.
- Unlimited Build License: Use this plan multiple times with no additional charge.
- Free Foundation Changes: Choose slab, crawlspace, or basement at no extra cost. Learn more.
- Structural Engineering Included: All plans are code-compliant and stamped for your region.
- Lower Modification Costs: Custom changes are up to 50% more affordable than competitors.
- View Before You Buy: Preview every sheet in your plan set.
Similar Collections You Might Love
- Barndominium House Plans
- Garage Workshop Plans
- Detached Garage Plans
- Functional Layout House Plans
- Plans with Large Garage Spaces
Frequently Asked Questions
Does this plan include heated living space? No. This is a non-residential structure plan with 1, 590 unheated square feet, ideal for garages, workshops, or storage use.
Can this be converted into living space? Yes. While the plan is designed for storage/workshop use, you can work with our team to customize the layout for residential conversion.
Is this a two-story barn? Yes. The plan includes a lofted second level that can serve as extra storage or be finished later.
Can I add plumbing or HVAC? Absolutely. The structure can support utility additions based on your contractor’s review and code requirements.
How soon can I access the plans? Immediately after purchase, you’ll receive your full CAD + PDF files for download.
Start Building Your Dream Project Today
Questions or ready to customize this plan? Reach out to our team at [email protected] or use our contact form for fast answers.
Start crafting your ideal garage, workshop, or barn today—your future starts with the perfect plan!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

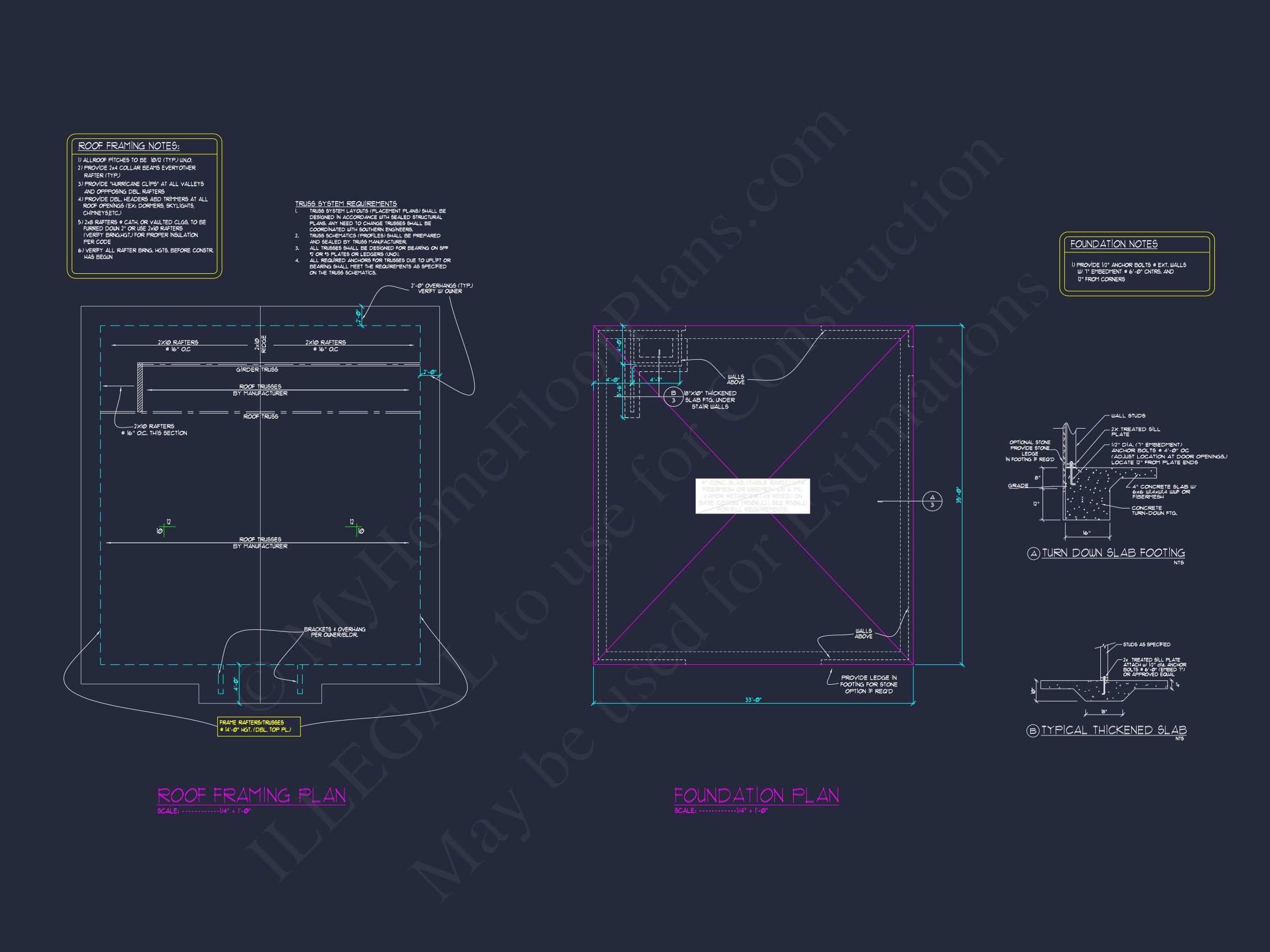

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
