Compact Garage and Workshop House Plan with Blueprint Designs

Discover this small garage house plan featuring a workshop and flexible design. Includes detailed floor plan and CAD blueprints for efficient building.

Your Guide to the Perfect Garage and Workshop House Plan
If you’re looking for a practical, budget-friendly way to add secure parking and a dedicated maker space to your property, this compact garage and vehicle storage plan delivers exactly what owners and builders need. The footprint is easy to site, the structure is straightforward to frame, and the workflow from driveway to tool bench is thoughtfully organized. Whether you’re storing a weekend cruiser, building a mountain-bike maintenance bay, or creating a small contractor’s shop for weekday projects, this plan balances durability, curb appeal, and day-to-day usability.

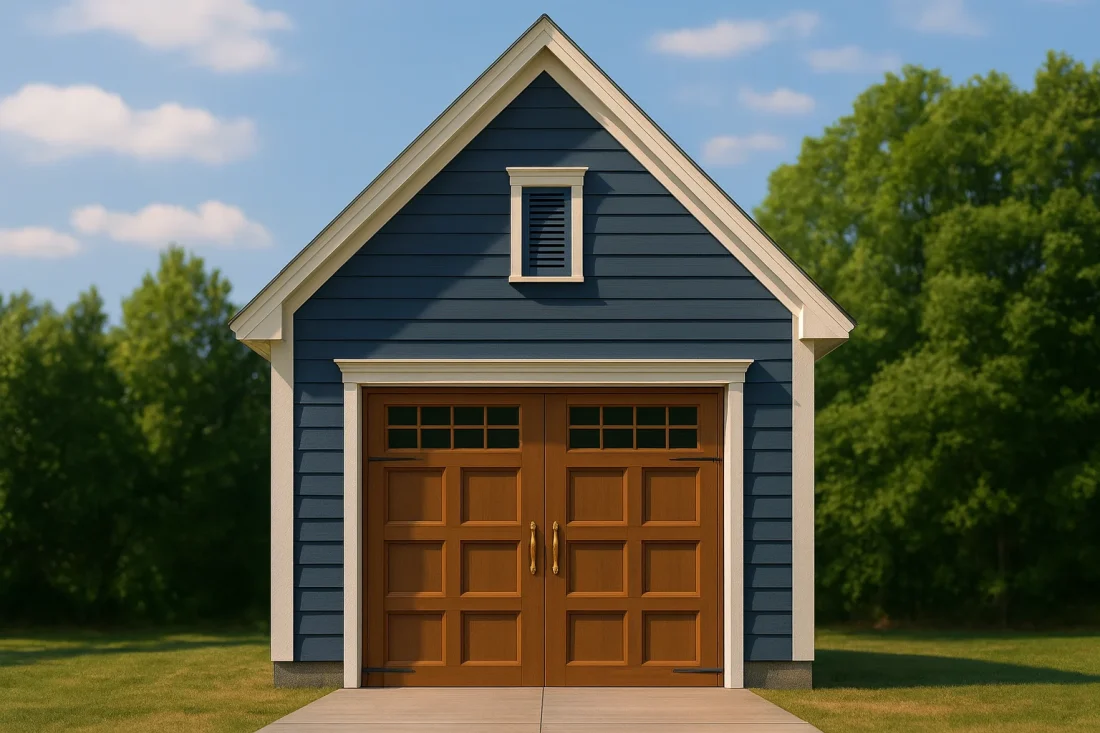

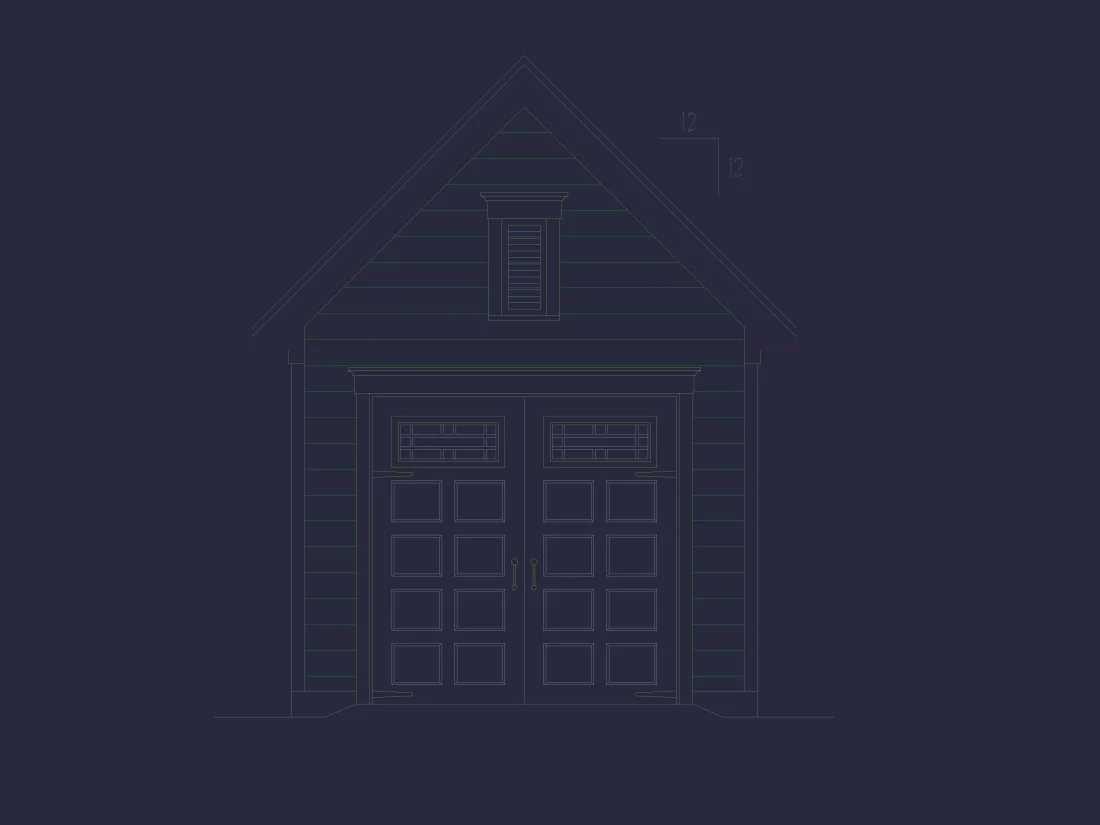

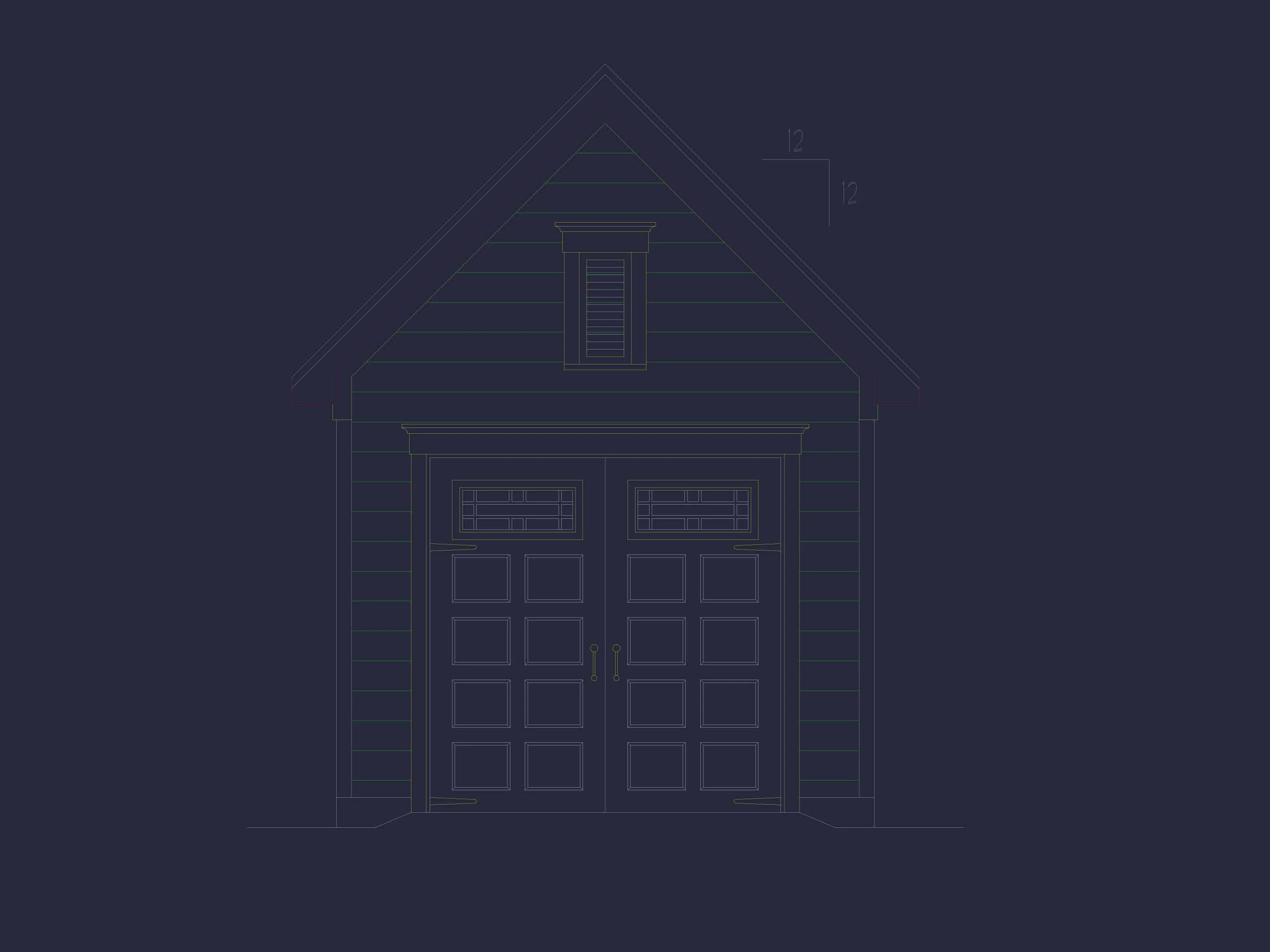

At just 12′ wide by 22′ deep, the design is intentionally compact for tight lots or side-yard placements, yet it still accommodates two vehicle bays (or one vehicle plus a generous workshop lane). The classic Craftsman-influenced exterior—with horizontal siding, neat trim, and shingle accents—helps the building complement a wide range of main houses without looking utilitarian. Inside, the clear-span space, tall ceilings, and wall lengths provide generous room for racking, pegboard systems, and rolling tool chests without crowding vehicle doors.

Why This Compact Garage/Shop Works So Well

Small outbuildings succeed when every inch is purposeful. This plan is drawn to reduce wasted corners and awkward clearances while preserving flexibility for different uses over time. You can start with pure storage and later convert part of the interior to a woodworking bay, a motorcycle shop, or a hobby studio—without moving walls. The CAD set includes clear dimension strings, window/door schedules, and structural notes so your builder and building department can price, permit, and pour the slab with confidence.

Dimensions & At-a-Glance Specs

• – Overall footprint: 12′ W x 22′ D (approx.)
• – Stories: 1 level (single-story outbuilding)
• – Garage bays: Up to 2 (or 1 vehicle + full workshop lane)
• – Ceiling height: 10’+ for comfortable headroom and overhead storage
• – Structure type: Detached single-purpose garage/workshop
• – Foundation: Slab (free alternatives available—see Included Benefits)
• – Exterior: Siding with shingle accents; simple, durable trim
• – Style: Craftsman-inspired outbuilding with traditional proportions

How the Space Lives Day to Day

Pull straight in from the driveway and park without three-point turns. The doors and interior clearances allow you to open doors, pop trunks, and access roof racks without dings. Along the long walls, you’ll find uninterrupted space for shelving, slatwall, and cabinets—ideal for tool organization and seasonal storage. The tall ceiling enables overhead racks for totes, snowboards, or camping gear, keeping the floor clear and the shop sweepable.

Because the plan’s structure is intentionally clean—few interior obstructions and smart door placement—you can stage work tables or a miter-saw station on rolling bases. When it’s time to detail a car or break down lumber, roll the equipment to the vehicle bay. When you need open space for a project, roll tools to the perimeter. The design supports the way real enthusiasts work: flexible, fast, and tidy.

Construction Approach Builders Appreciate

• – Straightforward framing: Regular stud spacing, simple roof geometry, and sensible spans help control labor and material costs.
• – Standardized openings: Door and window sizes align with common stock dimensions to reduce lead times.
• – Clear slab notes: Details for thickened-edge slab, control joints, anchor bolt layout, and sill sealing improve longevity.
• – Service-ready walls: Stud bays laid out for easy electrical runs, air-compressor lines, and task lighting switching.
• – Moisture-aware detailing: Sill gaskets, flashing, and ventilated cladding assemblies are specified to keep the envelope dry.

Interior Features That Make Work Easier

• – 10’+ ceilings for vertical storage, kayak/paddleboard hoists, or overhead bicycle racks.
• – Open floor plan allows vehicle storage plus a continuous workshop lane. Explore more open concepts.
• – Workbench zone positioned for excellent lighting and easy access to outlets.
• – Wall length optimized for standard cabinet modules and rolling tool chests.
• – Optional utility closet for shop vacs, compressor, or garden tools.

Exterior & Site Considerations

• – Front-entry garage doors simplify approach on narrow lots.
• – Covered stoop/porch (optional) creates a protected entry in rainy climates.
• – Durable cladding (siding with shingle accents) and simple cornice details keep maintenance low.
• – Lighting layout supports dusk-to-dawn fixtures and motion sensor security.
• – Driveway grading and slab elevation specified to divert stormwater away from the structure.

Storage & Organization Ideas

Because storage is often the difference between a clean shop and a chaotic one, the plan allocates uninterrupted wall runs that accept off-the-shelf systems: metal shelving, French cleats, or slatwall. A short list of popular configurations includes:

• – Garden side: Tall cabinet + shallow shelves for fertilizers and hand tools.
• – Automotive side: 8′ rolling bench with overhead cabinets and a pegboard panel.
• – Seasonal rack: Overhead tote storage rated for 300–600 lb near the back wall.
• – Sports wall: Bike hooks, board racks, helmet bins, and boot dryers near the door.

Energy & Durability Notes

Though many owners choose to keep a detached shop unconditioned, the envelope is drawn to accommodate insulation and future upgrades without rework. If you opt for conditioning, you can use a compact heat-pump unit, add air sealing at rim joists, and specify insulated garage doors. For building-science best practices and why air barriers matter—even in outbuildings—see this overview from Fine Homebuilding.

Finish Palette (Craftsman-Inspired)

• – Siding: Horizontal lap with shingle gable accents for character.
• – Roofing: Architectural shingles (or metal, by option) with properly vented ridge.
• – Trim: Clean profiles sized to frame doors and windows elegantly.
• – Doors: Craftsman-style garage doors with simple lites to echo the main home.

Who This Plan Is For

• – Homeowners needing secure parking that looks great beside a main house.
• – DIYers who want a legit work bay without the cost of a full-size shop.
• – Small-business owners (landscaping, handyman, detailer) who need tool organization + vehicle storage under one roof.
• – Property managers adding a value-boosting outbuilding with excellent curb appeal.

Included Benefits with Every Plan

• – CAD + PDF Files: Editable CAD and print-ready PDFs for permitting and construction.
• – Unlimited Build License: Construct the plan as many times as you need.
• – Free Foundation Changes: Swap between slab, crawlspace, or basement at no extra charge. Learn more.
• – Structural Engineering Included: Professionally stamped and code-compliant.
• – Lower Modification Costs: Custom changes priced up to 50% less than competitors. Request modifications.
• – View Before You Buy: Preview every sheet so you know exactly what you’re getting.

Popular Upgrades & Tweaks

• – Add a mini mechanical closet for a small heat pump or compressor enclosure.
• – Specify full-height shop windows on one wall for daylighting.
• – Upgrade to insulated garage doors with better R-value and weatherstripping.
• – Install 220V circuits for welders, table saws, or EV charging.
• – Extend a rear yard door for quick access to garden or trailer.

Buildability, Budget & Scheduling

With simple geometry and standardized components, this plan is budget-aware without feeling bare-bones. Crews can frame walls and set trusses quickly, electrical rough-in is straightforward, and finish carpentry is largely exterior trim and door casing. That means a faster schedule, fewer surprises, and an easy path to customization if you decide to add built-ins or specialty lighting later.

FAQ

Can this plan be mirrored? Yes—CAD files make mirroring or flipping a quick edit.

Is the footprint really suitable for small lots? Absolutely. At approximately 12′ x 22′, it’s specifically tuned for tight setbacks and side-yard placements (verify local zoning).

Can I heat/cool the space? Yes—add insulation and a compact heat pump. The plan anticipates future conditioning.

Is there space for a full workshop? Yes—use one bay for the vehicle and dedicate the other to benches, racks, and rolling tools.

Can the doors be upgraded? Definitely—choose carriage-style, modern flush, or glass-panel doors to match your main house.

Ready to Build?

When you purchase, you receive the editable CAD set, print-ready PDFs, and an unlimited build license—plus structural engineering and free foundation changes to match your site. If you want to tailor the façade, door styles, or window layout, our team can make precise changes quickly and affordably.

Have questions or want help fine-tuning the plan for climate, codes, or finish options? Email support@myhomefloorplans.com or contact us here. We’ll help you turn this compact Craftsman garage/workshop into the hardest-working outbuilding on your property—built to look great, last long, and make every project easier.
