Compact house Plan with Garage, Floor Plan, CAD Design
Discover this compact house design featuring a two-car garage, efficient floor plan, modern architecture, and CAD-friendly blueprints for simple living.
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 28'-1" |
|---|---|
| Depth | 25'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Countertop Workspace, Open Floor Plan, Recreational Room, Upstairs Laundry Room |
| Outdoor Features | |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Compact House Plan with 2-Car Garage, Open Layout & CAD Blueprints
Discover this smartly designed 606 sq. ft. compact house plan with a 2-car garage, recreational room, and CAD-friendly floor plan—perfect for simple, efficient living.
This compact and narrow-lot house plan offers a perfect mix of function and style. Designed for efficient modern living, it delivers character-rich architecture with a surprisingly spacious feel.
Key Features of the Home Plan

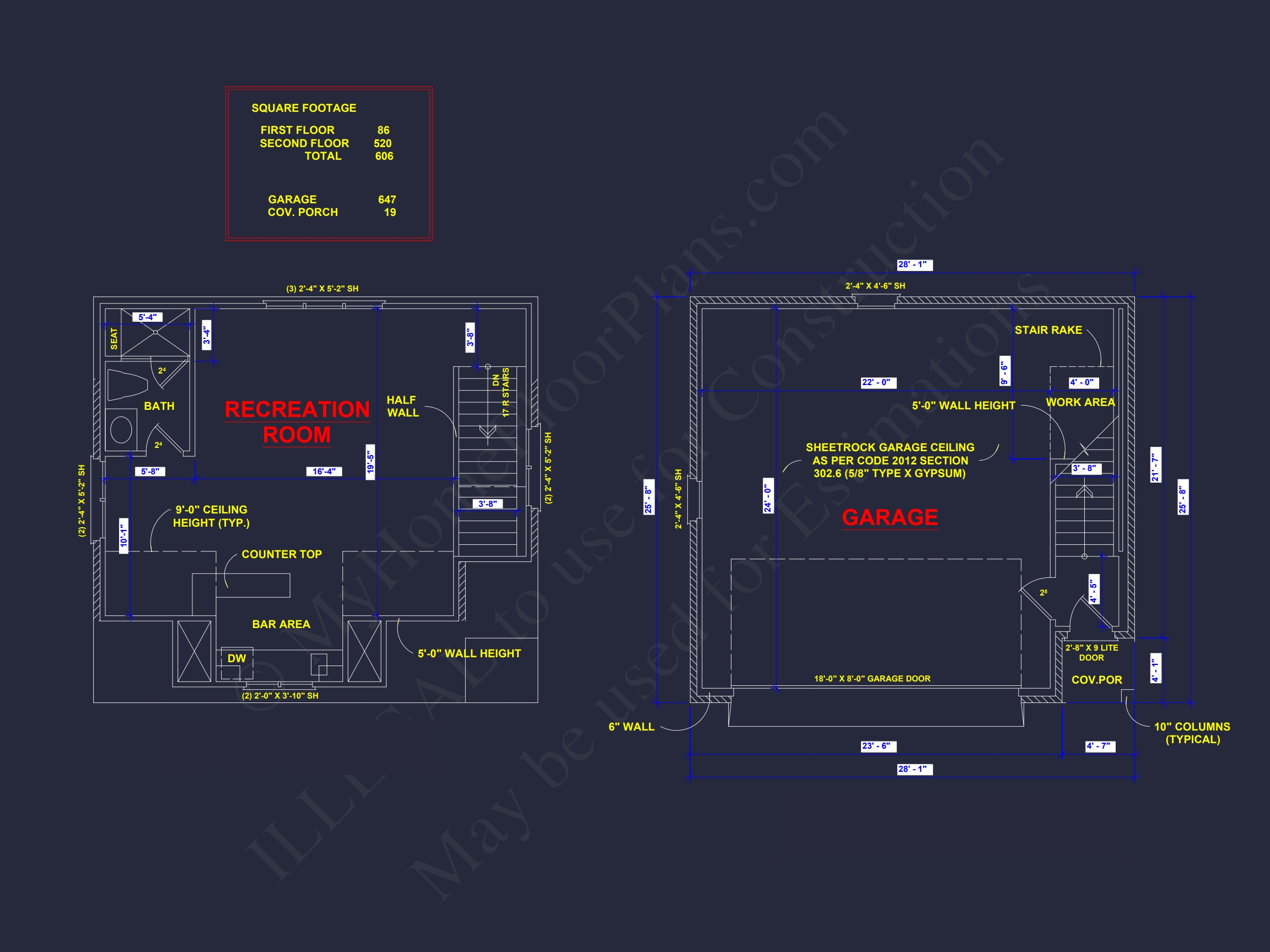

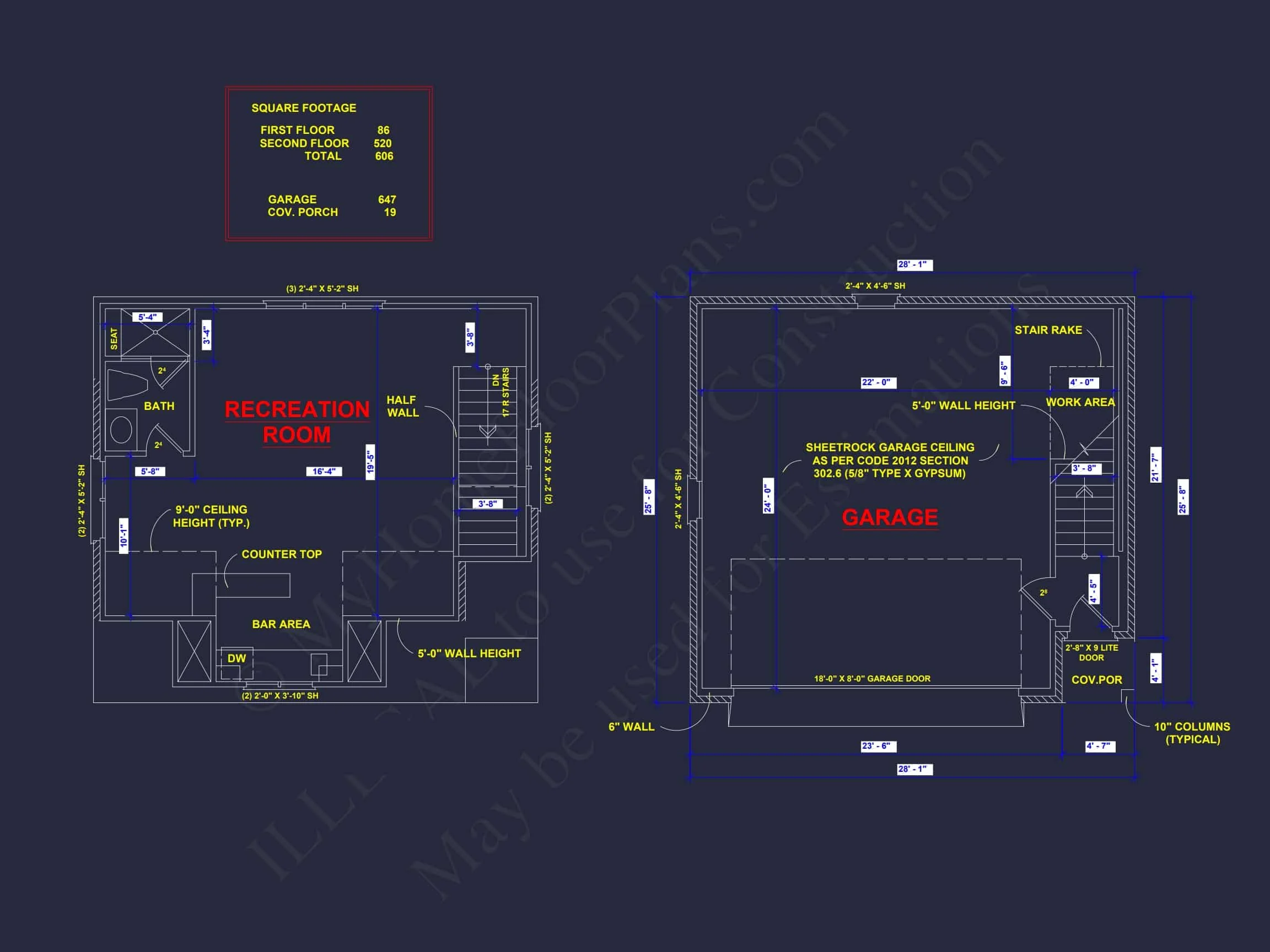

Living Areas – Heated & Unheated
- Heated area: 606 sq. ft. spread across two levels.
- Unheated extras: 647 sq. ft. 2-car garage with work zone + front porch.
Bedrooms & Bathrooms
- Designed as a flexible studio-style layout or can accommodate a private bedroom concept.
- Includes a full bathroom conveniently placed for guest or daily use.
Interior Highlights
- 9+ ft ceilings enhance volume and natural light throughout.

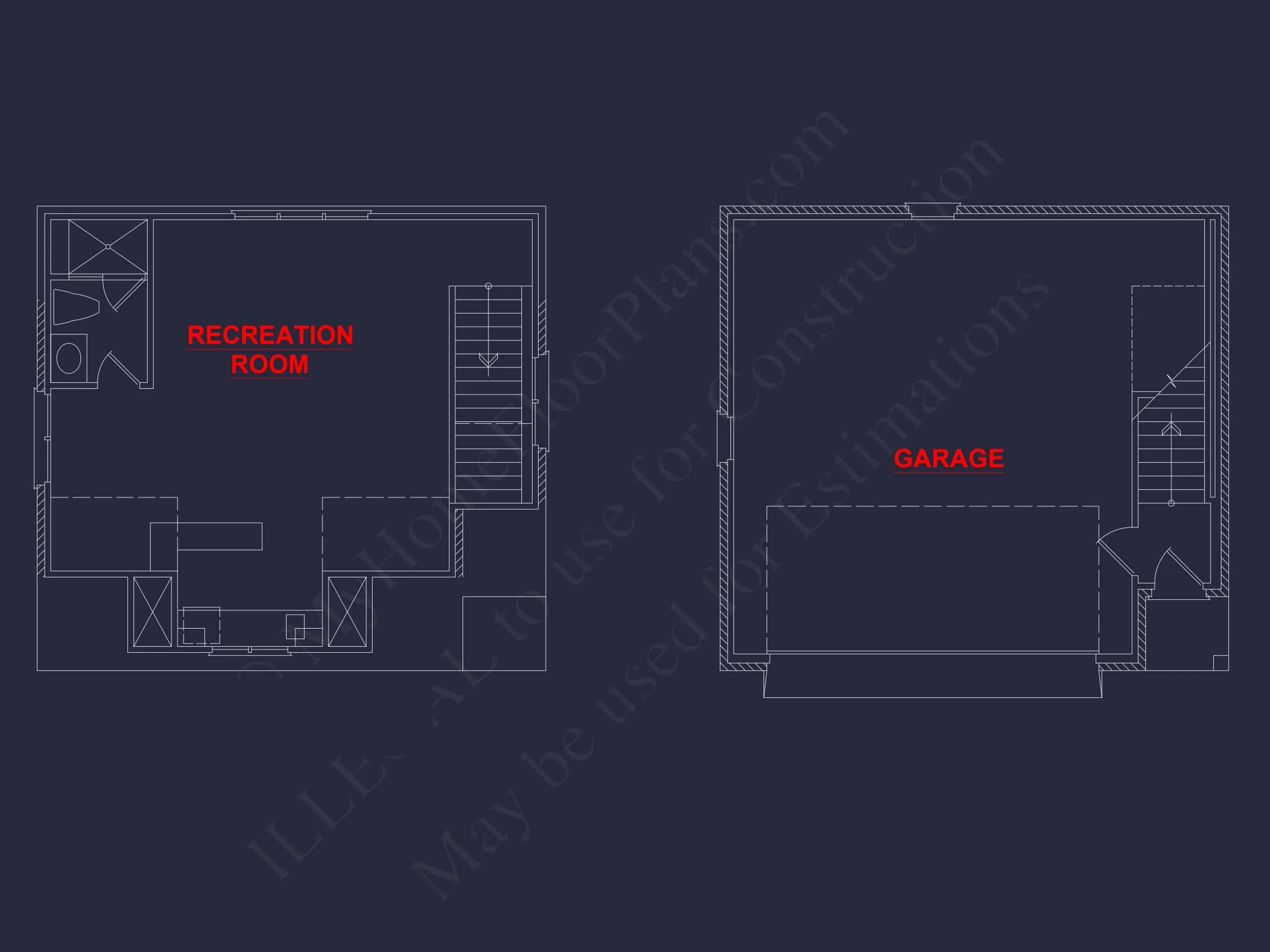

- Open floor plan connects the main living space to the kitchen area. See open layouts.

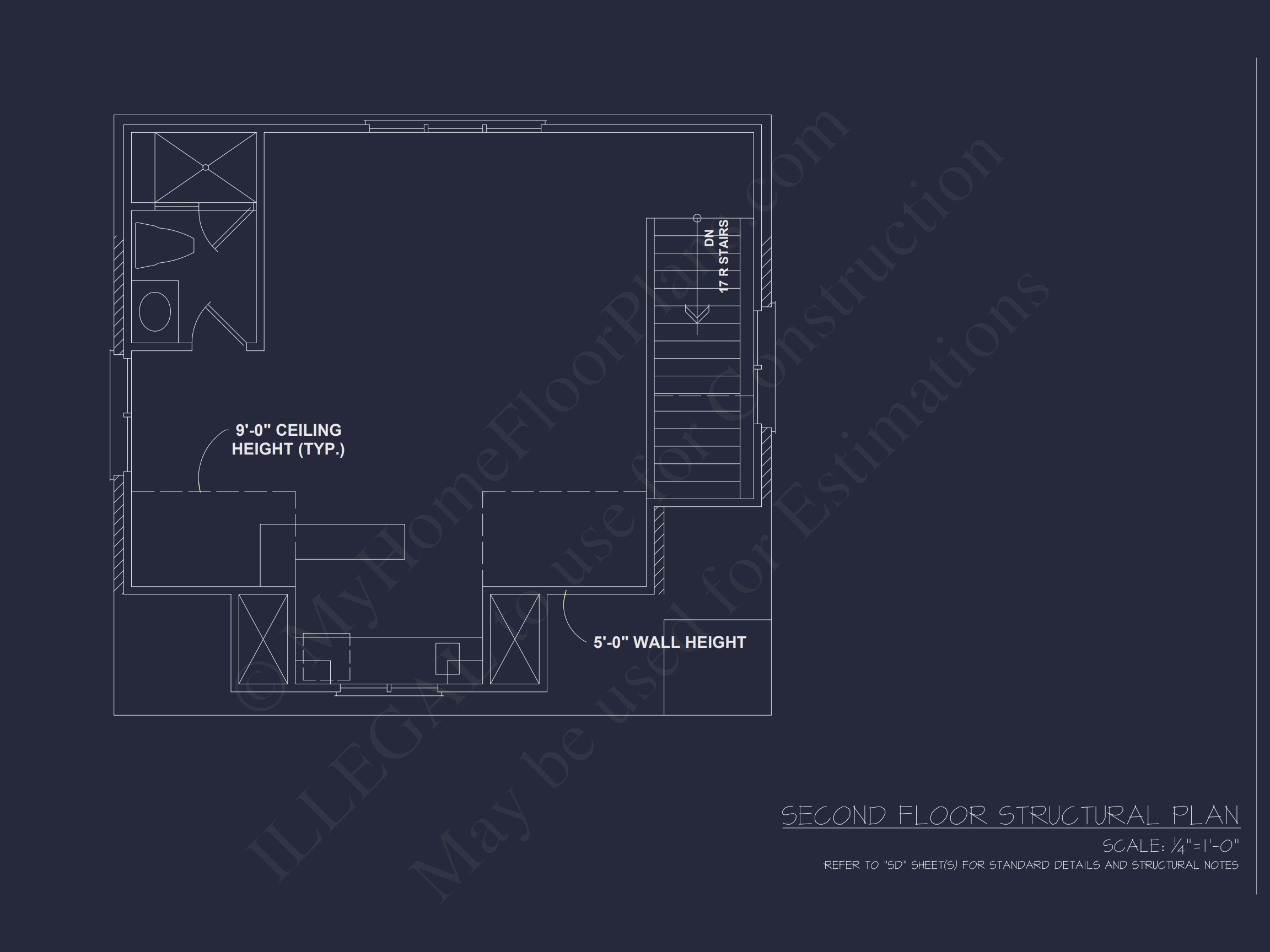

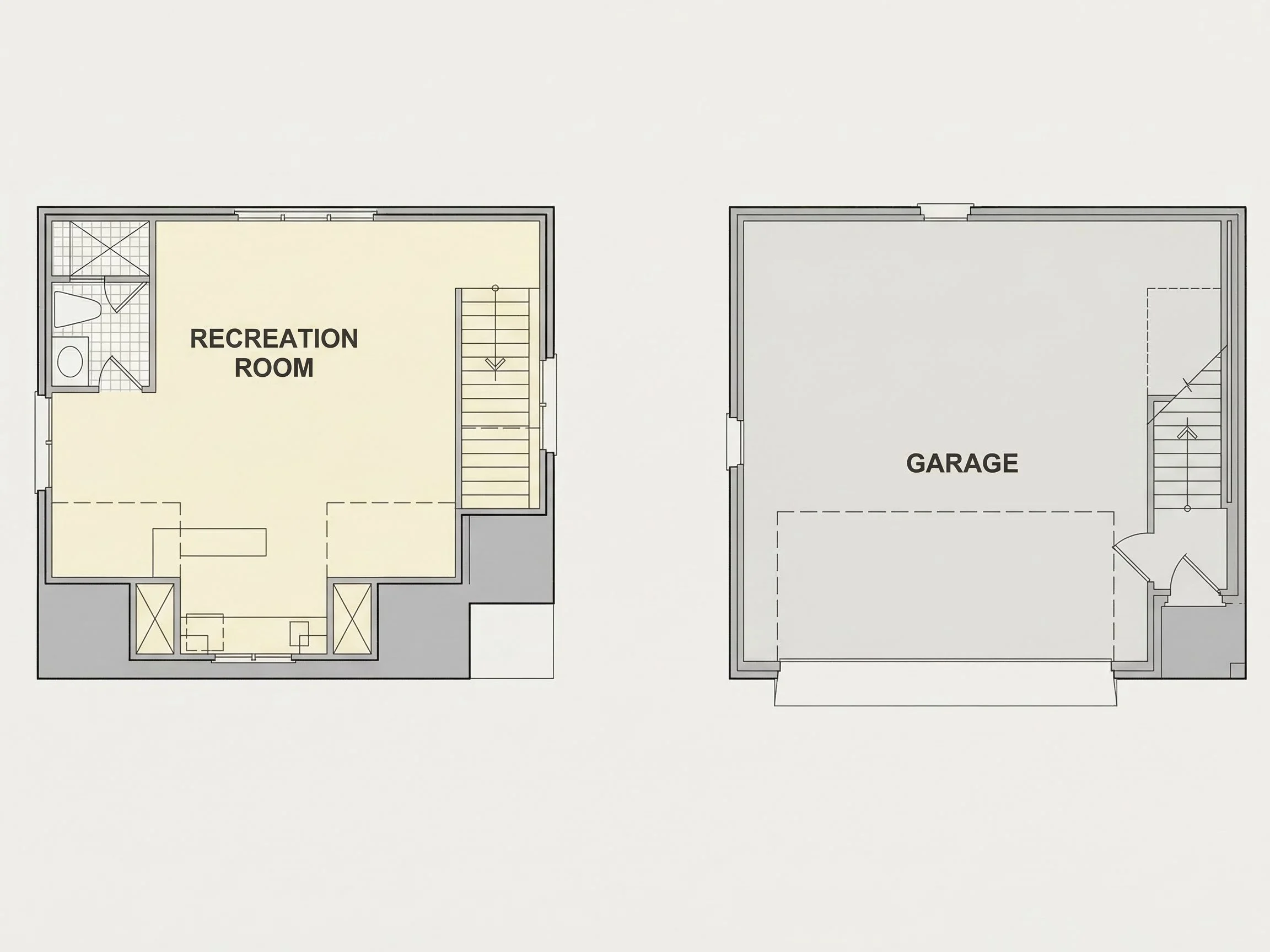

- Recreation room upstairs with wet bar and countertop workspace.
- Laundry area conveniently located on the second level.
Garage & Storage Details
- Garage Bays: Spacious 2-car front-entry garage.
- Garage Type: Attached garage beneath the heated space.
- Storage: Bonus counter and wet bar cabinetry + garage tool/workspace area.
Outdoor Living Features

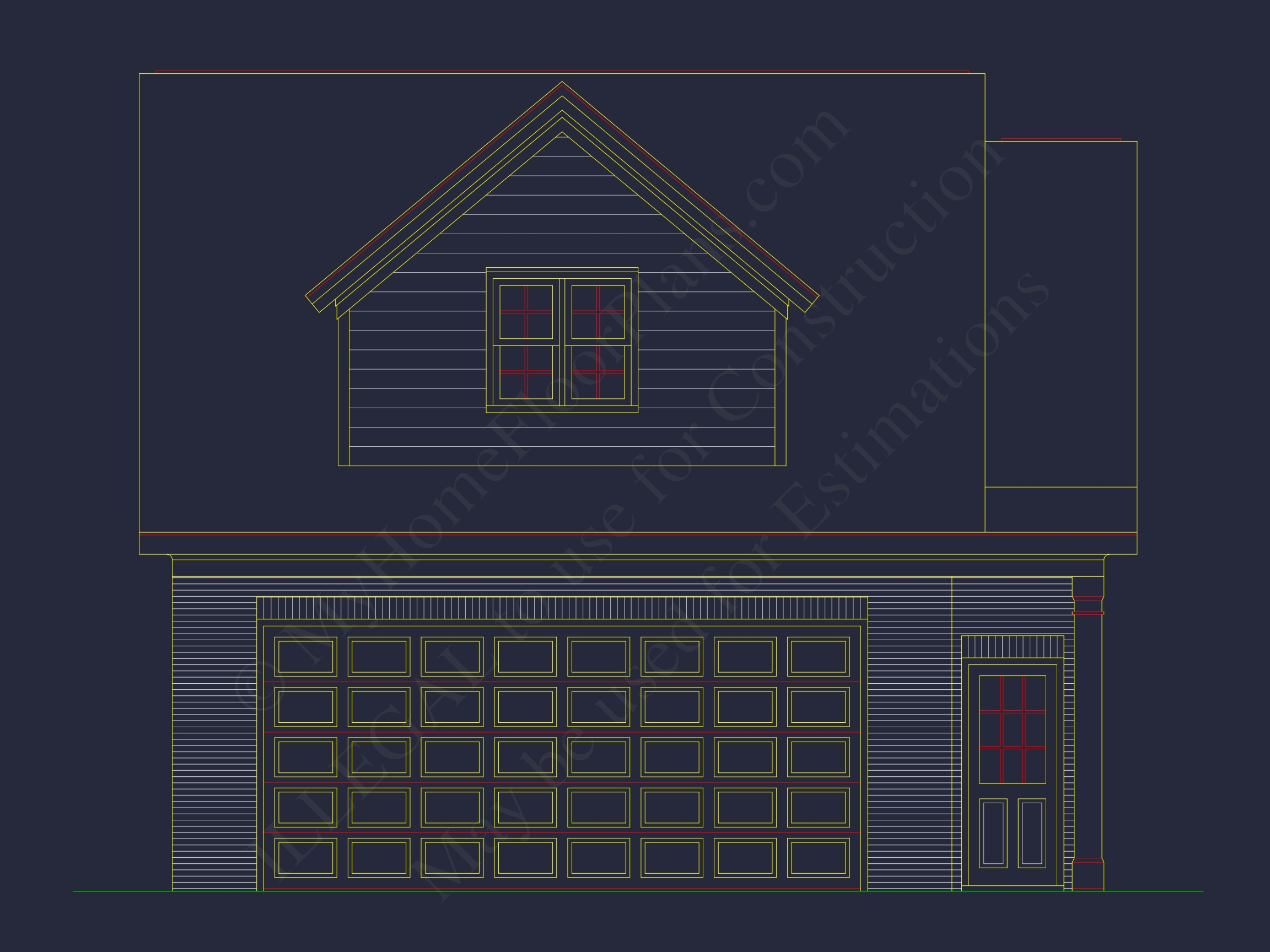

- Charming covered front porch for sitting and curb appeal.
- Minimal exterior footprint ideal for affordable builds or urban infill lots.

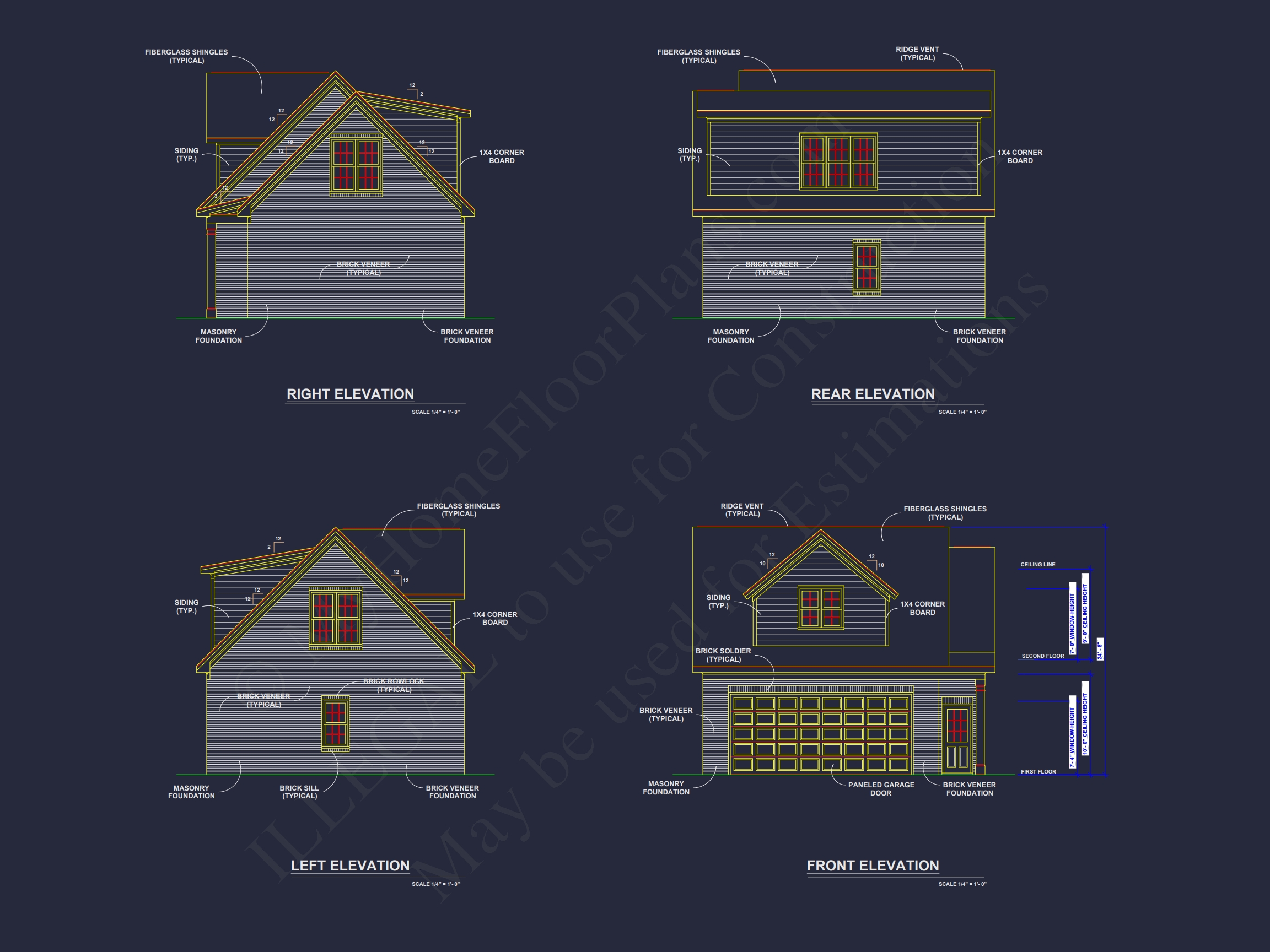

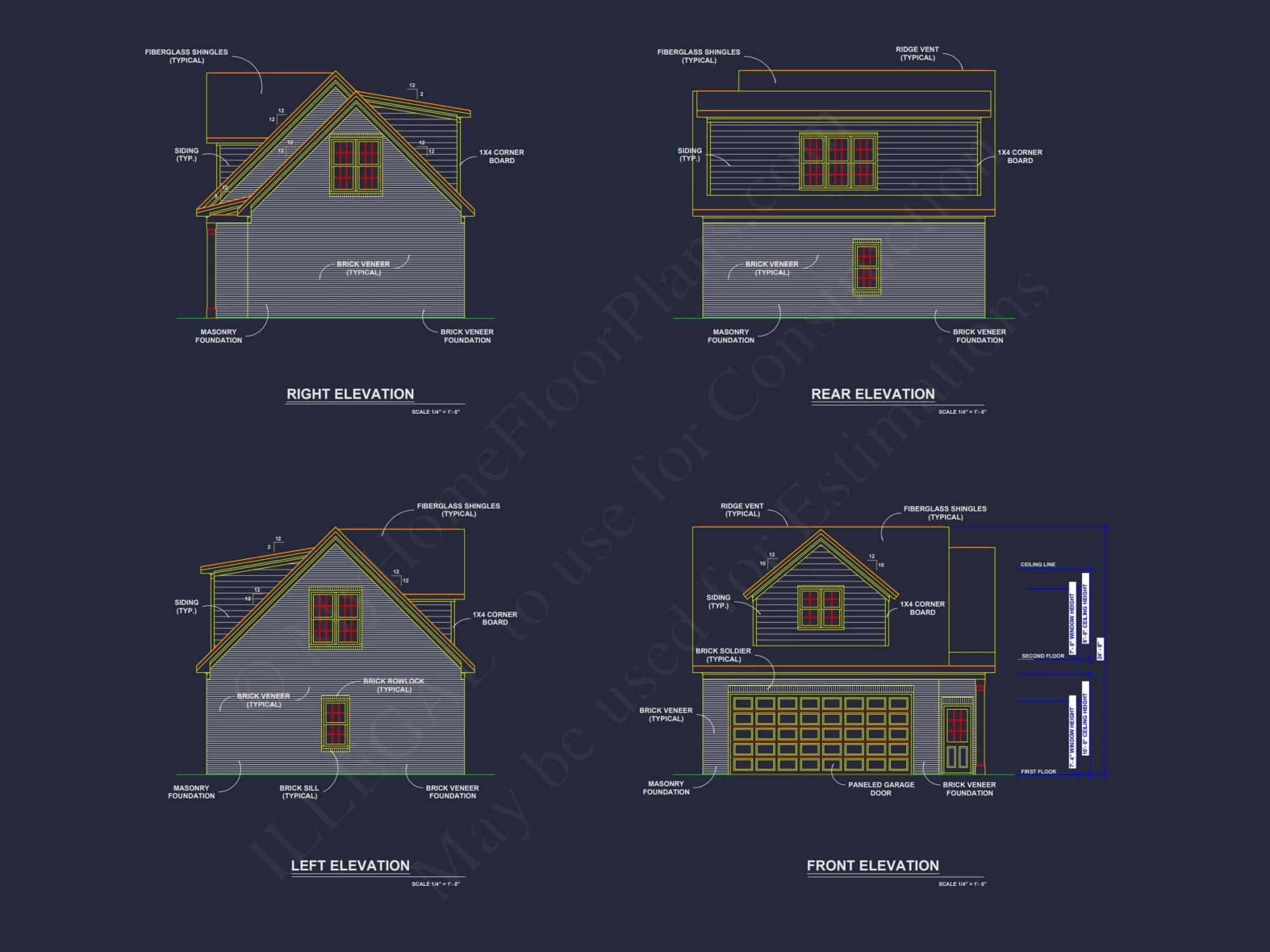

Architectural Style: Traditional Meets Modern Suburban
This design blends Modern Suburban, Traditional, and Craftsman elements—perfect for homeowners who value efficient living with curb-friendly aesthetics. Learn more about the Modern Suburban style or explore its roots on ArchDaily.
Bonus Features
- Flexible upstairs recreation or hobby room with wet bar—ideal for guests, entertainment, or creative workspace.
- Optional layout customization for future bedroom or office use.
- Compact footprint with reduced heating/cooling costs and fast construction timeline.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Small House Plans
- House Plans with Recreation Room
- Garage & Workshop Plans
- Plans with Second Floor Laundry
- Simple House Plans
Frequently Asked Questions
Is this compact house plan suitable for narrow lots? Yes! Its 28’-1” width is designed to fit tight urban or infill lots with ease.
Can I add a bedroom or office later? Absolutely. The upper recreation room is flexible and can be modified into a bedroom or creative workspace.
What comes with the plan? All purchases include editable CAD files, printable PDFs, unlimited-build rights, free foundation changes, and structural engineering.
How big is the garage? The plan features a generous 2-car garage with additional room for tools, storage, or workbench space.
Can I preview the design? Yes. You can view all blueprint sheets before you buy for full transparency.
Start Building Your Dream Home Today
Have questions or want to personalize this compact plan? Our expert team is here to help! Email us or fill out our contact form today.
Your future house starts with smart design—customize it and start building confidence today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

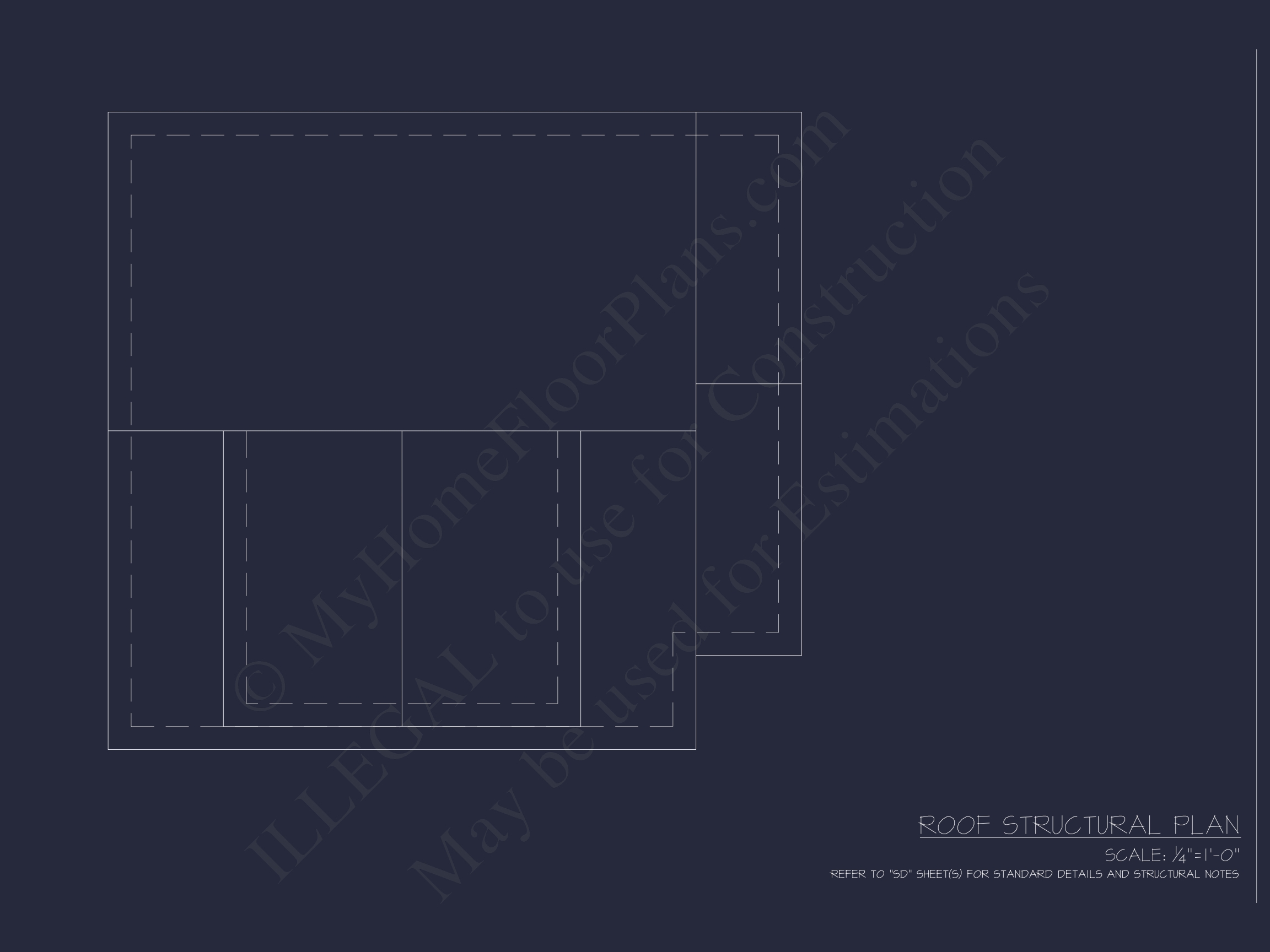

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

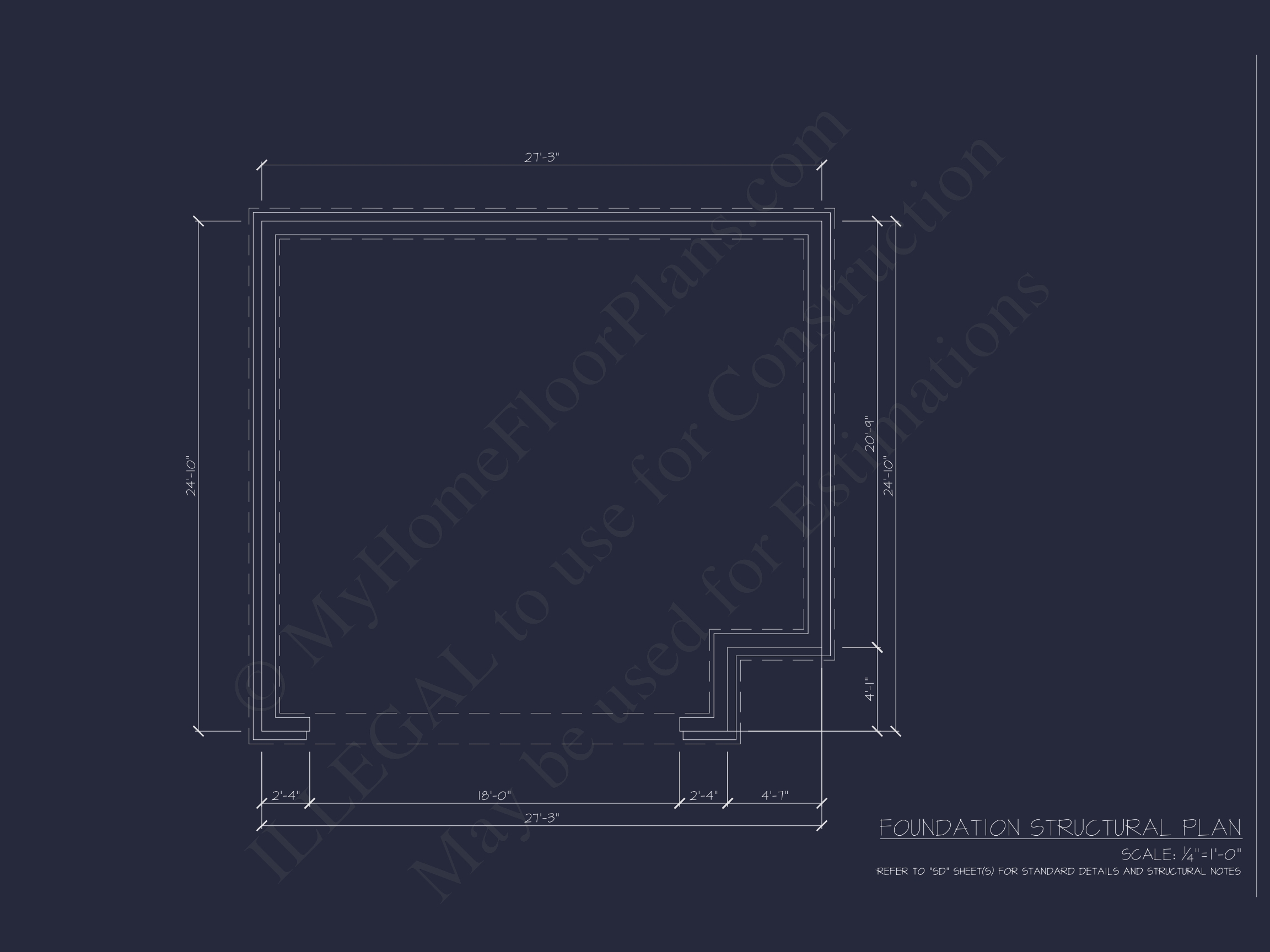

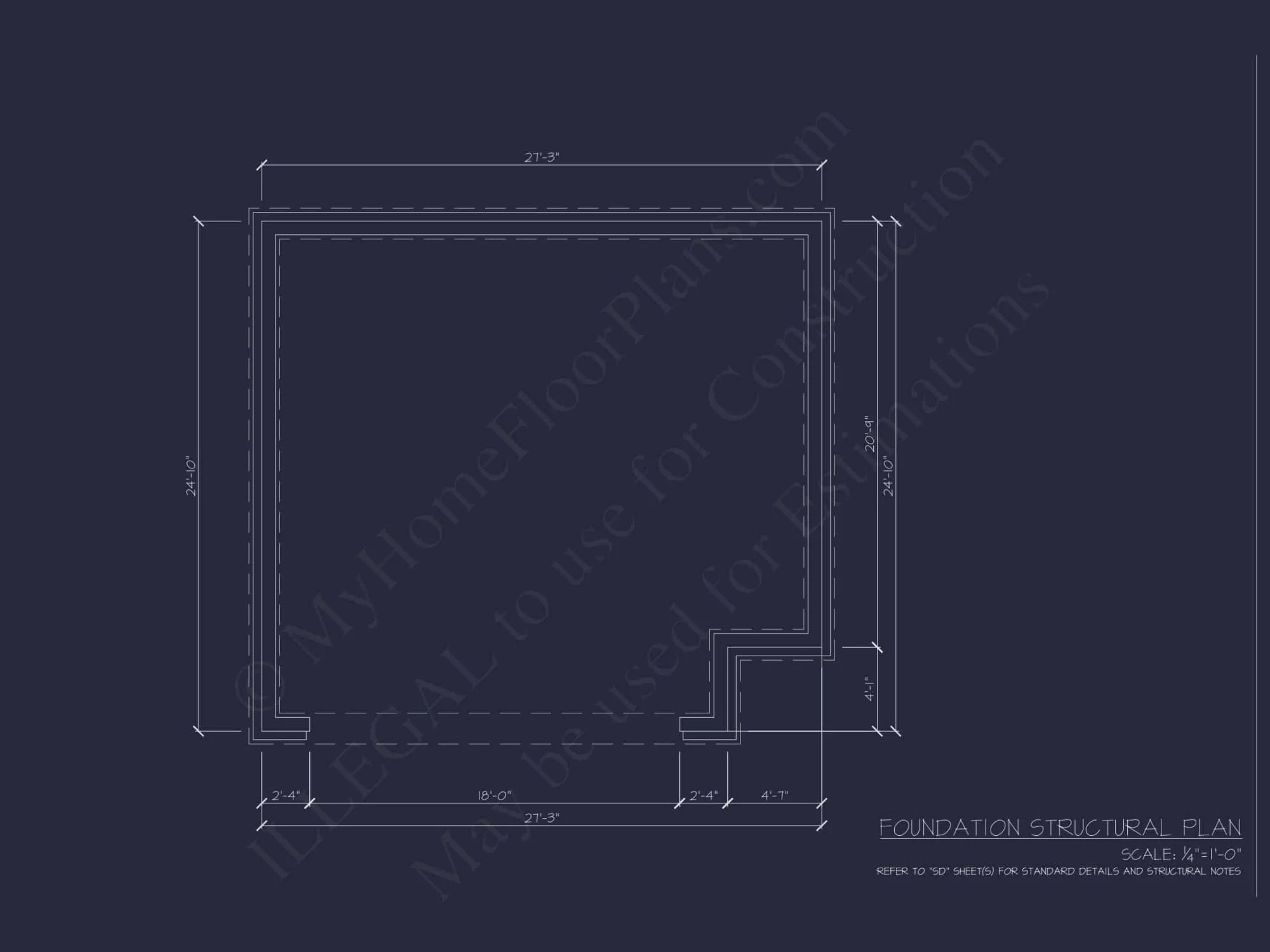

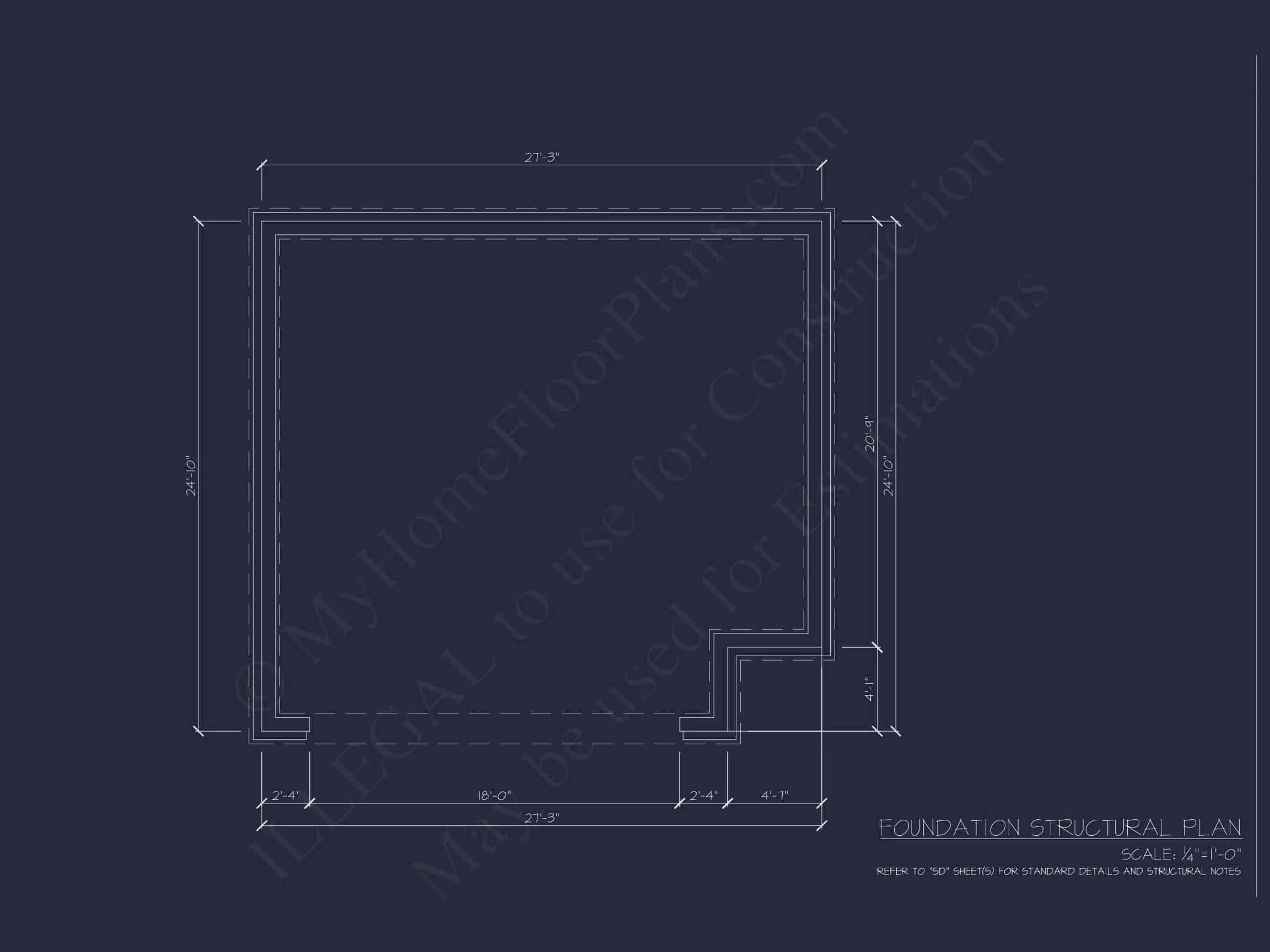

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
20-1560 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
