Modern Garage with Living Space Plan | Architectural CAD Designs
Discover this versatile house plan featuring a garage with living space, detailed CAD designs, and a spacious 2-story blueprint ideal for architects and designers.
Modern 2-Story Garage with Living Space | Compact House Plan with CAD Blueprints Discover this modern garage with 900 heated sq. ft. of living space, 2-car bays, a covered porch, and complete architectural CAD designs—perfect for small families or narrow lots. This garage apartment house plan of…
Read More
Modern 2-Story Garage with Living Space | Compact House Plan with CAD Blueprints
Discover this modern garage with 900 heated sq. ft. of living space, 2-car bays, a covered porch, and complete architectural CAD designs—perfect for small families or narrow lots.
This garage apartment house plan offers a perfect mix of comfort and flexibility. Designed for efficiency, it blends residential function with vehicle storage in one cohesive layout.
Key Features of the Home Plan
Living Areas – Heated & Unheated

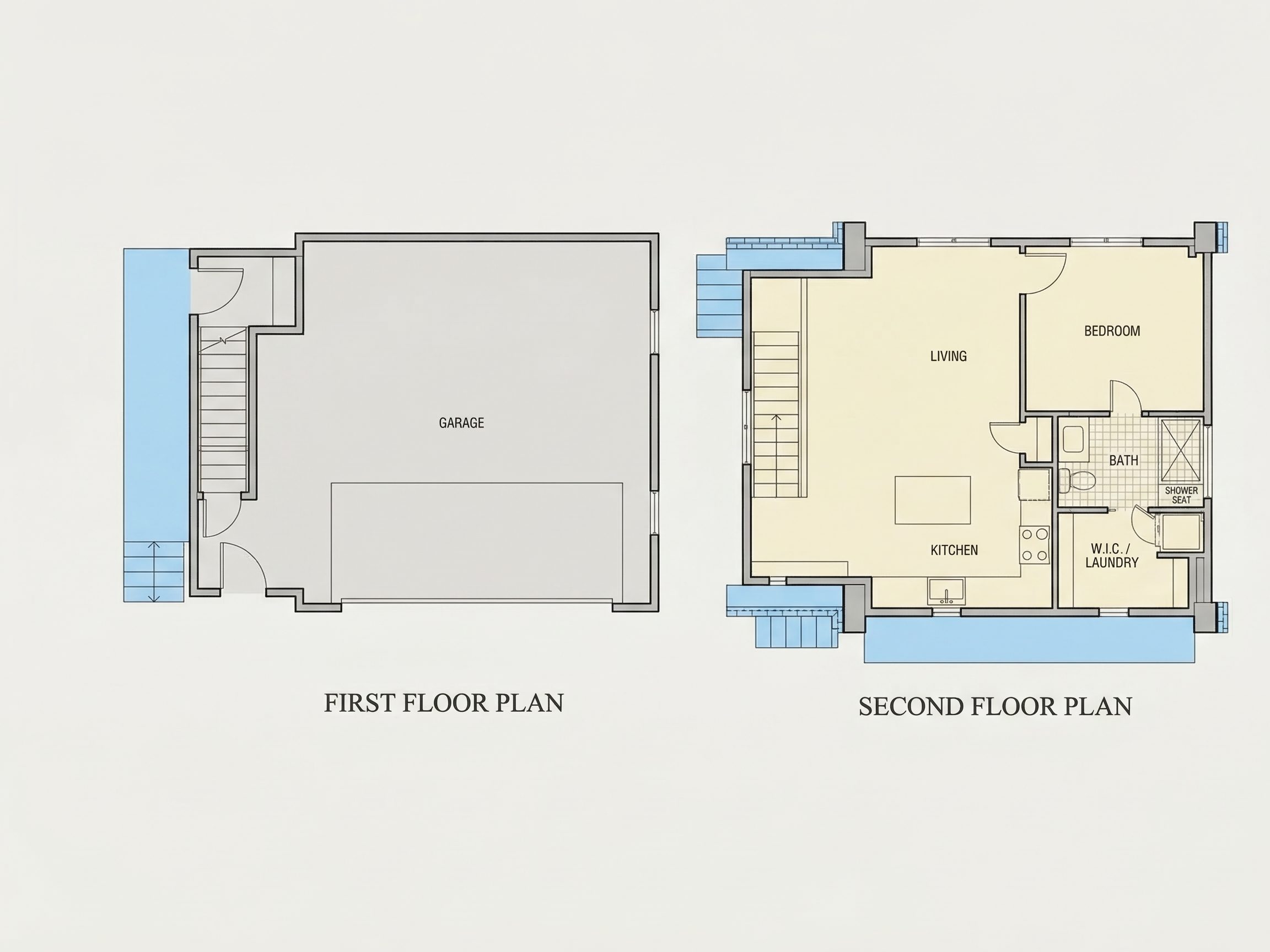

- Heated area: 900 sq. ft. on the second floor.
- Unheated extras: 775 sq. ft. of garage space plus a charming covered porch and patio.
Bedrooms & Bathrooms
- 1 private bedroom with a walk-in closet (WIC) and efficient placement near the bathroom.
- 1 full bathroom with upgraded features including a built-in shower seat for added comfort.
Interior Highlights
- Vaulted ceilings enhance the sense of openness and elevate the aesthetic appeal.
- Open floor plan connects kitchen, living, and dining areas seamlessly. Explore open layouts.
- Kitchen island offers casual dining and prep space, paired with a full pantry. Browse plans with kitchen islands.
- Laundry on the second floor adds convenience and improves day-to-day efficiency.
Garage & Storage Details
- Garage Bays: 2-car garage with easy front entry.
- Garage Type: Integrated with living quarters in a vertical layout.
- Storage: Generous space for tools, bikes, and seasonal items within the garage footprint.
Outdoor Living Features
- Welcoming covered front porch—ideal for relaxing or greeting guests.
- Small back patio area adds charm and extends the usable living space outdoors.
Architectural Style: Modern Craftsman
This design showcases modern craftsman architecture with a functional footprint and timeless exterior styling. It’s a smart solution for narrow lots or secondary structures. Learn more about the modern craftsman style or explore its evolution on ArchDaily.
Bonus Features
- Shower seat in the bathroom for accessible, spa-like comfort.
- Walk-in closet adds luxury to a compact floor plan.
- Efficient footprint makes it ideal for urban infill or ADU projects.
Included Benefits with Every Plan
- CAD + PDF Files: Editable blueprints that are ready for construction.
- Unlimited Build License: Build as many times as you’d like—no extra fees.
- Free Foundation Changes: Slab, crawlspace, or basement—your choice. Learn more here.
- Structural Engineering Included: Plans are code-compliant and ready for permits.
- Lower Modification Costs: Save up to 50% versus other providers.
- View Before You Buy: Preview full plan sets online.
Similar Collections You Might Love
- Detached Garage Plans
- ADU House Plans
- Small House Plans
- Plans with Walk-In Closets
- Plans with Upstairs Laundry
Frequently Asked Questions
Is this plan good for building on tight lots? Yes! With its vertical 2-story design and front-entry garage, it’s optimized for narrow and urban lots.
How many people can comfortably live in this space? It’s ideal for 1–2 occupants as a full-time residence or guest quarters.
Can I turn the garage into a workshop? Absolutely. The 775 sq. ft. space is highly flexible for hobbies, tools, or even a home gym.
Do you offer modifications to this plan? Yes. Contact us here for quick and affordable customization quotes.
What’s included when I purchase? CAD + PDF files, full build license, free foundation changes, structural engineering, and sheet previews online.
Start Building Your Dream Home Today
Have questions or want to customize this layout? Reach out to our expert team at [email protected] or send us a message.
Your dream house starts with a great design—build smarter, live better!
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 31'-0" |
|---|---|
| Depth | 25'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Living Room, Open Floor Plan, Shower Seat, Upstairs Laundry Room |
| Outdoor Features | |
| Bed and Bath Features | |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
20-2178 GARAGE
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
