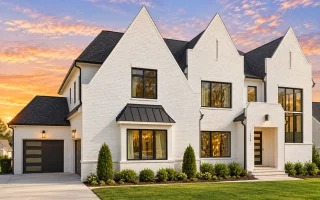

22-1140 HOUSE PLAN – Tudor Home Plan – 5-Bed, 5-Bath, 6,713 SF

Original price was: $2,471.Current price is: $1,847.

* Please verify all details with the actual plan, as the plan takes precedence over the information shown below.

Bedrooms	5
Bathrooms	5+
Heated SF	6,713
Unheated SF	1,470
Width	70'-1"
Depth	66'-4"
Floors	3
Garage Bays	3

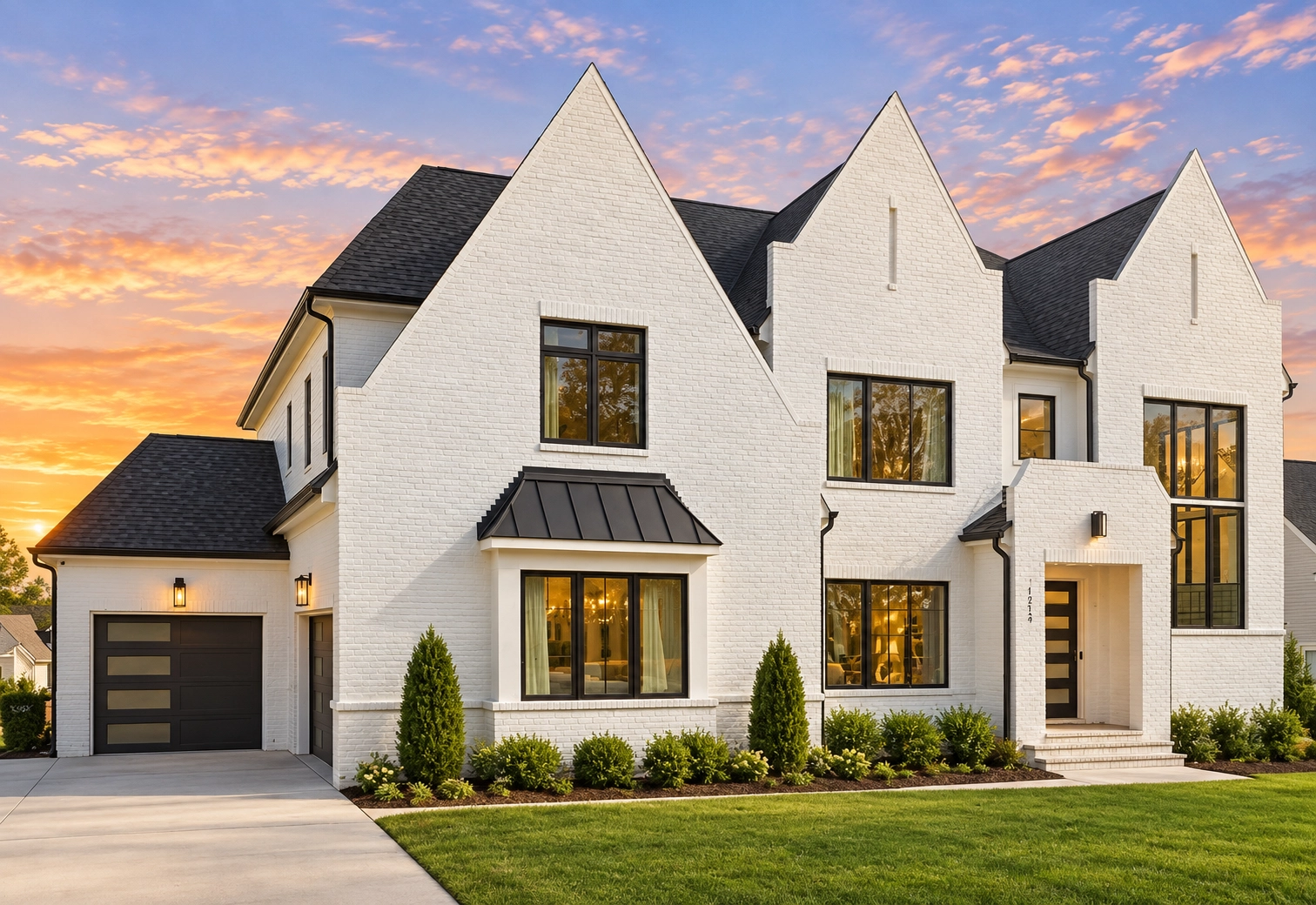

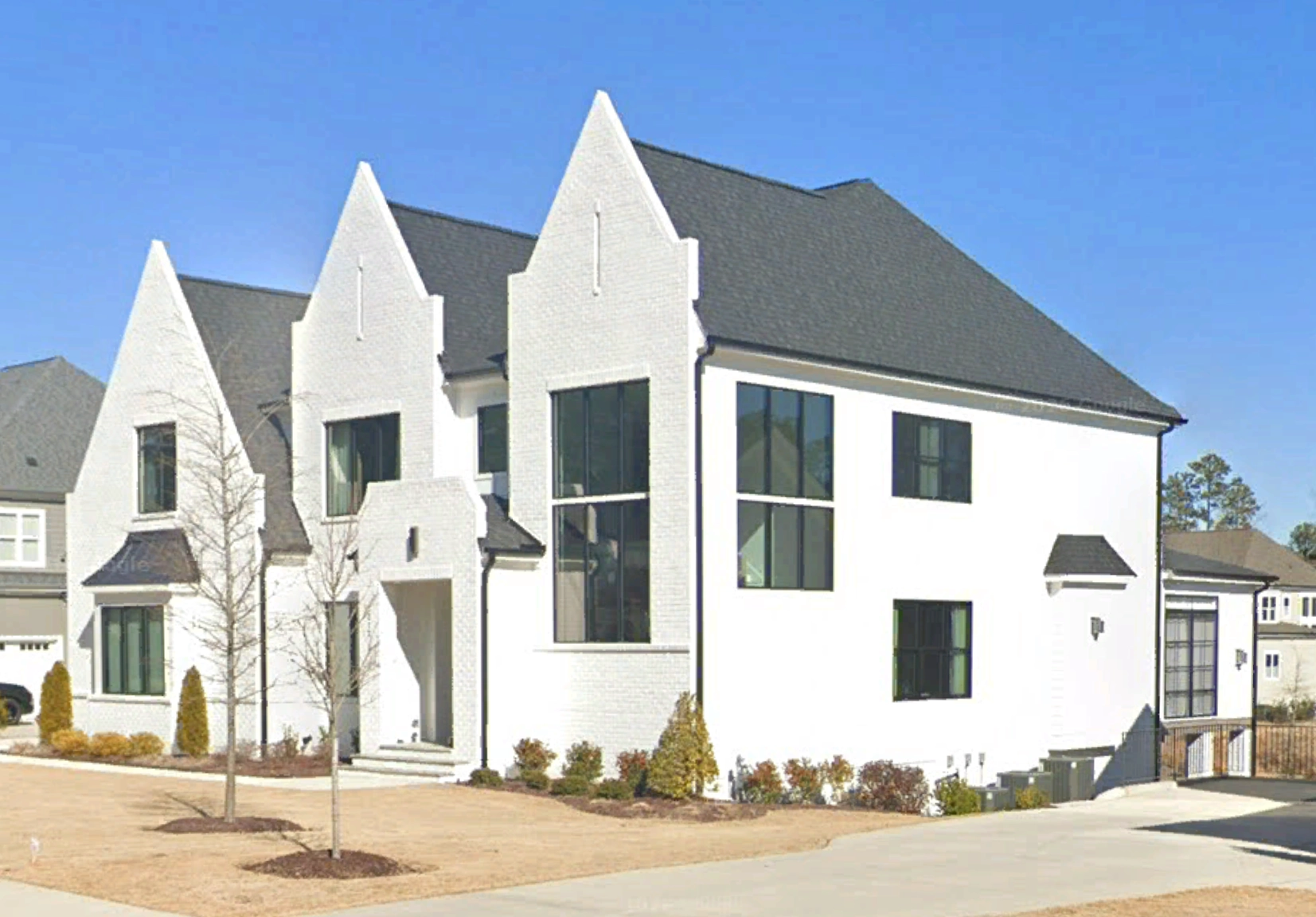

Architectural Styles	Tudor
Structure Type	Single-Family

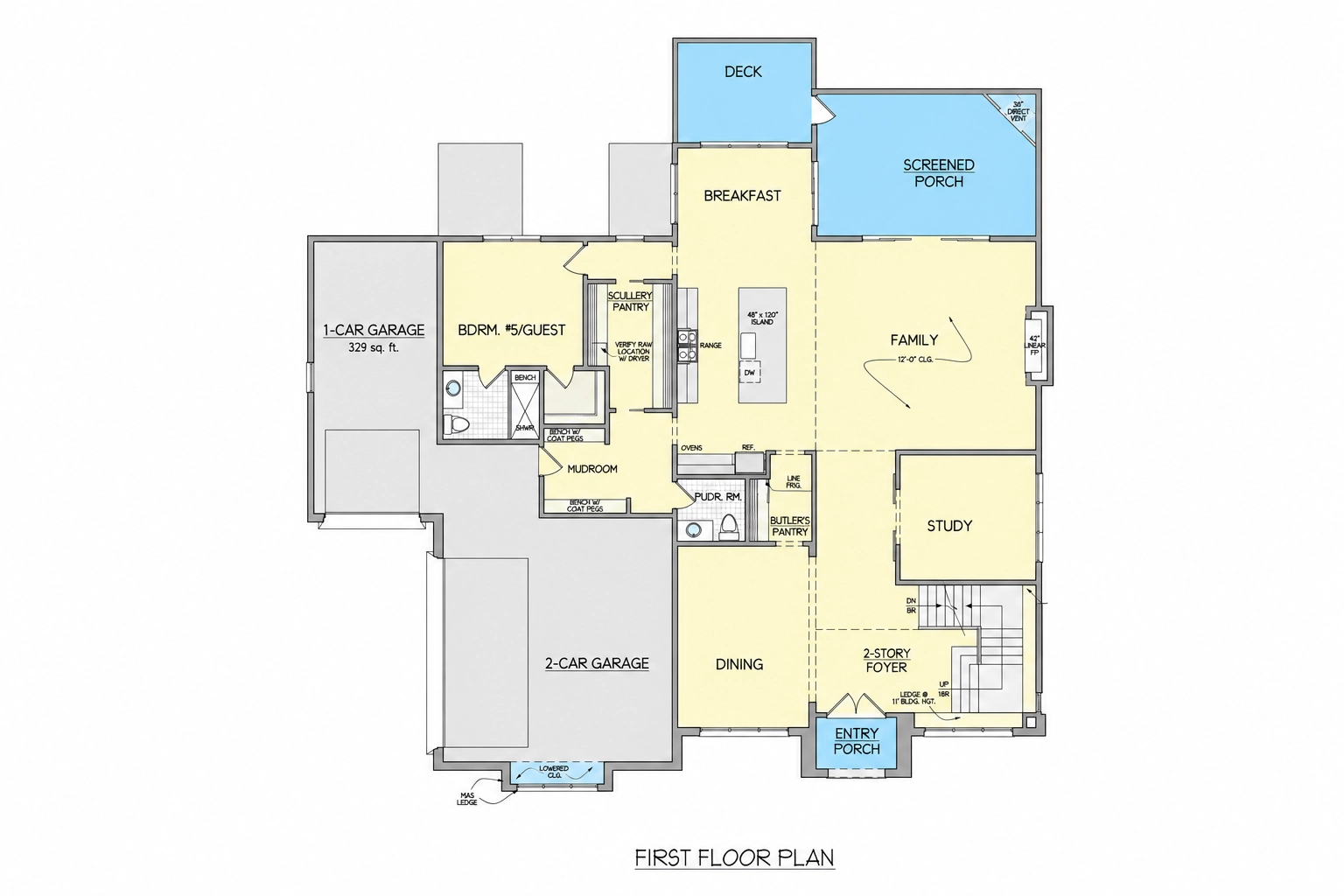

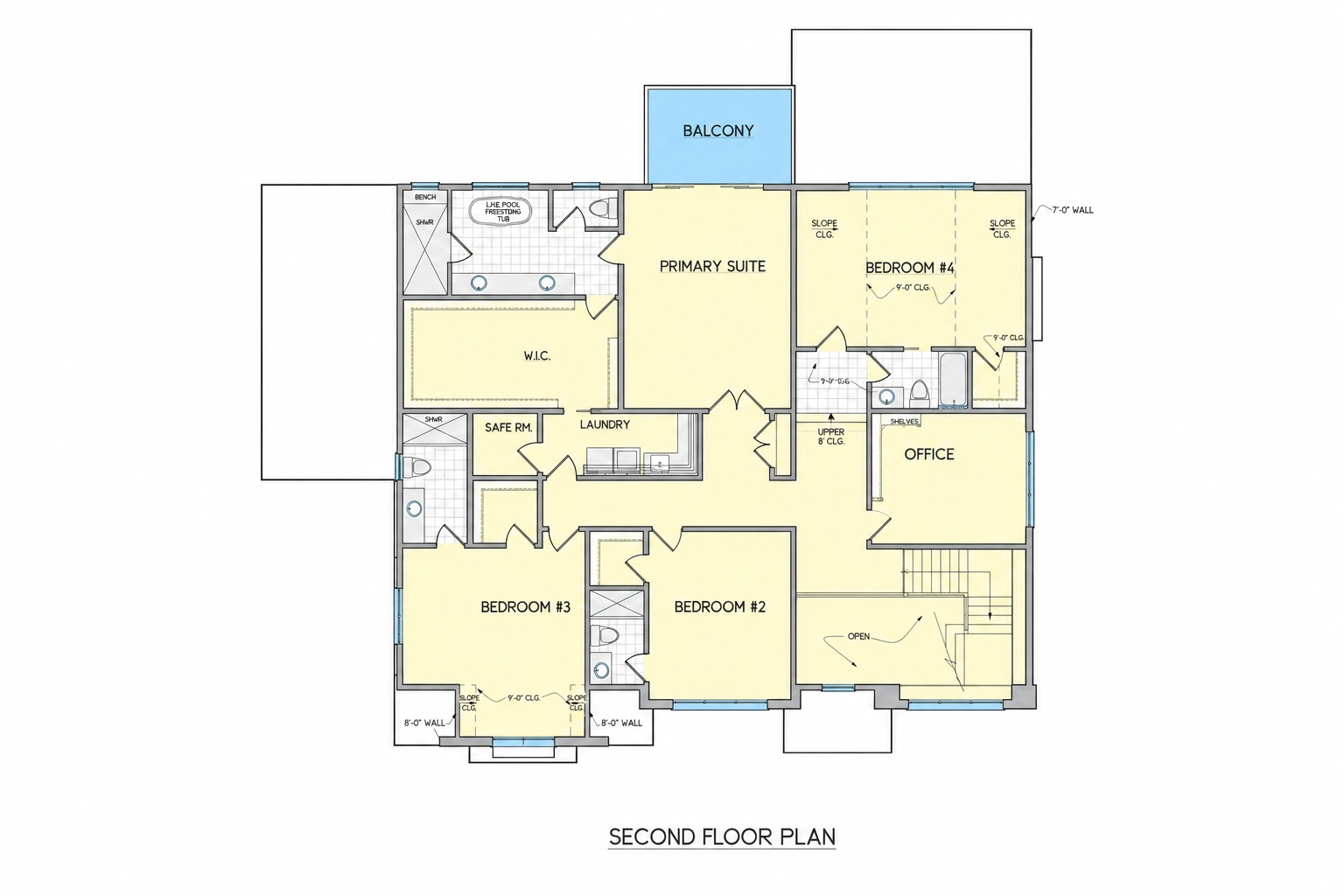

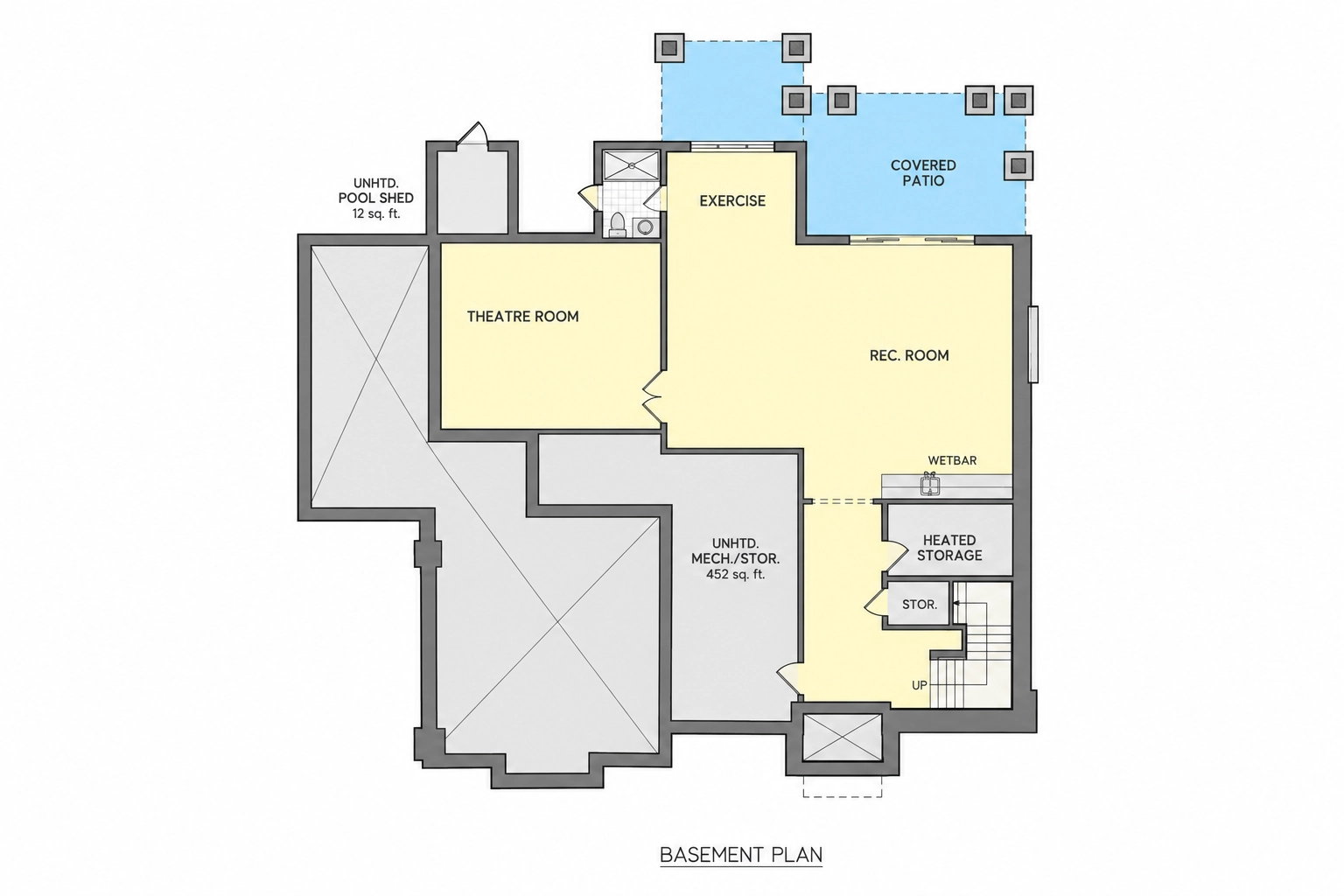

Bed and Bath Features	Bedrooms in Basement, Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on Second Floor, Split Bedrooms
Garage Features	Front Entry, Side Entry, Split

Included With Your Plan

Digital plan files prepared for printing, review, modifications, and construction planning.

PDF Plan Set Printable plan sheets for contractor review, estimating, permitting, and local print shop use.
CAD File Included AutoCAD-format files are included to make future edits and coordination easier.
Structural Engineering Included Included unless otherwise noted. Final approval must be by a licensed professional in your build state.
10 Hours Drafting Included Helpful drafting support for reasonable plan adjustments after purchase.
Preview Every Sheet Review product images and visible plan sheets before ordering.
Digital Account Access Files are sent by email and available in your customer account after purchase.

Unlimited Build License Use the purchased plan for multiple builds as the original buyer. Plans may not be resold, redistributed, or republished.

Included unless otherwise noted in the product images or plan details. Written dimensions govern over scale.

Questions before purchase? Call 1-800-642-8078 or email mark@myhomefloorplans.com.
