Pavilion CAD Blueprint Plan with Architectural Elevation and Structural Designs
Explore this detailed pavilion blueprint with CAD elevation drawings, bracket details, foundation plans, and roof framing—perfect for landscape or garden structures.
This architectural pavilion plan combines style, stability, and clarity. Whether used for parks, courtyards, roundabouts, or backyard gathering spaces, this pavilion design offers a timeless aesthetic built on a strong foundation.
Key Features of the Pavilion Plan
Structure & Framing
- Roof Design: Classic hip roof with 2×8 rafters at 16” O.C. for strong framing and symmetry.
- Ceiling Detail: Vaulted ceiling adds vertical space and architectural beauty.
- Bracket Detailing: Decorative Fypon brackets, 1×8 board accents, and 18” band board offer visual richness.
Foundation & Posts
- Foundation Type: 4″ thick concrete slab with rebar and proper edge protection.
- Support Columns: (4) 6×6 treated solid wood posts anchored to piers with Simpson connectors.
- Masonry Piers: Stone-veneer piers provide elegant and durable footing for the structure.
Interior Highlights
- Hanging Fixture Ready: Central ceiling area includes provisions for a hanging light fixture (by owner).

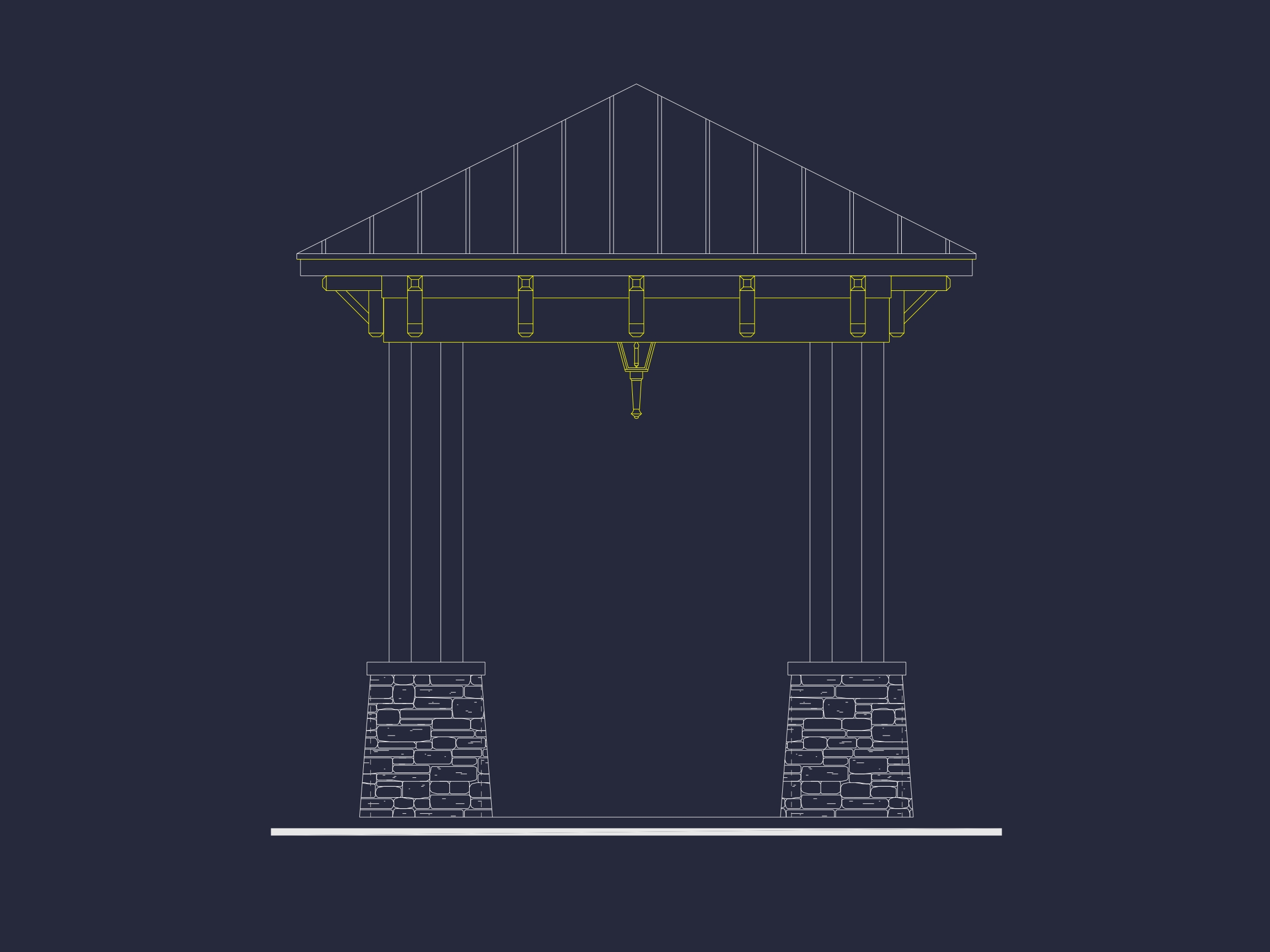

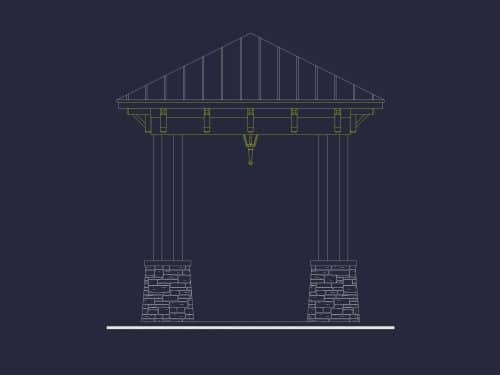

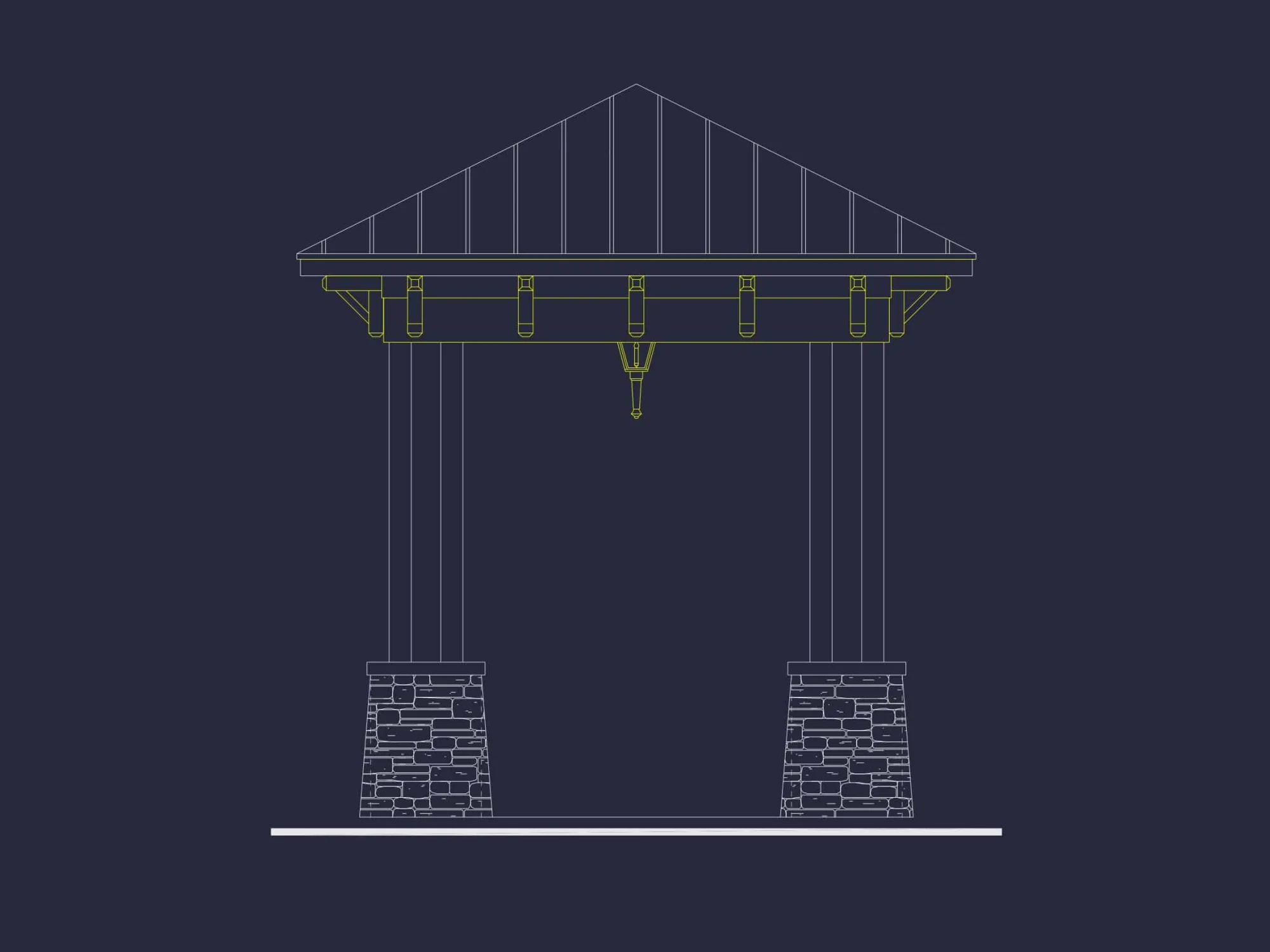

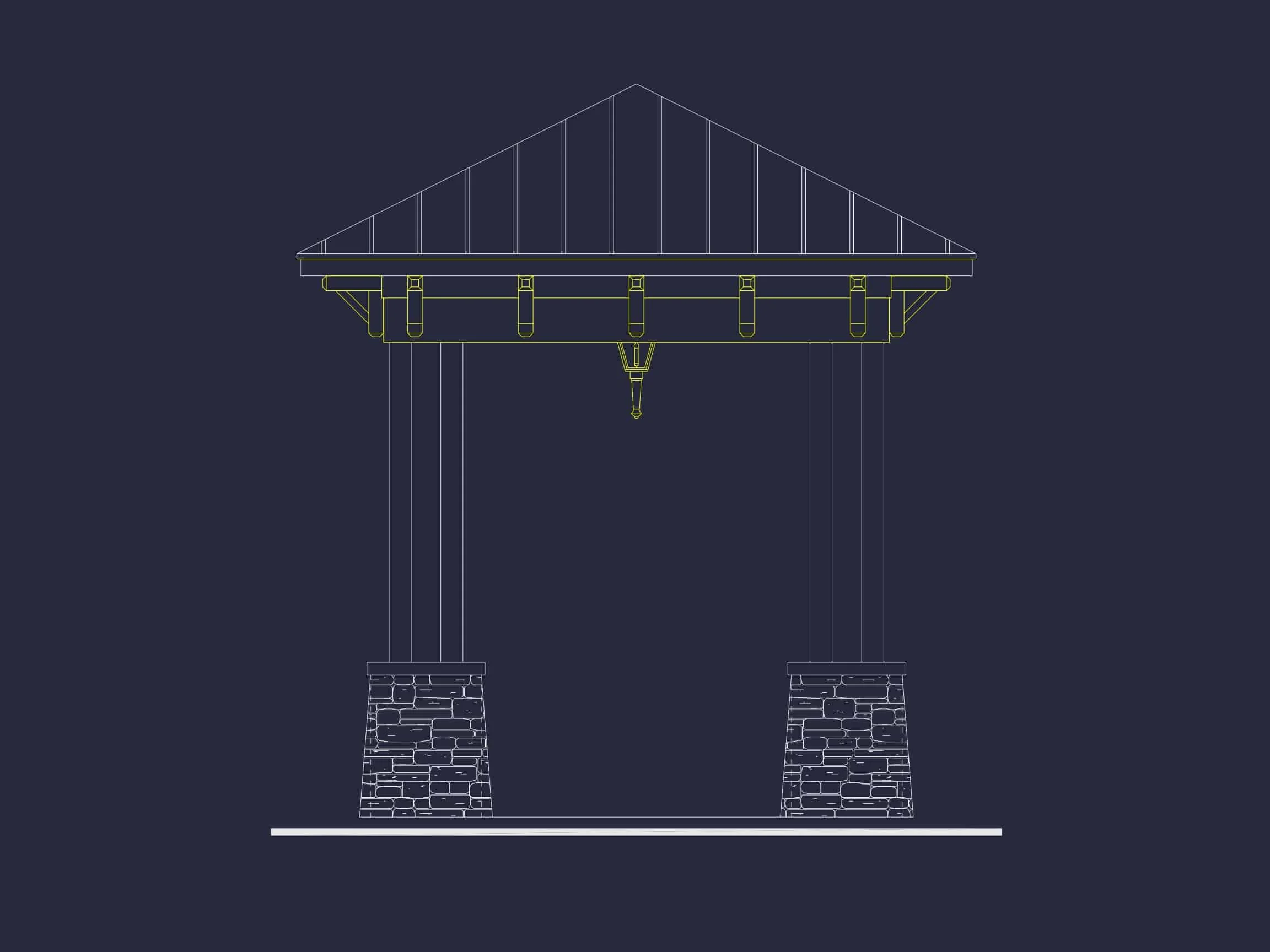

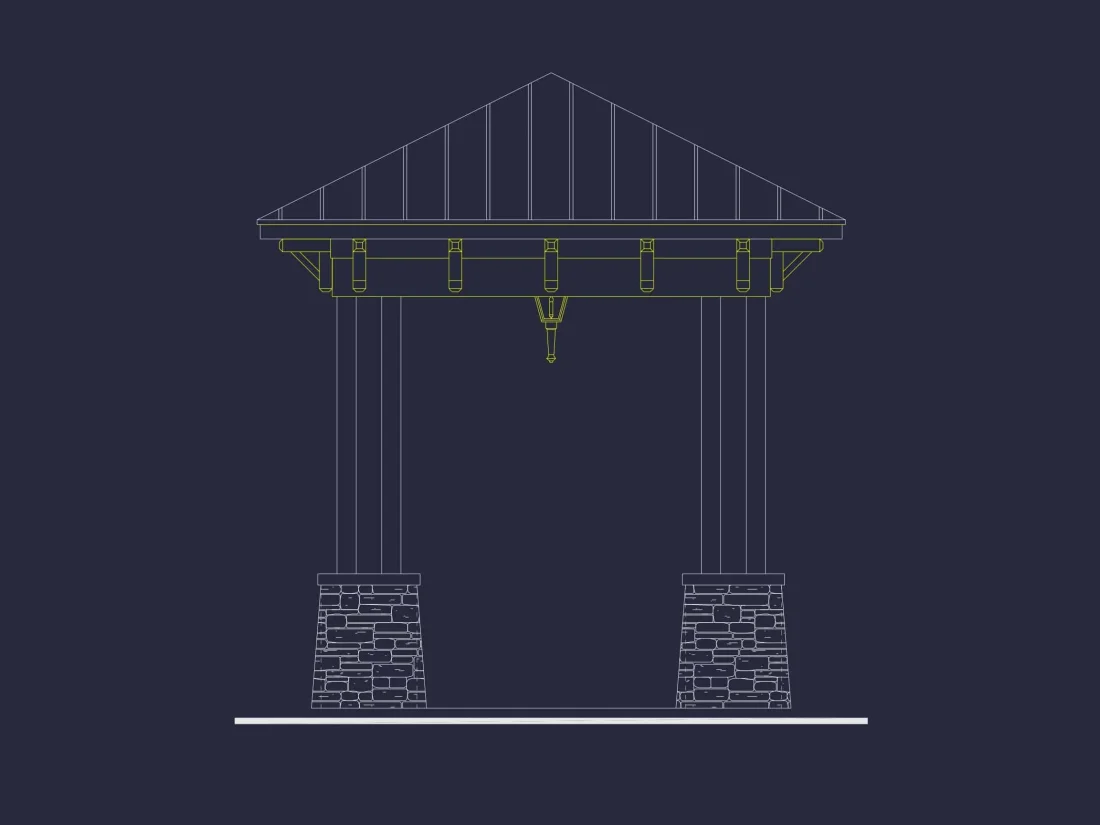

- Clear Dimensions: CAD drawings provide precise layouts with labeled elevations and notes.
Roof Framing & Header Plans
- 2×10 headers and Simpson HCP4 connectors ensure strong joint reinforcement at each hip intersection.
- All hips and rafters are fully dimensioned in the roof framing plan for accurate construction execution.
Architectural Style: Outdoor Pavilion Structure
This pavilion plan showcases a blend of stone craftsmanship, exposed wood framing, and precision CAD layout—ideal for enhancing landscape features or community spaces. View more architectural designs or explore traditional pavilion inspiration on ArchDaily.
Bonus Features
- Includes full Bracket Detail Sheet with measurements for decorative trim and accents.
- Framing plans engineered for wind uplift and code-compliant anchoring.
- Great for traffic islands, roundabouts, gardens, or as a backyard feature structure.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and printable, ready for contractors or engineers.
- Unlimited Build License: Use this pavilion plan for multiple builds at no extra cost.
- Free Foundation Changes: Need a different footing? We’ll modify it for slab, pier, or crawlspace. See how it works.
- Structural Engineering Included: Every pavilion plan is stamped and ready for code review.
- Lower Modification Costs: Save up to 50% compared to other blueprint providers.
- View Before You Buy: Preview all sheets and elevations.
Similar Collections You Might Love
- Outdoor Living Structures
- Plans with Courtyards
- Covered Porch Designs
- House Plans with Patios
- Outdoor Fireplace House Plans
Frequently Asked Questions
What’s included in this pavilion plan package? You receive CAD and PDF files, engineering, unlimited builds, and free foundation adjustments.
Can I make layout changes? Yes, easily. Just request a quote and we’ll help customize it for your setting.
Is this suitable for public or commercial use? Yes—this is ideal for municipal features, gardens, or private residential landscapes.
Is a light fixture included? The CAD plan provides support for a hanging fixture, but the light itself is selected by the owner.
Can I view the full blueprint set? Absolutely. Preview all documents here.
Start Building Your Custom Pavilion Today
Have questions or want a custom variation? Email us at [email protected] or fill out our contact form.
From backyard elegance to civic beauty—this pavilion plan is ready to elevate your project!
