Functional Garage Floor Plan with 2 Bays and CAD Blueprint Designs
Discover this front-entry garage layout featuring 572 sq. ft., attic storage, and vaulted ceilings—includes slab foundation, CAD files, and full blueprints.
This garage floor plan offers a smart, space-saving design ideal for suburban and narrow lots. Whether you’re expanding your property or building a detached garage from scratch, this architectural layout provides both functionality and style.
Key Features of the Floor Plan
Living Areas – Heated & Unheated
- Heated area: None (garage-only design).
- Unheated extras: 572 sq. ft. garage space plus attic storage.
Bedrooms & Bathrooms
- This design does not include living quarters but can be modified to add a garage apartment or loft. See garage apartment plans.
Interior Highlights
- Vaulted ceilings offer visual height and improved airflow.
- Open garage layout allows flexibility for tools, storage, or workbench setup.
- Attic floor provides extra room for seasonal storage or workshop gear. Browse attic storage plans.
Garage & Storage Details

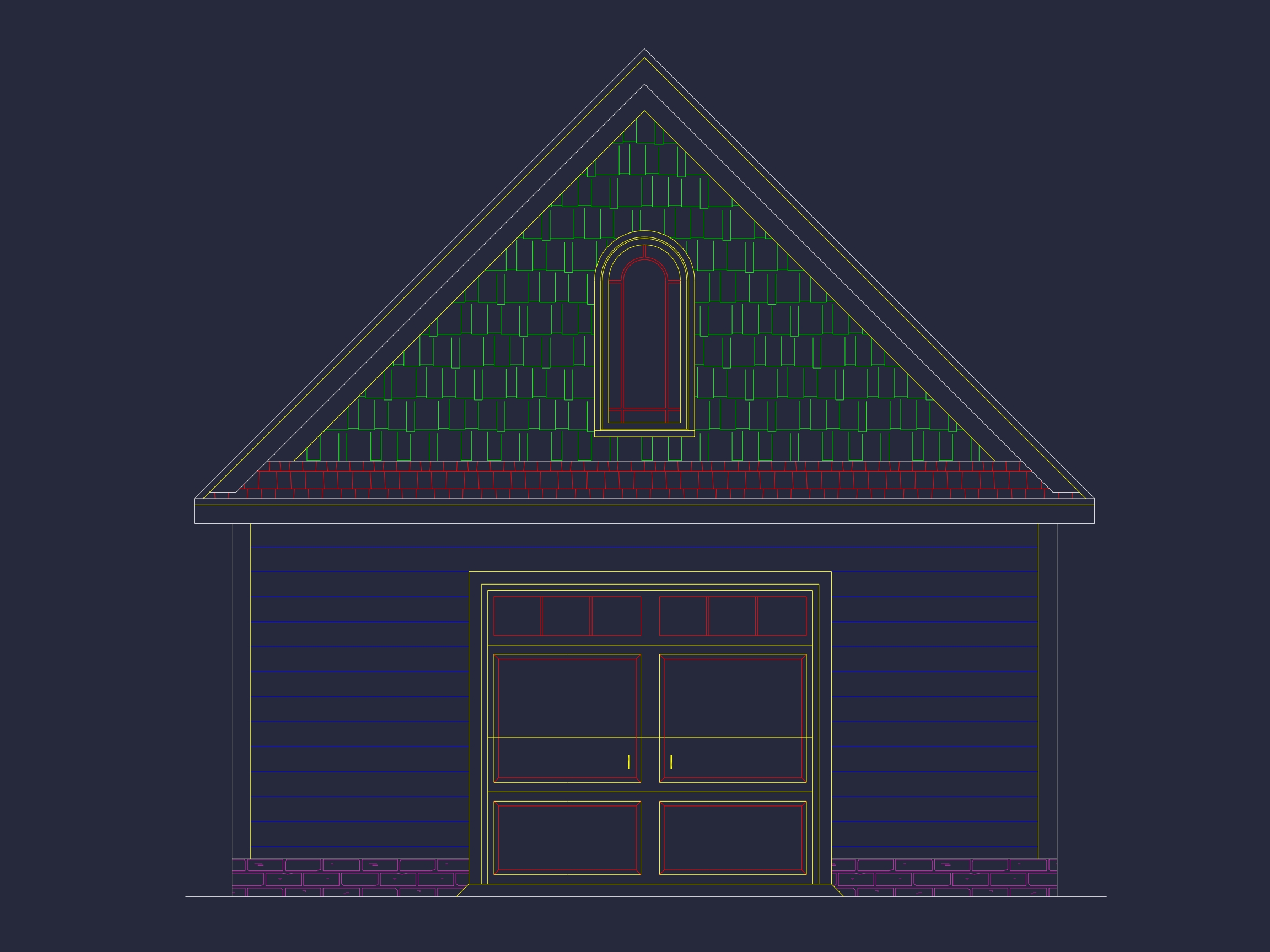

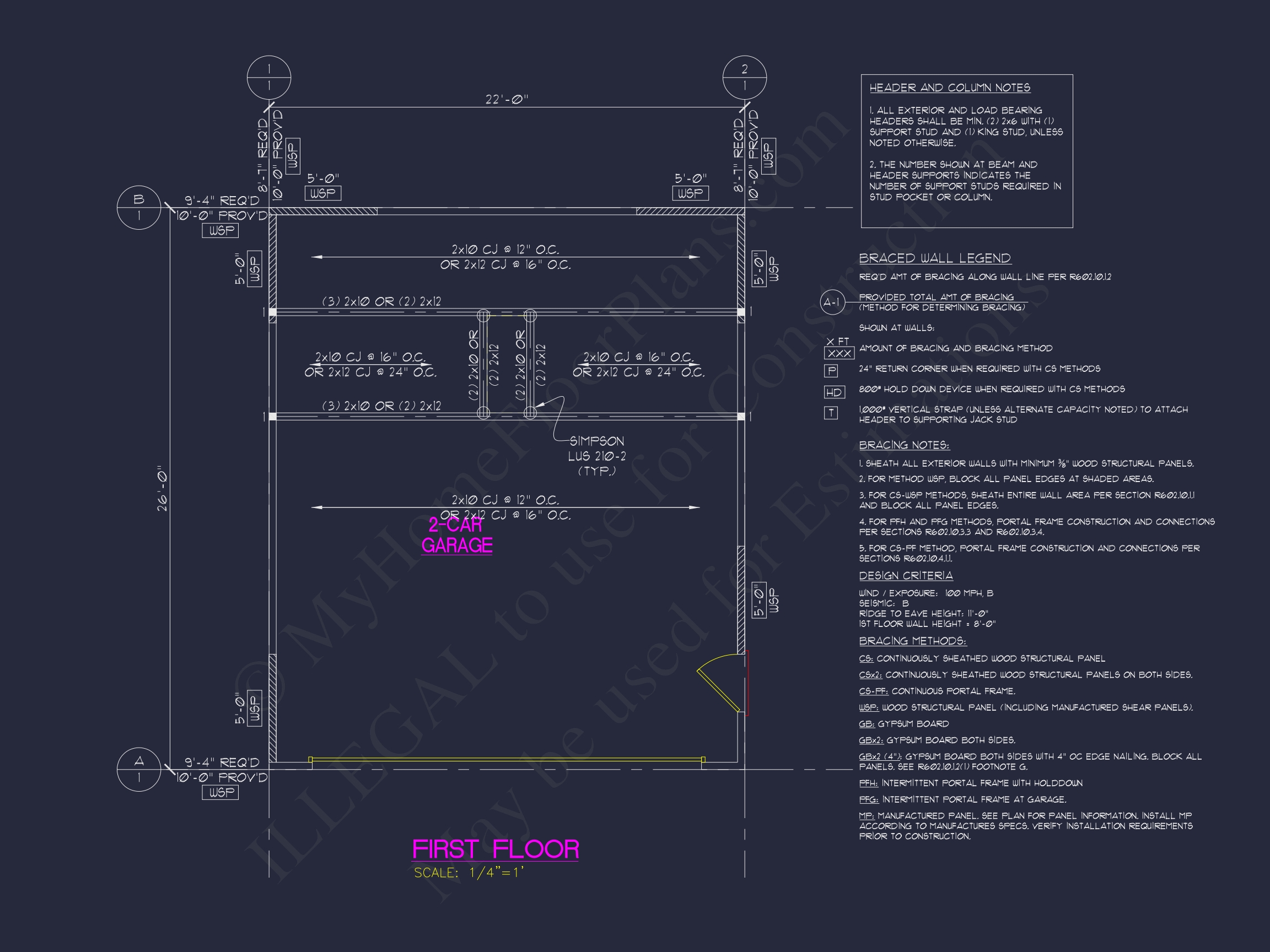

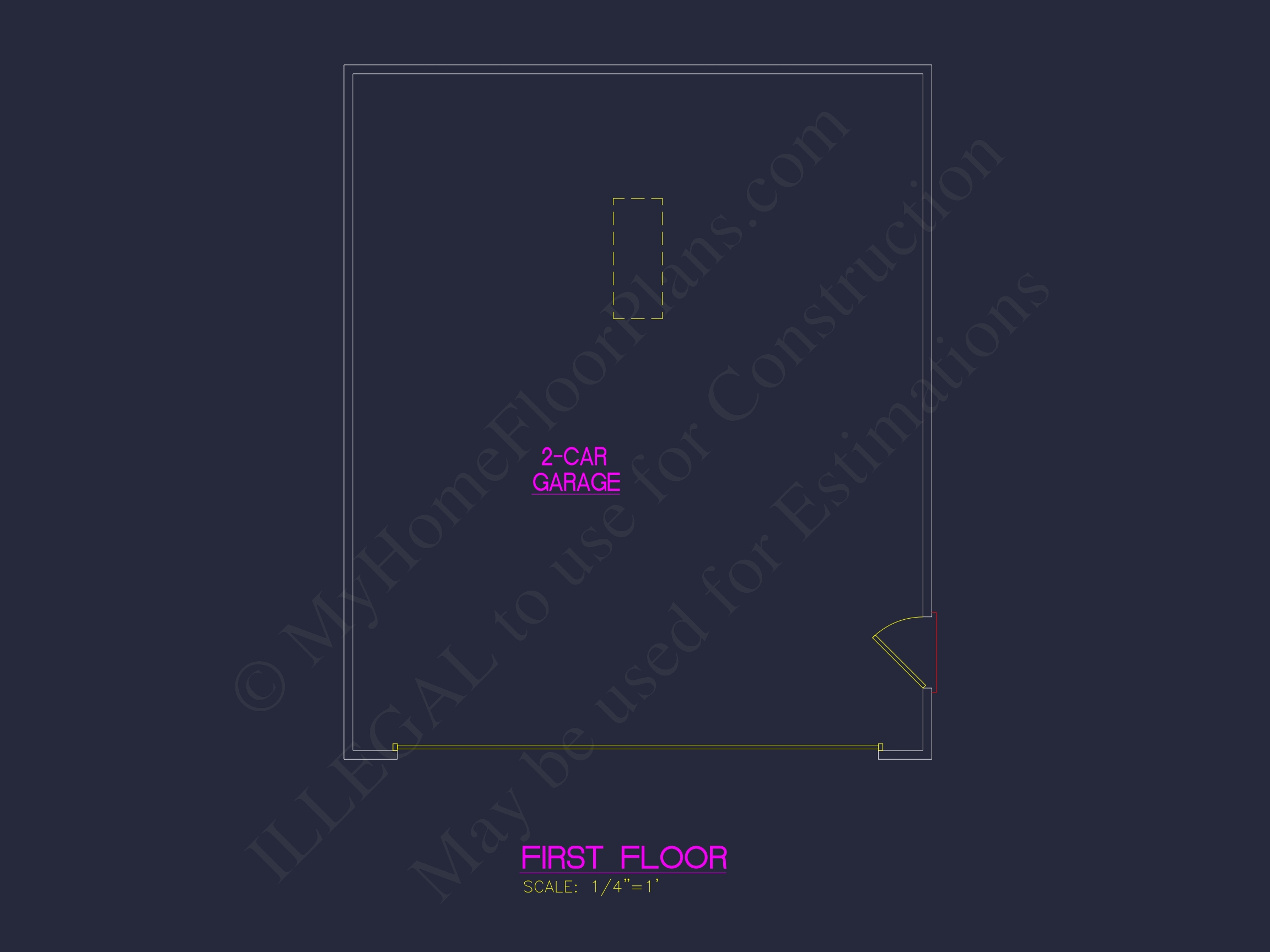

- Garage Bays: Two-car capacity (22’ x 26’ layout).
- Garage Type: Detached, front-entry for easy vehicle access.
- Storage: Generous attic space above the garage bays.
Outdoor Living Features

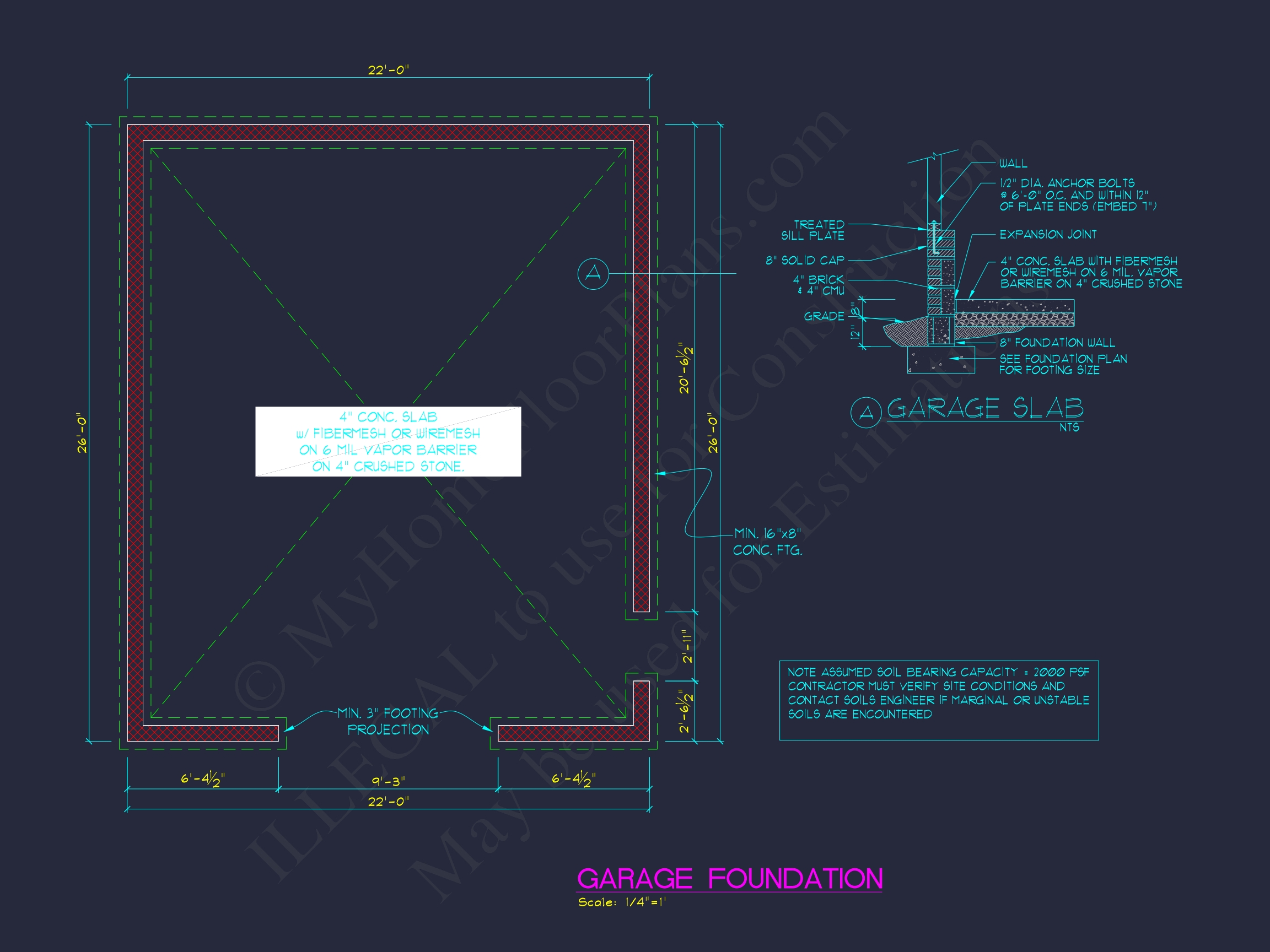

- Slab foundation ensures durability and minimal maintenance.

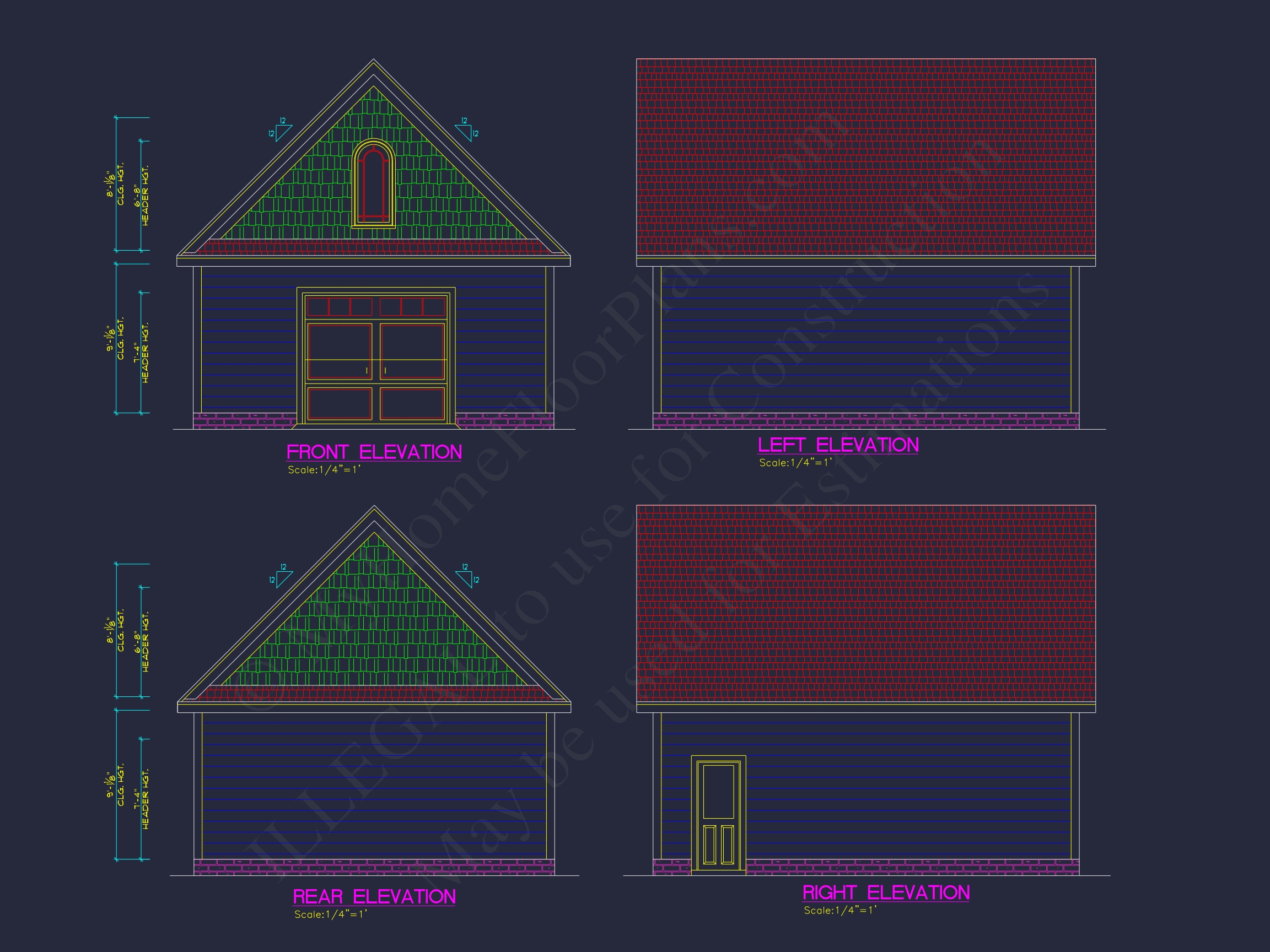

- Exterior: Traditional siding and shingle design fits with a wide range of architectural styles.
Architectural Style: Functional Traditional
This garage blueprint showcases simple construction methods and durable materials, perfect for builders looking to stay on budget while maximizing utility. Learn more about Traditional house styles or explore their background on ArchDaily.
Bonus Features
- Attic platform for organized off-floor storage.
- Simple roofline for cost-efficient construction.
- Ample wall space for hanging tools or built-in shelves.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and print-ready blueprints.
- Unlimited Build License: Use the design as many times as needed with no extra fees.
- Free Foundation Changes: Switch between slab, crawlspace, or basement options.
- Structural Engineering Included: Professionally reviewed for safety and code compliance.
- Lower Modification Costs: Custom changes available at prices up to 50% lower than competitors.
- View Before You Buy: Preview every sheet and spec in advance.
Similar Collections You Might Love
- Garage Workshop Plans
- Detached Garage Plans
- RV Garage Plans
- Tandem Garage Designs
- House Plans with Large Garage
Frequently Asked Questions
What’s included with this garage plan? Every order includes CAD files, PDF blueprints, a build license for unlimited use, and stamped structural engineering.
Can this plan be used for a workshop? Yes! The flexible interior and attic make it great for use as a garage, workshop, or combo space.
Is the attic accessible? Yes. The attic is accessible via pull-down stairs or can be modified with fixed stair access.
Can I add living space above the garage? Absolutely. We can modify the plan to include an apartment or studio above. Request a quote.
Do I need a specific lot size? This 22’ x 26’ footprint fits most suburban or rural parcels, and works well on narrow lots too.
Start Building Your Dream Garage Today
Have questions or want to customize this layout? Our expert team is ready to help—email us or submit your request online.
Your future project starts here—explore the blueprint, modify to your needs, and build with confidence!
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 22'-0" |
|---|---|
| Depth | 26'-0" |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Affordable | Attics | Detached | Front Entry | Living Space | Simple | Traditional | Vaulted Ceiling
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

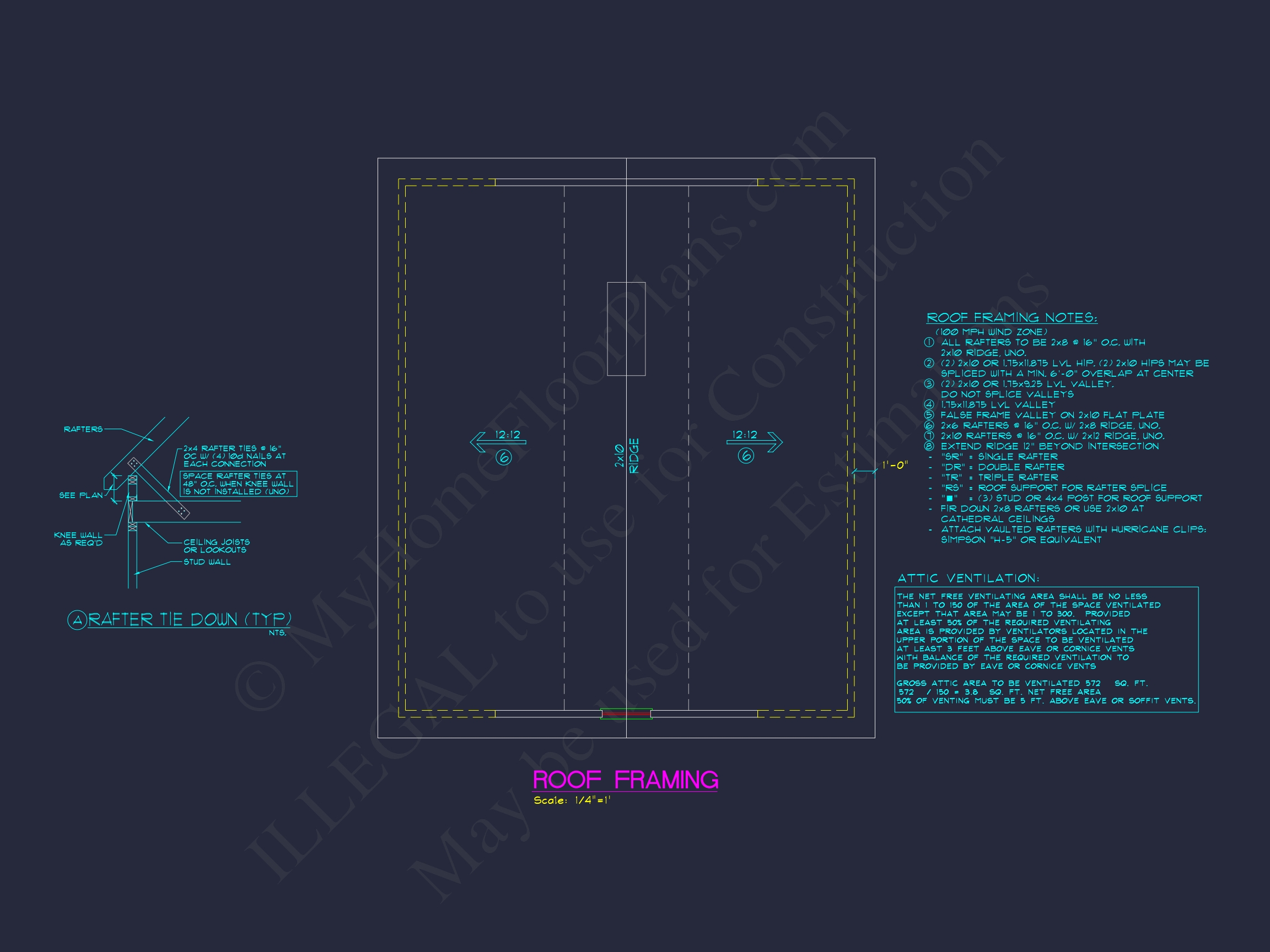

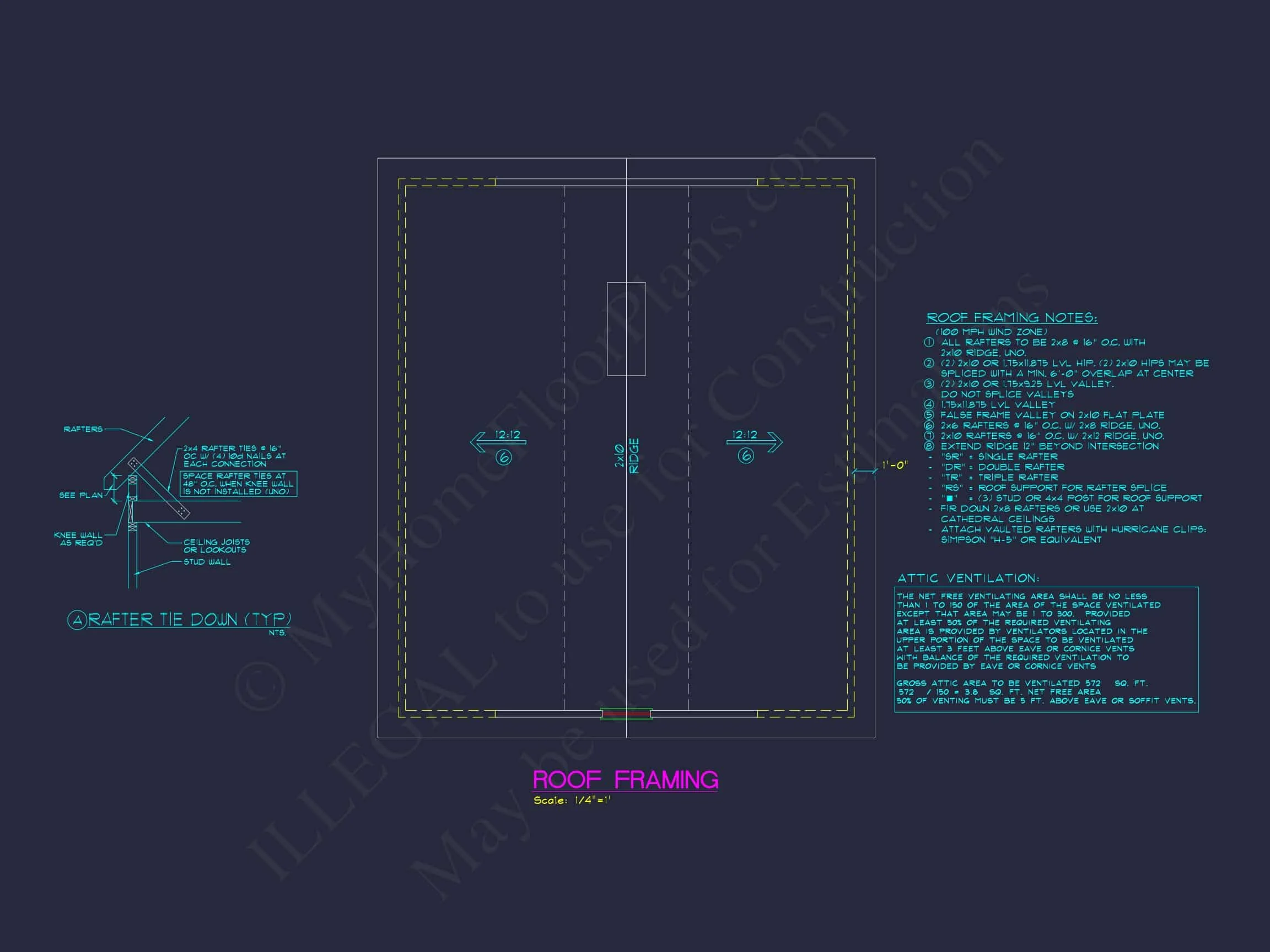

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

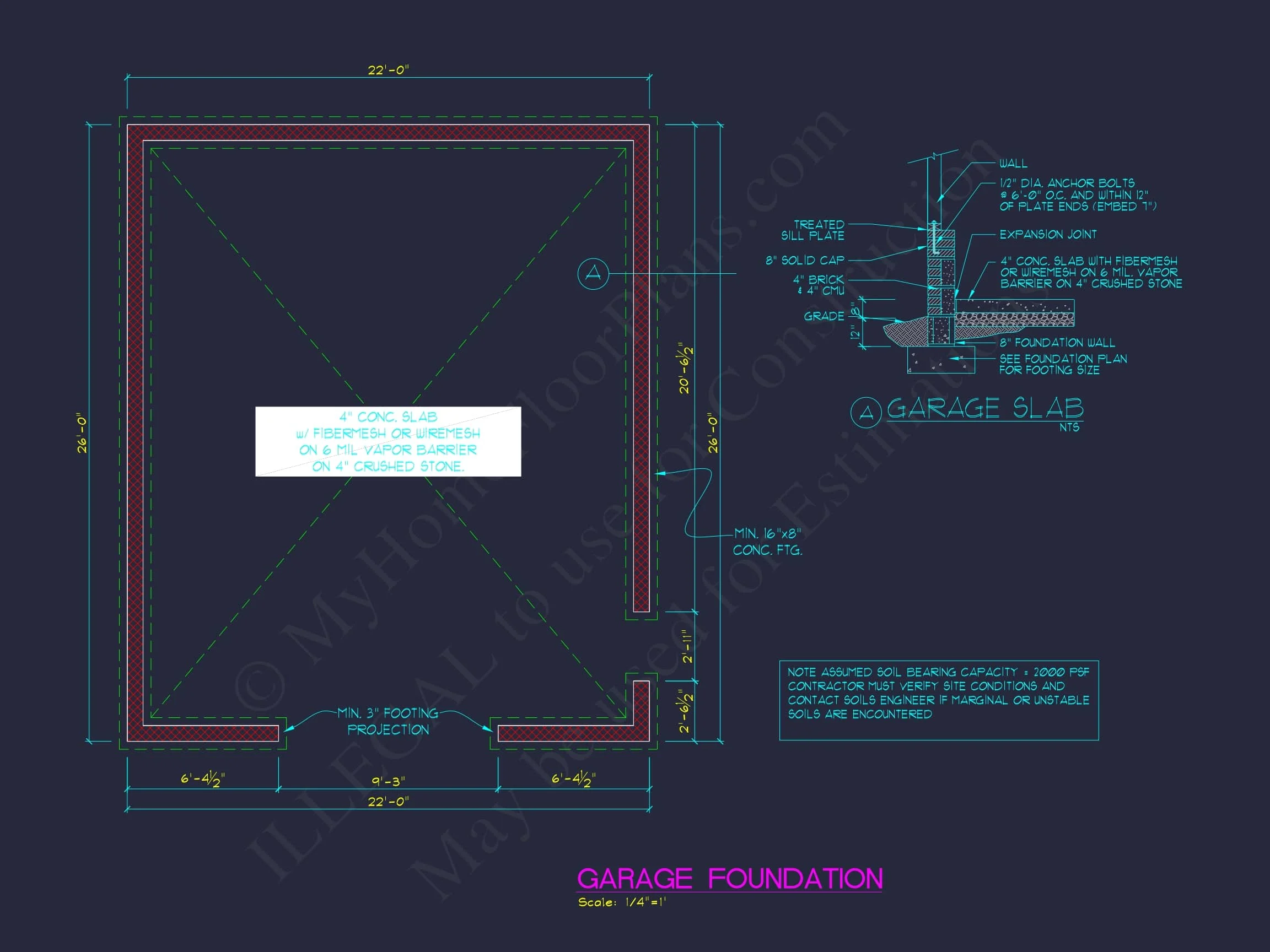

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
