Modern Colonial Home Plan with CAD Designs and Blueprints
Discover this spacious 4-bedroom home plan featuring 2 floors, vaulted ceilings, and a large open floor plan. Includes CAD blueprints for architects and designers.
Build Your Dream Home with This Stunning Colonial Design

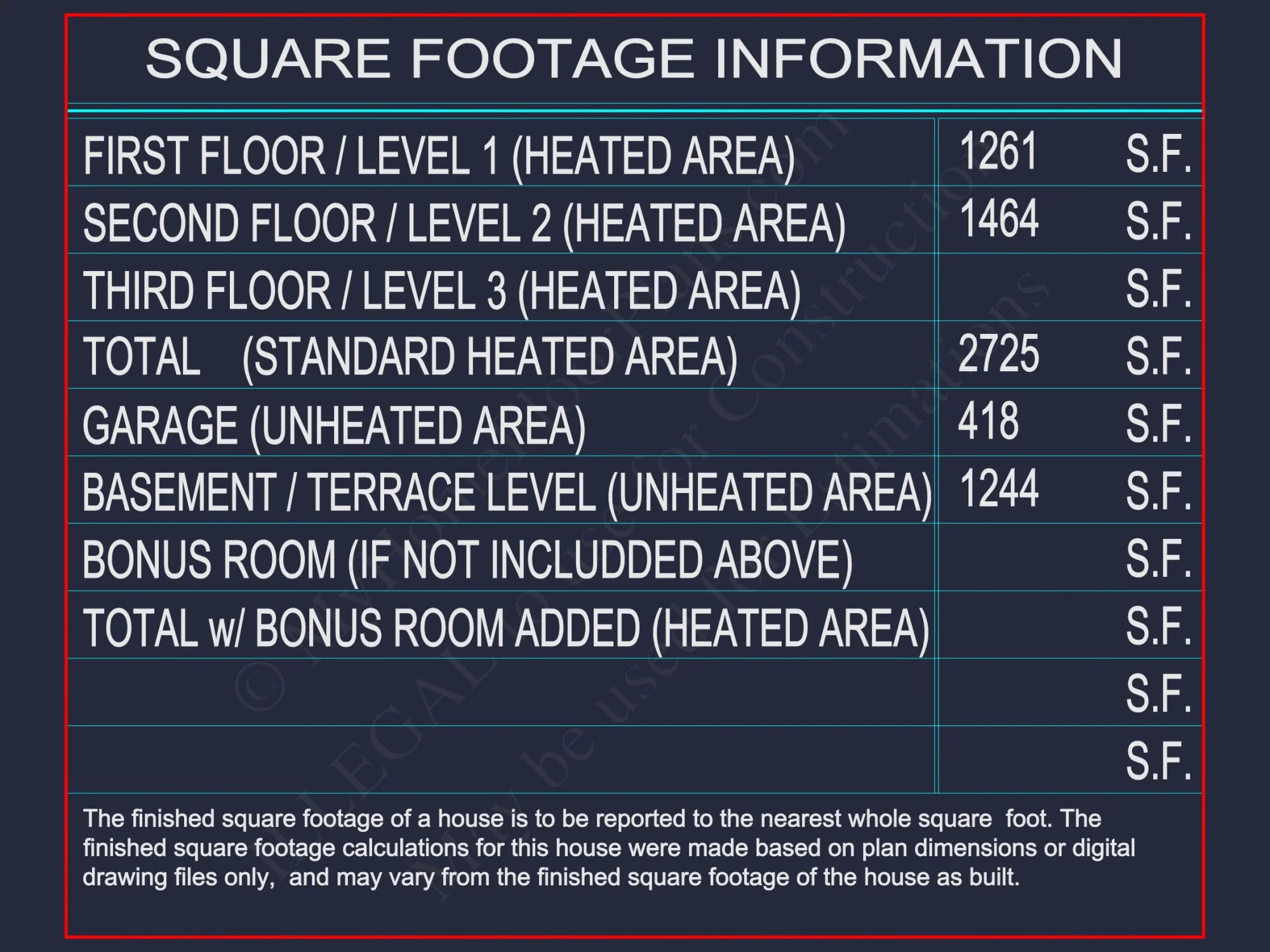

This 4-bedroom Colonial Revival home plan offers a perfect blend of traditional elegance and modern functionality. Designed for families, architects, and homebuilders, this home features 2725 heated square feet and an additional 1662 square feet of unheated space, including a two-car garage and a full basement.
Spacious Floor Plan for Modern Living

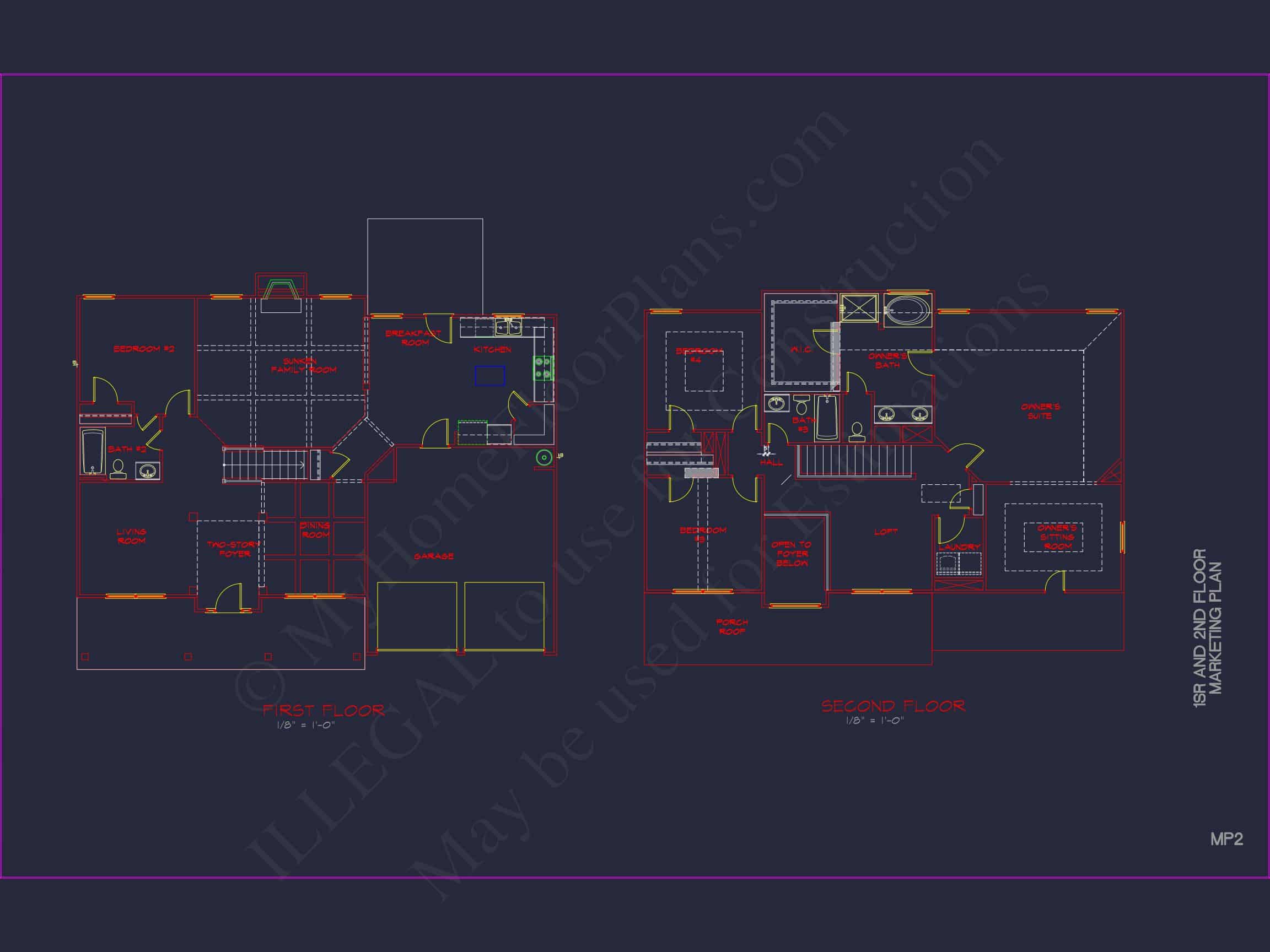

The open floor plan connects the living room, family room, and a spacious kitchen with an island and walk-in pantry, ensuring convenience for both everyday living and entertaining. The first floor also includes a sunken family room and a formal dining area, adding elegance to the design.
Functional Second Floor Layout
The second floor is dedicated to restful spaces, featuring four bedrooms, including a luxurious owner's suite with a walk-in closet and a private bath. An additional Jack and Jill bathroom serves two other bedrooms, offering both functionality and privacy.
Highlights of Indoor Features
* Great Room: Perfect for family gatherings.
* Bonus Room: Ideal for an office or recreational activities.
* Vaulted Ceilings: Add an airy, spacious feel.
* Fireplace: Provides warmth and charm in the living space.

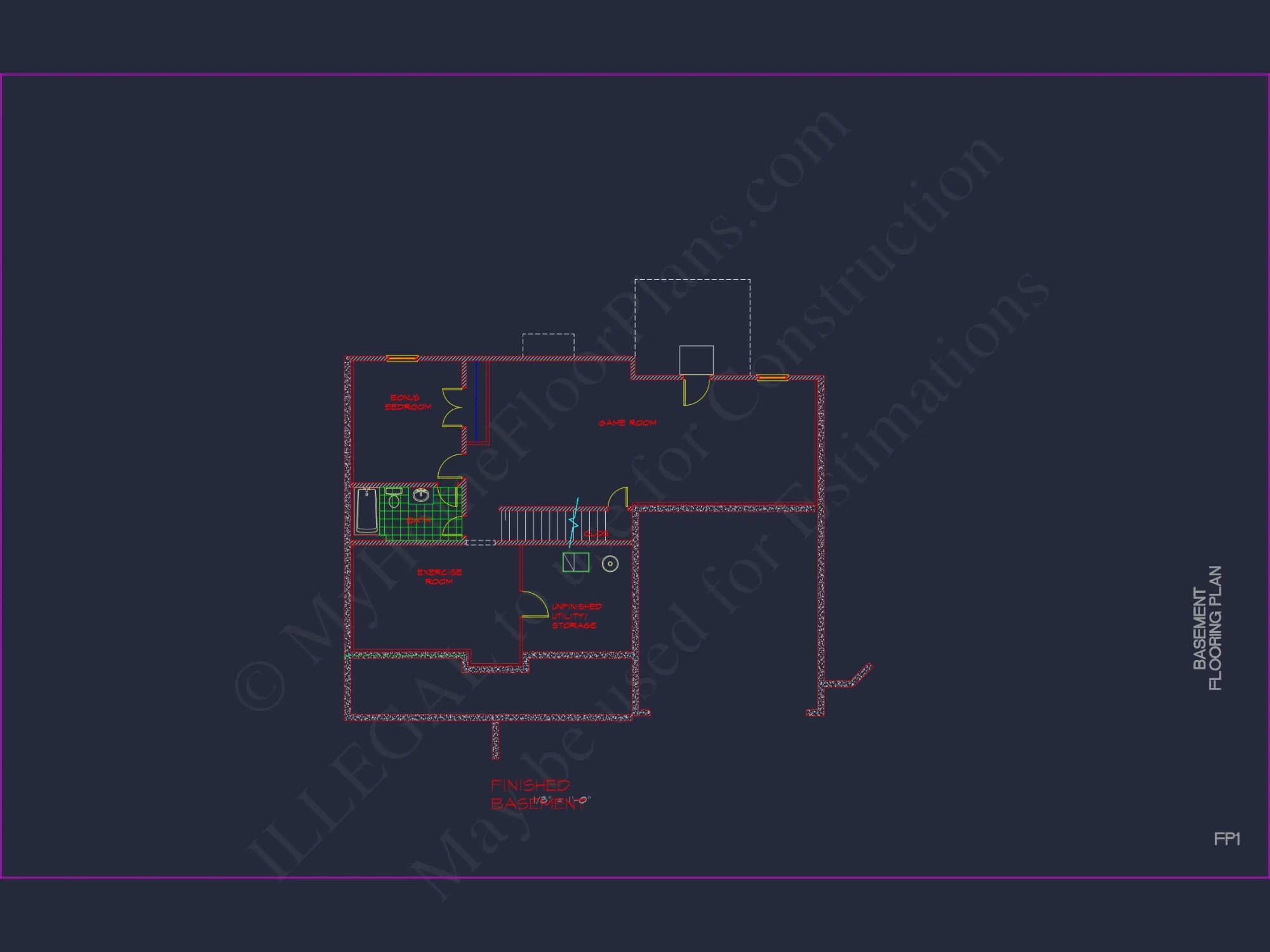

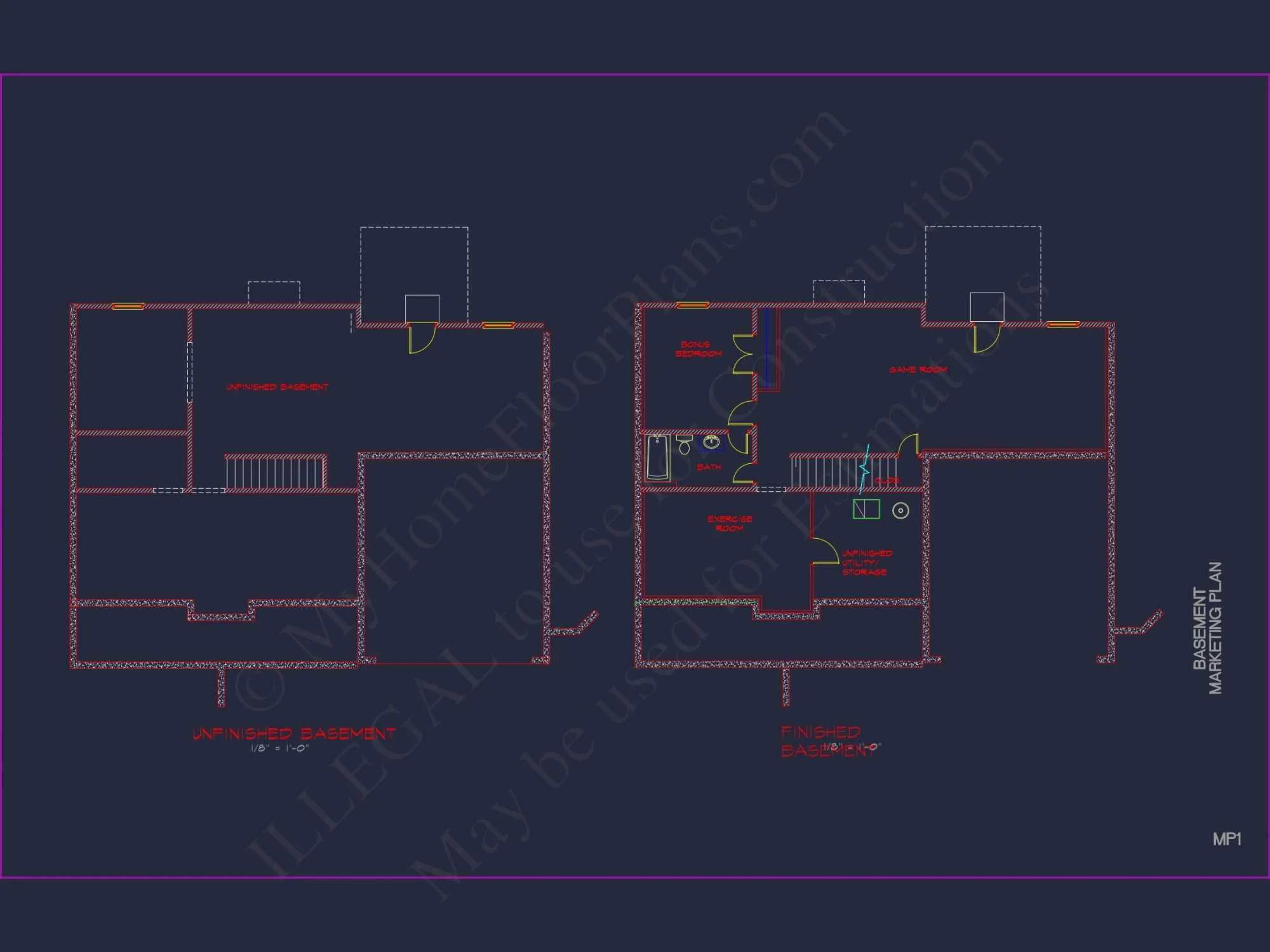

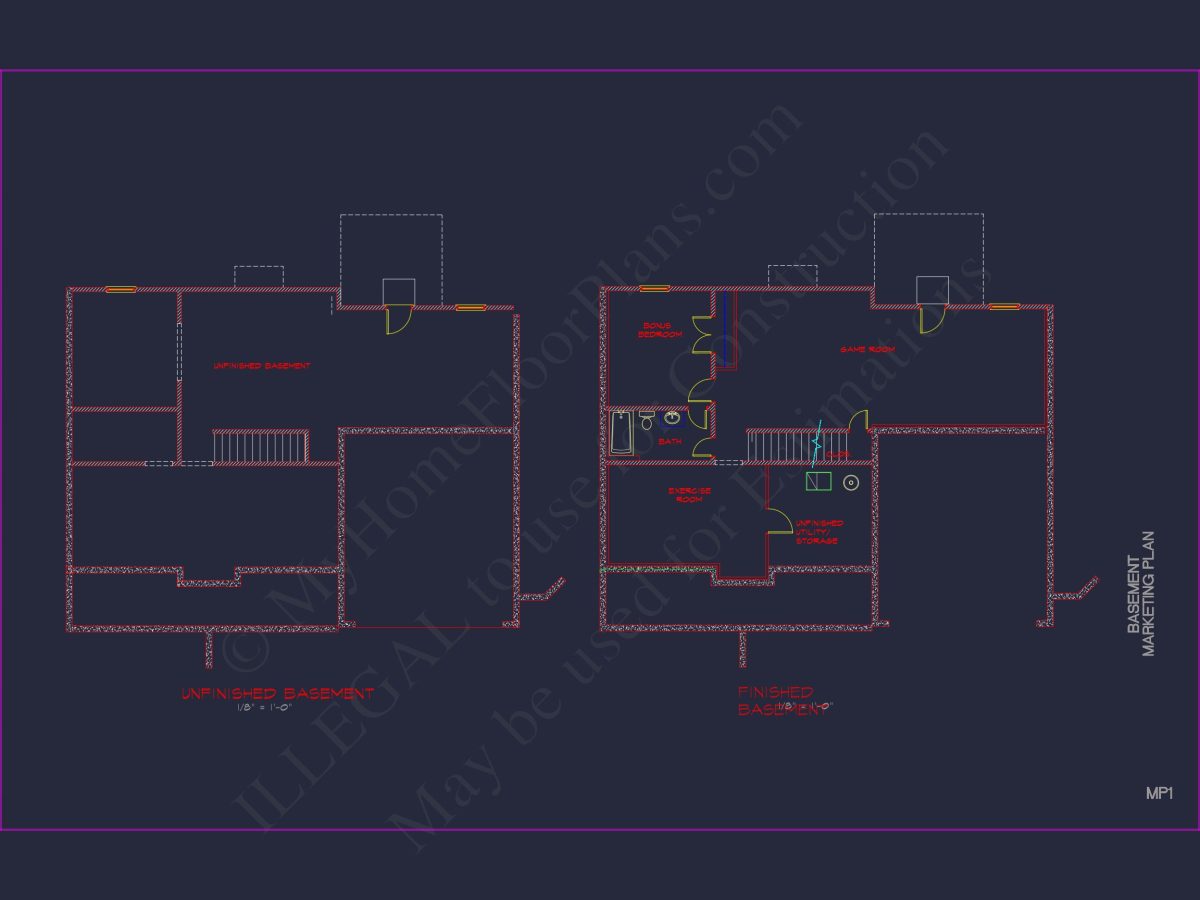

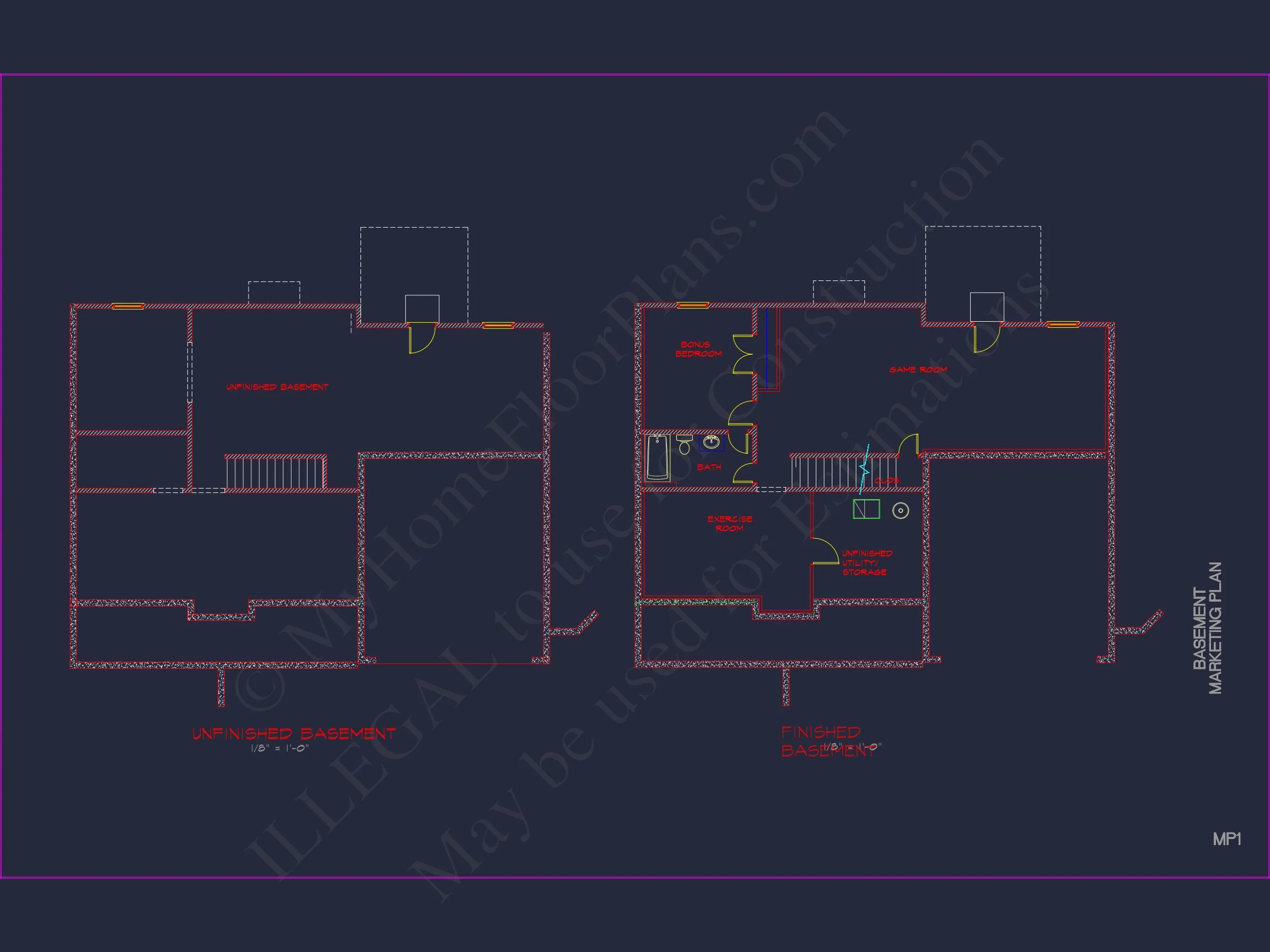

* Recreational Room: Located in the basement for extra versatility.
Outdoor Features for Relaxation

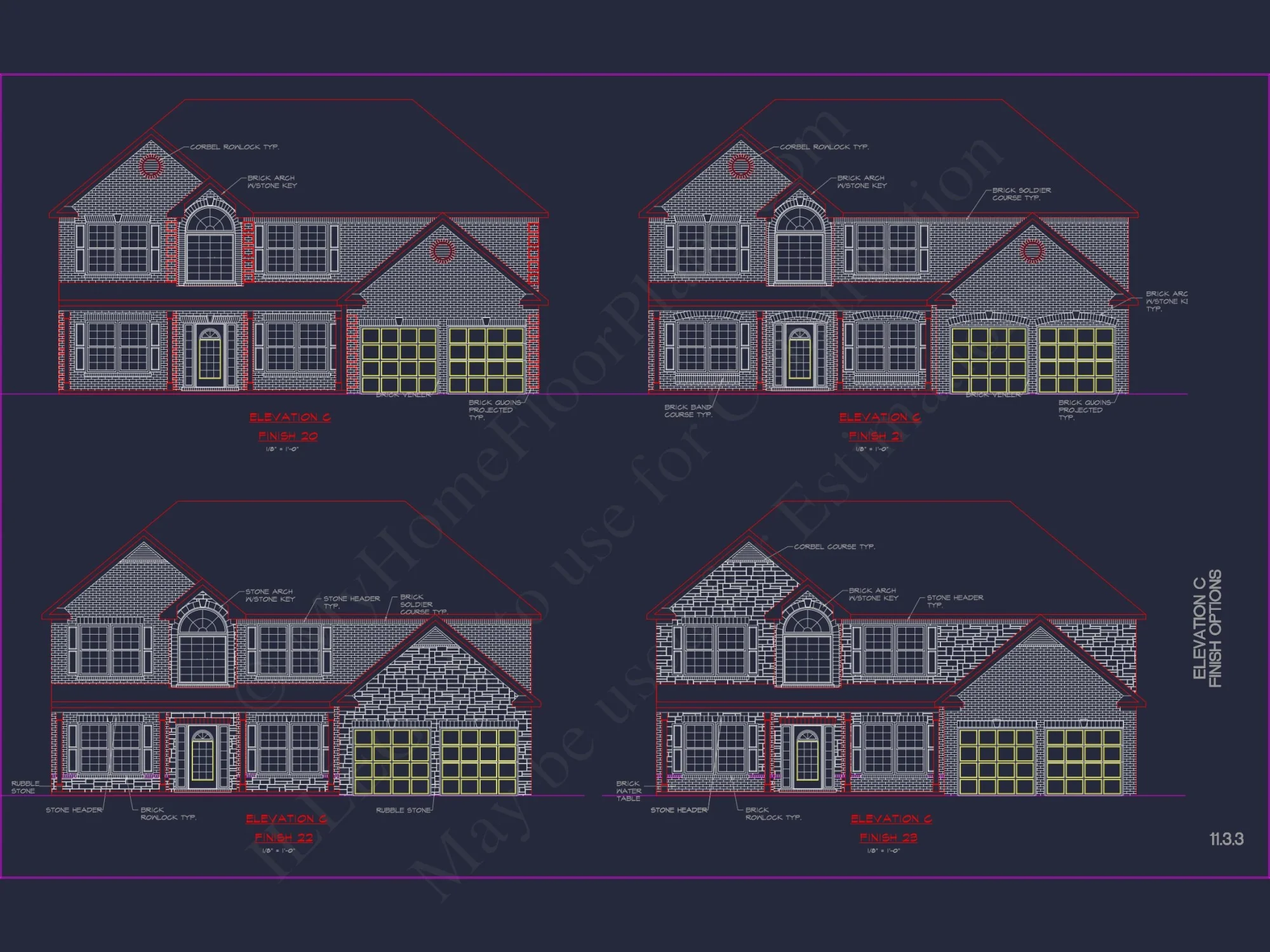

This home's exterior includes a covered front porch and patio, making it ideal for outdoor living. The brick and siding combination adds timeless elegance and durability to the design.
Benefits Included with Every Plan
All home plans come with CAD files and PDFs, ensuring precise communication with your builder. Additionally, the purchase includes a unlimited-build license and free foundation changes, making customization effortless. Unlike other providers, you can view all plan sheets before purchase, and we offer modifications at a fraction of the usual cost.
Are you ready to design your dream home? Contact us at support@https://myhomefloorplans.com to bring your vision to life today!
All home plans include BOTH the CAD file and PDF file.

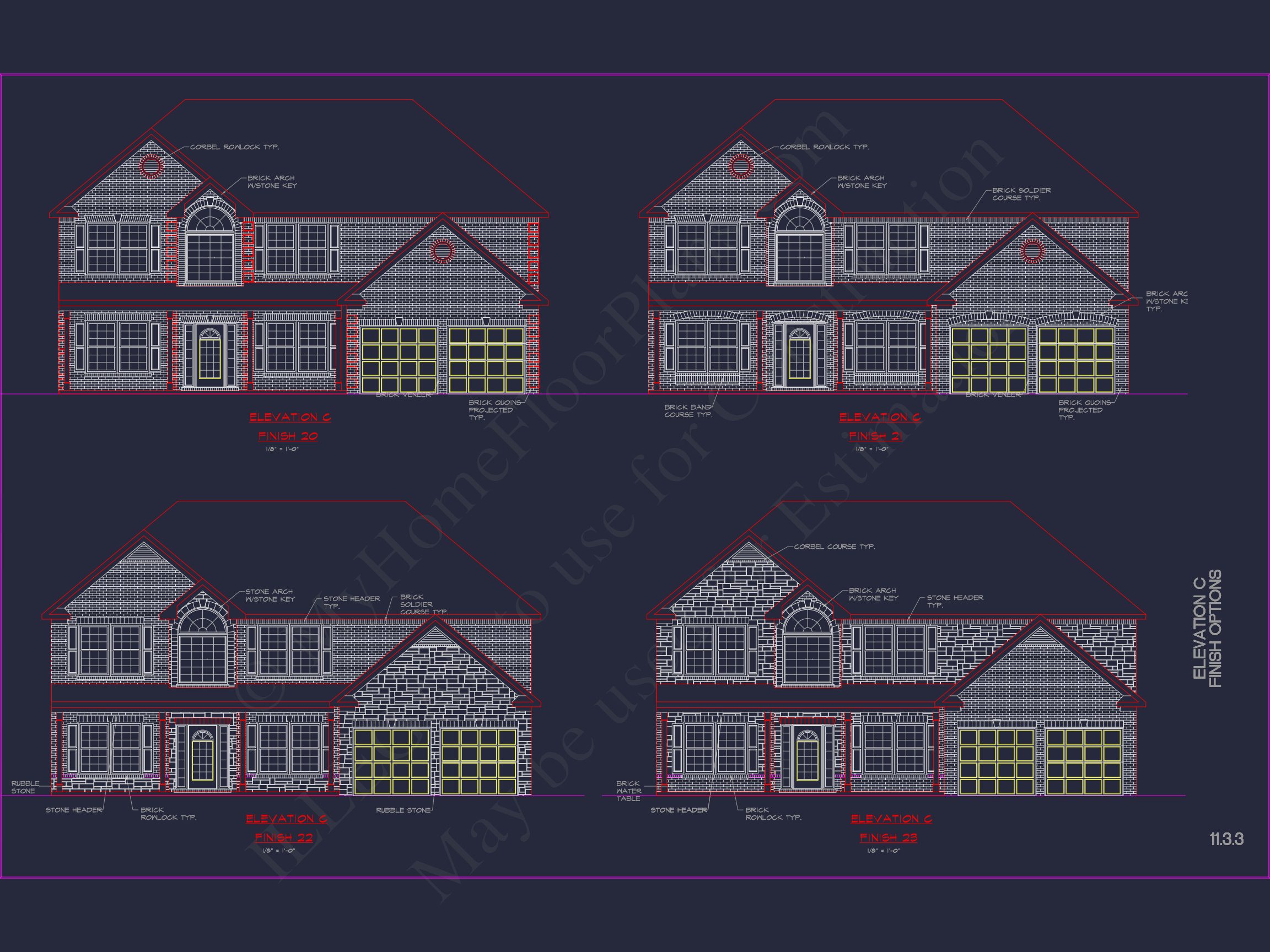

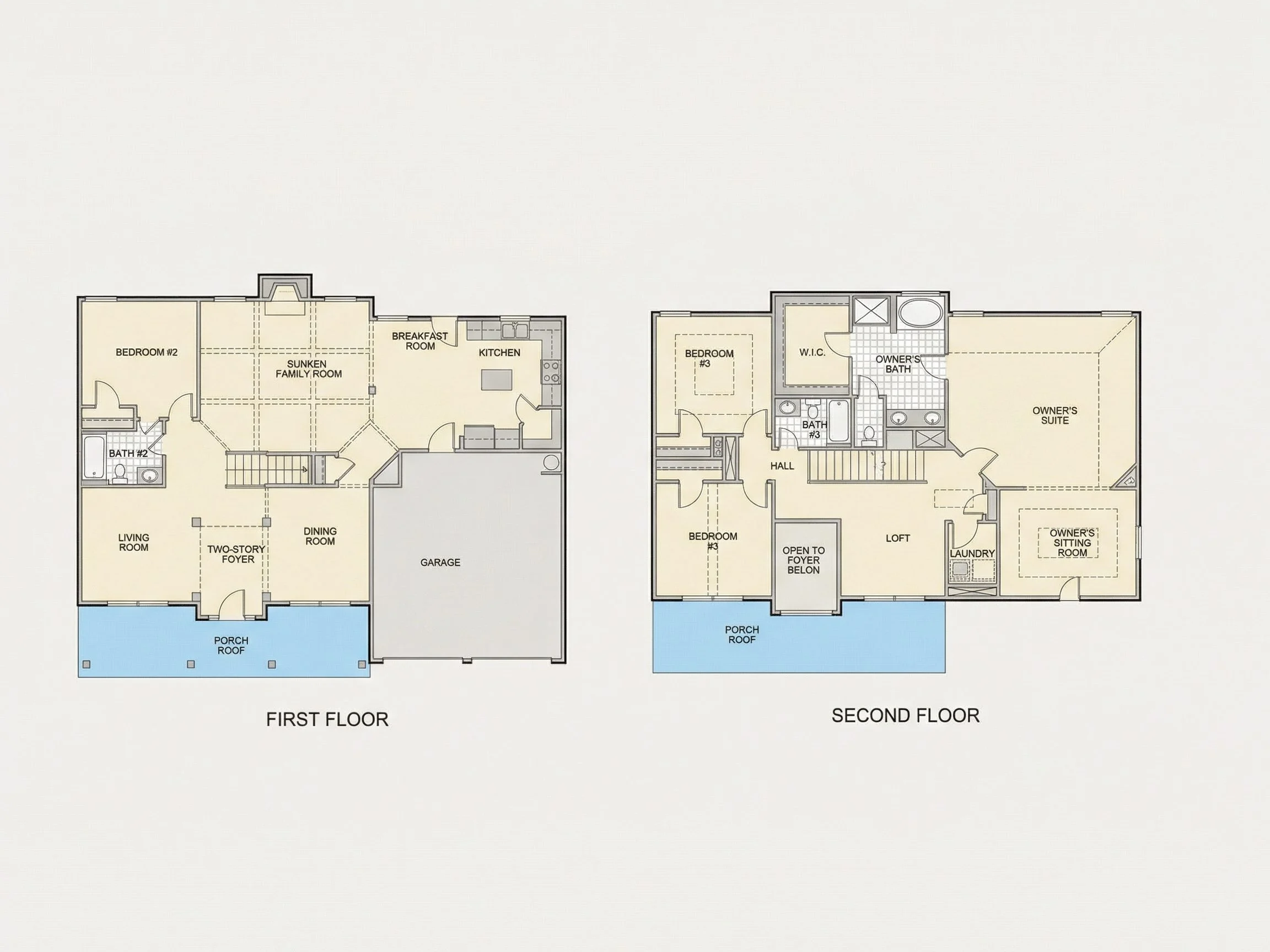

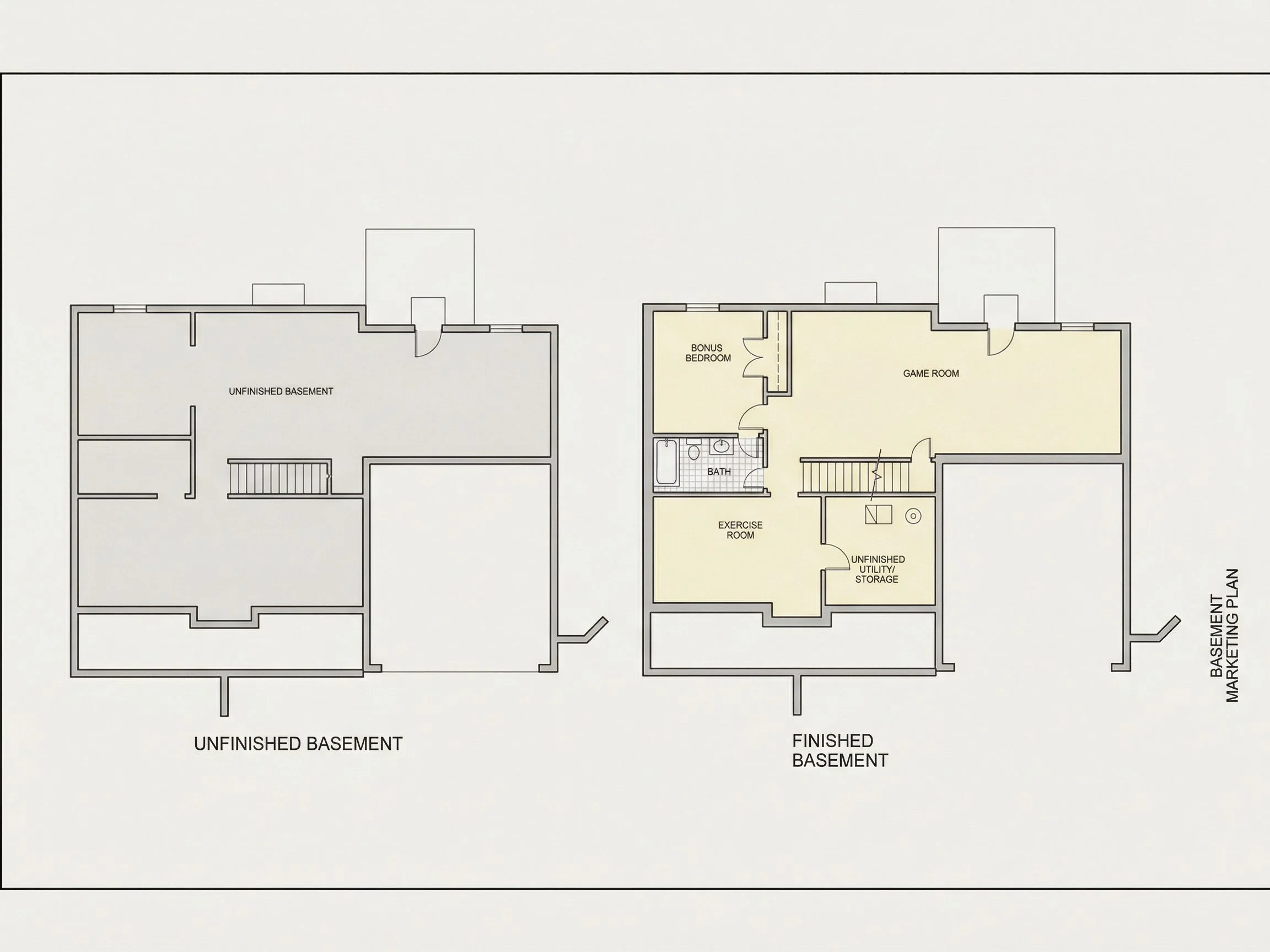

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

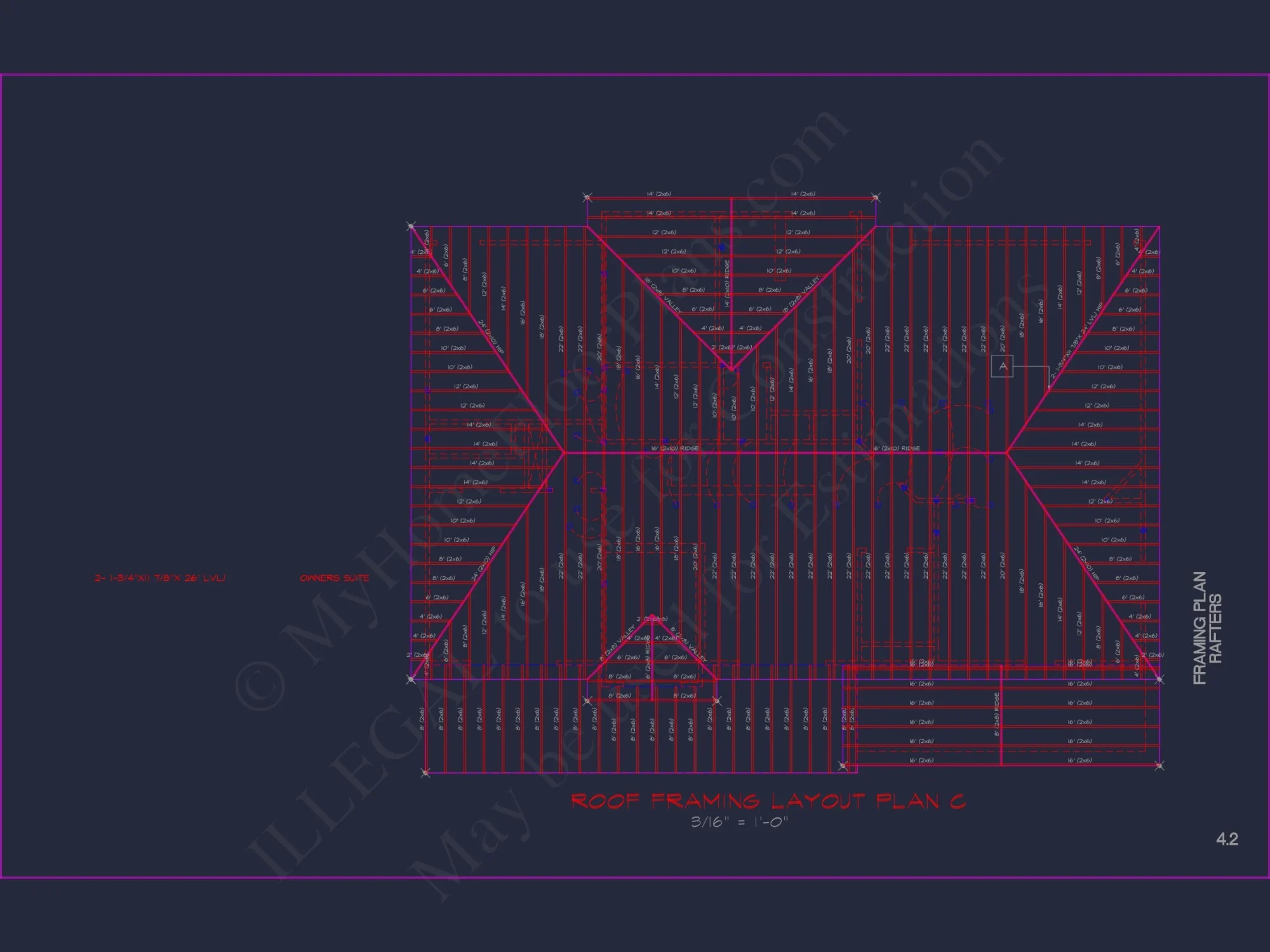

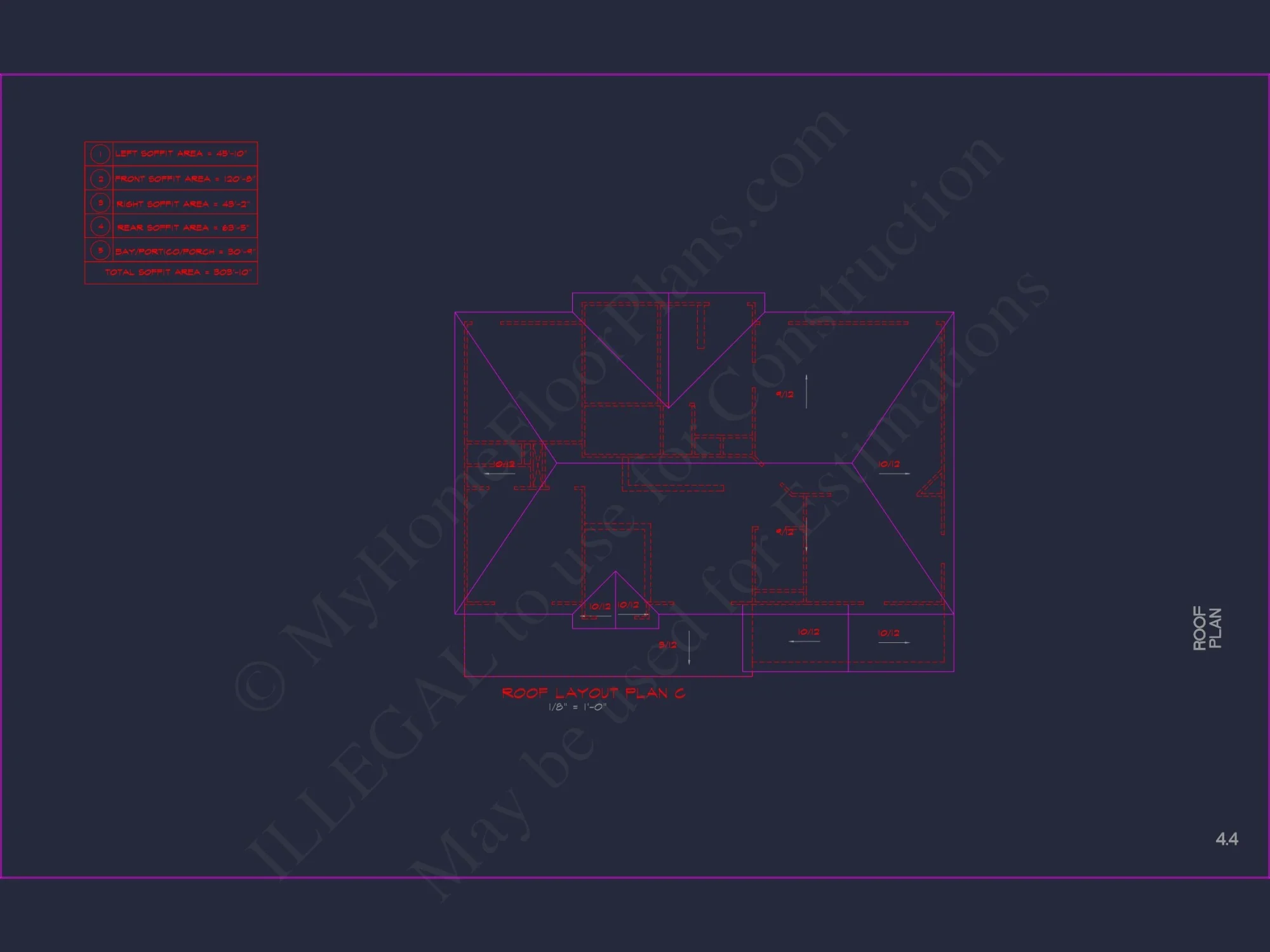

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

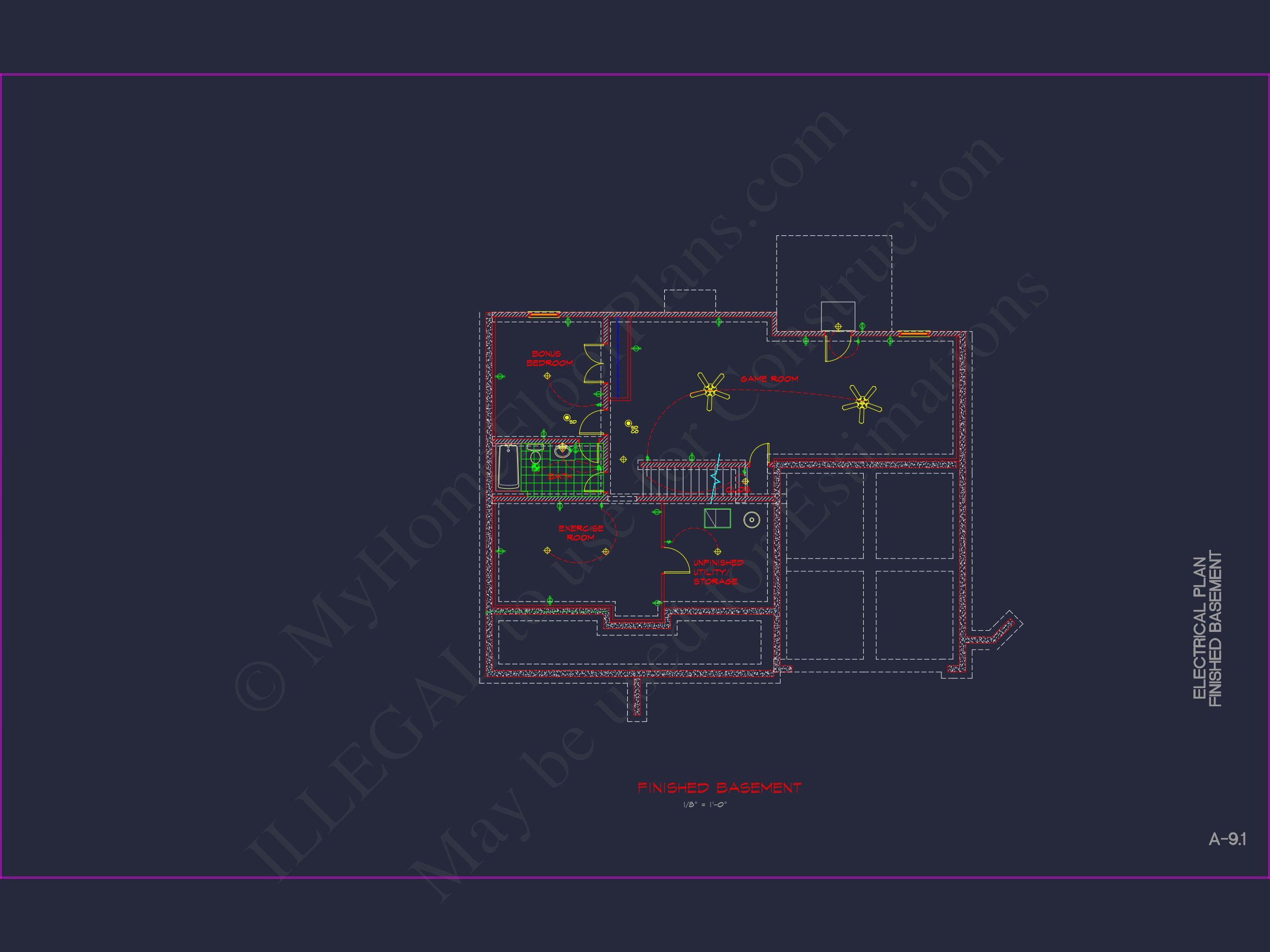

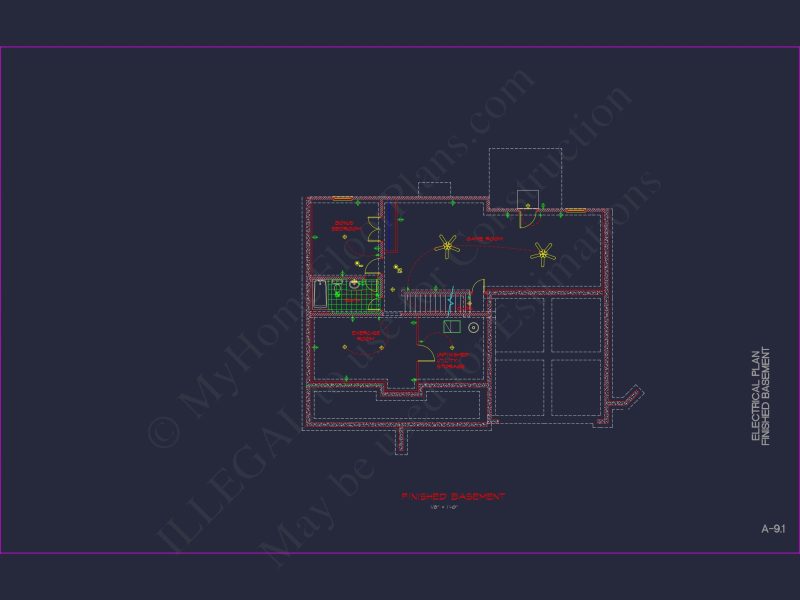

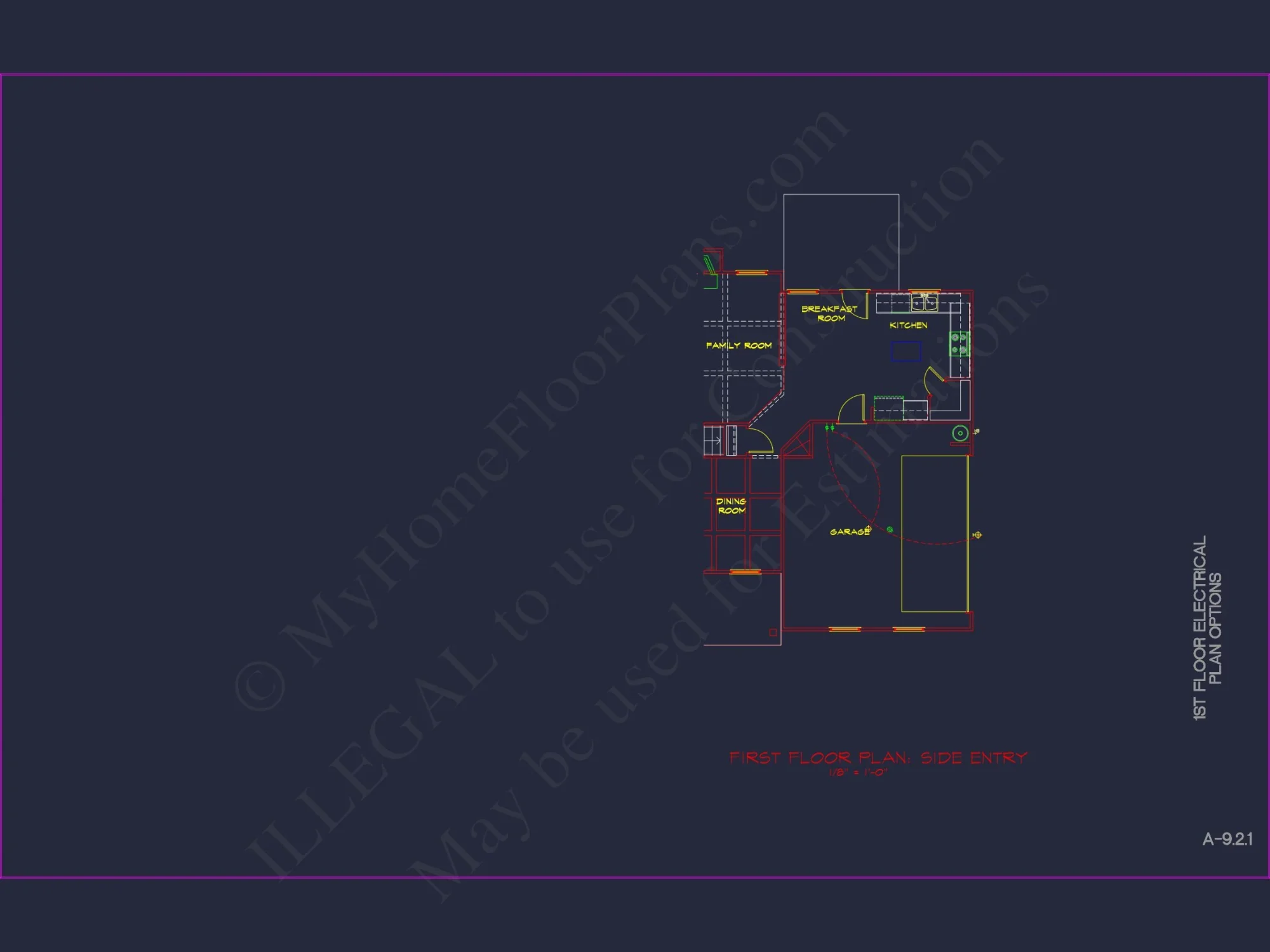

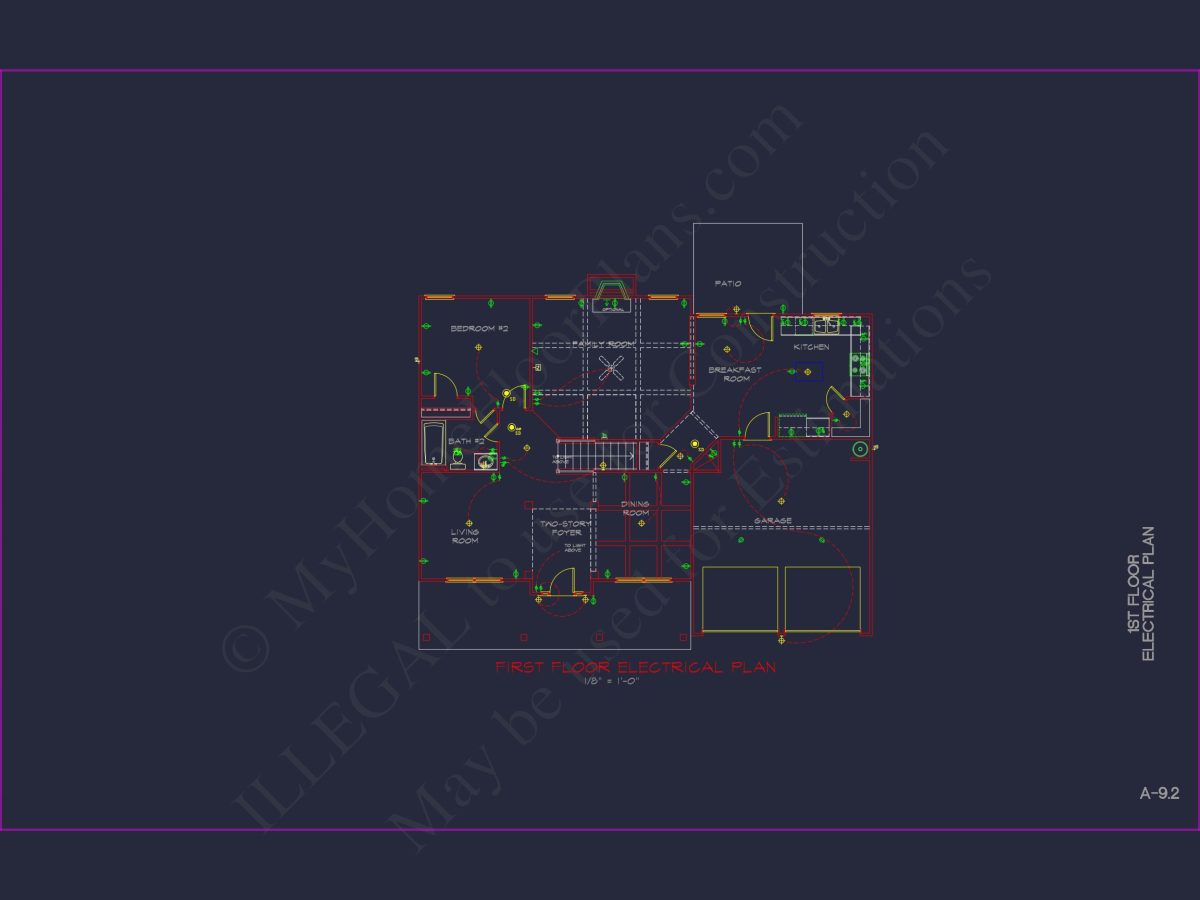

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

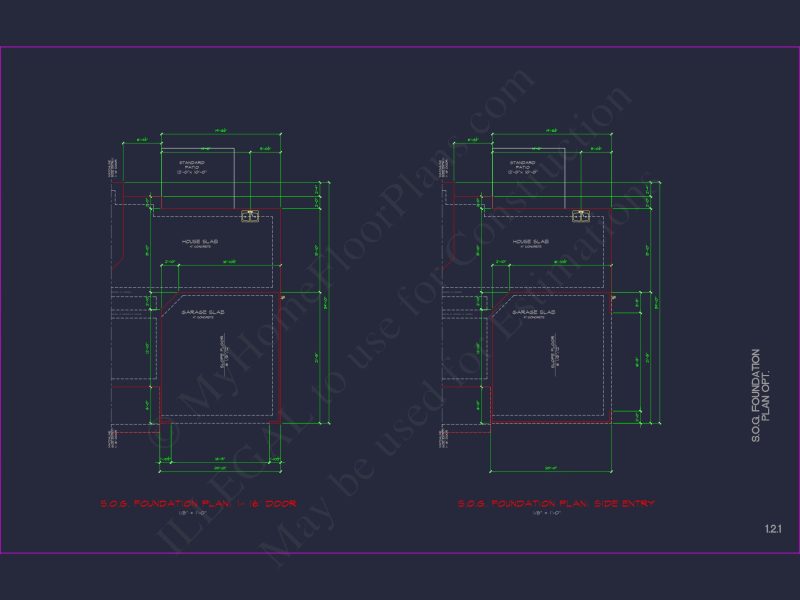

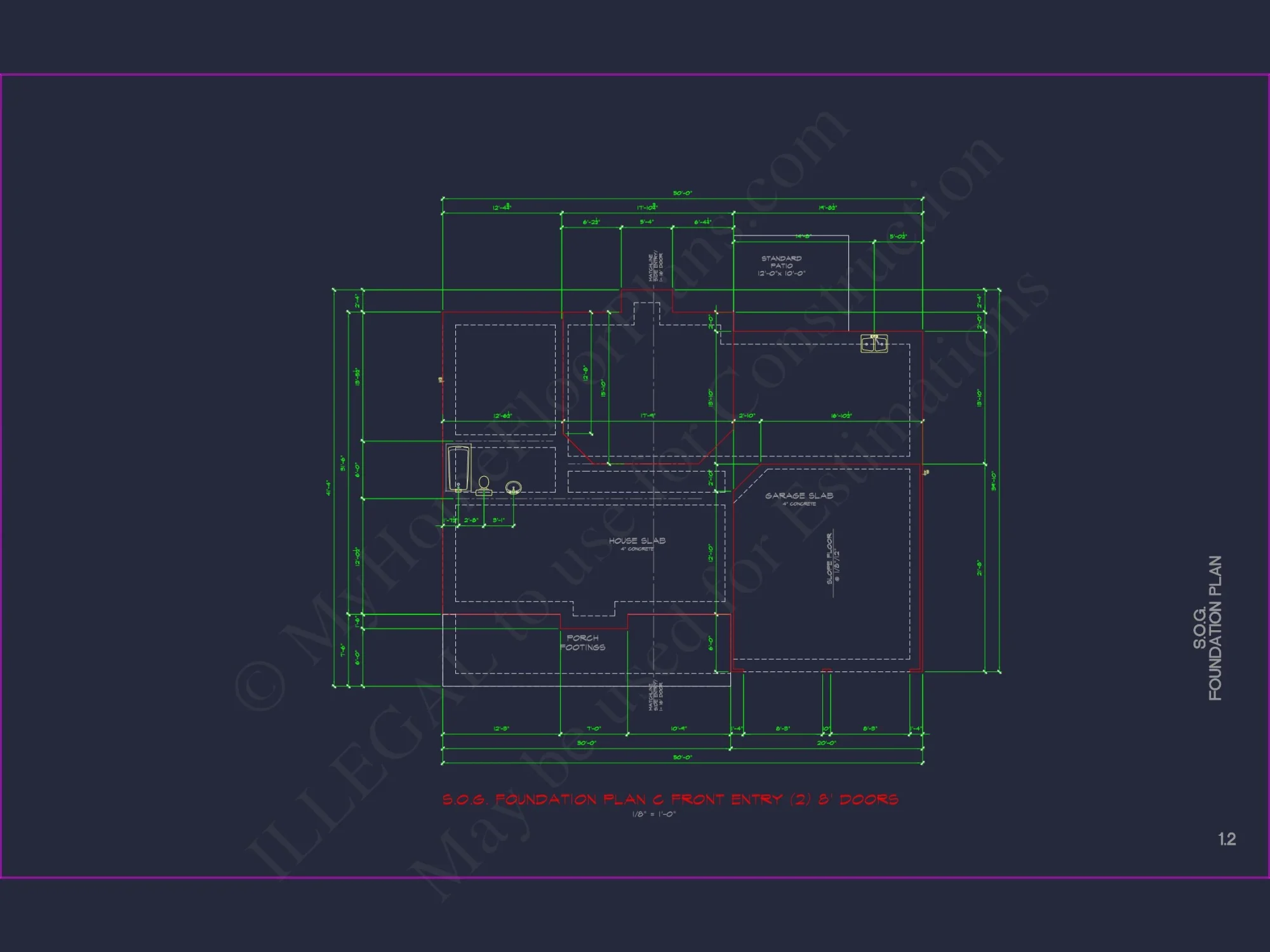

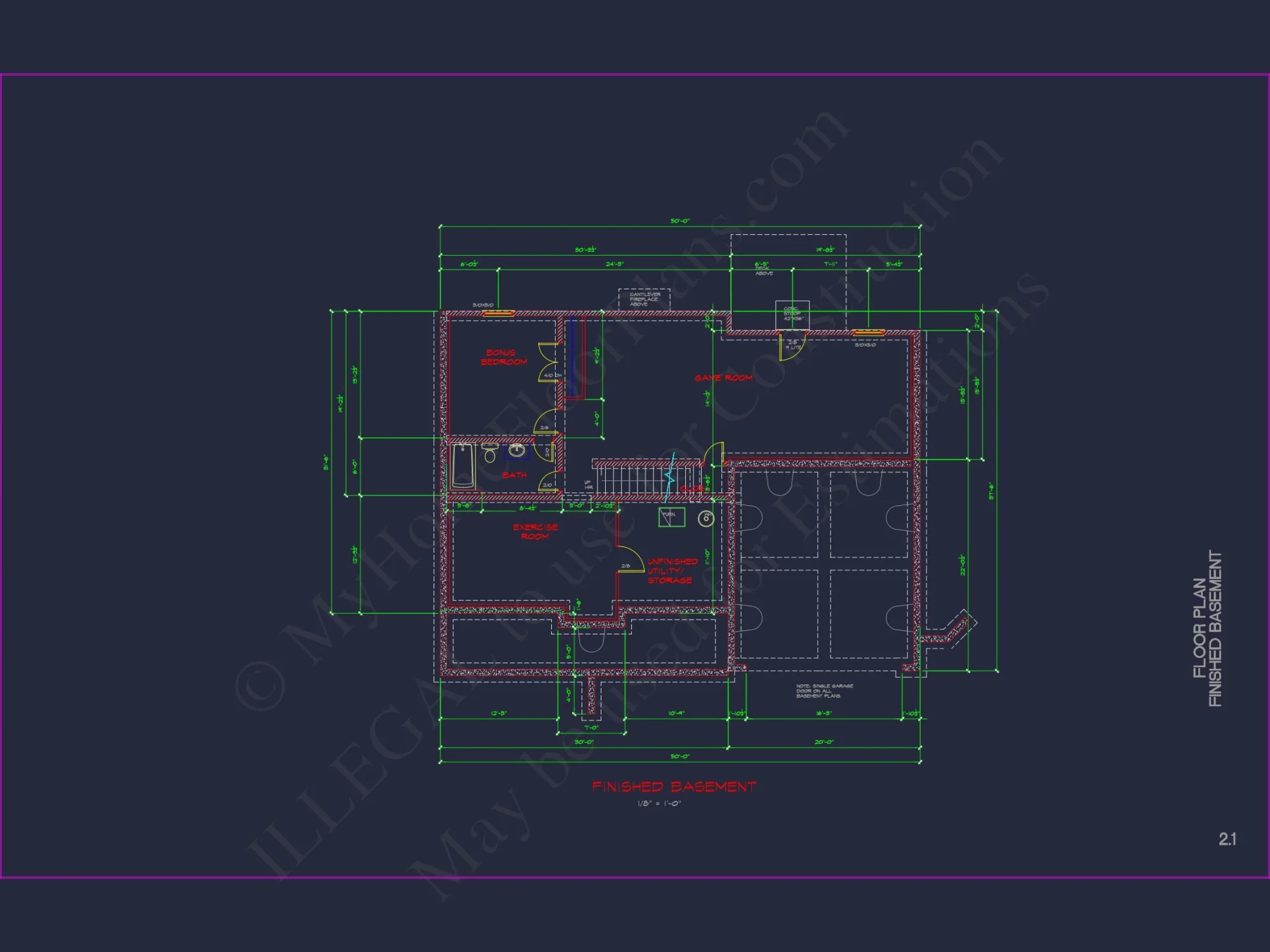

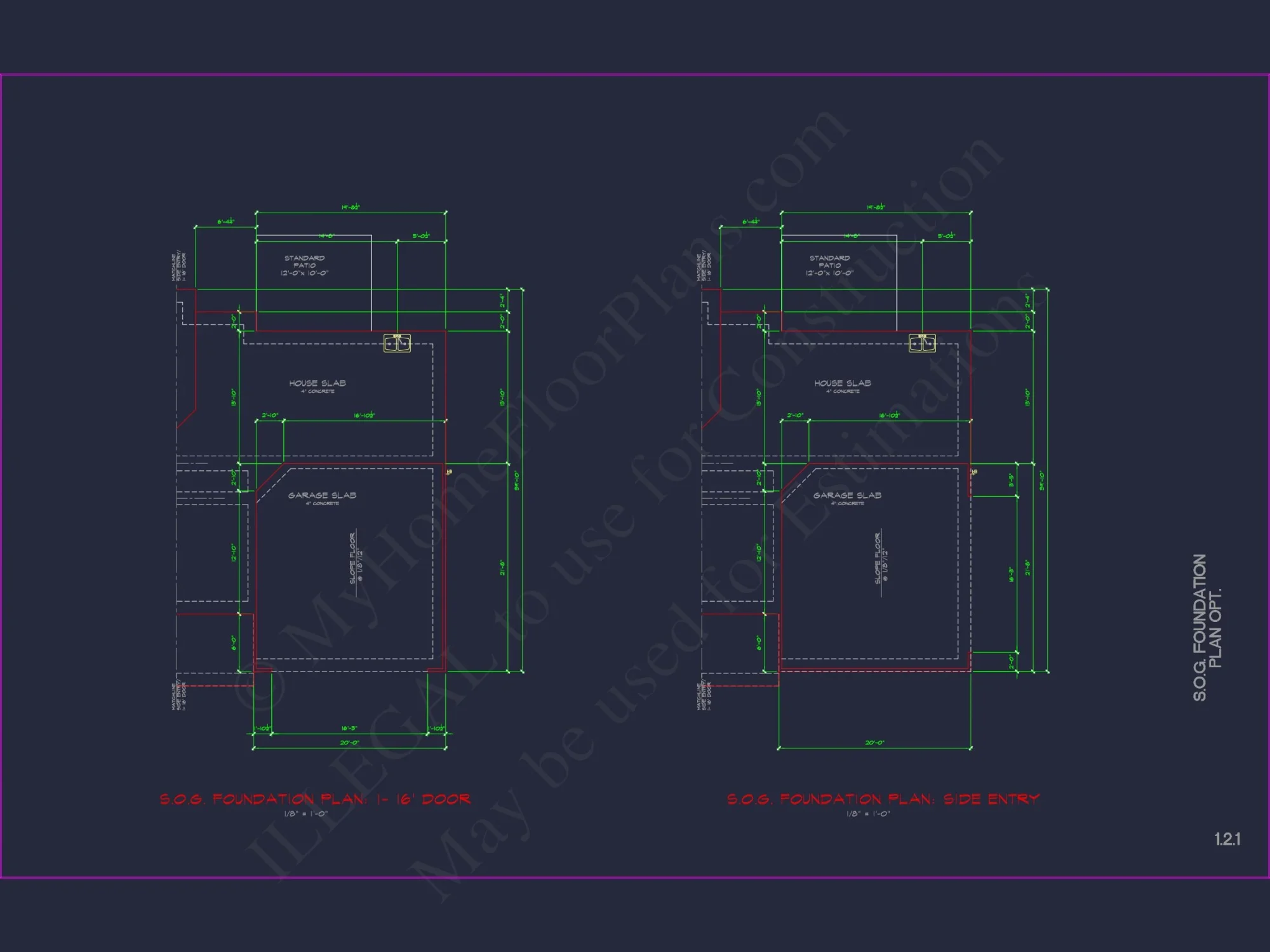

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
12-2609 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
