Sophisticated Home Plan with CAD Customized Architecture
Explore this modern home plan featuring 3 bedrooms, 2 baths, optional trellis patio, vaulted ceilings, and crafted CAD floor plans for personalized designs.
A Home Blueprint That Combines Elegance and Functionality
Stunning Layout for Small to Medium-Sized Families
Crafted for builders, architects, and aspiring homeowners, this two-story architectural design offers a sophisticated take on the Craftsman style. The blueprint includes three bedrooms, two bathrooms, and an optional half-bathroom, making it ideal for families looking for comfort and style. Whether you’re a designer or someone planning your dream home, this plan combines classical charm with modern practicality.
Impressive Indoor Features
The main-level open floor plan extends from a cozy kitchen to the family room, promoting effortless connectivity and entertainment. Key features include:
* Owner Bedroom on the First Floor with a walk-in closet for maximum convenience.

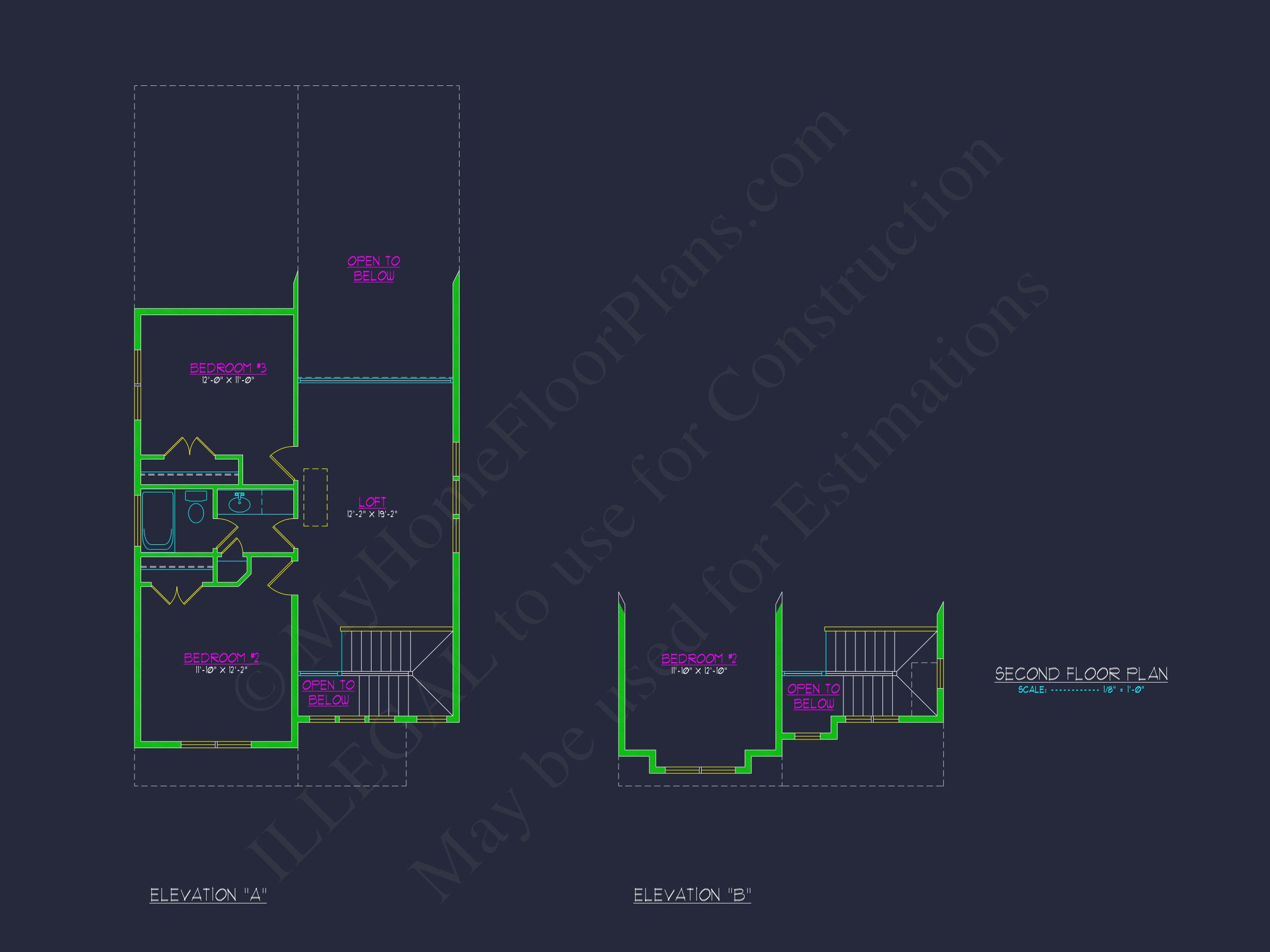

* A loft area upstairs, ideal for a study, game room, or small lounge.
* An optional fireplace to enhance warmth and ambiance on chilly evenings.
* Vaulted ceilings, adding height and visual charm to certain areas of the home.
* An easy flow between the kitchen island and breakfast nook, perfect for casual dining.
Versatile Outdoor Spaces
Complementing the sleek interior are thoughtful outdoor elements. A covered front porch invites relaxation, while the optional trellis patio at the rear creates a shaded outdoor escape, perfect for dining or entertaining on balmy evenings. The single-bay garage provides just enough space for parking or storage without compromising the compact exterior of the home.
Architectural Flexibility and Stunning Craftsmanship

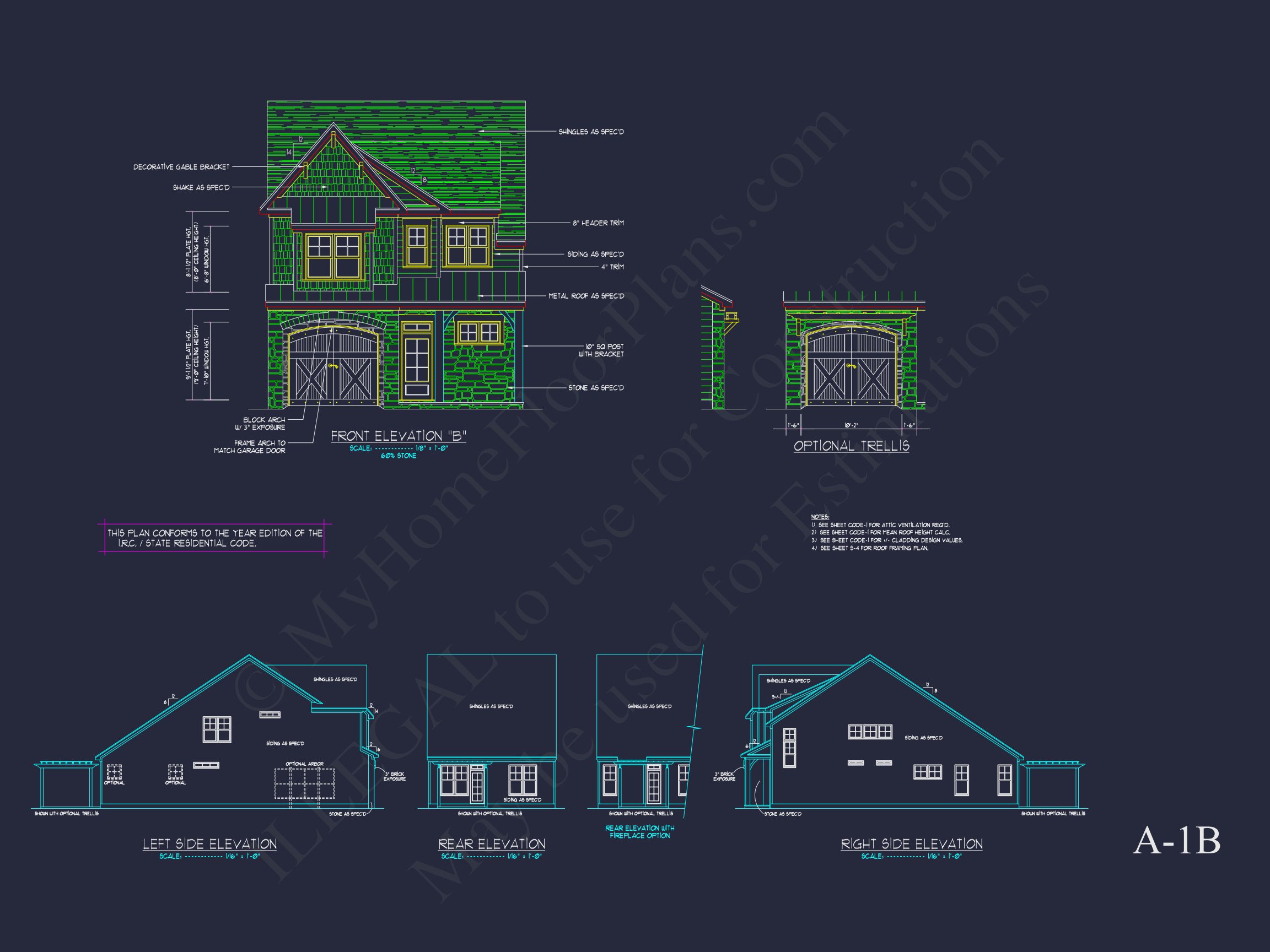

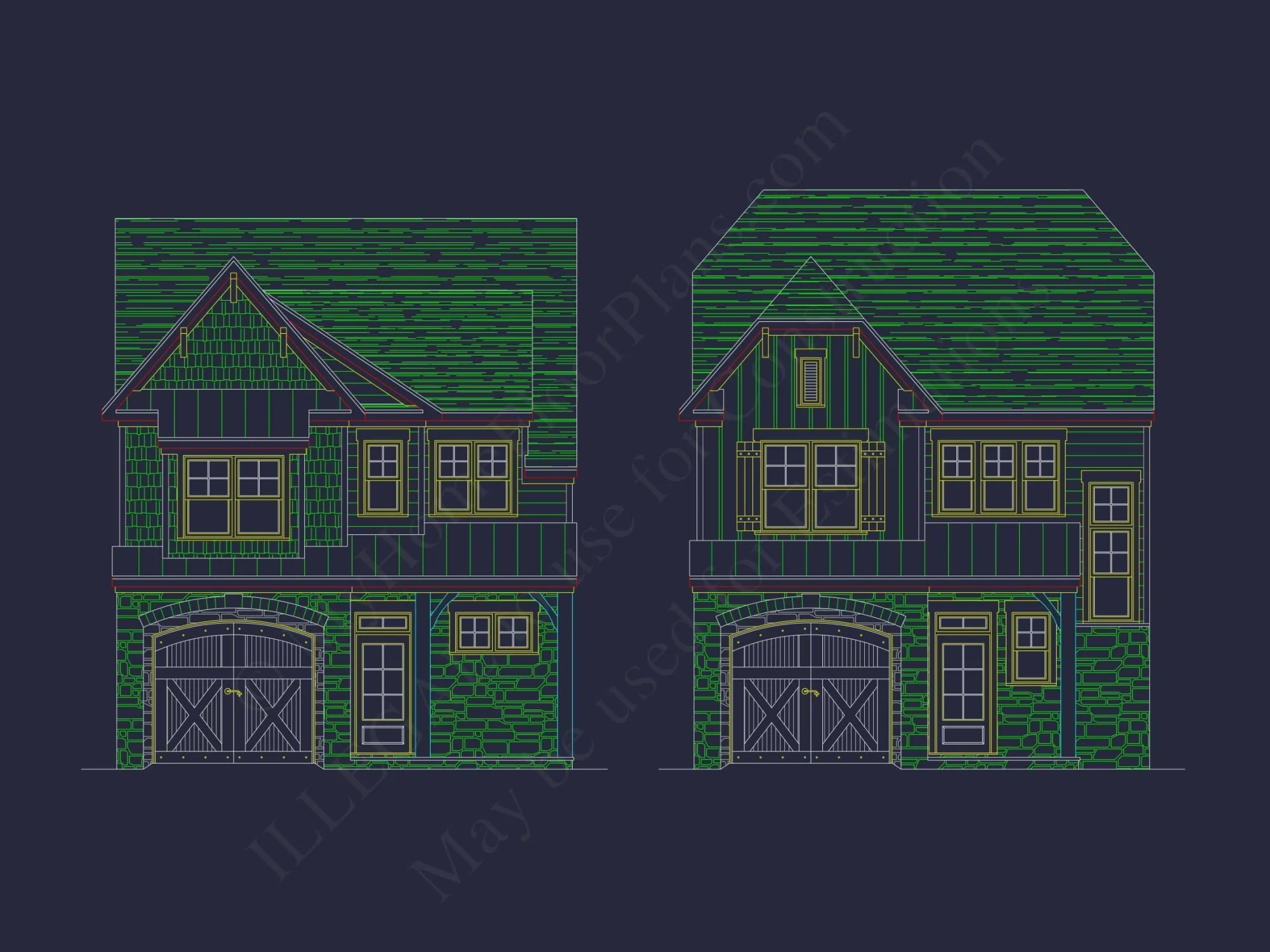

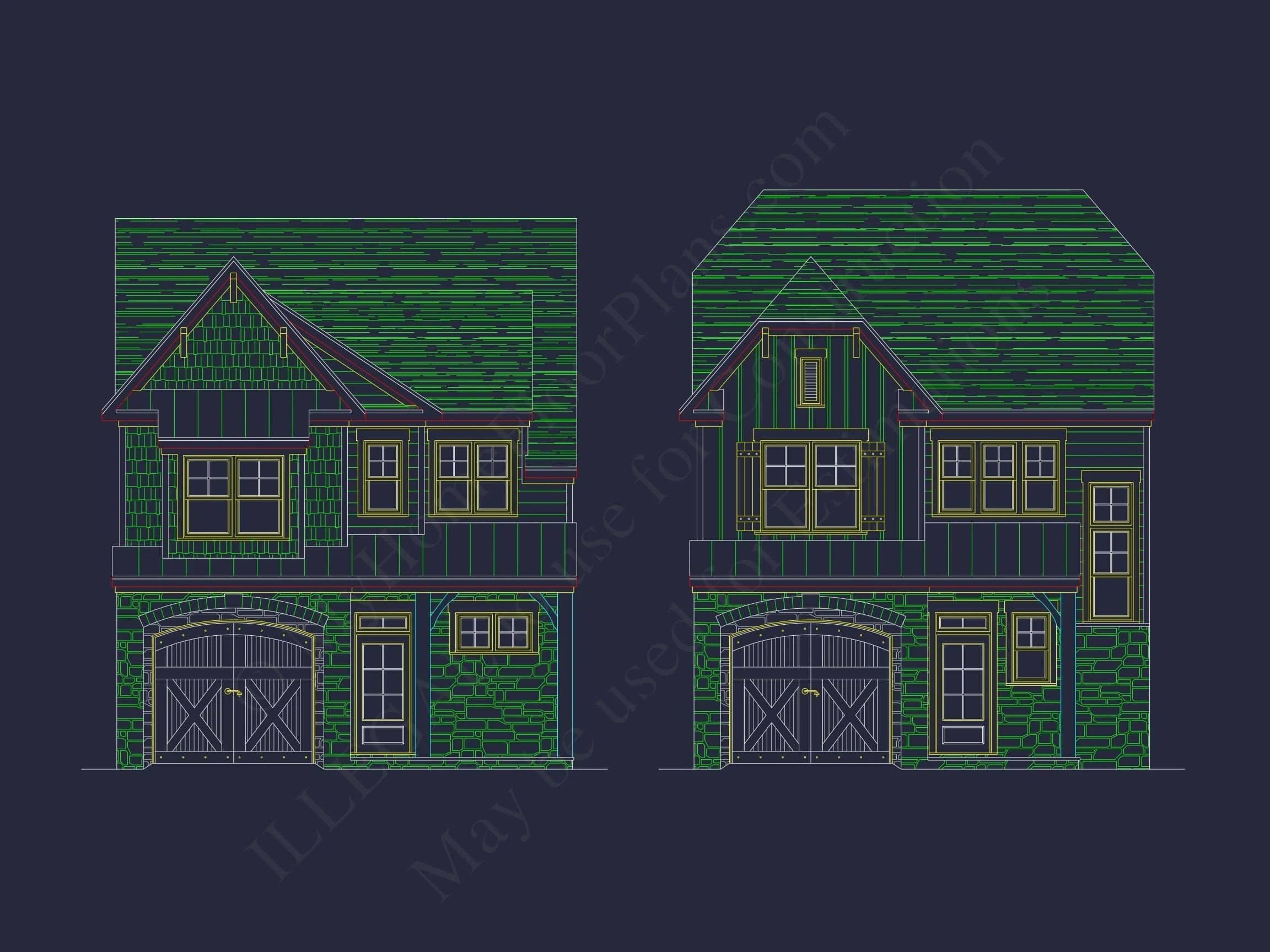

Constructed from timeless materials such as stone, siding, and shingles, the house exudes an authentic Craftsman aesthetic. The small footprint of 25 feet in width makes the home ideal for narrow lots, without sacrificing space or functionality. Choose from two front elevation options for added customization to meet your style preferences!
Benefits Unique to Every Plan
When you purchase this plan, you’ll not only receive detailed CAD designs but also a set of PDF blueprints that are easy to follow. Foundation modifications and structural engineering are included for free, saving you both time and money. Browse all blueprint files online before you buy, ensuring you have everything you need.
Ready to Design Your Dream Home?
Unlock the possibilities of this Craftsman-style dream home today! Visit support@https://myhomefloorplans.com for inquiries or to request personalized adjustments. Achieve the perfect balance of elegance and functionality with our expertly crafted designs!
All home plans include BOTH the CAD file and PDF file.

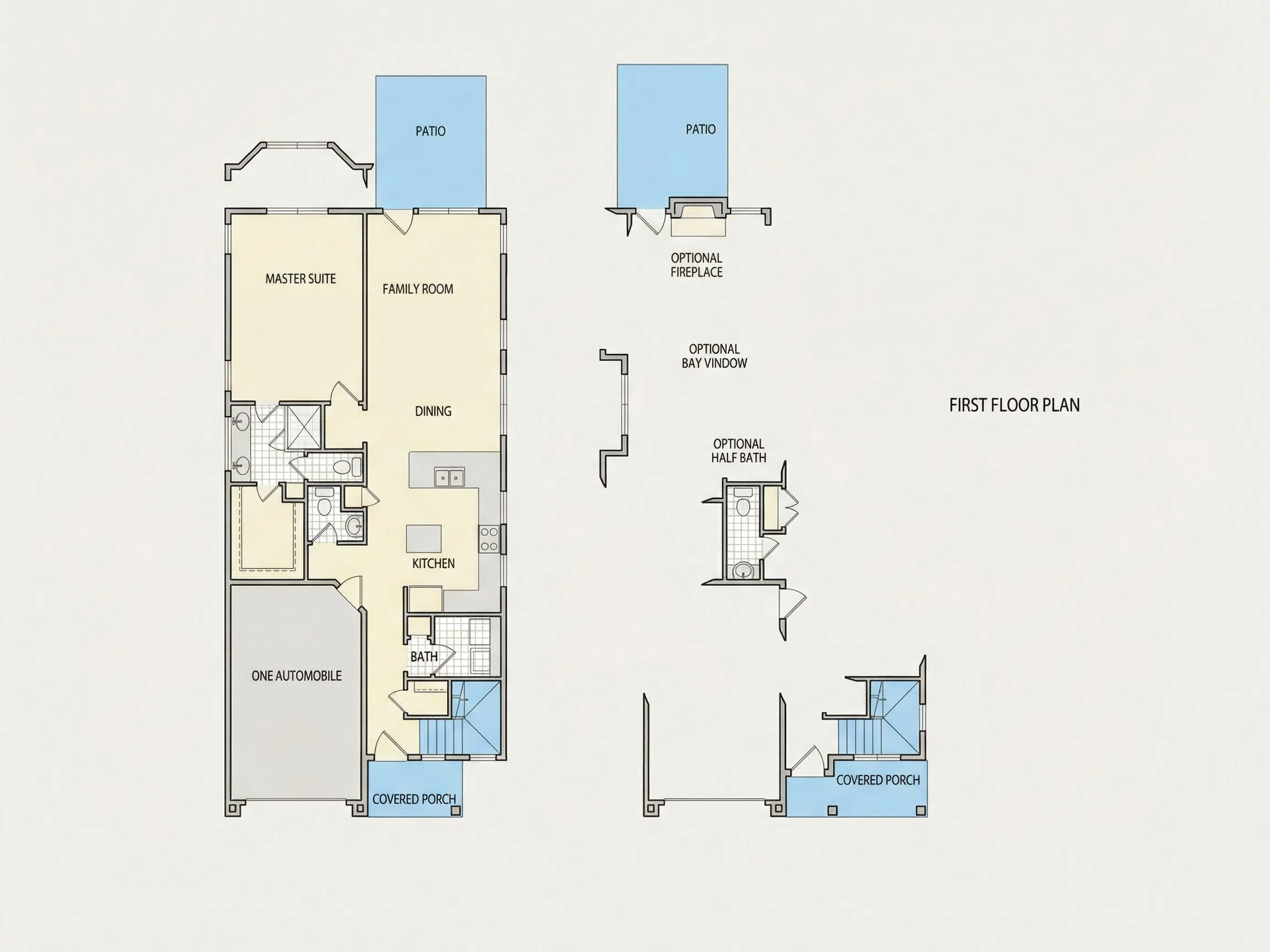

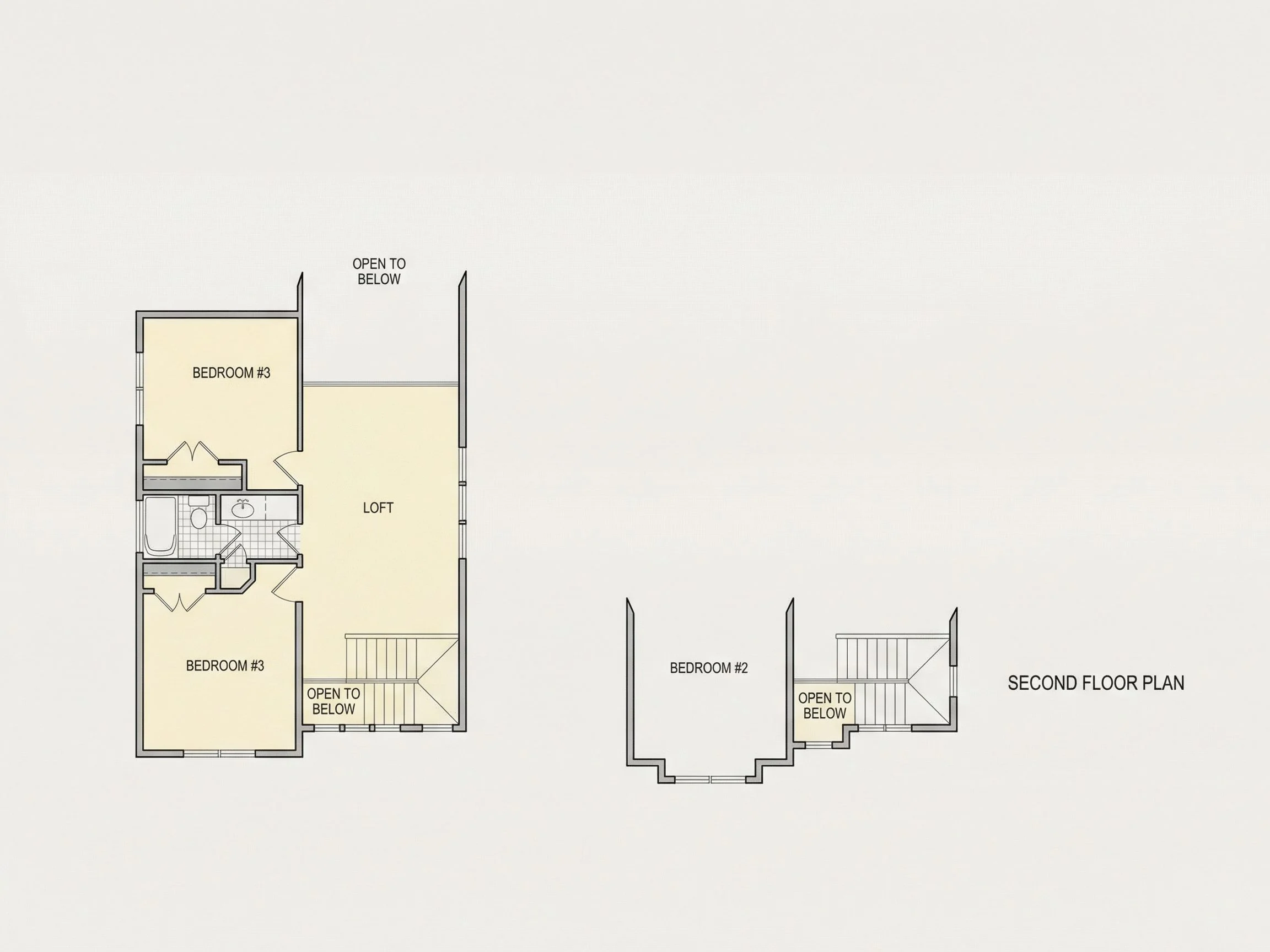

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

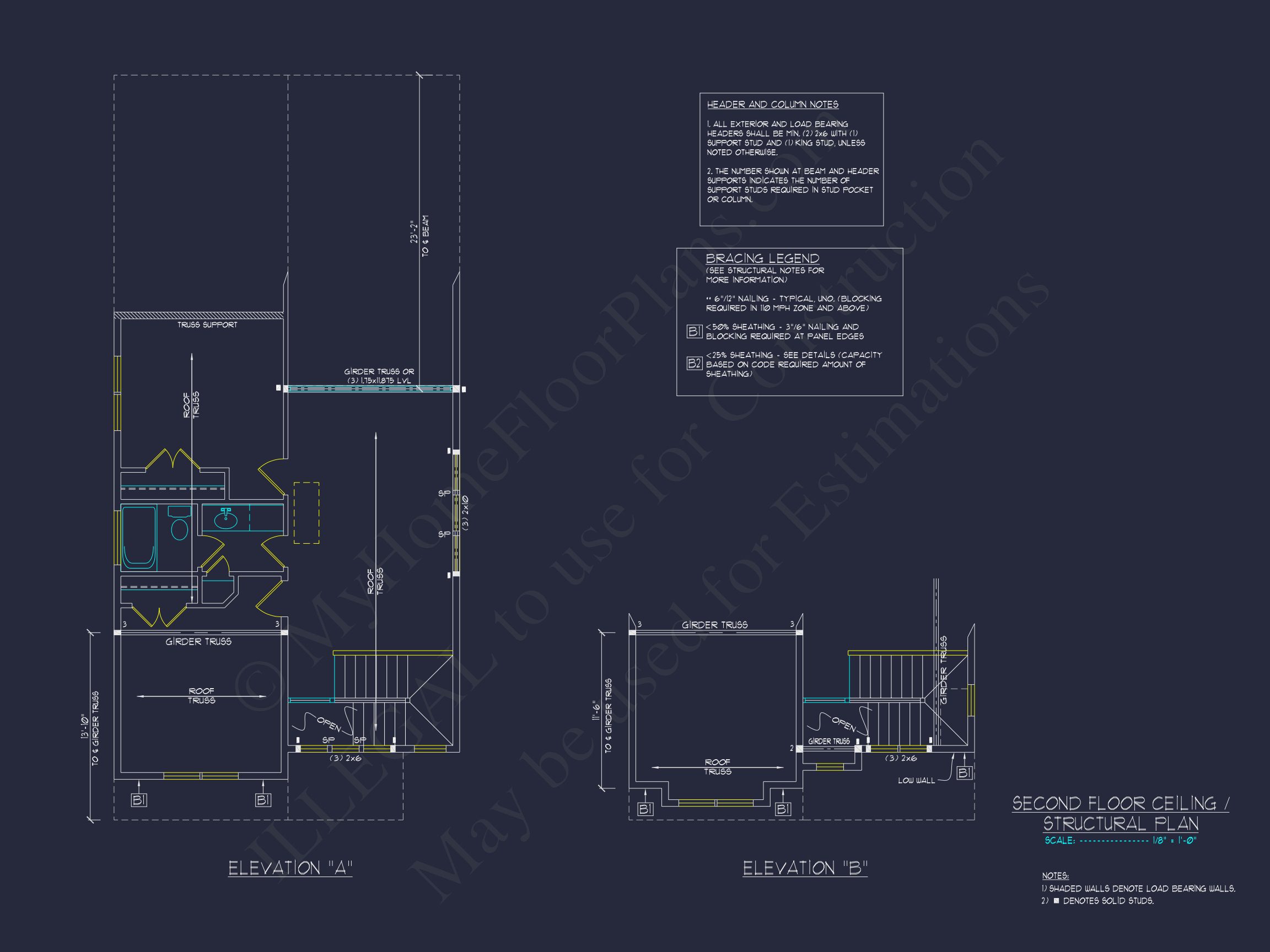

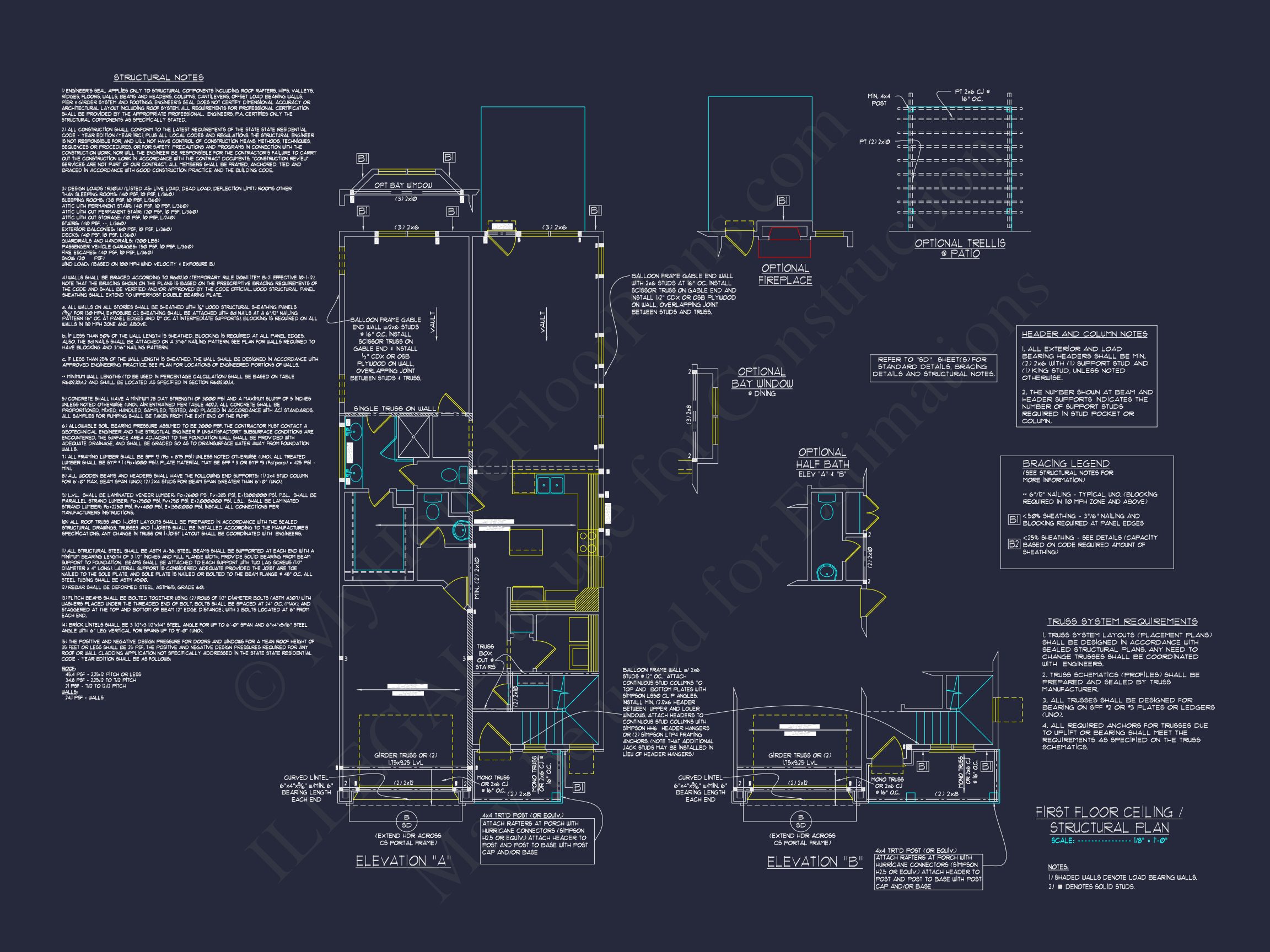

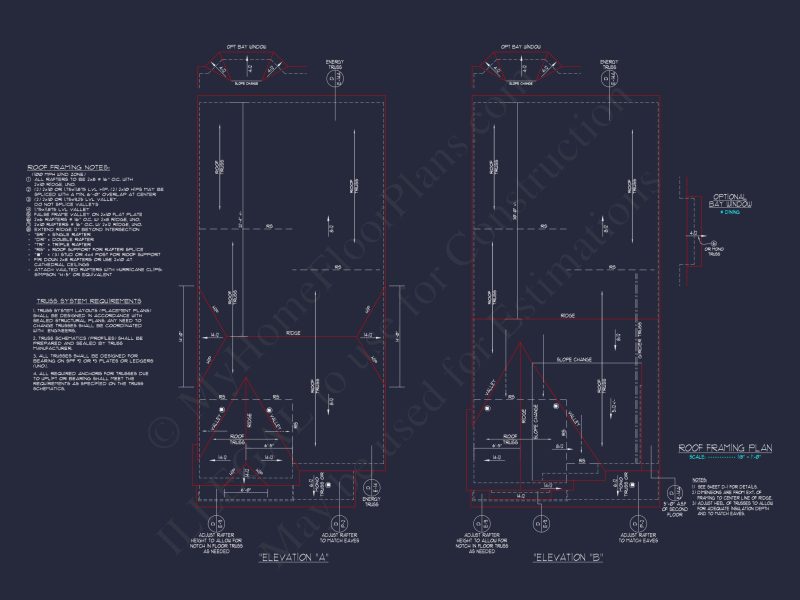

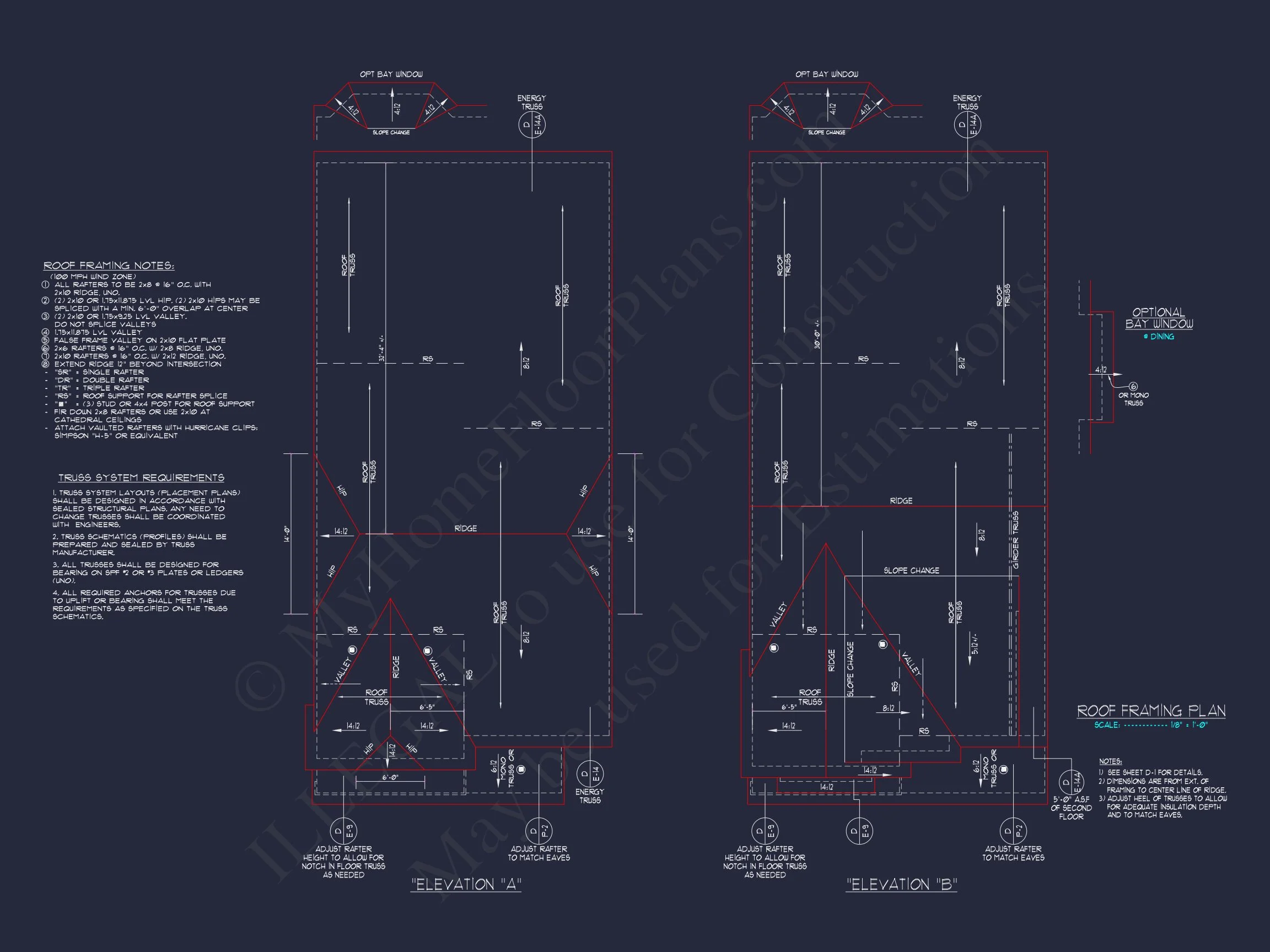

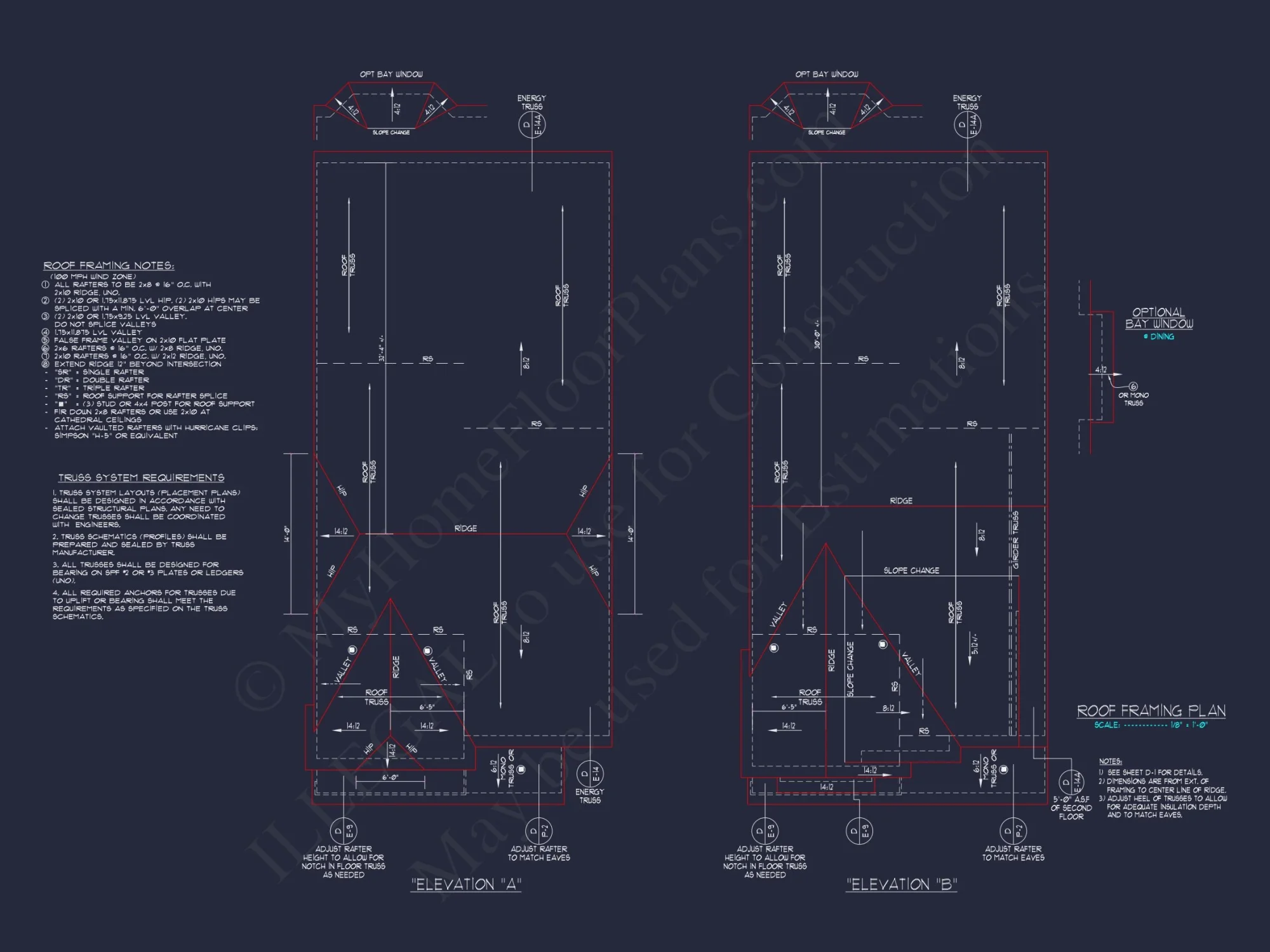

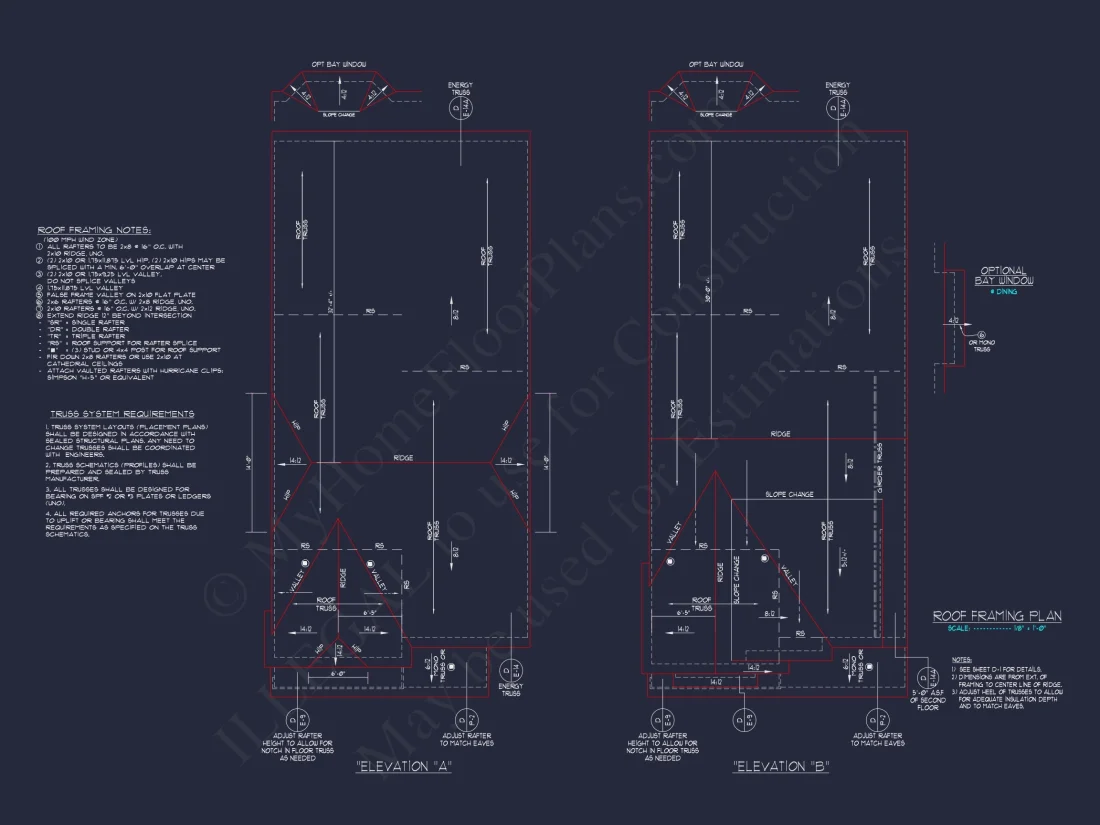

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

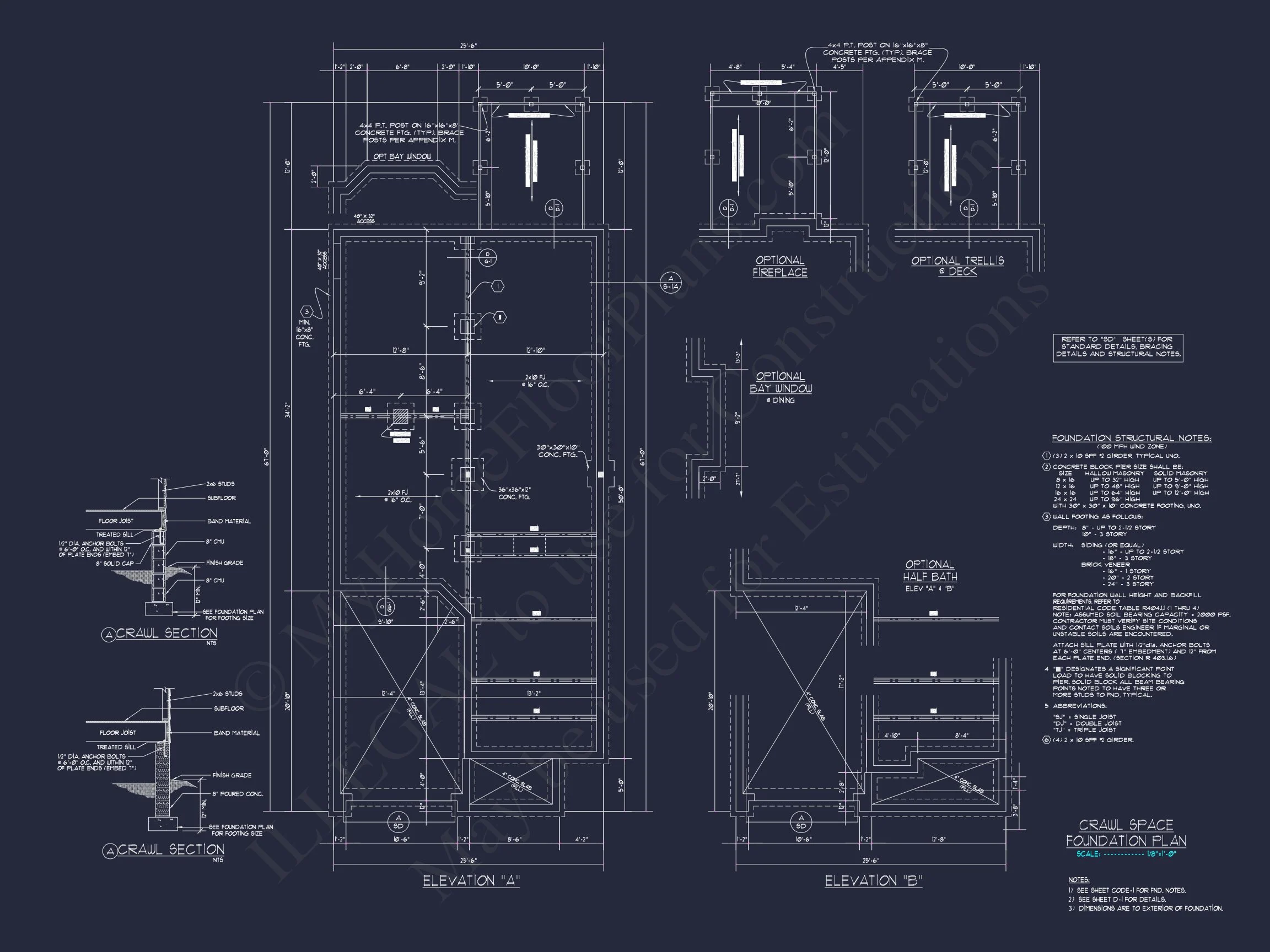

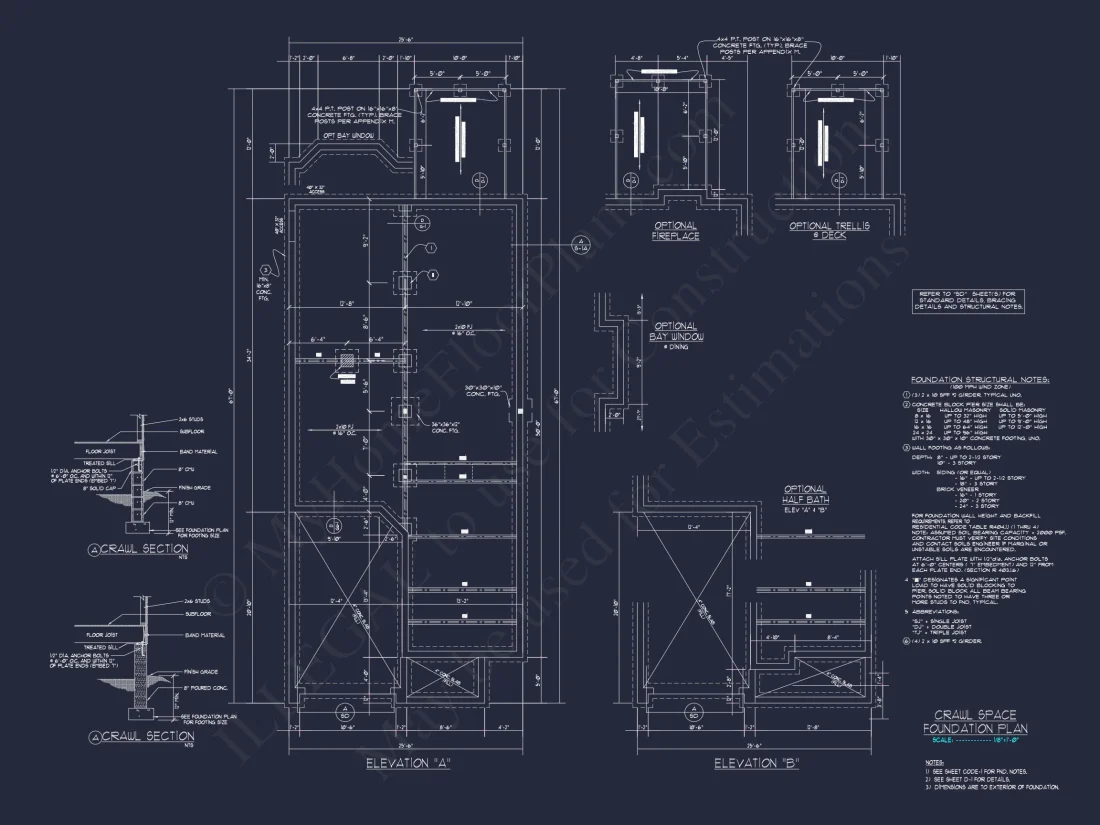

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
