Charming Beach House Plan with 2 Stories and CAD Blueprint Design
Explore this breezy beach house plan with 2, 317 heated sq. ft., 2 stories, open layout, and detailed CAD blueprints—perfect for narrow lots and coastal living.
This beach-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 317 sq. ft. over two stories.
- Unheated extras: Covered front porch, screened porch, balcony, and a detached garage.
Bedrooms & Bathrooms
- 3 spacious bedrooms including a first-floor Owner Suite with walk-in closet.
- 3 full bathrooms including a Jack and Jill bath for convenience and privacy.
Interior Highlights
- Beamed 9’+ ceilings add volume and coastal charm.
- Open floor plan connects kitchen, great room, and family room. View open layouts.
- Gourmet kitchen with island, walk-in pantry, and breakfast nook.
- Dedicated laundry room on the upper floor for added functionality.
- Foyer offers a graceful entry experience.
Garage & Storage Details
- Garage Bays: 2-car garage with alley-style layout.
- Garage Type: Detached garage—perfect for beach environments and flexibility.
- Storage: Ample space above garage for hobby use, storage, or a future addition.
Outdoor Living Features
- Screened-in porch for year-round outdoor enjoyment.
- Covered front porch adds southern coastal charm.
- Balcony and open deck perfect for sunrise coffee or sunset entertaining.
Architectural Style: Beach House
This design blends durable shingle siding with relaxed elegance—perfect for families who value waterfront or coastal living. Learn more about the Beach House style or explore its roots on ArchDaily.
Bonus Features
- Compact footprint for narrow lot builds.
- Jack and Jill bathroom for guest or sibling privacy.
- Optional upstairs flex space or bunk room addition.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Coastal House Plans
- Narrow Lot House Plans
- Screened Porch House Plans
- Plans with Kitchen Islands
- Detached Garage Plans
Frequently Asked Questions
What’s included with this house plan? All plans come with editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and free foundation changes.
Can I customize the layout? Yes! We offer fast and affordable modifications. Get a quote here.
Is this design good for beach areas? Absolutely. It’s crafted with durable materials and a layout ideal for oceanfront or lakeside settings.
How many stories is this house? It’s a two-story house plan with the Owner Suite conveniently located on the first floor.
Can I preview the blueprints before purchase? Yes. Preview every sheet before you buy.
Start Building Your Dream House Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

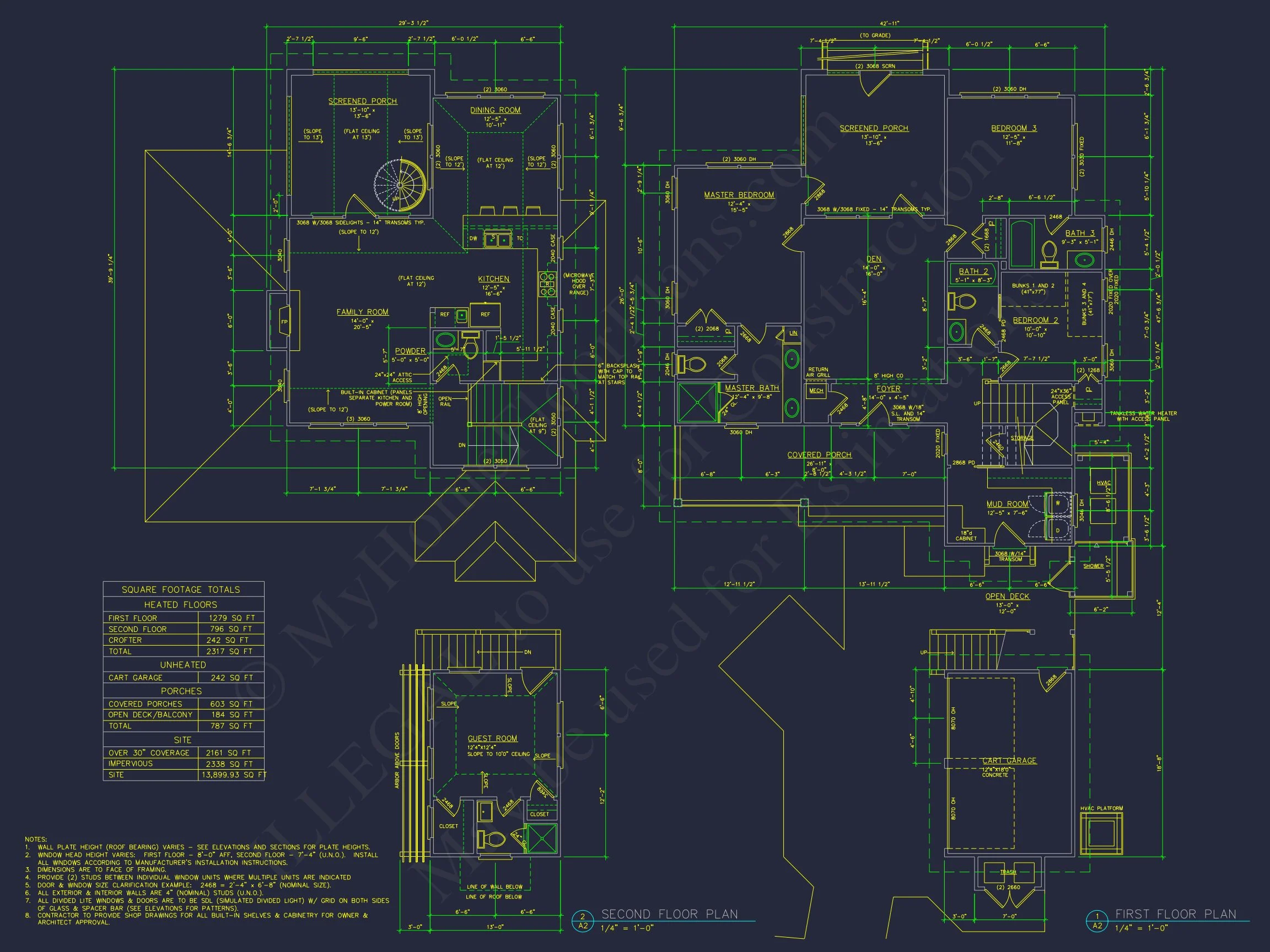

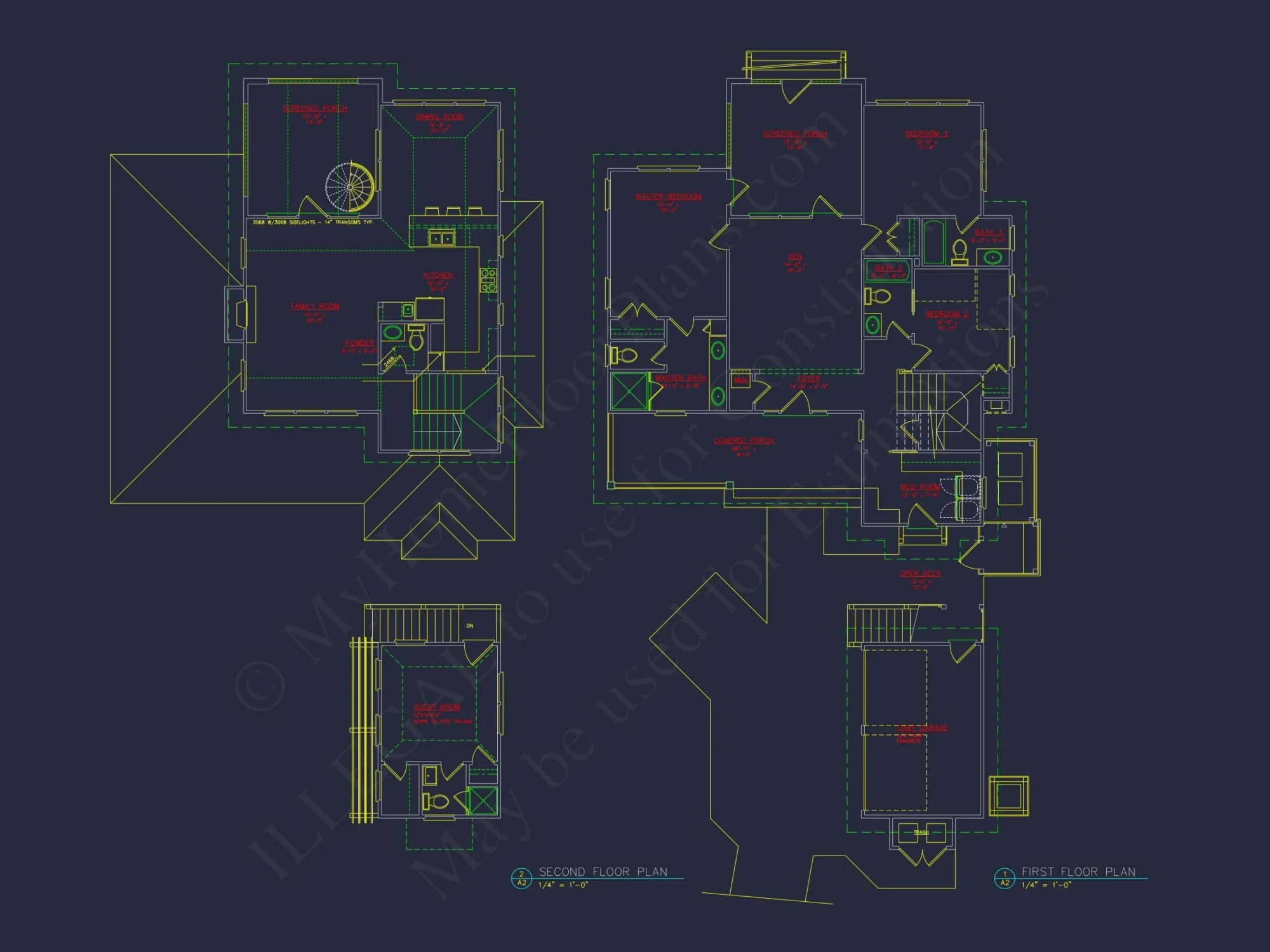

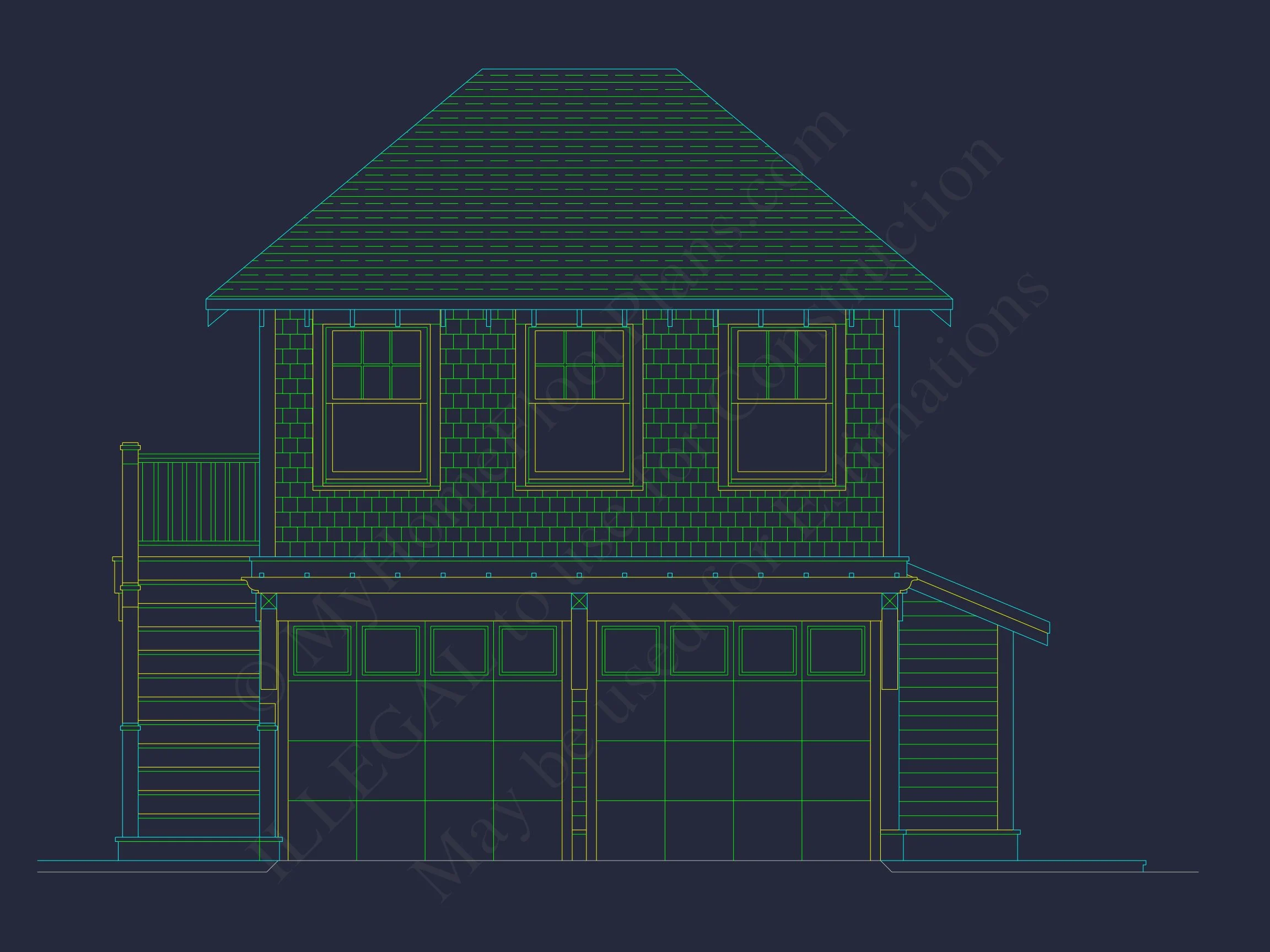

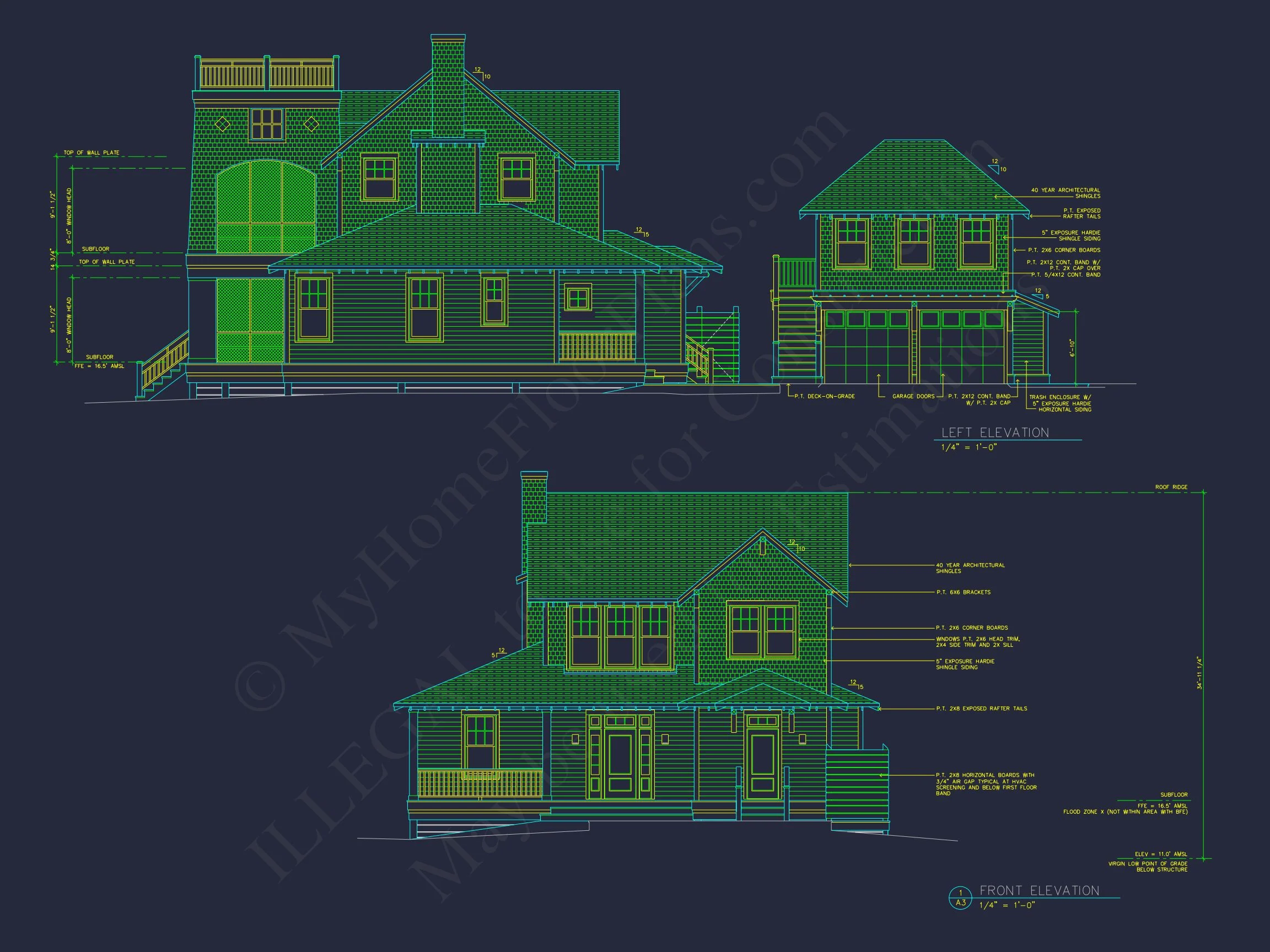

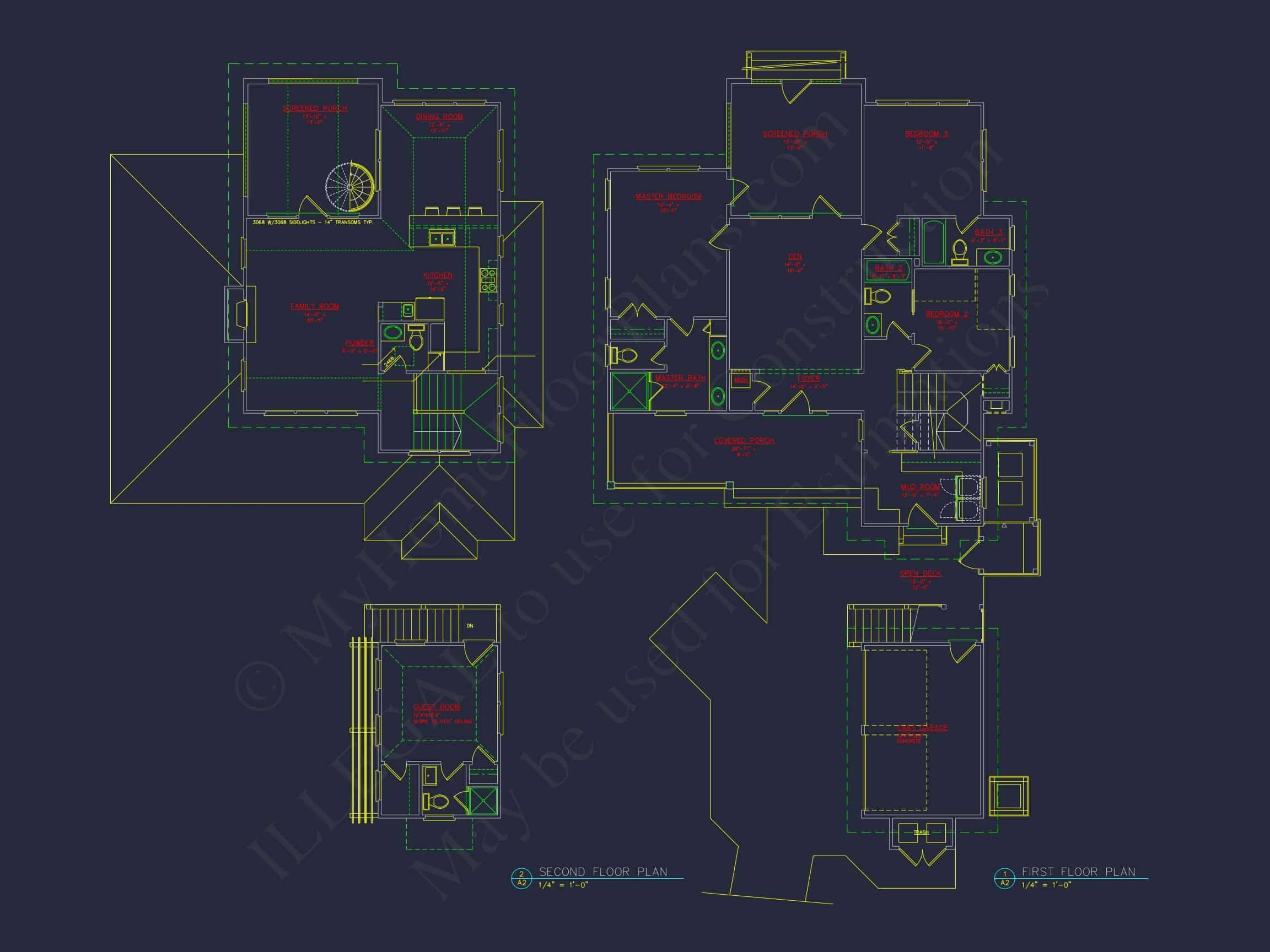

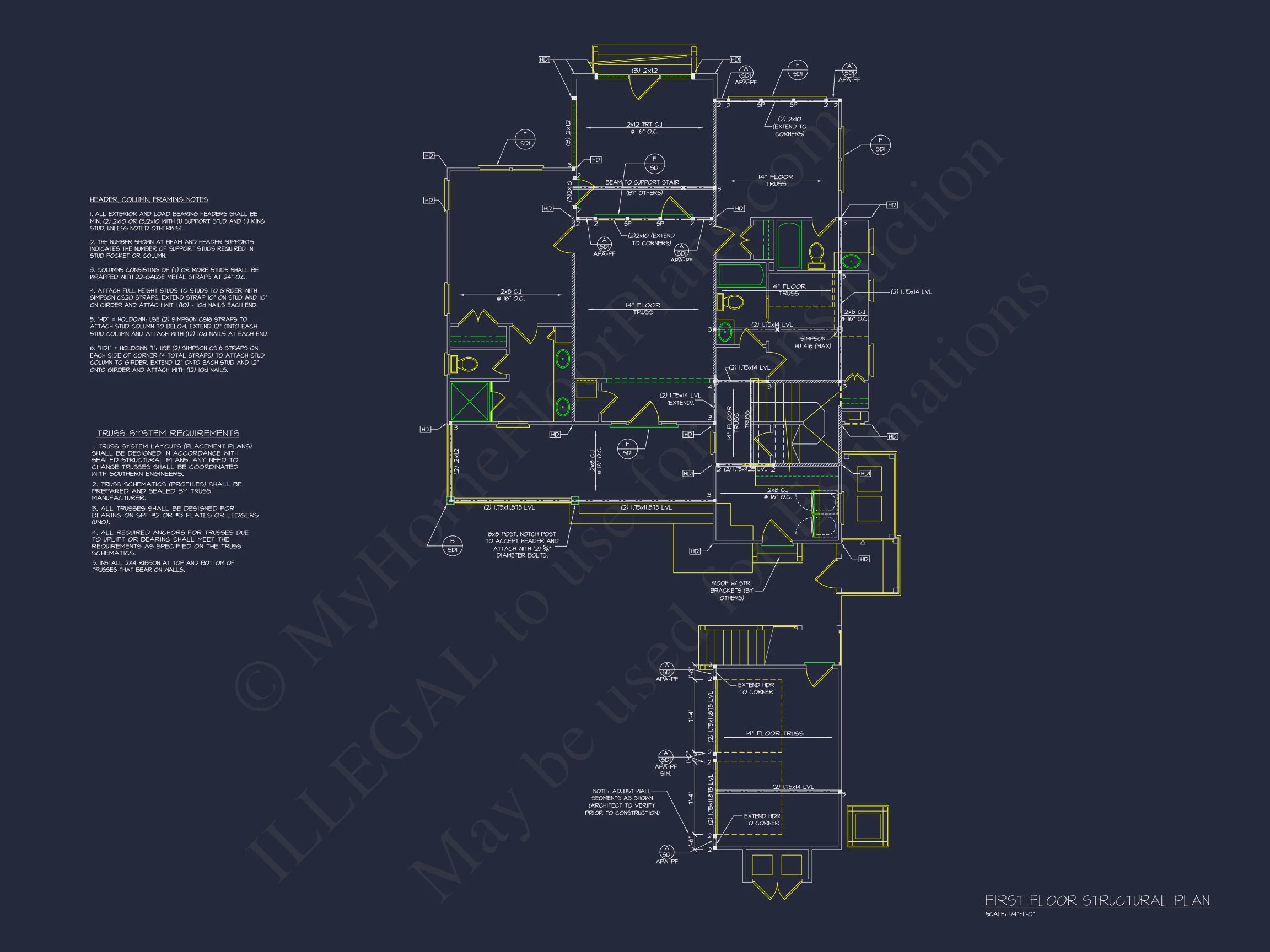

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

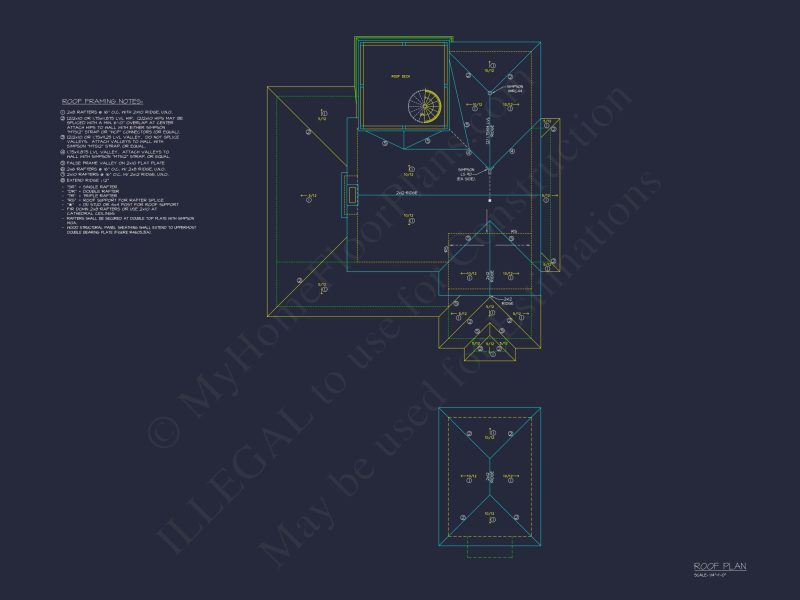

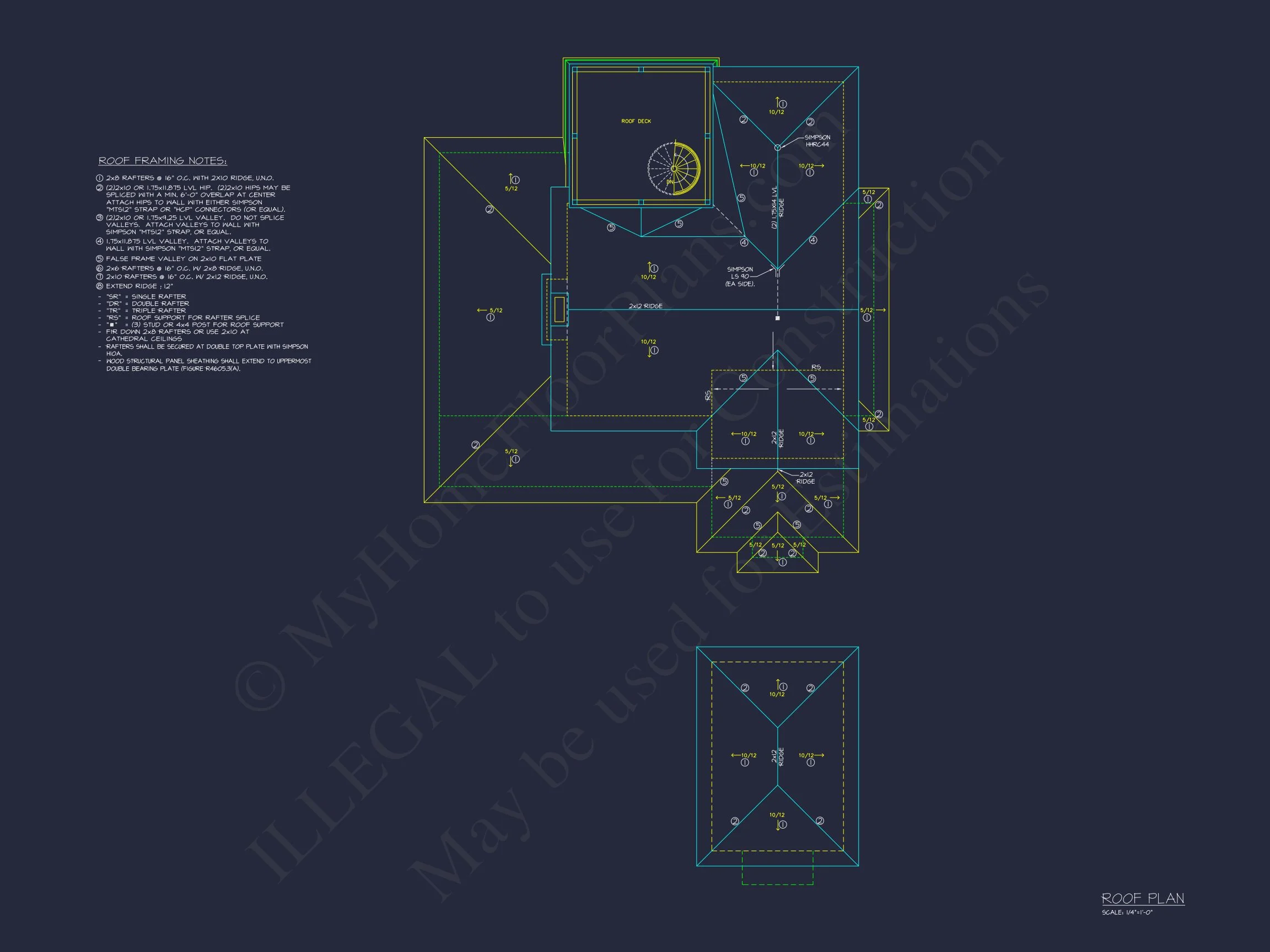

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
17-1008 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
