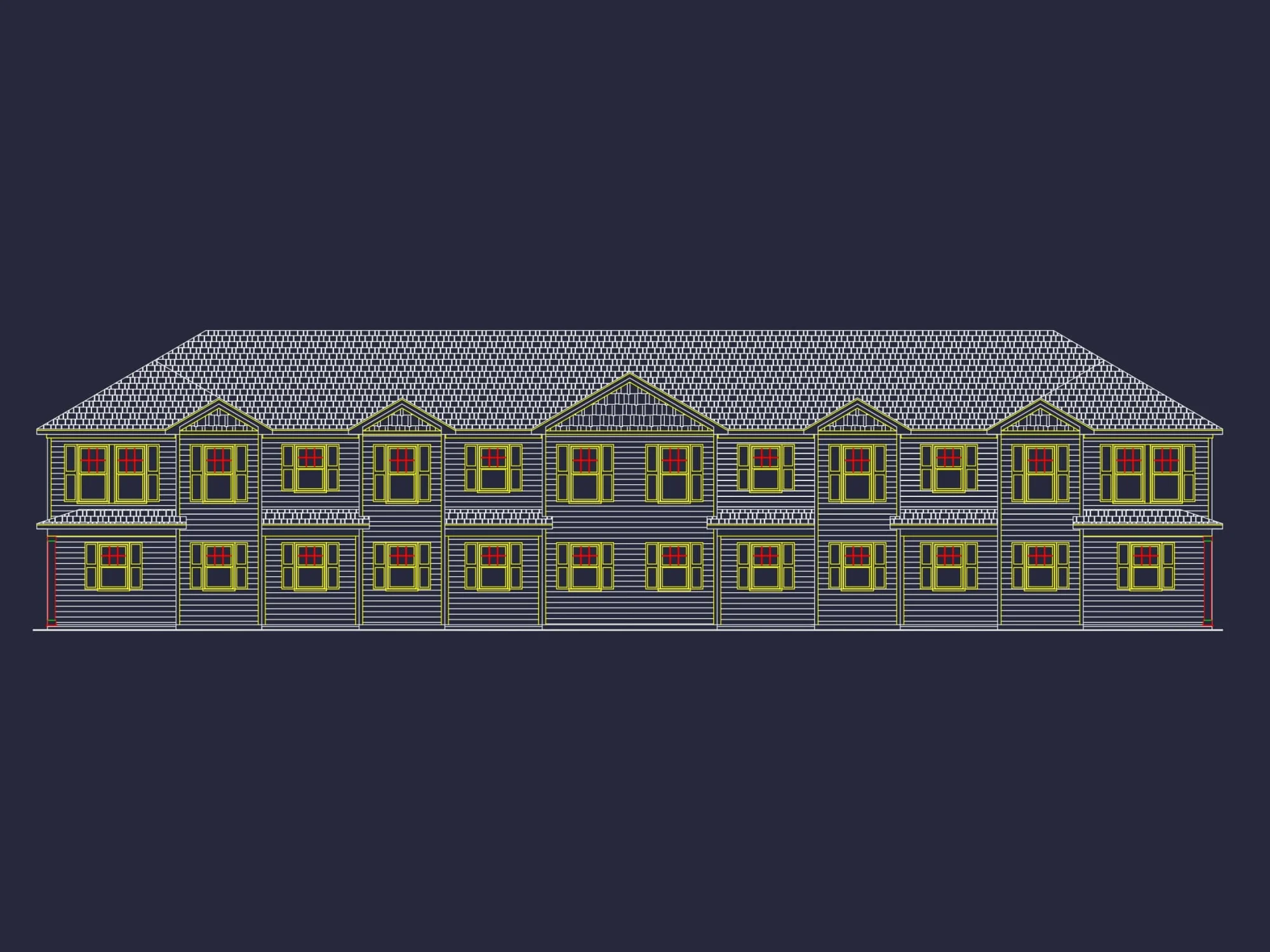

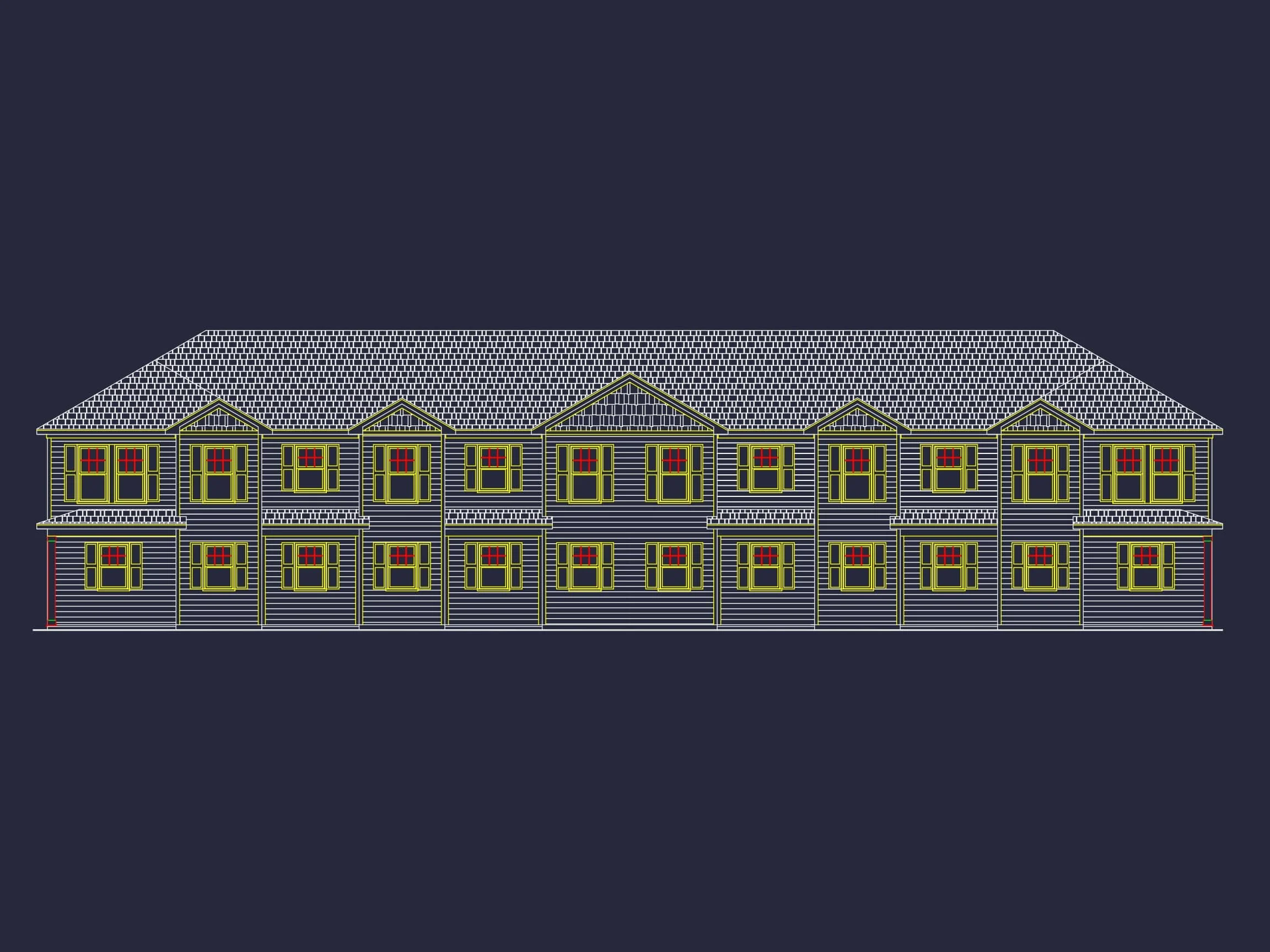

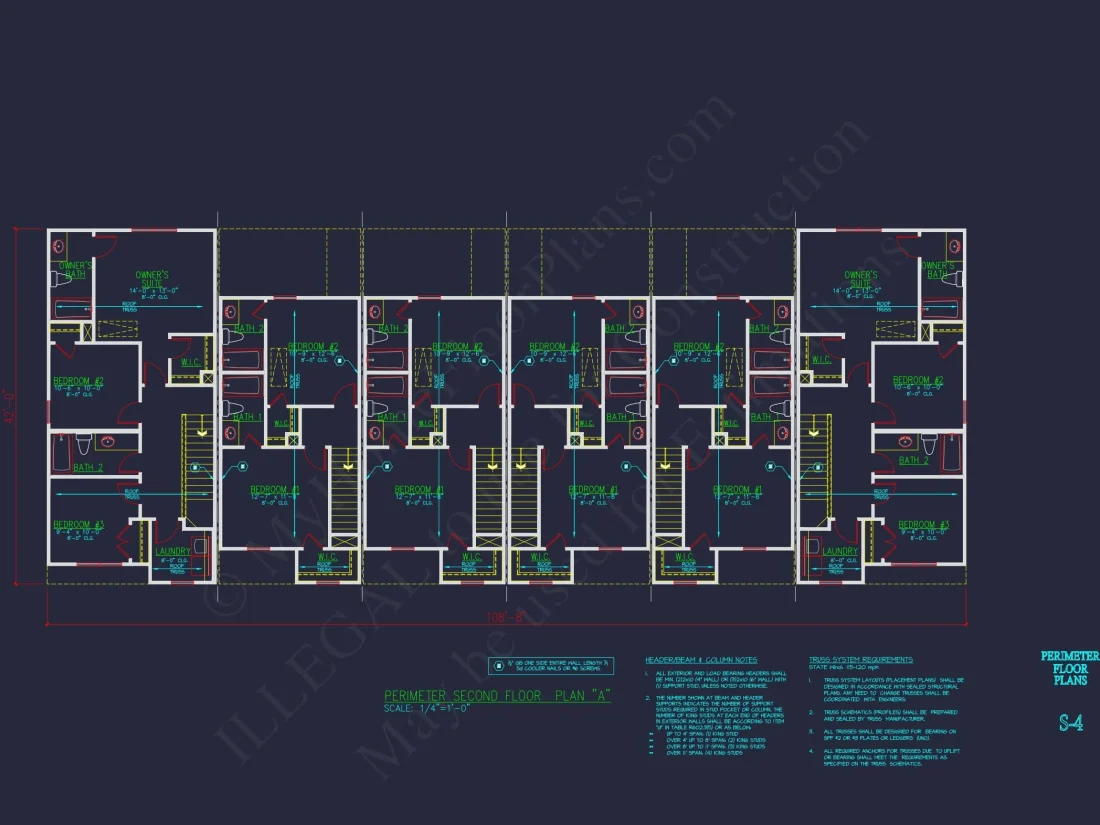

Modern Townhome Floor Plan with 6 Units and CAD Blueprints
Discover this spacious townhome blueprint with 6 modern units, open layouts, and 1033 heated sq. ft. per unit—includes CAD files and architectural blueprints.
This modern townhome floor plan offers a smart balance of livability and efficiency. Whether you’re developing a multi-unit site or crafting compact urban residences, this design delivers practicality, comfort, and modern architectural appeal.
Key Features of the Home Plan
Living Areas – Heated & Unheated

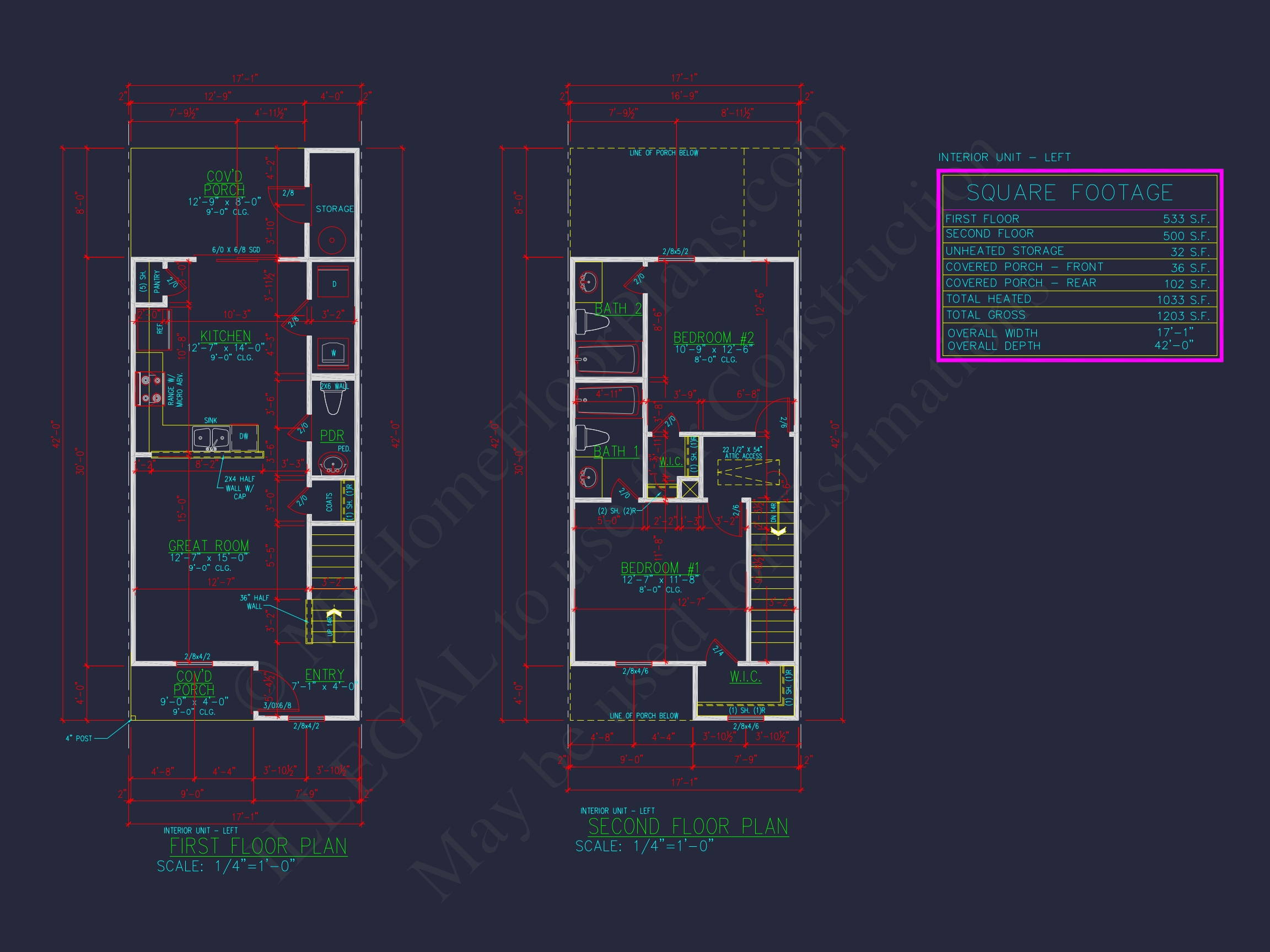

- Heated area: 1033 sq. ft. per unit across two stories (6 units total).
- Unheated extras: Covered front and rear porches for each unit.
Bedrooms & Bathrooms
- 2 spacious bedrooms per unit, including a well-sized Owner Suite with walk-in closet.
- Each unit includes 1.5 bathrooms for everyday convenience and privacy.
Interior Highlights
- Open floor plan connects living, dining, and kitchen spaces. Explore open layouts.
- Dedicated foyer offers a welcoming and private entryway.
- Walk-in pantry and kitchen island enhance storage and meal prep efficiency.
- Great room designed for comfort, gatherings, or entertainment.
Garage & Storage Details
- Garage Bays: Optional detached or rear parking configuration depending on your lot setup.
- Garage Type: Suitable for carports, pad parking, or separate garages.
- Storage: Ample closet space in bedrooms and under-stair storage.
Outdoor Living Features
- Each unit features both a covered front porch and a rear patio—ideal for outdoor relaxation or morning coffee.
- Low-maintenance siding and shingles ensure long-term durability and curb appeal.
Architectural Style: Modern Suburban Townhome
This design merges modern practicality with timeless suburban appeal—ideal for builders, urban infill projects, and family housing. Learn more about modern suburban house styles or dive into design inspiration from ArchDaily.
Bonus Features
- Compact footprint ideal for narrow lot developments.
- Efficient two-story design minimizes land usage while maximizing space.
- Multiple units encourage affordable housing solutions with reduced per-unit build costs.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable, ready-to-build documents for any contractor.
- Unlimited Build License: Use the plan on as many lots as needed—no extra cost.
- Free Foundation Changes: Switch from slab to crawlspace or basement easily. See options here.
- Structural Engineering Included: Professionally stamped and code-compliant.
- Lower Modification Costs: Save up to 50% vs. competitors for any layout changes.
- View Before You Buy: Preview all blueprints before purchase.
Similar Collections You Might Love
- Triplex House Plans
- Duplex House Plans
- Small House Plans
- Plans with Walk-In Pantries
- Covered Back Porch Plans
Frequently Asked Questions
What’s included with this townhome plan? You get detailed CAD drawings, printable PDFs, structural engineering, unlimited build rights, and free foundation changes.
Can I customize the floor plans? Absolutely! We offer affordable and fast layout modifications—contact us for a quote.
Is this design good for urban developments? Yes, its narrow footprint and 6-unit configuration are ideal for infill or dense lot developments.
Does this work for rental or investment property? Definitely! Its compact and low-maintenance design makes it perfect for landlords and developers.
Can I see the full blueprint before buying? Yes. You can preview every sheet online before purchase.
Start Building Your Dream Project Today
Have questions or want help customizing this plan? Reach out to our architectural team at [email protected] or use our contact form.
From affordable housing to high-yield rentals—this modern townhome plan makes development simple, stylish, and scalable.
All home plans include BOTH the CAD file and PDF file.

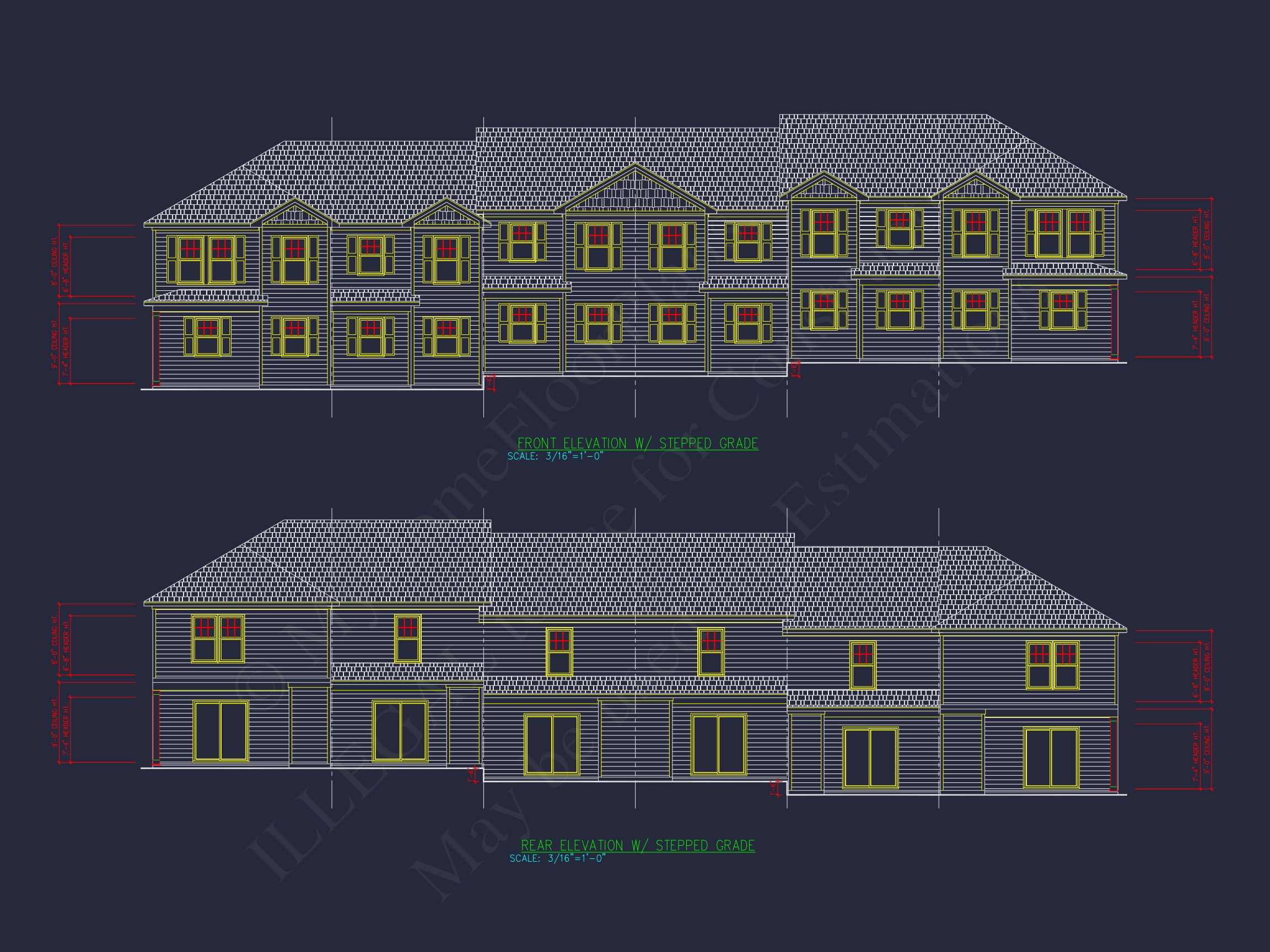

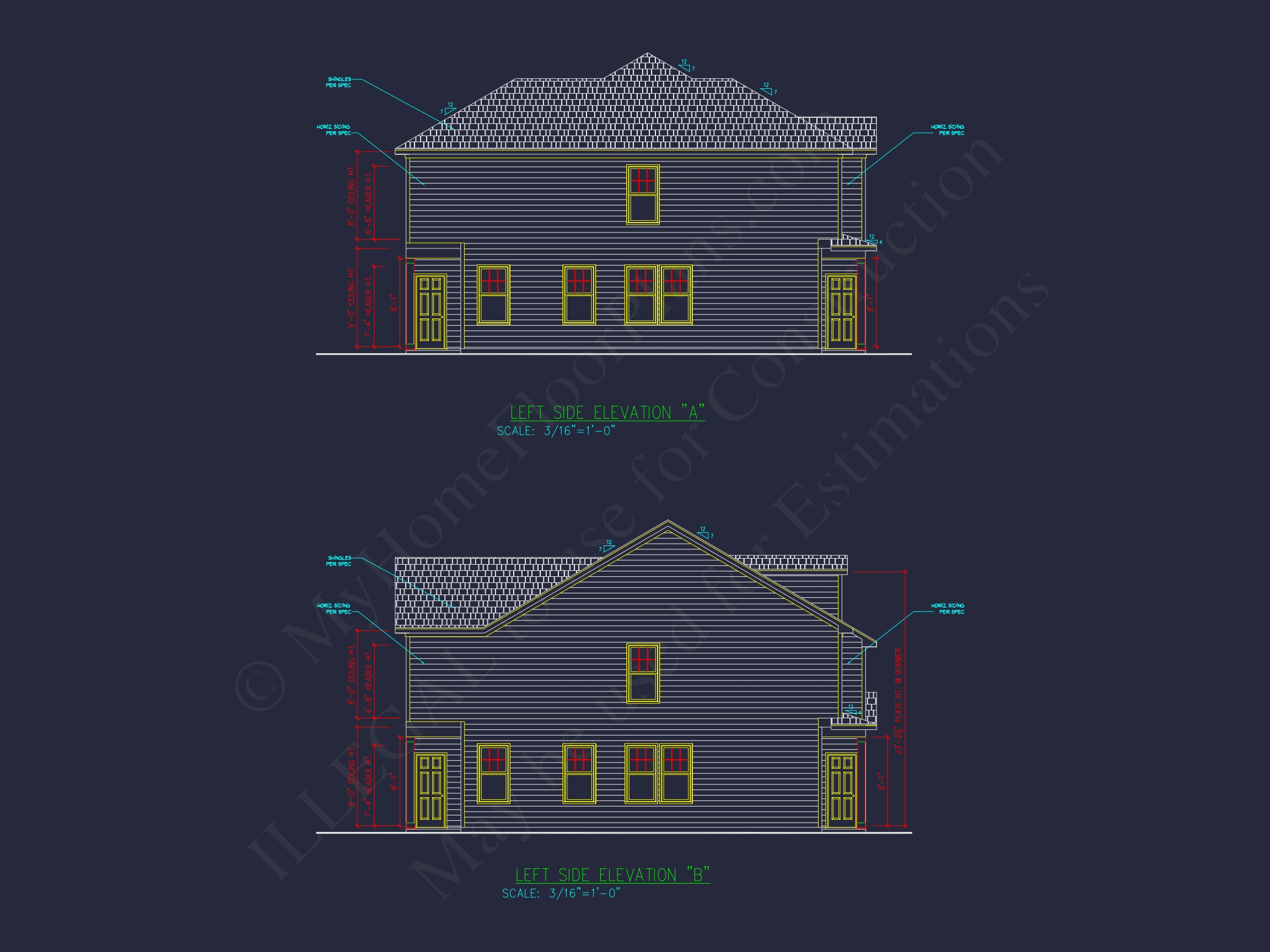

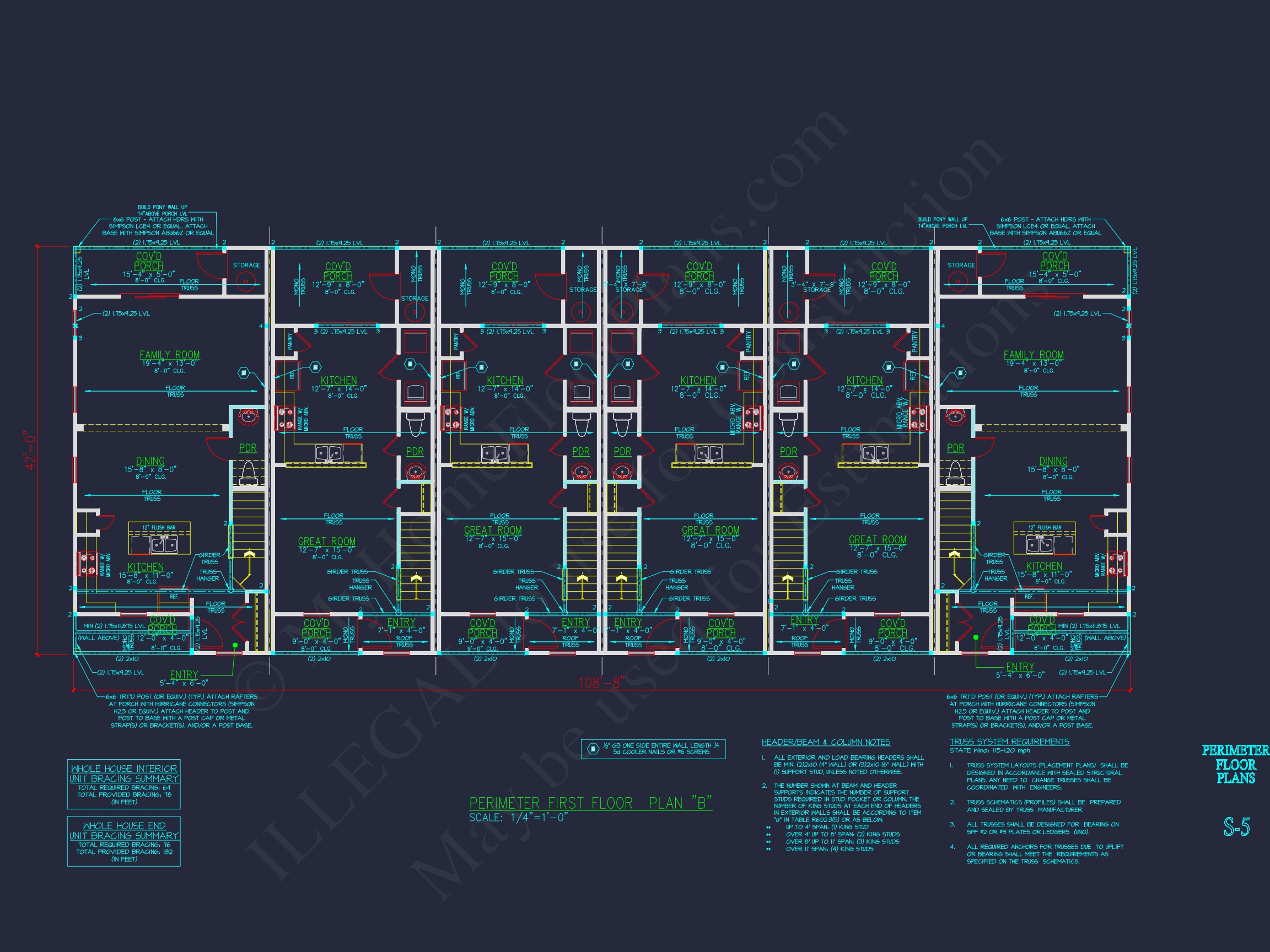

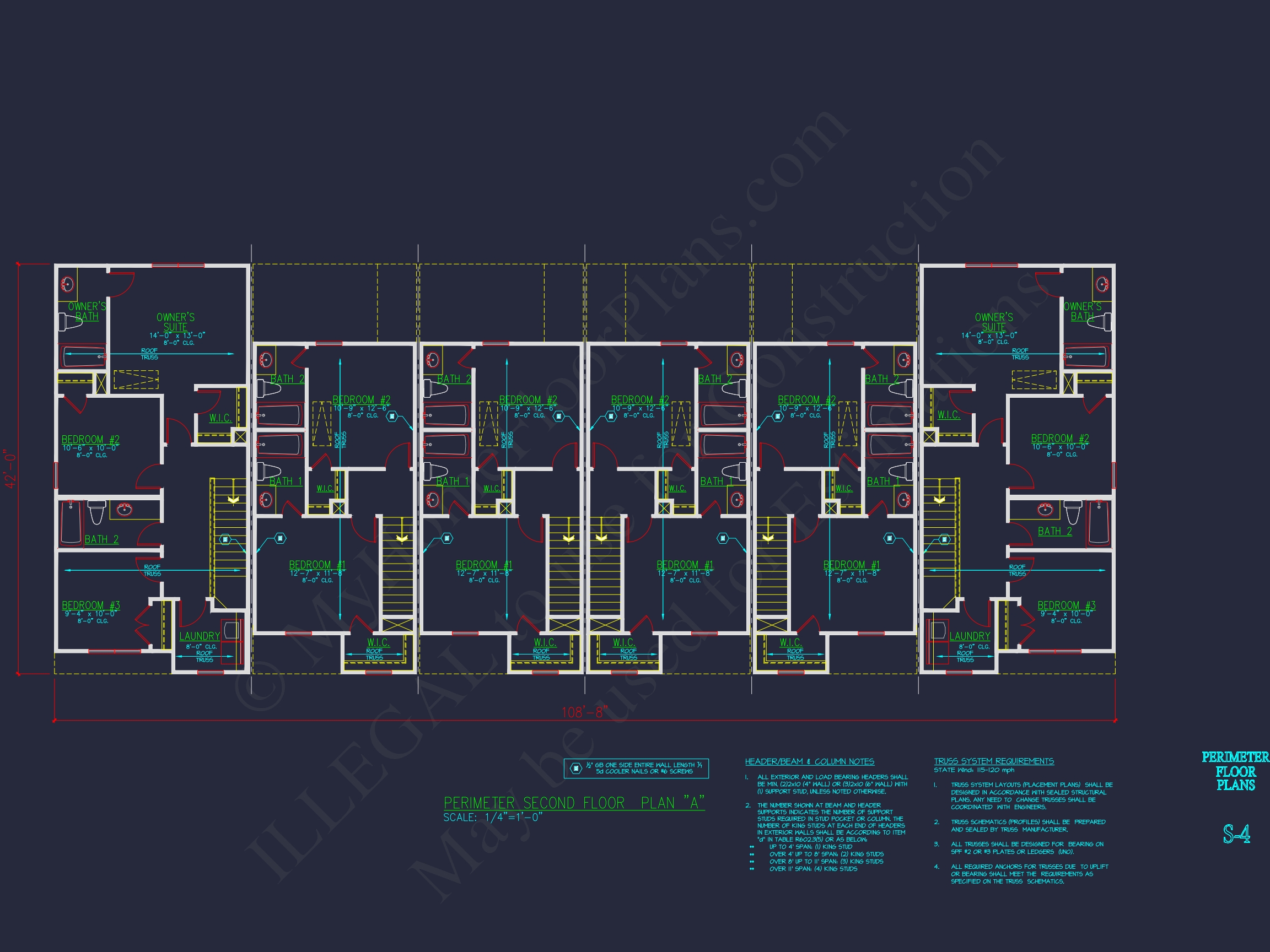

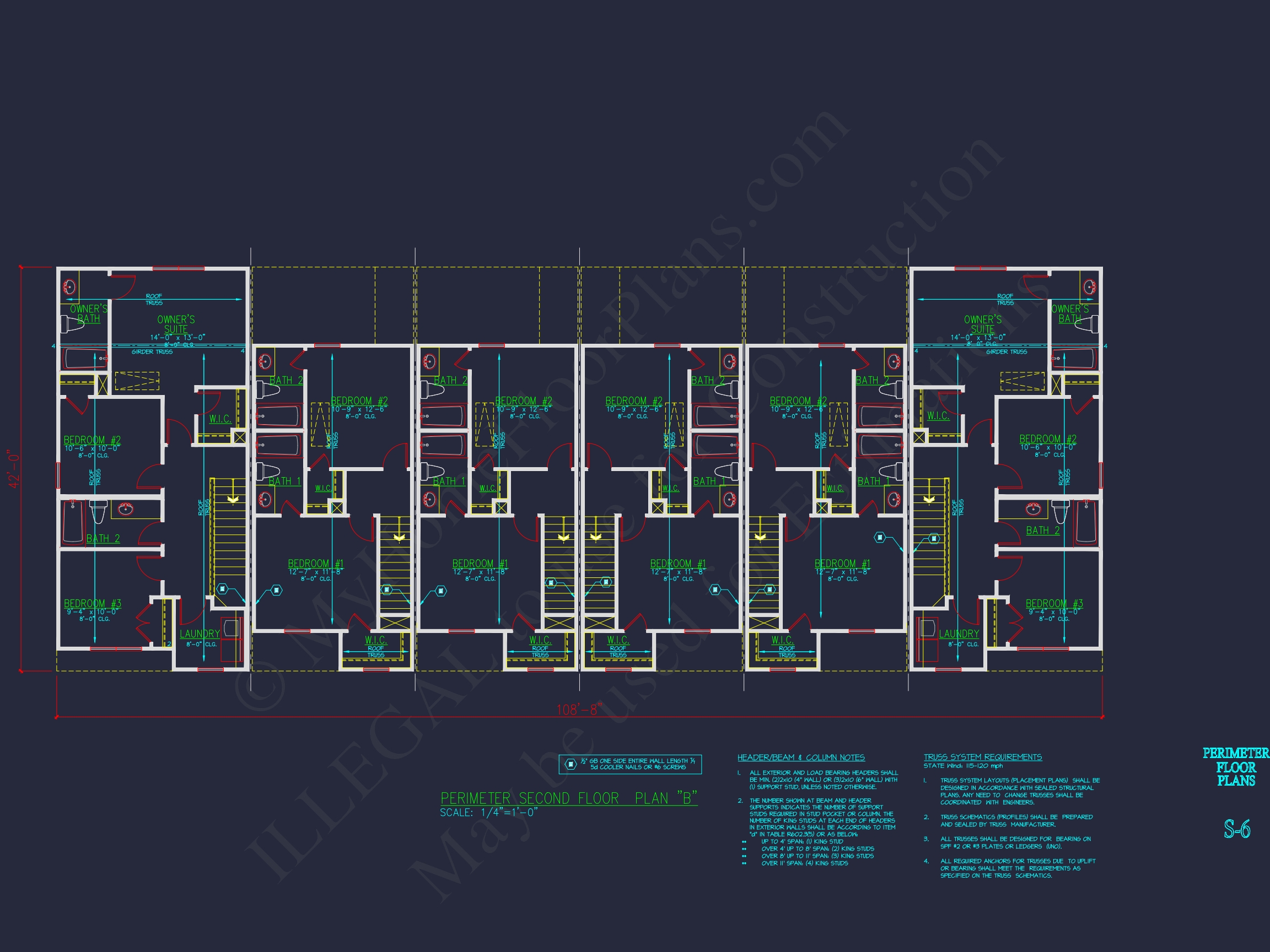

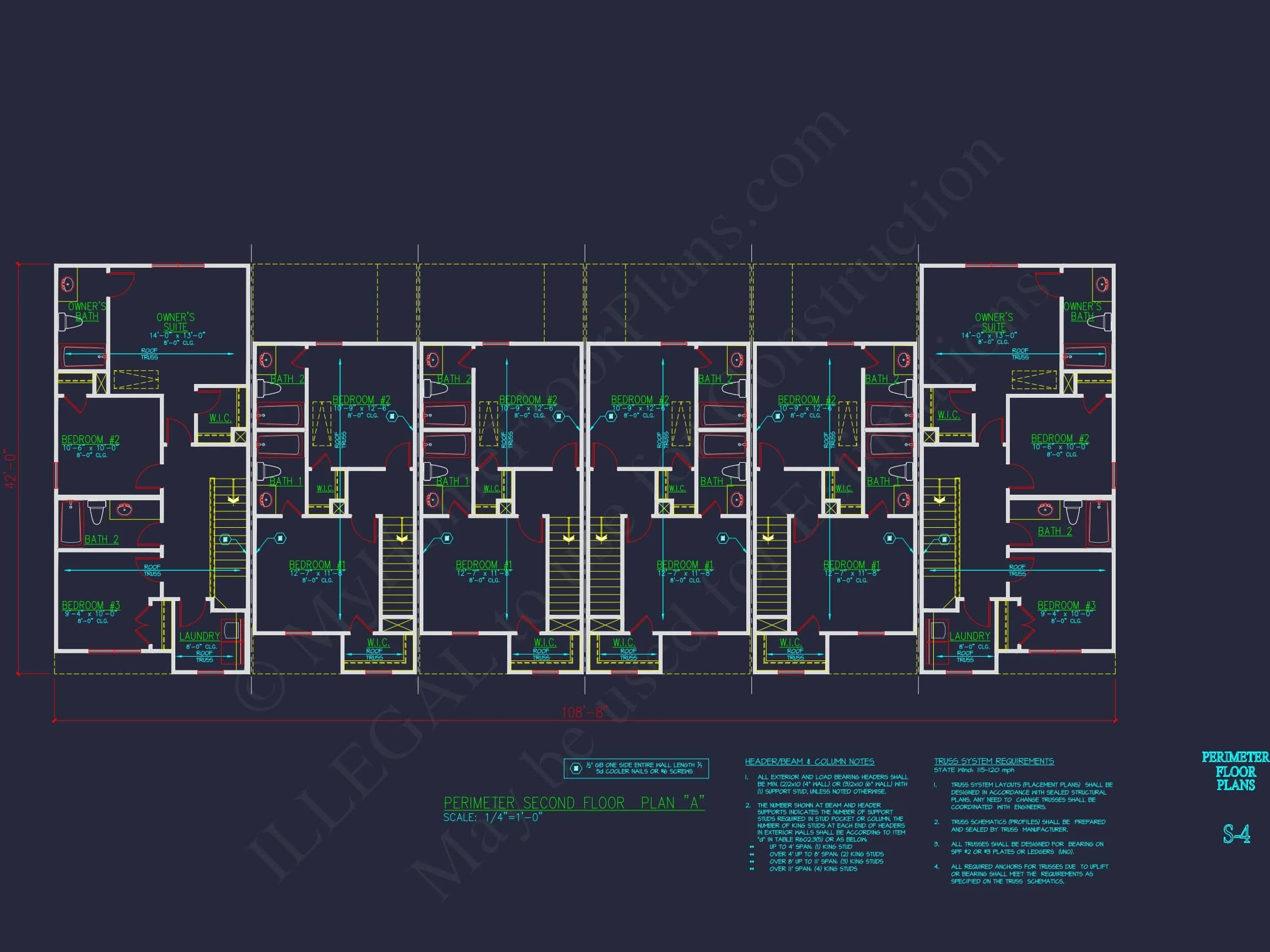

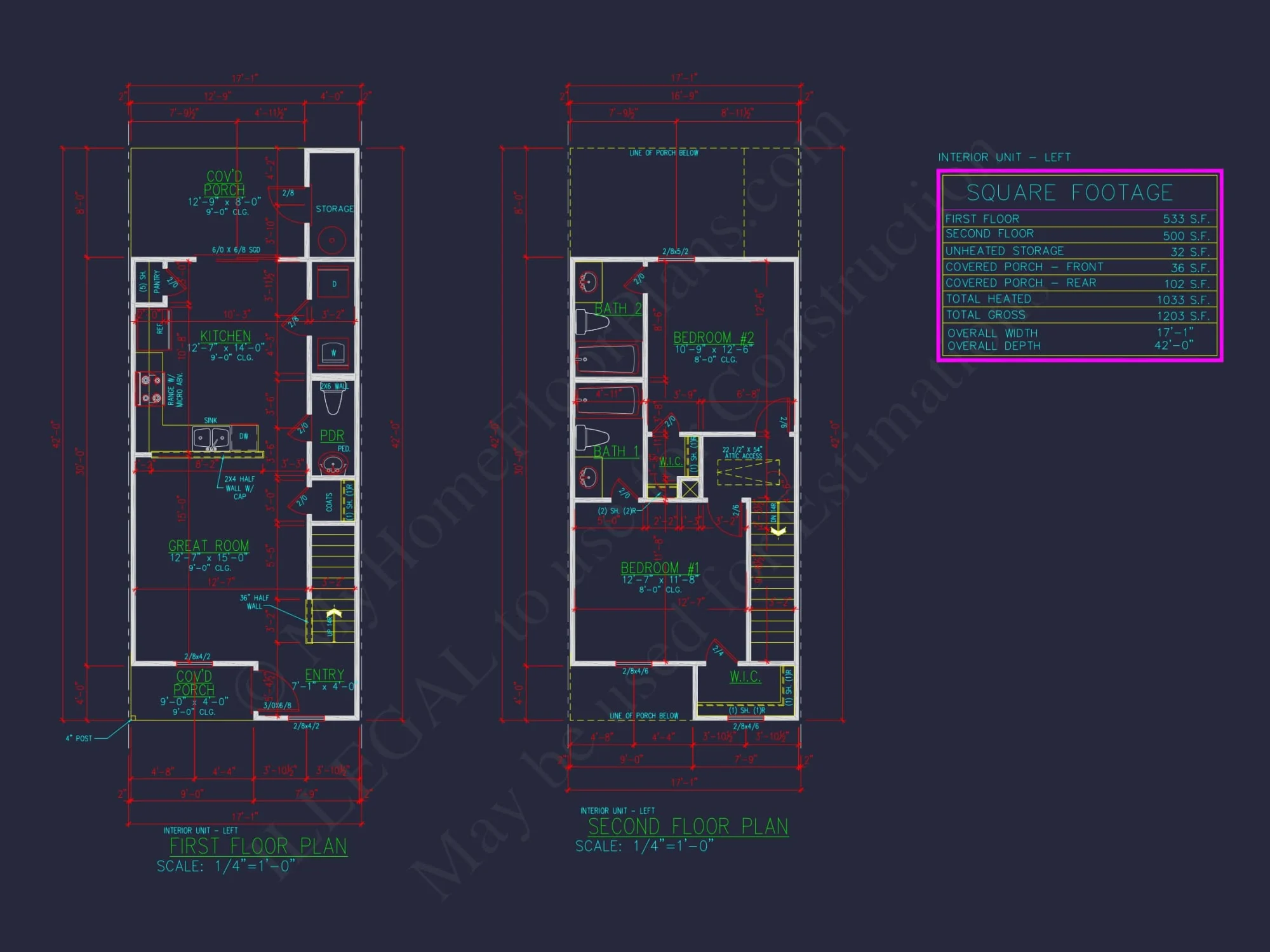

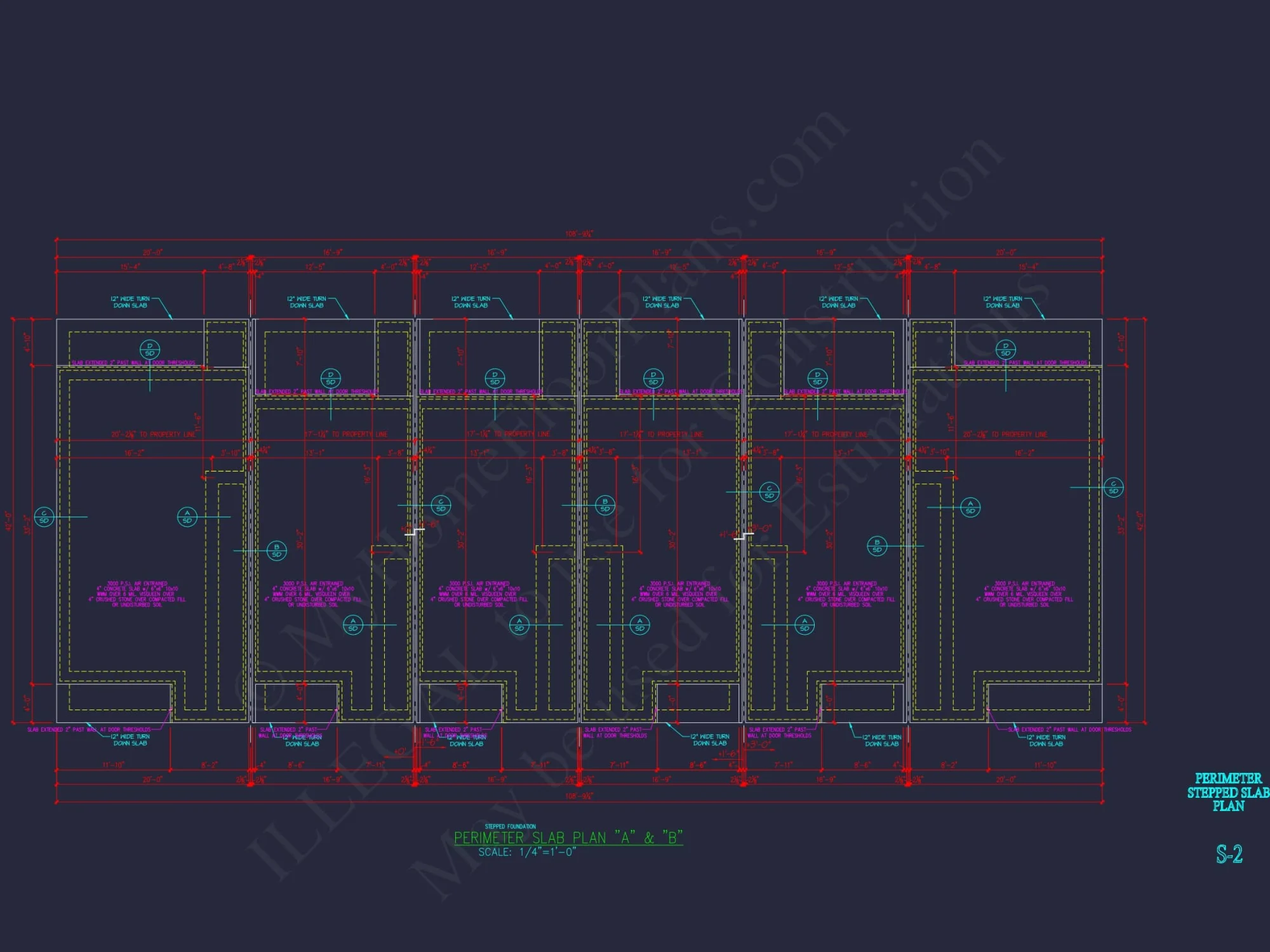

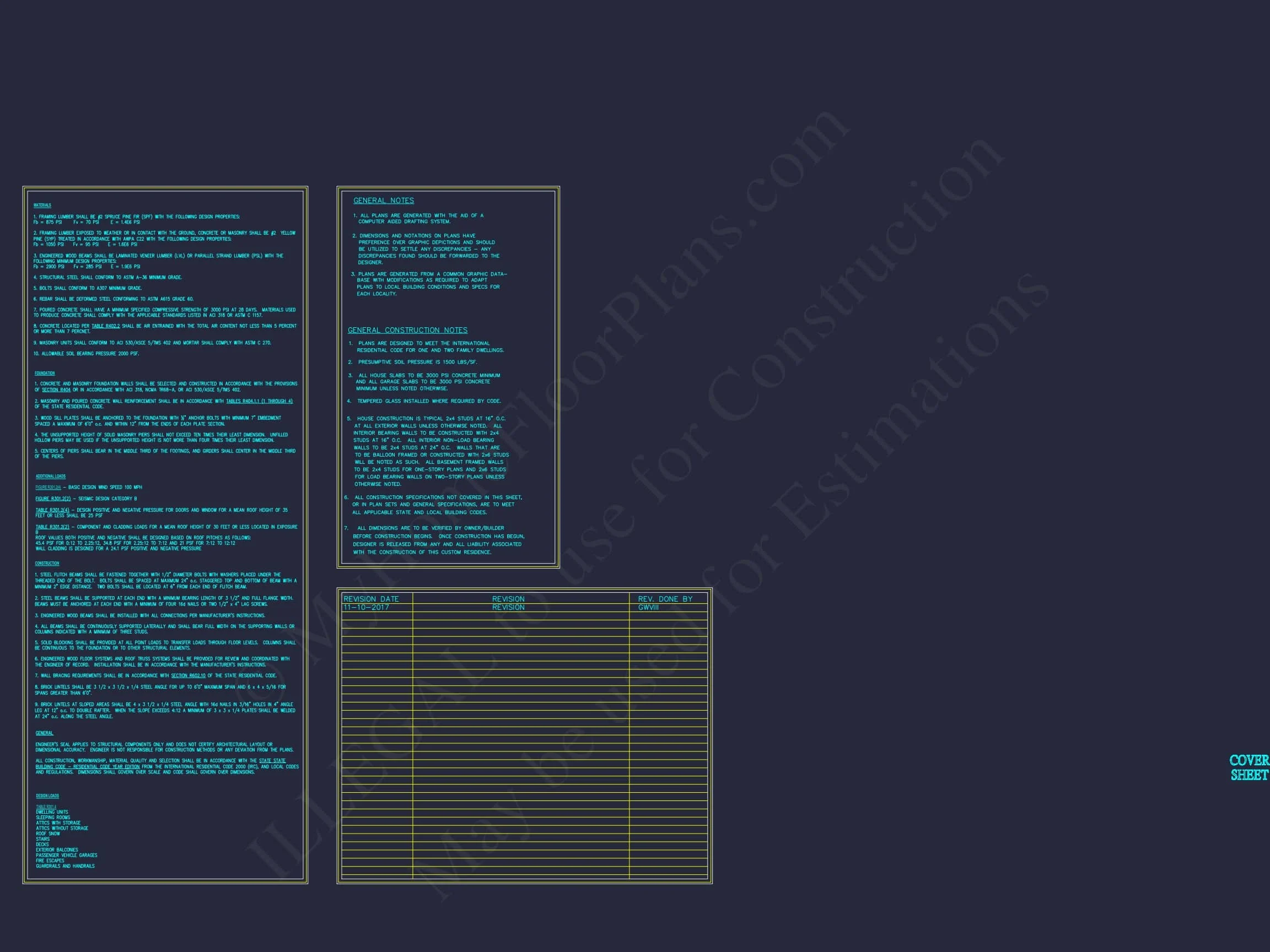

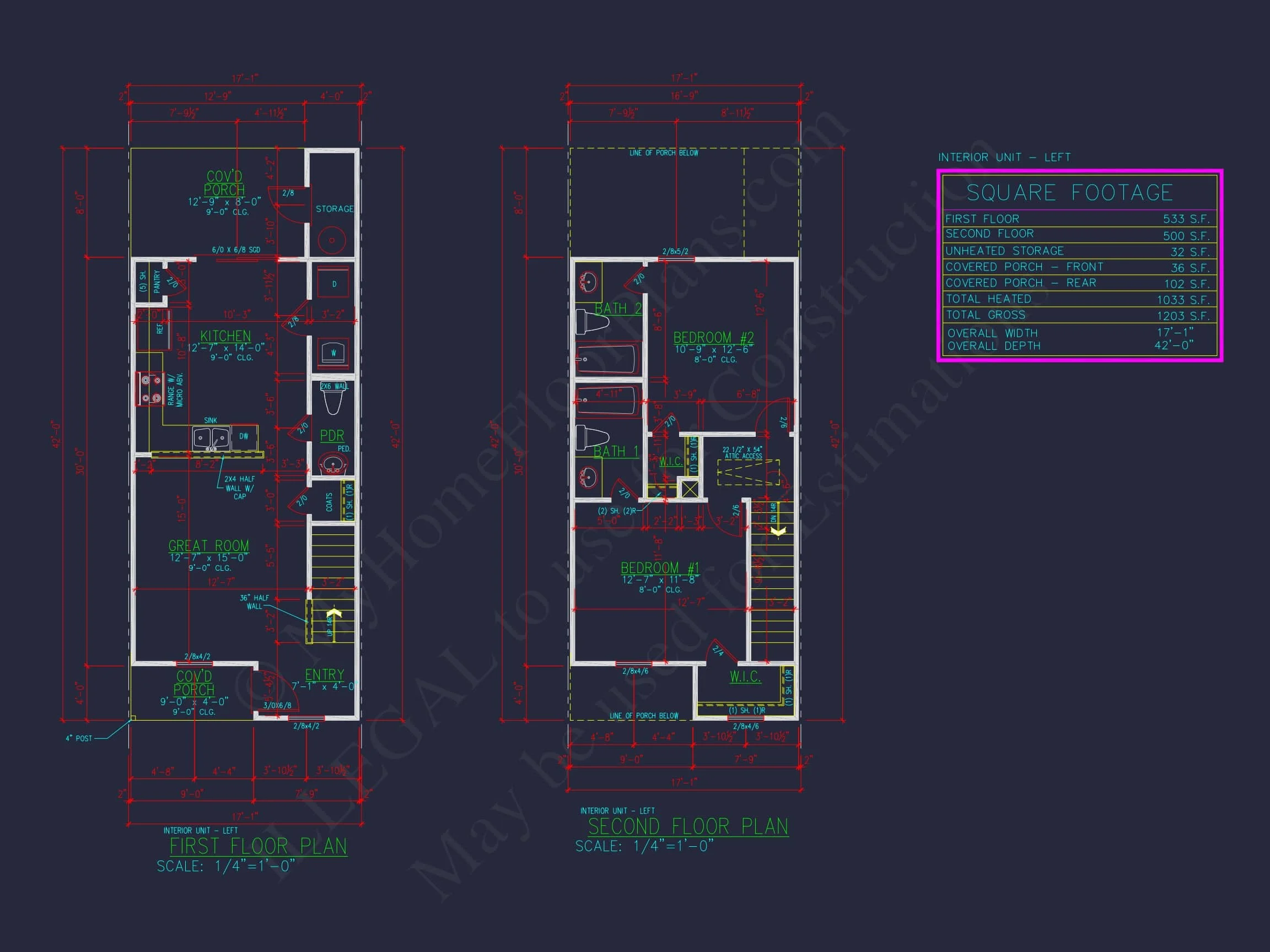

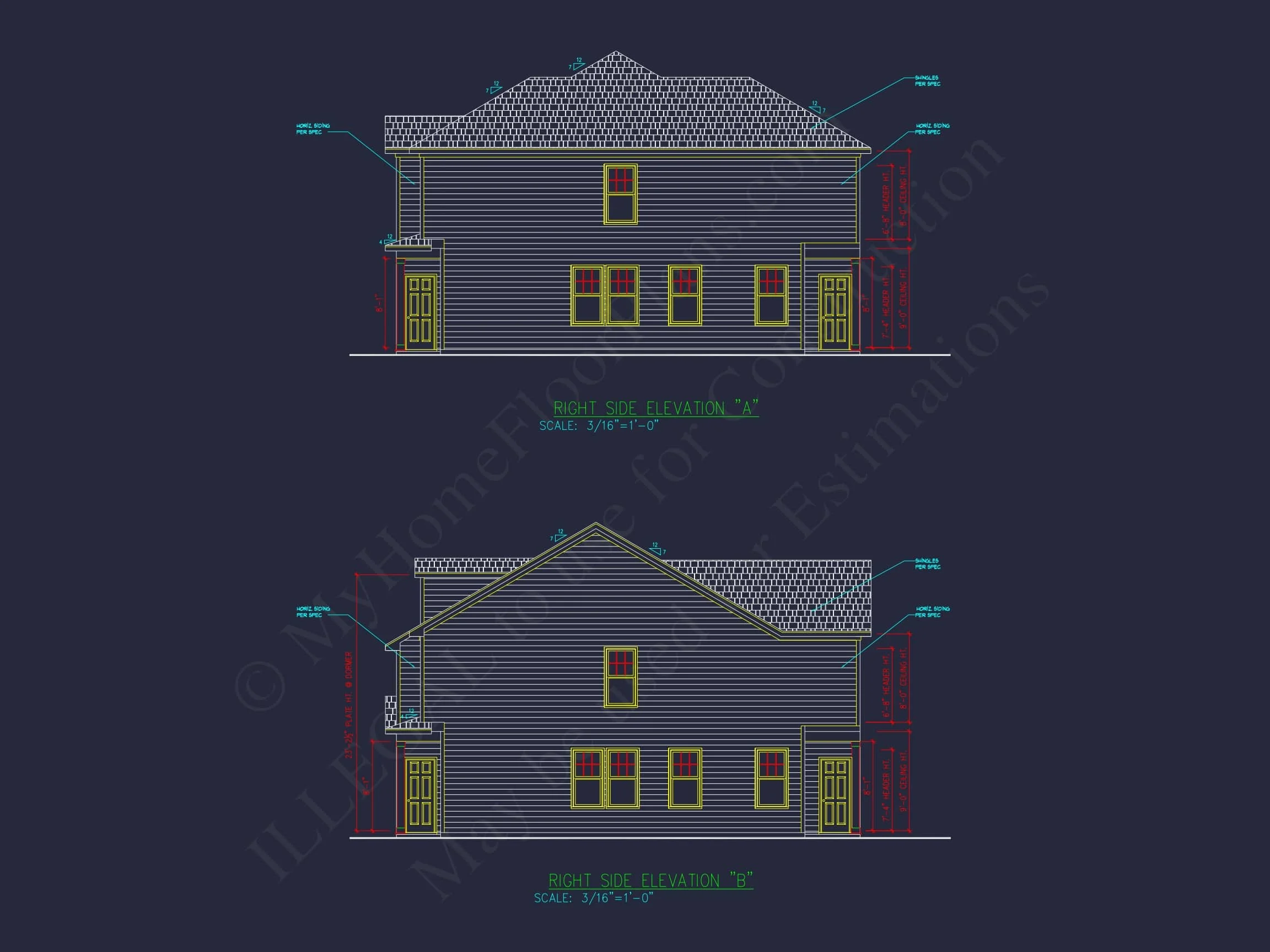

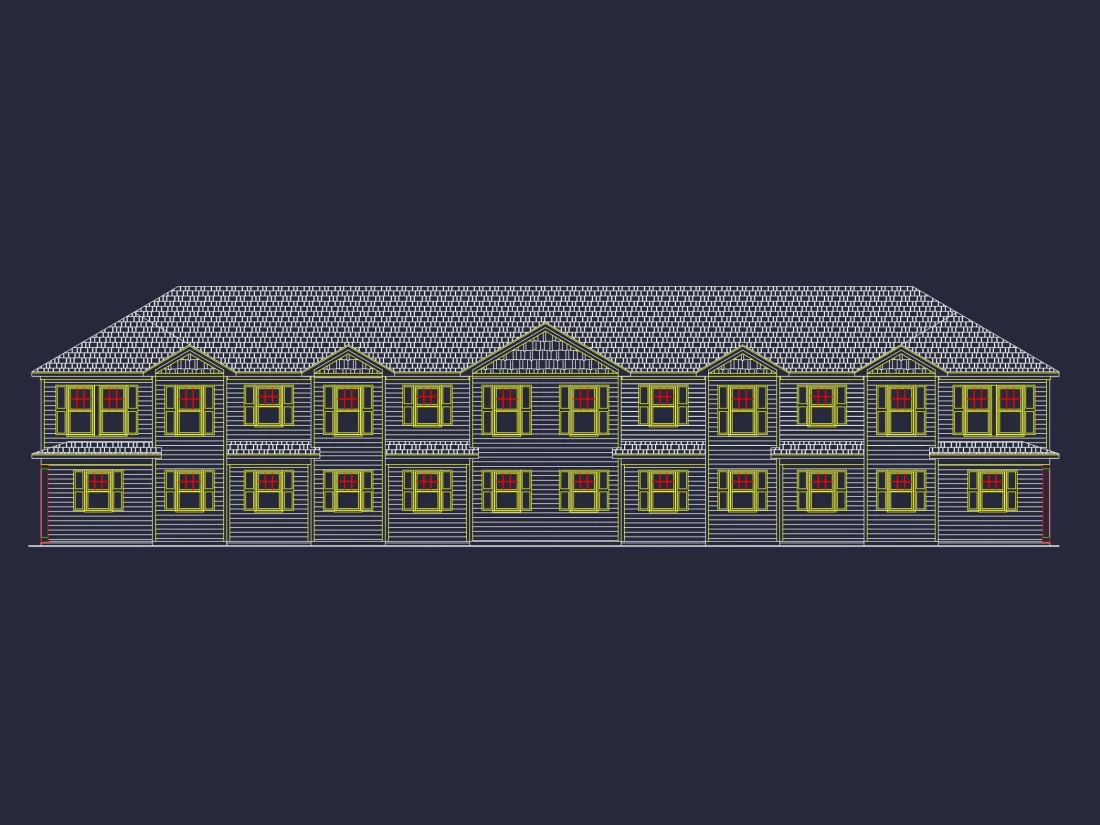

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

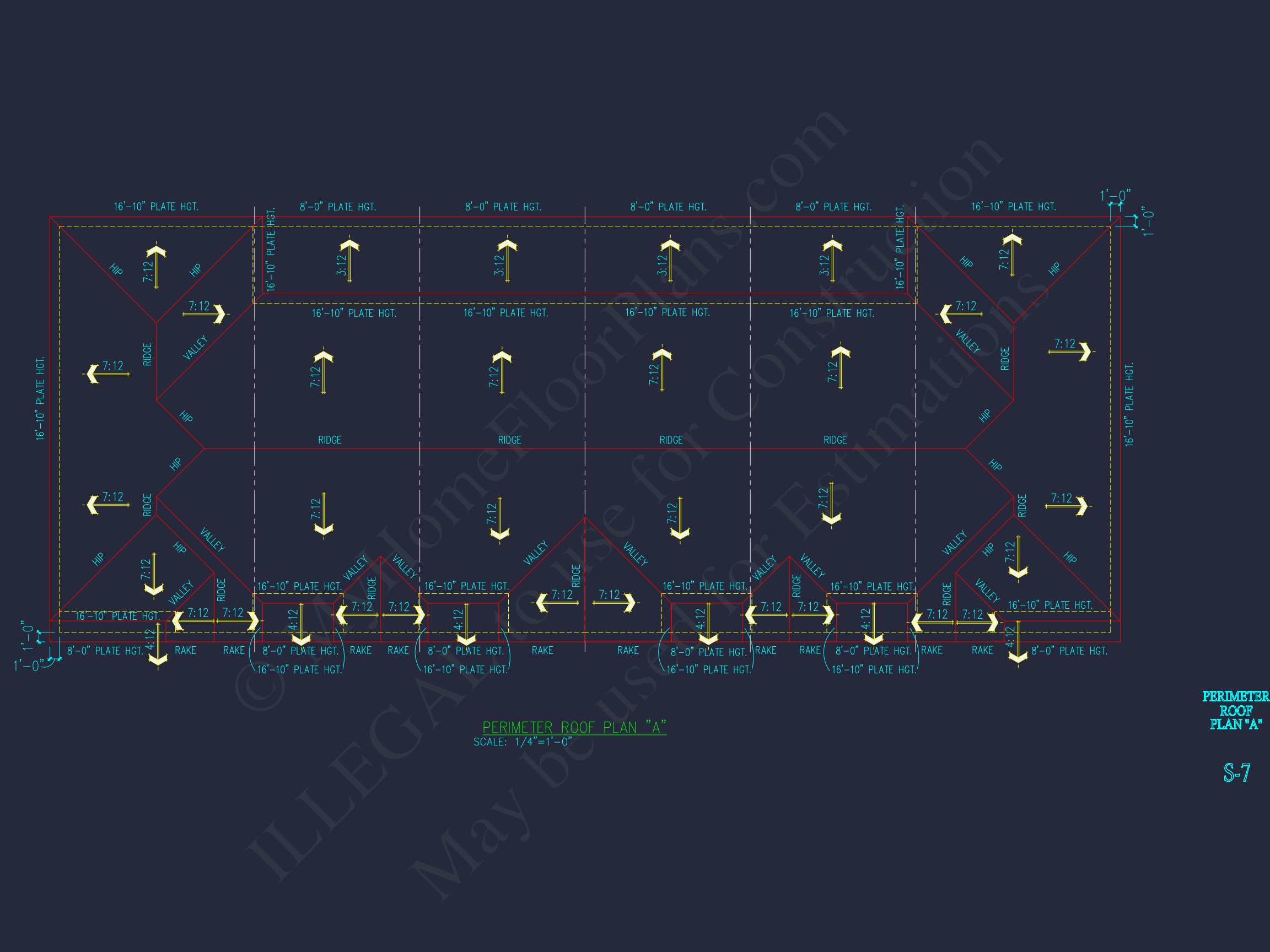

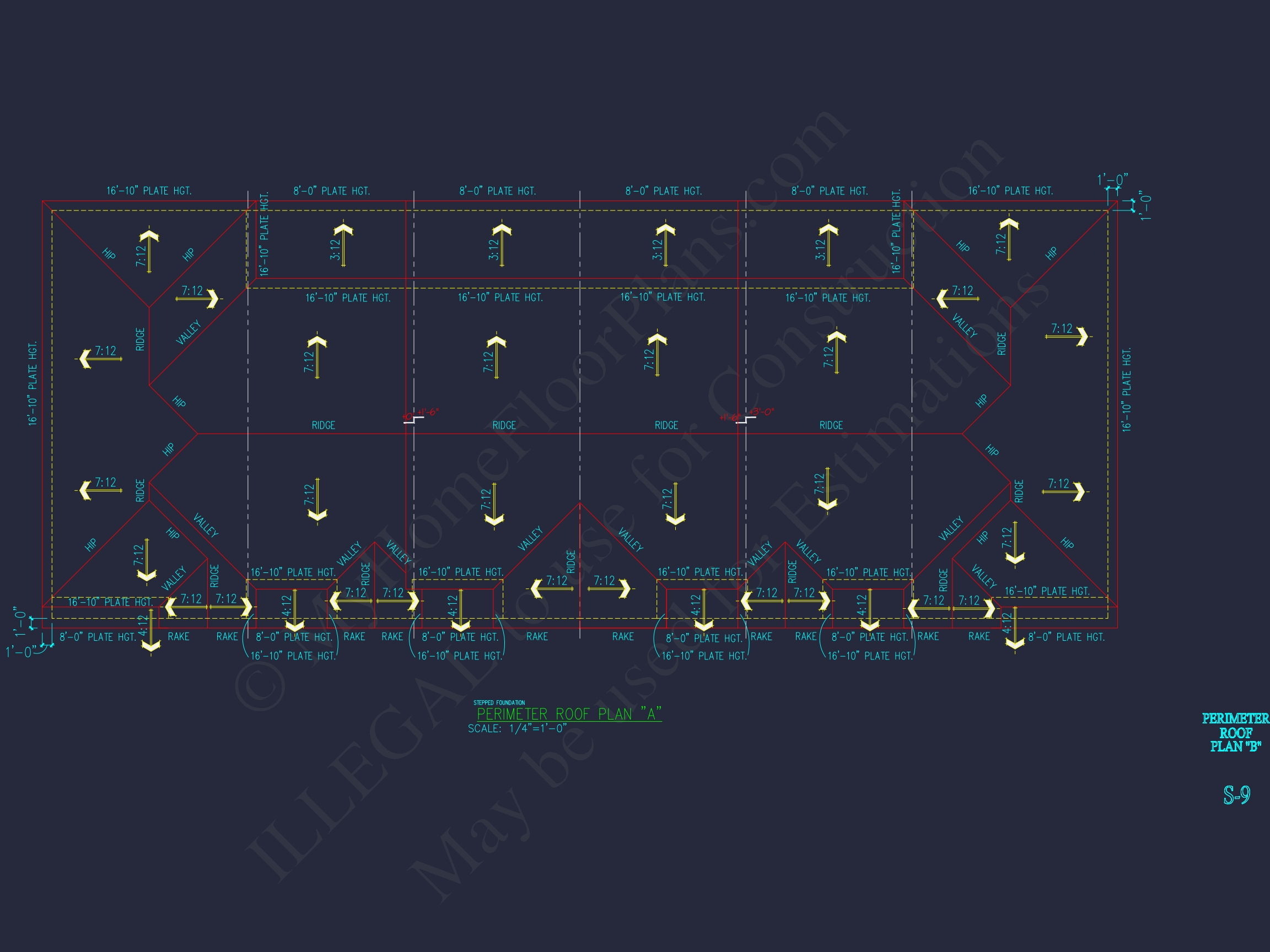

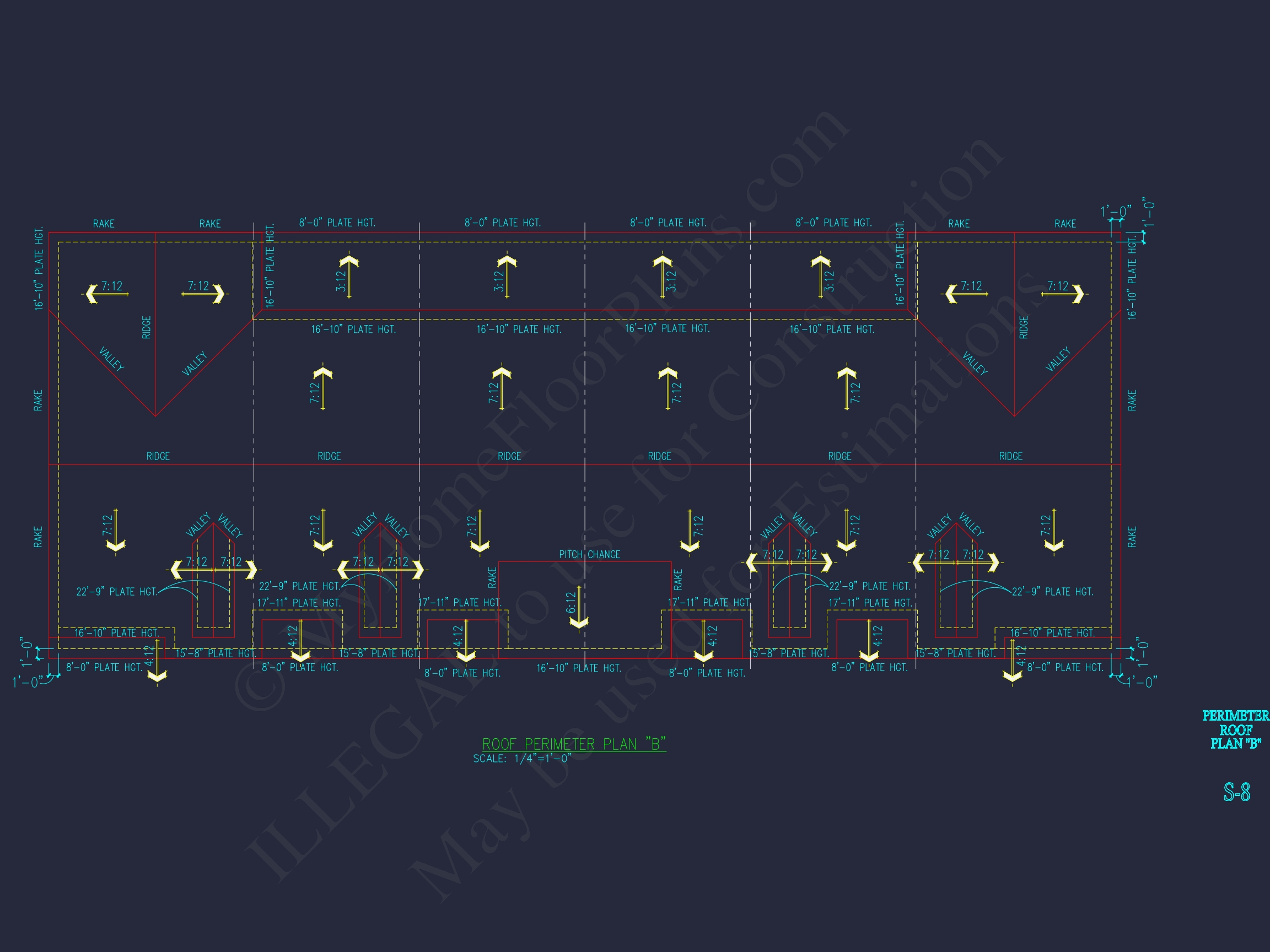

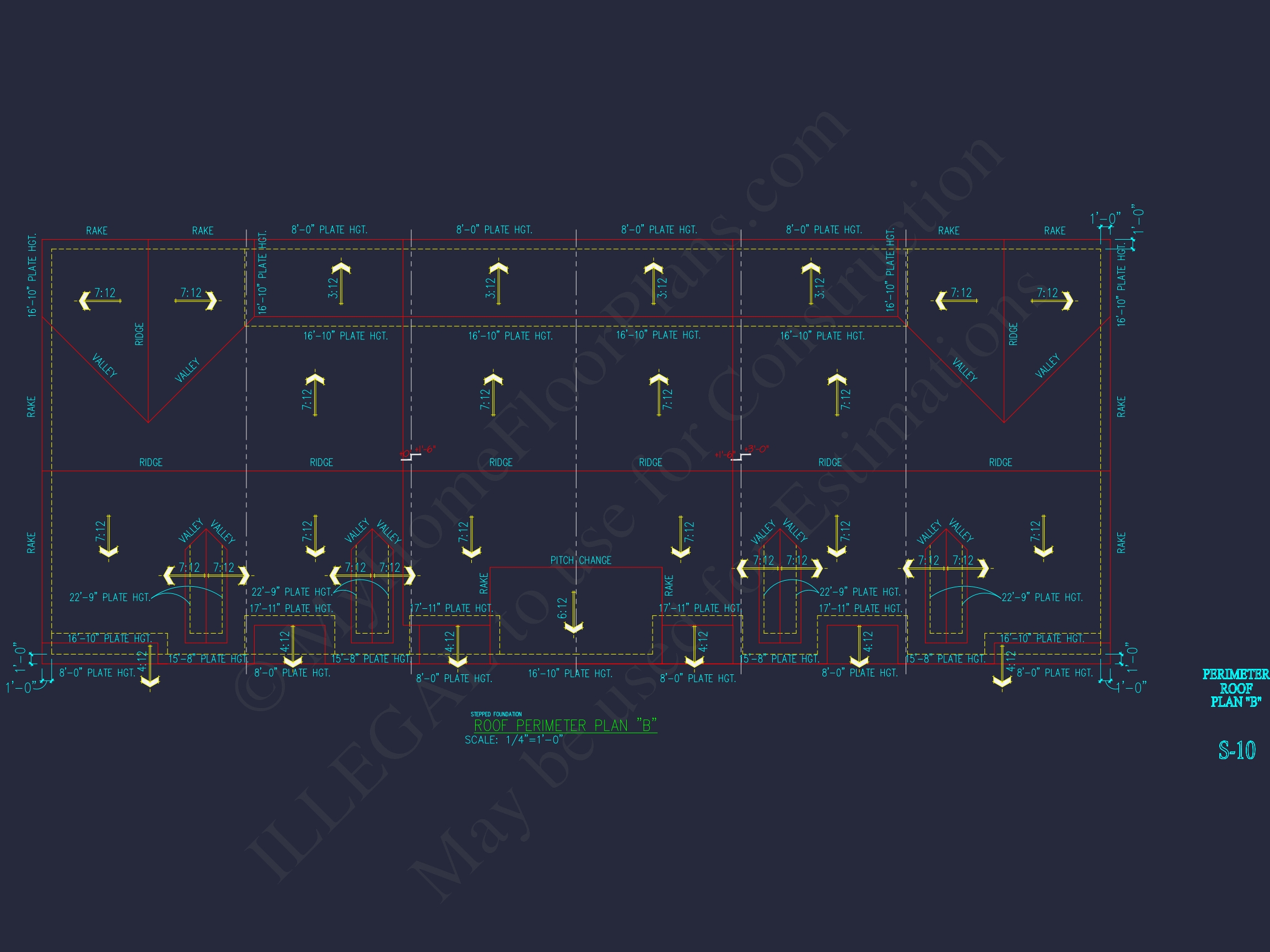

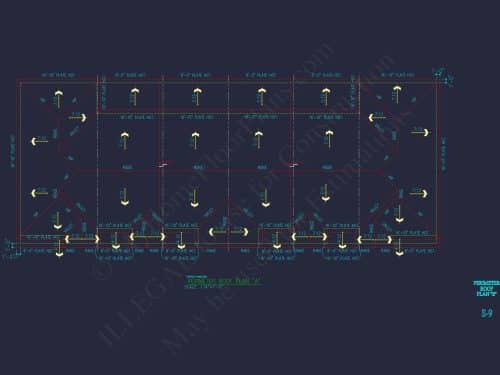

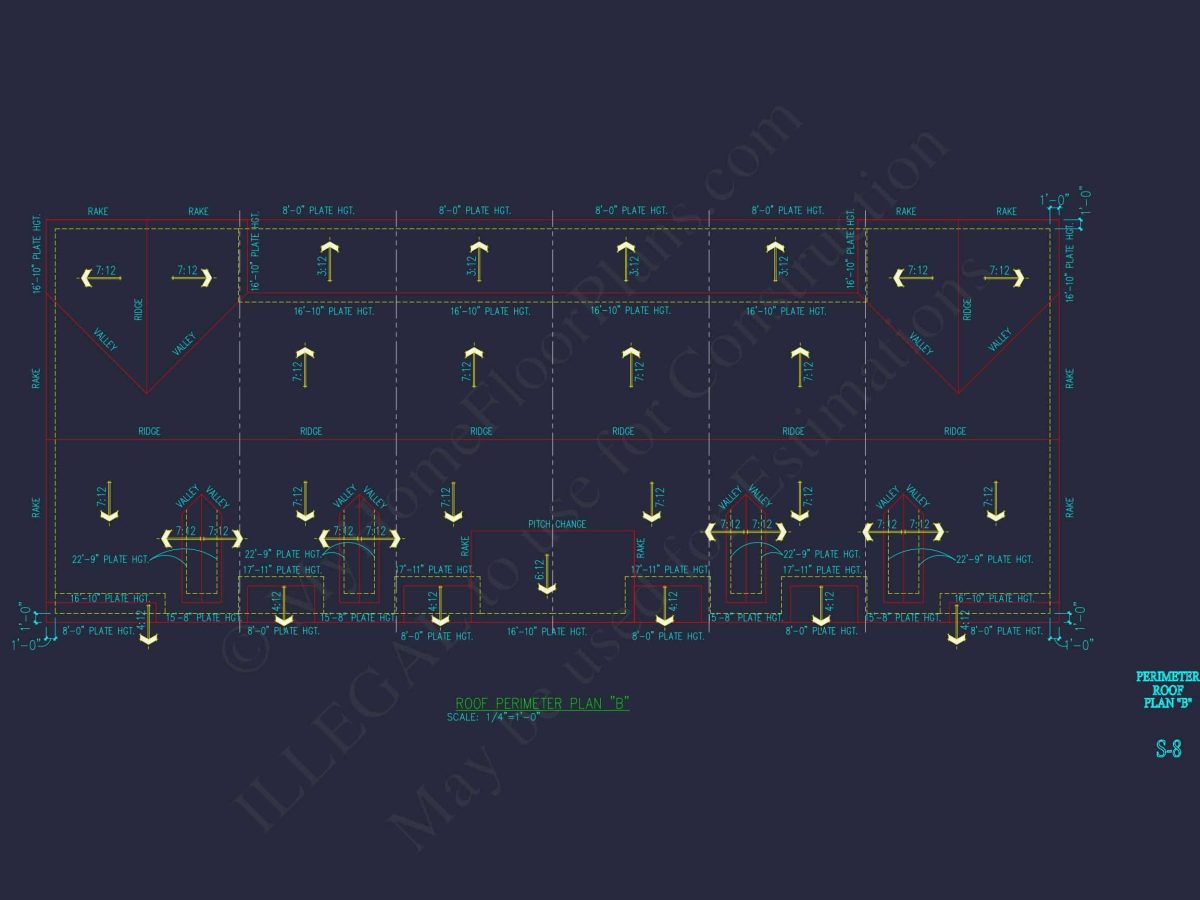

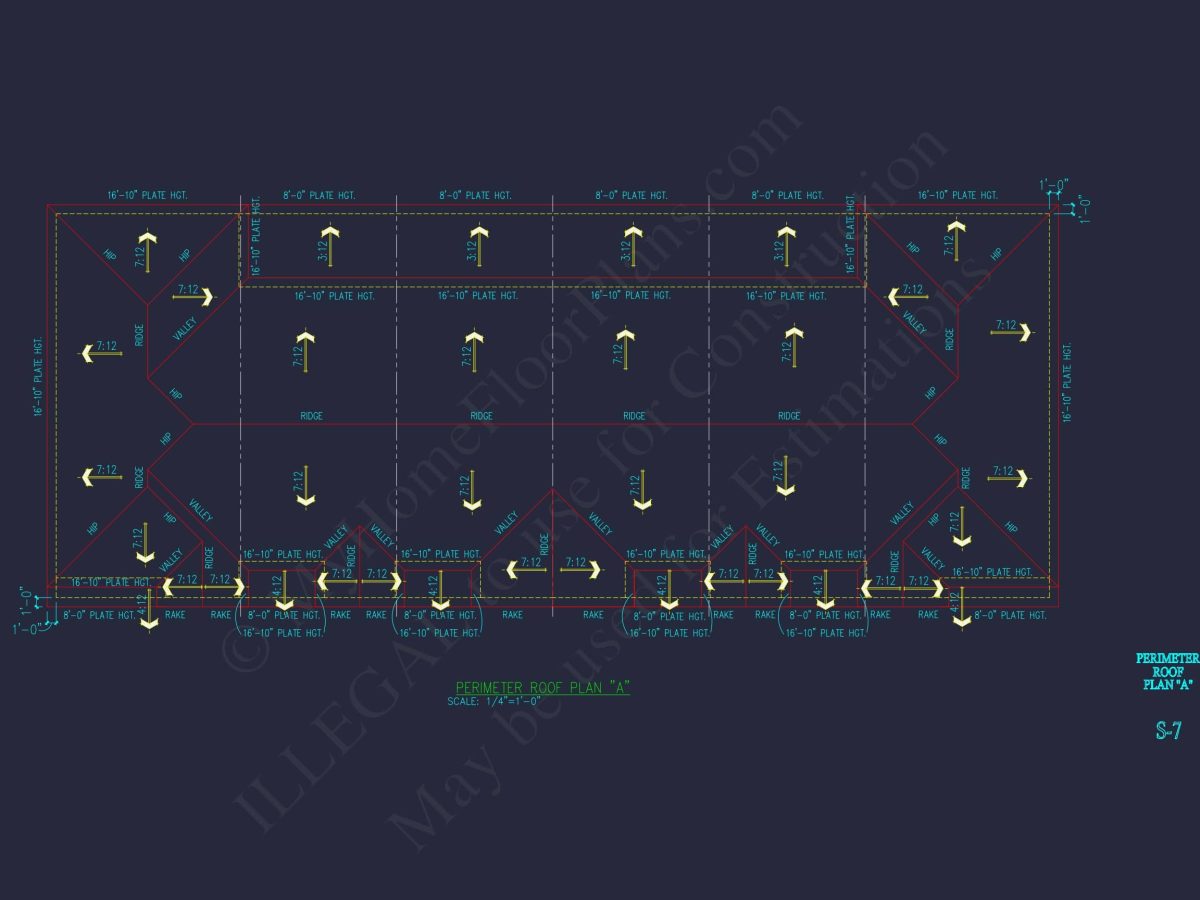

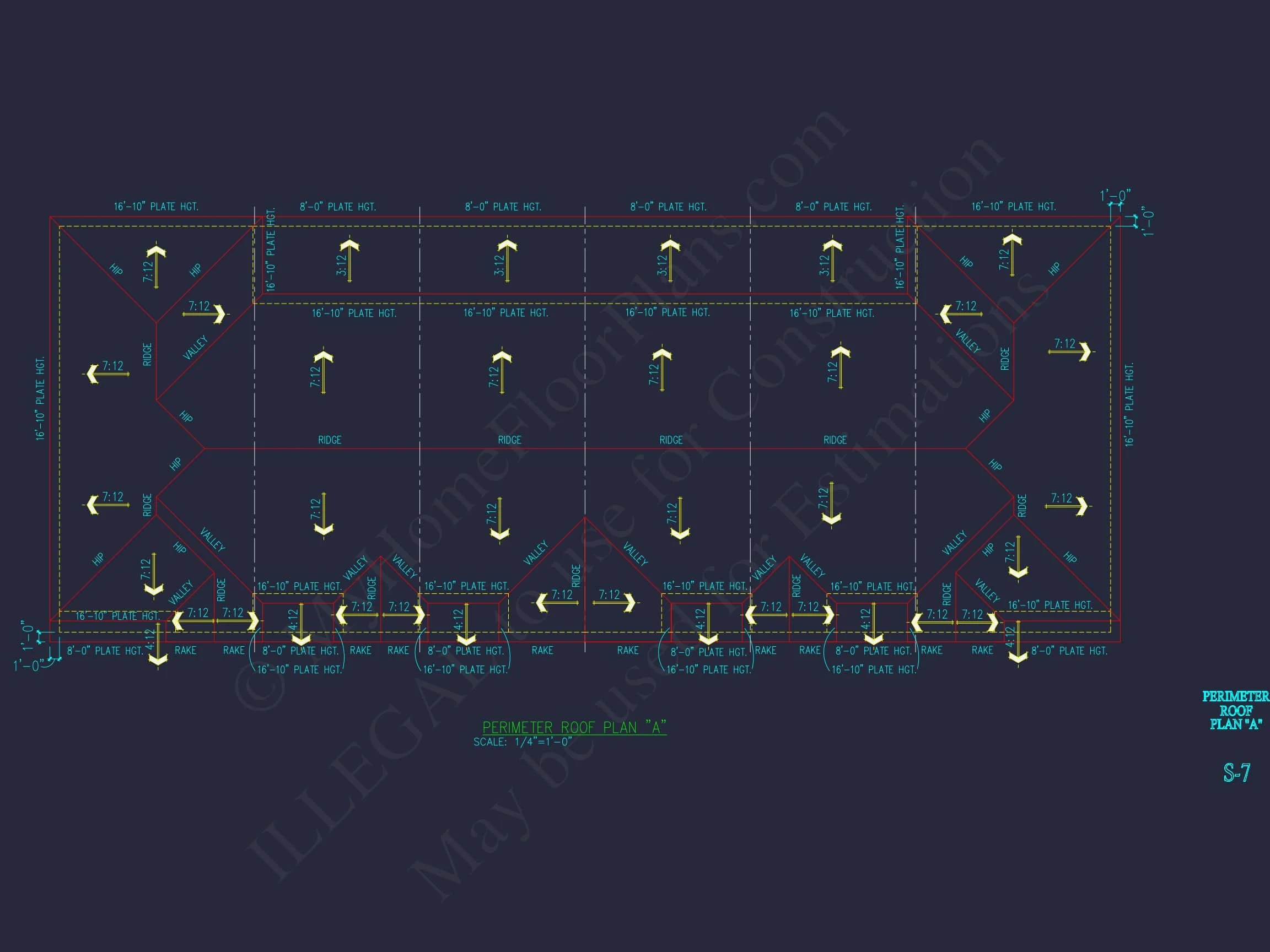

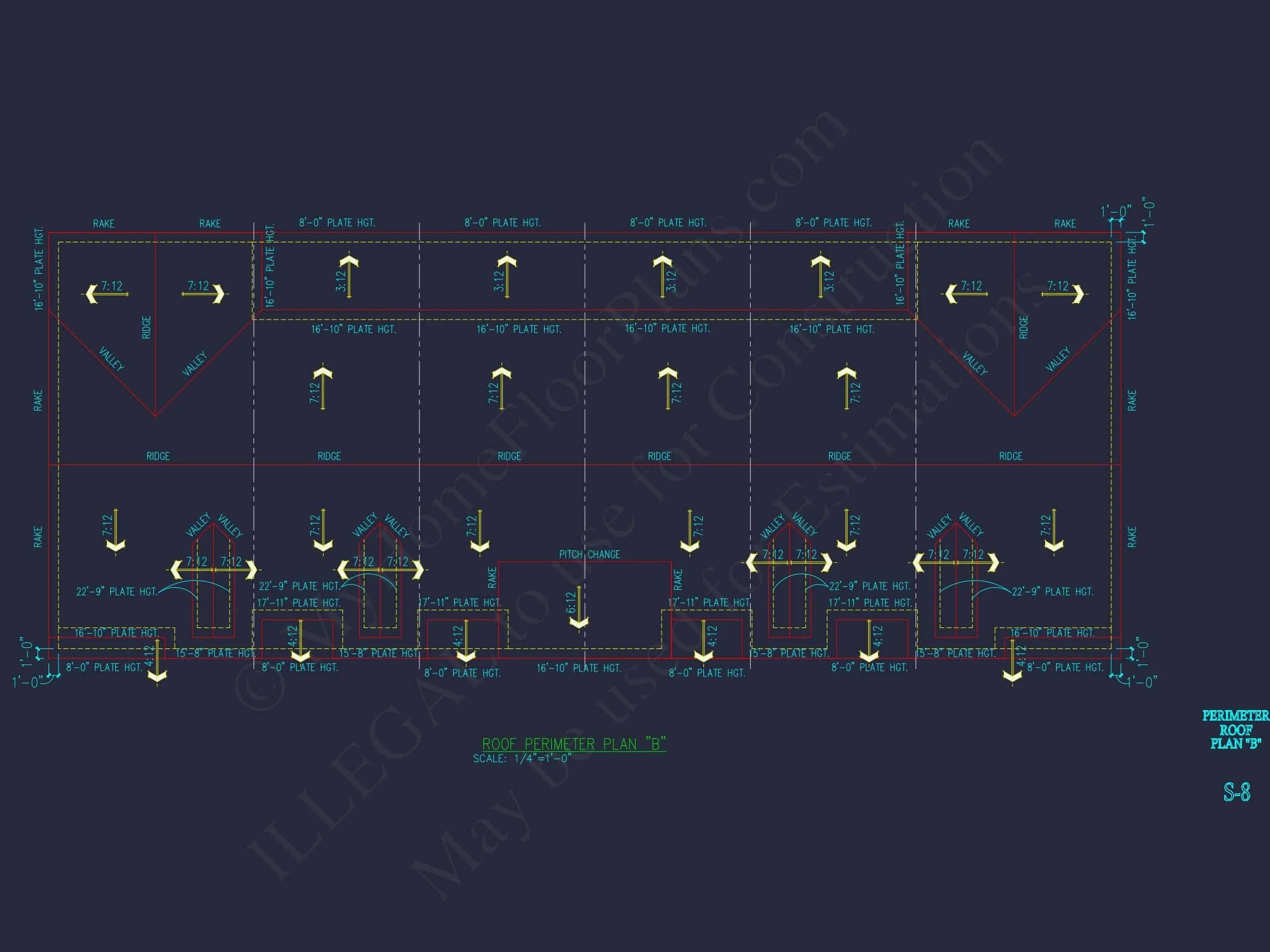

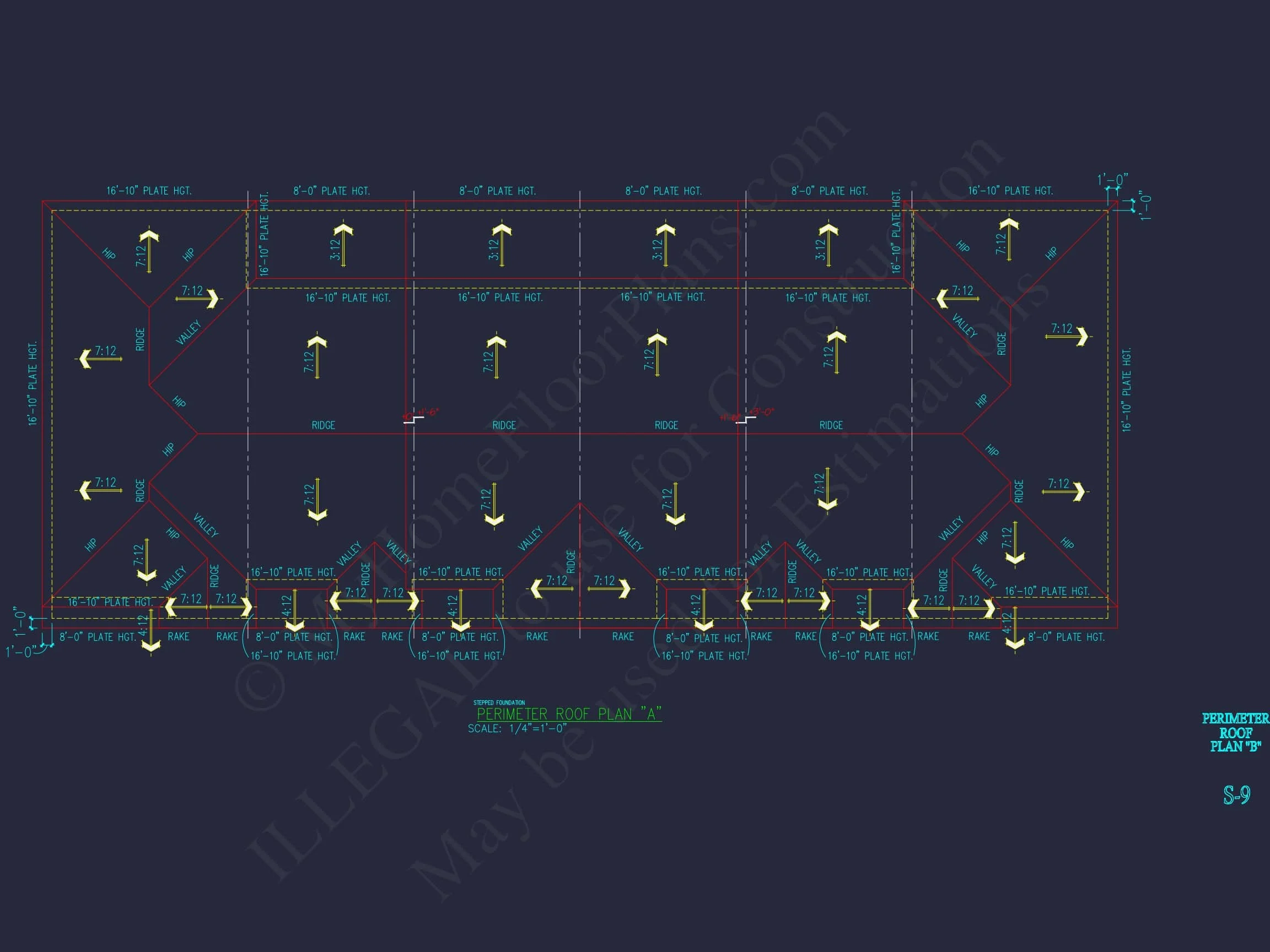

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

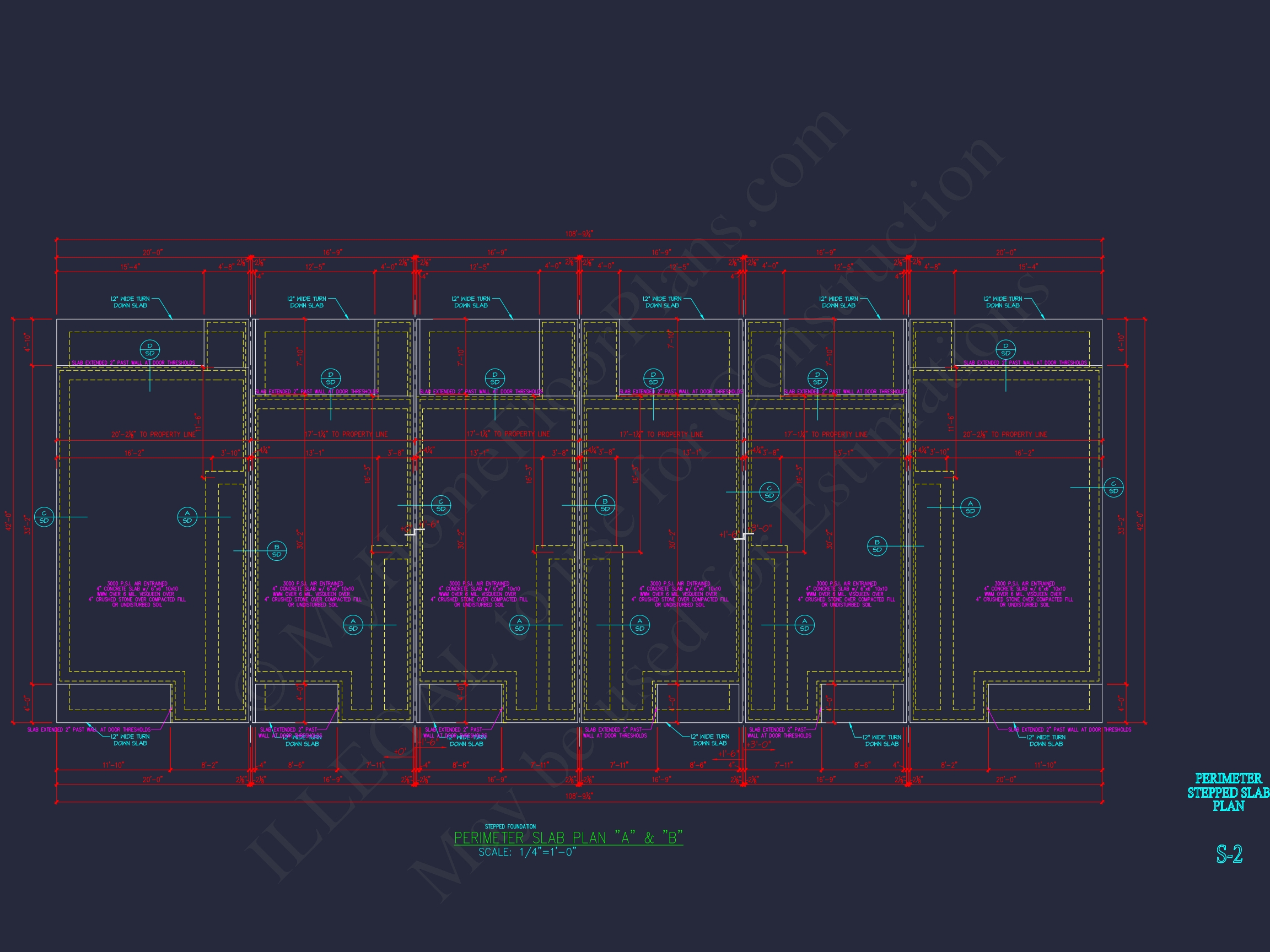

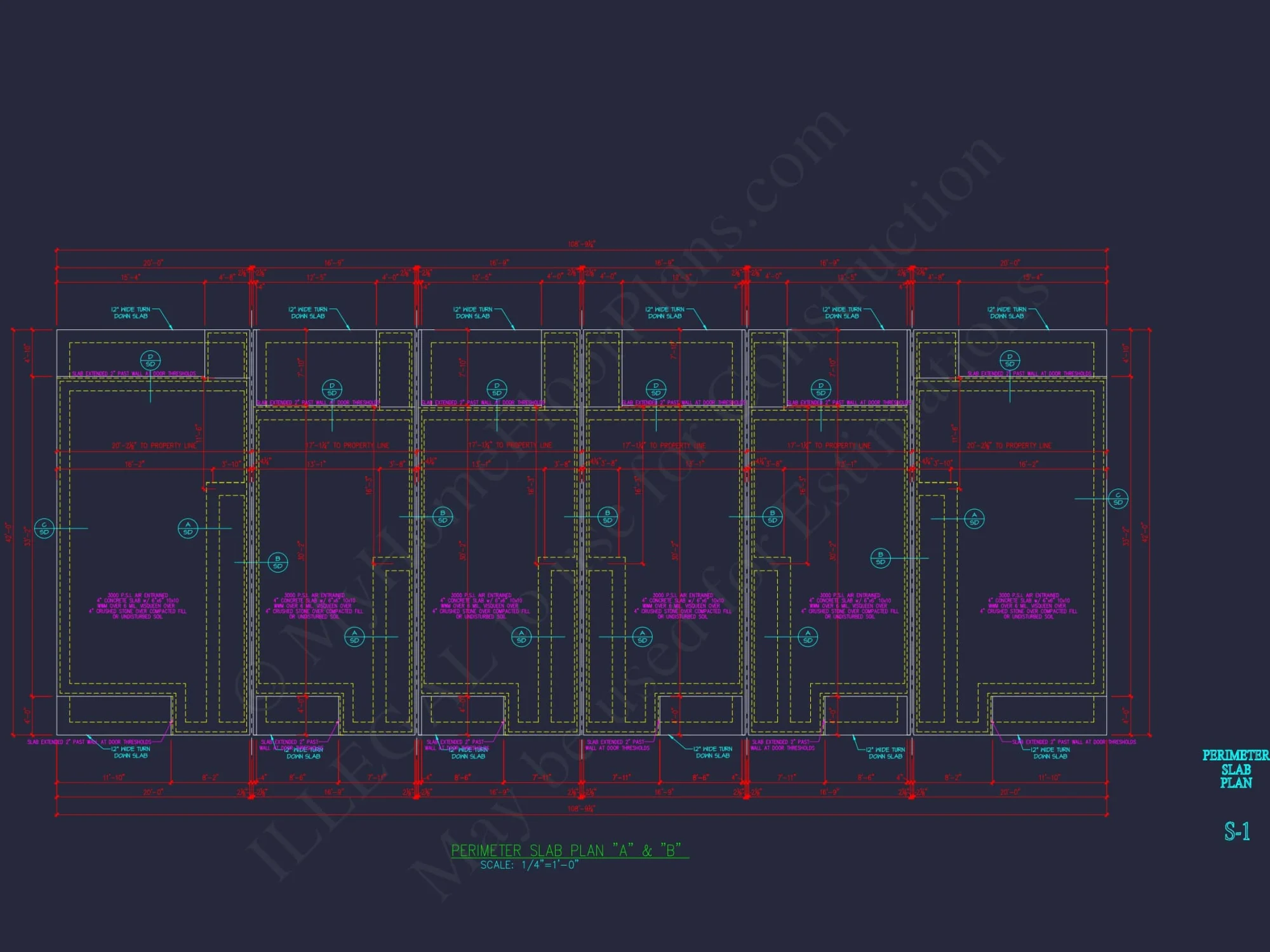

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
