17-2054 HOME PLAN
Original price was: $1,699.00.$1,398.00Current price is: $1,398.00.
| Width | 99'-4" |
|---|---|
| Depth | 74'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Basement, Bonus Room, Foyer, Great Room, Living Room, Main Floor Laundry Room, Mudroom, Office/Study |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Elegant Home Floor Plan with Detailed Blueprint and CAD Designs
Explore this stunning home floor plan with 4 bedrooms, 4 baths, vaulted ceilings, and a spacious layout. Includes detailed CAD blueprints and architectural designs.
Discover the Perfect Home Design: A Blend of Comfort and Style
Planning your dream home has never been easier! This stunning 99′-4″ by 74′-8″ home design offers a spacious and efficient layout with 4 bedrooms, 4 baths, and 2 stories, perfectly suited for families or homeowners who enjoy ample living space and versatility. Crafted in a delightful Traditional and Craftsman architectural style, this home is designed to provide a seamless blend of practicality and modern aesthetics.
Indoor Features That Prioritize Functionality and Comfort
The home’s 4, 295 heated square feet ensure you have plenty of room to live comfortably, while the 1, 749 unheated square feet allow for additional storage and garage space. Some of the standout indoor features include:
* Expansive Great Room to relax and entertain
* Main Floor Owner Bedroom complete with a spacious Walk-In Closet
* Kitchen with a Walk-In Pantry and island for culinary convenience
* Office/Study Room for remote working or studying needs
* Bonus Room offering additional flexible space
* Mudroom and Laundry Room on the main floor for practical function
With lofty 9-foot ceilings and vaulted options, this design provides an atmosphere of openness and luxury.
Outdoor Highlights for Relaxation and Entertainment
This home is also designed with outdoor living in mind. Features such as a Covered Front Porch, patio space, and Screened Porch ensure you can enjoy various weather conditions while remaining cozy. Shingles and brick materials further enhance the stylish and durable exterior.
More Than Just a Home Plan: Benefits You Can Trust
This plan guarantees essential features for all your needs, and with Crawlspace or Basement Foundation options, you can adapt this design to different terrains. The large 3-car garage also fulfills storage and parking requirements, with enough room for a small workshop!
Benefits Included with Every Plan
Each home plan purchased includes a full CAD file and PDF blueprints for precision and customization. Additionally, you’ll receive an unlimited-build license, free foundation changes, and structural engineering to ensure compliance and quality. Need modifications? We can tailor the plan at a fraction of our competitors’ costs.
Are you ready to design your dream home? Reach out today at support@https://myhomefloorplans.com to make this vision your reality!
What's Included
What's NOT Included
Modifications
Plan Pricing
All home plans include BOTH the CAD file and PDF file.

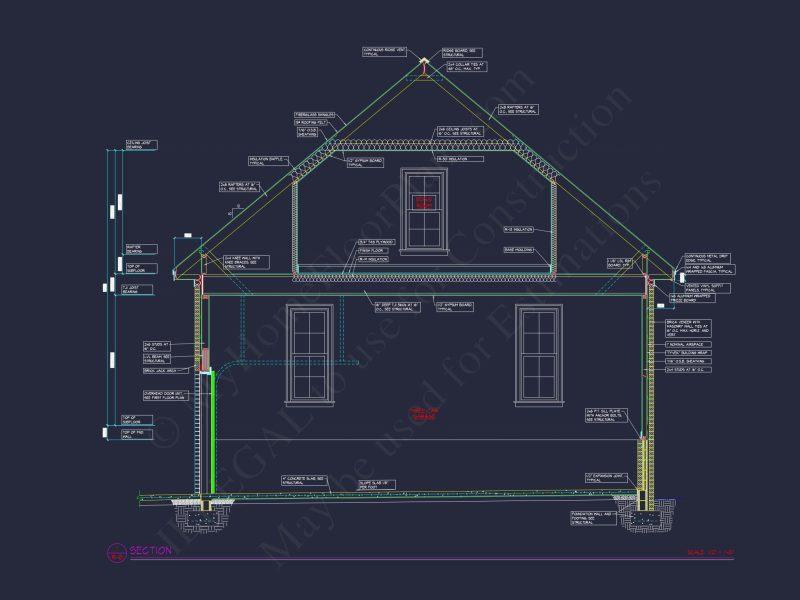

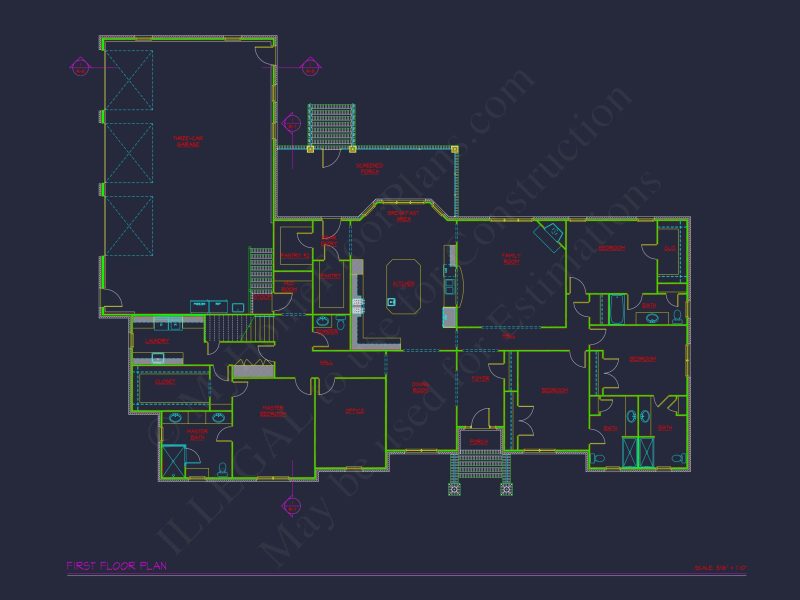

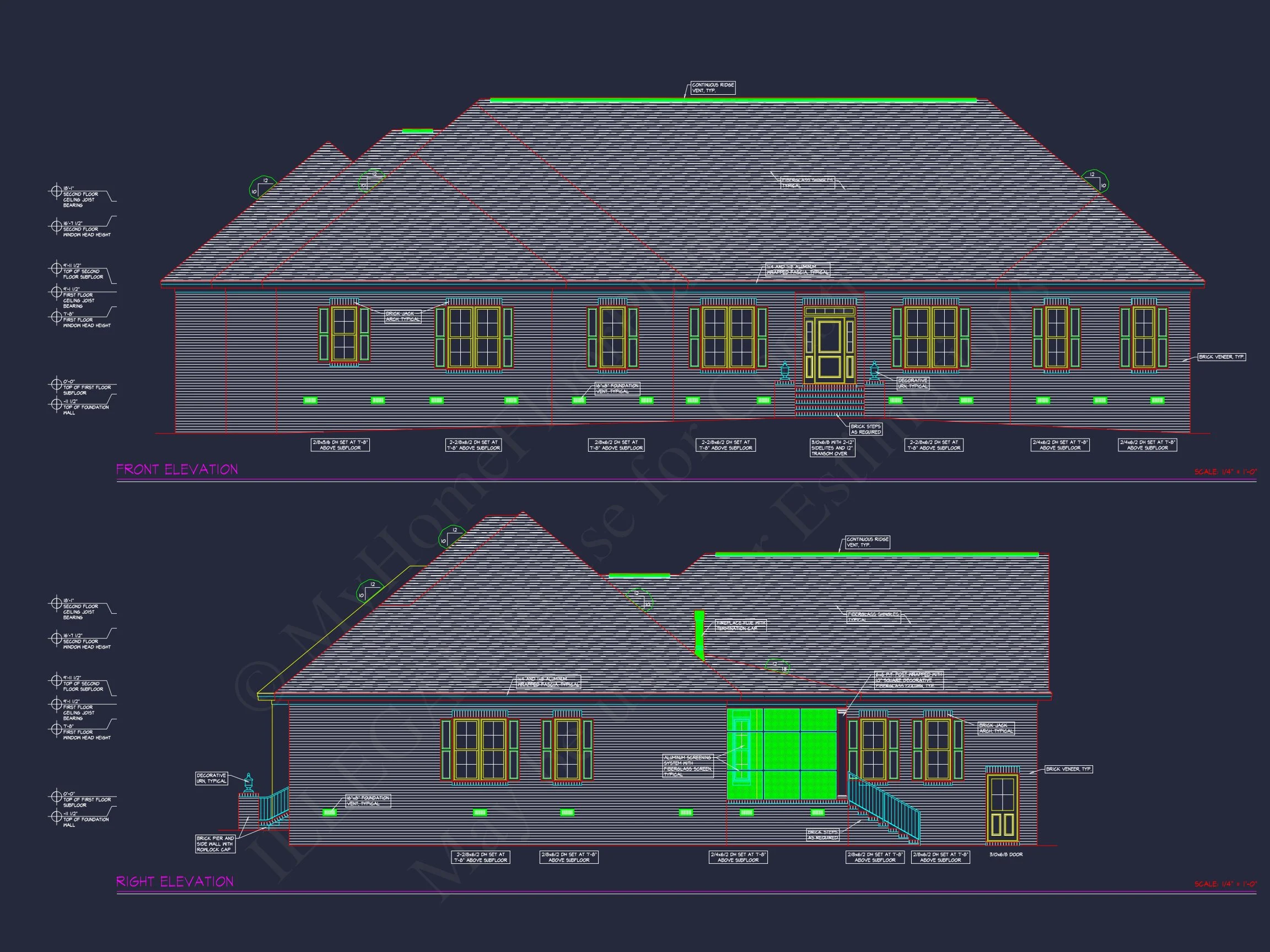

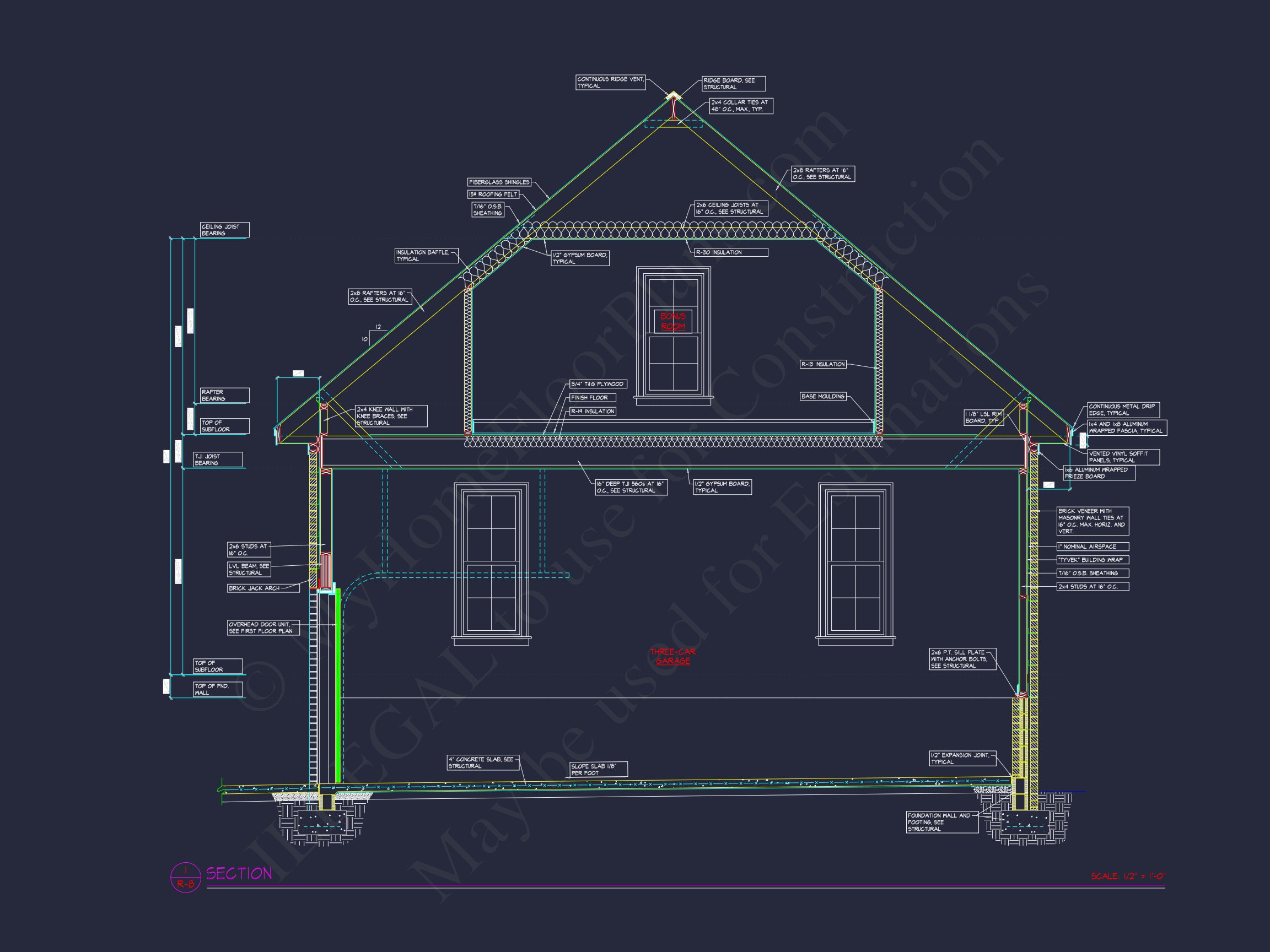

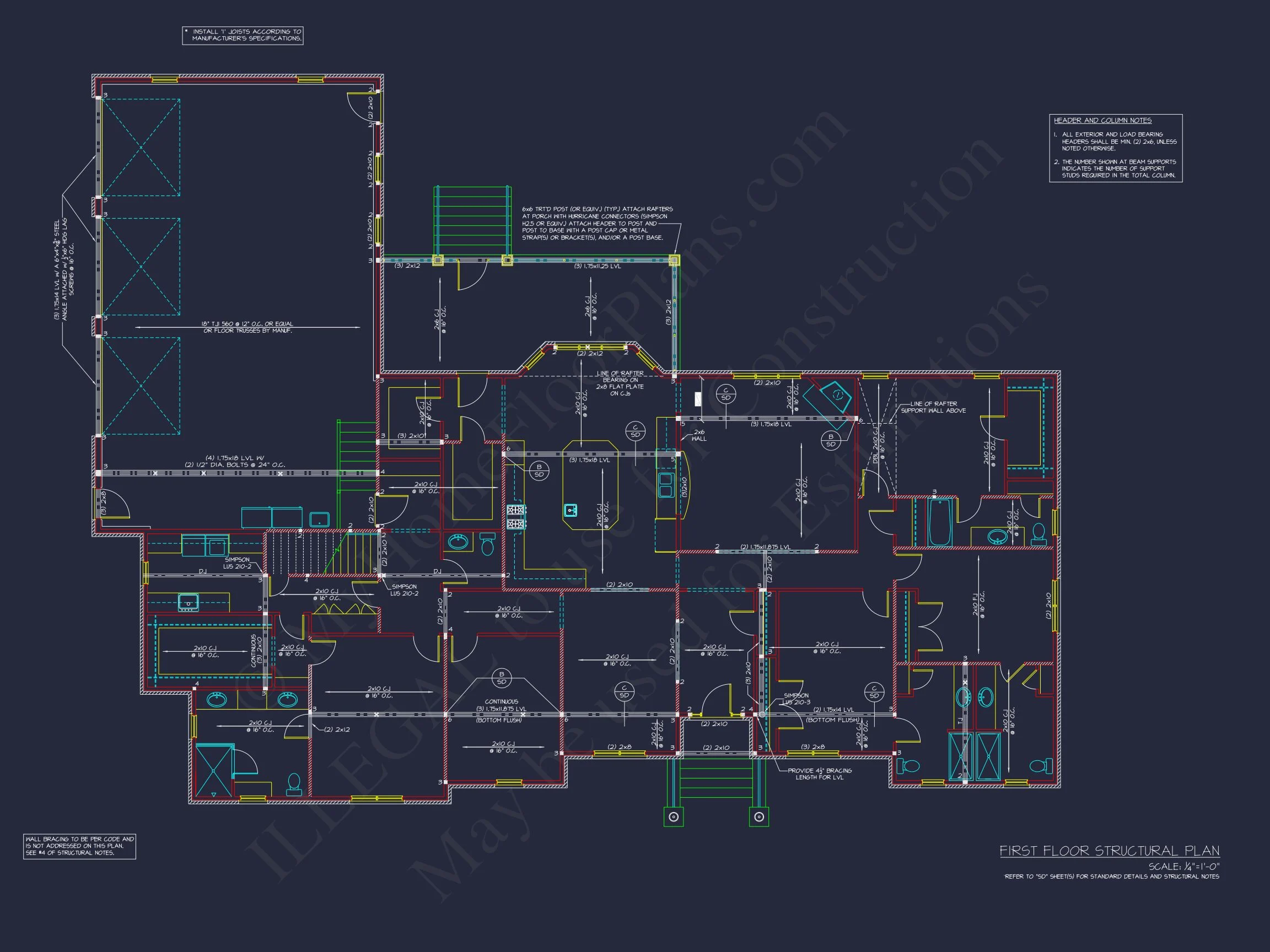

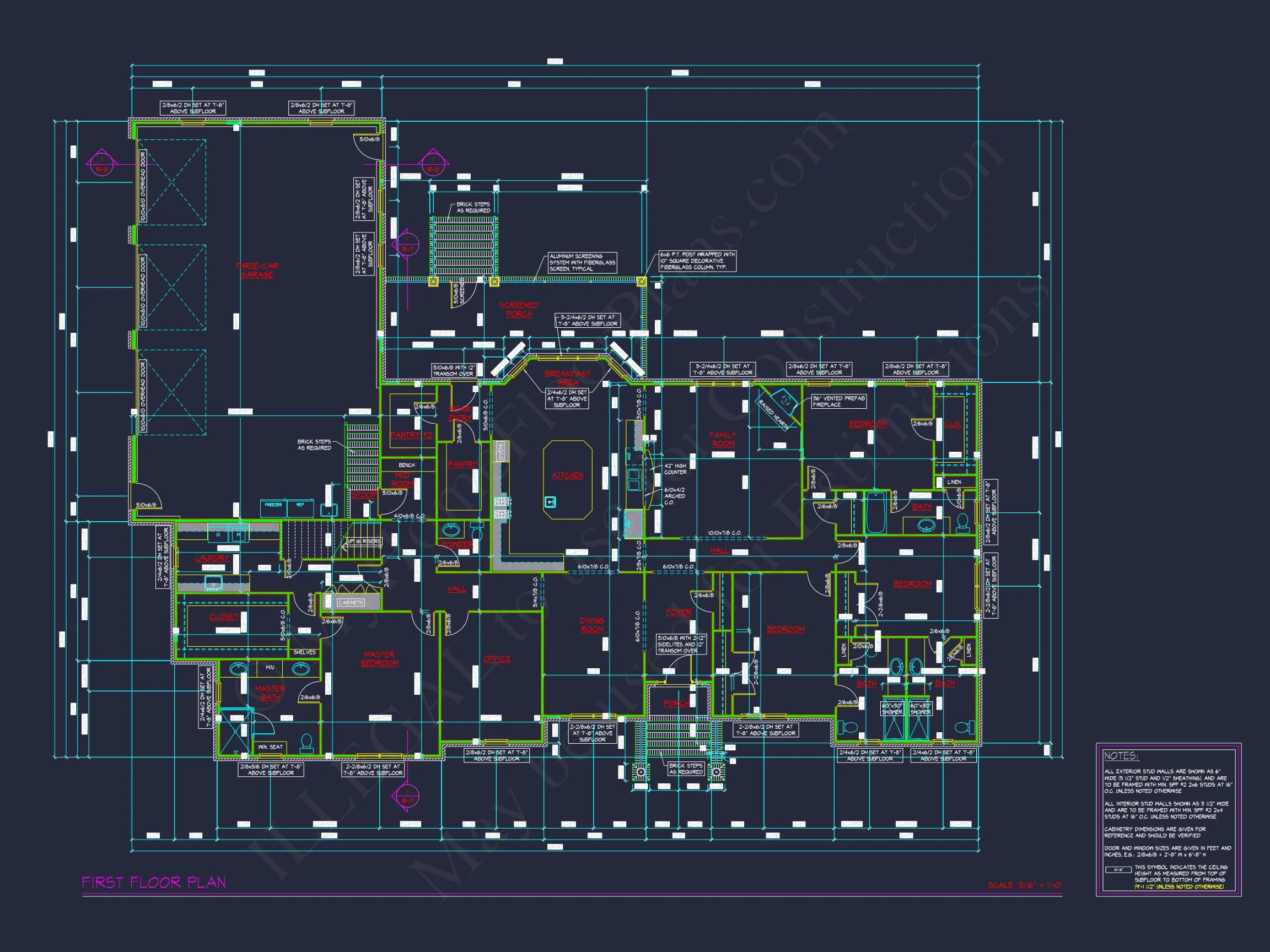

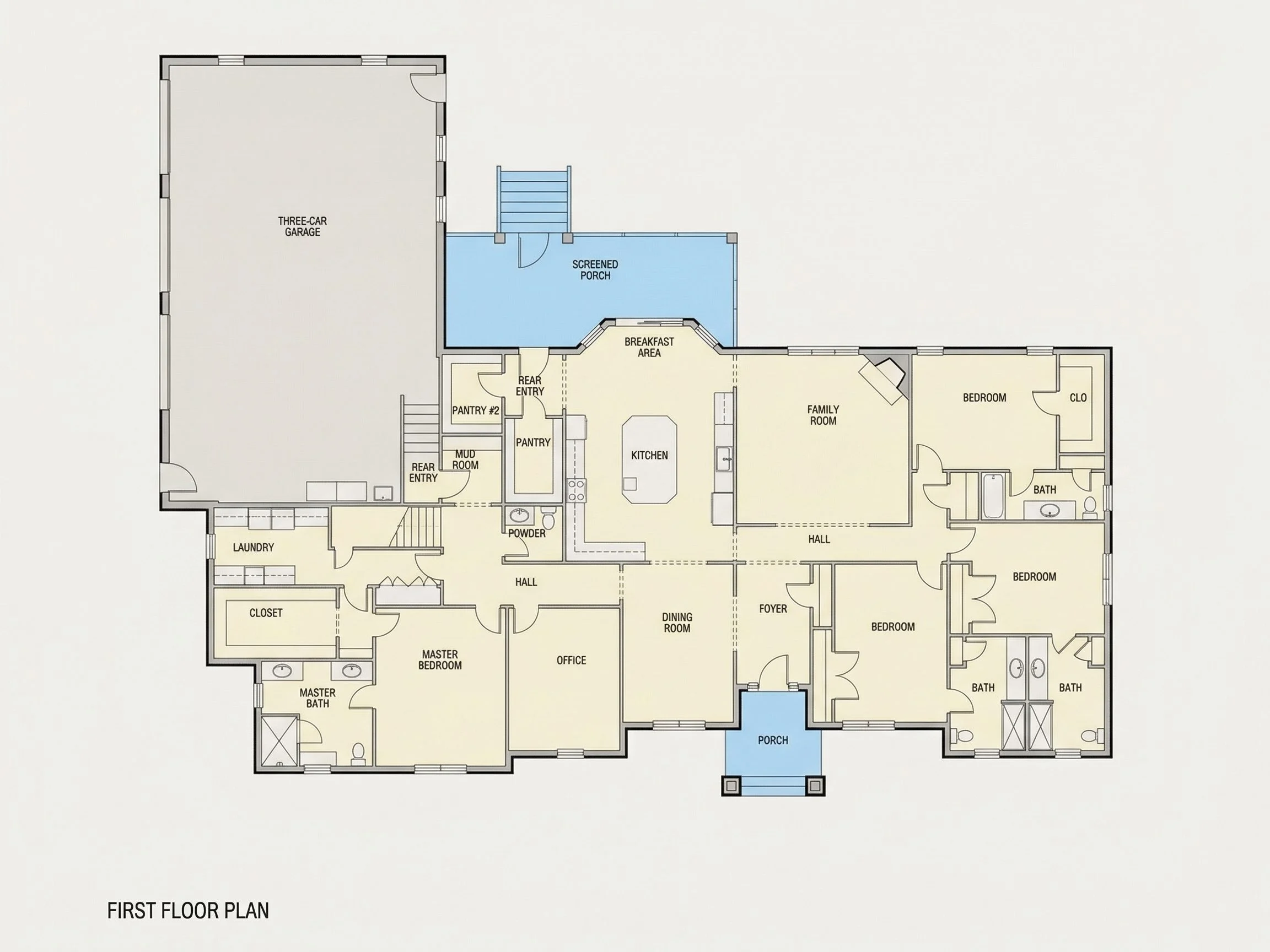

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
