Garage with Living Space – Home Plan Blueprint for Designers
Explore this 3, 419 sq. ft. house plan featuring dual Owner suites, a spacious garage with living space, and CAD-ready architectural designs.
This garage apartment house plan offers a perfect mix of functional living and versatile storage. Designed for modern living, it combines traditional charm with contemporary architectural efficiency.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 419 sq. ft. arranged across two stories.
- Unheated extras: Angled 3-car garage, balcony, and covered porch.
Bedrooms & Bathrooms
- 2 luxurious Owner Suites located on the upper floor, each with a walk-in closet.
- Additional bathrooms offer convenience and privacy across all areas.
Interior Highlights
- 9ft+ ceilings throughout enhance openness and natural light.
- Open-concept living connects key spaces for easy flow. Explore open designs.
- Spacious kitchen includes a center island and walk-in pantry for maximum utility.
- Bonus room and foyer offer flexibility for work, play, or guest use.
Garage & Storage Details
- Garage Bays: Accommodates 3 vehicles with angled bays.
- Garage Type: Attached with an efficient 54′-0″ x 25′-4″ footprint.
- Storage: Built-in storage options and dedicated closet spaces throughout.
Outdoor Living Features
- Balcony: Enjoy upper-level outdoor living with views and airflow.
- Covered front porch: Adds classic curb appeal and protection from the elements.
Architectural Style: Traditional Colonial Farmhouse
This design blends Colonial symmetry with Farmhouse practicality, ideal for suburban and rural properties. Explore more Colonial Farmhouse plans or learn about the origins of American residential architecture.
Bonus Features
- Dual Owner suites for multi-generational living or rental flexibility.
- Bonus room that can double as a media room, office, or workout studio.
- Angled garage layout ideal for corner lots or unique site conditions.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable, printable, and construction-ready.
- Unlimited Build License: No extra cost to build multiple times.
- Free Foundation Changes: Choose slab, crawlspace, or basement at no charge.
- Structural Engineering Included: Professionally stamped and code-compliant.
- Lower Modification Costs: Customizations at 50% less than other providers.
- View Before You Buy: Preview every sheet upfront.
Similar Collections You Might Love
- Traditional House Plans
- Garage & Vehicle Storage Plans
- House Plans with Walk-In Closets
- Plans with Bonus Rooms
- Covered Porch House Plans
Frequently Asked Questions
Is this plan suitable for narrow lots? Yes! The compact garage footprint and angled bays make it perfect for tighter properties.
How many Owner suites are included? Two—each located upstairs with private bathrooms and walk-in closets.
Can I customize the garage configuration? Absolutely. We offer affordable modification services to adjust bay sizes or orientation. Request a quote here.
Does the plan come with architectural blueprints? Yes. You receive complete blueprints in CAD and PDF formats, ready for construction.
Can I see what’s included before buying? Yes. Preview all drawings before you purchase.
Start Building Your Dream Home Today
Have questions or need plan modifications? Email us at [email protected] or use our contact form.
Your future house starts with a detailed plan—get started today with flexibility, engineering, and confidence built in!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

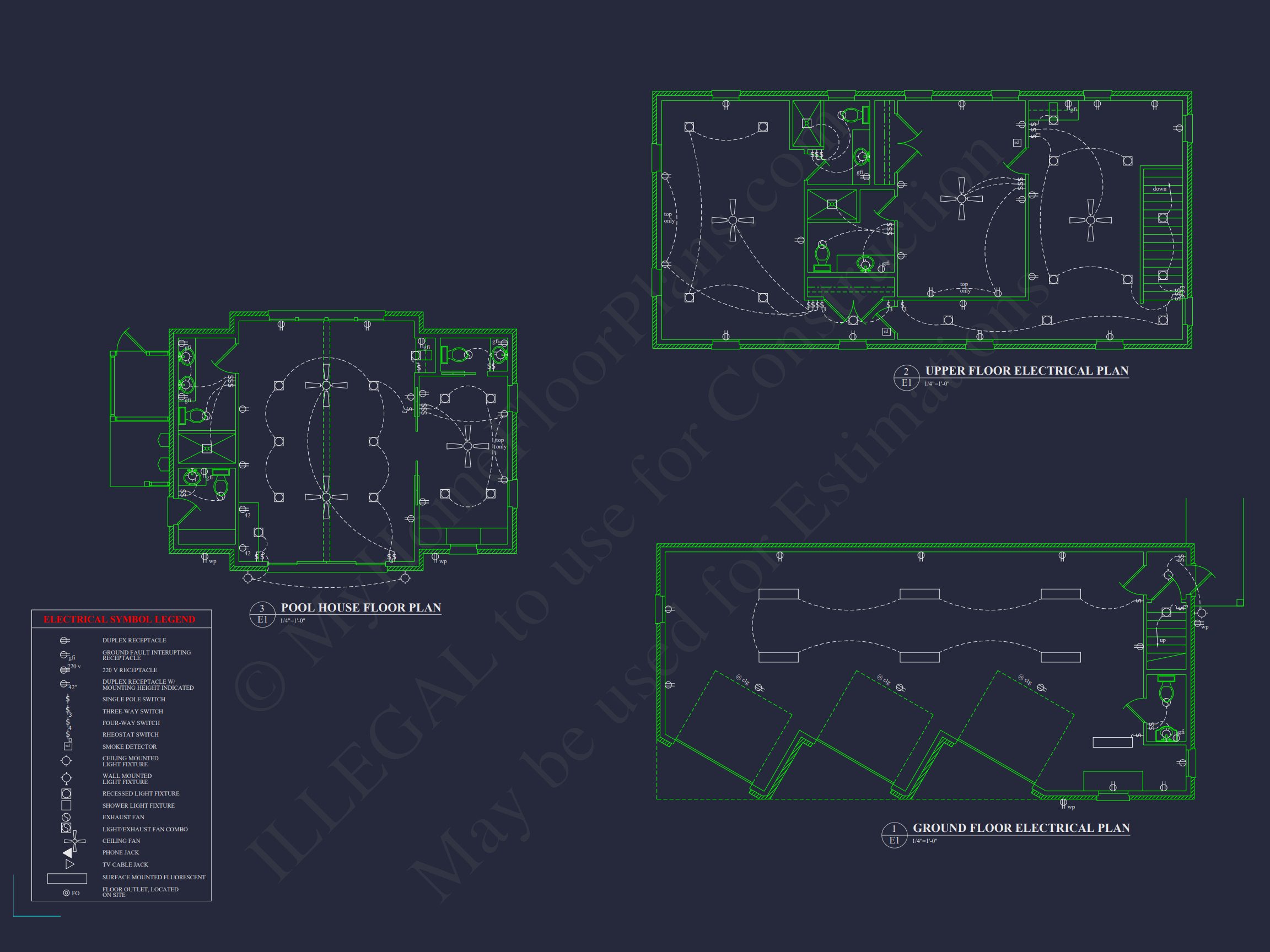

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
17-2059 GARAGE
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
