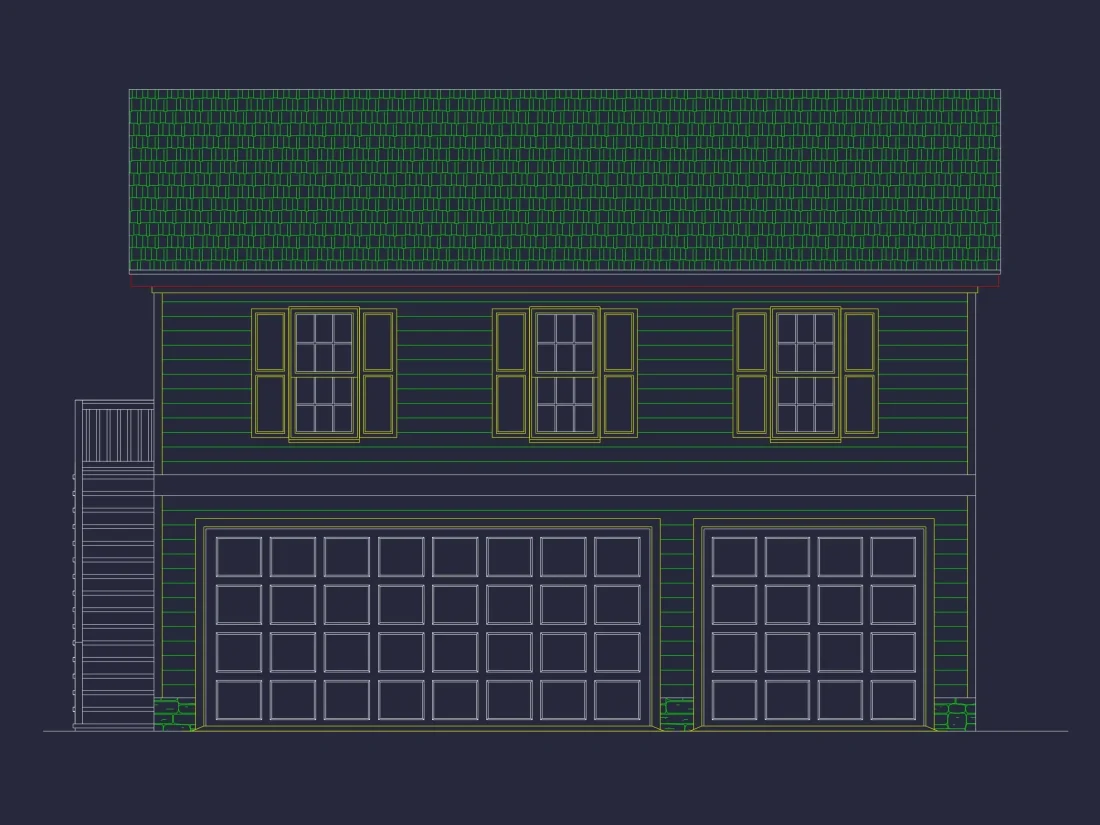

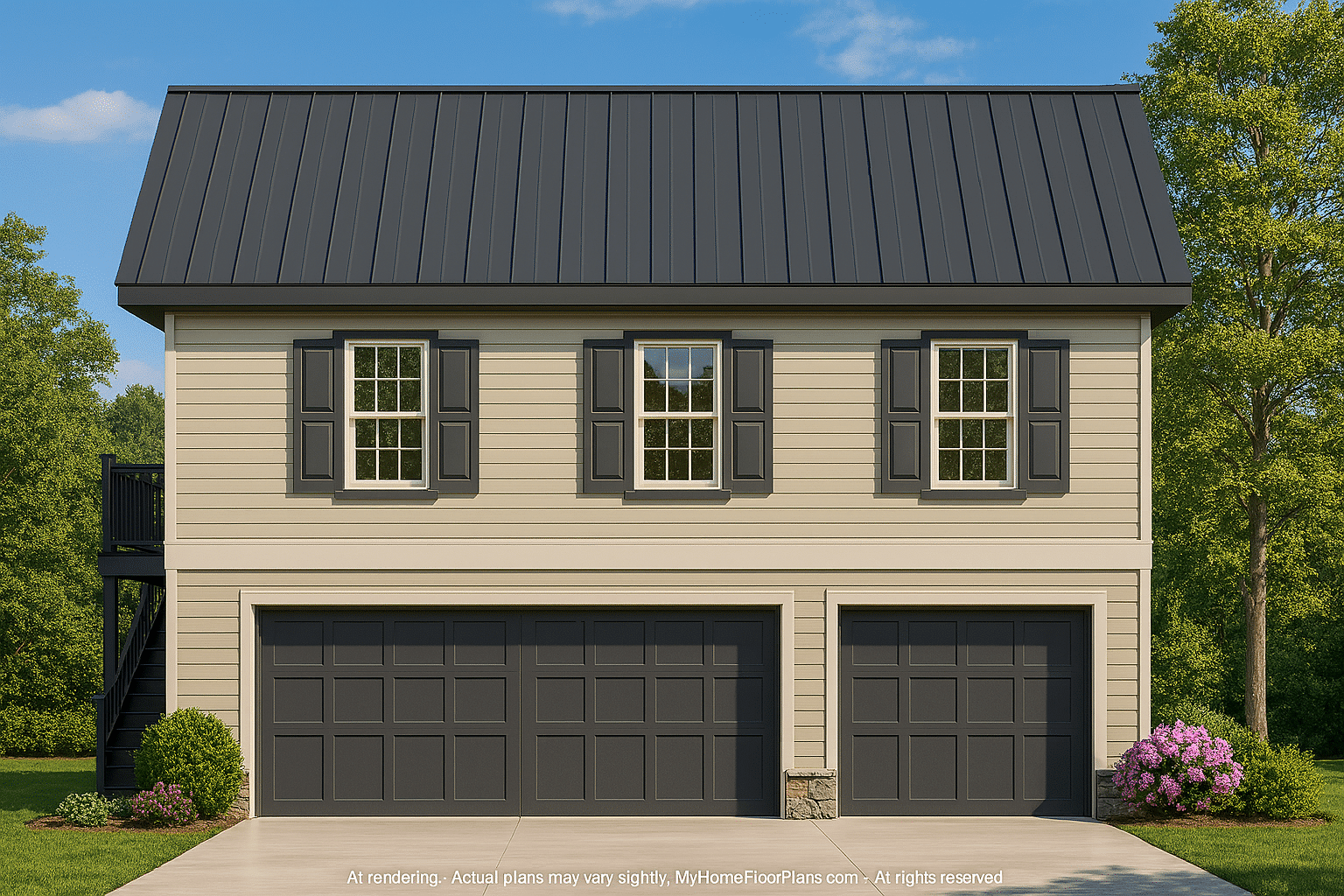

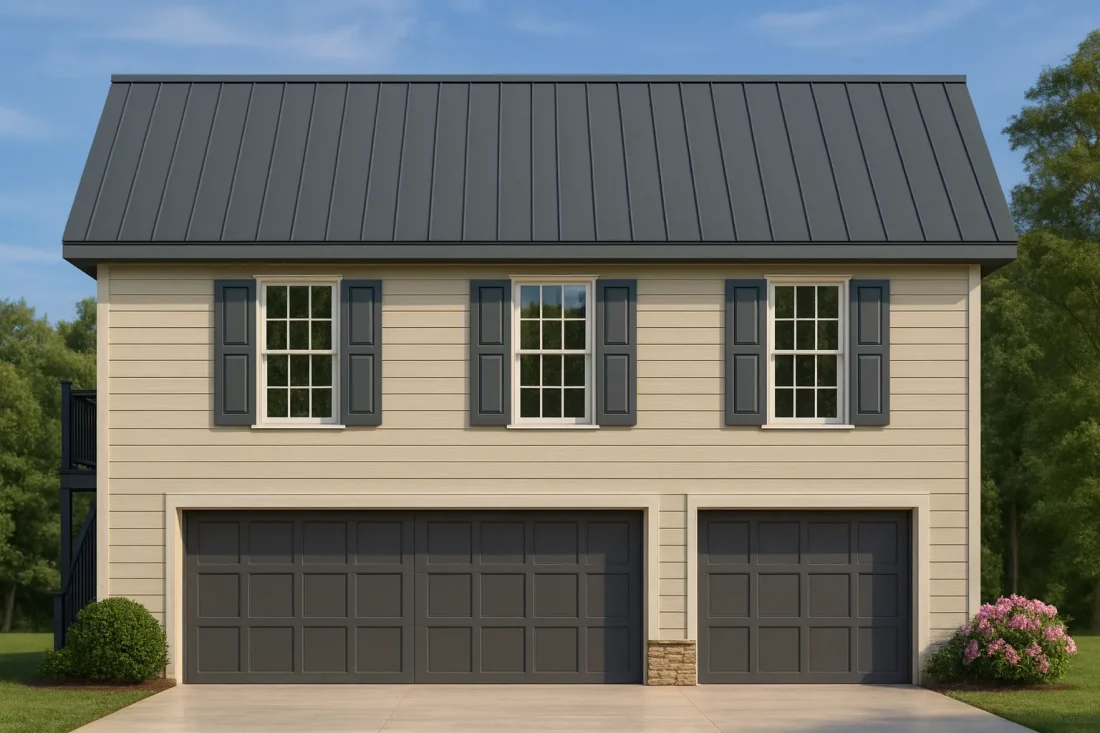

Custom Garage with Living Space – Functional CAD Floor Plan
Discover this custom garage layout with a spacious 3-car garage, upper-level living quarters, and detailed CAD architecture—perfect for multi-use needs.
This garage with living space plan offers versatility, comfort, and smart architectural design. Built for modern families, hobbyists, or those needing a separate guest suite, it blends practical storage with elevated living.
Key Features of the Home Plan
Living Areas – Heated & Unheated

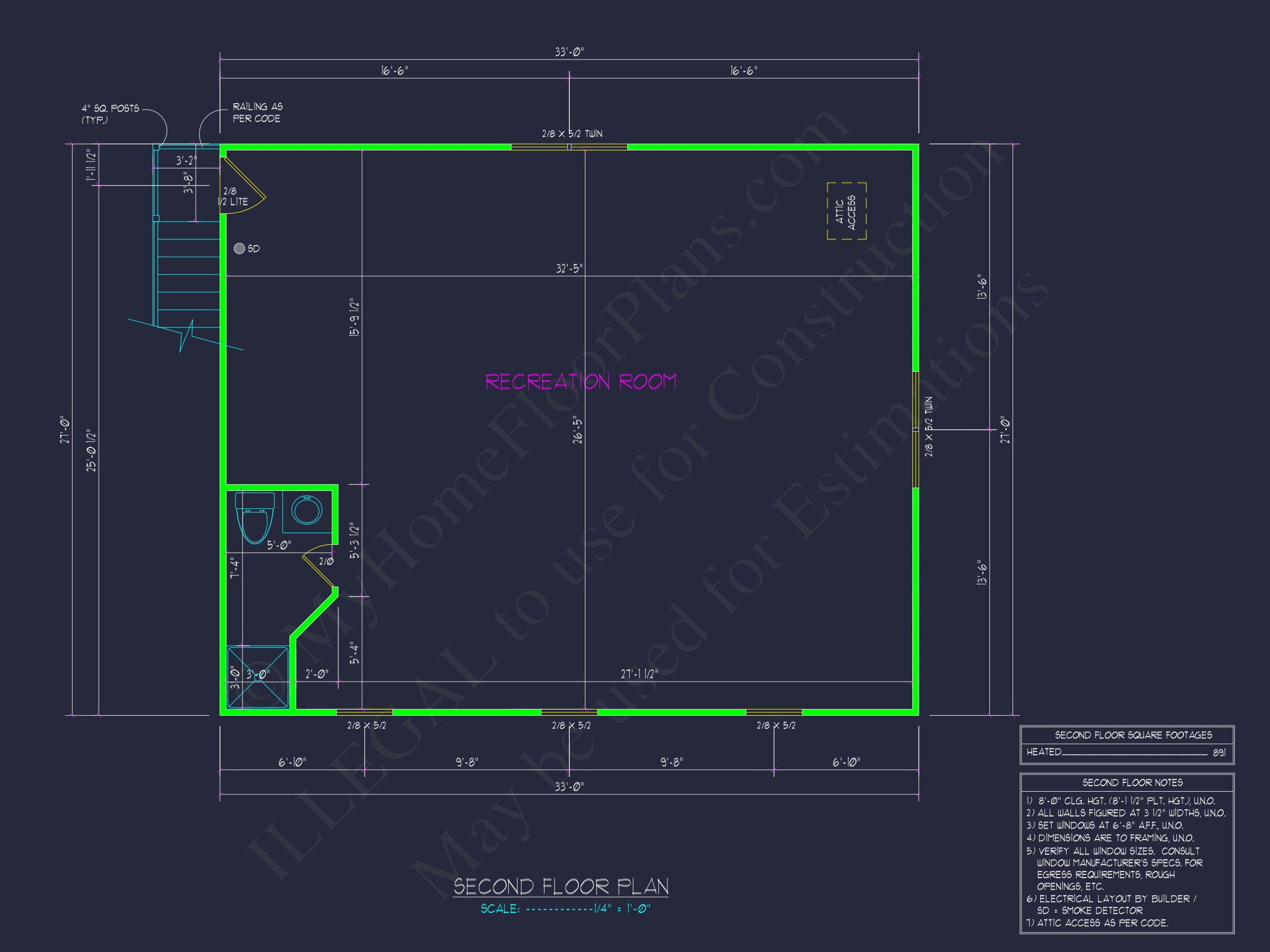

- Heated area: Cozy second-story recreational and bonus rooms.
- Unheated extras: Spacious 3-car garage and covered porch areas.
Bedrooms & Bathrooms
- Second-floor bonus space suitable for bedroom conversion or guest quarters.
- Bathroom space easily customizable to meet personal needs.
Interior Highlights
- 9 ft+ ceilings offer a sense of openness and natural light.
- Open floor plan ensures seamless flow between rooms. Explore more open layouts.
- Bonus Room ideal for a gym, studio, or flexible guest space.
- Recreation room adds an inviting social atmosphere.
Garage & Storage Details

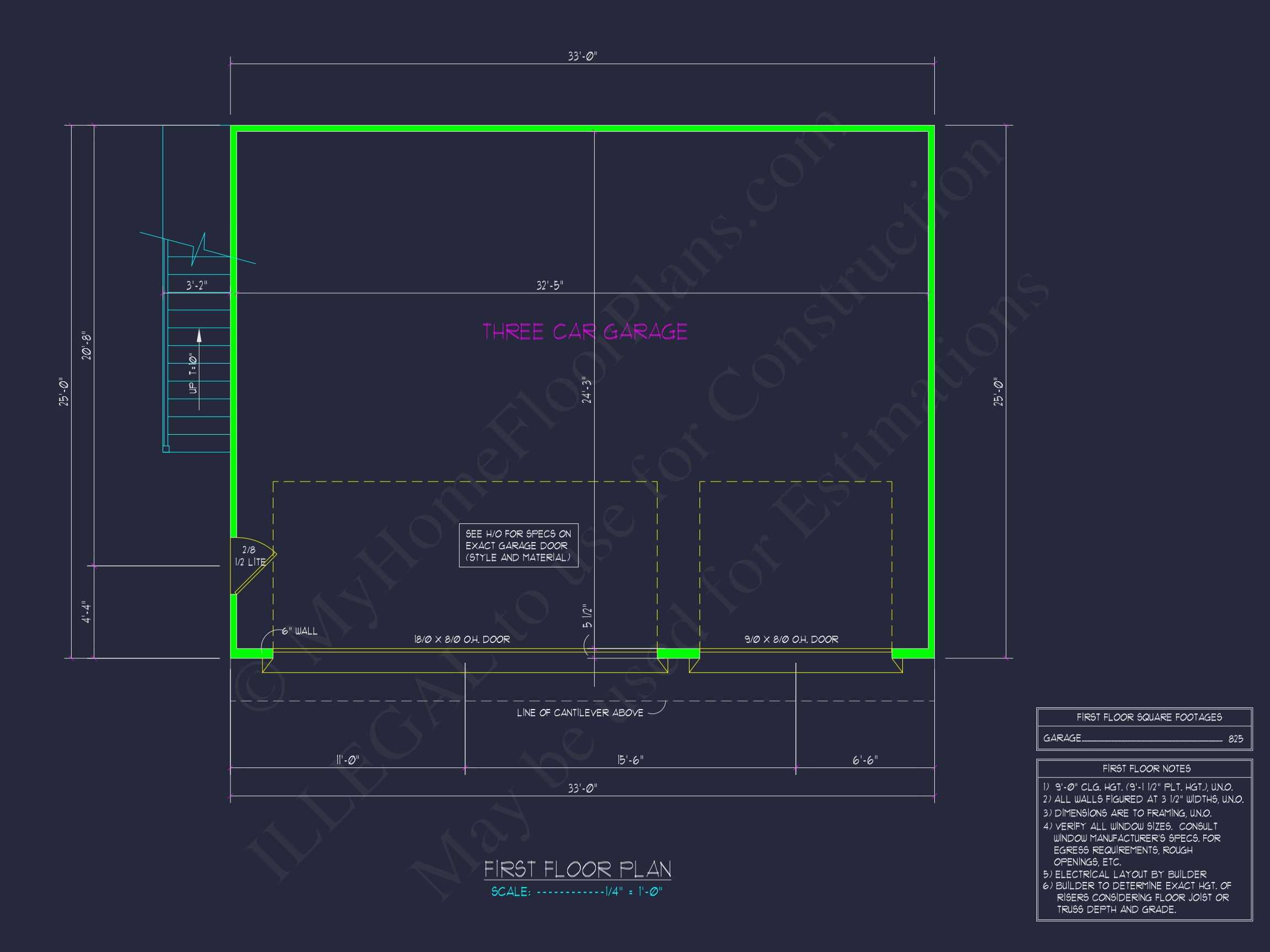

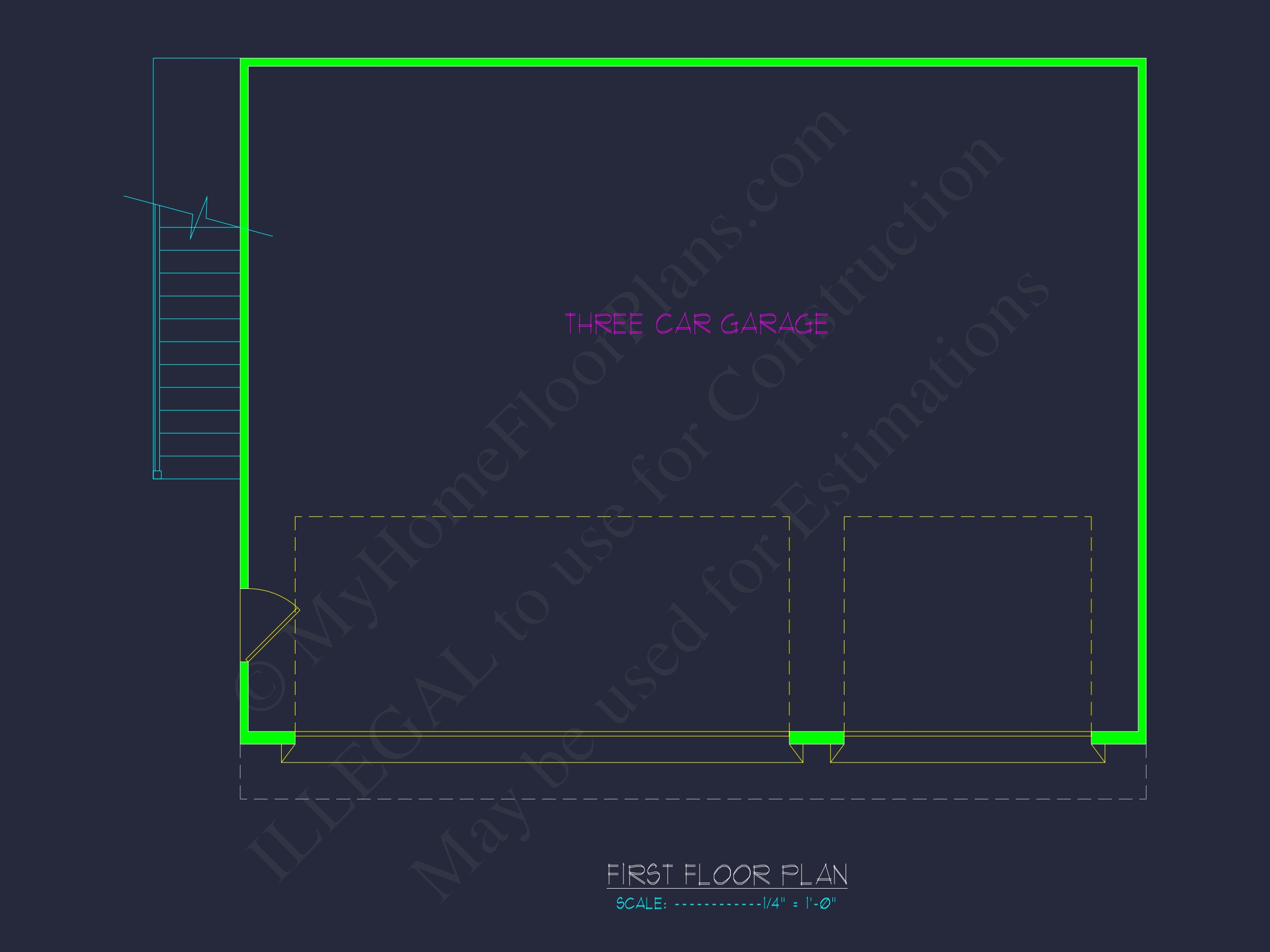

- Garage Bays: 3-car garage with extra depth for large vehicles or workshop needs.
- Garage Type: Attached front-load design for easy access.
- Storage: Room for tools, seasonal gear, and hobby equipment.
Outdoor Living Features
- Covered front porch adds visual appeal and provides year-round protection.
- Second-story balcony enhances relaxation and exterior charm. See balcony house plans.
Architectural Style: Traditional
This design reflects classic styling using durable siding, shingles, and stone for lasting curb appeal. Blending simplicity and function, it’s ideal for guest homes, rentals, or garage studios. Learn more about the traditional house style or explore similar inspirations on ArchDaily.
Bonus Features
- Balcony access for a touch of outdoor luxury.
- Upper-floor privacy for guests or renters.

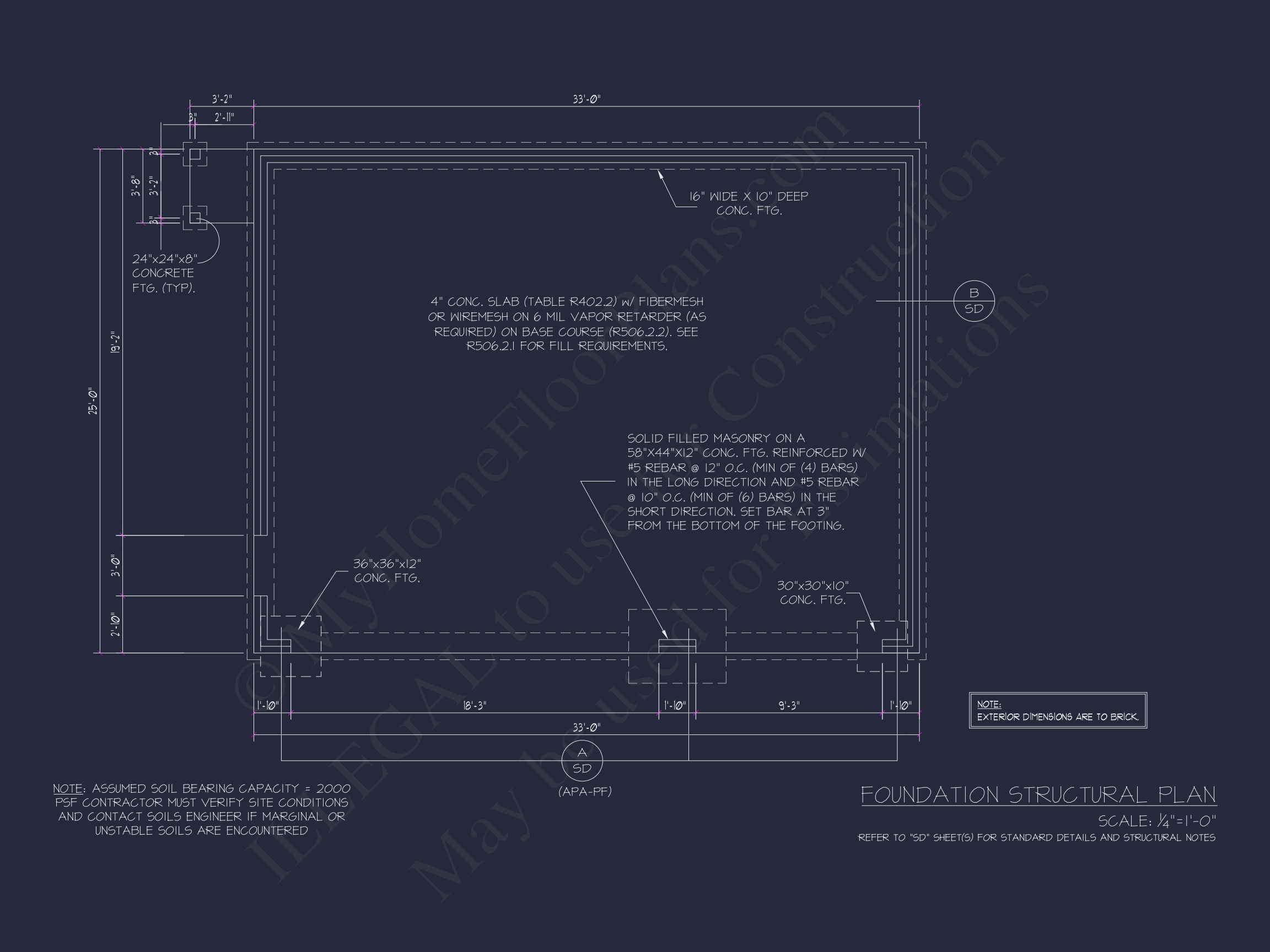

- Slab foundation for easy site prep and low maintenance.
Included Benefits with Every Plan
- CAD + PDF Files: Printable, editable, and ready to build.
- Unlimited Build License: Build as many times as needed—no limits.
- Free Foundation Changes: Choose between slab, crawlspace, or basement at no extra cost.
- Structural Engineering Included: Fully code-compliant and reviewed by professionals.
- Lower Modification Costs: Save up to 50% vs. competitors on customizations.
- View Before You Buy: Preview all plan sheets in advance.
Similar Collections You Might Love
- Garage Apartment Plans
- Detached Garage Plans
- Plans with Bonus Rooms
- Plans with Covered Porches
- Small House Plans
Frequently Asked Questions
Is the living space heated and livable? Yes! The second-floor living quarters are designed to be heated, functional, and ready for year-round use.
Can this garage be used as a guest house? Absolutely. The upper-level living space is perfect for guests, in-laws, or short-term rentals.
Are the CAD files editable for personal changes? Yes, CAD files are included and easily customizable with your builder or architect.
Can I add plumbing or a full bathroom upstairs? Yes! The bonus room and recreation area are easily adaptable for bathroom additions.
Do I need a special lot to build this? Not at all. Its compact 33’ x 27’ footprint works well on standard lots or as an auxiliary structure.
Start Building Your Dream Garage Space Today
Have questions or want to tailor this plan to your needs? Contact our expert team at [email protected] or fill out our quick contact form.
Your future build starts with a great plan—customize it and create your dream space today!
All home plans include BOTH the CAD file and PDF file.

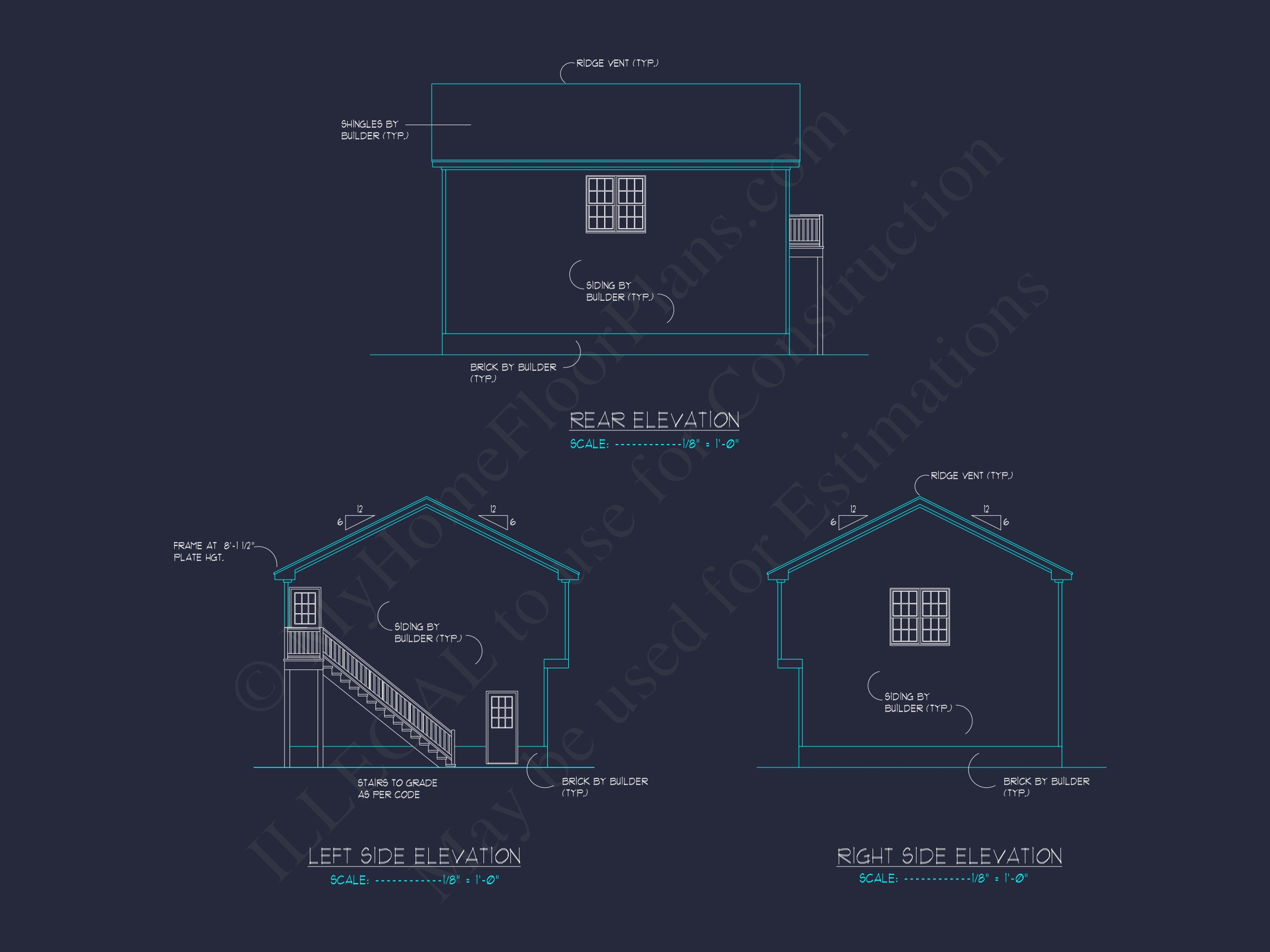

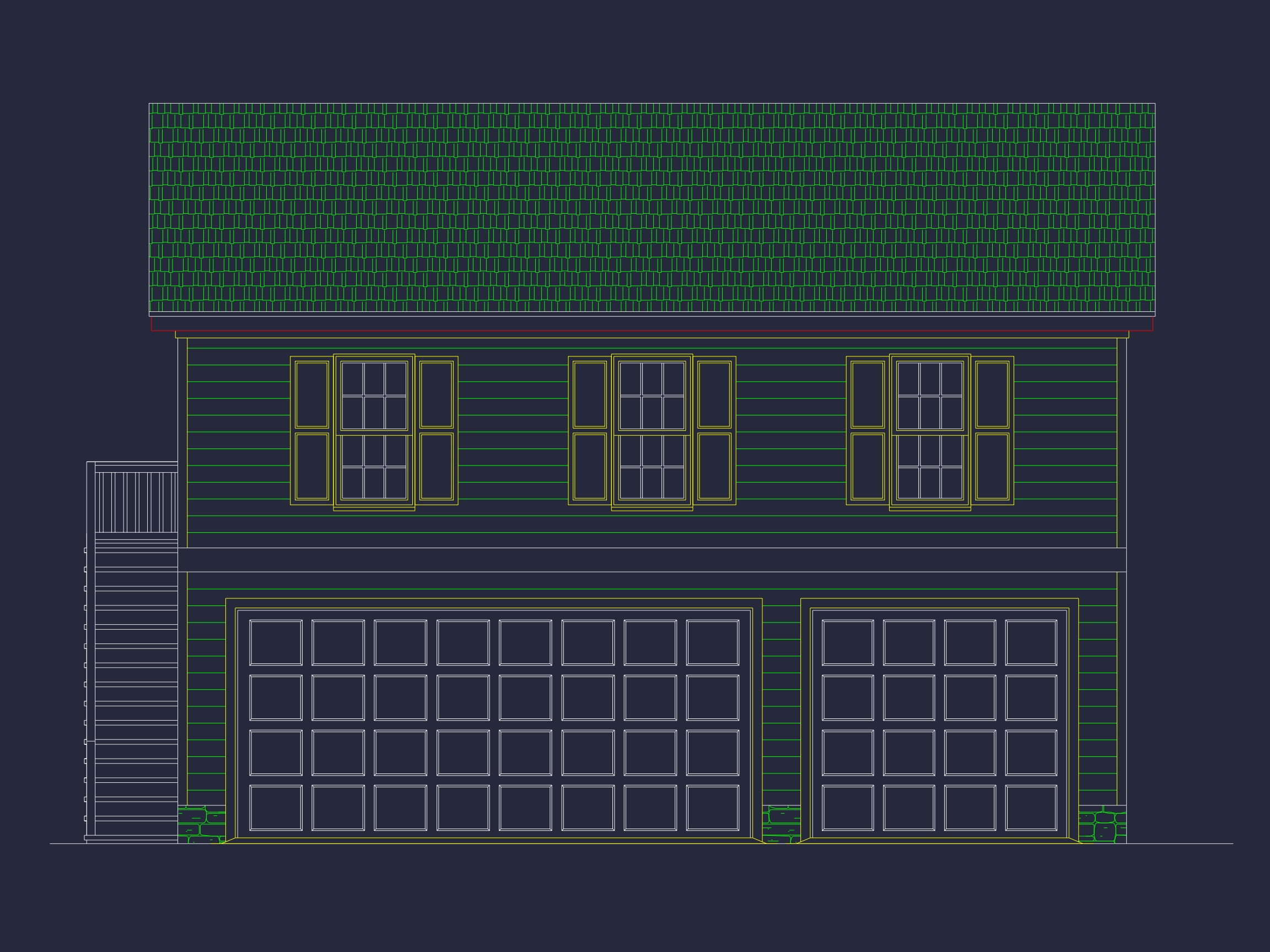

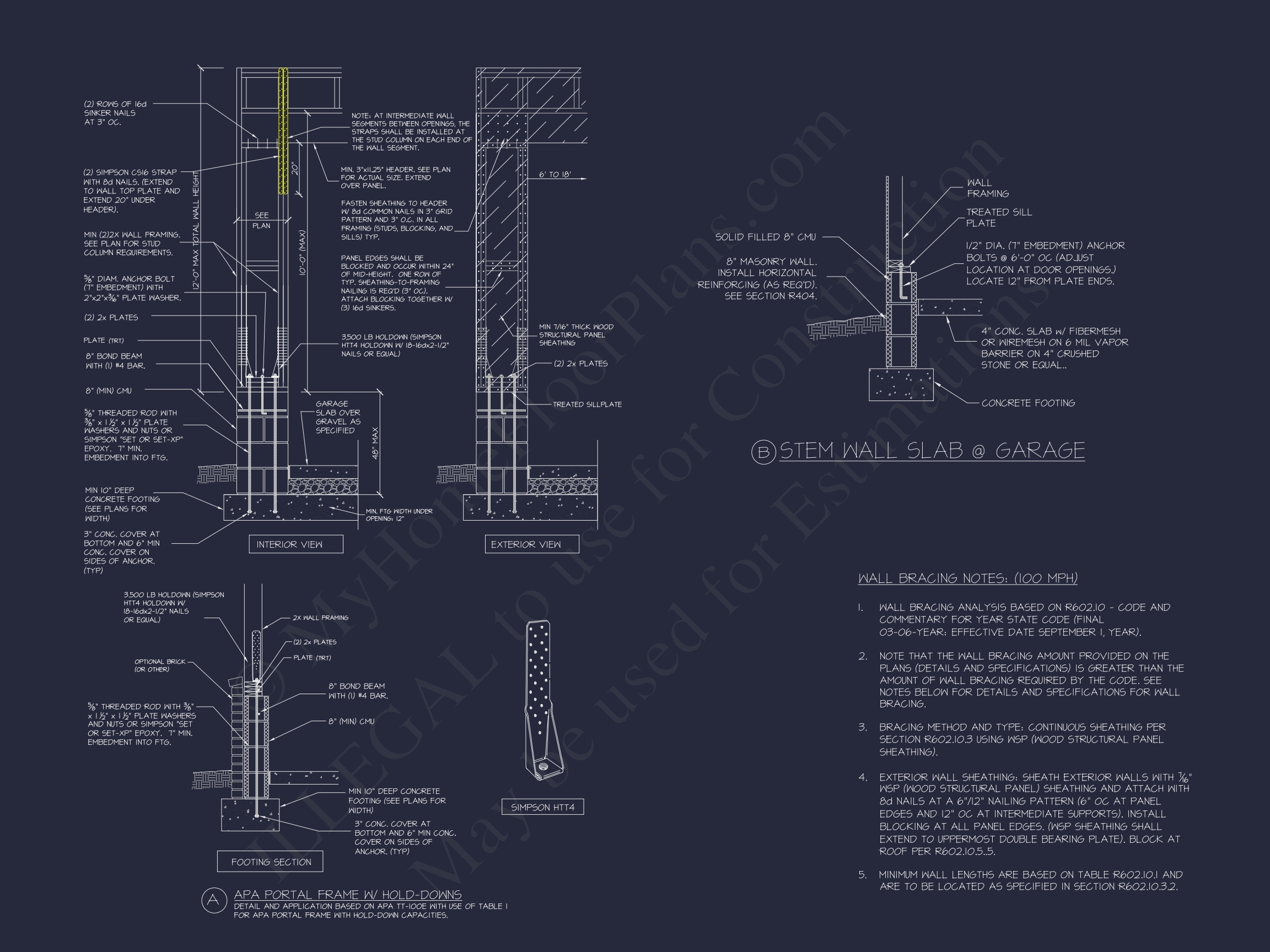

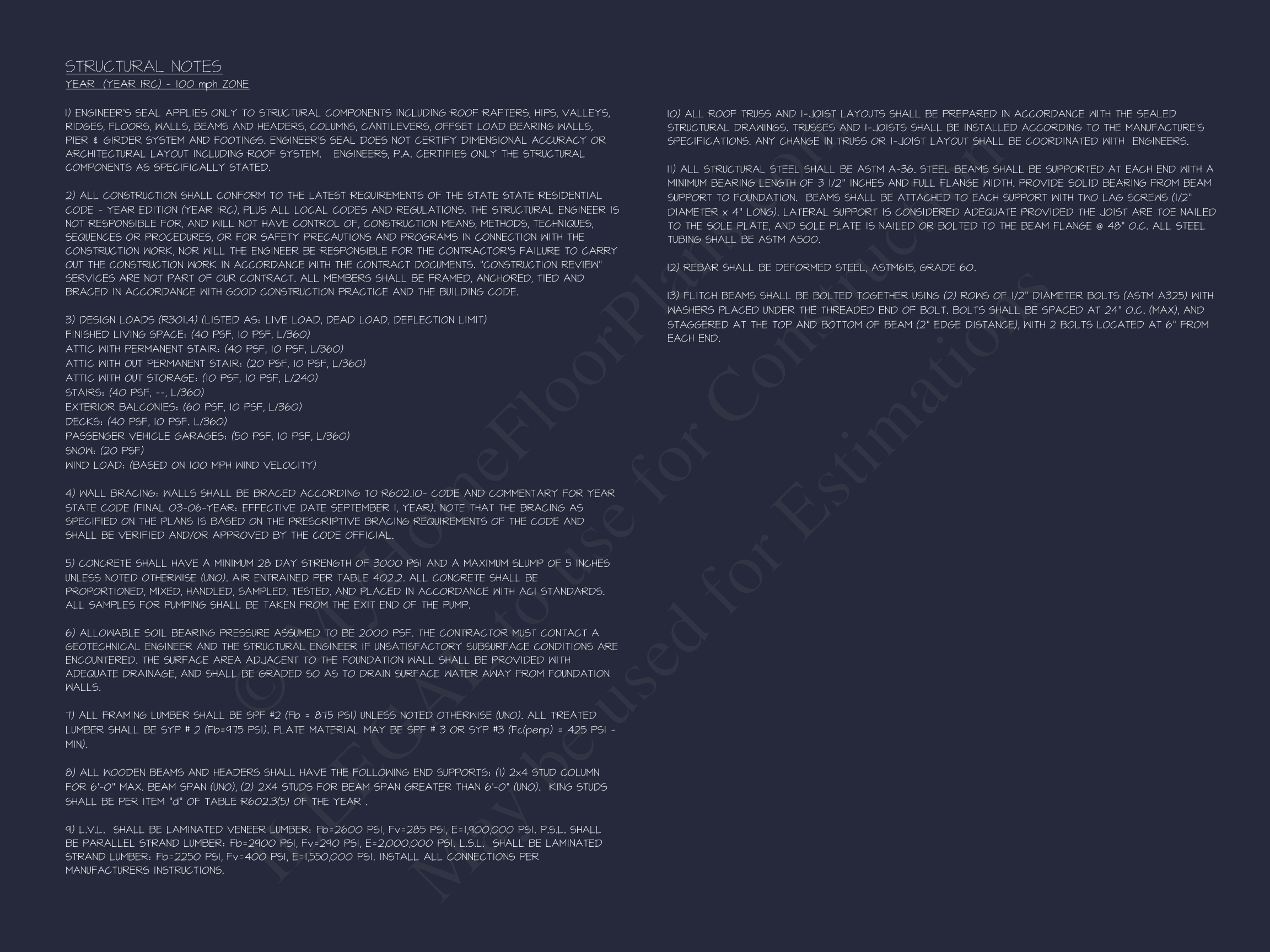

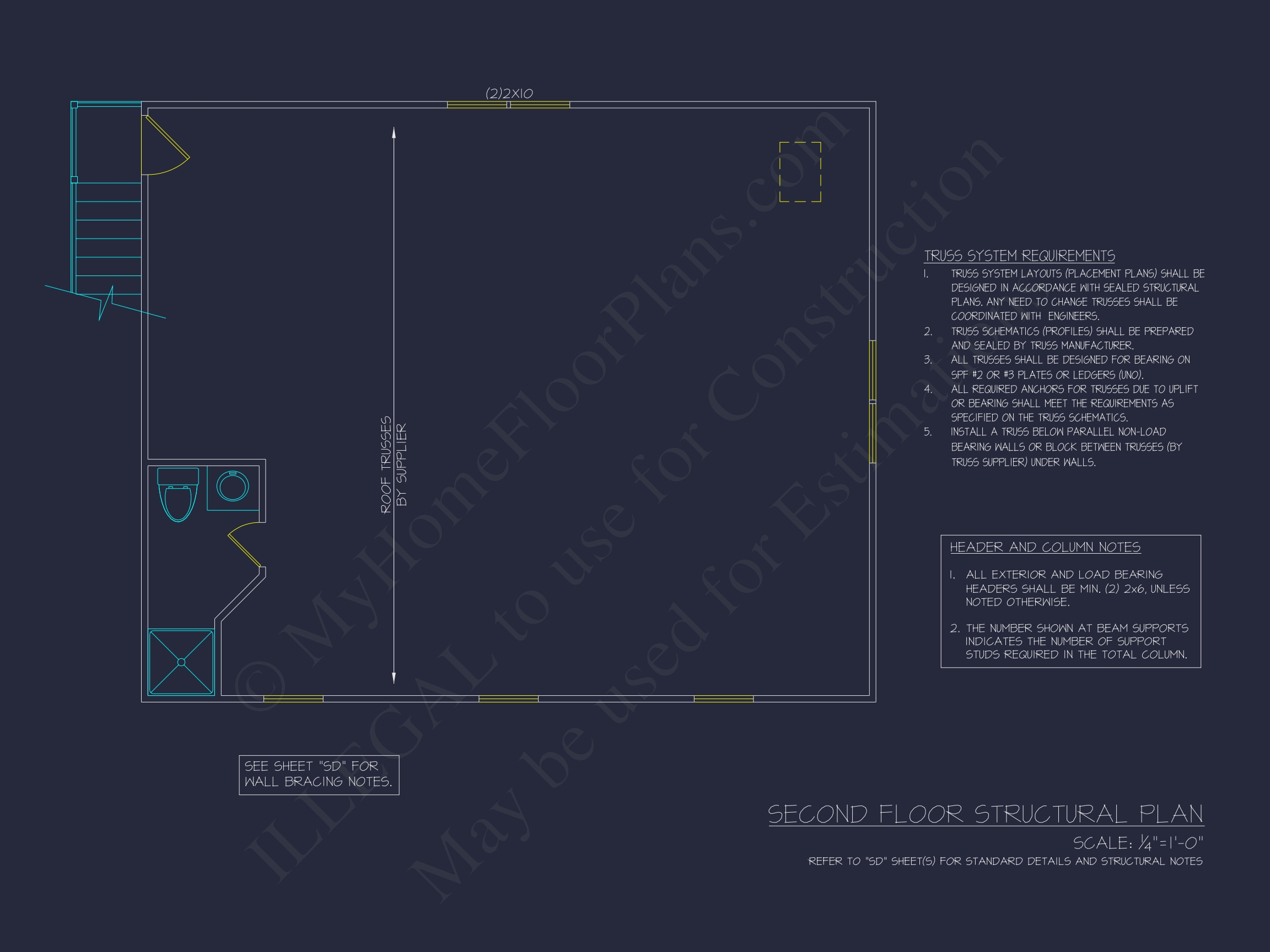

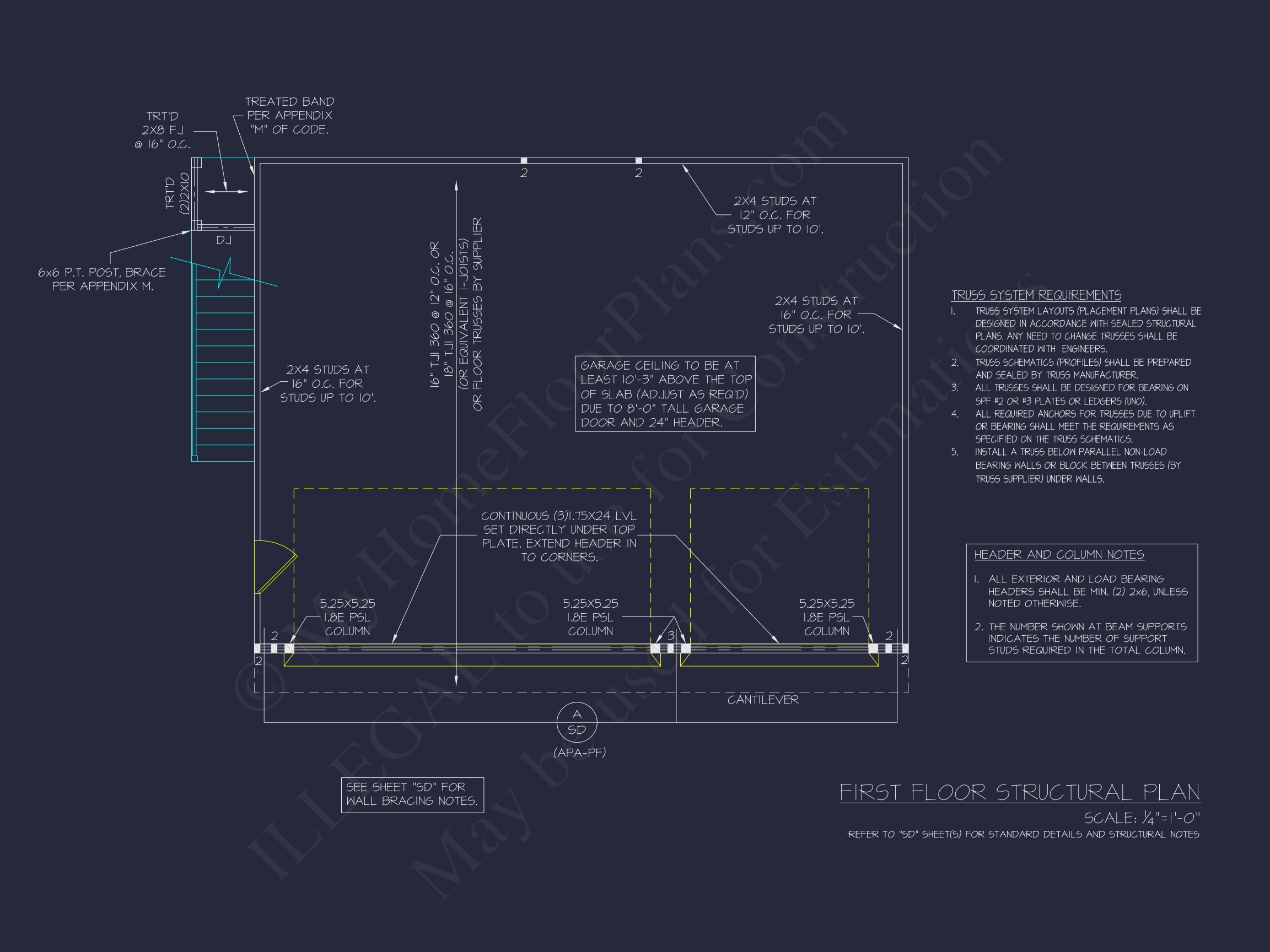

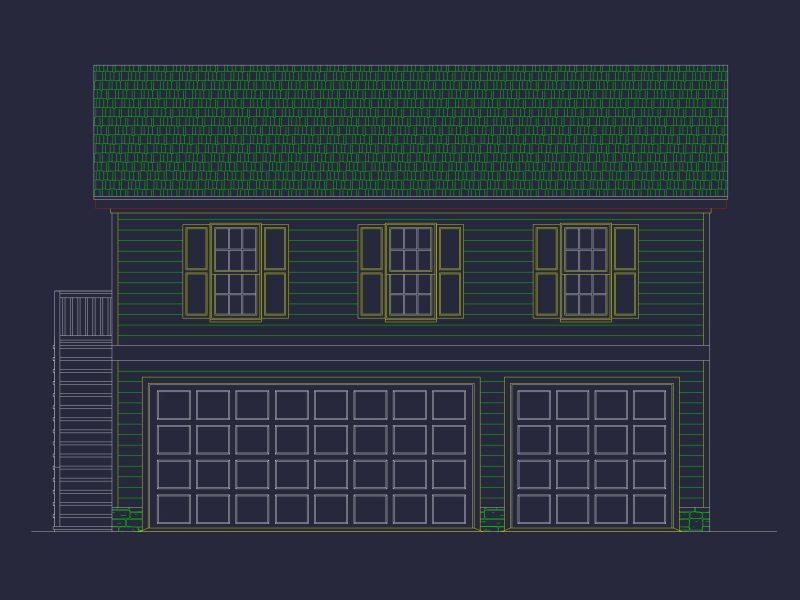

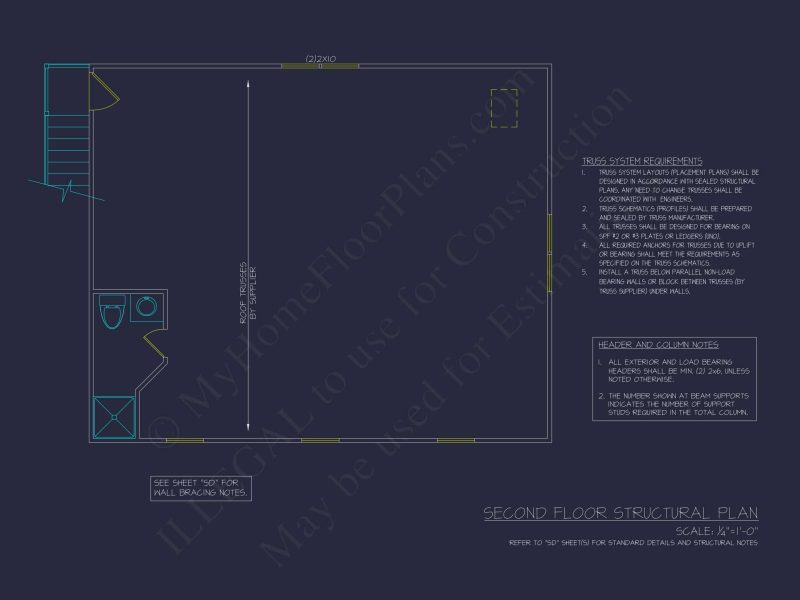

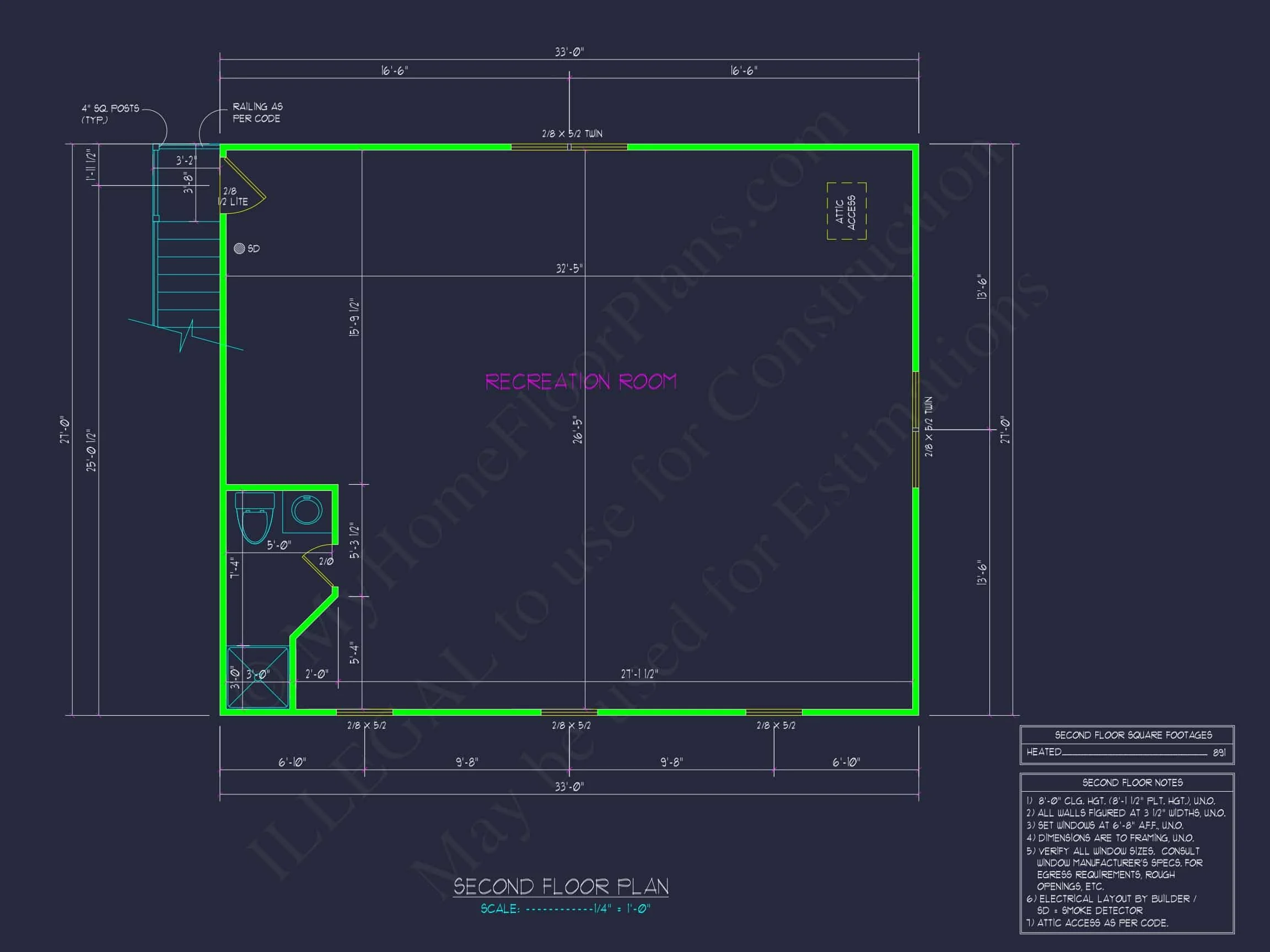

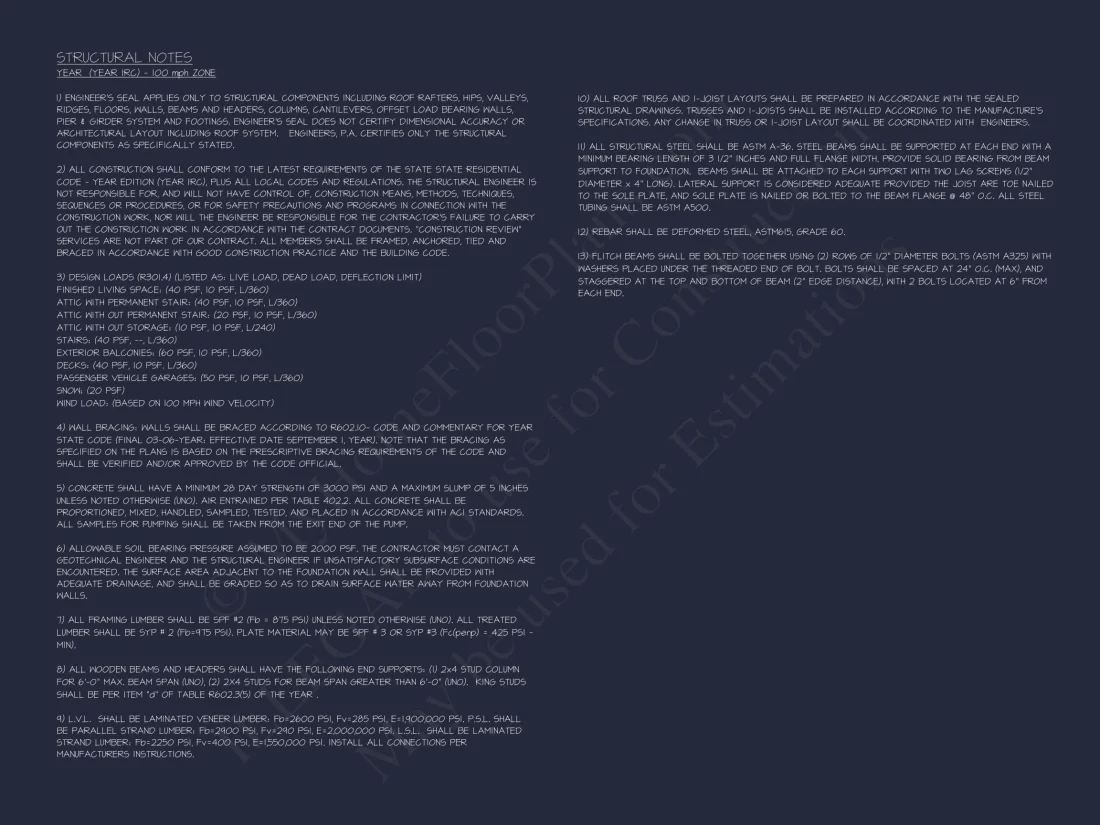

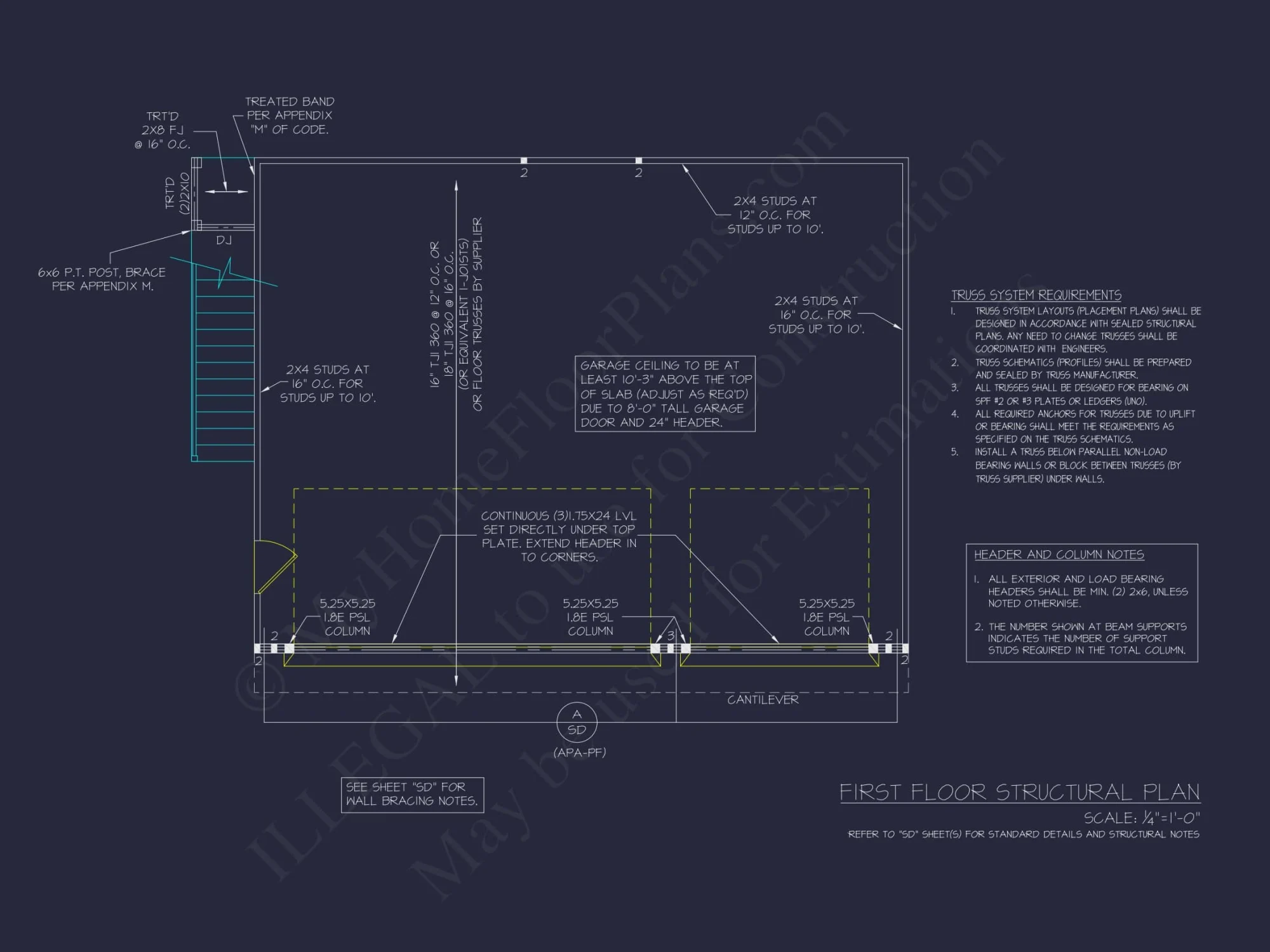

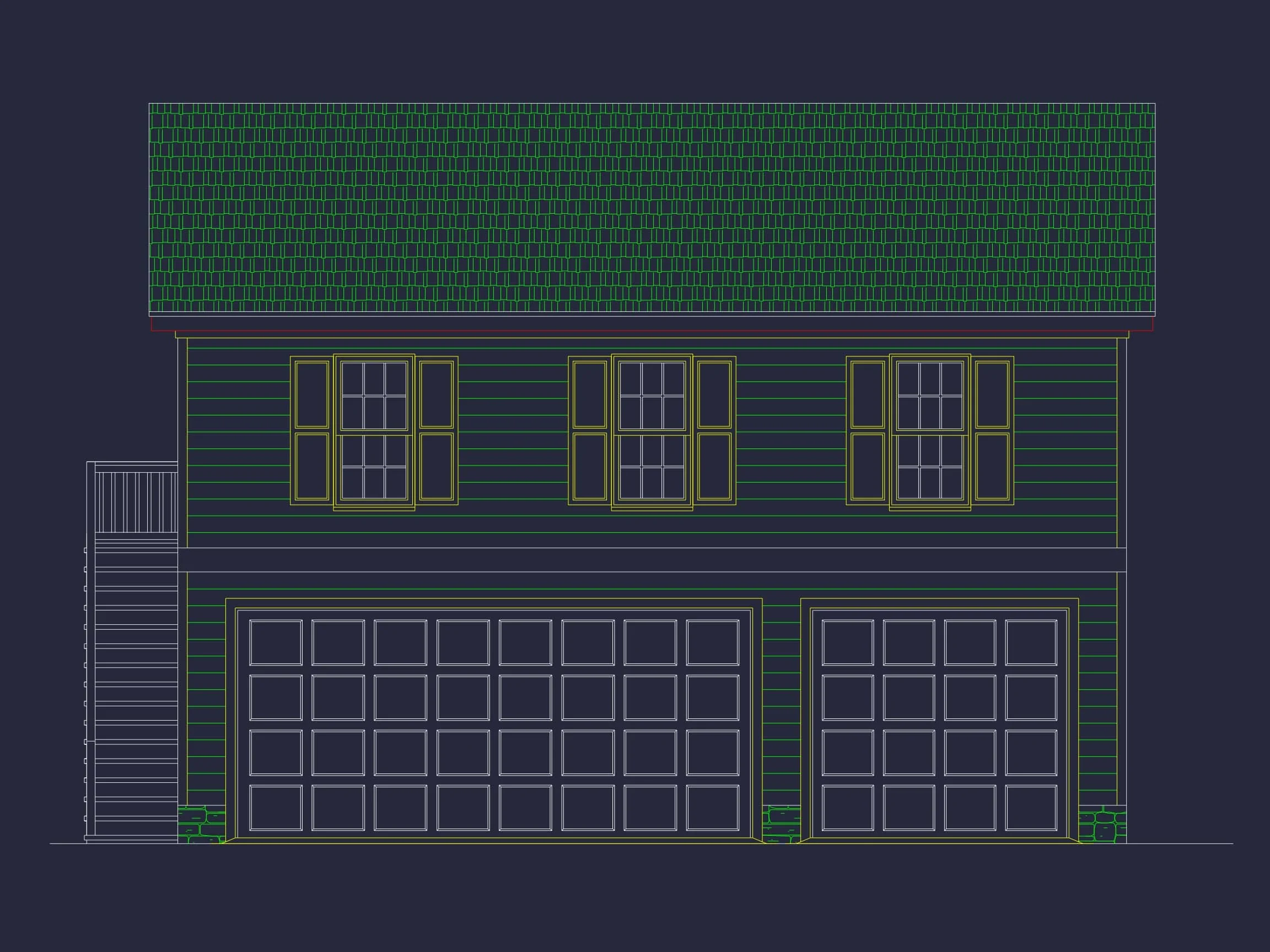

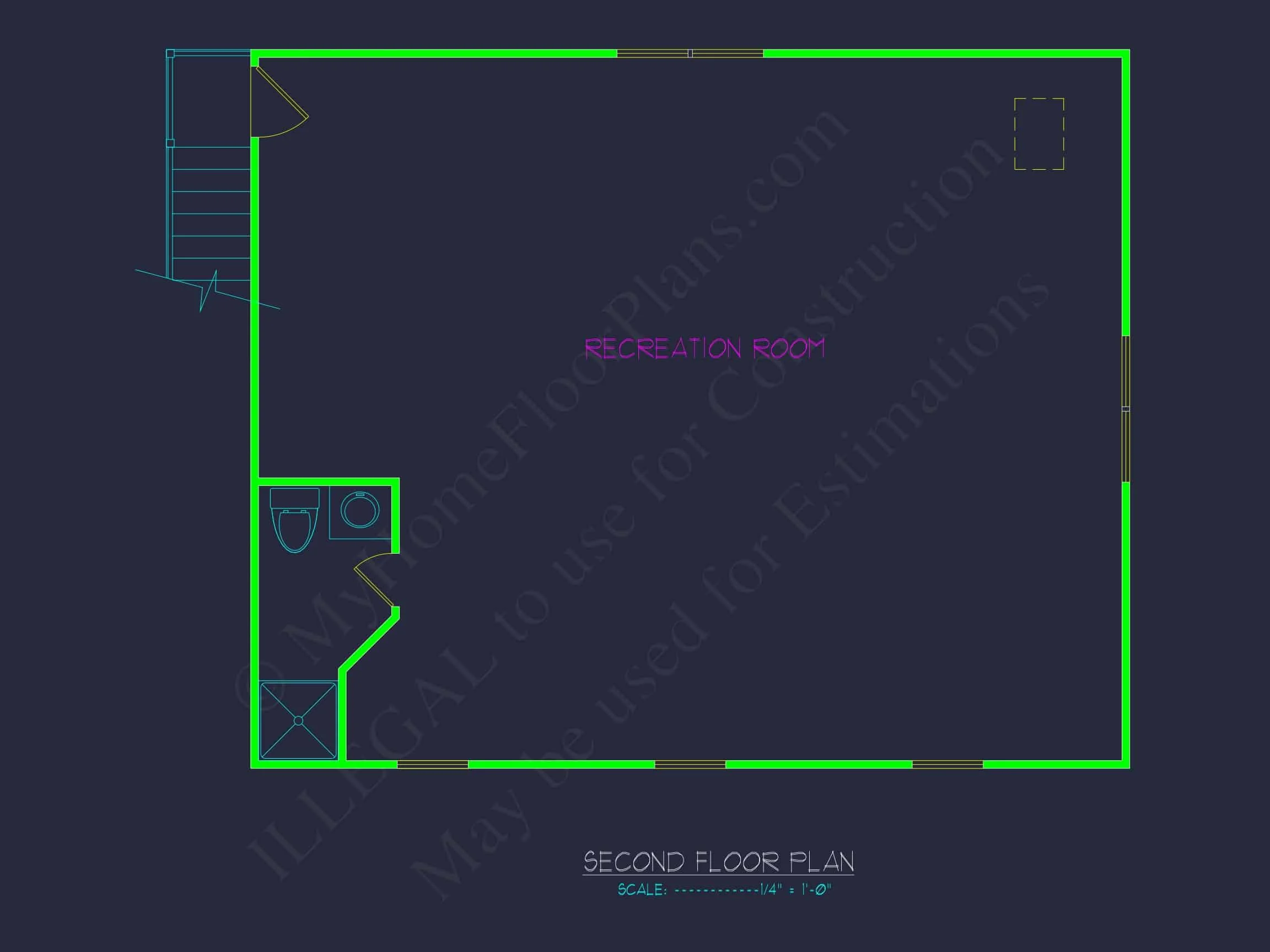

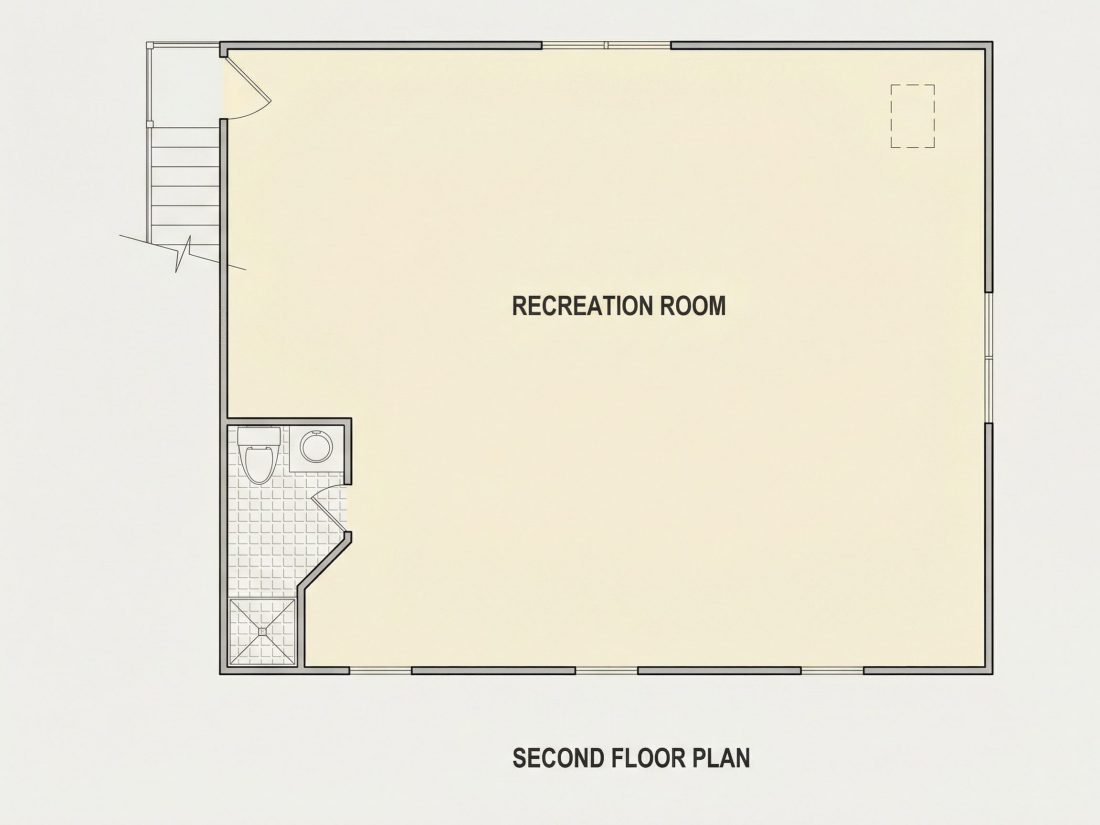

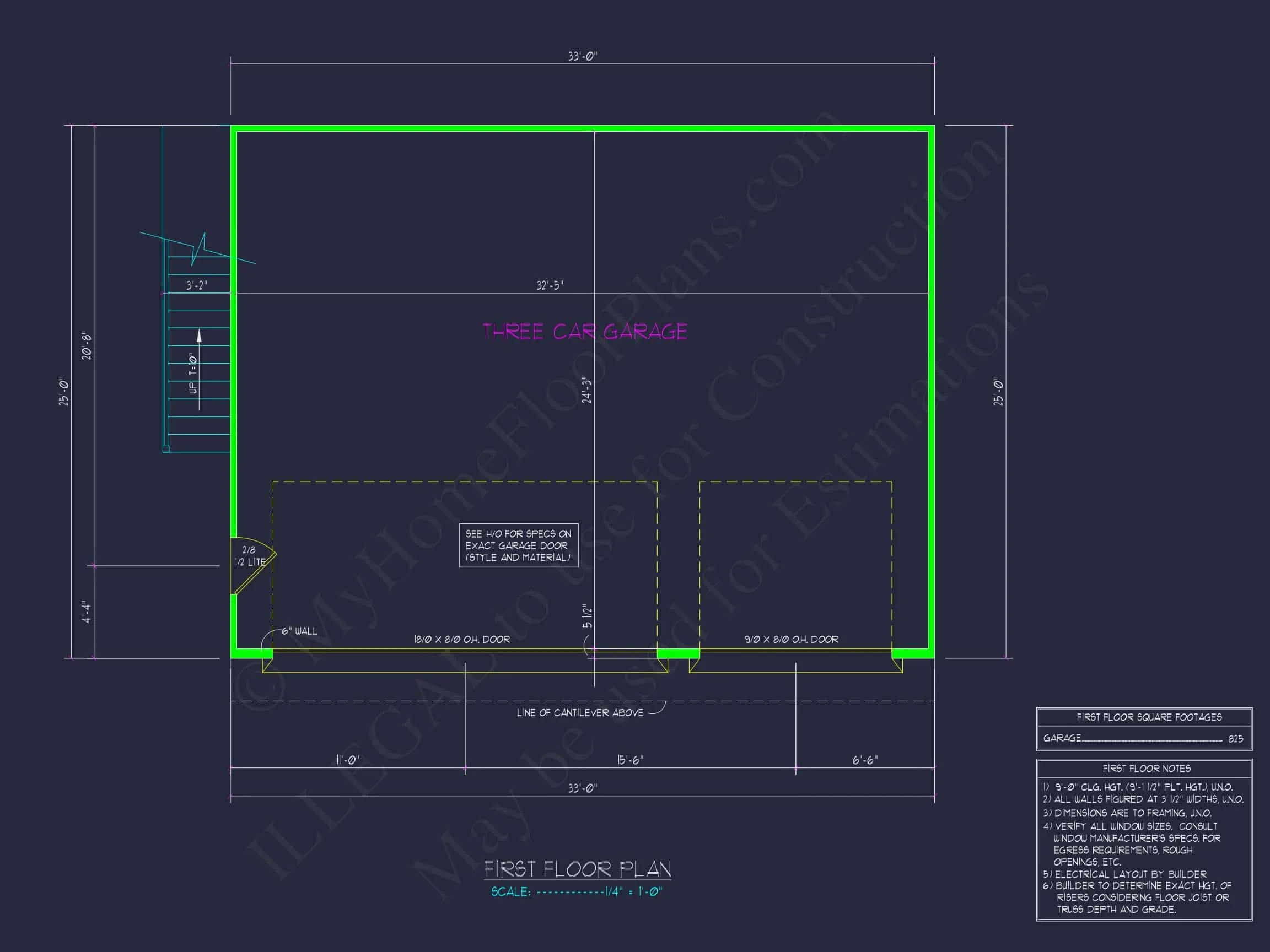

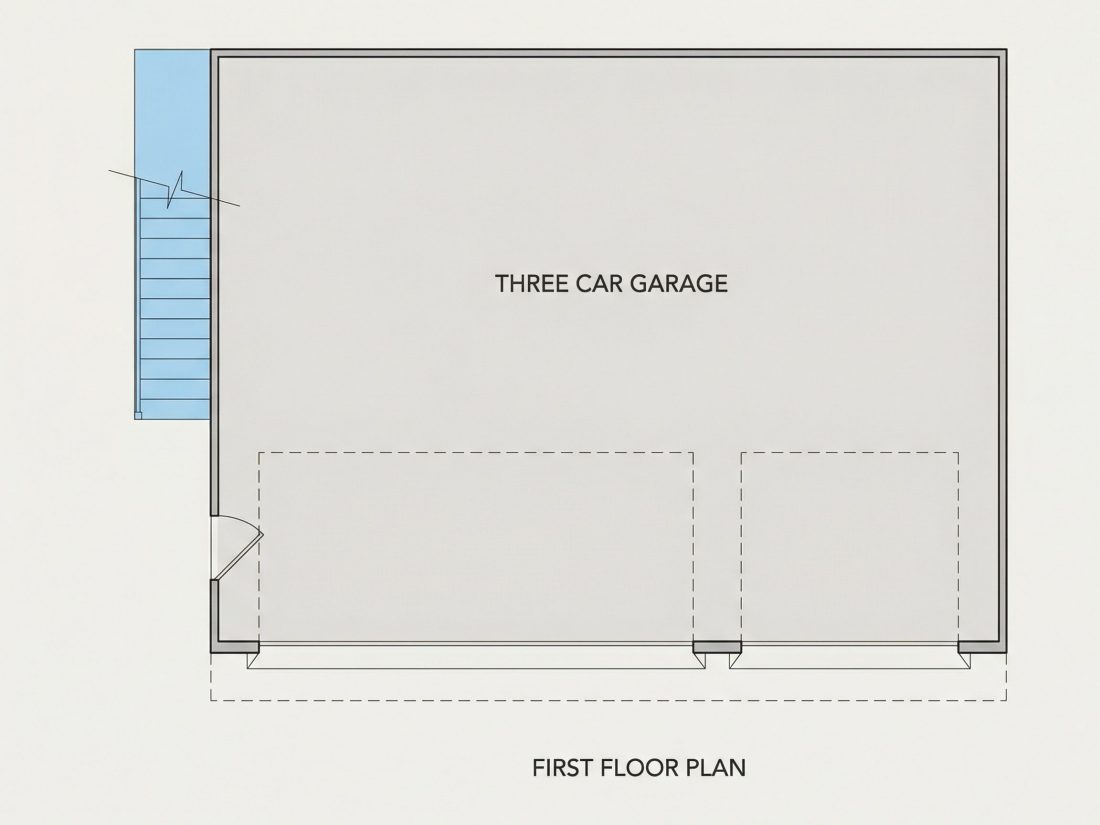

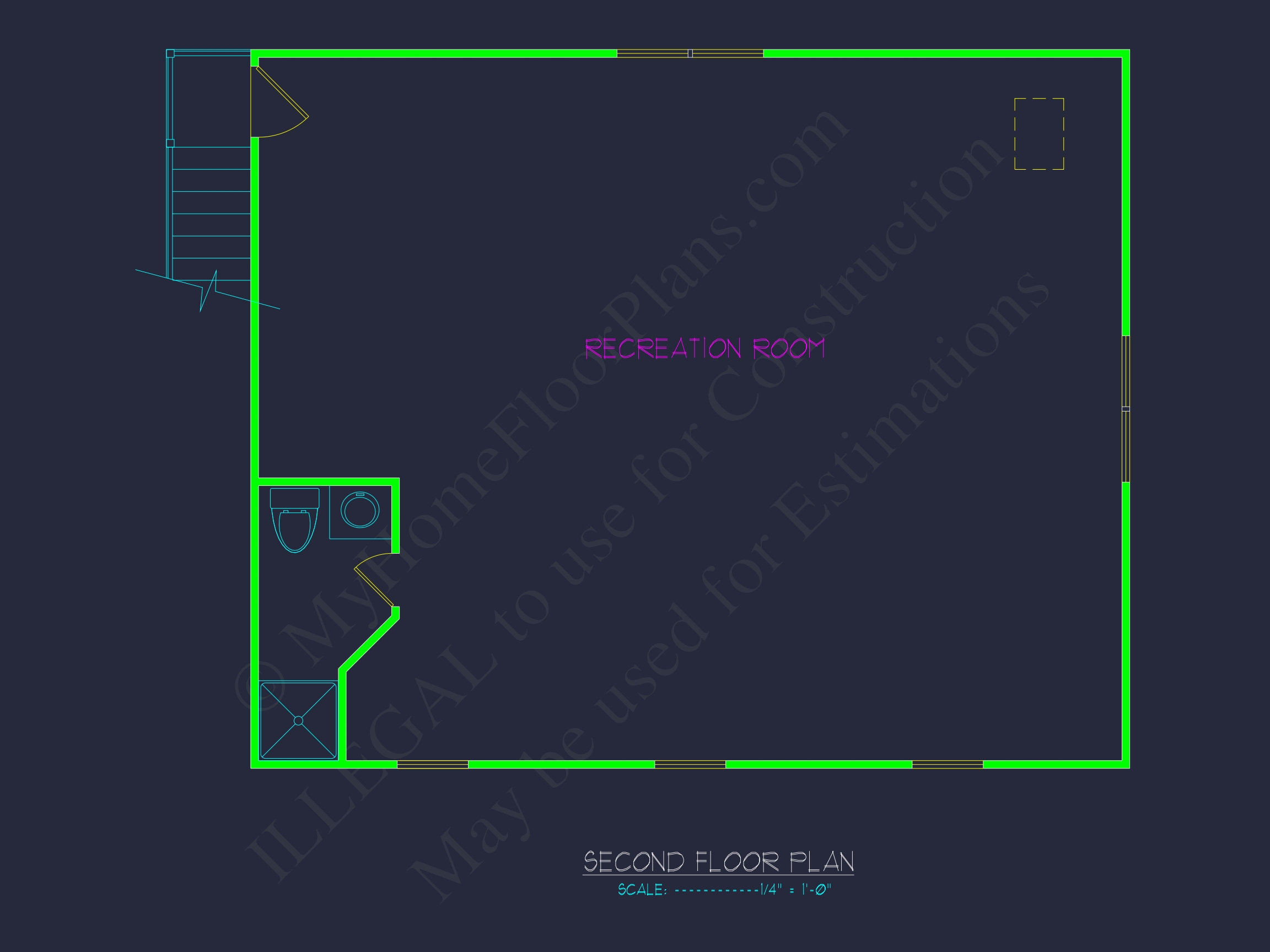

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
