Beautiful Modern house CAD Design with Versatile Floor Plans
Explore this stunning house blueprint featuring CAD designs and multiple floor plans. With 4043 sq. ft. of heated space, 5 bedrooms, 4 bathrooms & modern features.
Beautiful Modern Home CAD Design with Versatile Floor Plans Explore this stunning modern Craftsman blueprint with 4,043 heated sq. ft., 5 bedrooms, 4 bathrooms, and open floor plan—includes CAD and PDF files! This modern Craftsman-style house plan offers a perfect mix of comfort and functionality. …
Read More
Beautiful Modern Home CAD Design with Versatile Floor Plans
Explore this stunning modern Craftsman blueprint with 4, 043 heated sq. ft., 5 bedrooms, 4 bathrooms, and open floor plan—includes CAD and PDF files!
This modern Craftsman-style house plan offers a perfect mix of comfort and functionality. Designed for today’s families, it delivers timeless curb appeal and a smart, open layout across two spacious levels.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 4, 043 sq. ft. over two stories.
- Unheated extras: Covered front porch, rear patio, and 2-car garage.
Bedrooms & Bathrooms
- 5 total bedrooms including a luxurious Owner Suite on the second floor with private bath and walk-in closet.
- 4 full bathrooms offer comfort and privacy for family and guests alike.
Interior Highlights
- Vaulted ceilings and large windows maximize natural light and openness.
- Open floor plan connects the kitchen, dining, and family room seamlessly. View open layouts.
- Gourmet kitchen features a central island and walk-in pantry for everyday ease.
- Upstairs laundry room adds convenient access from all bedrooms.
- Dedicated study/office creates the perfect remote work or homework space.
Outdoor Living Features
- Charming covered front porch and rear patio for outdoor relaxation and entertaining.
- Exterior details include board and batten siding, stone accents, and shingle elements that elevate curb appeal.
Architectural Style: Modern Craftsman
This design blends clean lines, natural materials, and smart functionality—perfect for modern families who want stylish comfort and practical layout solutions.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Modern House Plans
- Plans with Kitchen Islands
- Plans with First Floor Owner Suites
- Covered Porch House Plans
- Plans with Walk-In Closets
Frequently Asked Questions
What’s included with this house plan? All plans come with editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and free foundation changes.
Can I customize the layout? Yes! We offer fast and affordable modifications. Get a quote here.
Does this plan have a basement? Yes. A full basement provides optional recreation space or additional storage.
How many stories is this home? This is a 2-story layout with four bedrooms upstairs and one on the main level.
Can I preview the blueprints? Yes. Preview every sheet before you buy.
Learn More About the Modern Craftsman Style
Explore the origins and evolution of this style with this detailed guide from ArchDaily.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 34'-8" |
|---|---|
| Depth | 50'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Basement, Family Room, Fireplace, Mudroom, Office/Study, Open Floor Plan, Recreational Room, Upstairs Laundry Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
9 FT+ Ceilings | Basement | Covered Front Porch | Craftsman | Family Room | Fireplaces | First-Floor Bedrooms | Front Entry | Home Plans with Mudrooms | Kitchen Island | Medium | Modern Suburban | Office/Study | Open Floor Plan Designs | Owner’s Suite on Second Floor | Patios | Recreational Room | Second Floor Bedroom | Upstairs Laundry Room | Walk-in Closet | Walk-in Pantry
All home plans include BOTH the CAD file and PDF file.

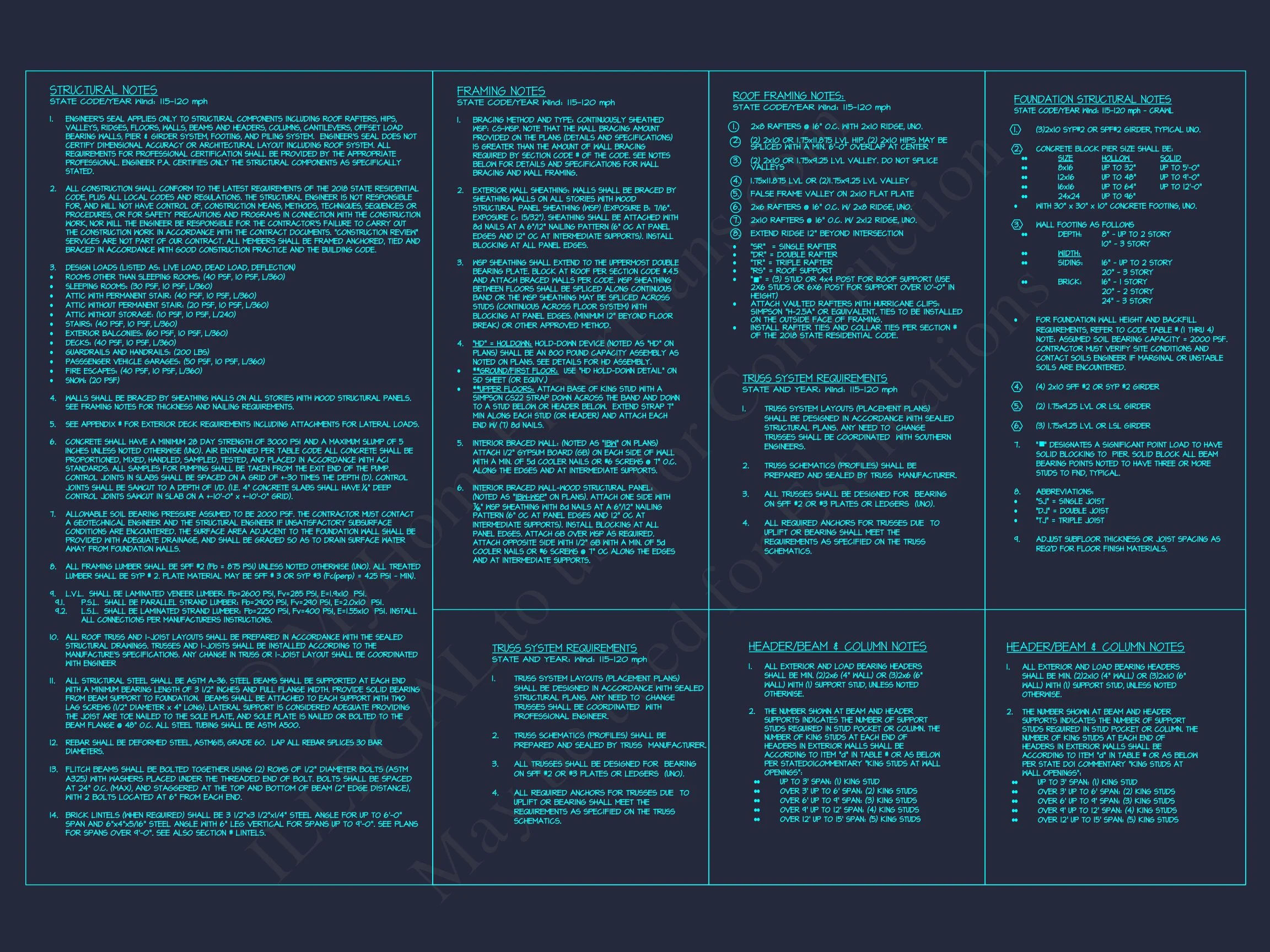

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
18-1684 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
