house Plan Blueprint Designs with CAD Details
Explore our architectural house plan with 3-5 bedrooms and a range of indoor features. Discover blueprint designs and CAD details for your dream house.
Home Plan Blueprint Designs with CAD Details Explore this architectural house plan featuring 3–5 bedrooms, up to 3 baths, and CAD blueprints for a flexible layout that fits families or professionals. This conventional-style house plan offers a perfect mix of comfort and functionality. Designed…
Read More
Original price was: $2,014.56.$1,141.59Current price is: $1,141.59.
999 in stock
| Width | 68'-0" |
|---|---|
| Depth | 50'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Family Room, Foyer, Great Room, Mudroom, Office/Study, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
No reviews yet.
Home Plan Blueprint Designs with CAD Details
Explore this architectural house plan featuring 3–5 bedrooms, up to 3 baths, and CAD blueprints for a flexible layout that fits families or professionals.
This conventional-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: Approx. 2, 800+ sq. ft. over two floors (flexible).
- Unheated extras: Includes front porch, screened porch, and side-entry garage.
Bedrooms & Bathrooms

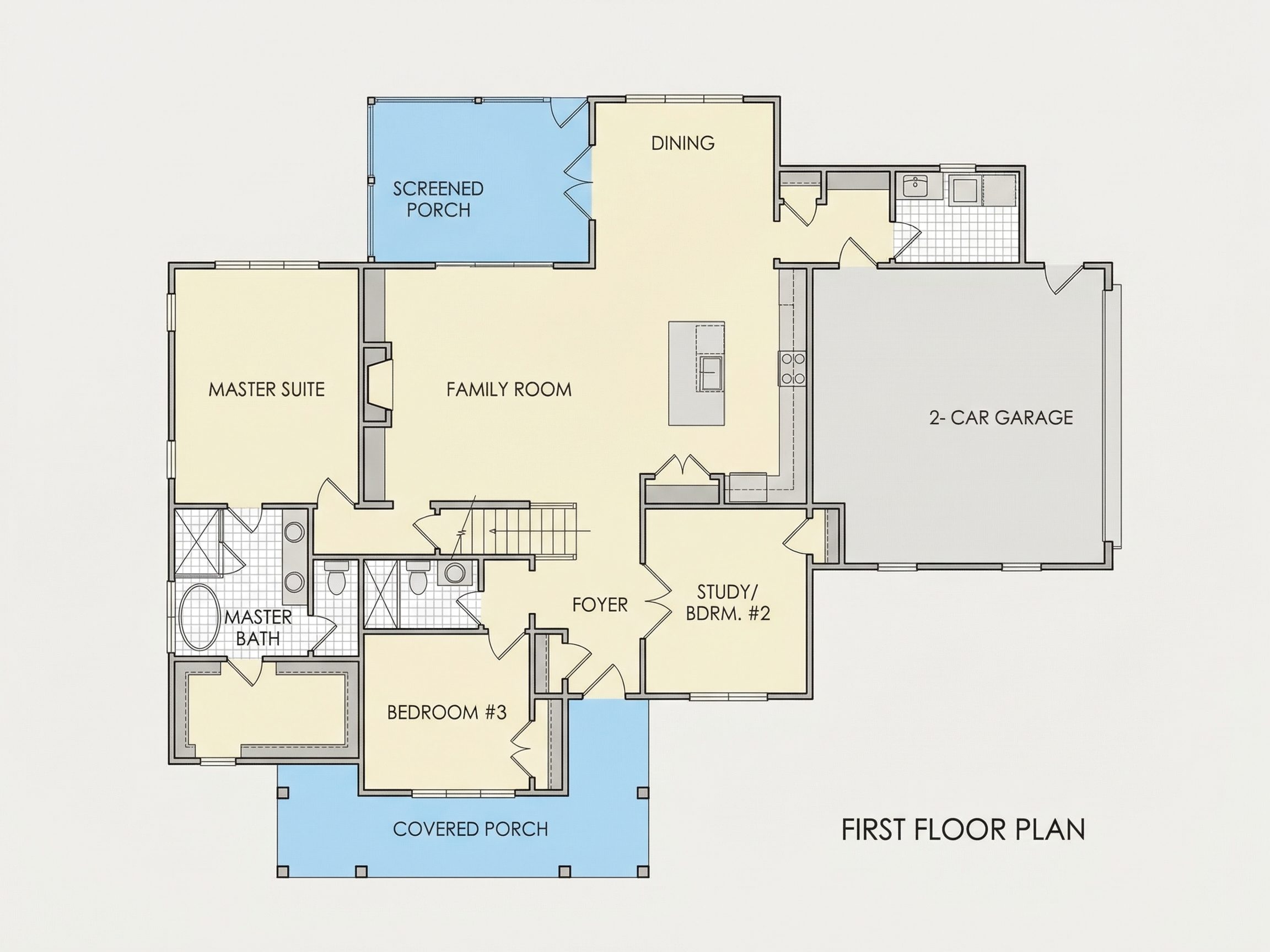

- 3 to 5 spacious bedrooms, including options for a first-floor Owner Suite or guest space.
- 2–3 full bathrooms designed for privacy and family convenience.
Interior Highlights
- Vaulted ceilings enhance vertical space and natural light.
- Open floor plan links the kitchen, dining, and family room. View open layouts.
- Kitchen island anchors a functional cooking and gathering space.
- Dedicated office/study for remote work or hobbies.
- Recreational room adds flexibility for media, games, or fitness.
Garage & Storage Details
- Garage Bays: 2-car garage with convenient side entry.
- Garage Type: Attached for easy interior access.
- Storage: Includes attic space, mudroom, and built-in closets.
Outdoor Living Features
- Covered front porch welcomes visitors and adds curb appeal.
- Screened porch ideal for relaxing or entertaining in all seasons.
- Durable exterior with siding and stone for classic charm.
Architectural Style: Conventional
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the Conventional house style or explore its roots on ArchDaily.
Bonus Features
- Flex Room: Easily adapted for a guest bedroom, gym, or craft room.
- Multiple layout options: Adjust bedroom count or room placement to suit your needs.
- Side-load garage: Enhances curb appeal and traffic flow.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- 3-Bedroom House Plans
- Plans with Home Offices
- Screened-In Porch House Plans
- Plans with Flex Spaces
- Plans with Kitchen Islands
Frequently Asked Questions
What’s included with this house plan? Each plan comes with CAD files, PDFs, an unlimited build license, and structural engineering—plus free foundation modifications.
Can I adjust the room count? Yes. This blueprint supports 3–5 bedrooms and layout changes. Request a quote for changes.
Is this design good for families? Absolutely. With multiple bedrooms, open space, and a flex room, it’s great for growing families.
How do I preview the blueprints? Easy—just click here to see every sheet before you buy.
Do all plans come with engineering? Yes, every plan includes professionally engineered, code-compliant sheets for a smooth building process.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
19-1187 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
