Clubhouse Floor Plan with Pool Pavilion and Architectural Designs
This pool clubhouse floor plan combines style and function with detailed CAD architecture designs. Features include restrooms, porches, a wet bar, and more.
Original price was: $1,582.56.$896.79Current price is: $896.79.
999 in stock
| Width | 94'-8" |
|---|---|
| Depth | 34'-6" |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Kitchen Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |

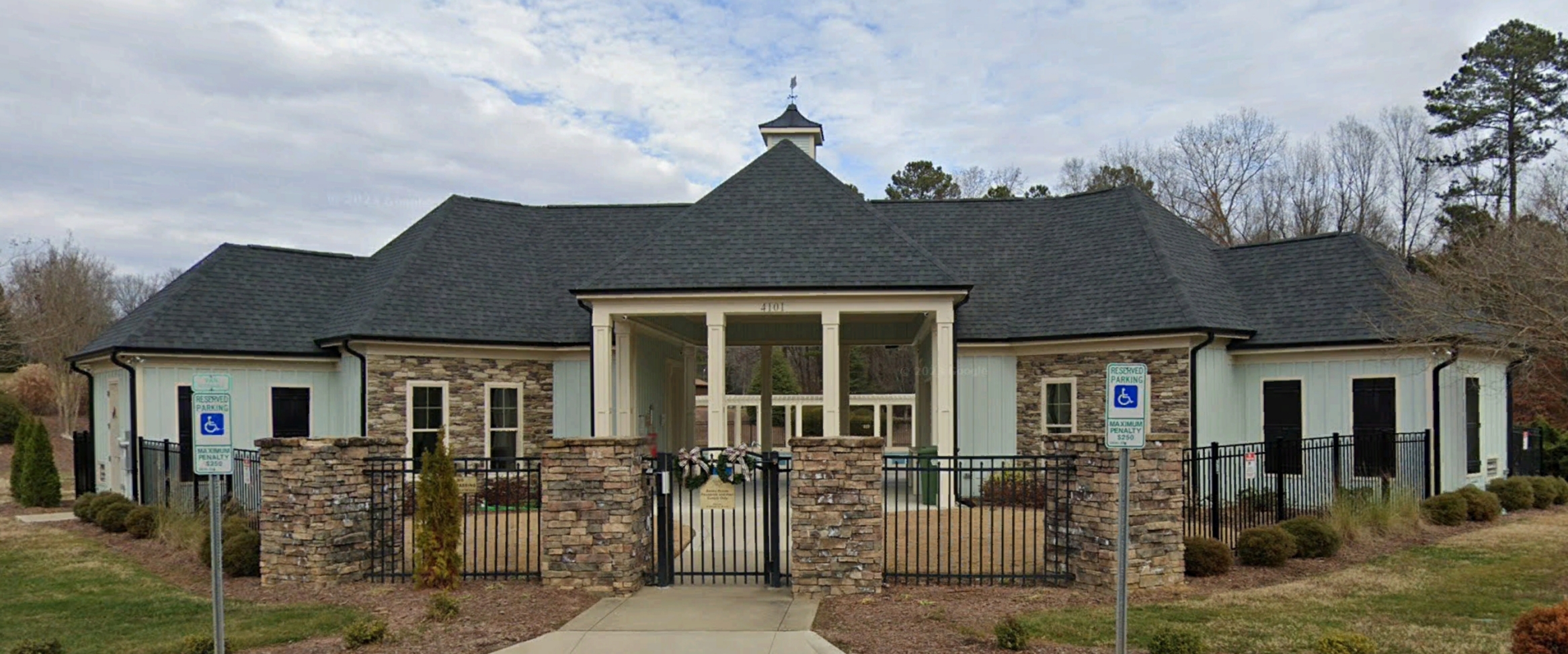

| After Build Photos |

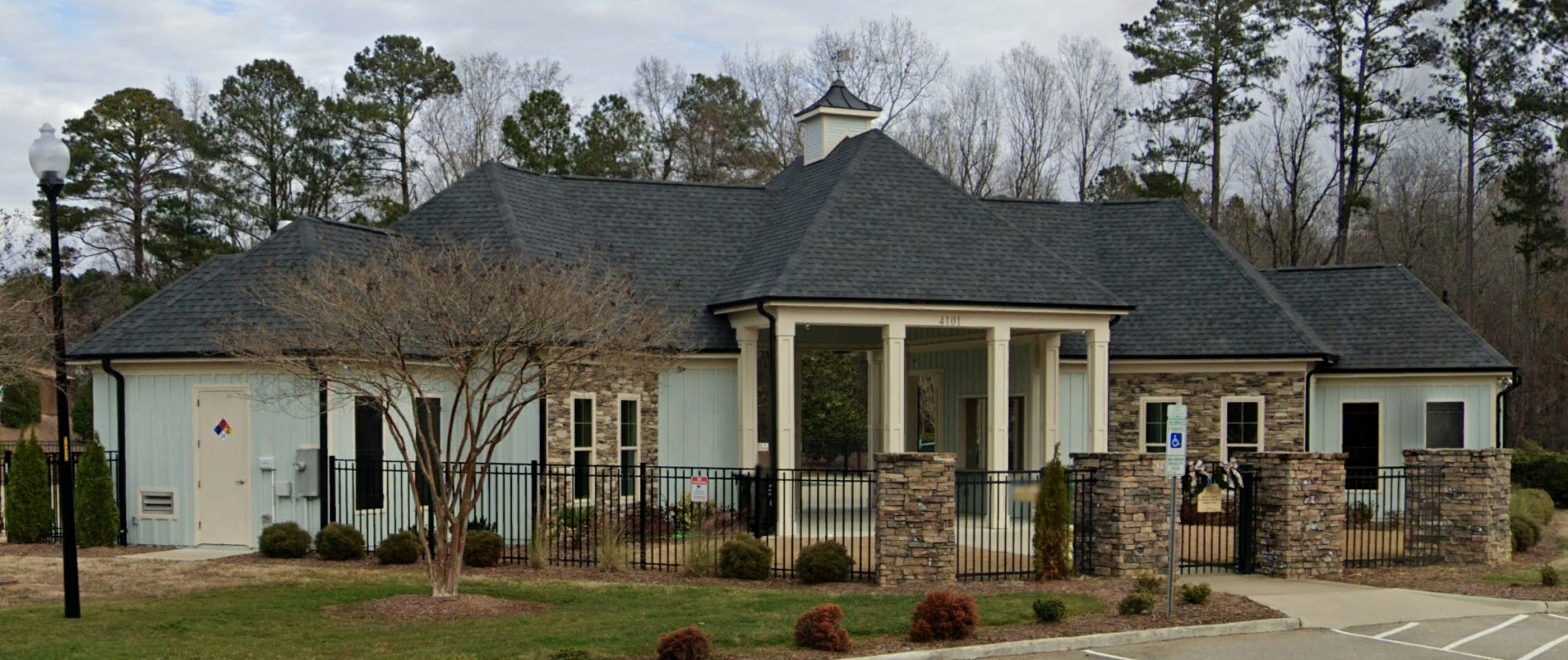

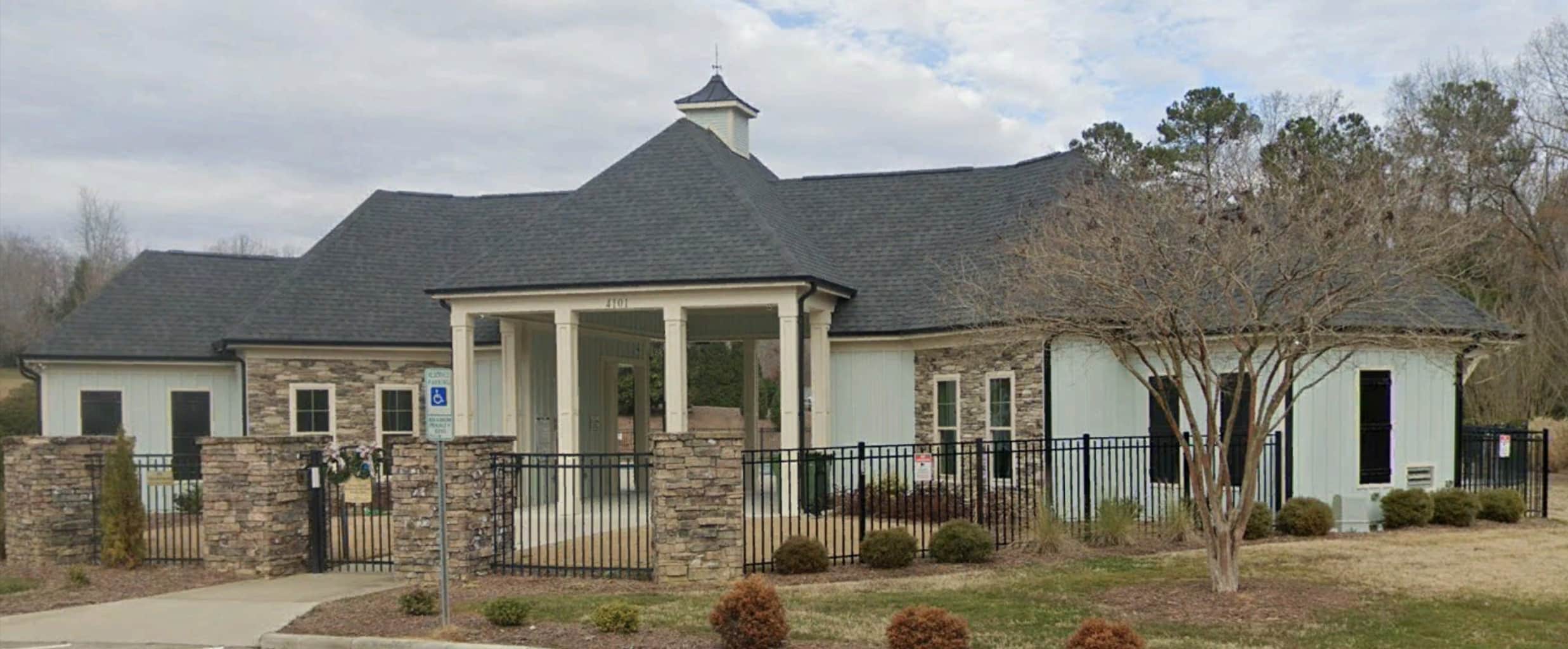

Clubhouse Floor Plan with Pool Pavilion and Craftsman Architectural Style
This relaxing pool clubhouse design offers 3, 267 sq. ft. under roof with a wet bar, covered porches, and full CAD blueprints—ideal for communities or private retreats.
This poolside clubhouse floor plan merges classic Craftsman design with functional architecture. With CAD blueprints, detailed layouts, and built-in features for leisure and hosting, it’s the perfect structure to complement residential developments or private estates.

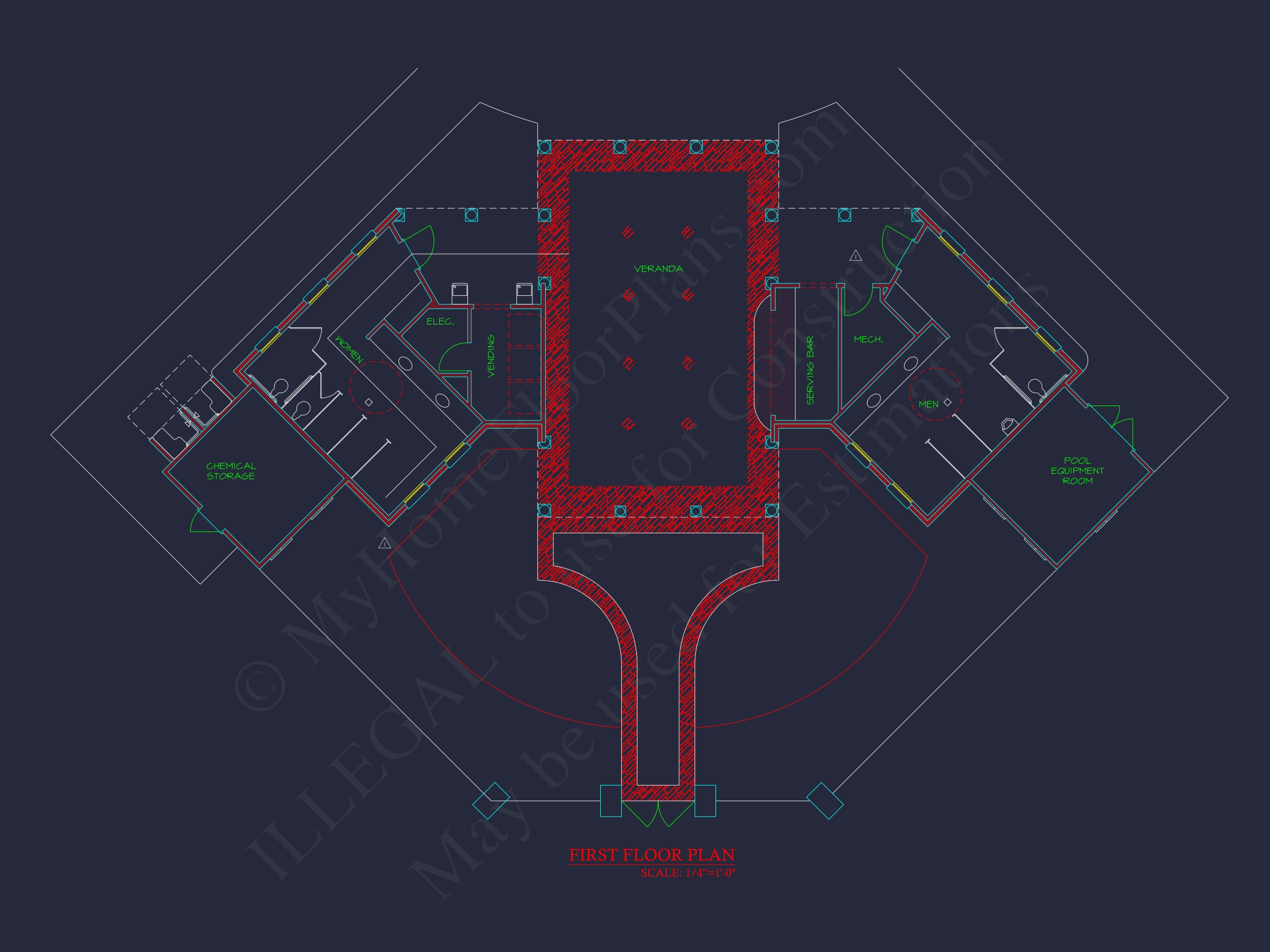

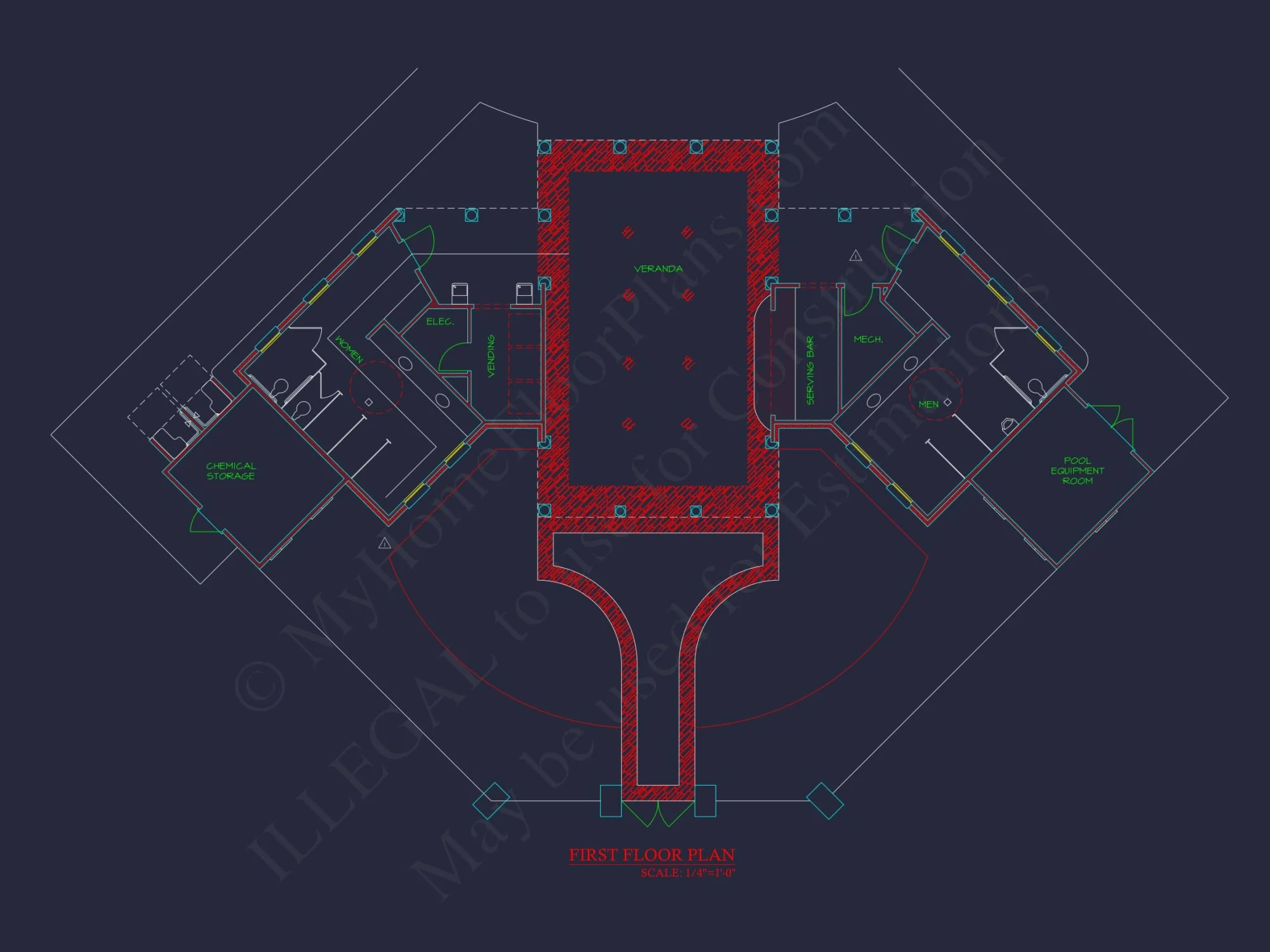

Key Features of the Clubhouse Floor Plan
Living Areas – Heated & Unheated
- Heated area: Approximately 1, 177 sq. ft. on one level.
- Unheated extras: Includes spacious covered front and rear porches perfect for lounging and shaded gatherings.
Bathrooms & Convenience Spaces
- Dedicated men’s and women’s restrooms—ideal for community or recreational use.
- Foyer for smooth guest entry and easy event flow.
Interior Highlights
- Wet bar kitchenette for serving refreshments during poolside events.
- Open interior layout promotes easy circulation and flexibility.
- 10-foot ceilings provide a bright and airy feel throughout.
Garage & Storage Details
- No garage bays – this structure is designed as a dedicated social or recreational space.
- Storage: Interior closet and utility access for supplies or seasonal gear.
Outdoor Living Features
- Covered rear porch perfect for shaded relaxation after a swim.
- Front covered entry creates a welcoming, protected arrival zone.
- Low-maintenance slab foundation ensures stability and ease of construction.

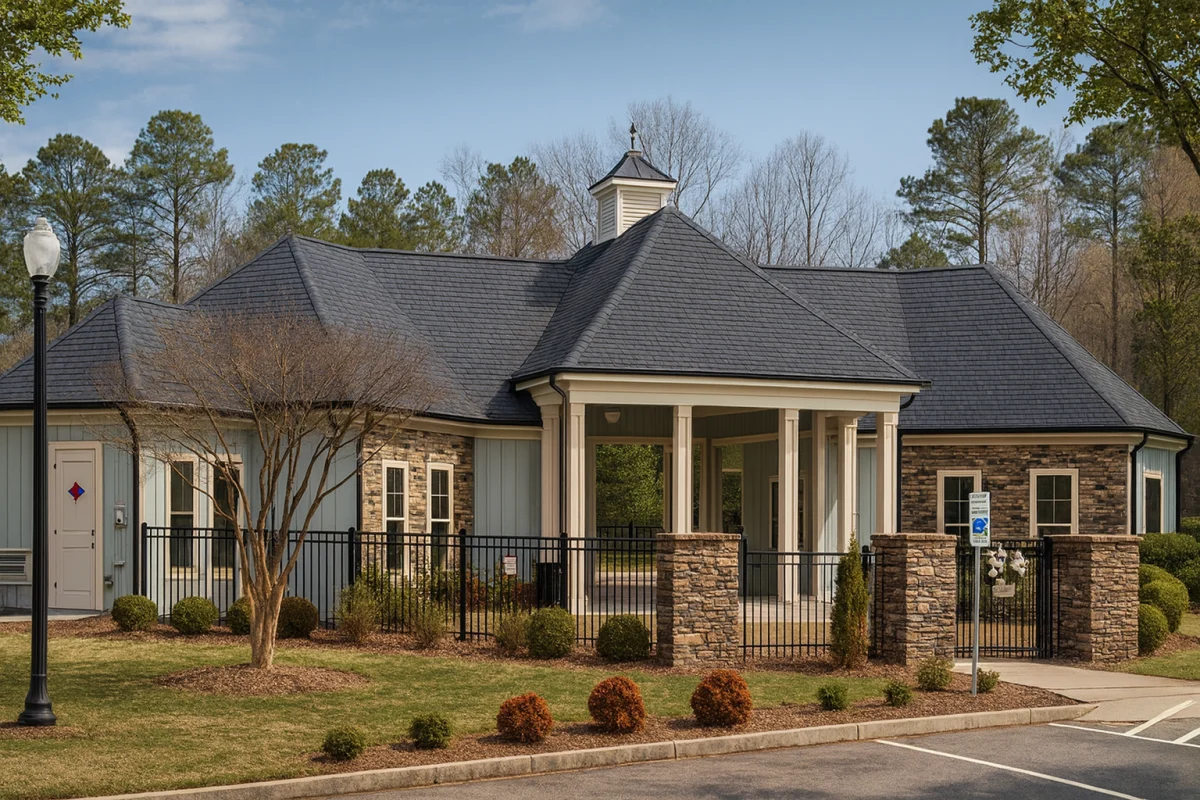

Architectural Style: Traditional Craftsman
This layout uses natural materials like stone and siding to echo Craftsman-style curb appeal. With its clean lines and purposeful design, it adds character to any outdoor space. Learn more about the Craftsman architectural roots or explore its evolution on ArchDaily.
Bonus Features
- Perfect for poolside entertaining—enhance any outdoor space with elegance and purpose.
- Ideal for HOA or neighborhood amenities—functional restrooms, covered seating, and bar service.
- Flexible event space—perfect for small gatherings, birthdays, or community meetings.
Included Benefits with Every Plan
- CAD + PDF Files: Professionally designed, editable, and ready for builders.
- Unlimited Build License: Use the plan as often as needed—with no restrictions.
- Free Foundation Changes: Choose between slab, crawlspace, or basement options.

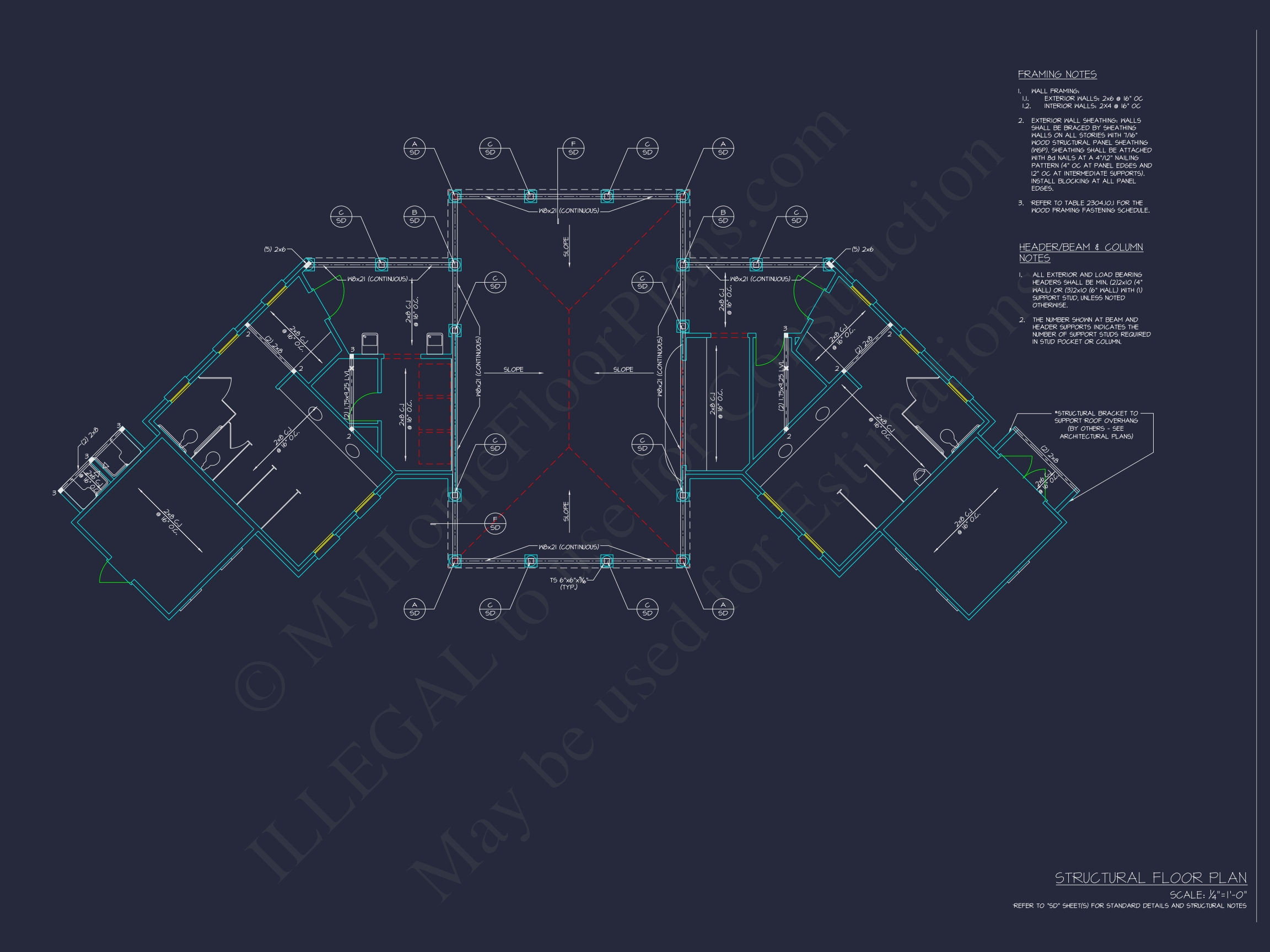

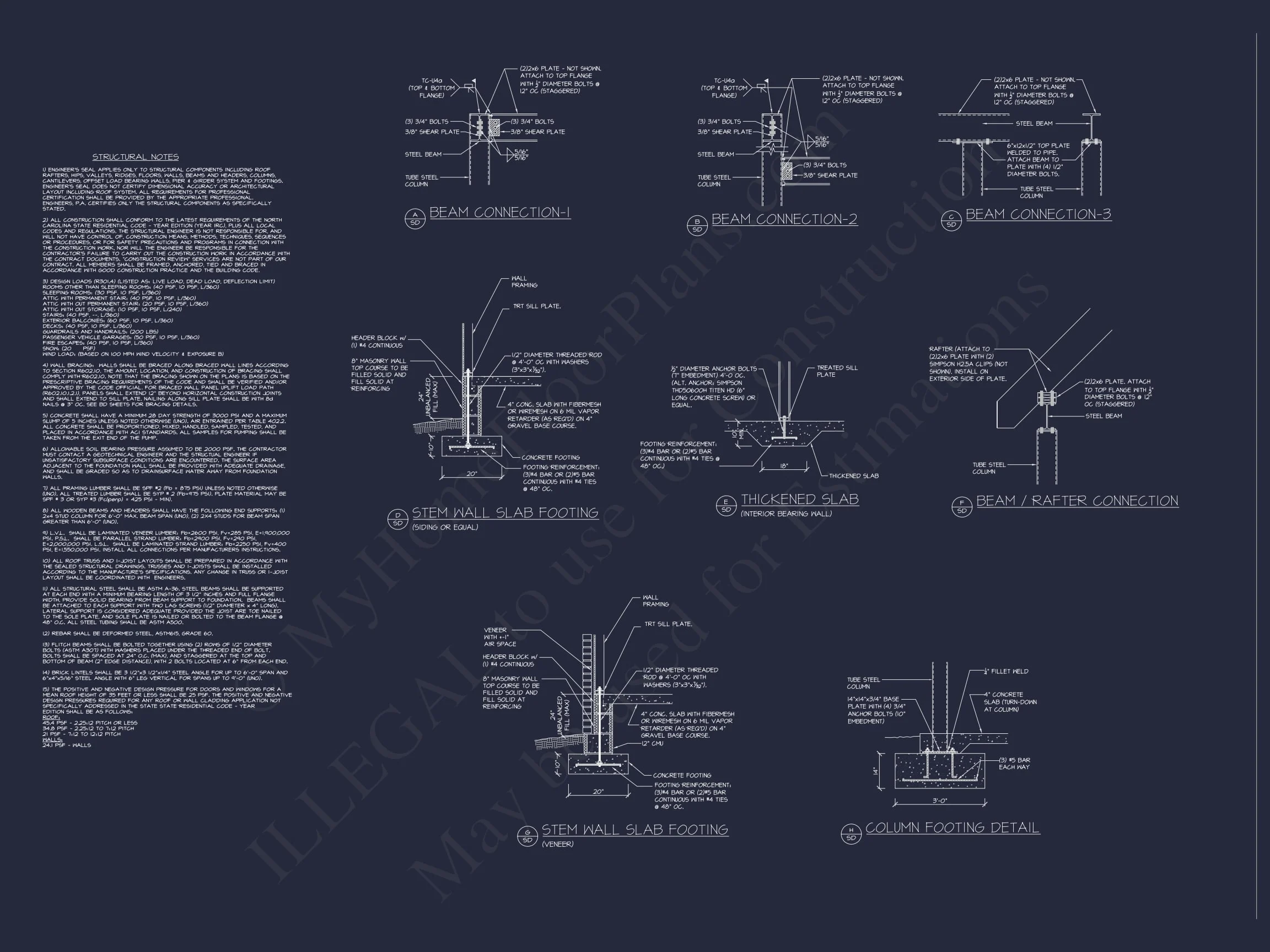

- Structural Engineering Included: Fully compliant and stamped where required.
- Lower Modification Costs: Save up to 50% compared to other providers.
- View Before You Buy: Preview every sheet in the plan set.
Similar Collections You Might Love
- House Plans with Pools
- Covered Porch House Plans
- Garage & Vehicle Storage Designs
- House Plans with Outdoor Kitchens
- Plans with Mudrooms & Utility Spaces
Frequently Asked Questions
Can this clubhouse be built as a standalone pool pavilion? Yes! Its slab foundation and simple structure make it ideal as a freestanding poolside feature.
Does this plan include restrooms? Absolutely. It includes both men’s and women’s restrooms, perfect for high-traffic recreation areas.
Can the wet bar be upgraded? Yes, the kitchenette can be modified to include additional appliances or finishes.
Is this clubhouse ADA accessible? The single-story layout allows for ADA-friendly adjustments if needed.
How can I preview the design? You can view all sheets before purchasing here.
Start Building Your Dream Clubhouse Today
Have questions about this pool pavilion or want to personalize the layout? Reach out to our expert team at [email protected] or contact us directly.
Your future recreational space starts with the right floor plan—customize it and build with confidence today!
All home plans include BOTH the CAD file and PDF file.

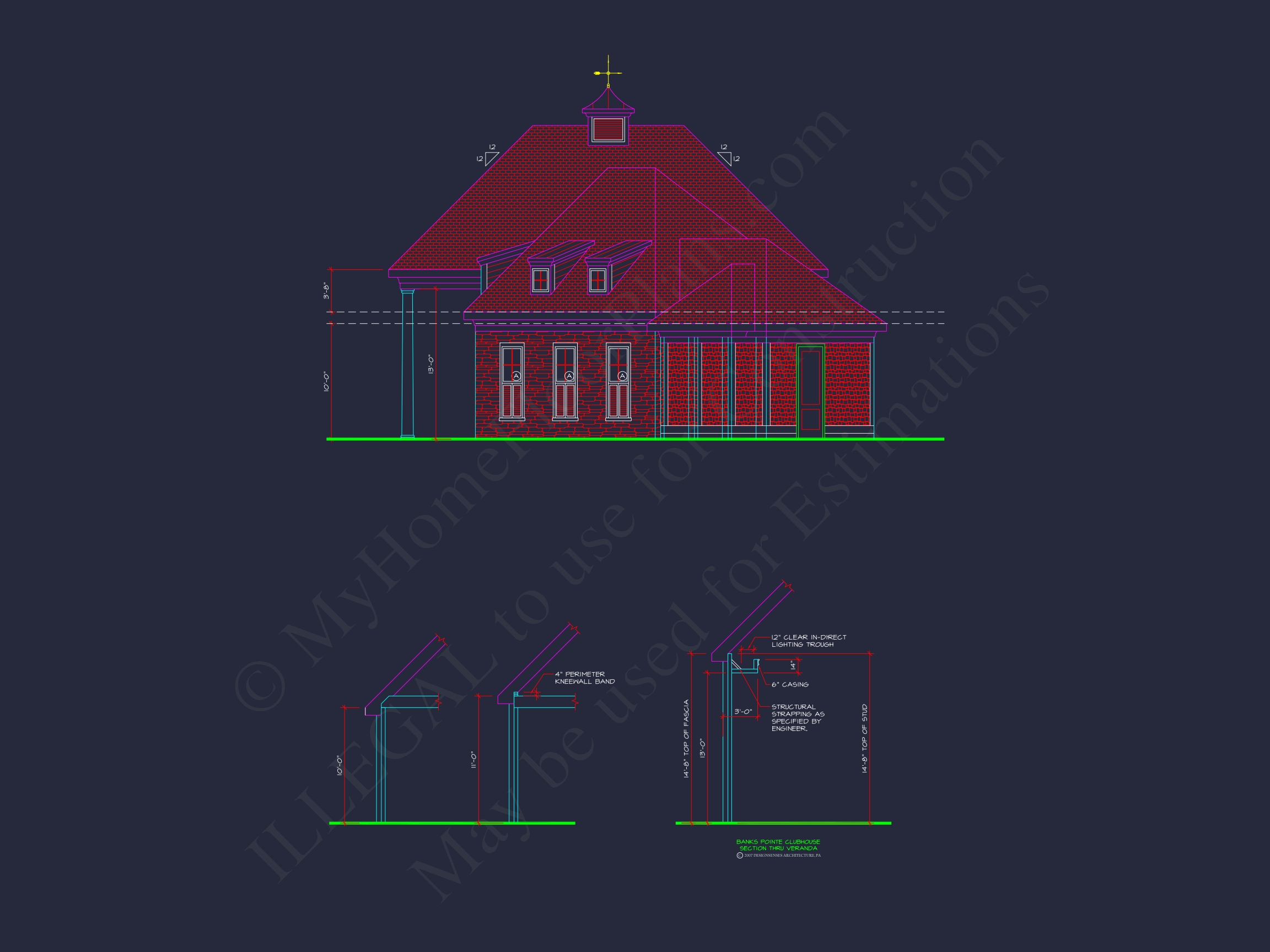

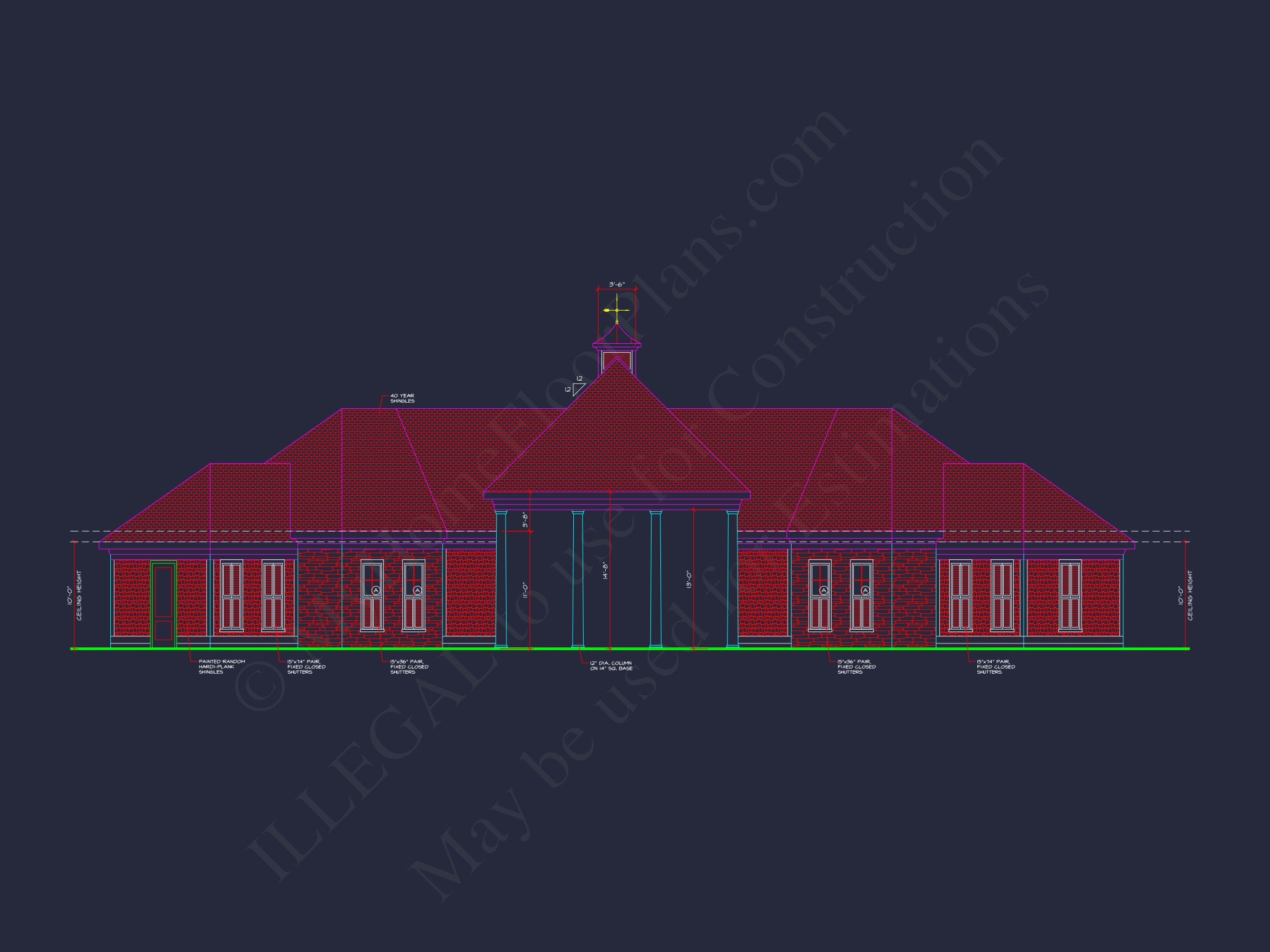

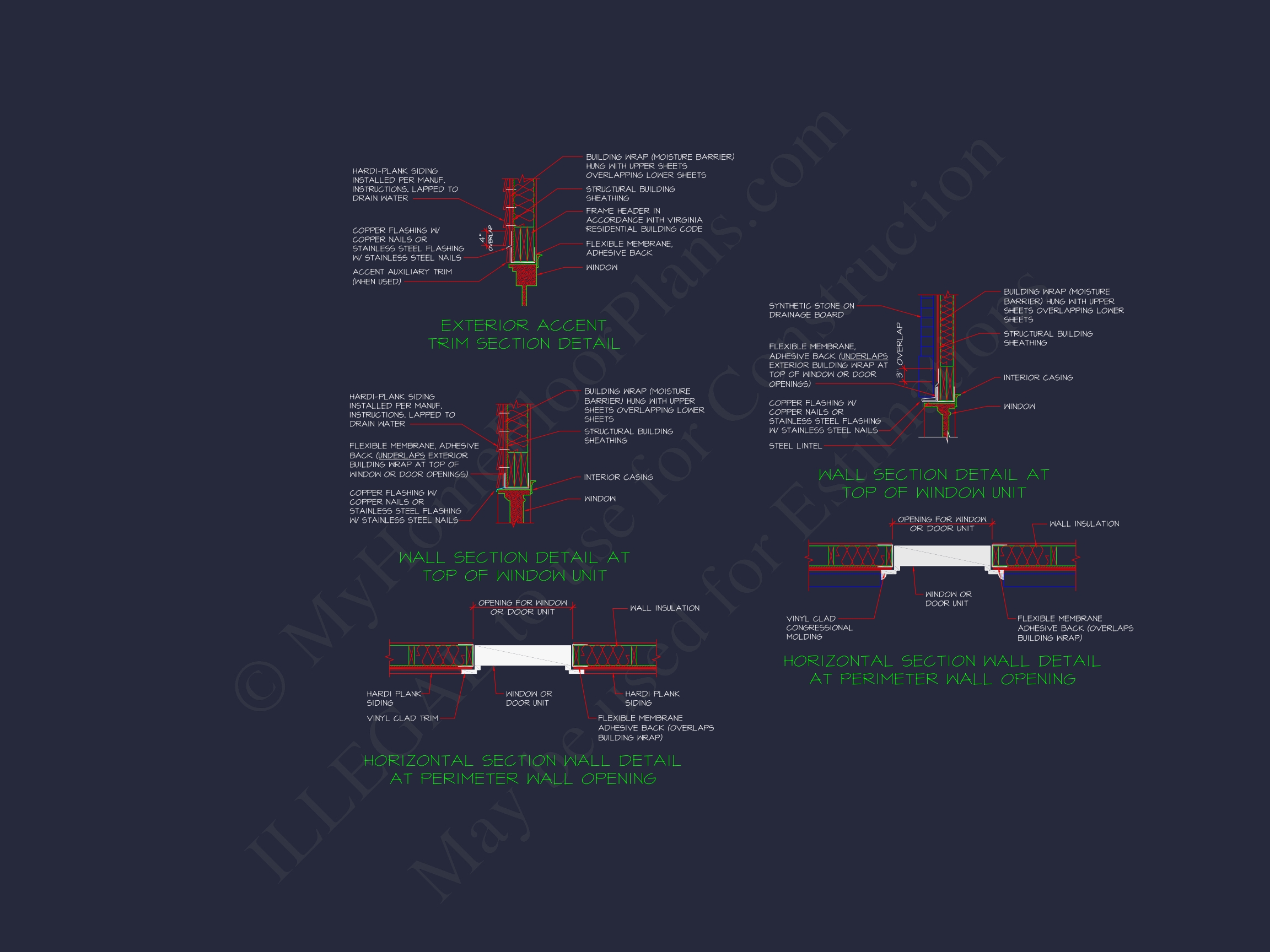

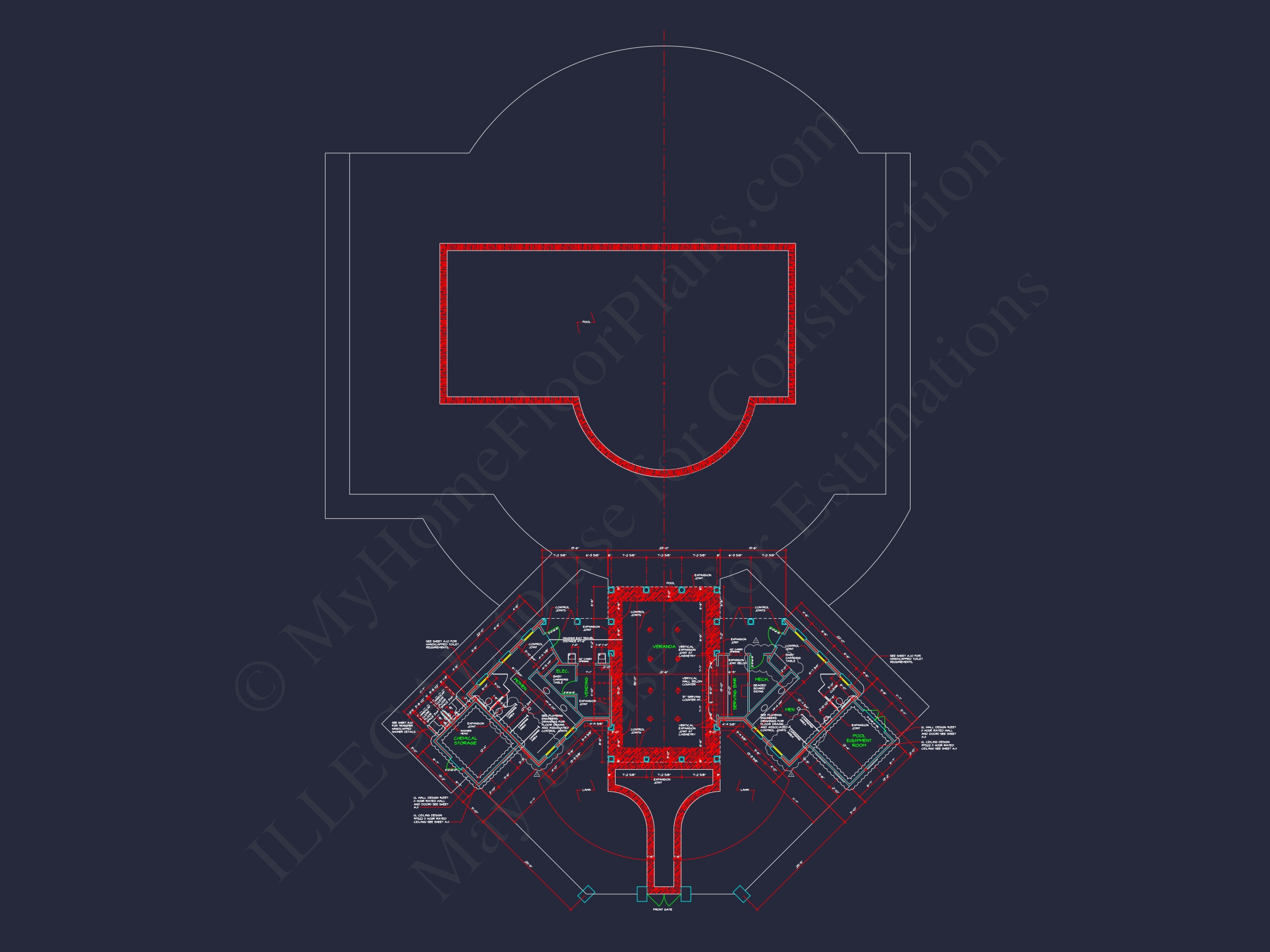

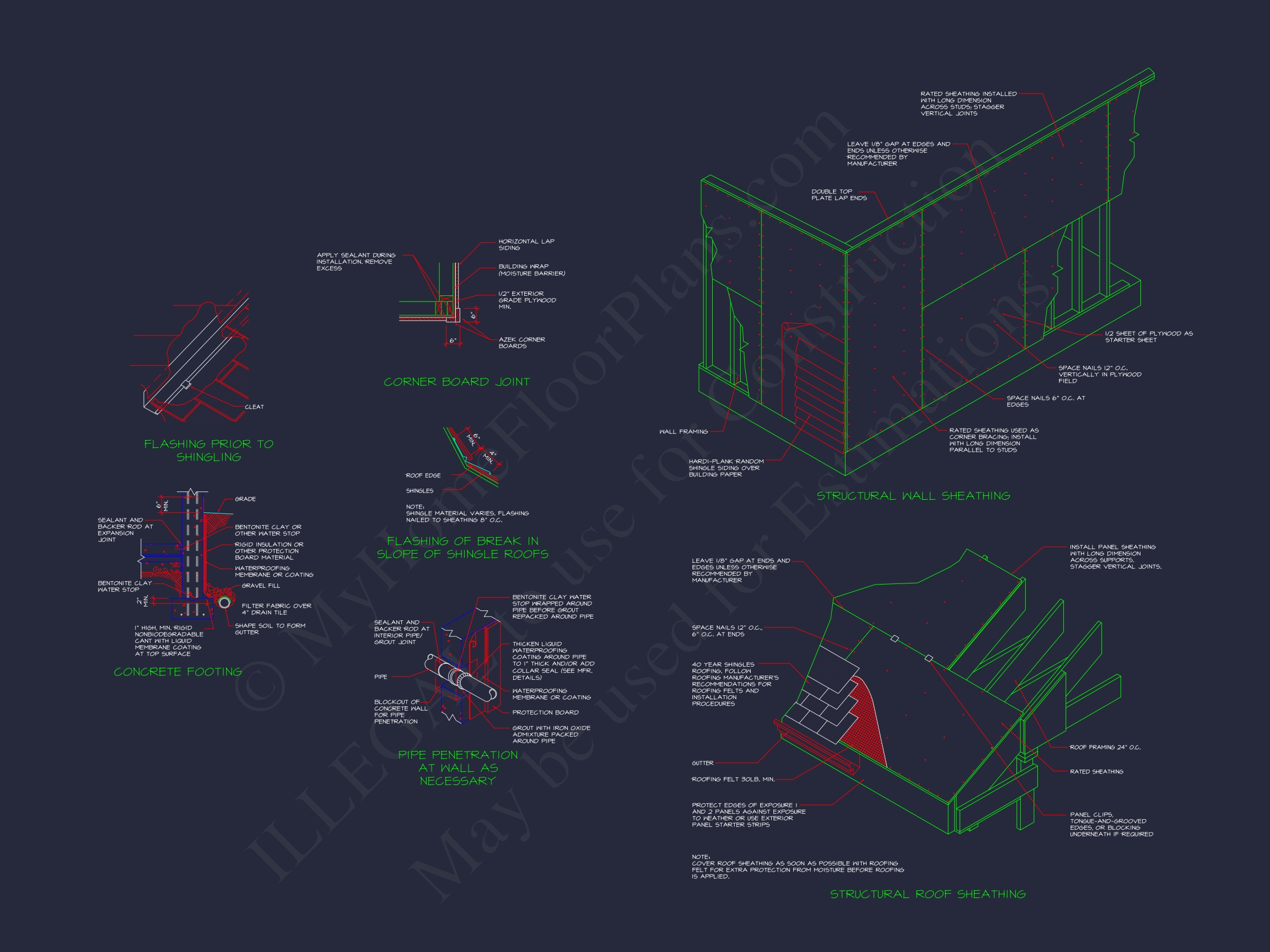

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

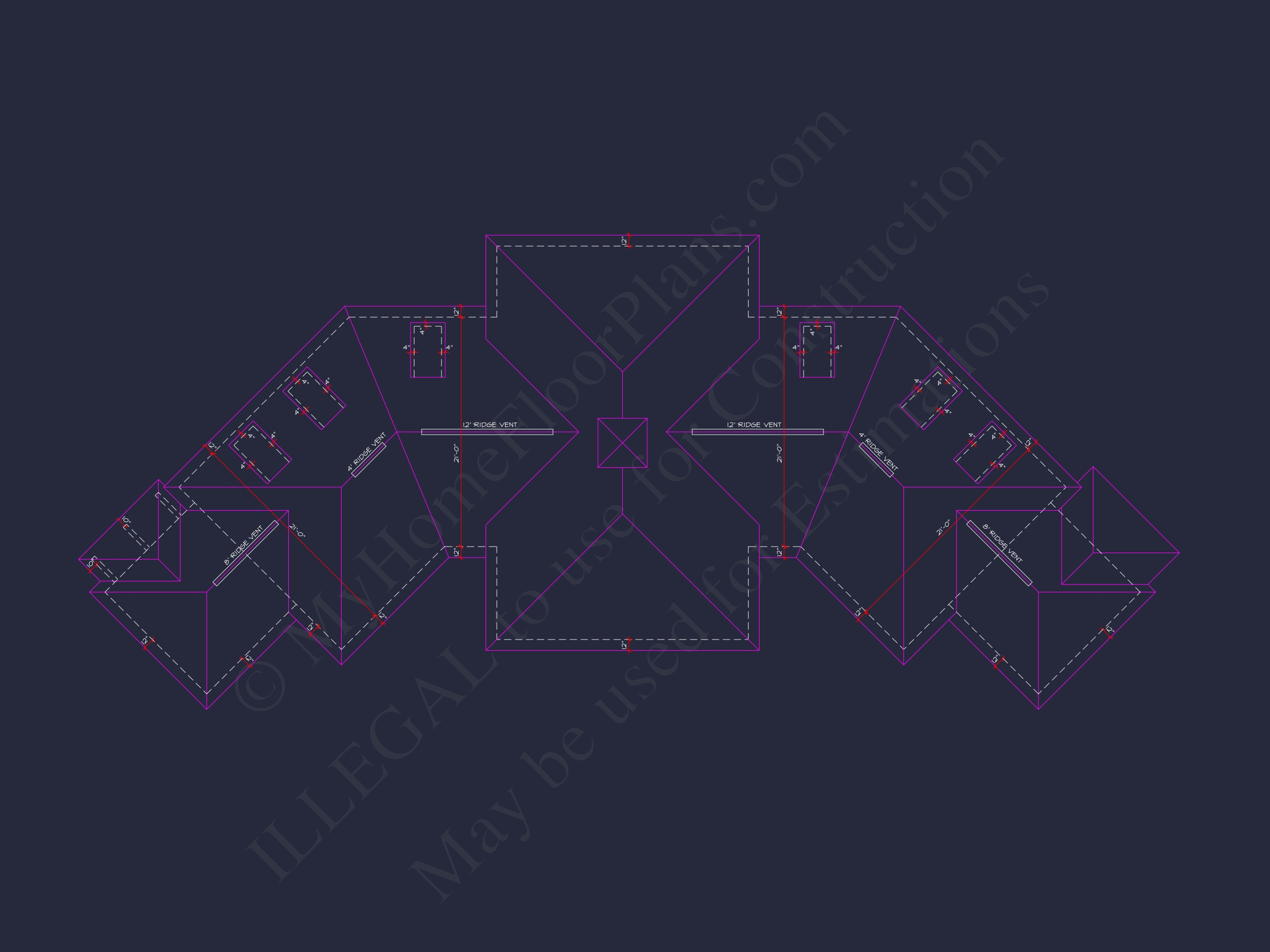

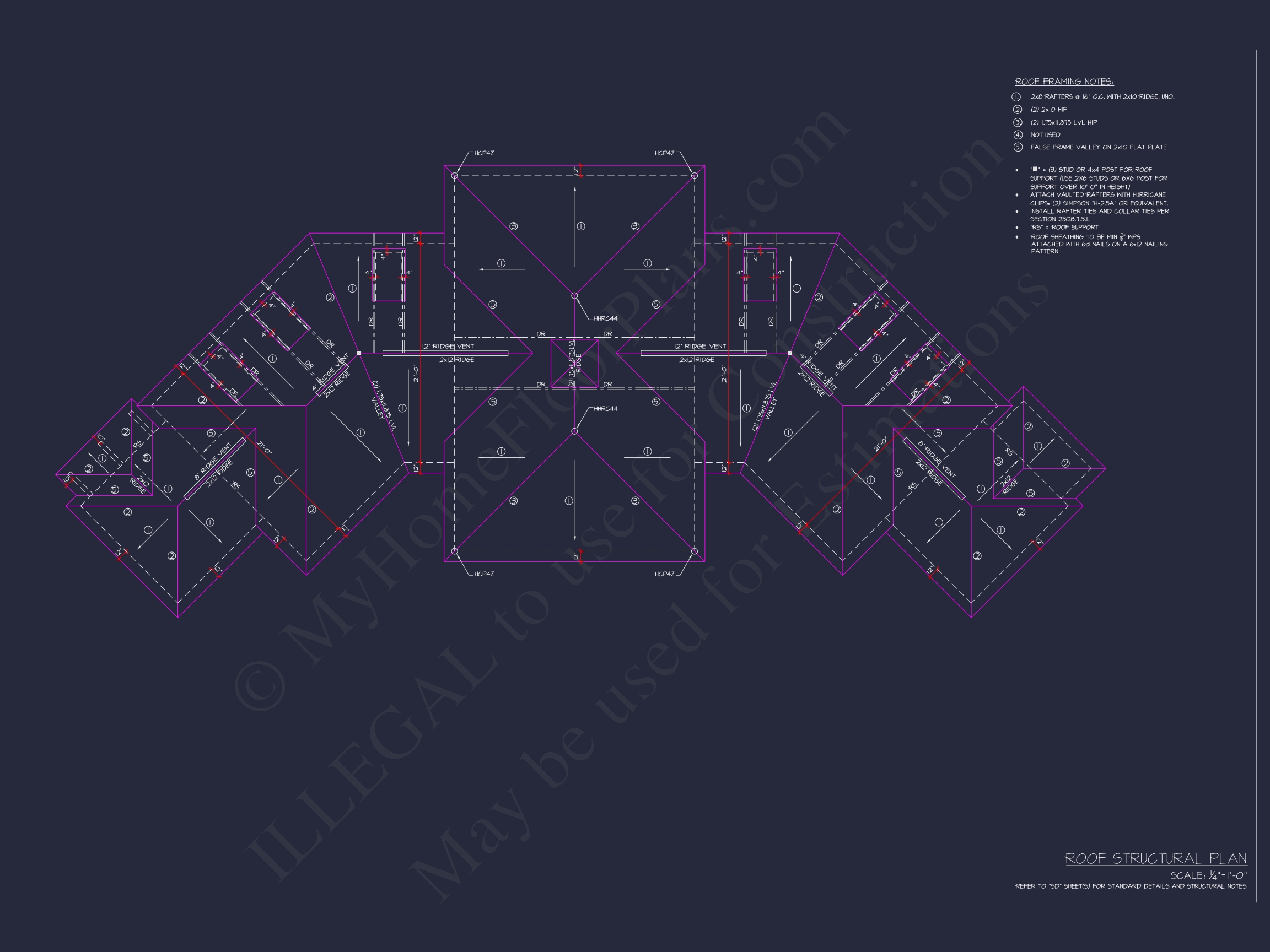

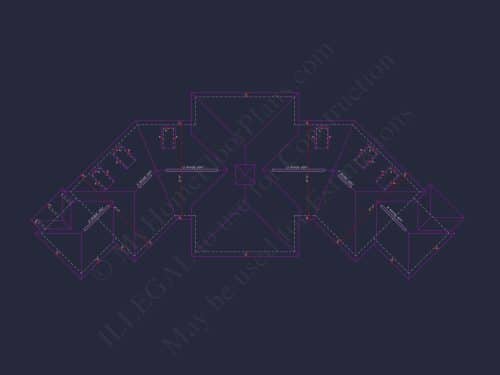

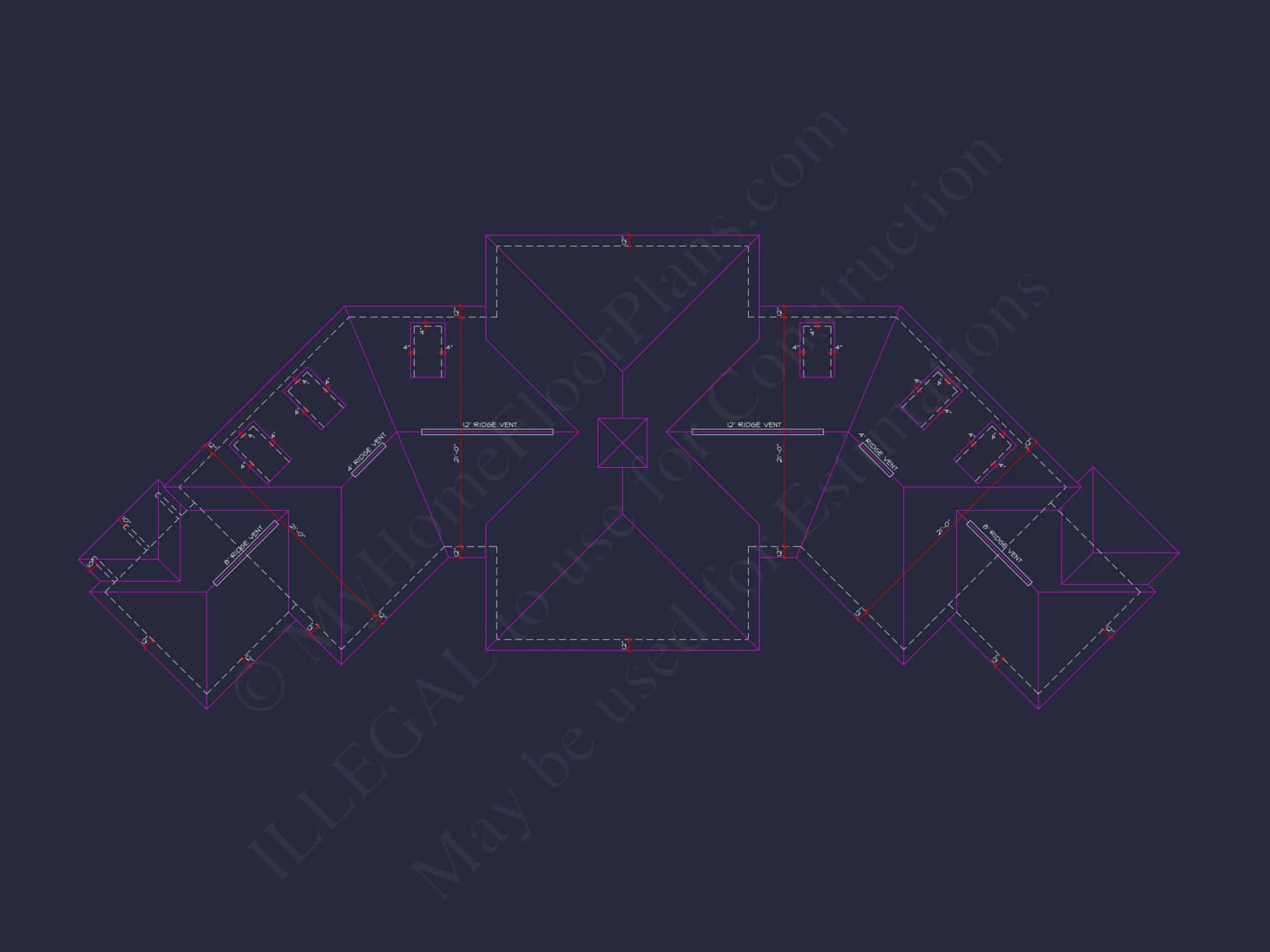

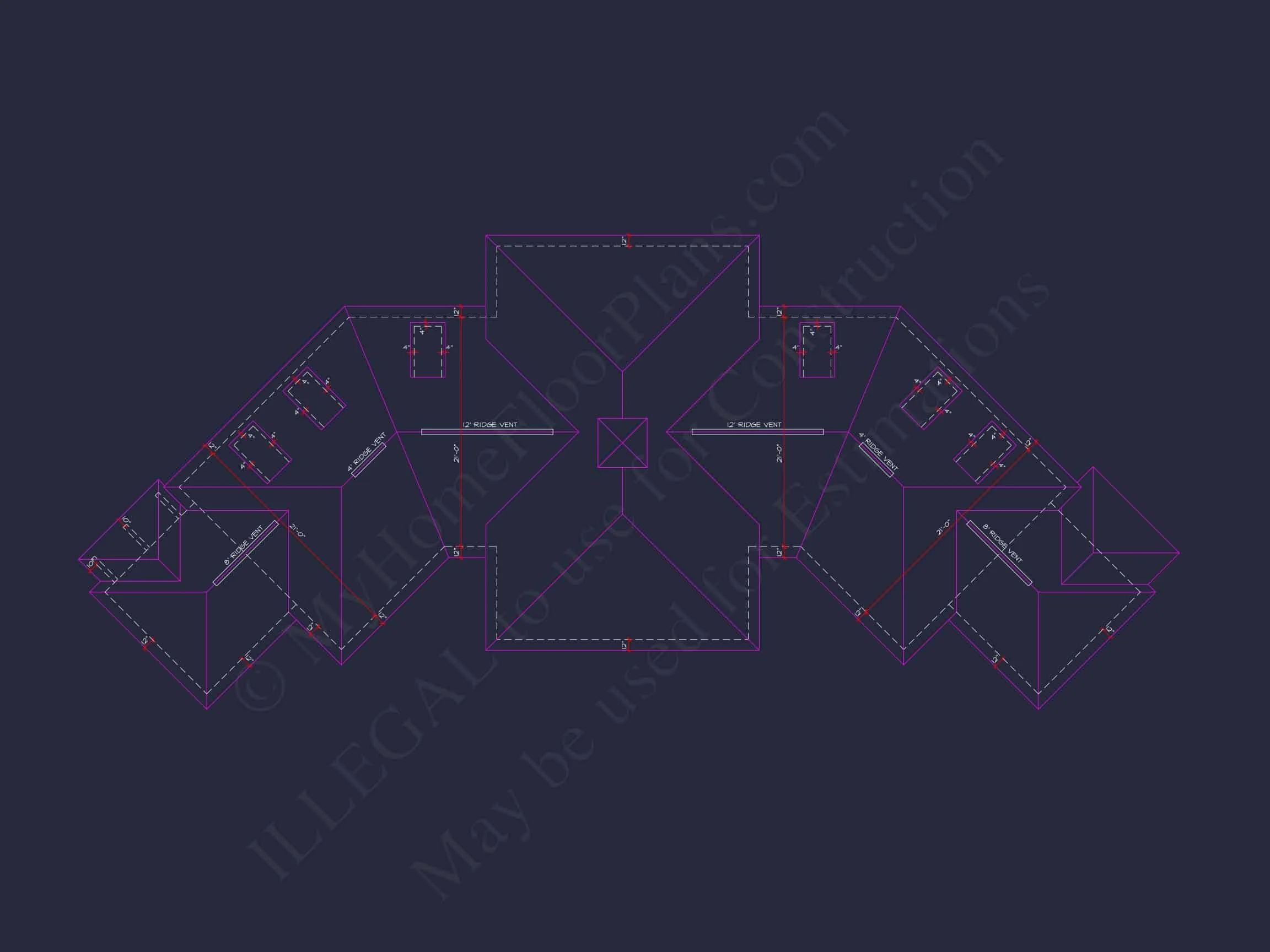

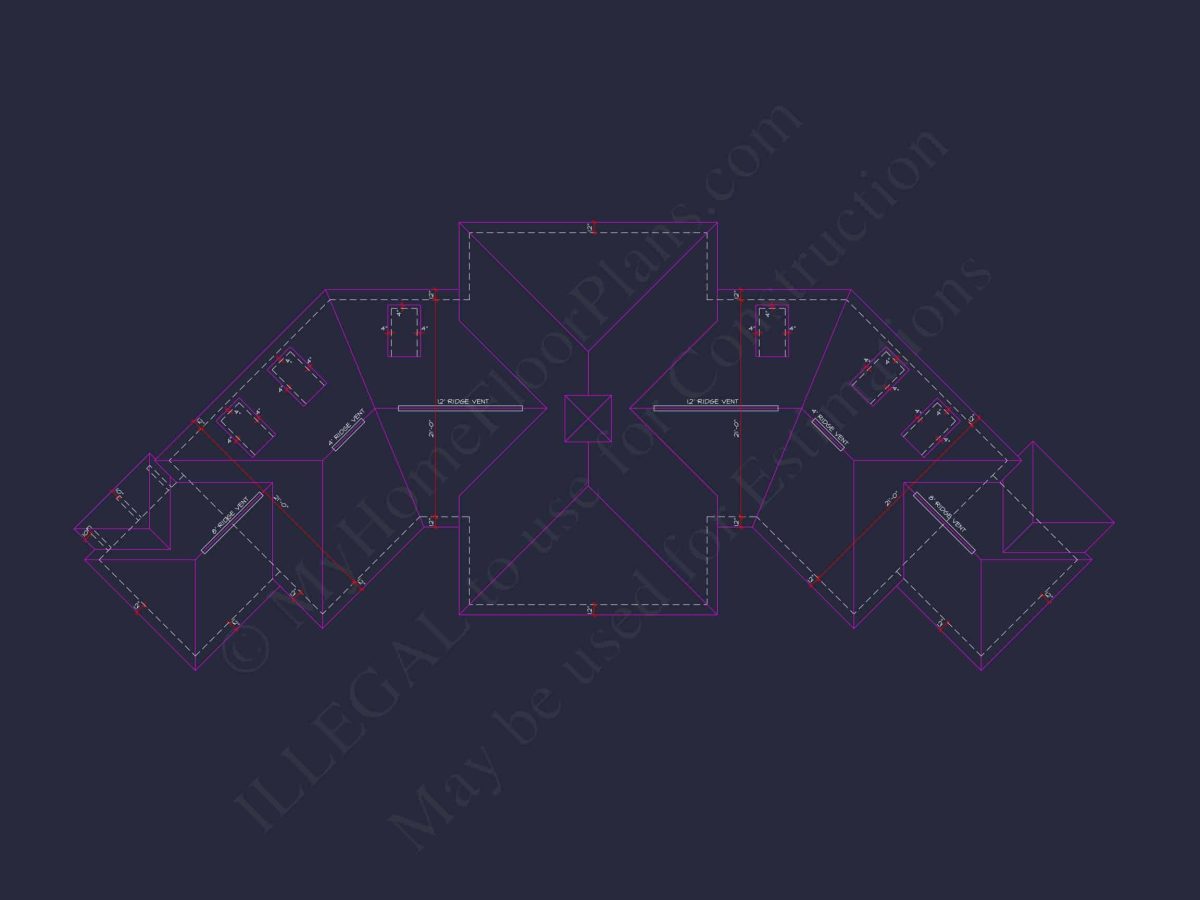

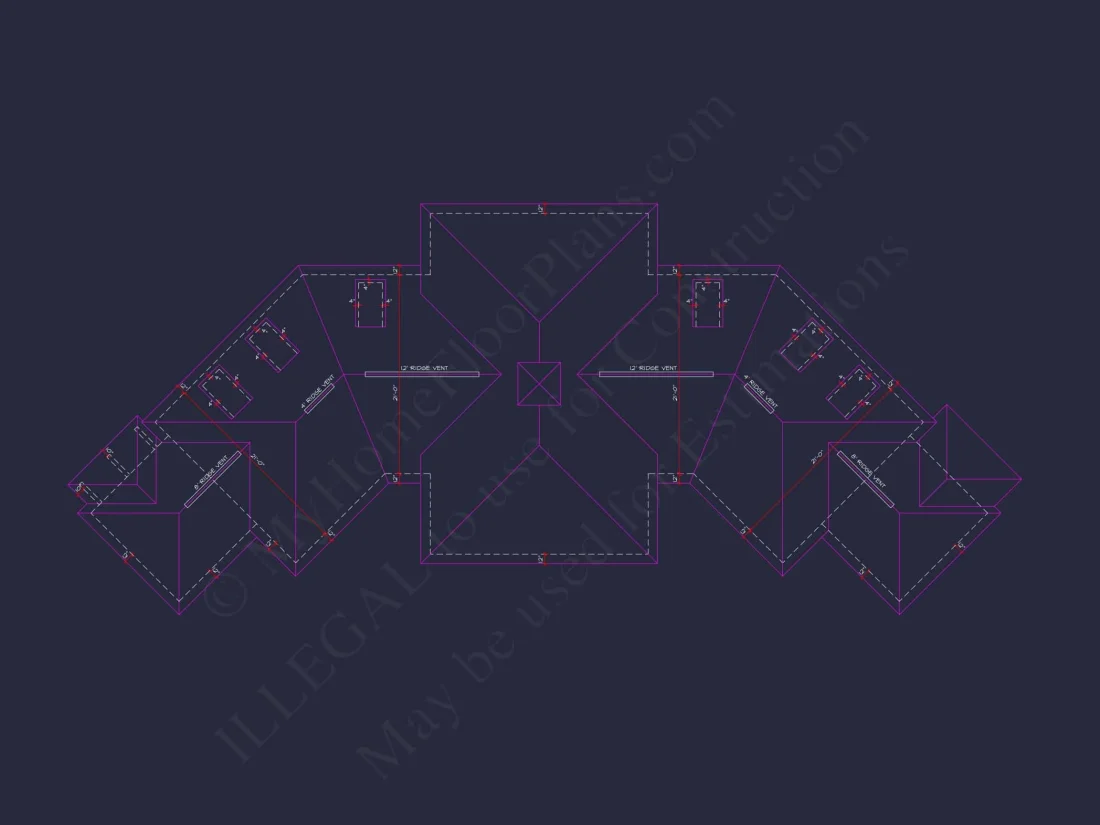

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

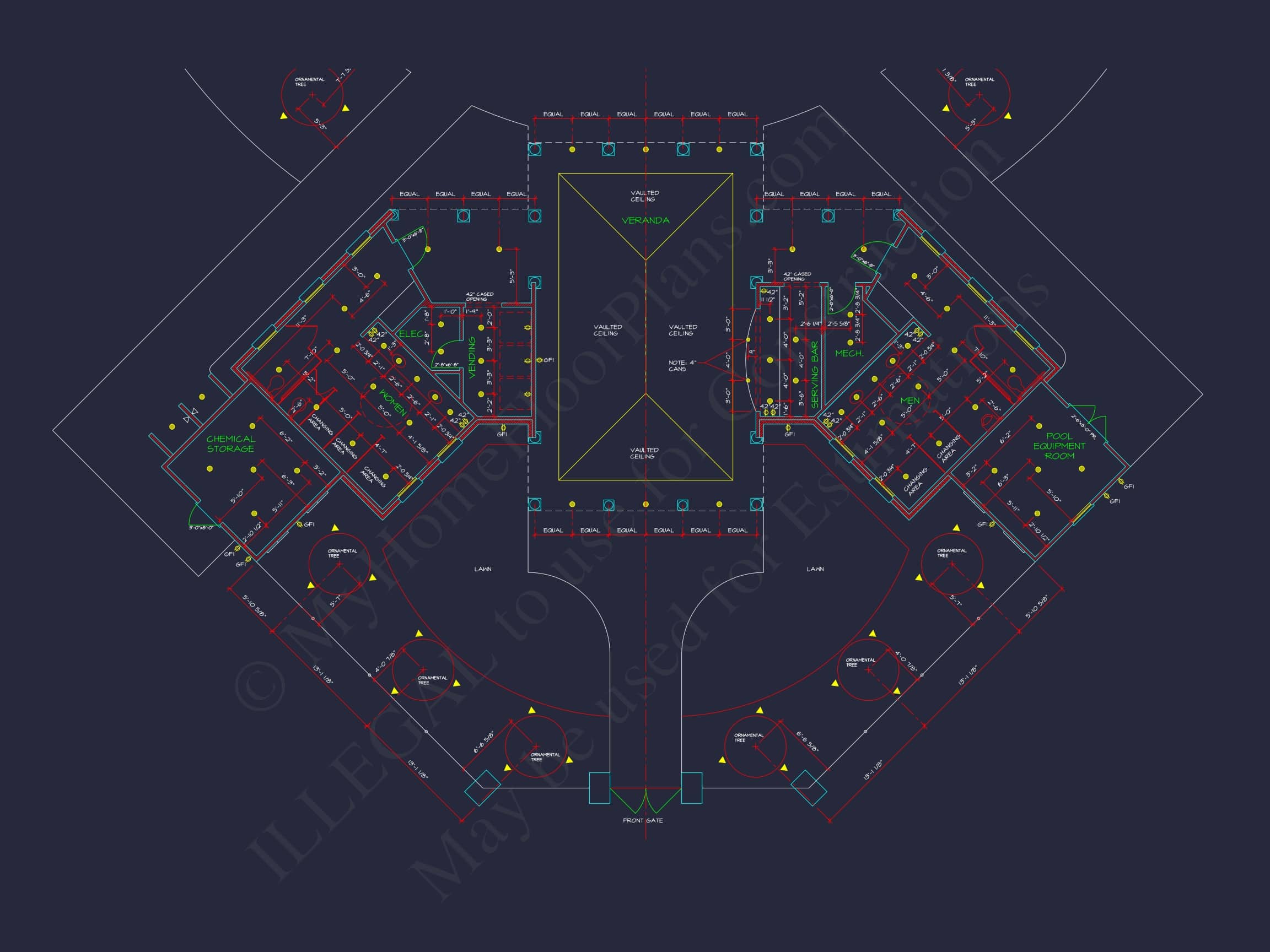

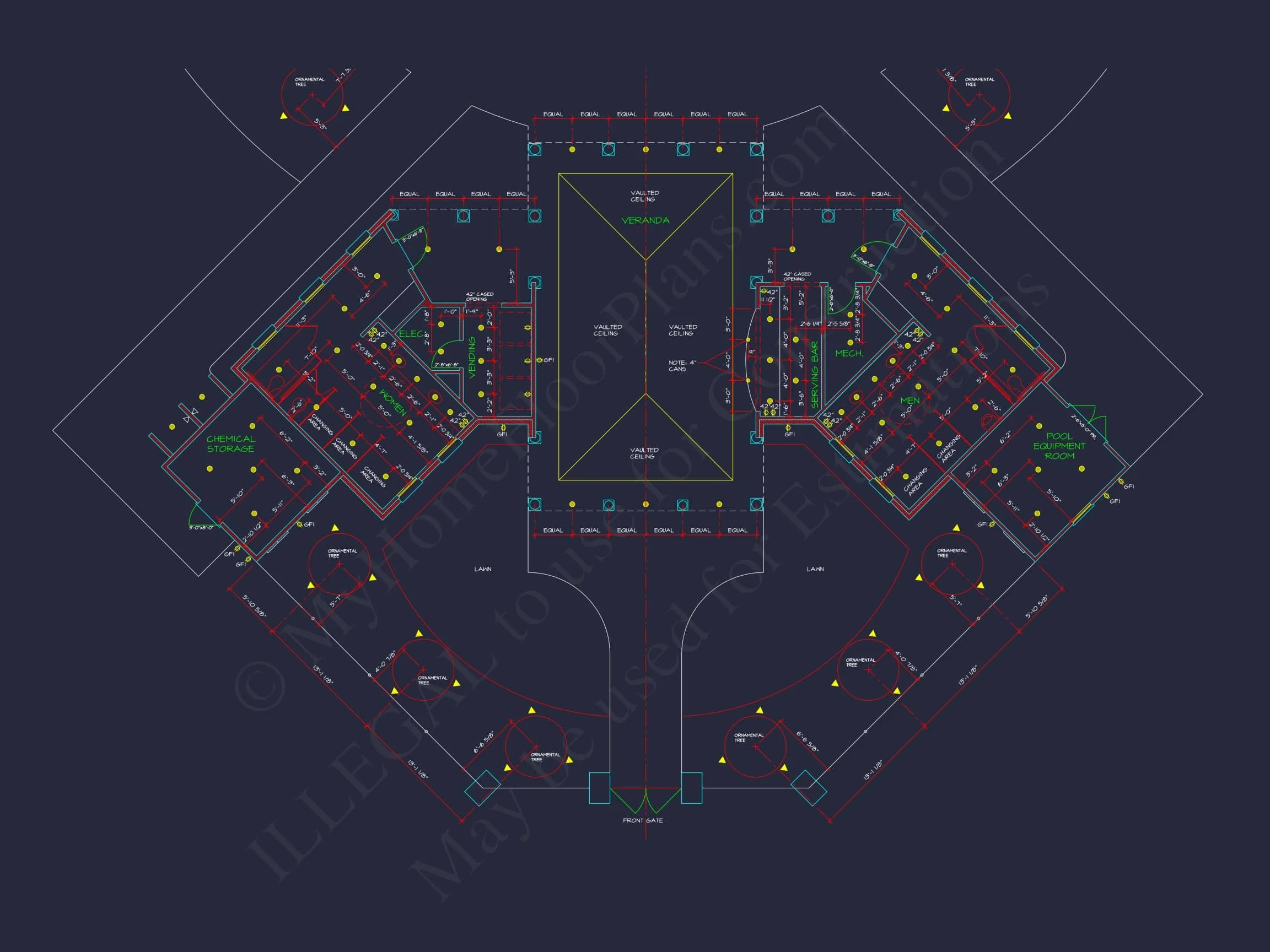

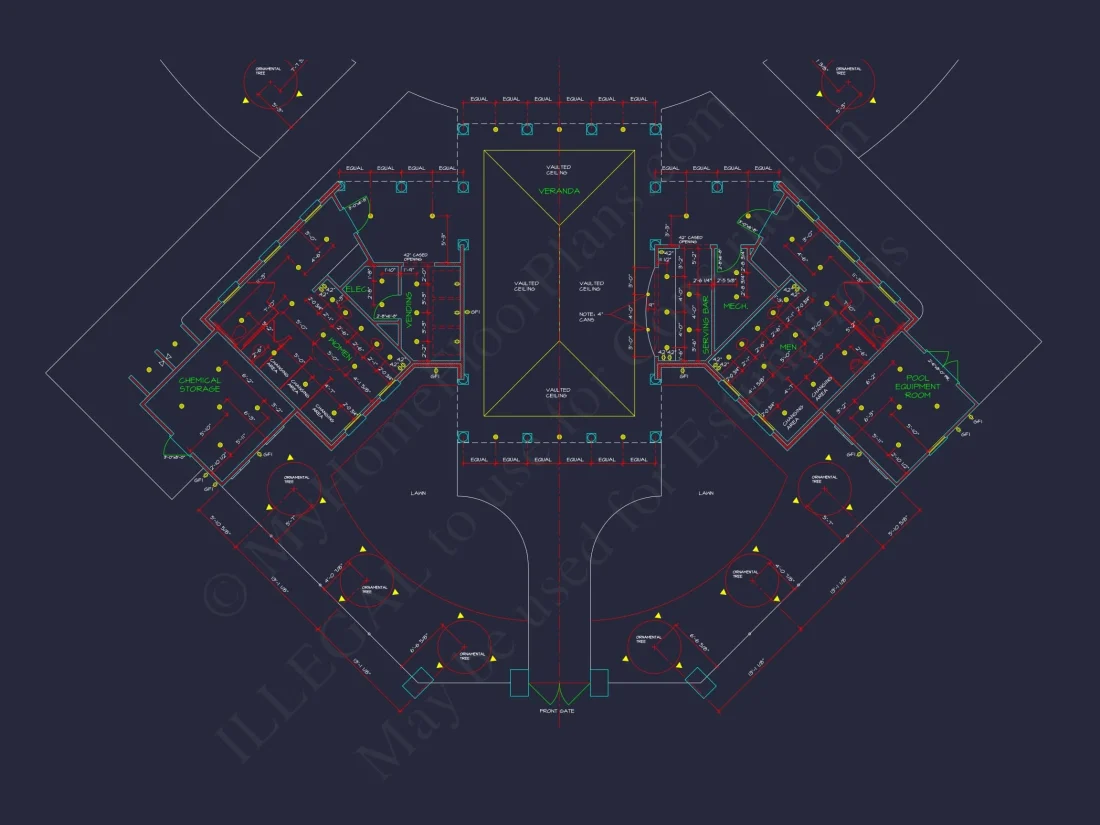

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required

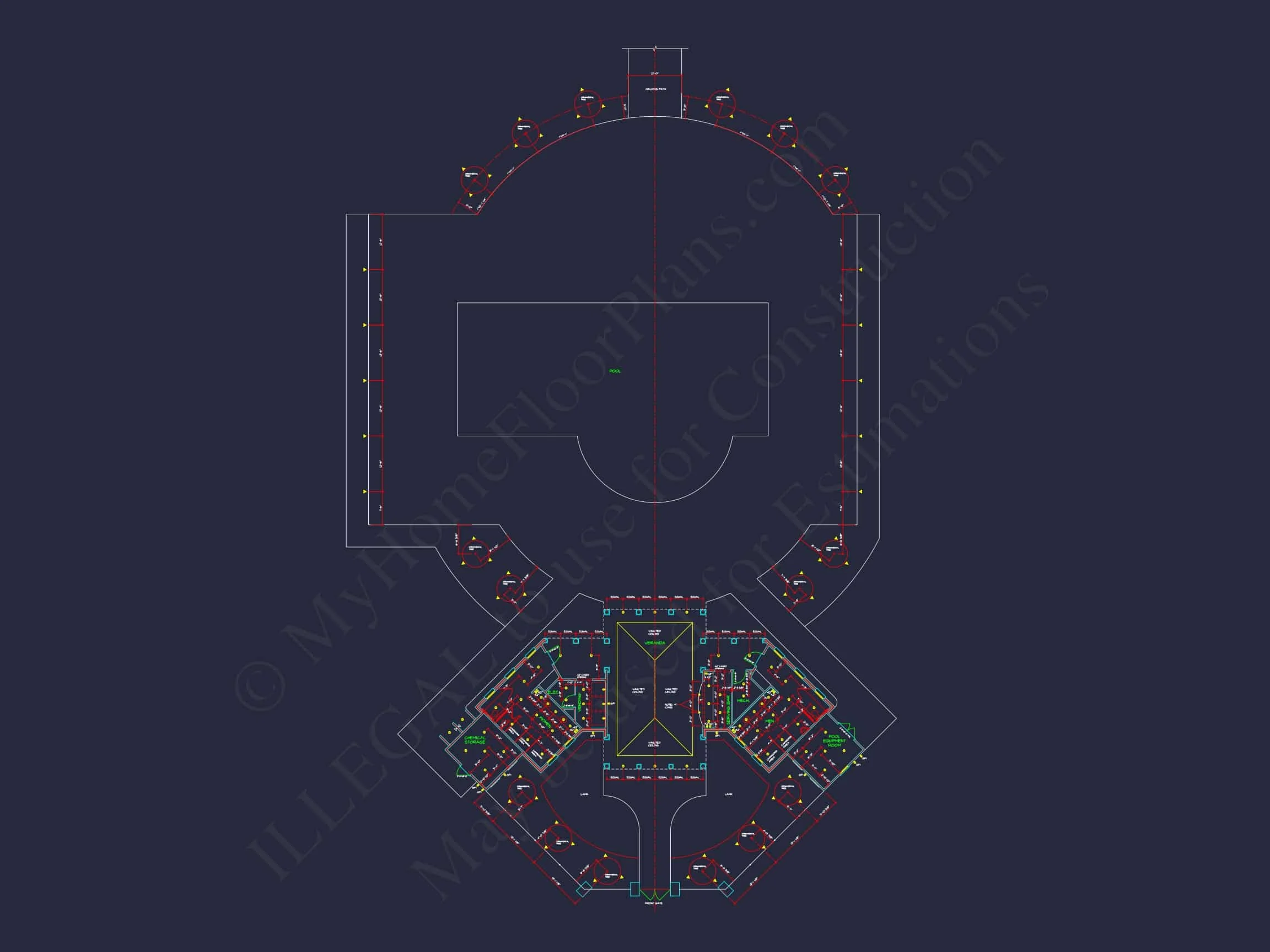

Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

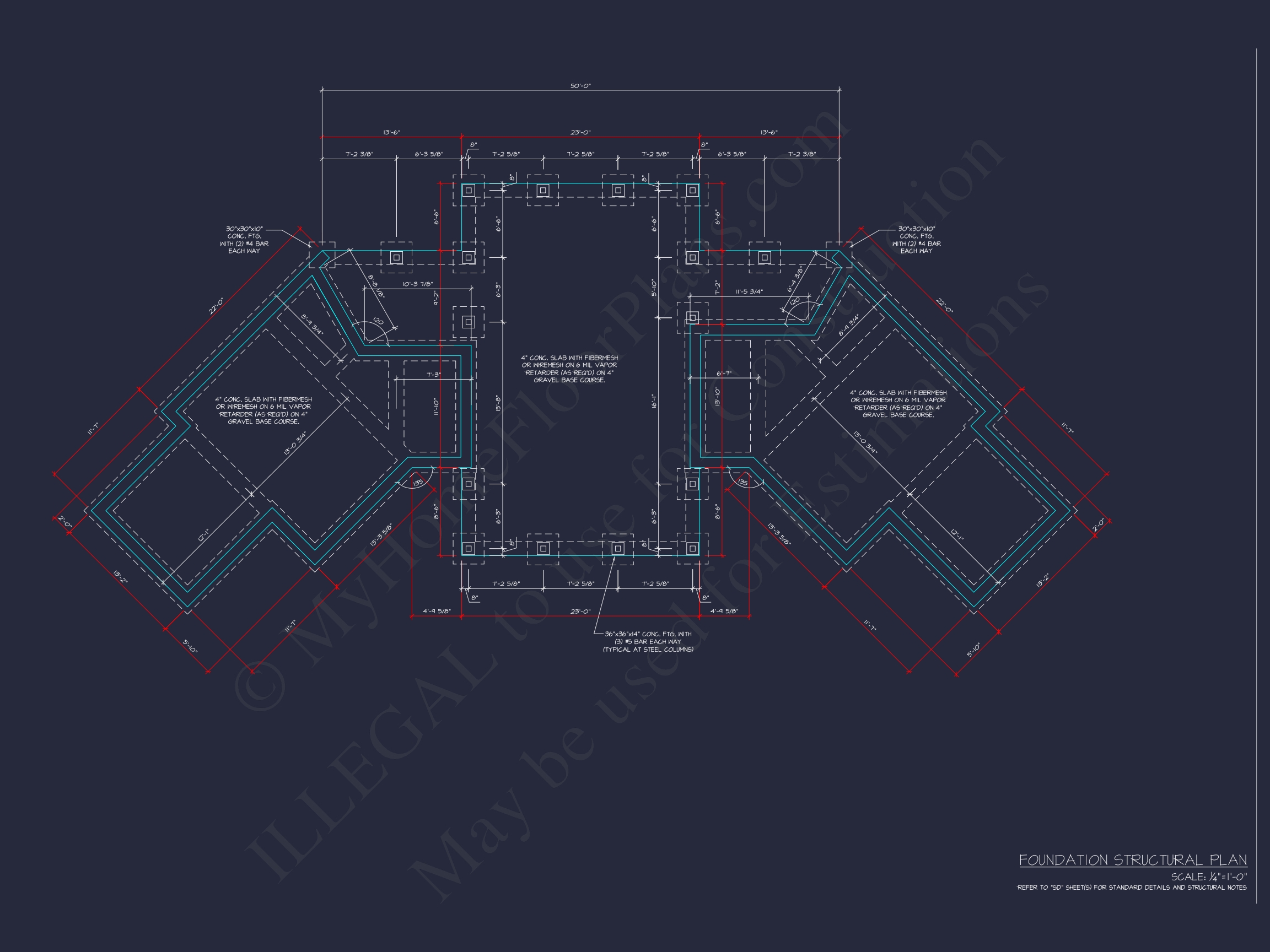

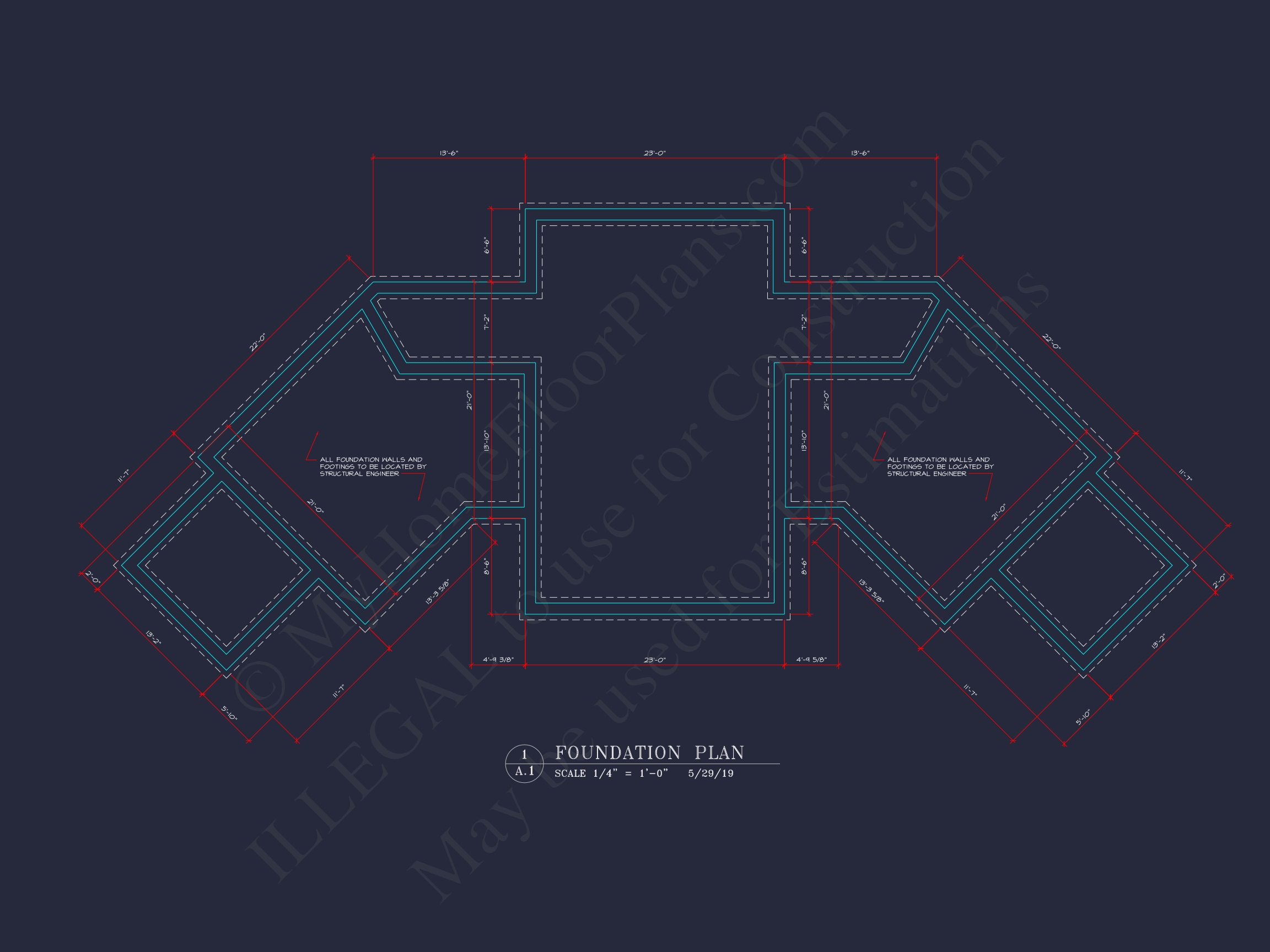

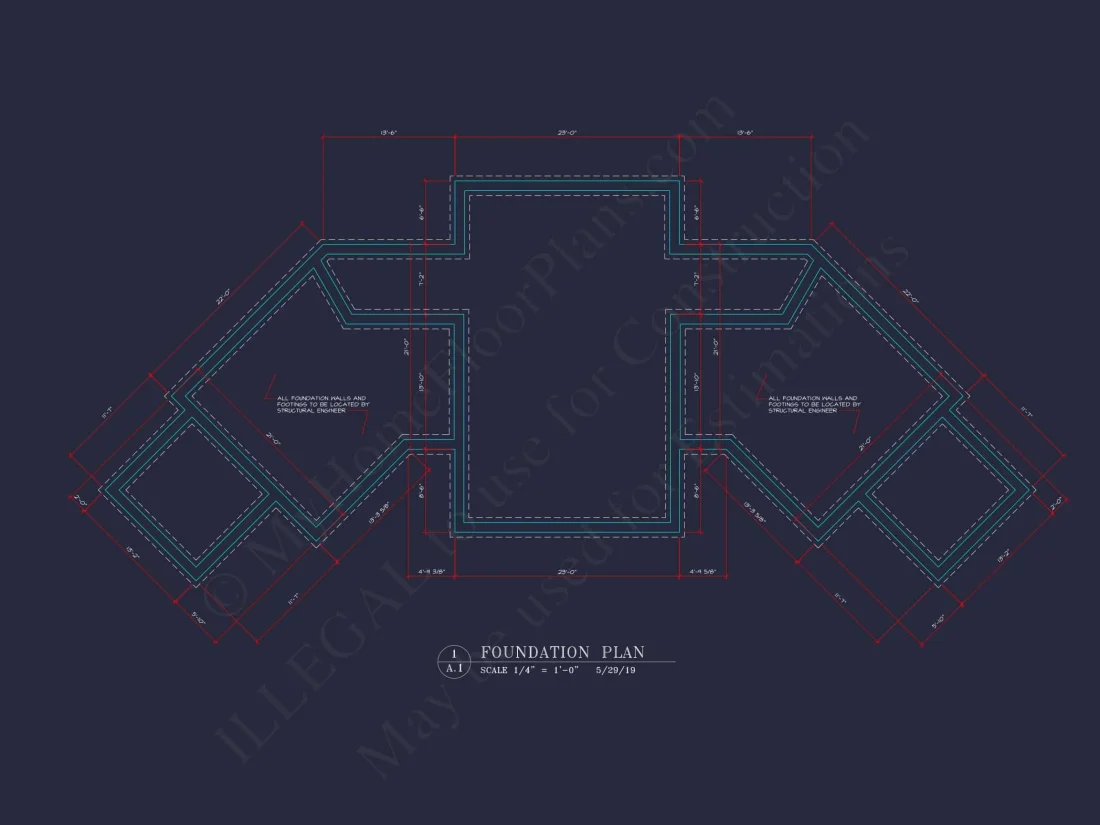

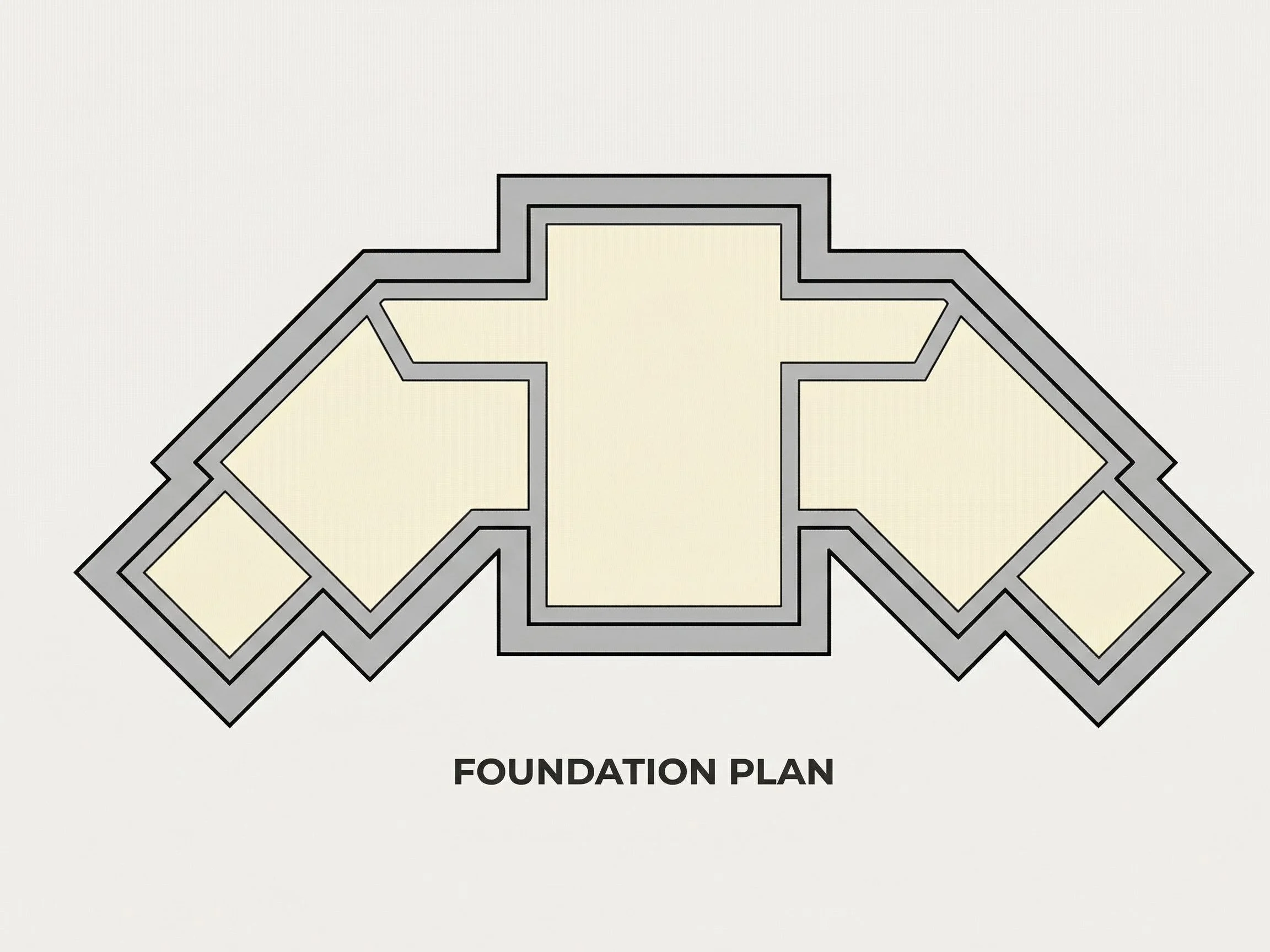

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
19-1954 POOL CLUBHOUSE
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
