Garage Home Floor Plan With CAD Blueprint & Architecture Designs
Explore this traditional detached garage plan with 572 sq. ft. of unheated space—ideal for 2 cars, workshop use, and customizable CAD blueprints.
This detached garage plan offers a perfect mix of practicality and classic appeal. Designed for compact lots, it’s a flexible solution for homeowners needing storage, workspace, or additional garage capacity.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: None—dedicated garage space only.
- Unheated extras: 572 sq. ft. of garage space plus optional attic storage.
Bedrooms & Bathrooms
- No bedrooms or bathrooms—this is a standalone garage layout designed for flexibility.
Interior Highlights

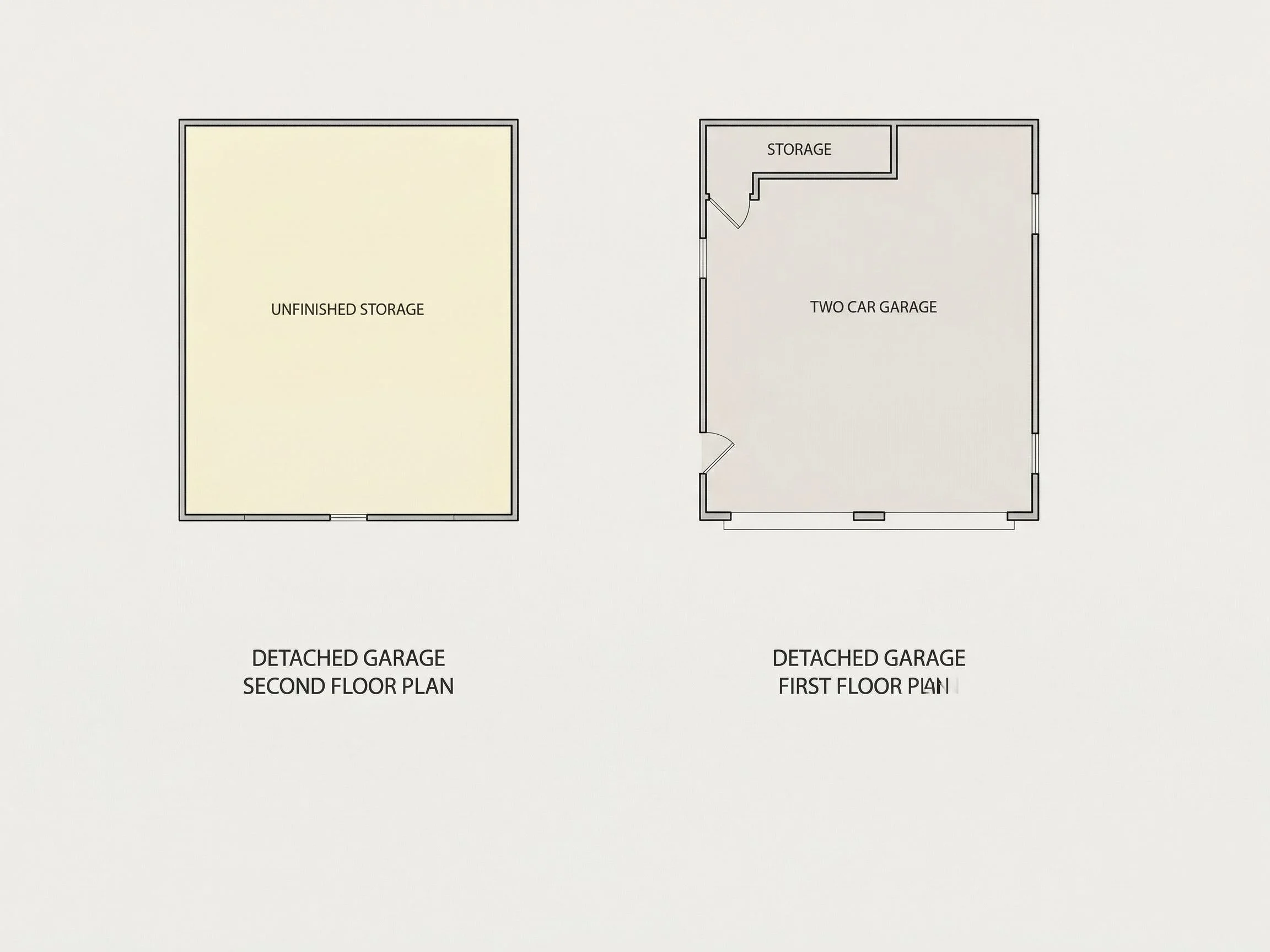

- Open garage layout accommodates two vehicles comfortably.
- Attic storage potential above for seasonal items or long-term organization.
- Efficient architecture keeps construction costs low and functionality high.
Garage & Storage Details
- Garage Bays: Two front-entry bays ideal for standard-sized vehicles.
- Garage Type: Detached for versatile placement on your property.
- Storage: Optional attic space and wide wall clearance for shelves or tool racks.
Outdoor Living Features
- Minimalist design perfect for narrow lots or urban builds.
- Brick and siding exterior options for a timeless, cohesive look.
Architectural Style: Traditional Garage
This plan uses simple materials and a flexible footprint, making it perfect for homeowners who need extra parking, a workshop, or clutter-free storage. Learn more about traditional house styles or explore garage styles on ArchDaily.
Bonus Features
- Optional attic access for expanded overhead storage.
- Workshop potential with room for workbenches and storage walls.
- Durable slab foundation ensures longevity and easier construction.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and printable for streamlined construction.
- Unlimited Build License: Use the plan as many times as you need.
- Free Foundation Changes: Easily switch between slab, crawlspace, or basement.
- Structural Engineering Included: Every plan is code-compliant and engineered.
- Lower Modification Costs: Pay less—our design changes cost 50% less than others.
- View Before You Buy: Preview every sheet in advance.
Similar Collections You Might Love
- Garage & Vehicle Storage Plans
- Garage Apartment Plans
- Small House Plans
- House Plans with Attic Space
- Detached Garage House Plans
Frequently Asked Questions
What’s included with this garage plan? Every purchase includes editable CAD files, ready-to-print PDFs, free foundation options, structural engineering, and unlimited build rights.
Can I convert this garage into a living space? Yes, with modifications. Many customers add an apartment or workshop above—ask us how!
Is this garage suitable for urban lots? Absolutely. The compact 22’ width and 26’ depth make it ideal for narrow or limited spaces.
Can I preview the full blueprint? Yes! Click here to see every sheet before purchasing.
Do I need a permit to build this garage? Permits are usually required. Check your local codes, and we provide engineering to help meet compliance.
Start Building Your Garage Plan Today
Need help customizing or reviewing this layout? Reach our friendly team at [email protected] or use our contact form.
This garage plan offers functional space and classic charm—start customizing it to match your vision today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

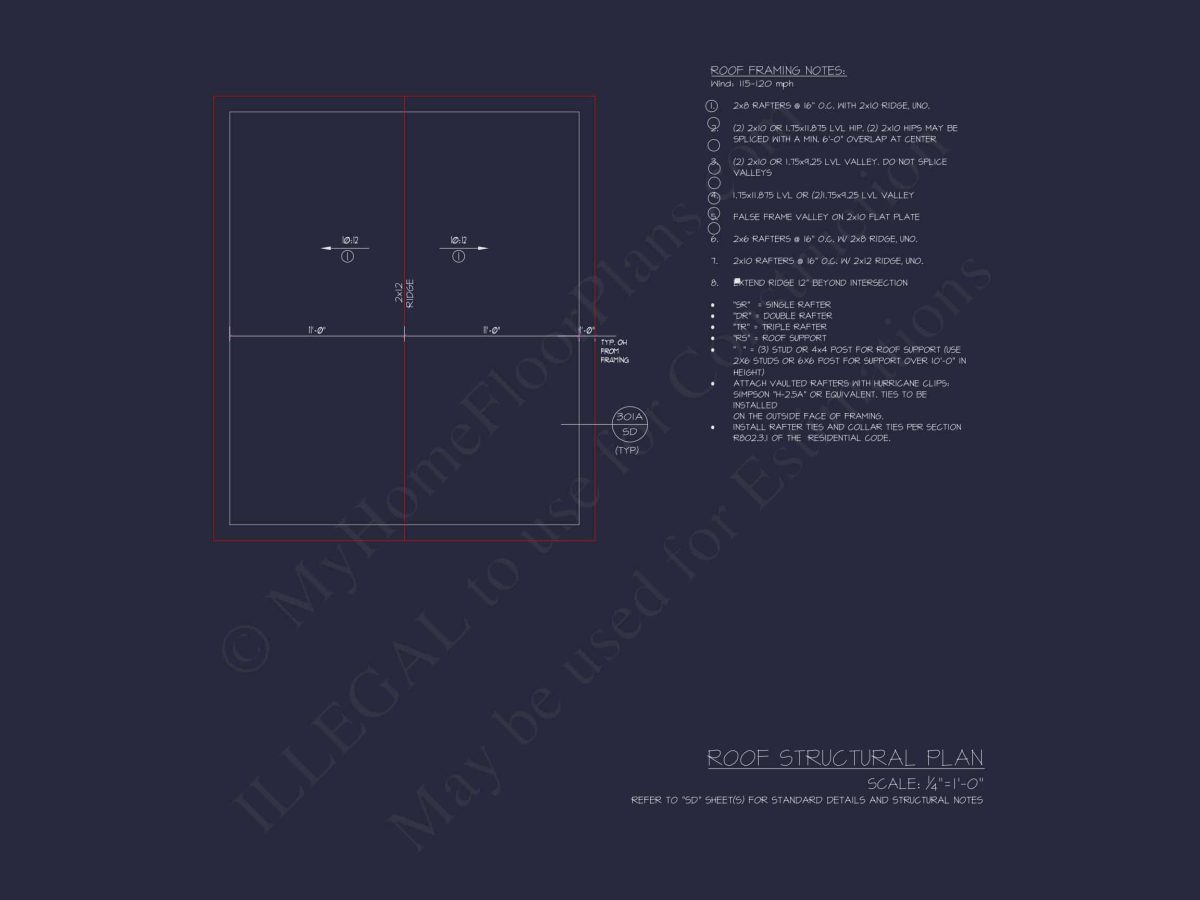

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

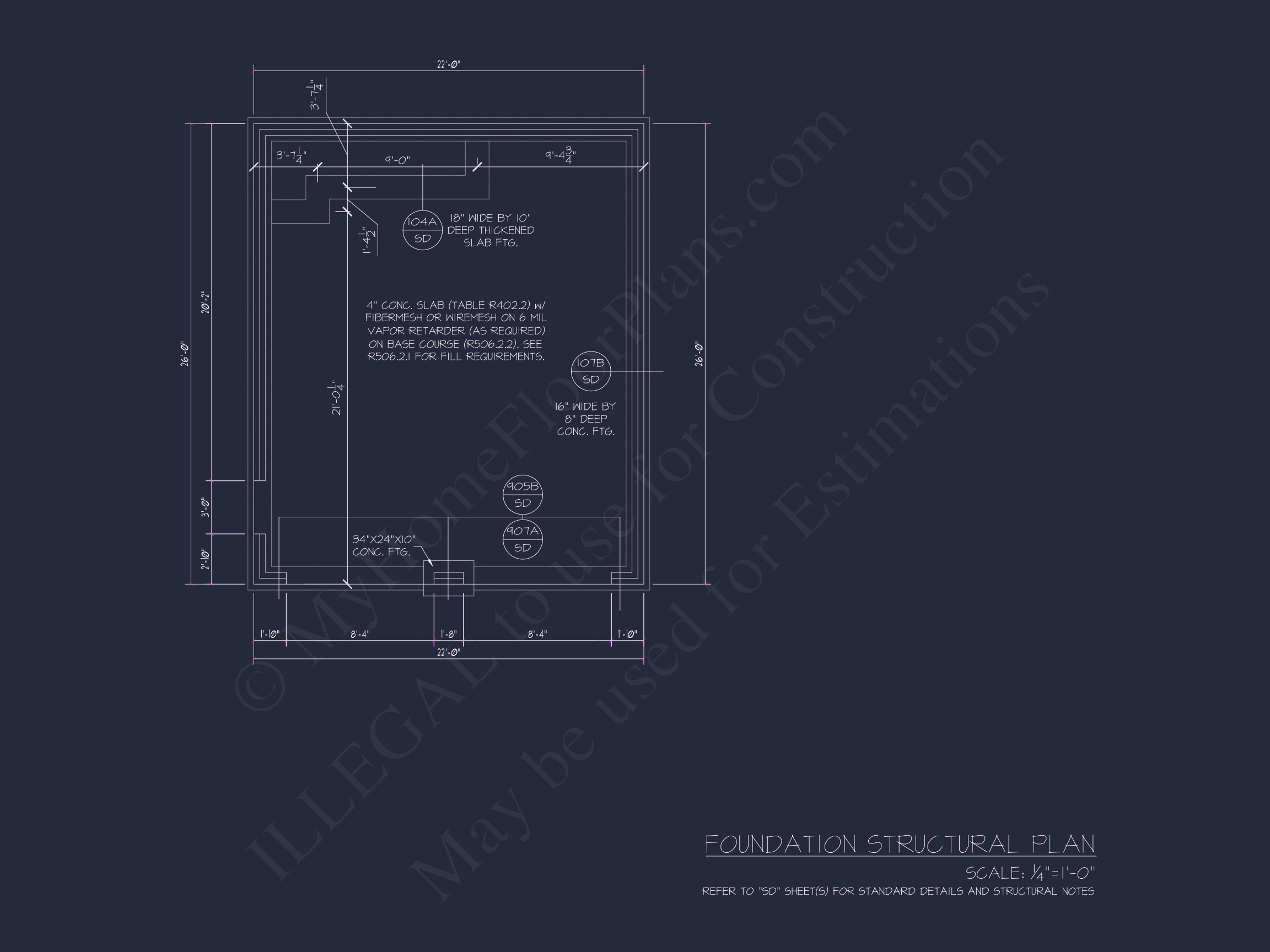

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.

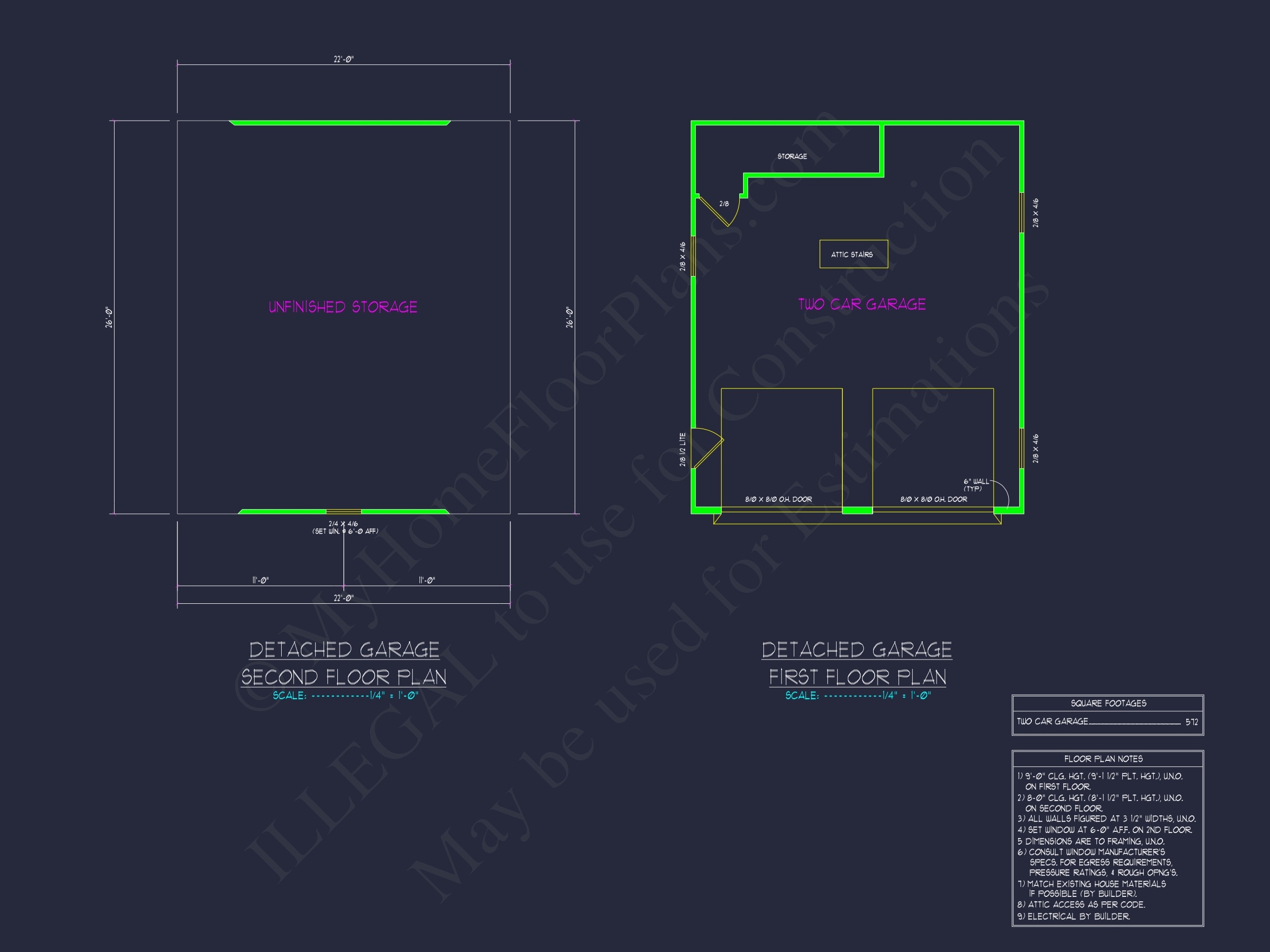

20-1037 GARAGE
