Charming Home Floor Plan with CAD Designs and Architecture Blueprint
Explore a 2-story home plan featuring 4 bedrooms, 3 baths, a covered porch, and a spacious family room. Includes CAD blueprints for seamless architecture design.
Discover the Perfect Home Floor Plan
Designing your dream home starts with finding the ideal floor plan. This two-story home offers 1, 955 heated square feet, blending practicality and style. Its efficient layout is perfect for families, designers, and builders who value comfort and functionality.
Architectural Highlights of the Design
This home’s Colonial Farmhouse and Craftsman style exudes charm with its board and batten and brick exterior materials. The layout emphasizes an open floor plan, perfect for creating a welcoming atmosphere. A covered porch and patio enhance the outdoor living experience, adding space for relaxation or entertaining.
Indoor Features and Benefits
* Spacious Family Room: Perfect for gatherings and family time.
* Open Kitchen with Island and Walk-In Pantry: Ideal for cooking and entertaining.
* Foyer: Creates a welcoming entryway for guests.
* 4 Comfortable Bedrooms: Enough space for family members and guests.
* Walk-In Closet: Offers ample storage and organization.
* Jack and Jill Bathroom: Convenient for shared use, adding privacy and efficiency.
* Mudroom: Keeps your home tidy by providing a place to store shoes and coats.
* 9ft+ Ceilings: Enhance the sense of space and luxury.
Outdoor Features to Love
The covered front porch and patio expand your living area to the outdoors. Whether you’re enjoying a cup of coffee or hosting a barbecue, these spaces are versatile and enjoyable year-round.
Benefits Included with Every Plan
Every home plan includes the CAD file alongside a detailed PDF, giving you complete control over customization. Unlimited build licenses and free foundation changes are included, making these designs practical and affordable. Modifications are also available at competitive rates, ensuring your home perfectly fits your vision.
Ready to Start Building Your Dream Home?
Your perfect home awaits! Contact support@https://myhomefloorplans.com today to begin designing your ideal living space. From concept to completion, we make your dream home a reality!
All home plans include BOTH the CAD file and PDF file.

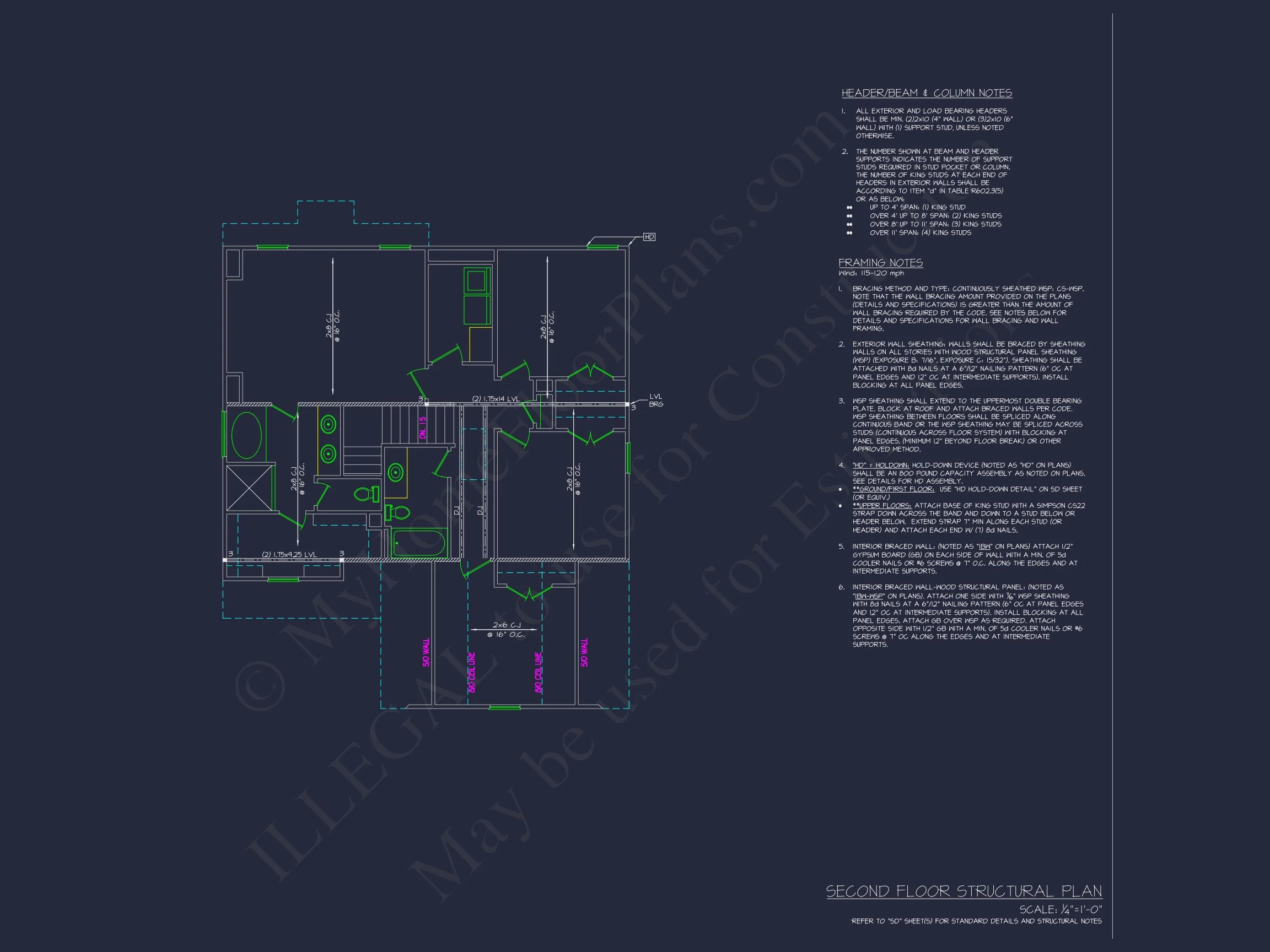

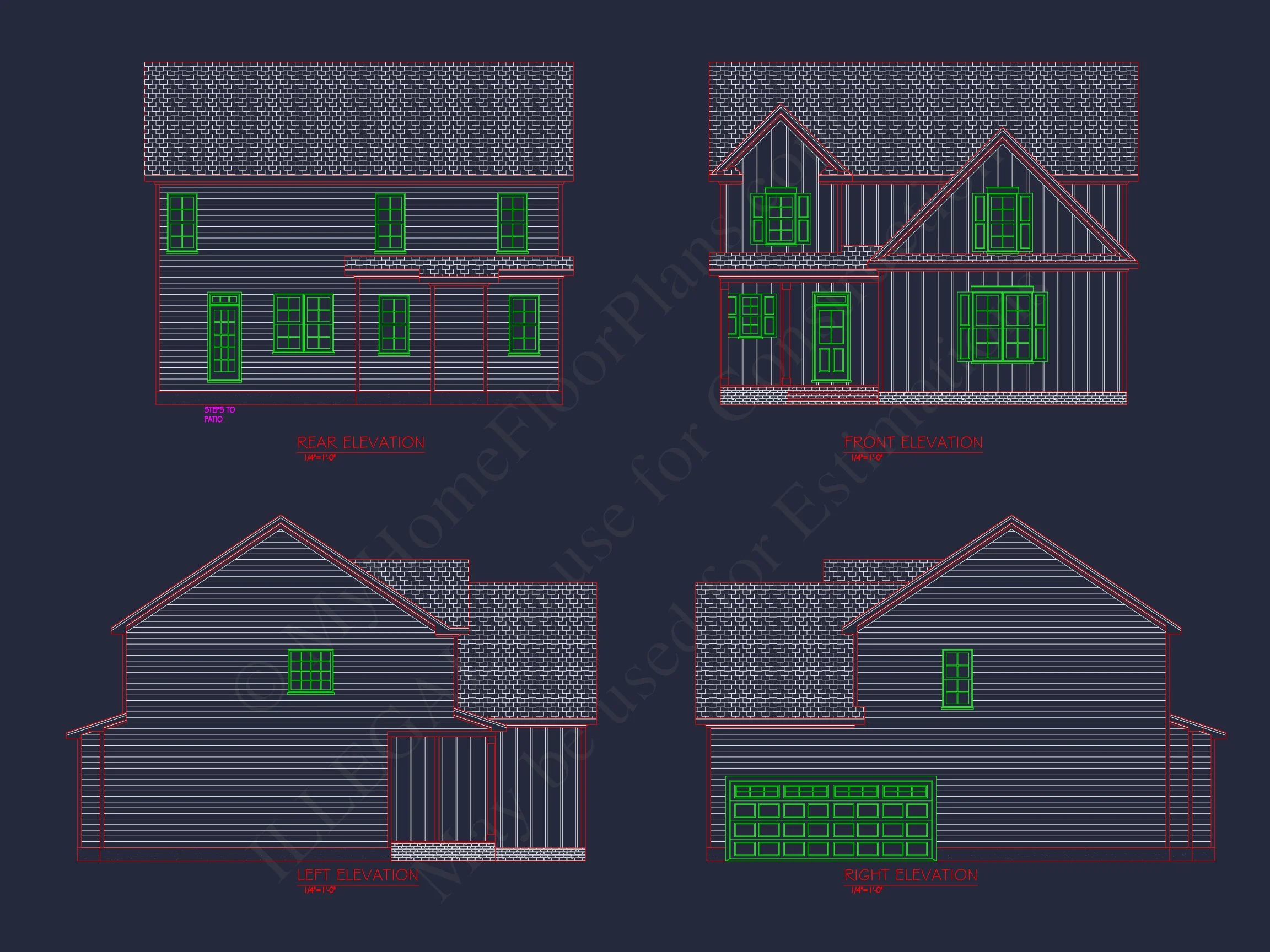

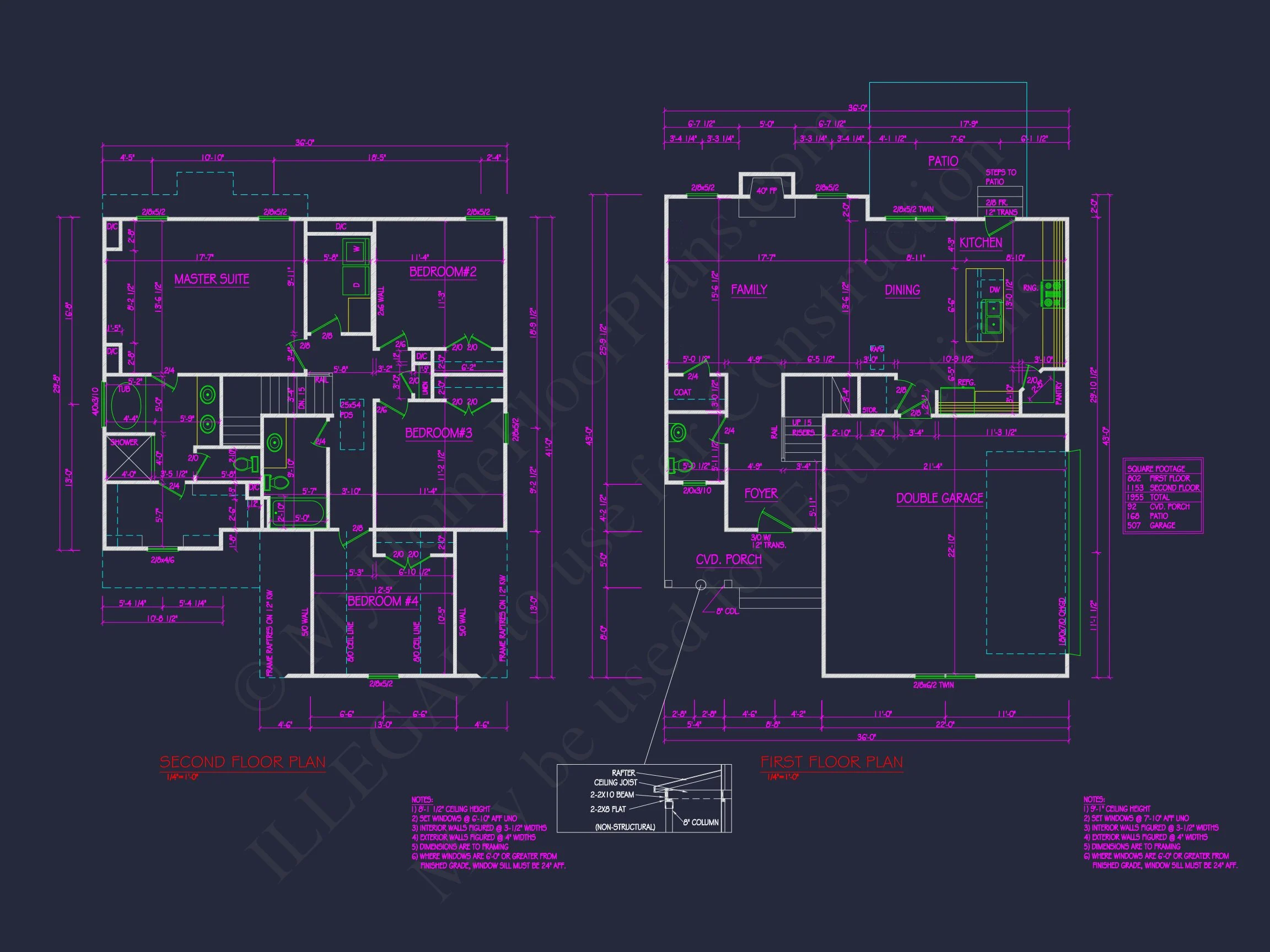

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

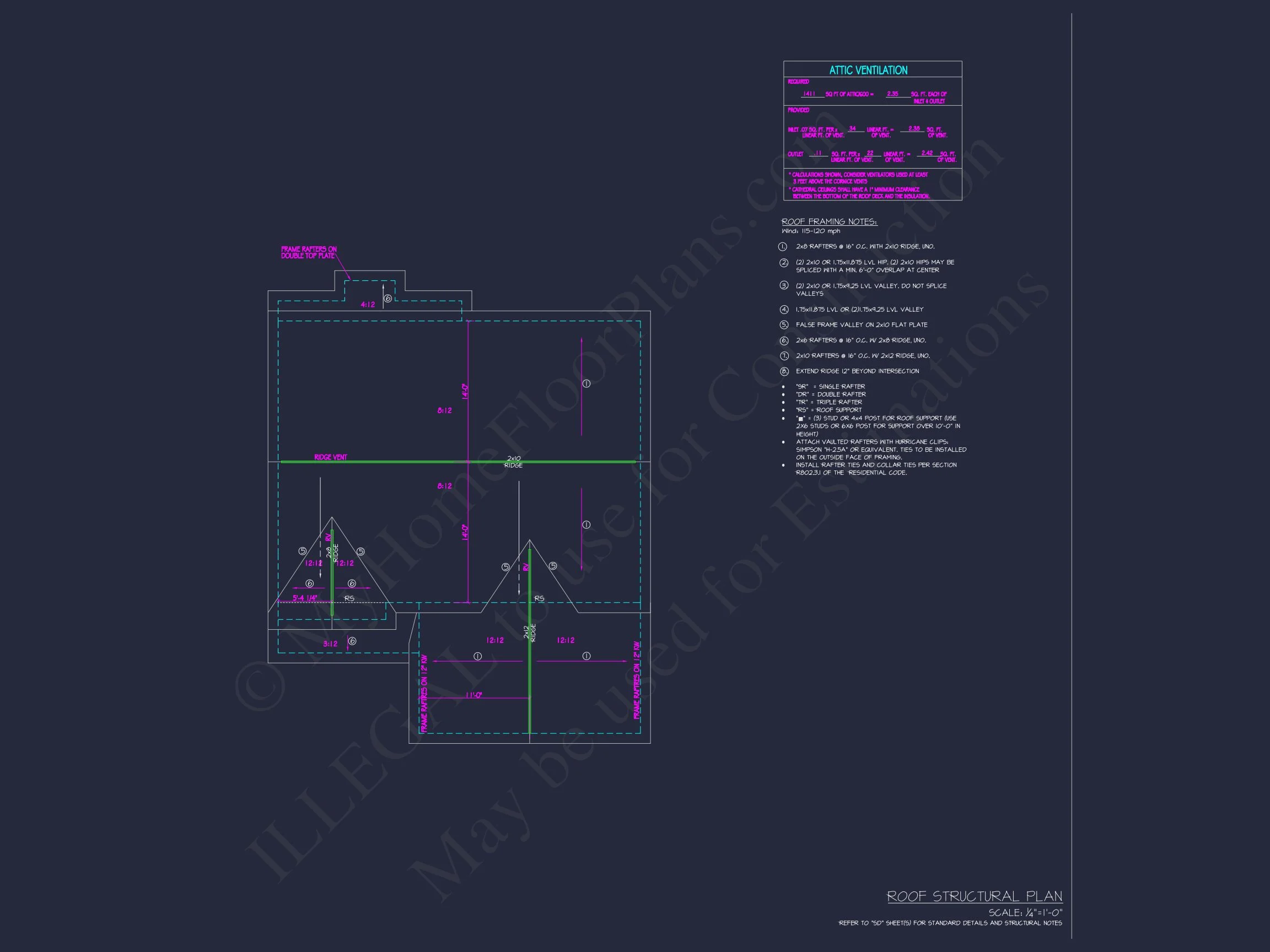

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
