Elegant Pavilion Floor Plan Blueprint with Classical Designs
Discover a beautifully designed classical pavilion floor plan with open spaces, vaulted ceilings, and a covered porch, perfect for elegant outdoor gatherings.
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 38'-0" |
|---|---|
| Depth | 38'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |

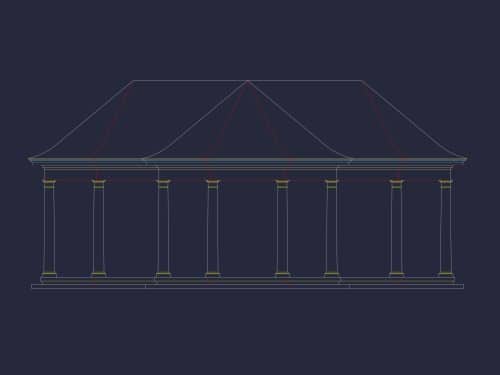

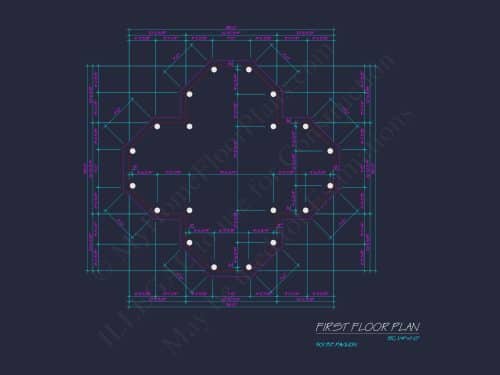

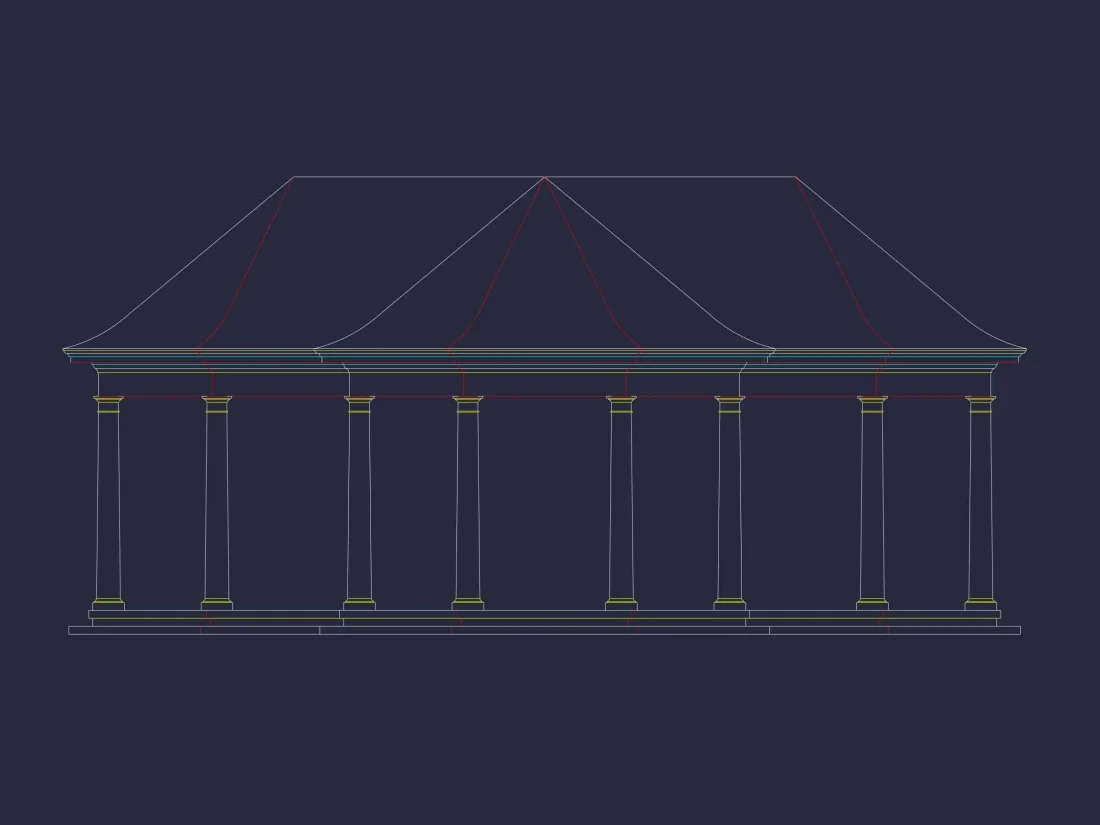

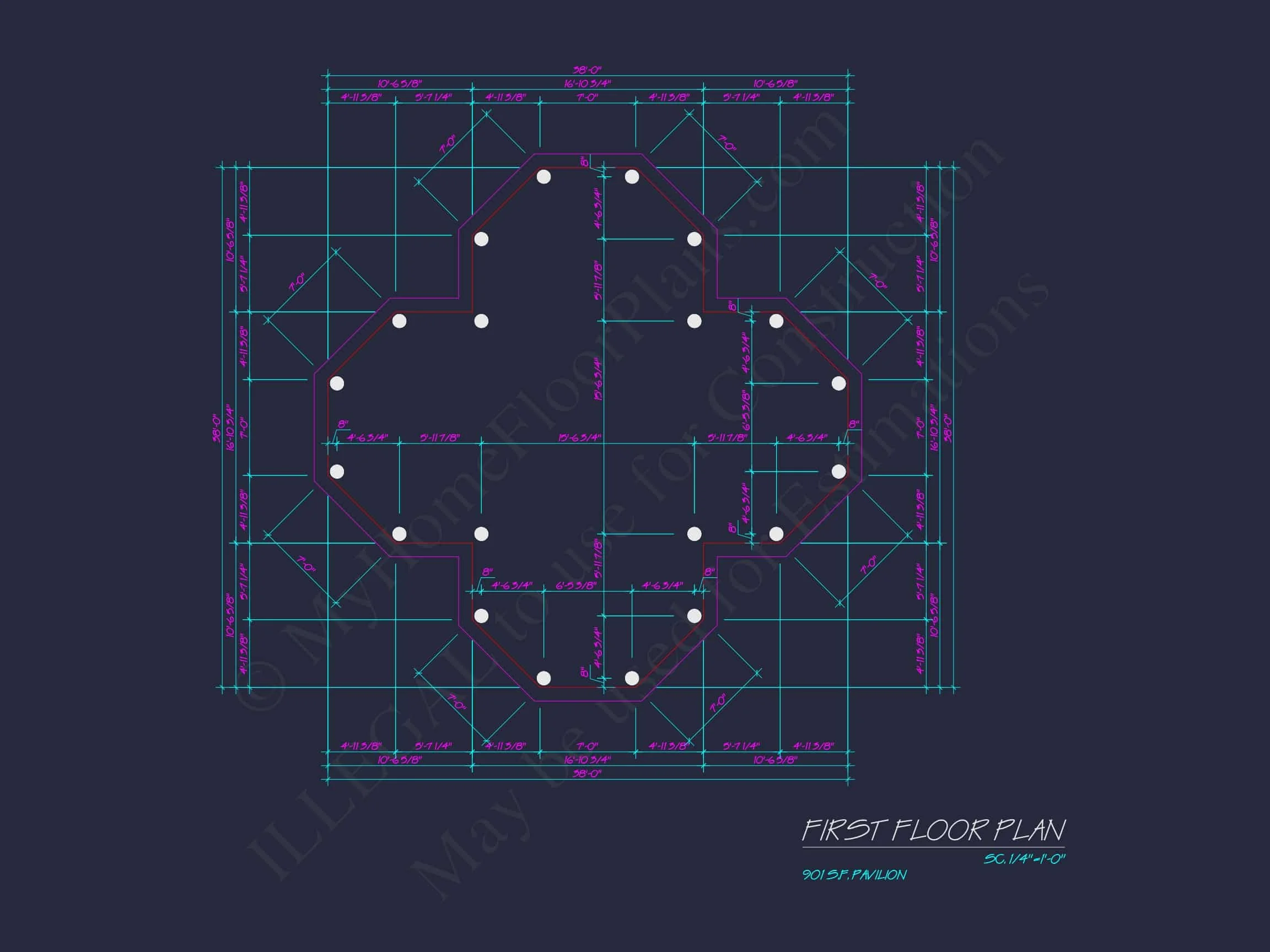

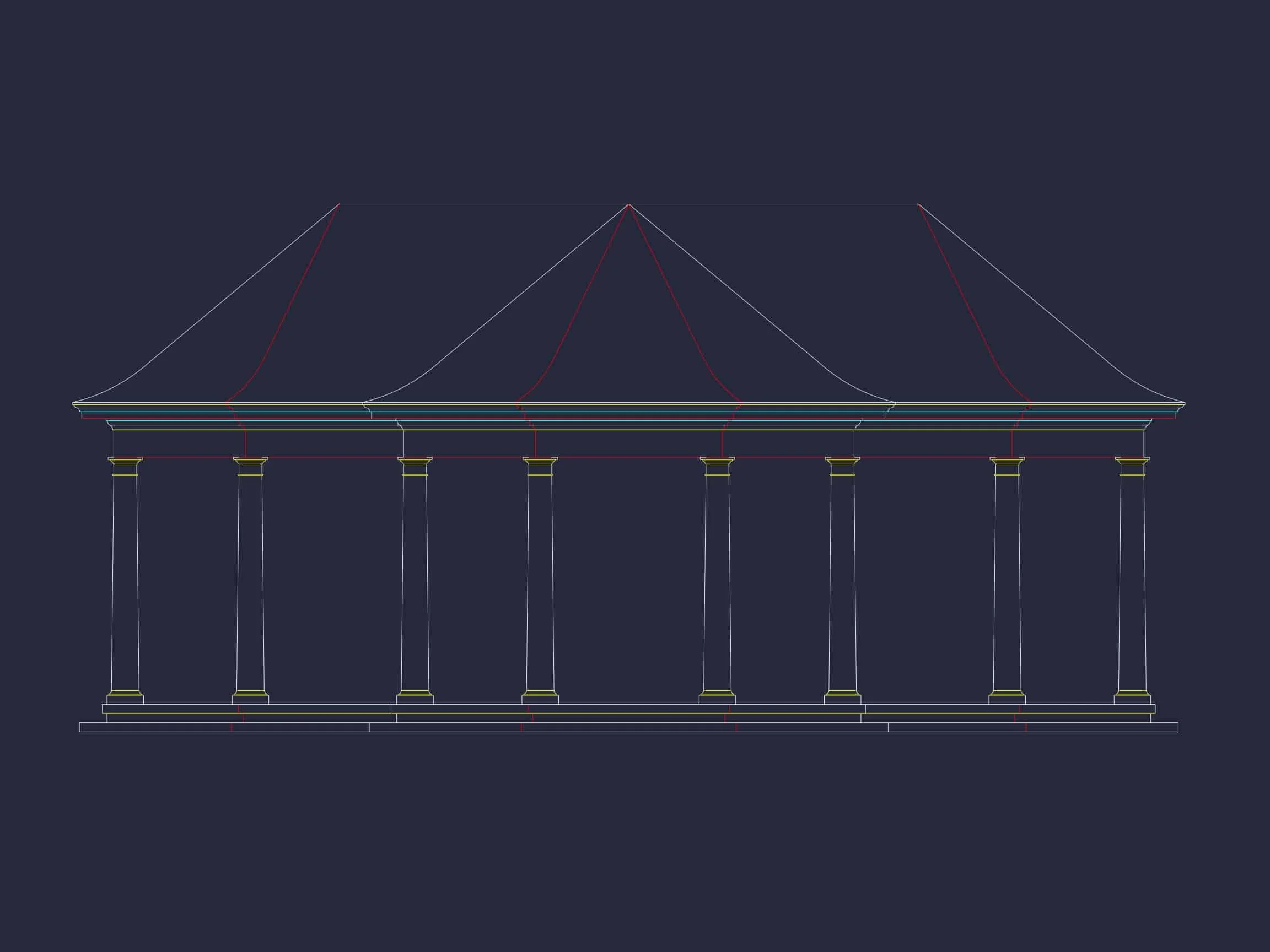

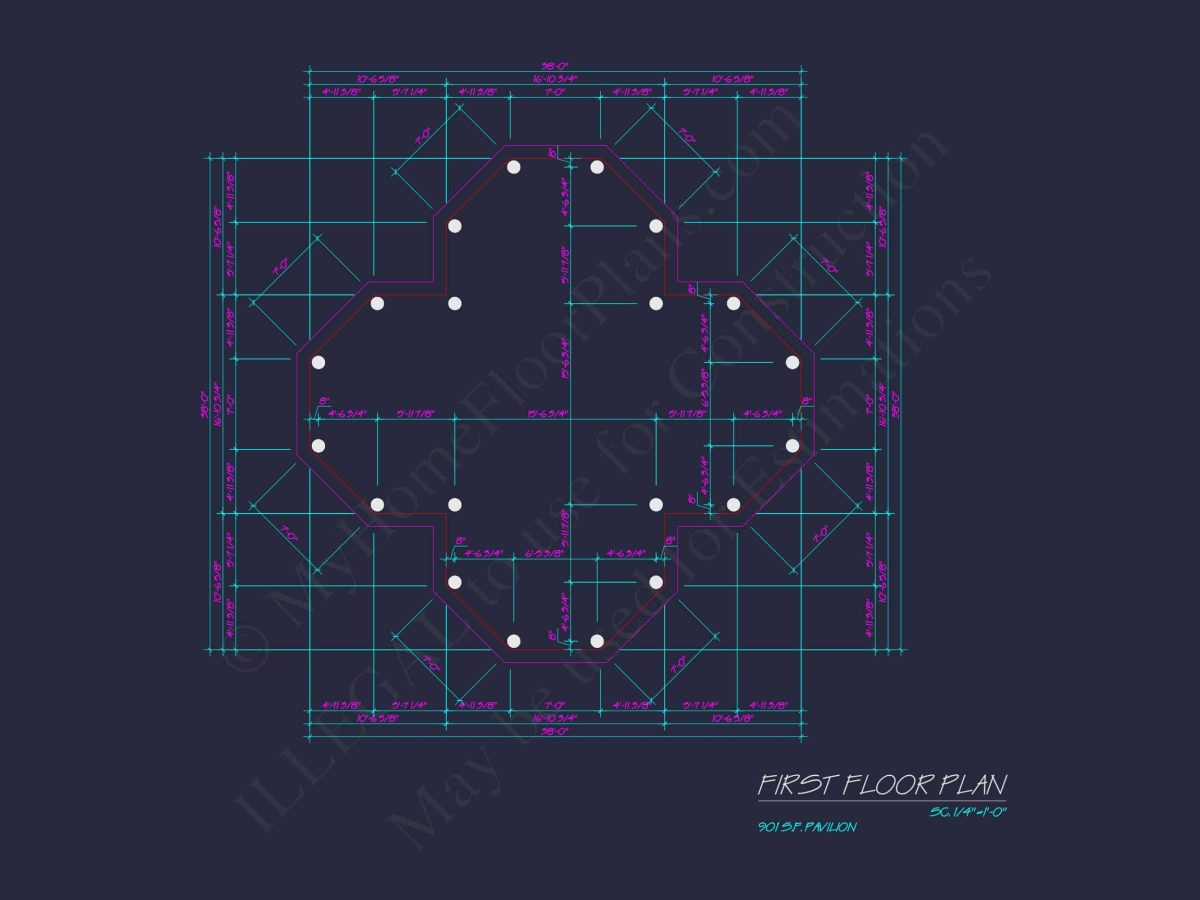

Elegant Pavilion Floor Plan Blueprint with Classical Designs
Discover this beautifully crafted pavilion plan with 901 sq. ft. of unheated space, classical architecture, and vaulted ceilings—perfect for sophisticated outdoor living.
This classical pavilion-style house plan offers a perfect mix of timeless elegance and outdoor functionality. Designed for gatherings and open-air experiences, it delivers charm, architectural symmetry, and smart spatial flow.
Key Features of the Pavilion Plan
Living Areas – Heated & Unheated
- Heated area: None – designed exclusively for outdoor use.
- Unheated extras: 901 sq. ft. of open pavilion space with front and rear covered porches.
Bedrooms & Bathrooms
- This is a non-residential pavilion plan with no dedicated bedrooms or bathrooms.
- Space can be customized to include powder room or utility closet if desired.
Interior Highlights
- Vaulted ceilings enhance the vertical volume for natural light and air flow.
- Open floor plan ensures unobstructed space for gatherings. See more open designs.
- Central foyer area adds a formal architectural touch and visual balance.
Garage & Storage Details
- Garage Bays: Not included in this design.
- Garage Type: N/A – this is a stand-alone pavilion structure.
- Storage: Optional add-on storage can be included during customization.
Outdoor Living Features
- Covered front porch ideal for welcoming guests or casual seating.
- Covered rear porch perfect for shaded dining or outdoor entertaining.
- Stone and stucco exterior materials offer a durable and elegant finish.
Architectural Style: Classical Pavilion
This design blends symmetrical classical elements with a modern blueprint layout—perfect for homeowners and landscape architects seeking structure, shade, and timeless sophistication. Learn more about the classical house style or explore architectural history on ArchDaily.
Bonus Features
- Center foyer with arched detail—adds a grand visual entrance.
- Flexible design—ideal for use as a garden structure, event space, or community feature.
- Open-span layout—easily accommodates seating arrangements, catering, or outdoor furnishings.
Included Benefits with Every Plan
- CAD + PDF Files: Editable and ready for contractor use or design updates.
- Unlimited Build License: Construct multiple pavilions without extra charges.
- Free Foundation Changes: Choose slab, piers, or crawlspace at no cost. Learn more here.
- Structural Engineering Included: Professionally stamped for code compliance.
- Lower Modification Costs: Customizations start at up to 50% less than other platforms.
- View Before You Buy: Preview full blueprints before purchasing.
Similar Collections You Might Love
- Classical House Plans
- Plans with Covered Porches
- Open Pavilion Layouts
- Garden Structures & Outdoor Rooms
- Plans Featuring Foyers
Frequently Asked Questions
What’s included with this pavilion plan? You’ll receive editable CAD files, PDF blueprints, a build-anywhere license, and structural engineering.
Can I add a bathroom or storage area? Absolutely. This pavilion layout is flexible and can be adapted with extra features.
Is this design suitable for a backyard or public space? Yes! It’s perfect for residential gardens, parks, event lawns, or even luxury developments.
What’s the total square footage? The total unheated square footage is 901, covering both covered porches and the central gathering area.
Can I see the layout before I buy? Yes. Preview every sheet before purchase here.
Start Building Your Dream Pavilion Today
Have questions or want to tailor this design? Contact our team at [email protected] or reach out online.
Your elegant outdoor retreat begins with a great plan—start today with a pavilion that inspires timeless gatherings.
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

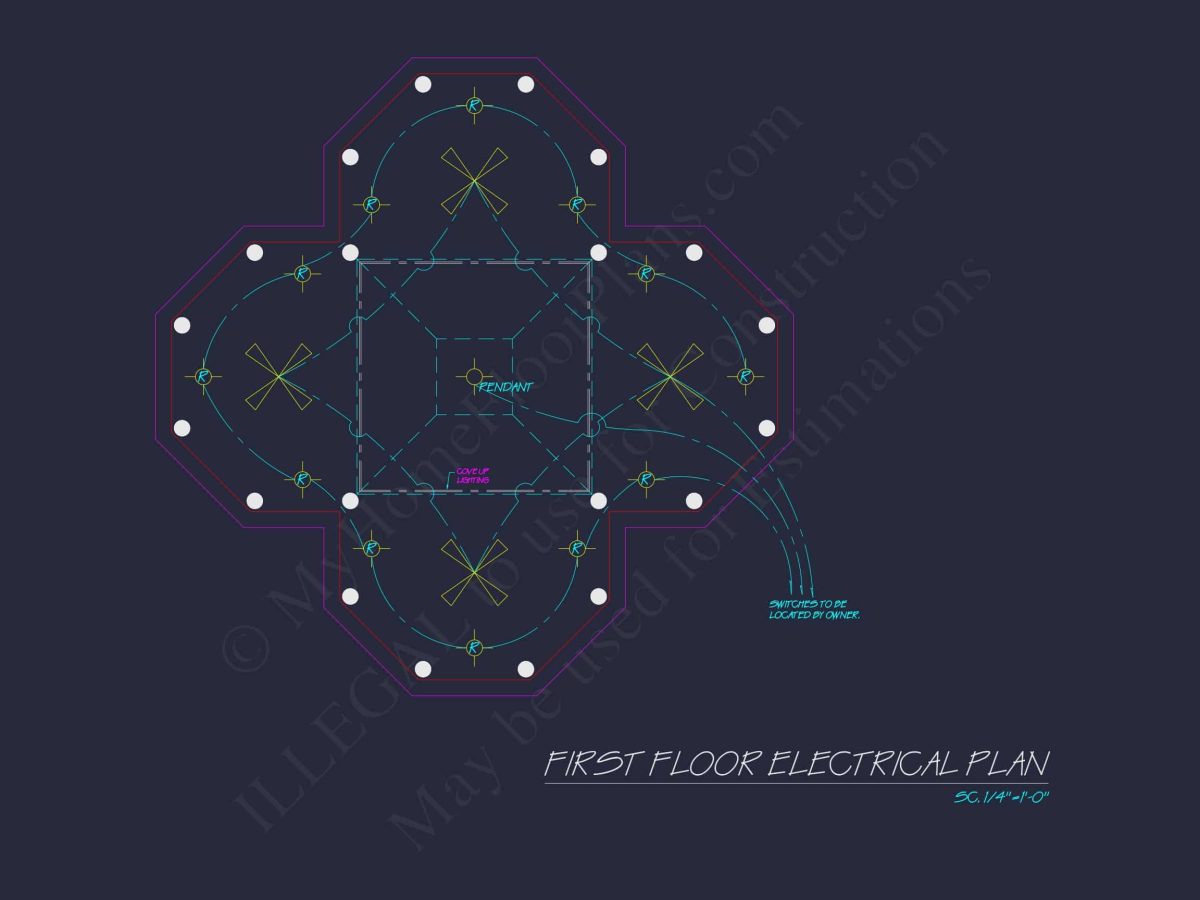

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
