Traditional Craftsman house Plan with CAD Blueprint Designs
Explore this stunning Craftsman floor plan featuring 2568 sq. ft. of heated space,4 bedrooms,outdoor porches,and captivating architectural designs.
9 FT+ Ceilings | Affordable | Attics | Breakfast Nook | Butler’s Pantry | Cottage | Covered Front Porch | Covered Rear Porches | Craftsman | Foyer | Front Entry | Jack and Jill | Large | Narrow | Owner’s Suite on Second Floor | Recreational Room | Screened Porches | Second Floor Bedroom | Traditional | Upstairs Laundry Room | Walk-in Closet | Walk-in Pantry
Original price was: $1,699.00.$1,398.00Current price is: $1,398.00.
999 in stock
| Width | 43'-0" |
|---|---|
| Depth | 44'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Butler's Family Room, Foyer, Recreational Room, Upstairs Laundry Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Traditional Craftsman Home Plan with CAD Blueprint Designs
Explore this stunning Craftsman floor plan featuring 2568 sq. ft. of heated space, 4 bedrooms, outdoor porches, and captivating architectural designs.
Discover the Perfect Craftsman-Style Home Design
Designing your dream home begins with the right blueprint, and this traditional Craftsman-style home plan is a true Ownerpiece. With 2568 heated square feet spread over 2.5 stories, this home balances elegance with functionality. The CAD blueprints feature precise architectural designs, making this home ideal for homeowners, designers, and builders alike.
Thoughtful Floor Plan with Unique Indoor Features
This floor plan is designed to meet the needs of modern families with 4 bedrooms, 3 bathrooms, and an inviting attic for future use. The Owner suite resides on the second floor with a spacious walk-in closet and ensuite bathroom for privacy and comfort. Other bedrooms also offer exceptional functionality with features like a Jack-and-Jill bathroom connecting rooms.
The kitchen is a chef’s dream, complete with a butler’s pantry, a breakfast nook, and a roomy walk-in pantry. The family room and foyer provide ample space for gatherings, while an upstairs laundry room adds practicality to this design.
Outdoor Charm with Elegant Porches and Material Choices
This home prioritizes outdoor charm with its covered front porch, rear porch, and optional screened porch, making it perfect for relaxing or entertaining. The exterior is designed with board-and-batten siding, shakes, and stone materials, blending style with durability.
The two-car front entry garage enhances the home’s accessibility, while thoughtful foundation options, like a crawlspace, make it suitable for various lot conditions.
Additional Features for Convenience and Style
This 2.5-story home comes with 9ft+ ceilings, providing openness throughout the layout. Special features include a recreational room in the attic and a foyer that keeps entryways organized for guests. Its spacious layout and clever use of space make it ideal for homes on narrow lots without sacrificing comfort or elegance.
Indoor Highlights:
* Spacious Bedrooms with second-floor configurations
* Modern Kitchen with premium features, including a butler’s pantry
* Family Room for relaxation and entertainment
* Attic and recreational room for flexible use
Outdoor Benefits:
* Covered front and rear porches
* Optional screened porch
* Durable materials like stone and shake siding
Benefits Included with Every Plan
All blueprint designs include CAD files and a PDF version for seamless construction. With every purchase, you’ll receive an unlimited-build license, free foundation adjustments, and expert structural engineering support. No hidden fees or limitations—view all sheets with full transparency before making your decision.
Ready to Create Your Dream Home?
Inquire today at support@https://myhomefloorplans.com to start turning your vision into reality!
All home plans include BOTH the CAD file and PDF file.

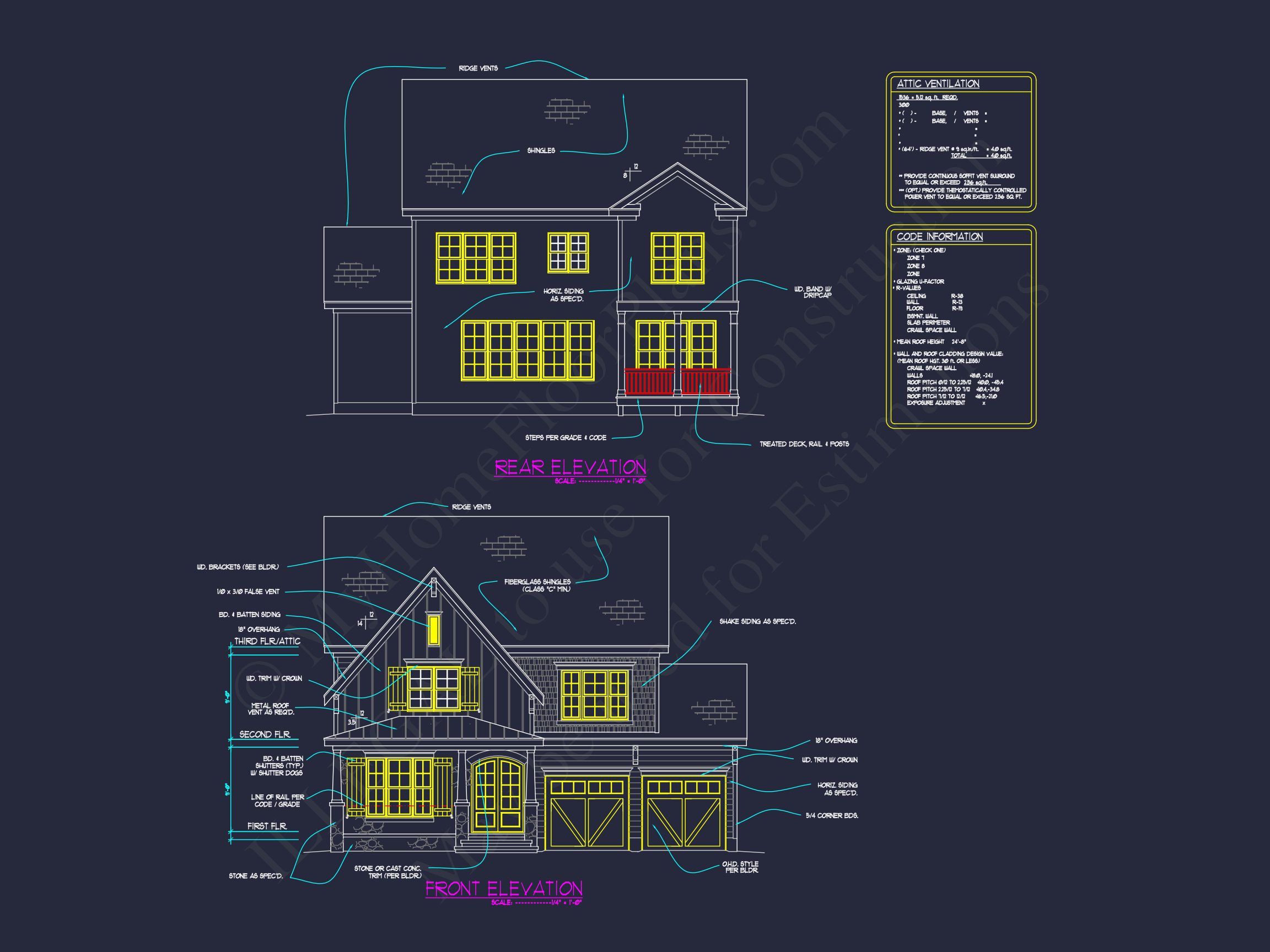

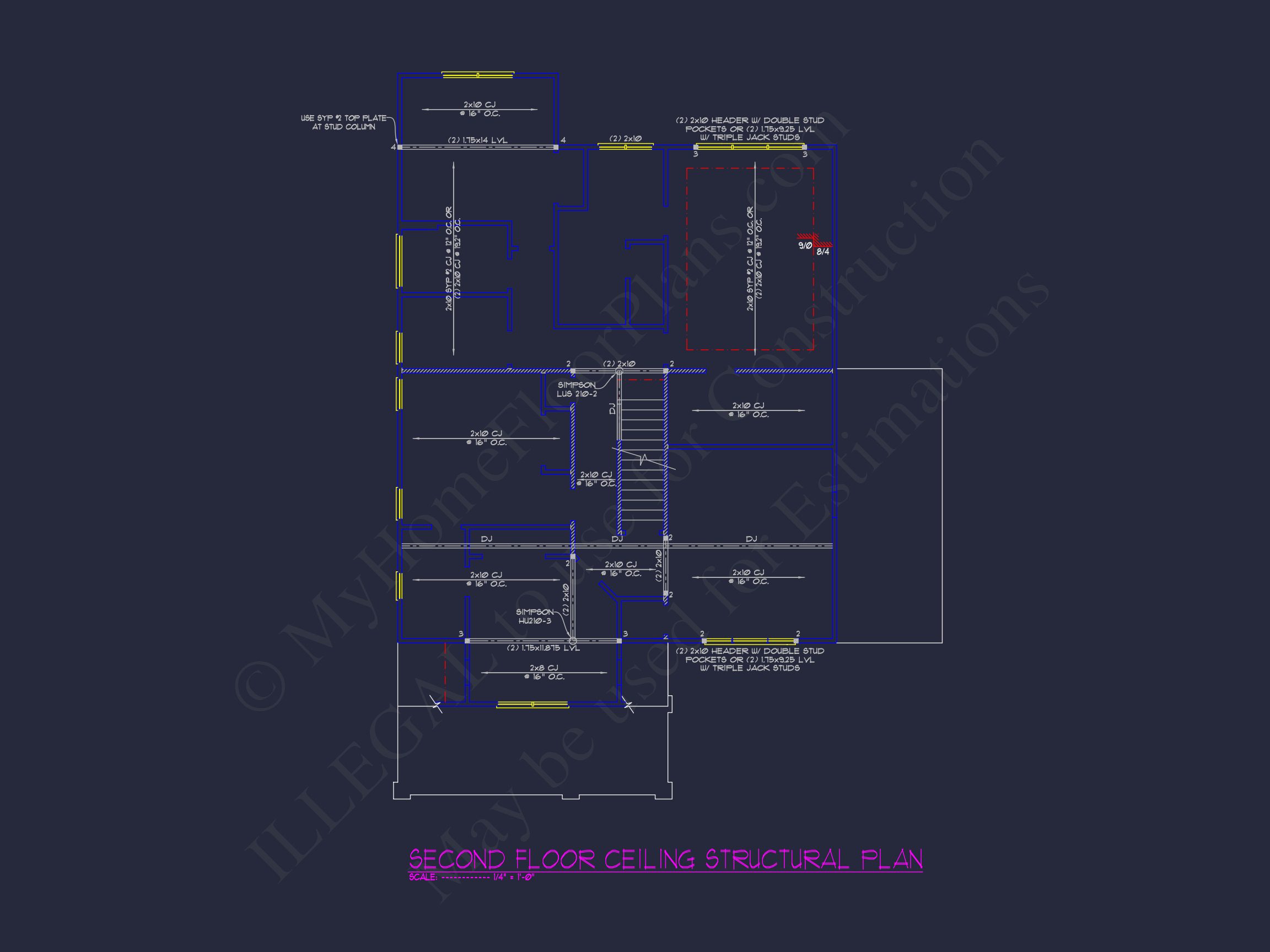

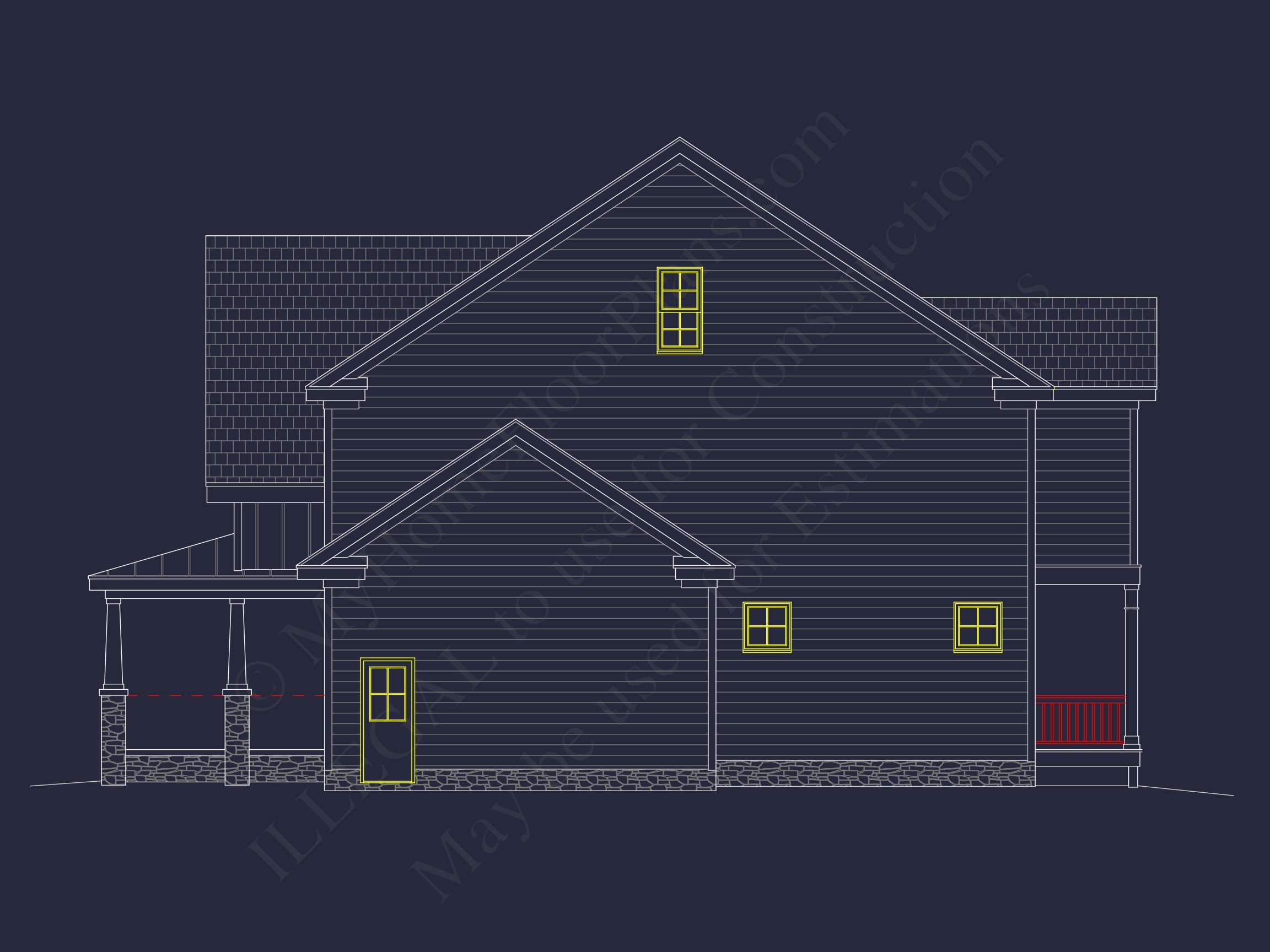

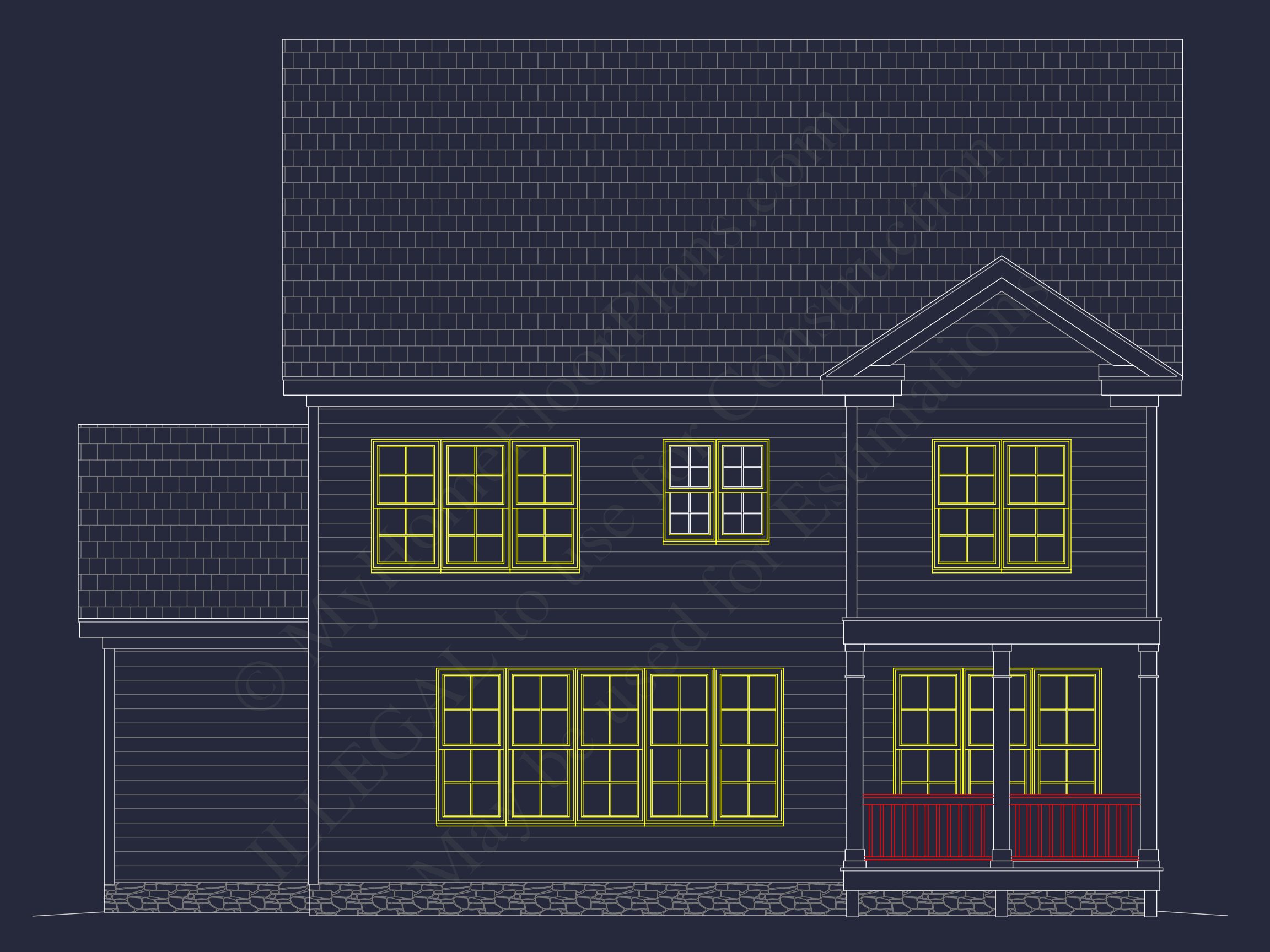

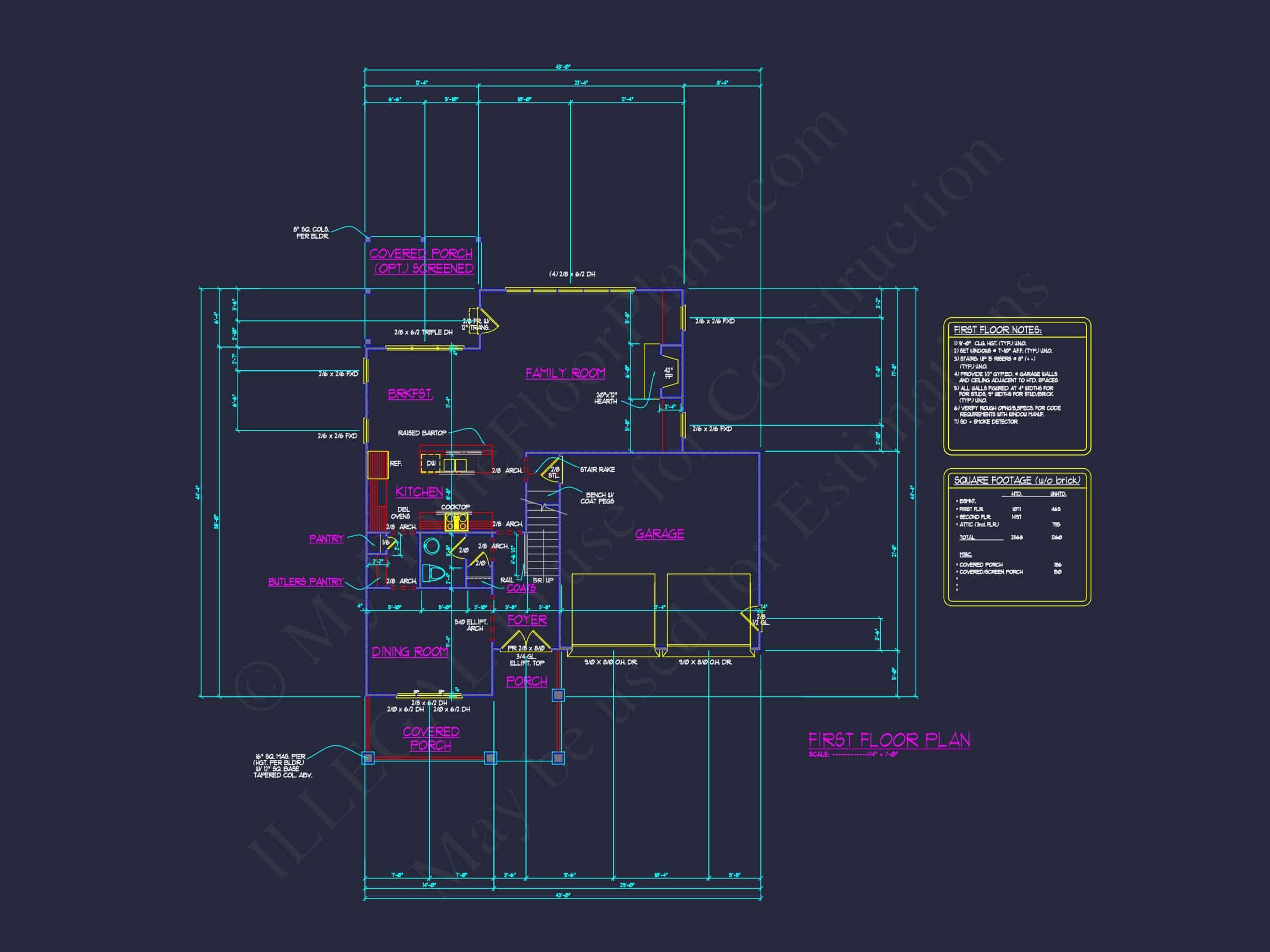

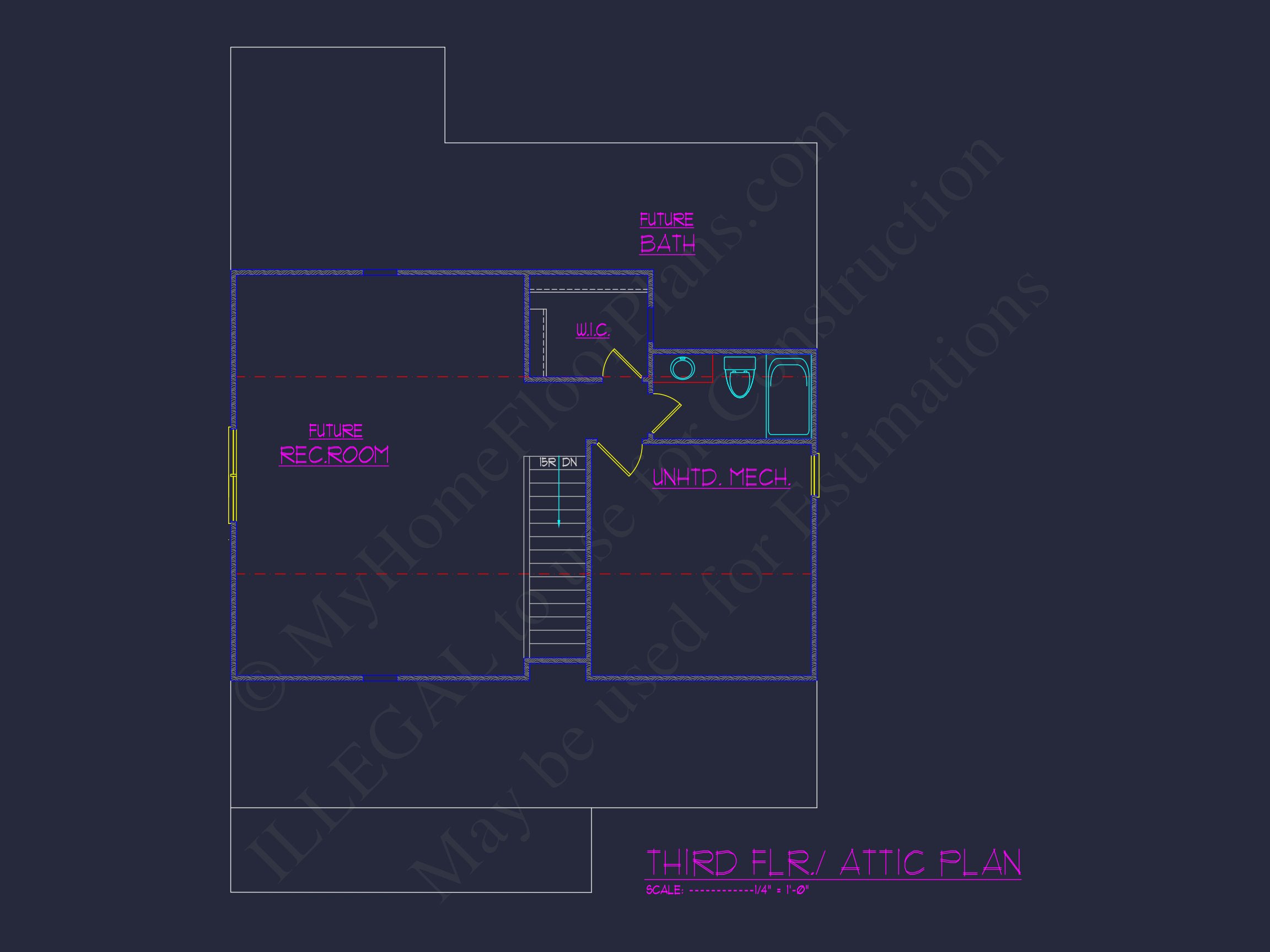

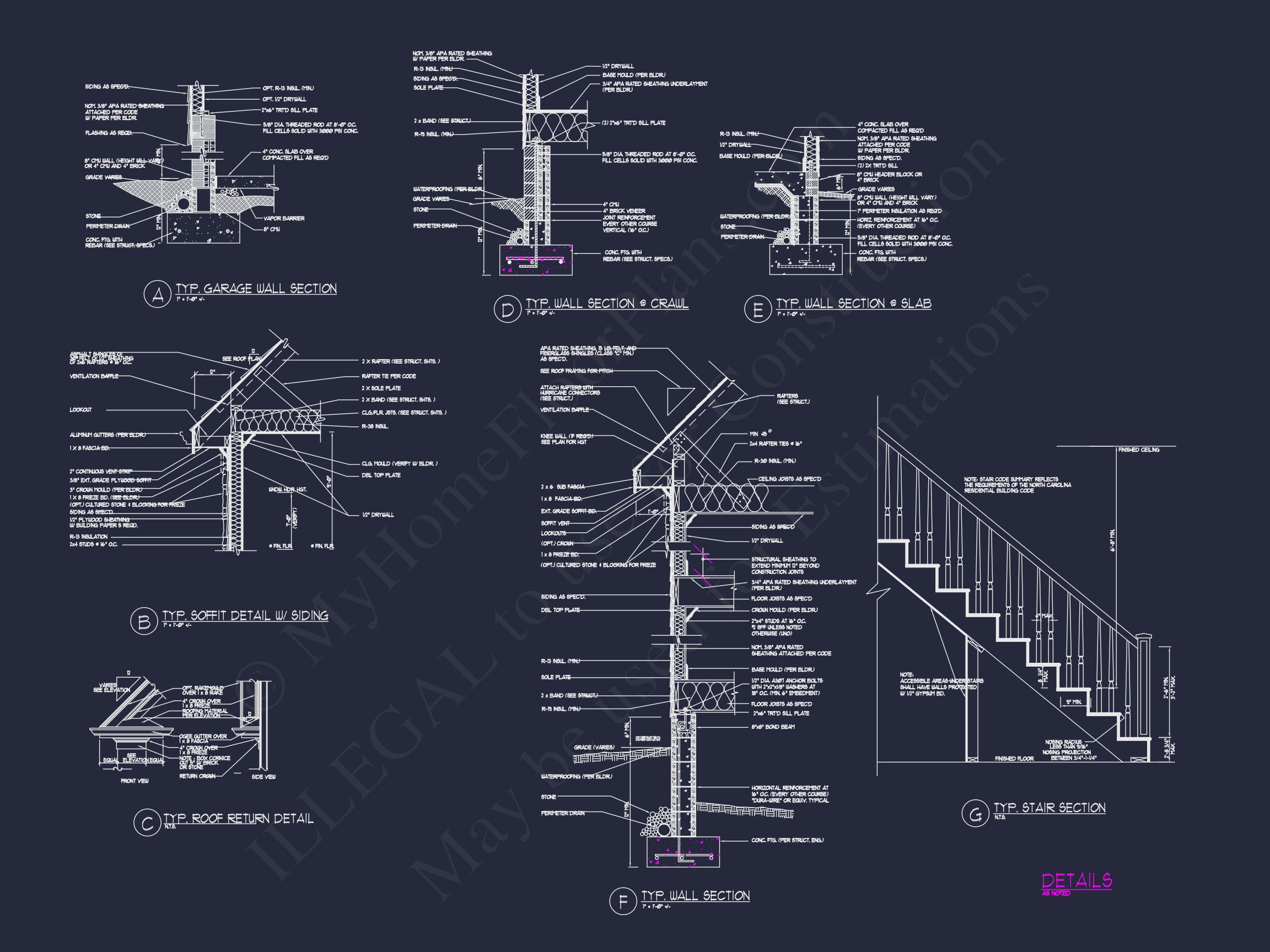

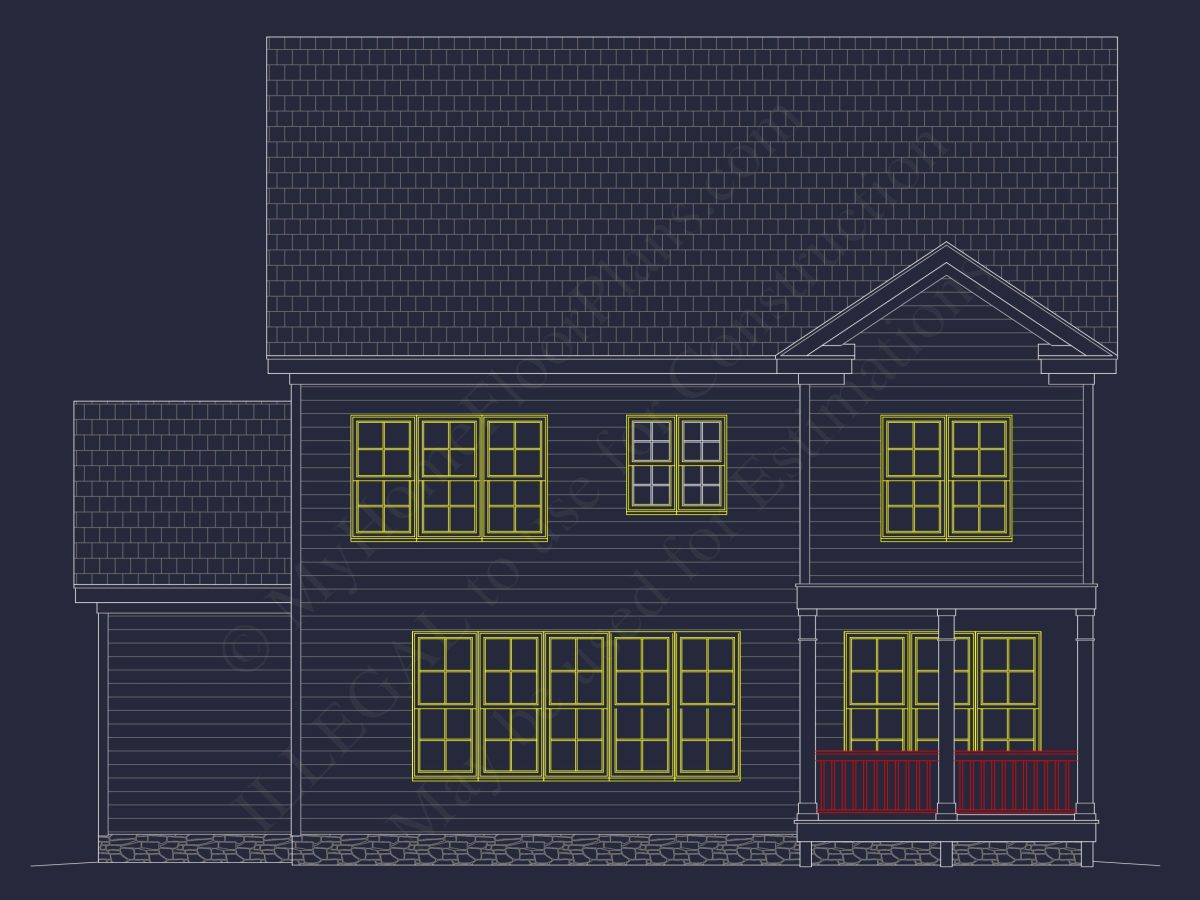

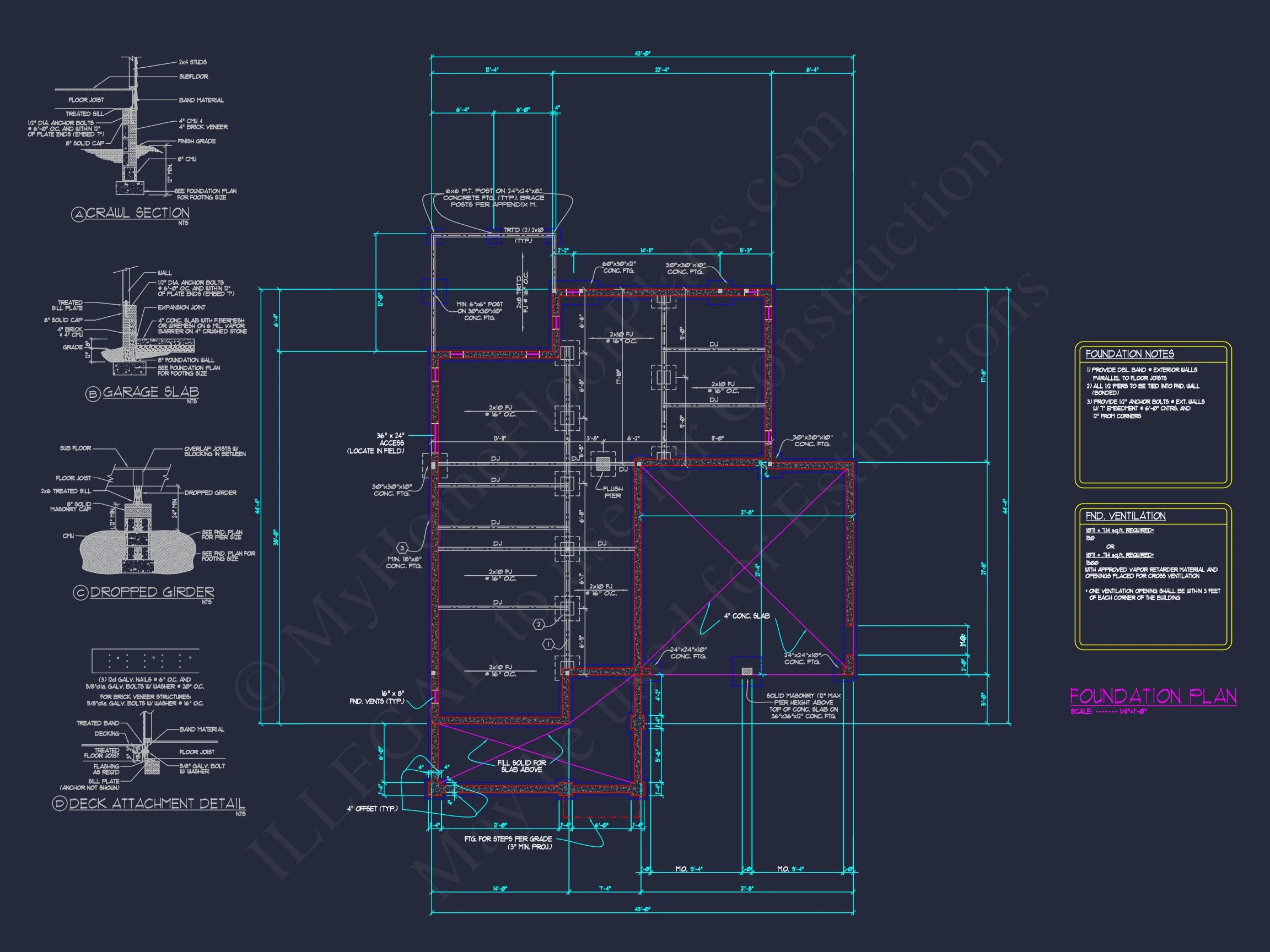

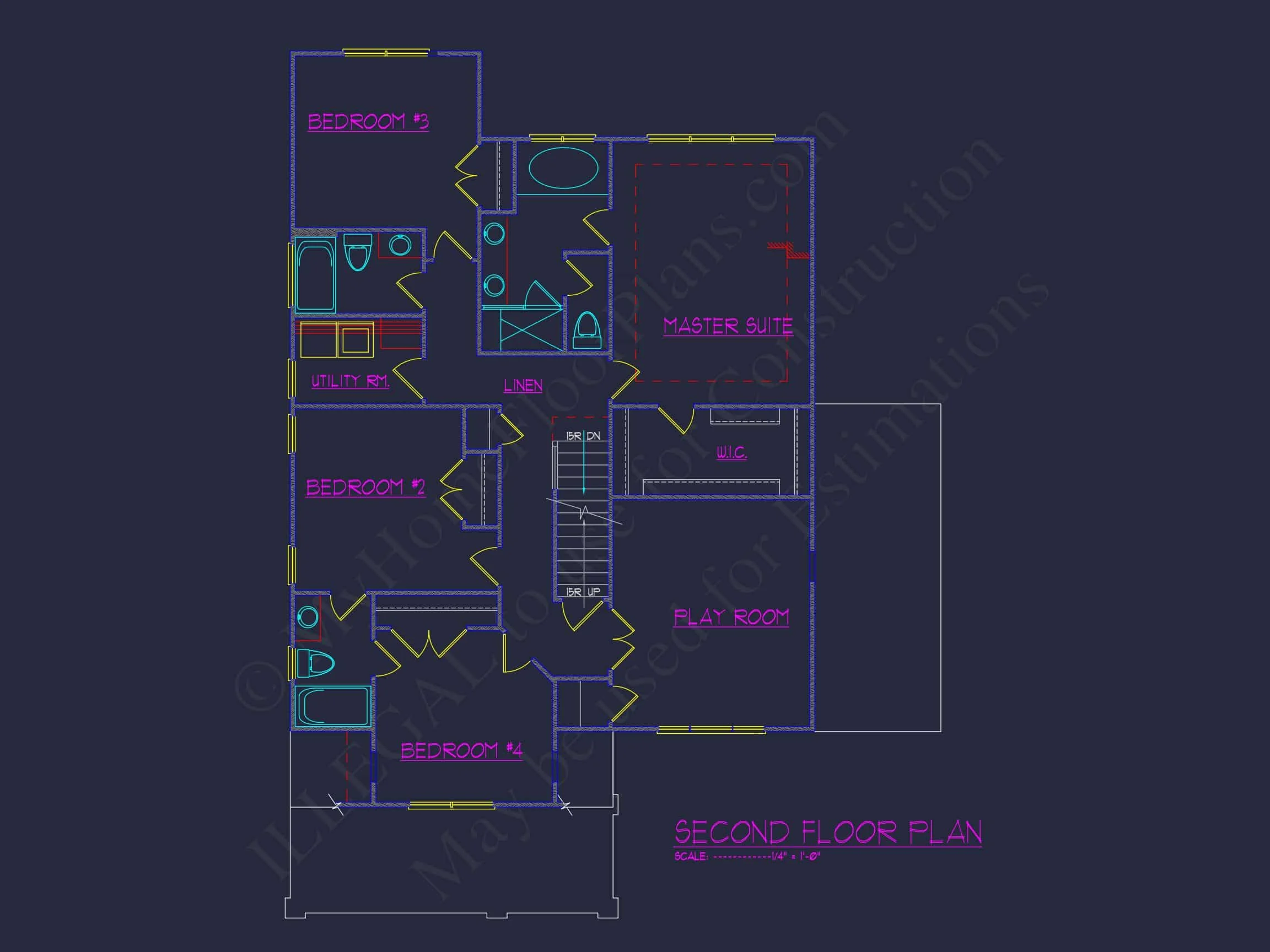

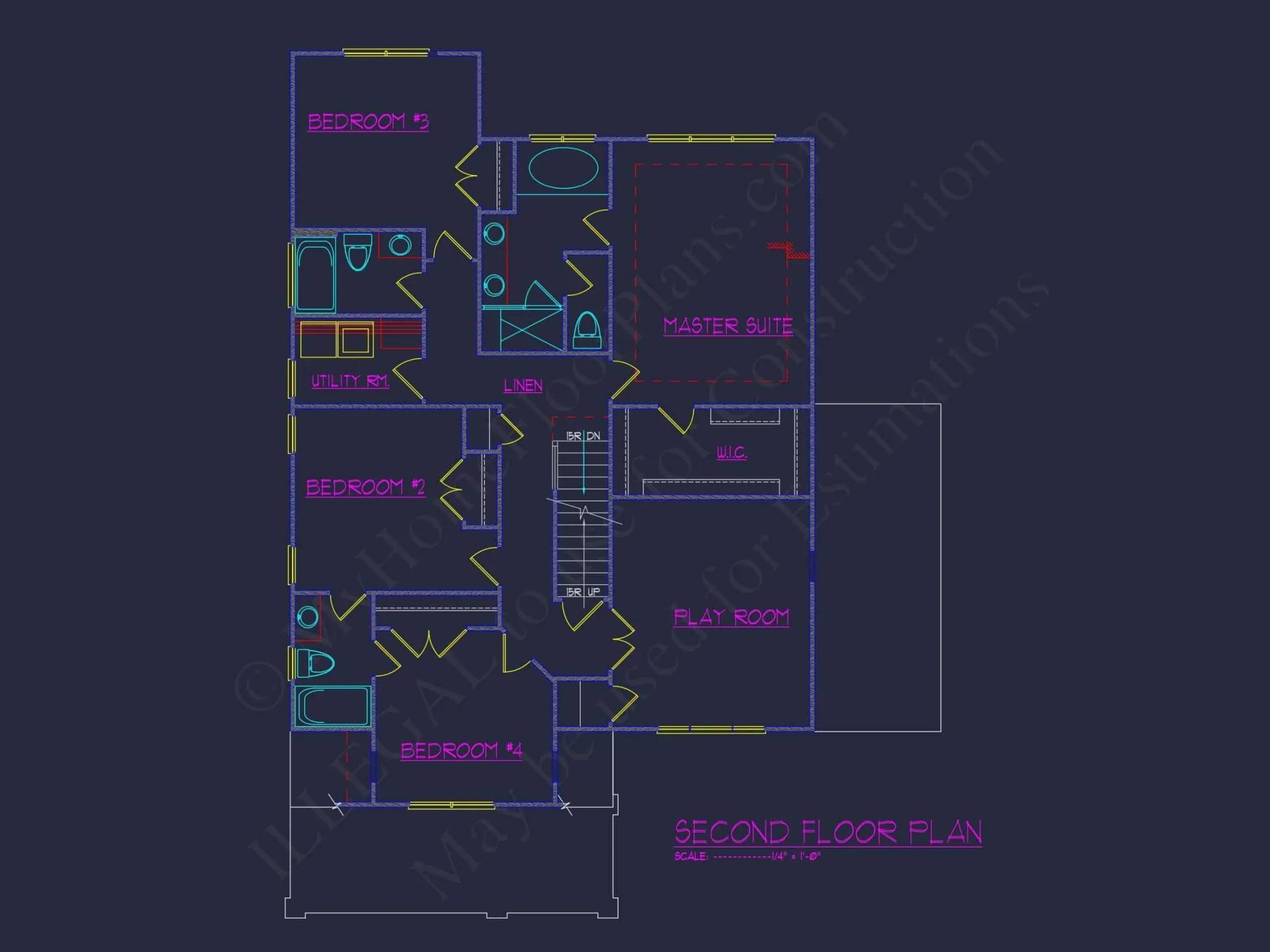

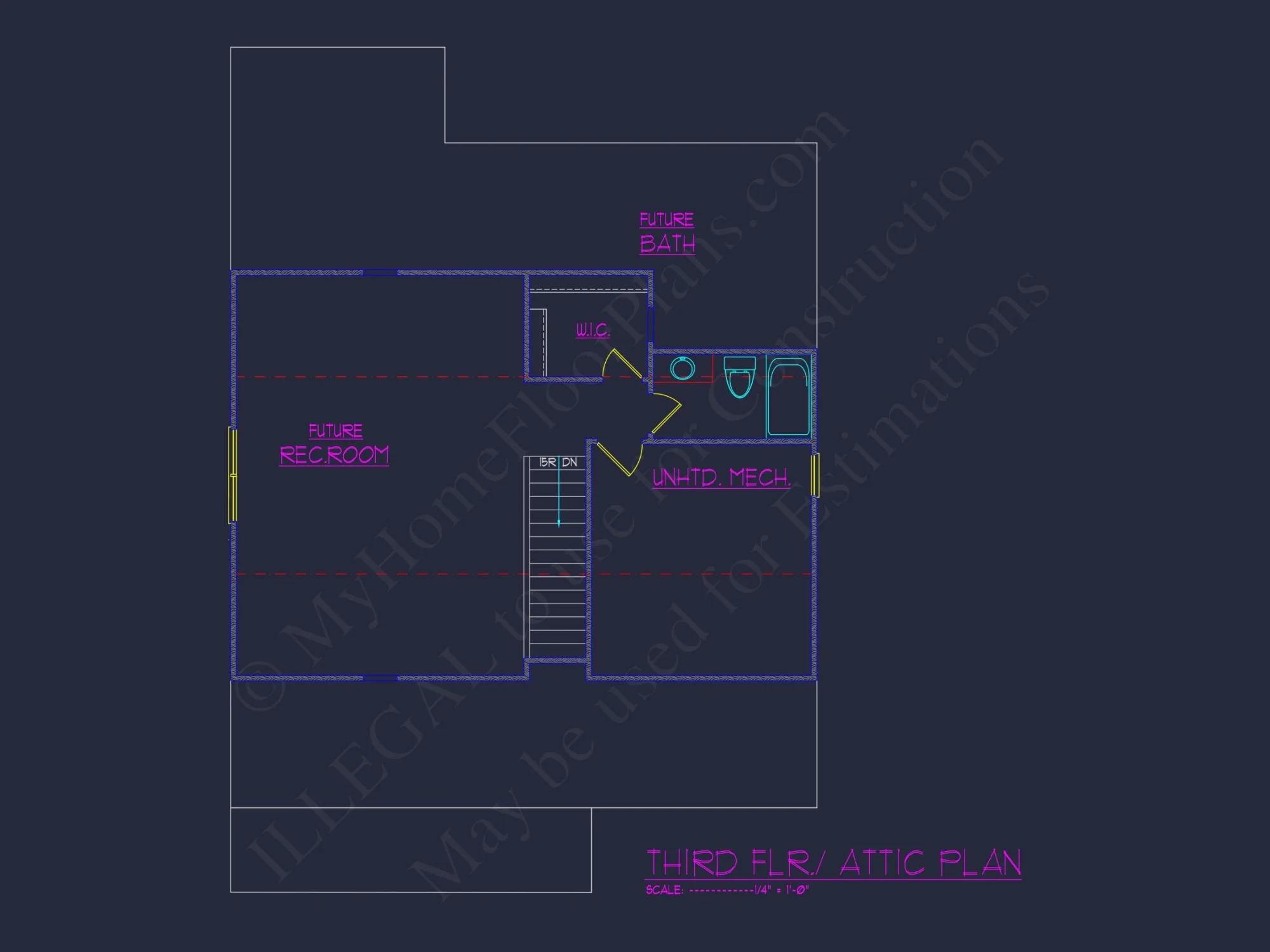

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

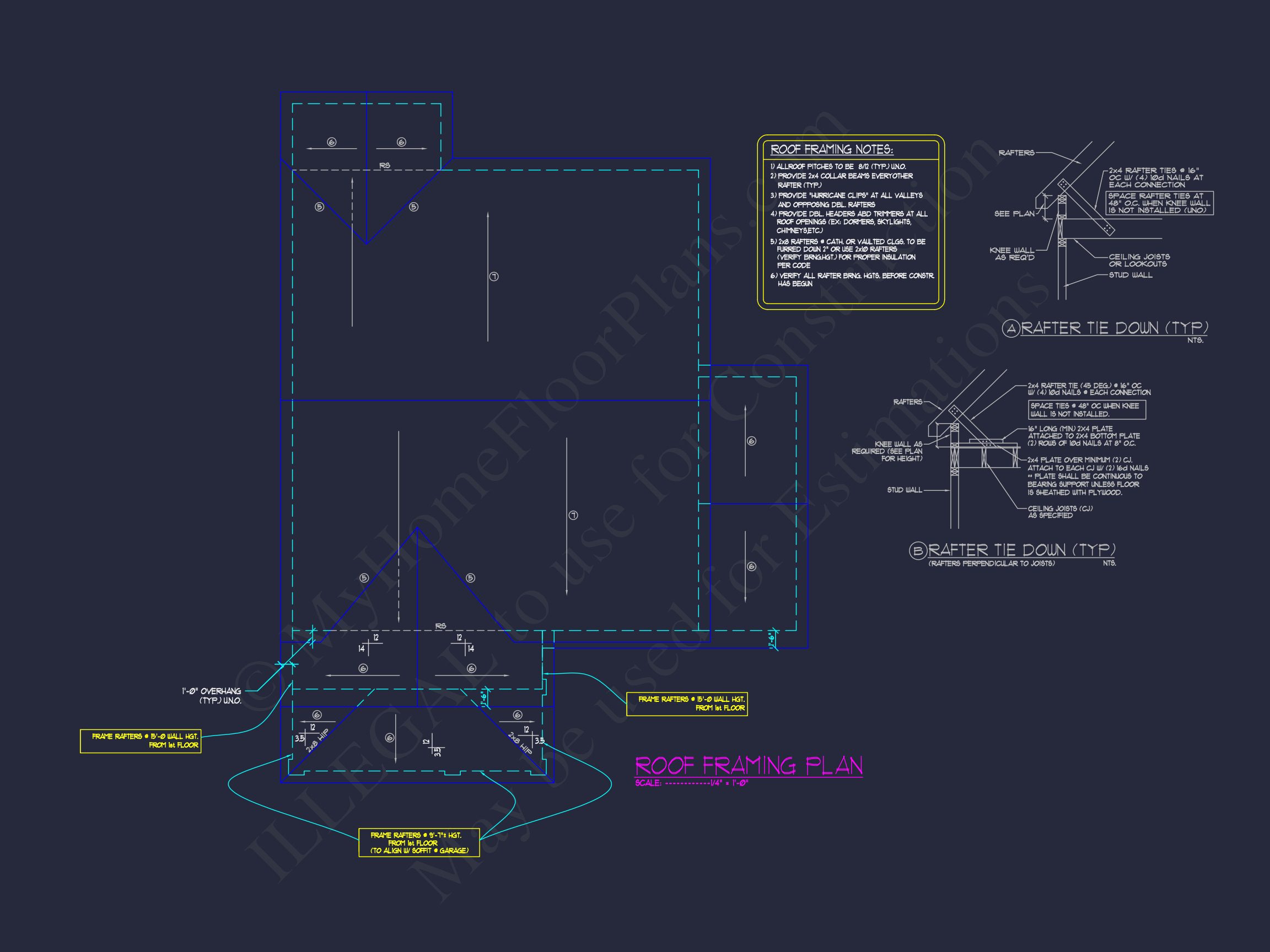

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
