Charming house and Floor Plan Blueprint with Modern Designs
This stunning house blueprint offers a 2-story design with 3 bedrooms, 2 bathrooms, a spacious garage, and modern architecture, perfect for a narrow lot.
9 FT+ Ceilings | Affordable | Covered Front Porch | Craftsman | Fireplaces | Foyer | Front Entry | Jack and Jill | Kitchen Island | Living Room | Medium | Modern Craftsman | Narrow | Open Floor Plan Designs | Oversized | Owner's Suite | Owner’s Suite on Second Floor | Patios | Second Floor Bedroom | Smooth & Conventional | Traditional | Walk-in Closet | Walk-in Pantry
Original price was: $439.60.$175.84Current price is: $175.84.
999 in stock
| Width | 32'-0" |
|---|---|
| Depth | 43'-0" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Fireplace, Foyer, Living Room, Open Floor Plan, Owner's Suite |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Charming Home and Floor Plan Blueprint with Modern Designs
This stunning home blueprint offers a 2-story design with 3 bedrooms, 2 bathrooms, a spacious garage, and modern architecture, perfect for a narrow lot.
A Stunning Home Plan for Narrow Lots
Designing your dream home starts with the perfect floor plan. Whether you’re an aspiring homeowner, an architect seeking inspiration, or a designer crafting exceptional creations, this 2-story home blueprint is a remarkable choice. Its modern Craftsman design, combined with thoughtful amenities, caters to style, comfort, and smart use of space.
Specifications Perfectly Tailored for a Medium-Size Home
This plan is designed for narrow lots, with a width of 32 feet and a depth of 43 feet. The heated area totals 1, 798 square feet, accompanied by a functional 443-square-foot garage. With 3 spacious bedrooms, 2 full bathrooms, and 1 half bathroom, it offers ample space for families of all sizes. Despite its compact footprint, the home’s open floor plan ensures an airy and welcoming atmosphere.
Indoor Features You’ll Love
This thoughtfully designed home includes the following indoor features:
* Open Floor Plan: Seamlessly connects the living, kitchen, and dining areas.
* Owner’s Suite: A dedicated second-floor retreat with a private bath and walk-in closet.
* Optional Playroom: Perfect for kids or as a versatile indoor space.
* Fireplace: Enhancing the cozy atmosphere in the living area.
* Efficient Kitchen Design: Includes a kitchen island and a walk-in pantry for added convenience.
* Jack and Jill Bathroom: Provides ease of access between the secondary bedrooms.
Outdoor Charm for Every Season
The exterior features include a covered front porch and a back patio, perfect for entertaining or relaxing. The use of shingles, shake, and siding enhances the home’s traditional Craftsman charm, providing a warm and timeless aesthetic.
Designed for Convenient and Comfortable Living
The front-entry, oversized two-car garage and 9-foot ceilings offer both convenience and elegance. This thoughtfully compact single-family home caters to both affordability and practicality, making it ideal for growing families or buyers seeking stylish modern functionality.
Benefits Included with Every Home Plan
Every home plan comes with not just the PDF version but also the full CAD file, allowing for seamless modifications. You’ll receive a licensed set for unlimited builds, complete with free foundation adjustments and structural engineering services. Our team prides itself on providing unmatched value, offering customized options at an affordable price.
Ready to begin designing your dream home? Contact us at support@https://myhomefloorplans.com today to transform your vision into reality!

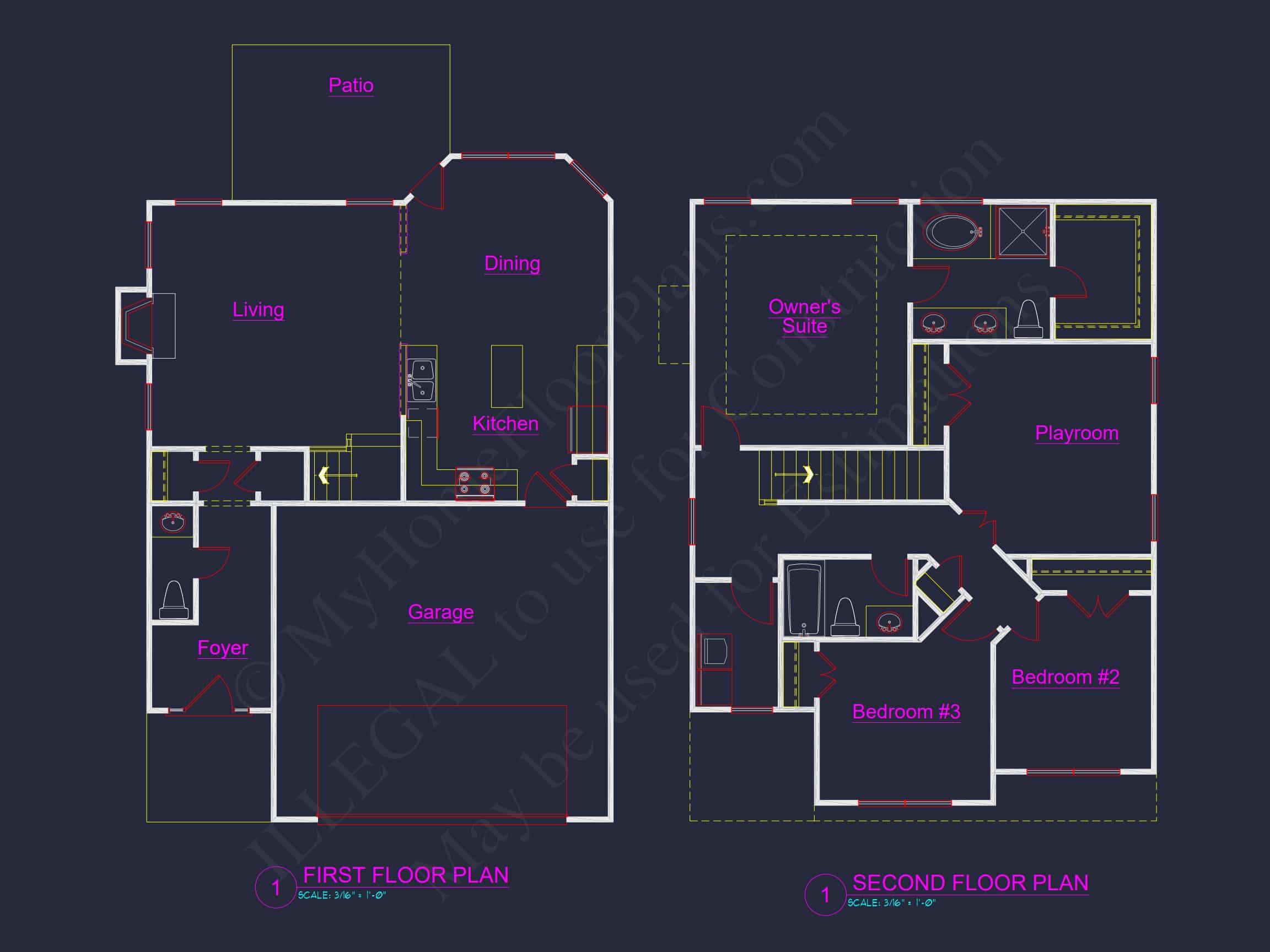

All home plans include BOTH the CAD file and PDF file.

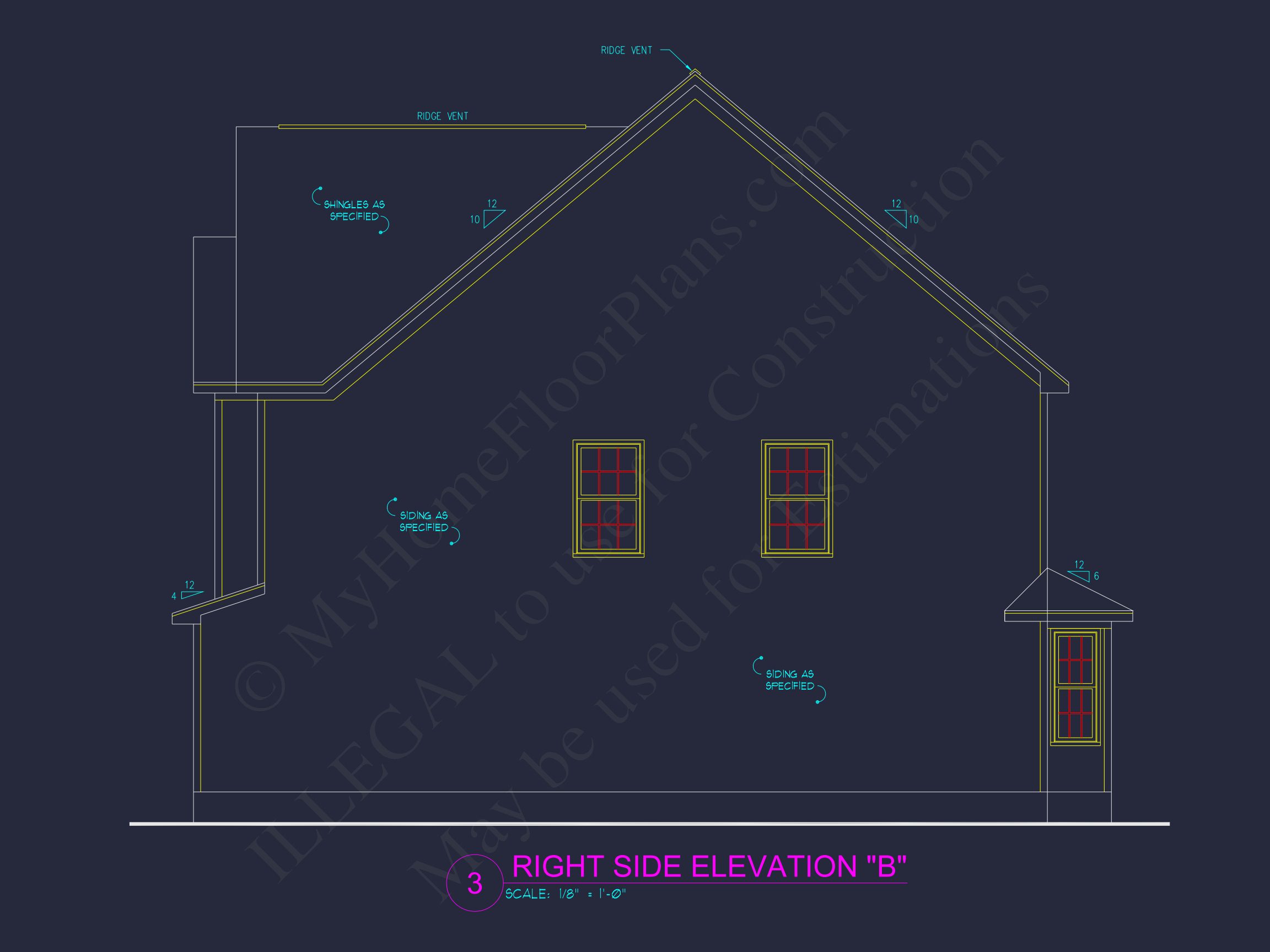

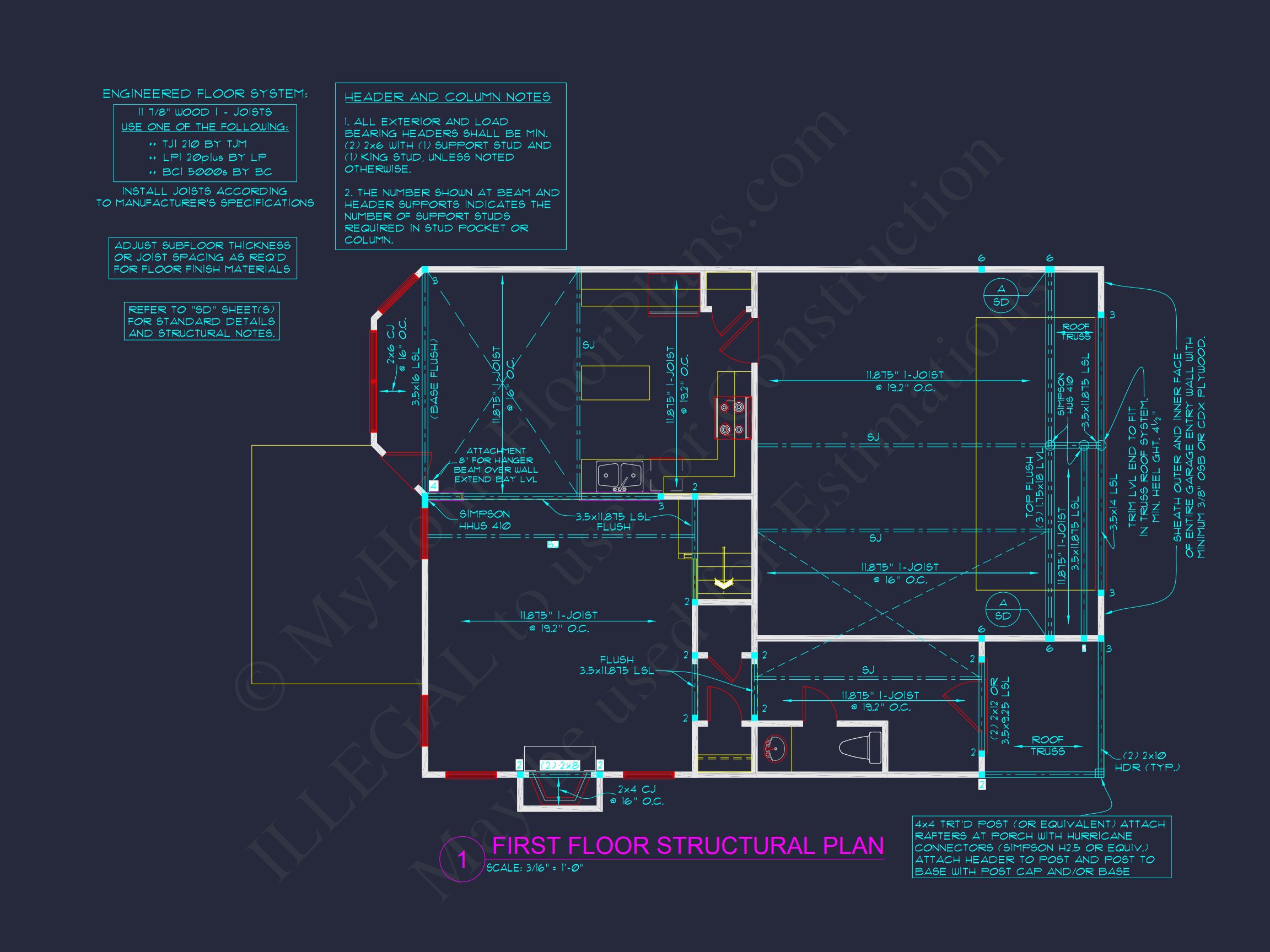

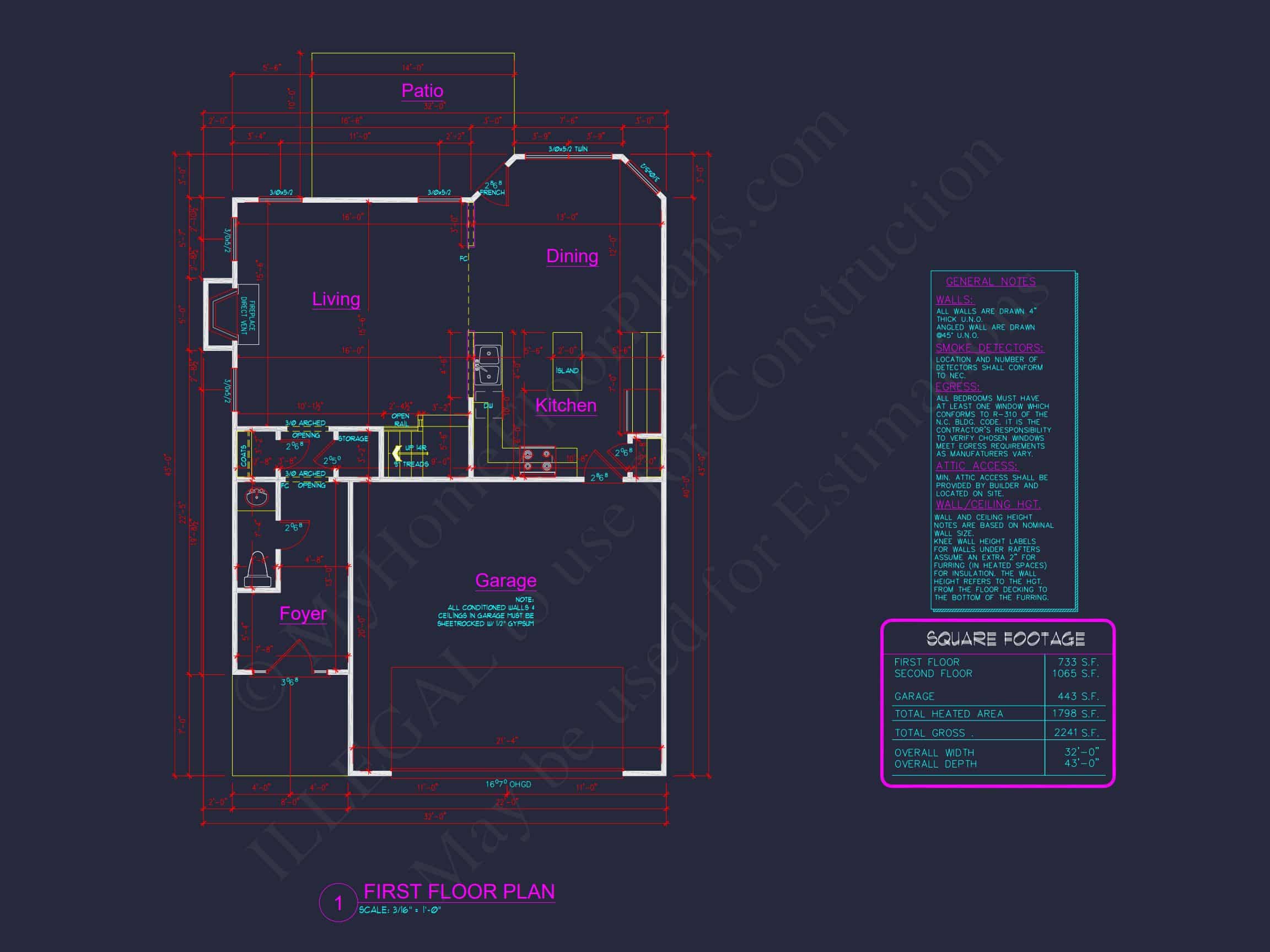

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

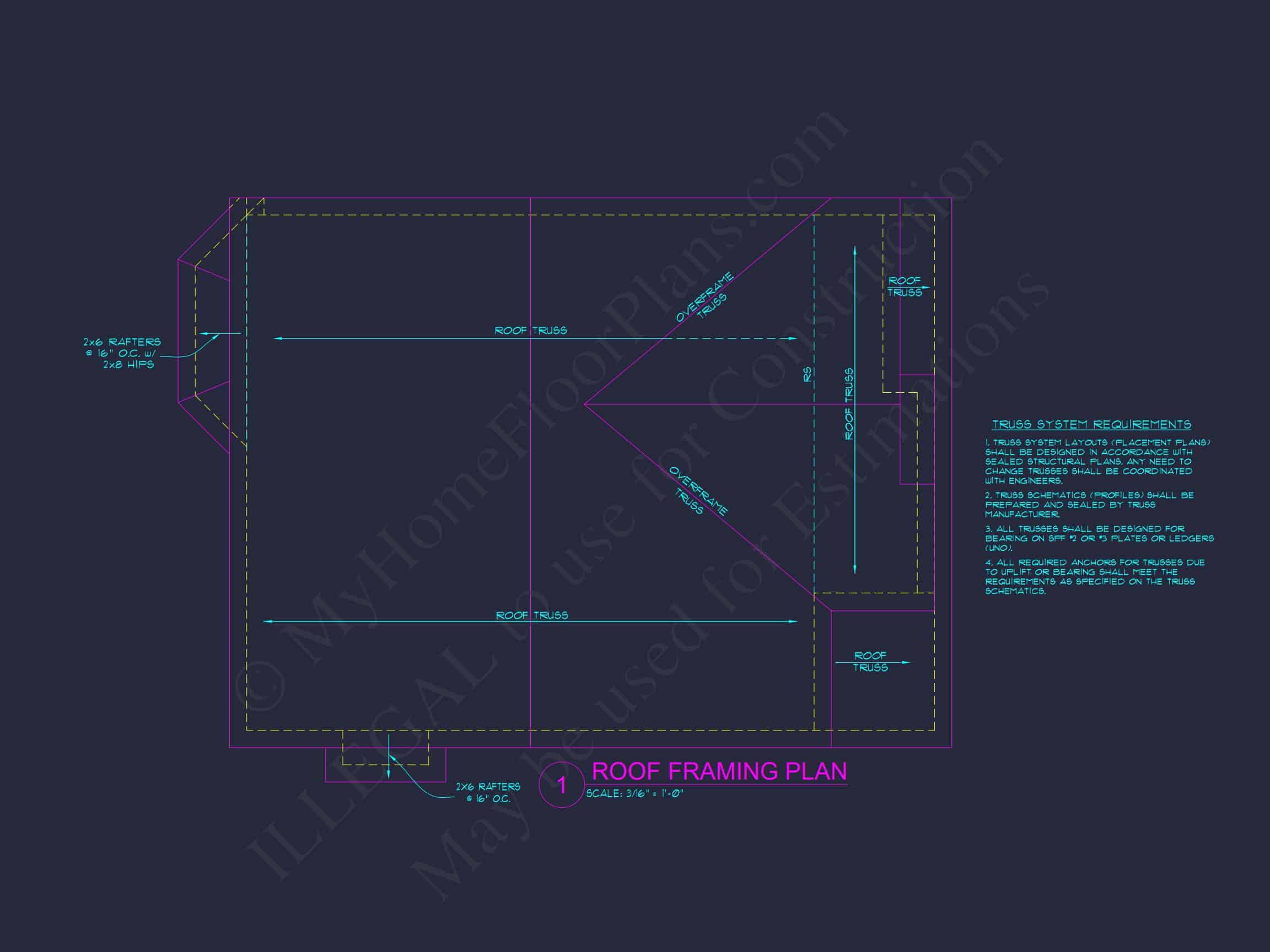

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
11-1436B HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
