Coastal house Floor Plan: 3-Story, 3-Bed, 2-Bath, CAD Blueprint
Discover a stunning 3-story, 3-bed, 2-bath Coastal house design with a split, front-entry garage. Explore the architectural blueprint & CAD file today!
10 FT+ Ceilings | 9 FT+ Ceilings | Balconies | Beach | Bonus Rooms | Coastal | Covered Front Porch | Covered Rear Porches | Eating Bar | Elevator | Foyer | Front Entry | Great Room | Kitchen Island | Lanai | Narrow | Owner’s Suite on Second Floor | Patios | Second Floor Bedroom | Southern | Split | Upper Deck | Walk-in Closet | Walk-in Pantry
Original price was: $519.60.$207.84Current price is: $207.84.
999 in stock
| Width | 30'-0" |
|---|---|
| Depth | 69'-4" |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | Covered Front Porch, Balcony, Covered Rear Porch, Lanai, Patio, Upper Deck |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Coastal Home Floor Plan: 3-Story, 3-Bed, 2-Bath, CAD Blueprint
Discover a stunning 3-story, 3-bed, 2-bath Coastal home design with a split, front-entry garage. Explore the architectural blueprint & CAD file today!
Design Your Dream Coastal Home with My Home Floor Plans
Are you envisioning a beautiful coastal home tailored to your unique lifestyle? At My Home Floor Plans, we offer a wide range of architectural designs to help you bring your vision to life. This stunning 3-story home plan is perfect for those seeking a blend of style, functionality, and coastal charm. With a narrow lot-friendly width of 30 feet and a depth of 69 feet 4 inches, this design maximizes space without compromising on elegance.
Spacious Living with a Touch of Luxury
This home blueprint features three bedrooms and two bathrooms, providing ample space for families or those who love to entertain. The Owner bedroom and additional bedrooms are thoughtfully situated on the second floor, ensuring privacy and tranquility. The walk-in closet in the Owner suite offers plenty of storage, while the split garage design adds convenience and curb appeal. A front-entry garage seamlessly integrates with the home’s architecture, creating a welcoming facade.
Indoor Features and Their Benefits
* Elevator: An elevator provides easy access to all three floors, making this home accessible for people of all ages and abilities. It’s also a great feature for carrying groceries or heavy items.
* Great Room: The great room serves as the heart of the home, offering a spacious and inviting area for relaxation, entertainment, and family gatherings. Its open design fosters a sense of togetherness.
* Foyer: A well-defined foyer creates a welcoming entry point, setting the tone for the rest of the home. It provides a transition space between the outdoors and the interior, adding a touch of elegance.
* Bonus Room: The bonus room offers flexibility to create a home office, playroom, or additional entertainment space, tailored to your specific needs and preferences. This versatile space can adapt as your lifestyle changes.
Embrace the Coastal Lifestyle with Outdoor Living Spaces
This home design truly embraces the coastal lifestyle with its multiple outdoor features. Enjoy the fresh air and scenic views from the covered front porch, covered rear porch, or balcony. The lanai and patio provide additional spaces for relaxation and entertainment, while the upper deck offers a private retreat to soak up the sun. The exterior, crafted with a combination of brick, wood, siding, and shake, exudes timeless charm and durability.
Advantages Included with Every Plan
All our home plans include the CAD file and PDF, along with an unlimited-build license and free foundation changes. We also provide structural engineering with every purchase. Unlike other architectural plan providers, you can view all sheets included in the purchase on our website. We are committed to making your dream home a reality, and we offer modifications at a fraction of the cost of our competitors.
Are you ready to design your dream home? Inquire at support@https://myhomefloorplans.com about your dream home design today!
All home plans include BOTH the CAD file and PDF file.

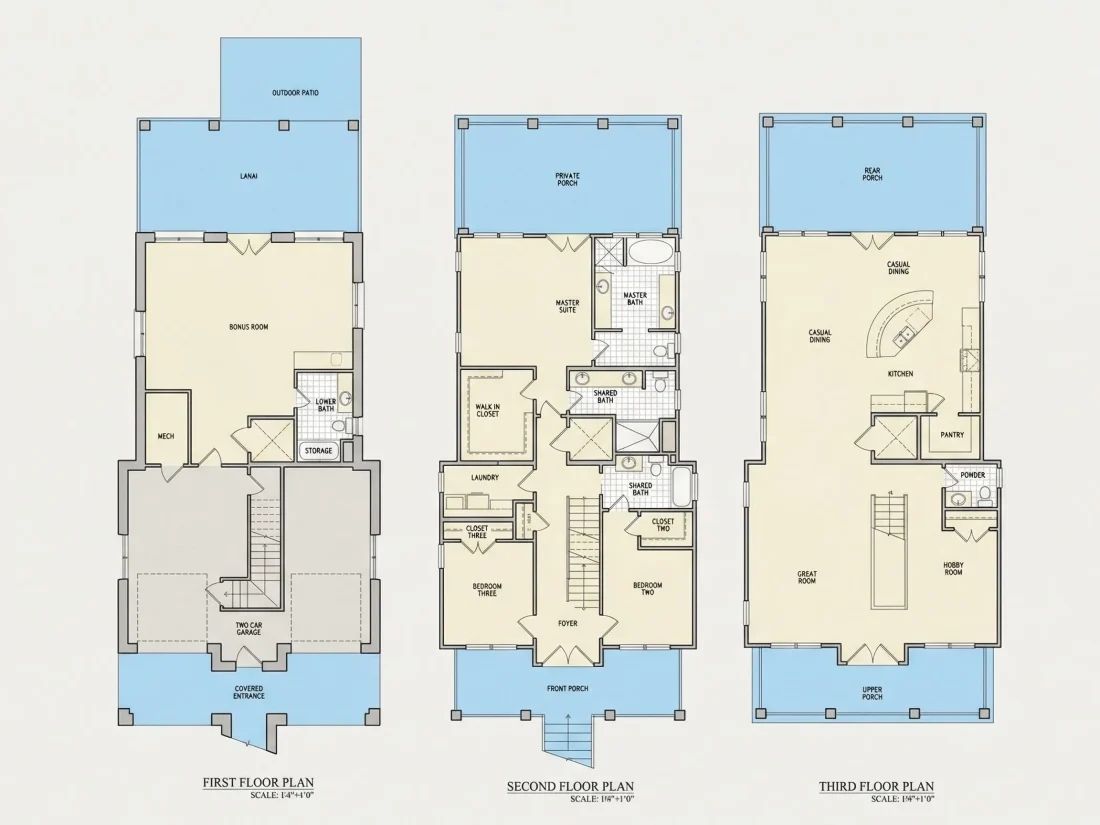

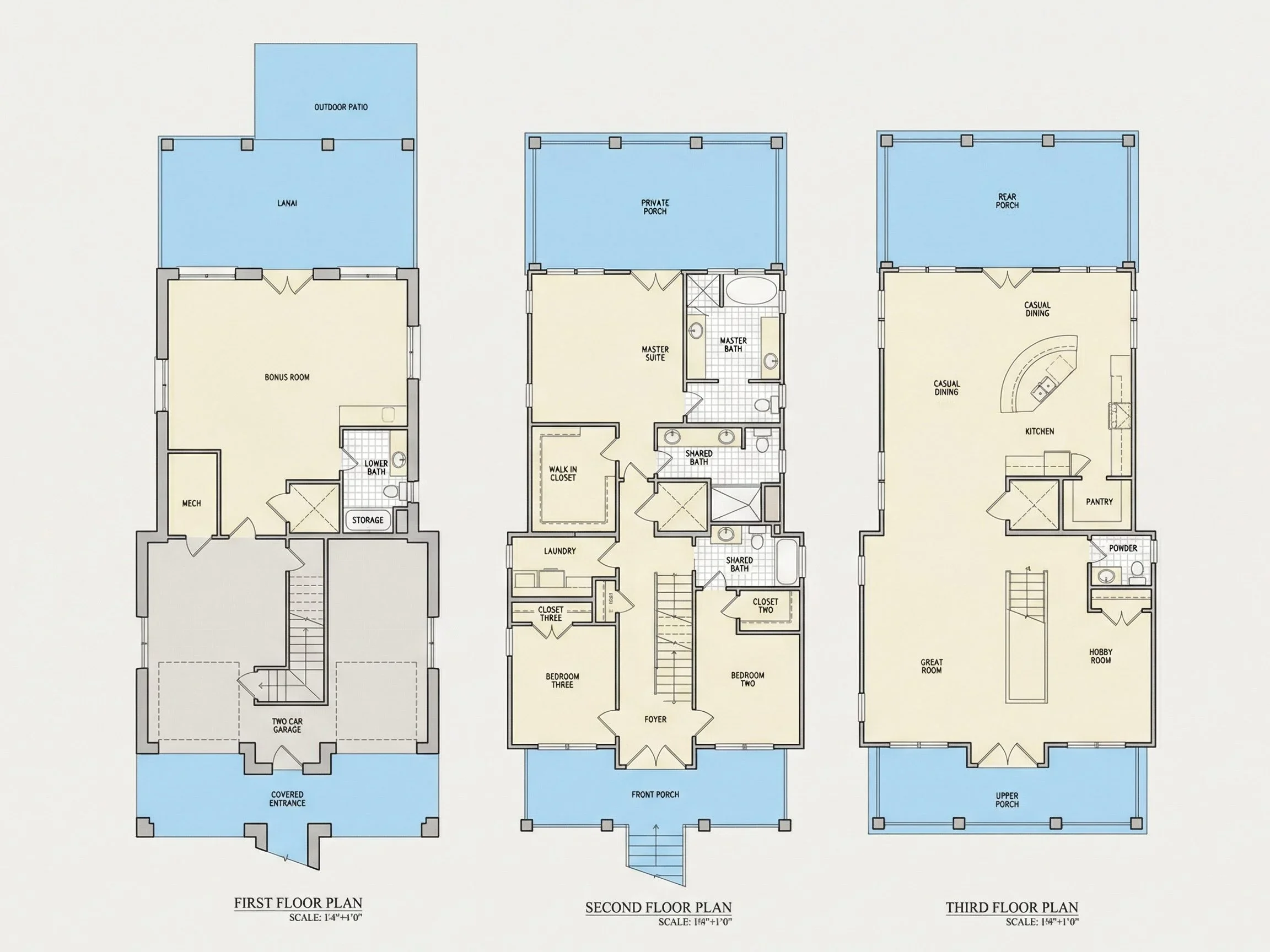

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
