Traditional Carport house Design with CAD Floor Plan Blueprint
Explore this affordable and simple carport house design with a detailed CAD floor plan blueprint. Traditional architecture with vaulted ceilings and brick finish.
Original price was: $1,150.56.$651.99Current price is: $651.99.
999 in stock
| Width | 20'-0" |
|---|---|
| Depth | 36'-0" |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Traditional Carport House Design with CAD Floor Plan Blueprint

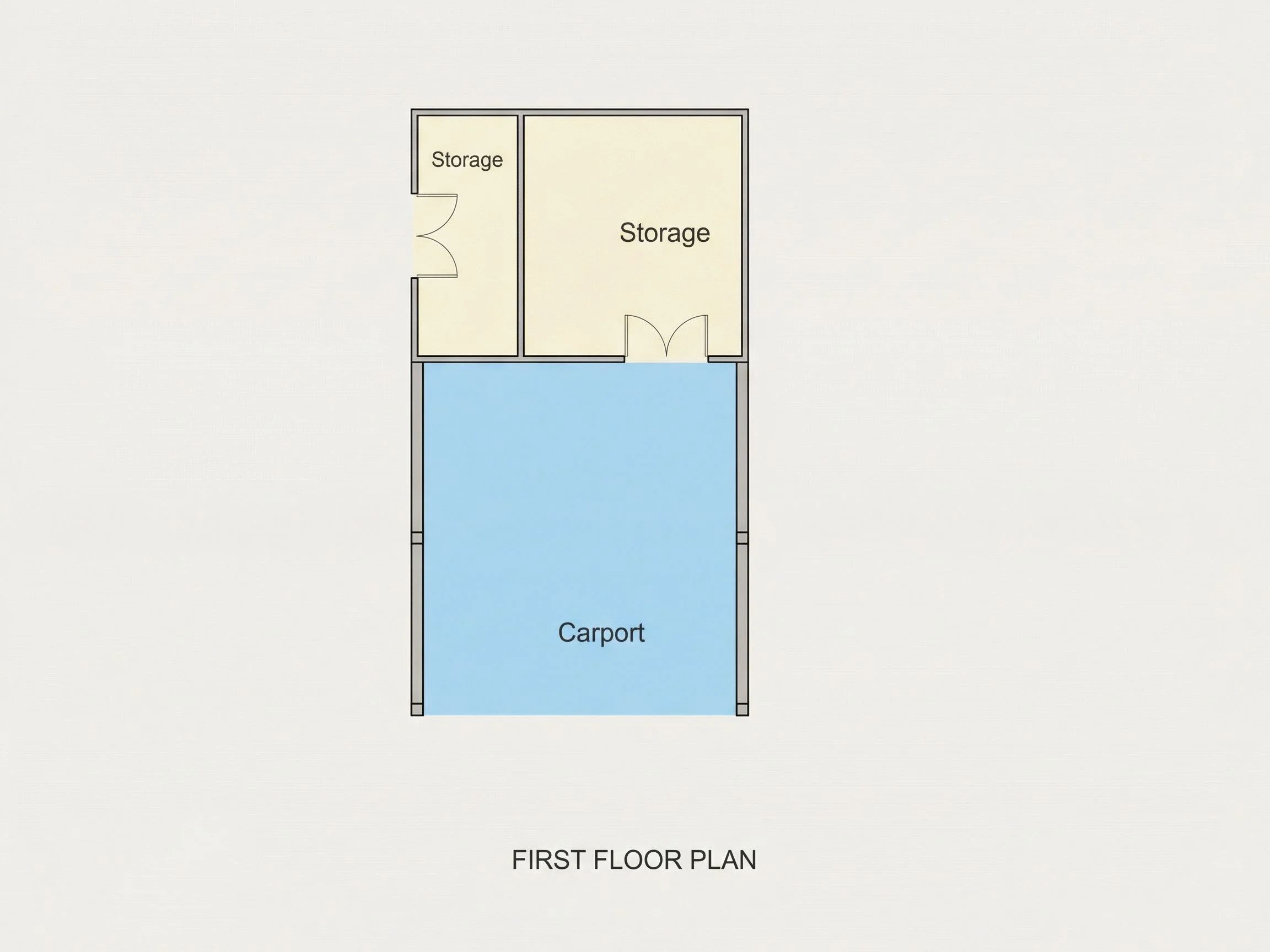

Explore this affordable and simple carport house design with a 20′ x 36′ footprint, CAD floor plan blueprint, traditional architecture, and brick + board-and-batten exterior finish.
This traditional carport house plan offers a perfect mix of functionality and simplicity. Designed for efficient construction, it blends classic curb appeal with modern conveniences—ideal for those looking to build affordably without sacrificing charm.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: Modest, customizable living zone designed to maximize use of limited square footage.
- Unheated extras: Covered front porch, rear porch, and large open carport area for flexible outdoor use.
Bedrooms & Bathrooms
- Open concept space can accommodate a future bedroom or flexible living layout.
- Option to include a compact full bathroom in customizations.
Interior Highlights
- Vaulted ceilings add height and light to the main living space.
- Open floor plan ensures versatility for future furniture and wall configurations. Explore open-concept designs.
- Foyer entry creates a formal and welcoming transition from outdoors to inside.
Garage & Storage Details
- Garage Bays: 2-car covered carport for everyday vehicle protection.
- Garage Type: Integrated carport (open-sided for airflow and ease).
- Storage: Ample space along rear wall or within side closets if customized.
Outdoor Living Features
- Covered front and rear porches offer year-round shade and outdoor living options.

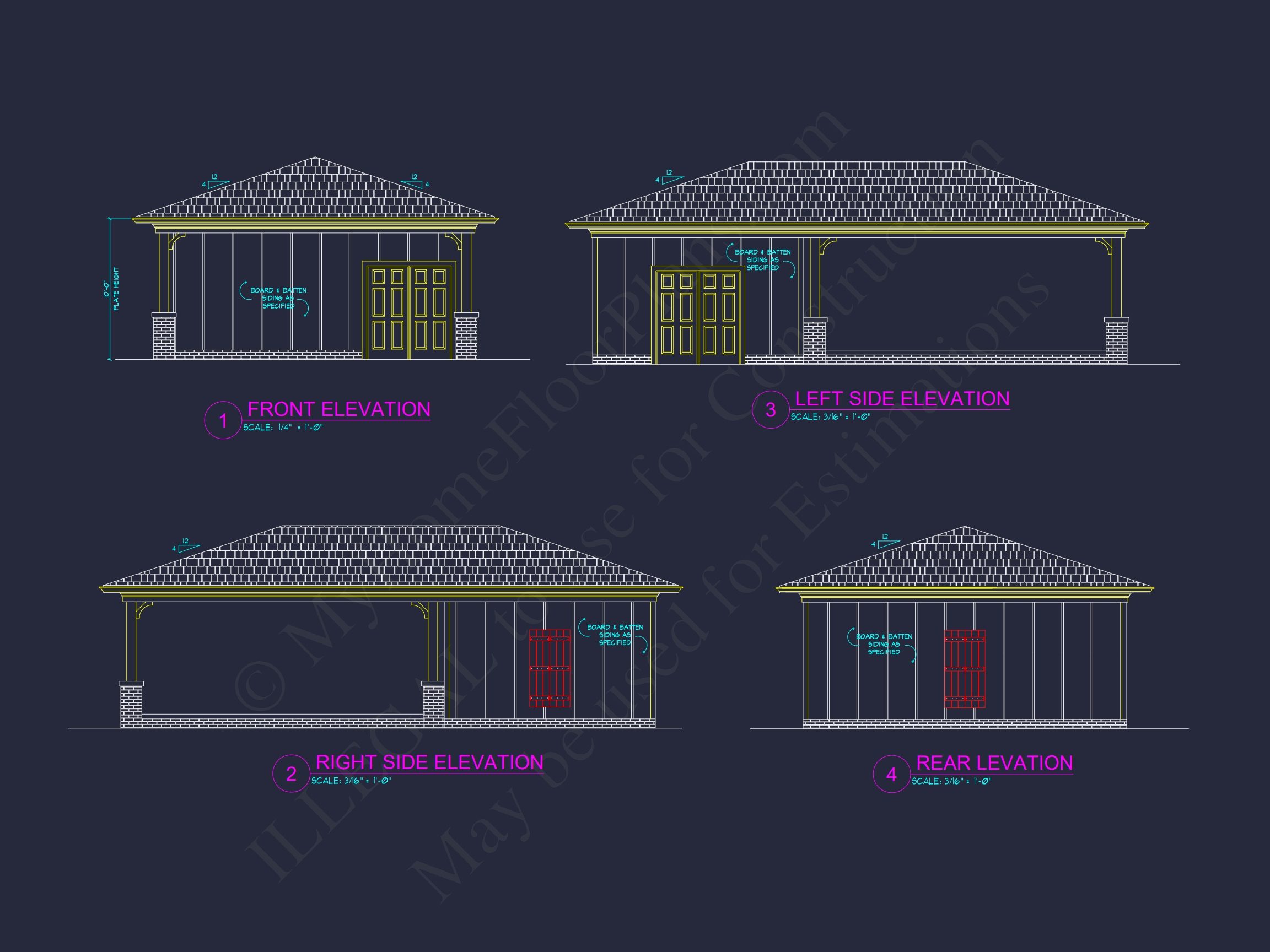

- Brick and board & batten siding ensures timeless appeal and low maintenance.
Architectural Style: Traditional Ranch
This design blends classic building materials with a single-level ranch layout—ideal for homeowners wanting straightforward construction. Learn more about our Traditional House Plans or explore this style’s history on ArchDaily.
Bonus Features
- Vaulted ceiling included at no extra cost for added interior height.
- Space-efficient design perfect for narrow lots and small properties.
- Covered porches function as additional outdoor “rooms.”
Included Benefits with Every Plan
- CAD + PDF Files: Printable and editable files for architects and builders.
- Unlimited Build License: Build as many times as needed—no additional licensing fees.
- Free Foundation Changes: Choose slab, crawlspace, or basement at no extra charge. Learn how.
- Structural Engineering Included: Every plan is stamped and code-compliant.
- Lower Modification Costs: We offer pricing up to 50% less than competitors.
- View Before You Buy: Preview every sheet before purchase.
Similar Collections You Might Love
- House Plans with Carport
- Narrow Lot House Plans
- Simple House Plans
- Traditional House Plans
- Covered Front Porch House Plans
Frequently Asked Questions
Is this plan suitable for a narrow lot? Yes! With only 20′ width, this plan fits on most tight residential or infill lots.
What’s included in the purchase? You’ll receive CAD and PDF files, an unlimited-build license, structural engineering, and free foundation changes.
Can I modify the floor plan? Absolutely. Custom layouts are available for vaults, storage, or even adding a bedroom—get a quote here.
Does the carport allow for covered storage? Yes, the open bays can be used for vehicles or outdoor gear. Side storage walls can be added during build.
Is there a bathroom or living area? The floor plan is open for custom use. Many clients add a small bath or studio area based on their needs.
Start Building Your Dream Home Today
Have questions or ready to make this your next project? Email our expert team at [email protected] or contact us here.
Your future house starts with a solid plan—affordable, flexible, and built for your lifestyle!
All home plans include BOTH the CAD file and PDF file.

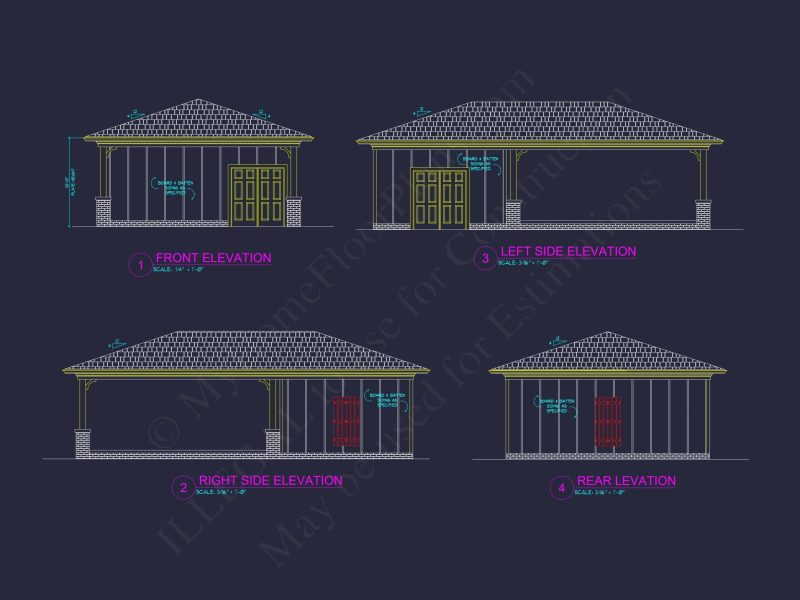

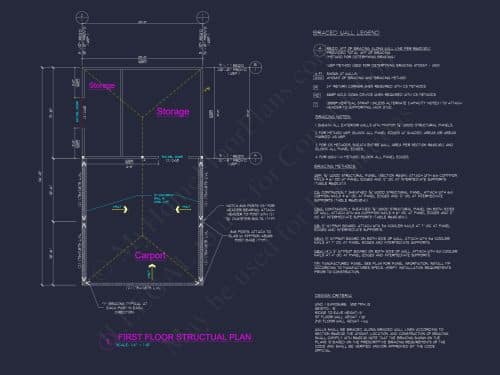

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

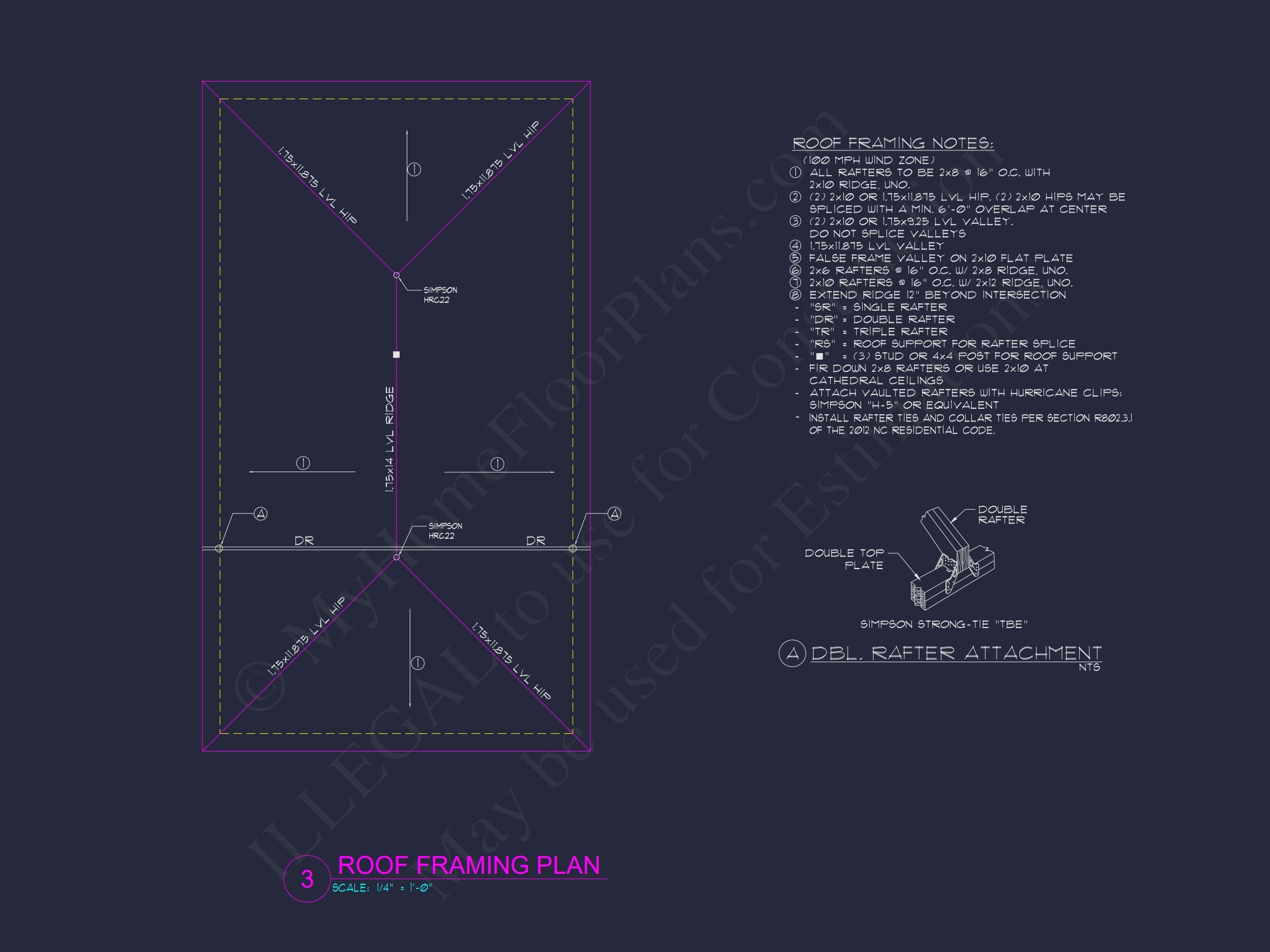

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

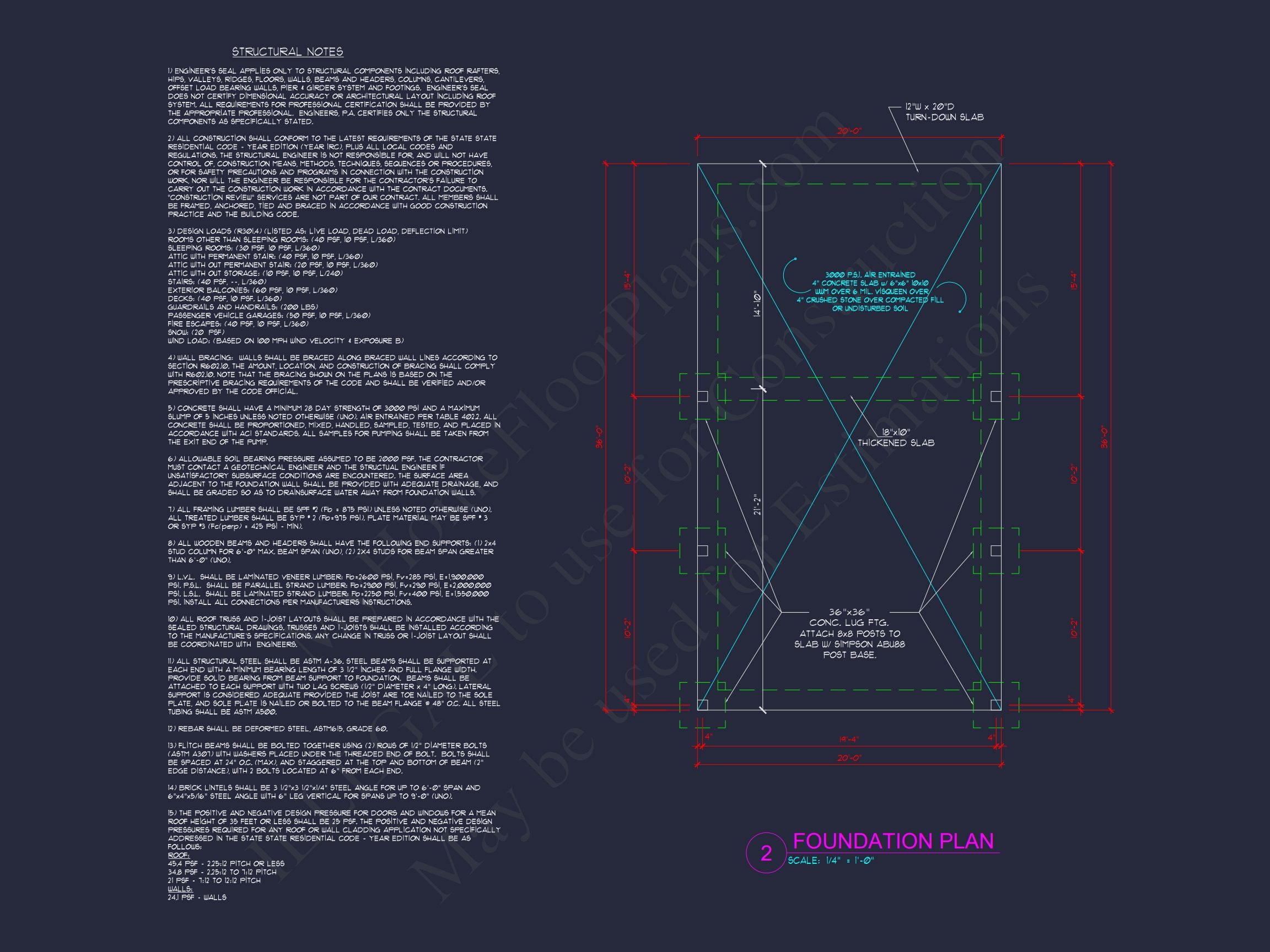

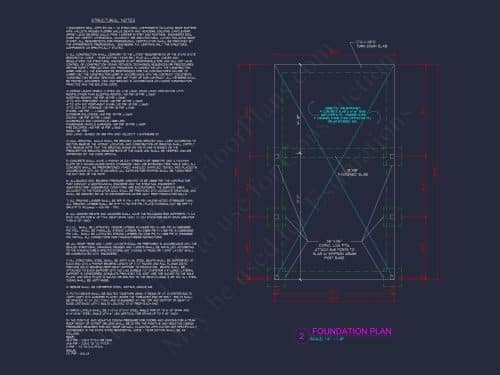

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
12-2376 CARPORT
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
