Beach house Floor Plan: 3-Story,4 BR Coastal Blueprint
Discover this stunning 3-story,4 BR,2689 sq ft heated,beach house floor plan. This coastal design offers CAD file,architectural details & modern amenities.
14-1640 HOME PLAN
Original price was: $1,299.00.$1,098.00Current price is: $1,098.00.
| Width | 34'-0" |
|---|---|
| Depth | 38'-6" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |

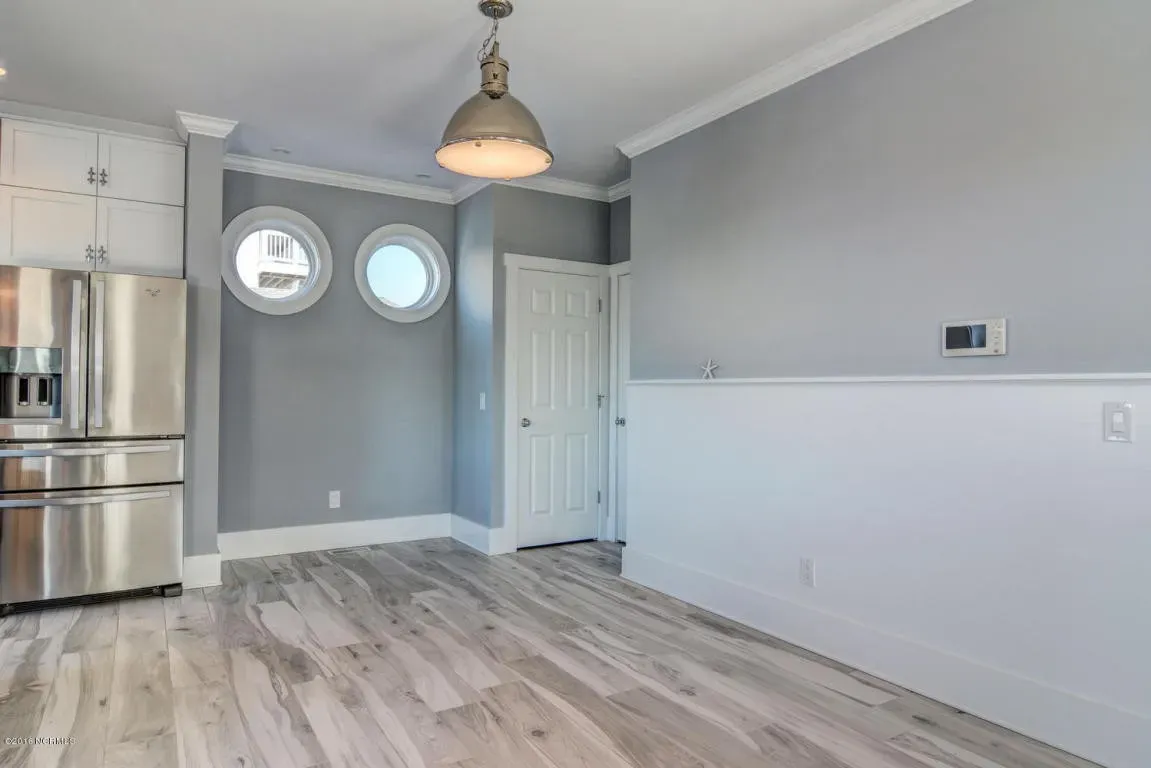

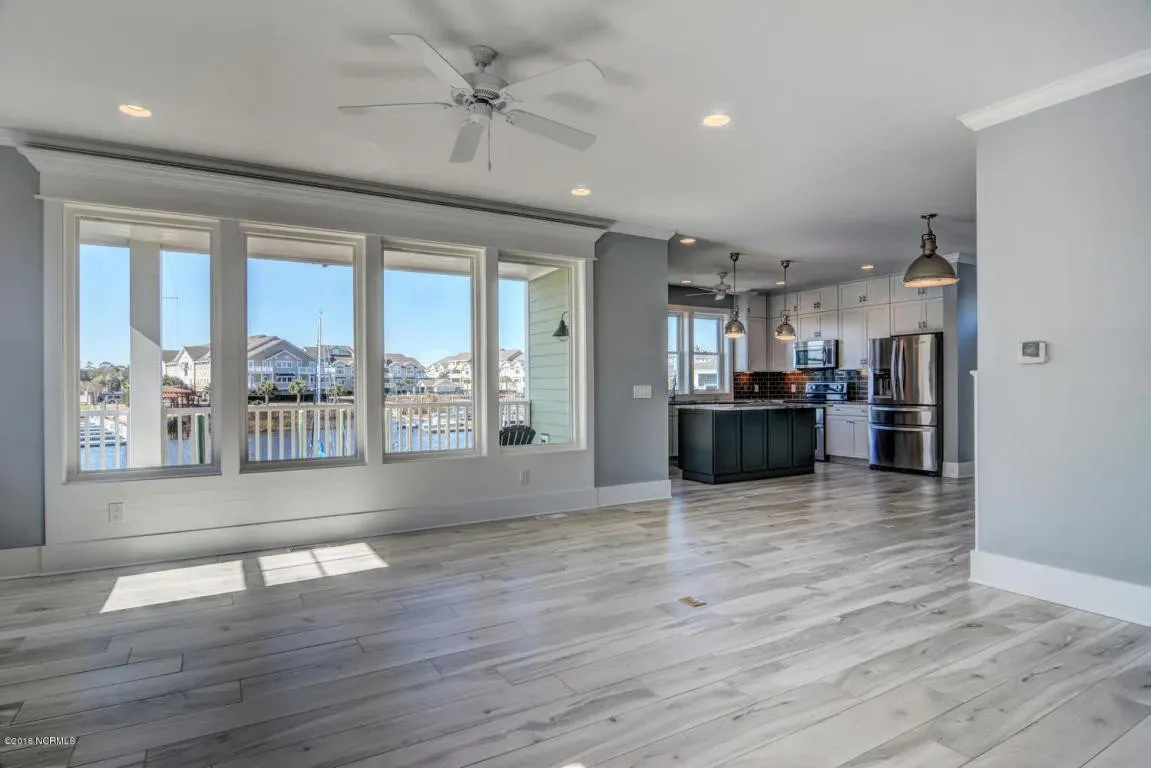

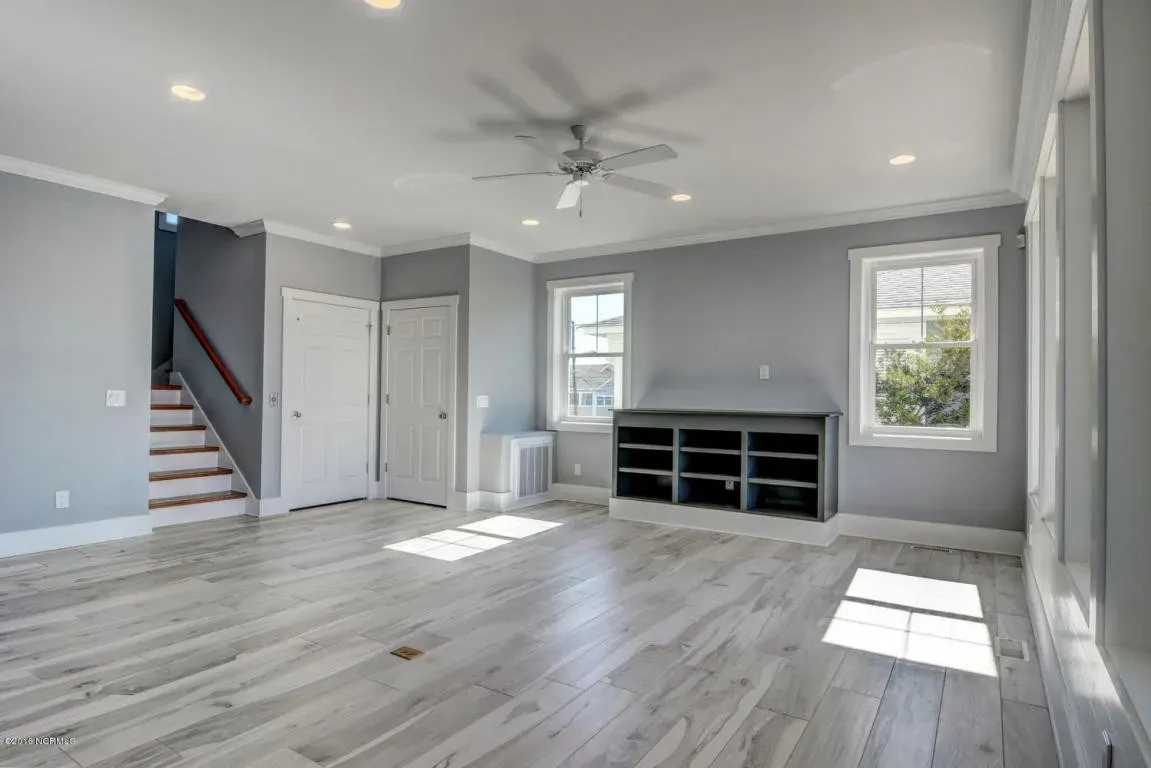

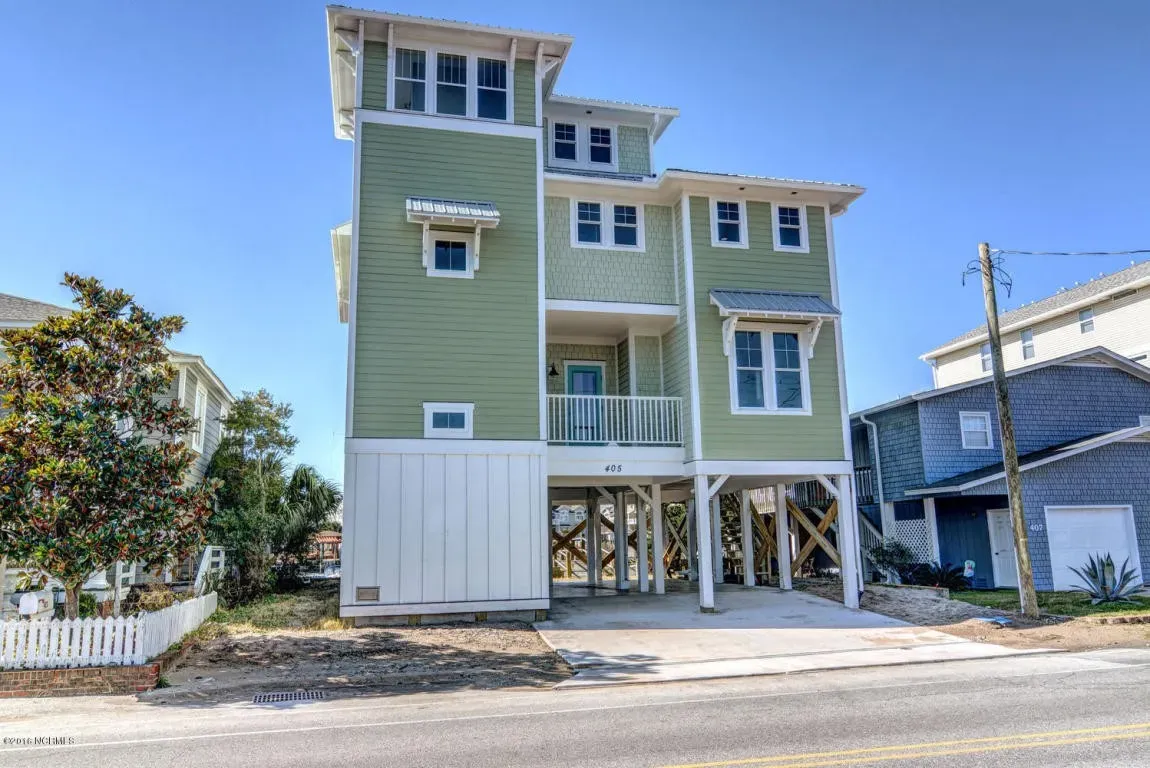

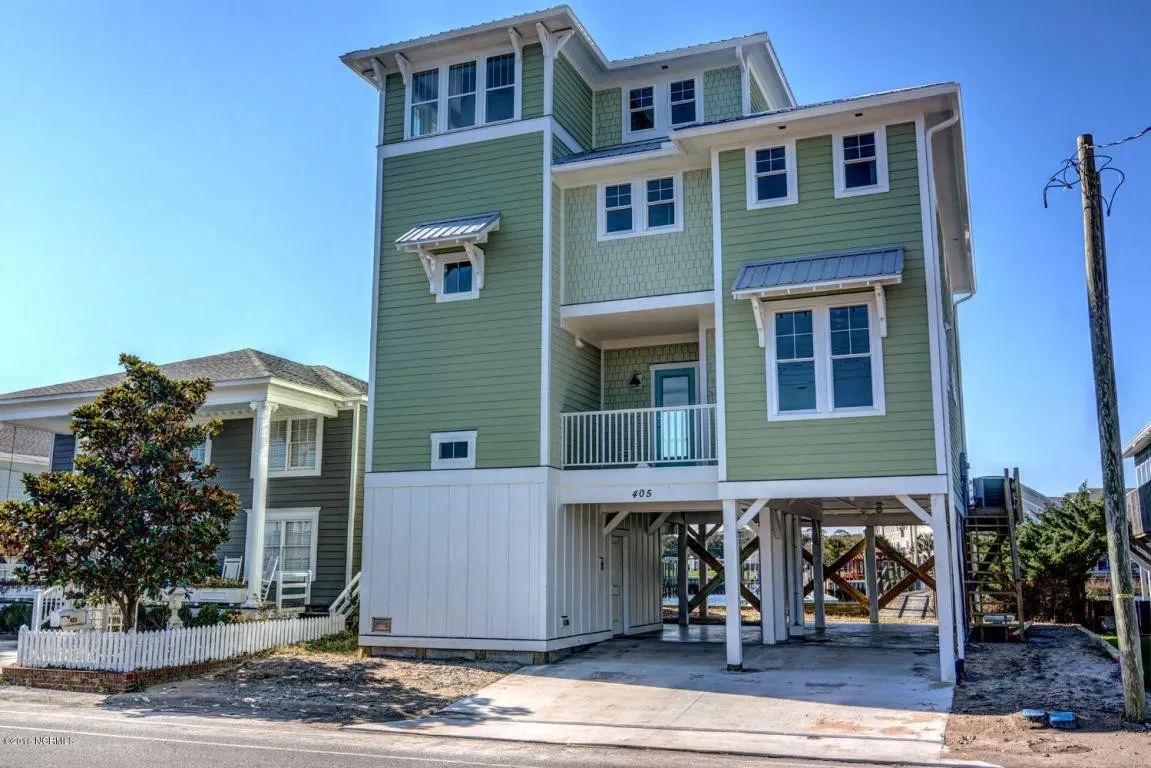

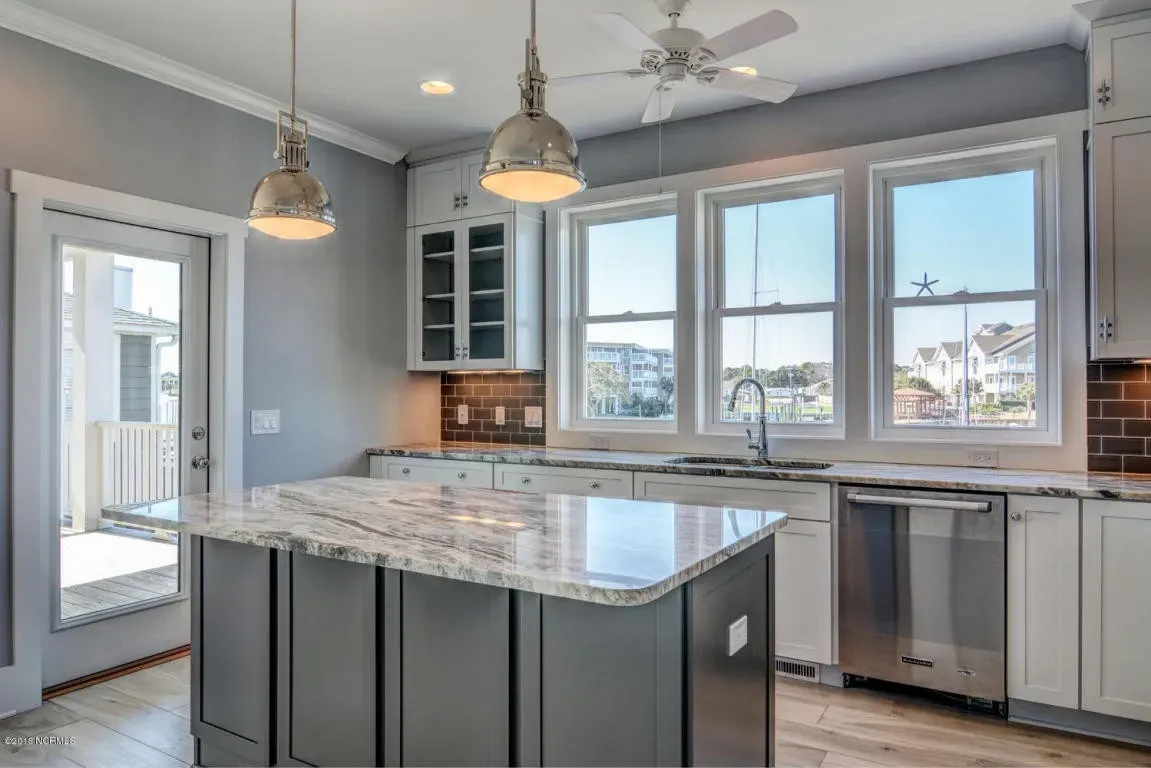

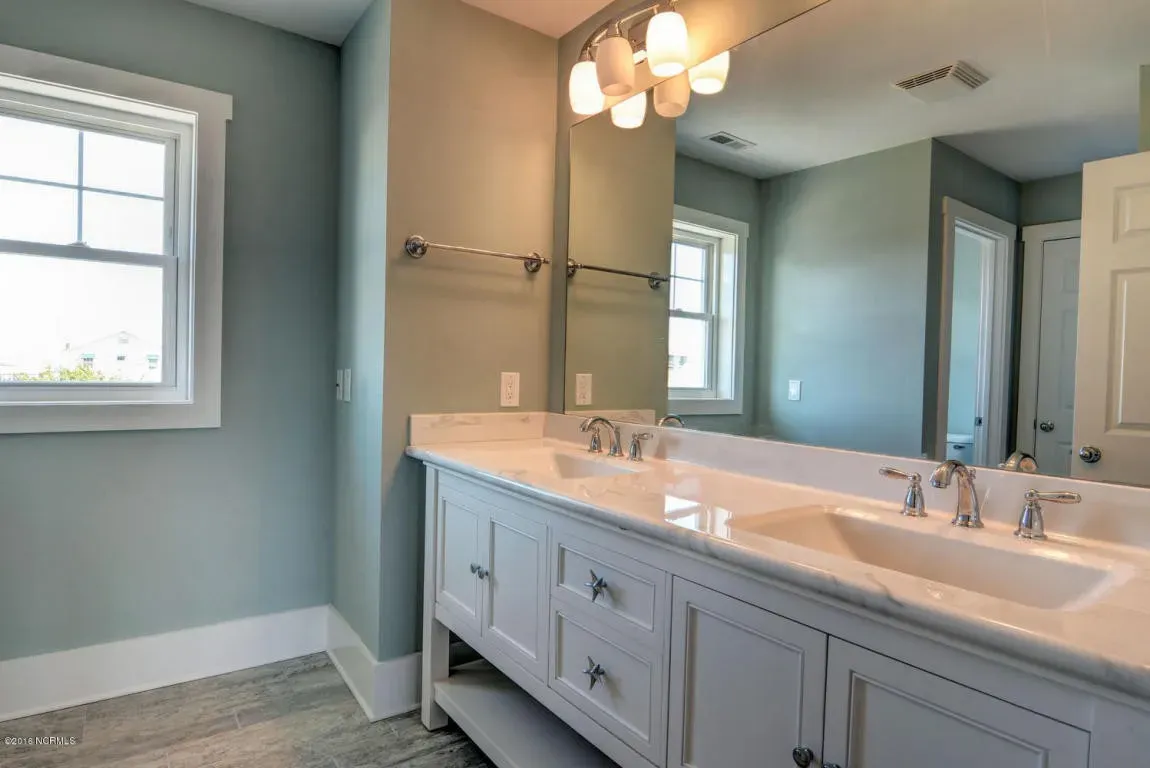

| After Build Photos |
Beach Home Floor Plan: 3-Story, 4 BR Coastal Blueprint
Discover this stunning 3-story, 4 BR, 2689 sq ft heated, beach home floor plan. This coastal design offers CAD file, architectural details & modern amenities.
Design Your Dream Beach Home with My Home Floor Plans
Imagine Waking Up to Ocean Views
Have you ever dreamed of owning a beautiful beach home? This stunning 3-story coastal design from My Home Floor Plans might be just what you’re looking for! With 2, 689 square feet of heated living space and a narrow lot-friendly width of only 34 feet, this architectural Ownerpiece is perfect for those seeking luxury living in a compact footprint. This design has 4 bedrooms, making it ideal for families or those who love to entertain guests. This design also has ample unheated square footage at 616 sq ft.
Luxurious Indoor Features
This beach home plan is packed with indoor features designed to enhance your coastal lifestyle:
* Elevator: Enjoy easy access to all three floors, making this home perfect for people of all ages and abilities. Say goodbye to tiring stair climbs and hello to convenience!
* Living Room: This spacious area provides the perfect spot for relaxing with family and friends. Imagine cozy evenings filled with laughter and conversation.
* Foyer: Make a grand entrance with a dedicated foyer, creating a welcoming atmosphere for guests. This space will impress, setting the stage for the beauty that lies within.
* Mudroom: Keep sand and dirt at bay with a practical mudroom. This feature is essential for maintaining a clean and organized home, especially after a day at the beach.
* Walk in Pantry: This feature in the kitchen provides ample storage space.
Designed for Your Comfort and Convenience
In addition to the features listed above, this home plan also boasts a walk-in closet in the Owner suite, providing ample storage for your wardrobe. The Owner suite, along with the other bedrooms, is located on the second floor, offering privacy and tranquility. The covered front and rear porches, along with a balcony, provide stunning outdoor spaces to enjoy the fresh sea air. With a width of 34 feet, this home is one of our narrow lot designs.
Benefits Included with Every Plan
Every home plan includes the CAD file and the PDF. You will receive an unlimited-build license with your purchase and free foundation changes! Structural engineering is included with all house plans. Unlike other architectural plan providers, you can view all sheets included in the purchase on our website! We also offer modifications at a fraction of the cost of our competitors.
Are you ready to design your dream home? Inquire at support@https://myhomefloorplans.com about your dream home design today!
What's Included
What's NOT Included
Modifications
Plan Pricing
All home plans include BOTH the CAD file and PDF file.

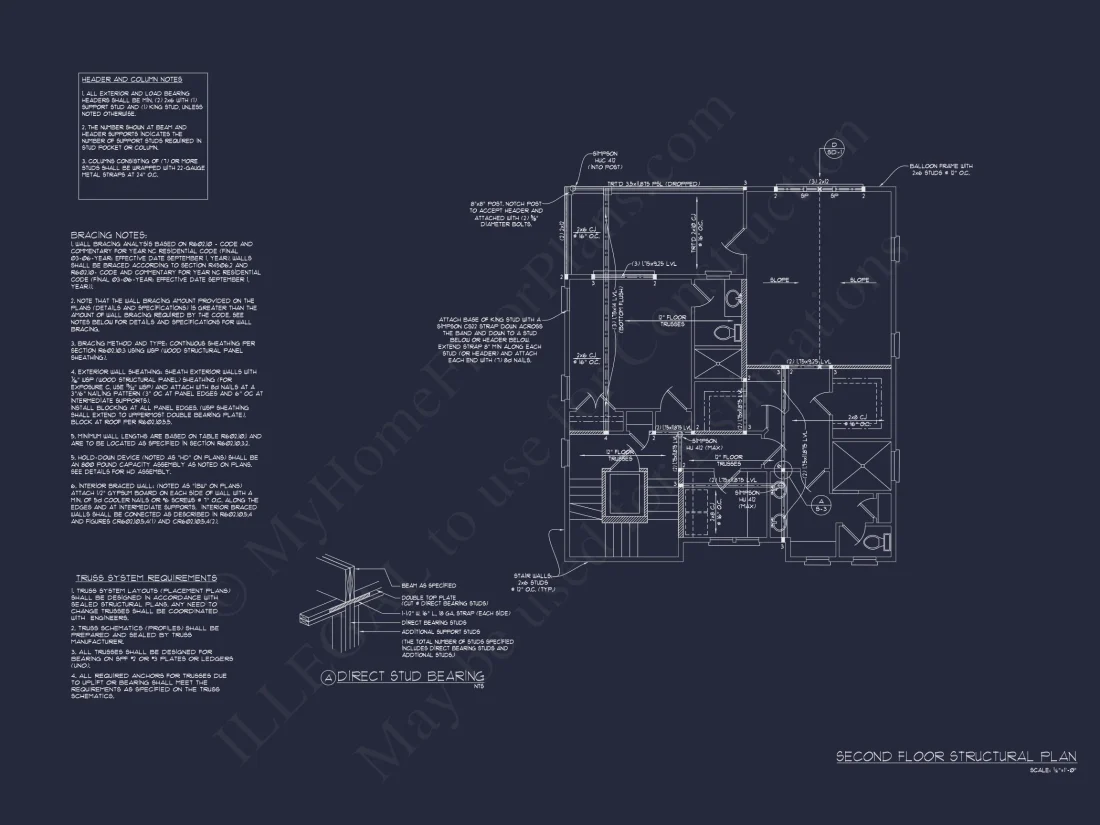

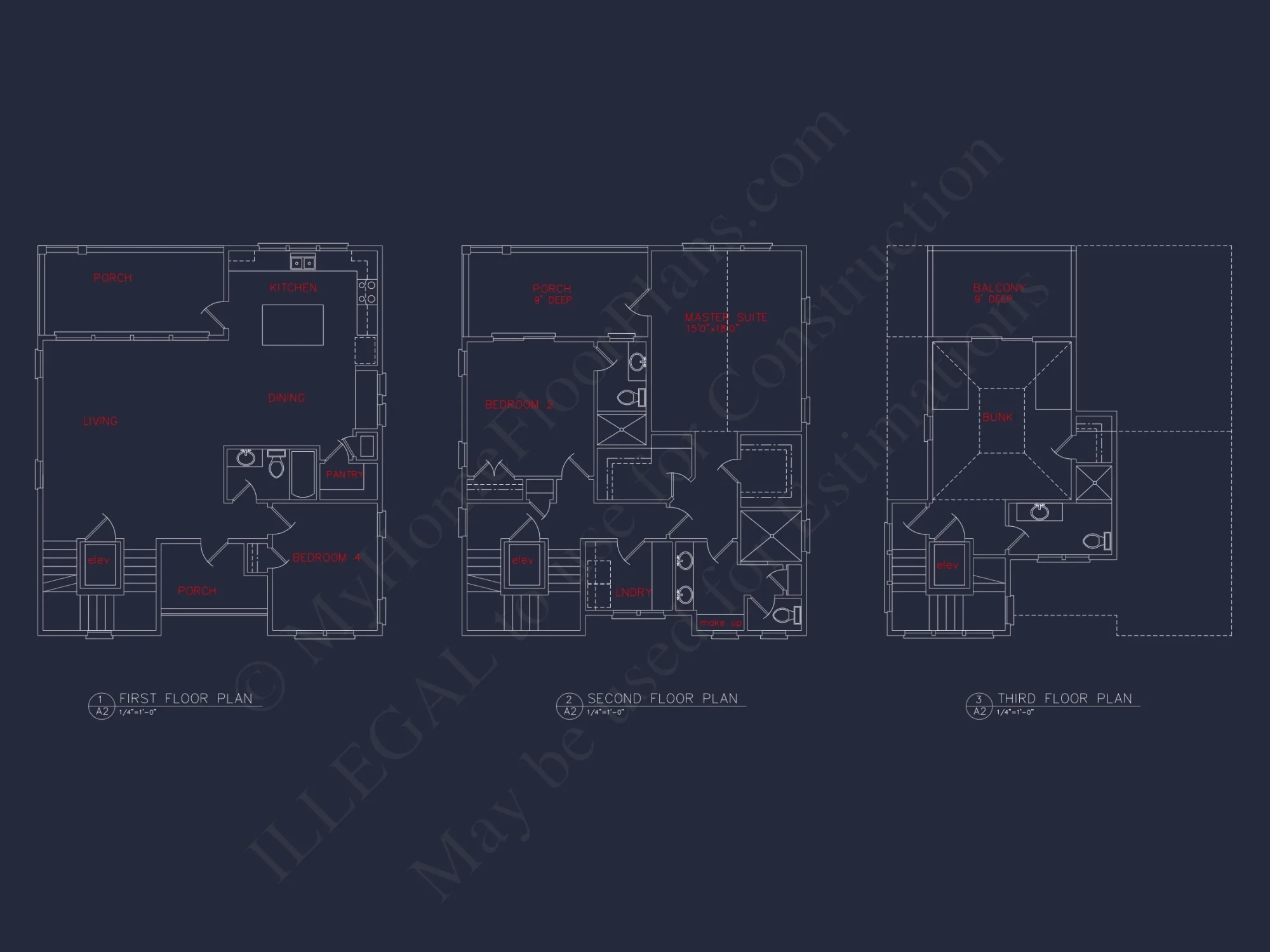

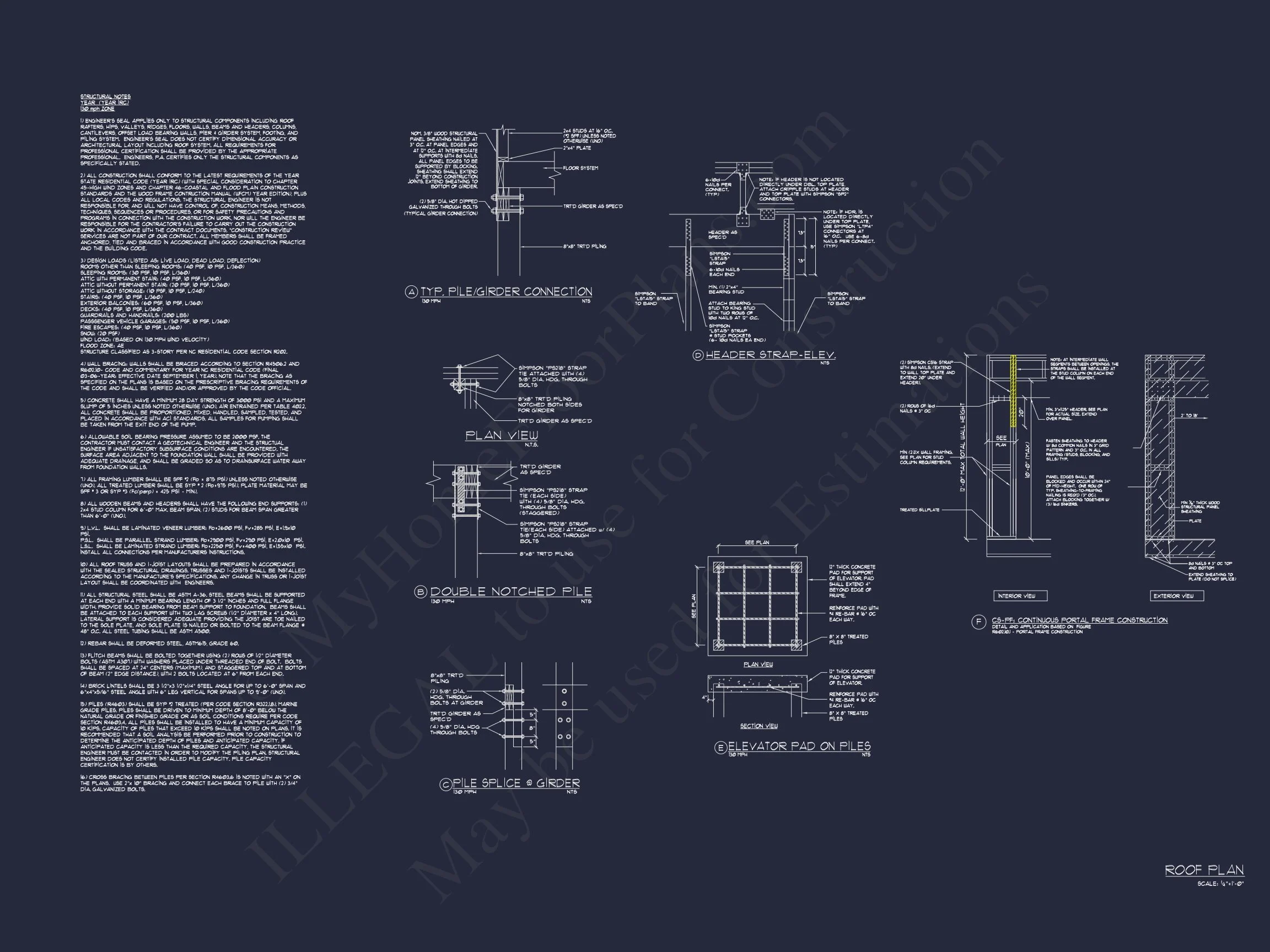

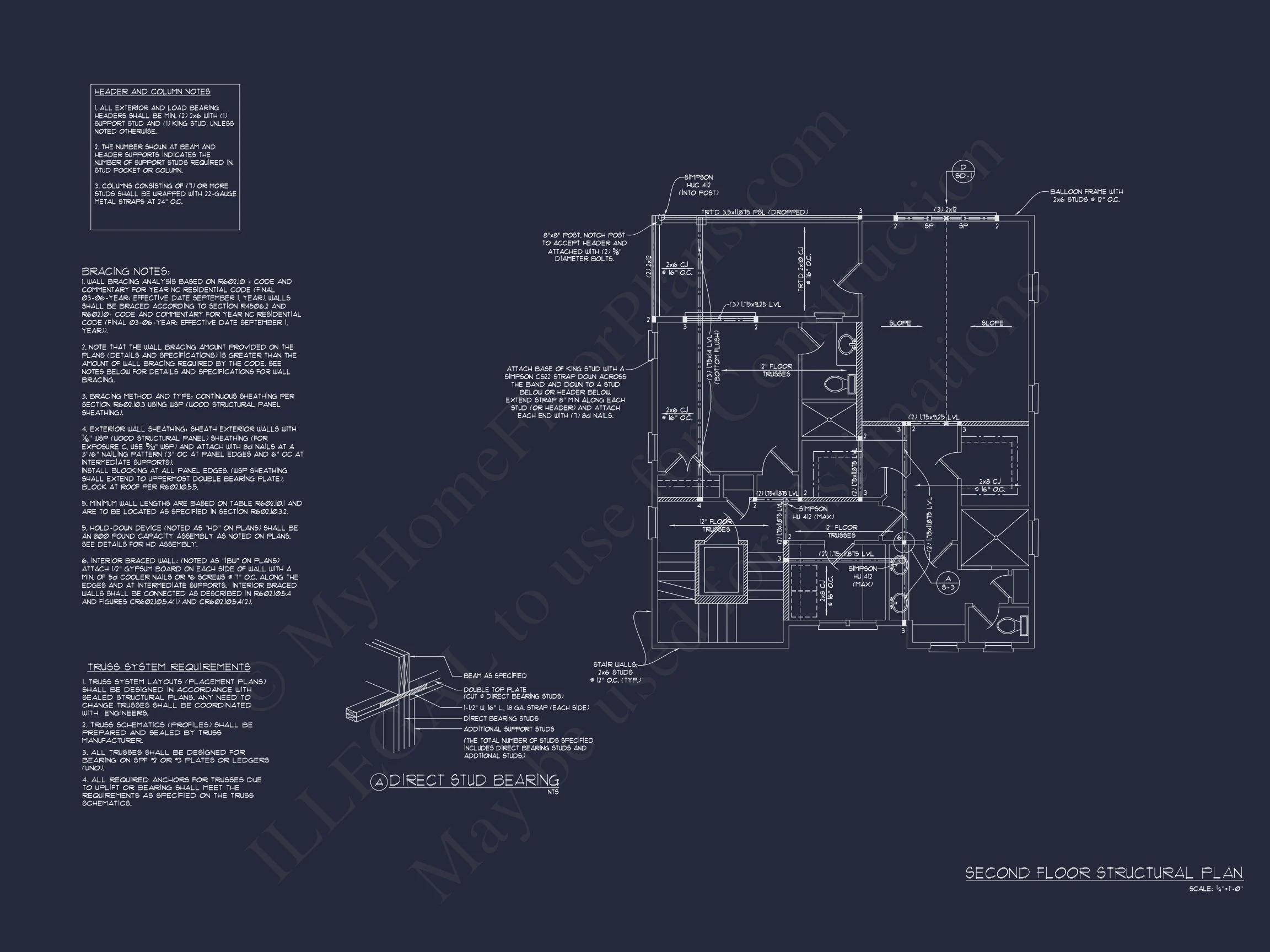

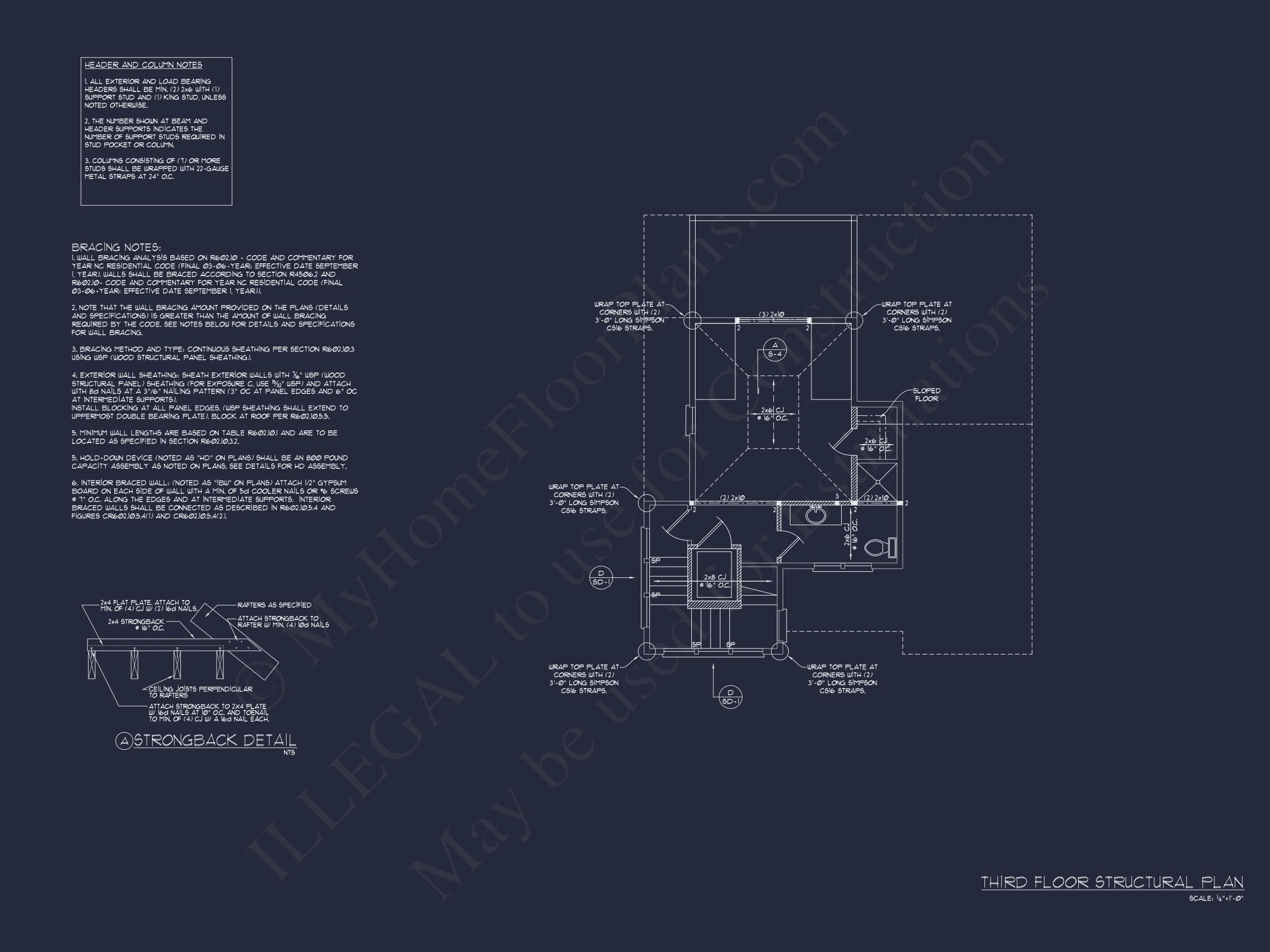

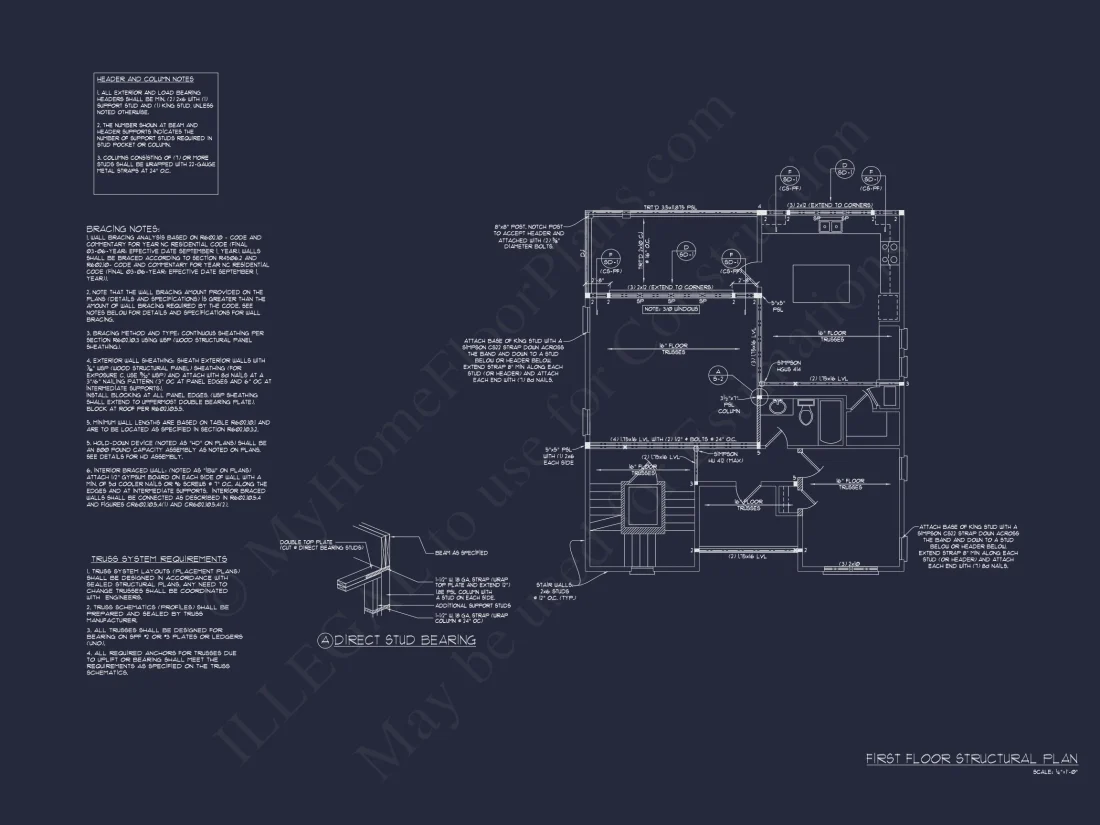

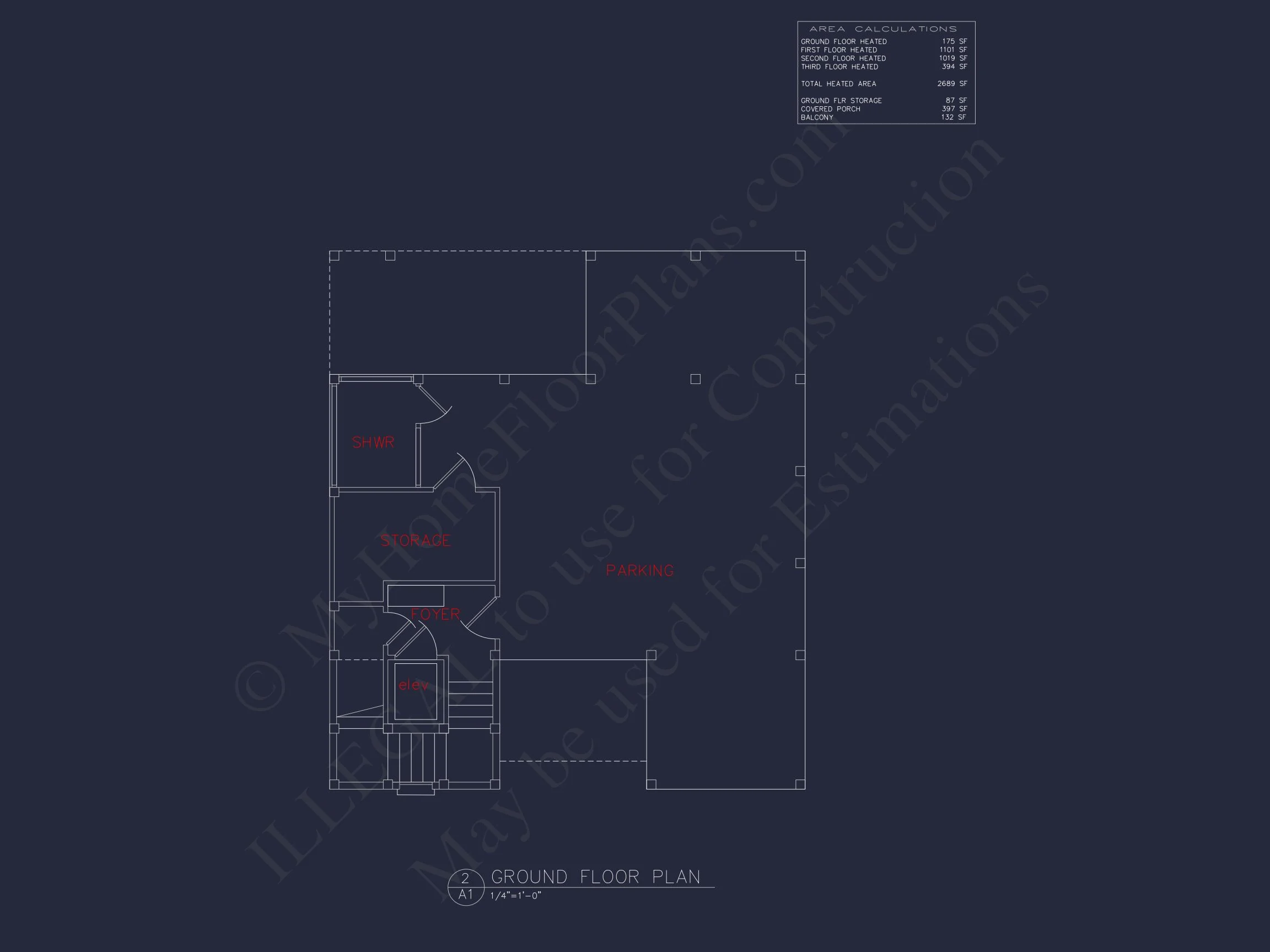

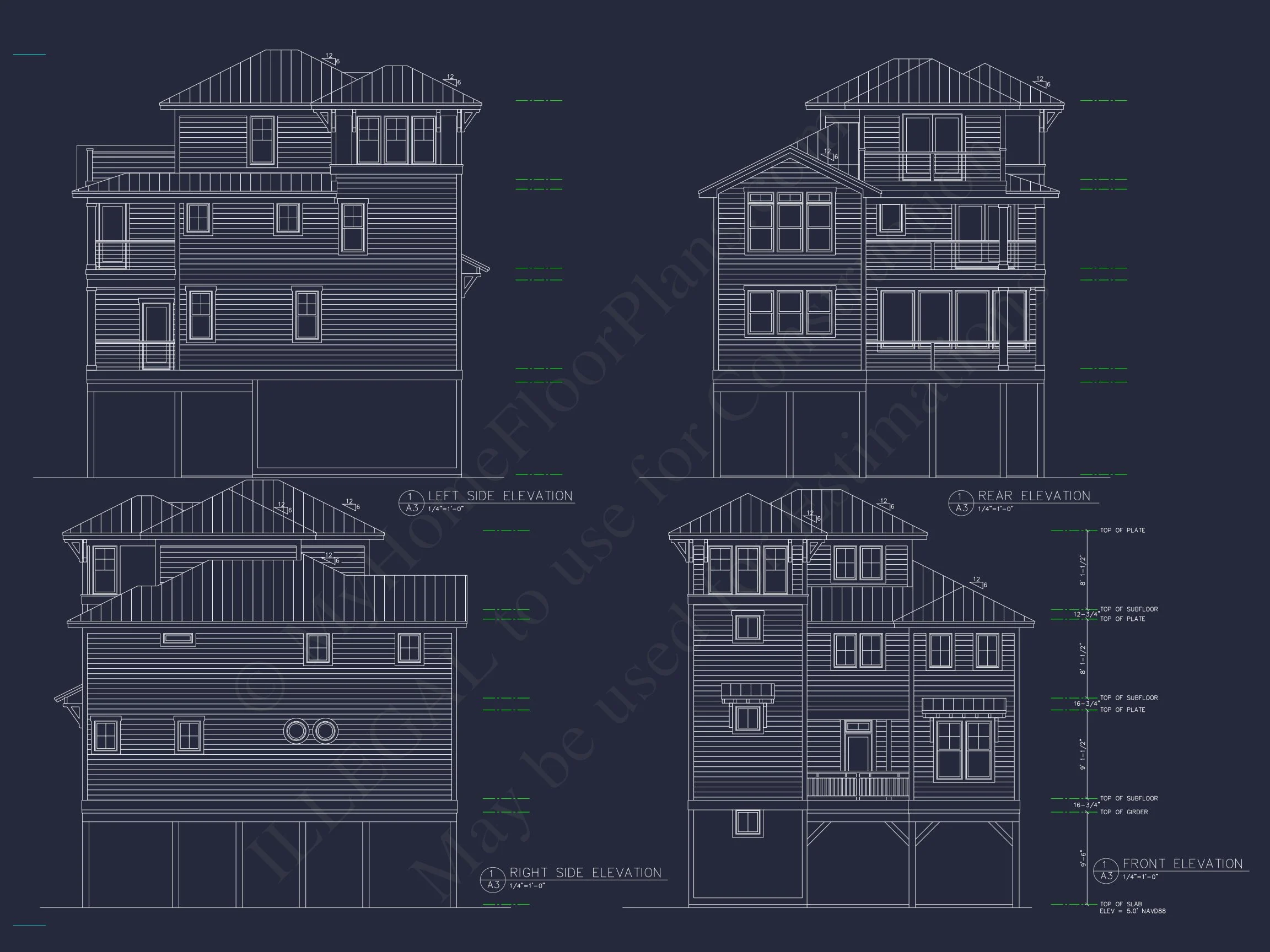

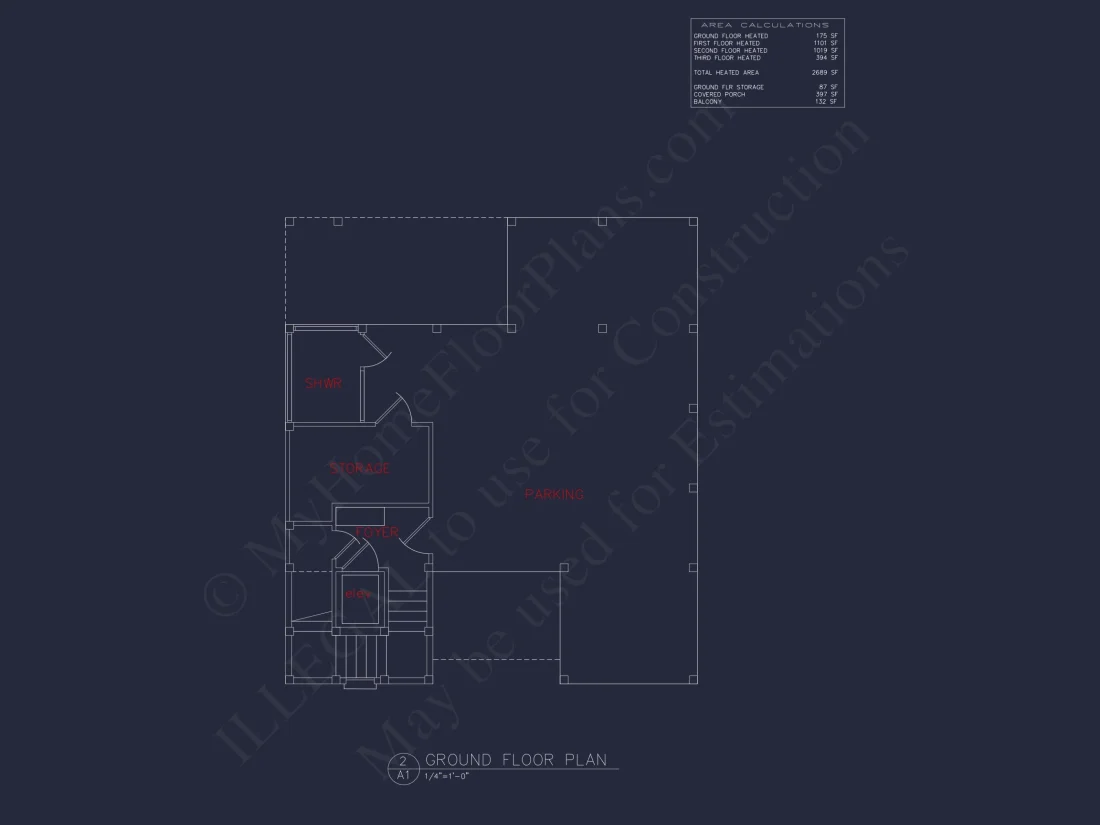

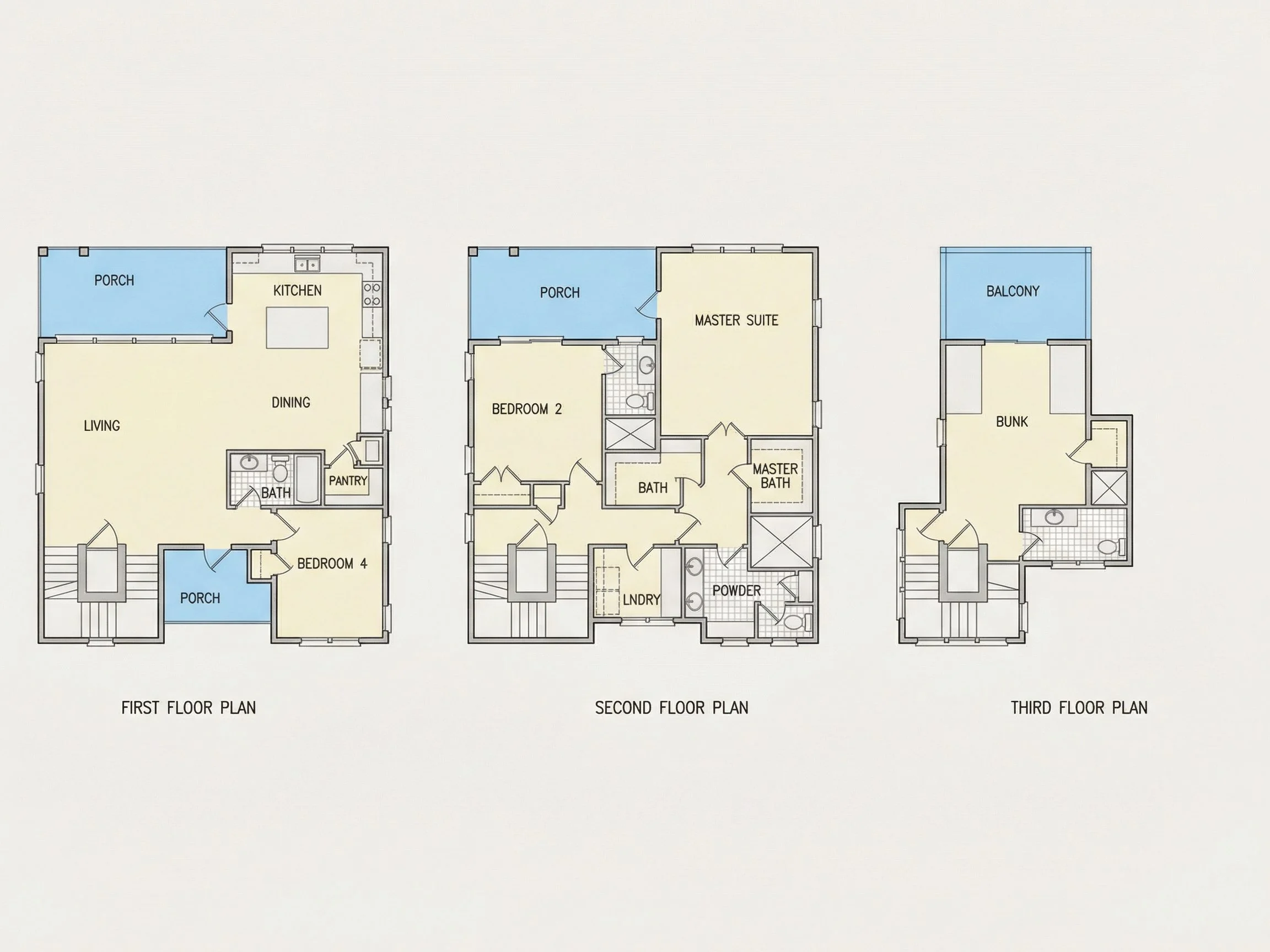

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
14-1640 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
All plans are drawn to scale and include :
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
VERIFY DIMENSIONS, SQ FT, DESCRPTION TO THAT OF PRODUCT IMAGES BEFORE PURCHASE
My Home Floor Plans, Inc. does not assume liability for any deviation of these plans. All information must be confirmed by contractor prior to commencement of construction. Dimension govern over scale.
