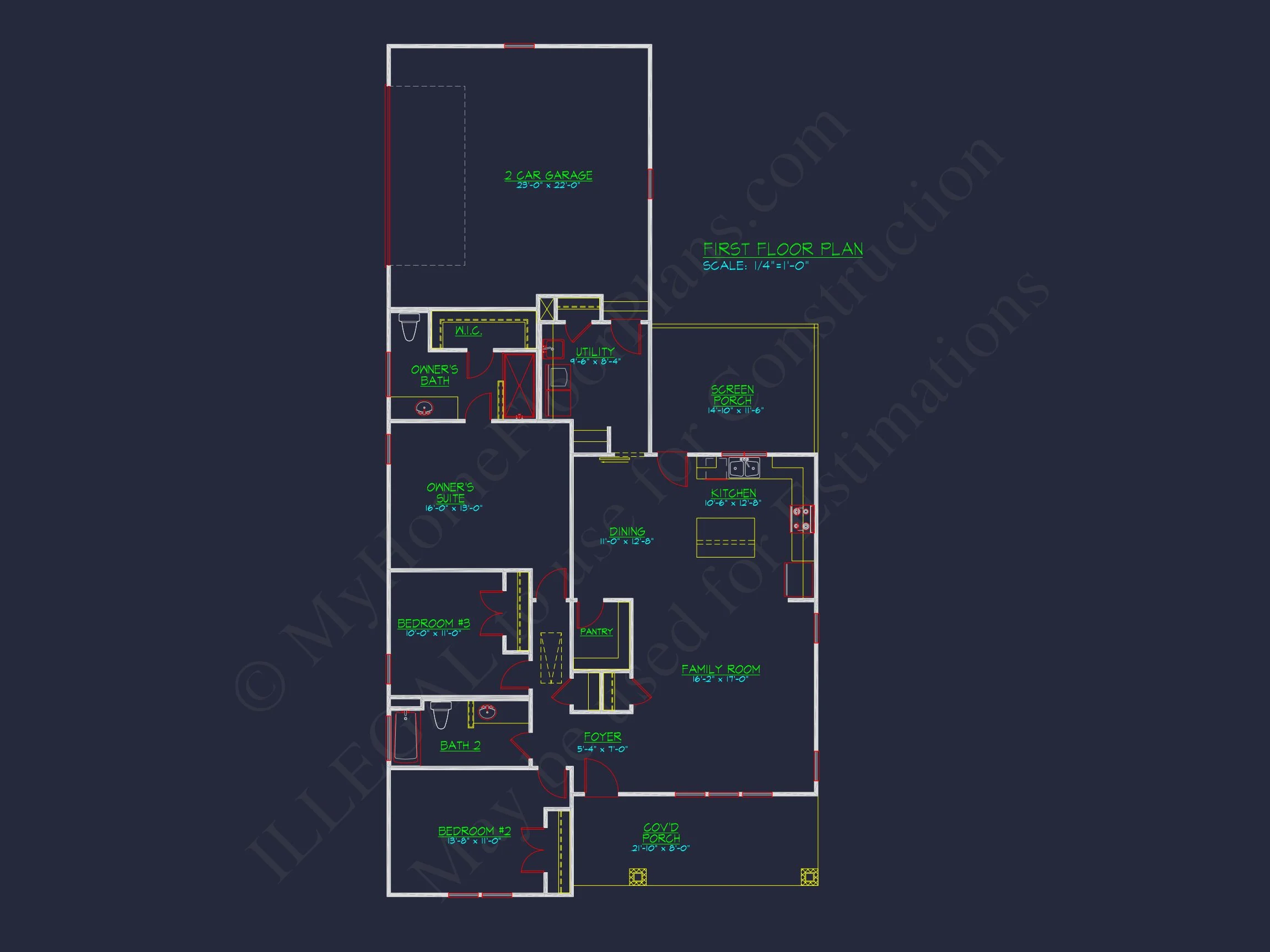

Craftsman Ranch Home Plan with Detailed Floor Plan and CAD Designs
Discover this charming Craftsman ranch home plan featuring 1, 637 heated sq. ft., a functional single-story layout, and full CAD blueprints—perfect for modern living.
This Craftsman-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 1, 637 sq. ft. across a single story.
- Unheated extras: Covered front porch, screened porch, and a spacious rear porch.
Bedrooms & Bathrooms
- 3 spacious bedrooms including a split-layout Owner Suite with walk-in closet and private bath.
- 2 full bathrooms positioned for easy access and privacy.
Interior Highlights
- 9’+ smooth ceilings enhance the home’s openness and comfort.

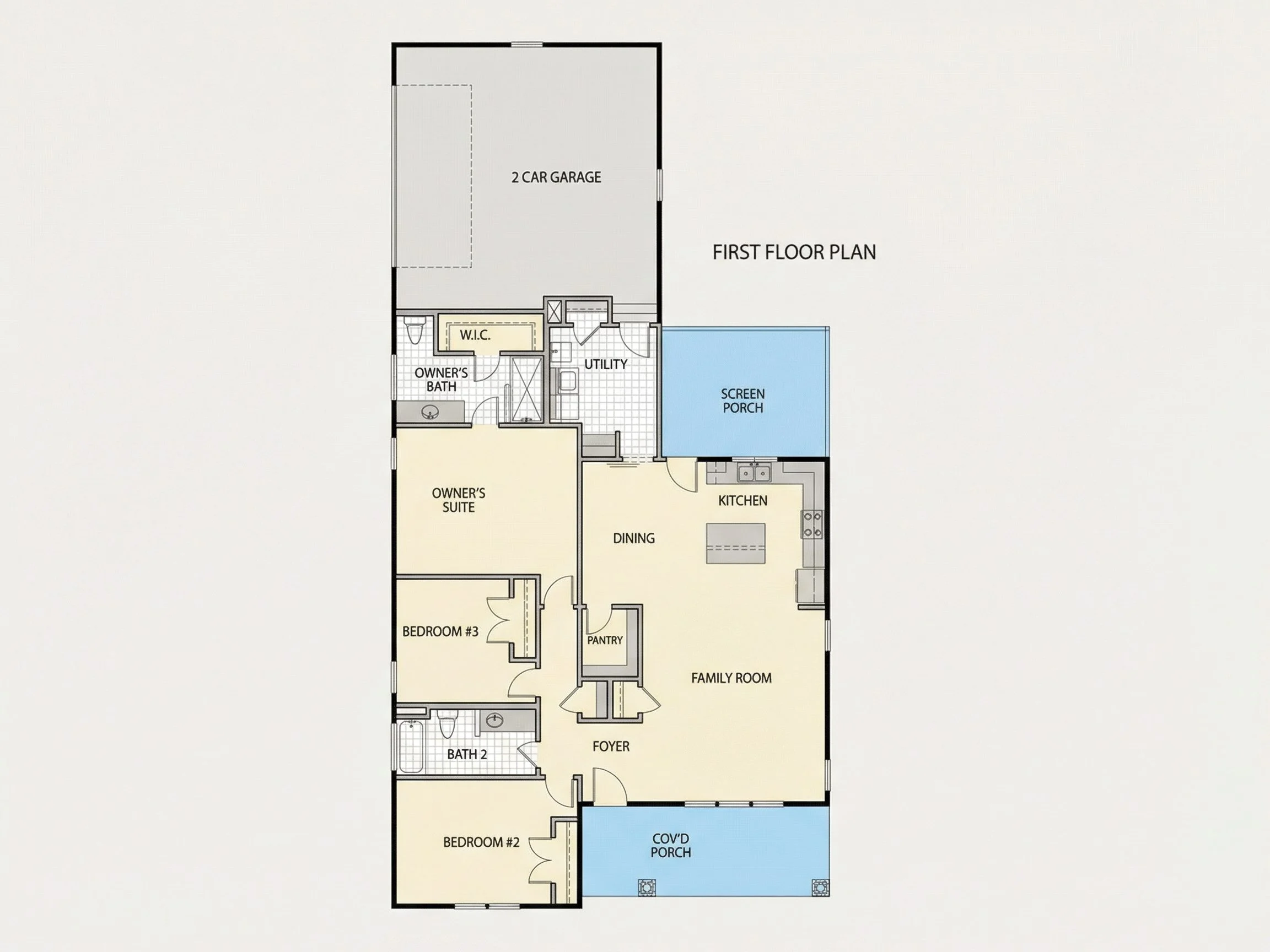

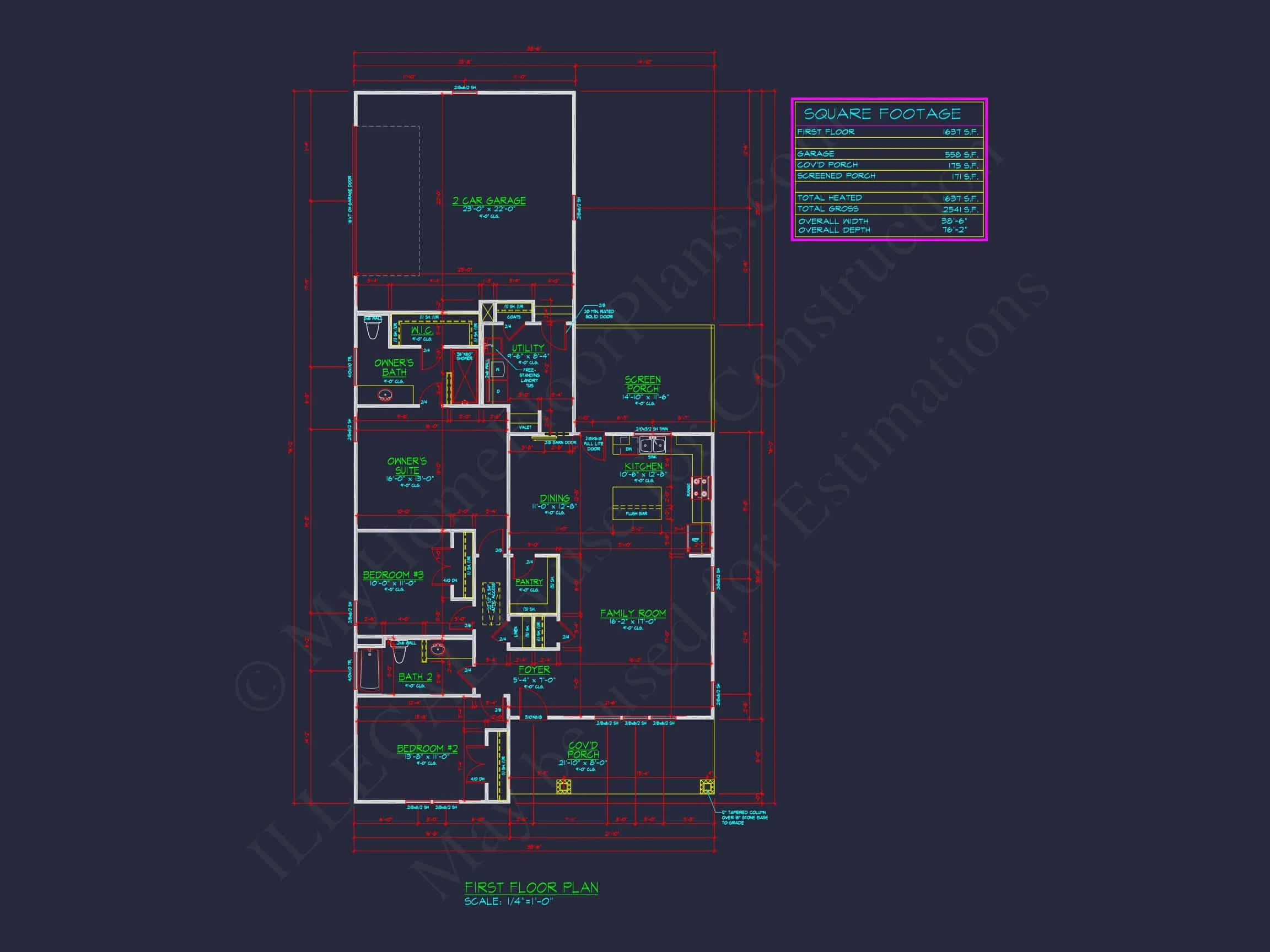

- Open floor plan connects the kitchen, dining, and living areas. View open layouts.
- Kitchen island perfect for casual dining and food prep.
- Walk-in pantry offers abundant storage for culinary essentials. See pantry plans.
- Dedicated laundry room on the main floor near bedrooms for daily convenience.
- Welcoming foyer sets the tone for the rest of the home.
Garage & Storage Details
- Garage Bays: Optional garage add-on available upon customization request.
- Garage Type: Compatible with attached or detached garage add-ons.
- Storage: Ample linen and hall closets, plus kitchen storage enhancements.
Outdoor Living Features
- Covered front porch ideal for curb appeal and morning coffee moments.
- Screened porch provides a bug-free space to relax in all weather.
- Covered rear porch ideal for entertaining or lounging outdoors. See porch house plans.
Architectural Style: Traditional Craftsman Ranch
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the Traditional Craftsman style or explore its roots on ArchDaily.
Bonus Features
- Split-bedroom layout for added privacy.
- Flexible screened porch use—convert into an outdoor dining nook or lounge.
- Designed with energy efficiency in mind for long-term cost savings.
Included Benefits with Every Plan
- CAD + PDF Files: Editable, printable, and build-ready.
- Unlimited Build License: Build once—or as many times as you like.
- Free Foundation Changes: Customize between slab, crawlspace, or basement foundations at no cost. Learn more here.
- Structural Engineering Included: Ensures code compliance and structural safety.
- Lower Modification Costs: We offer custom changes for up to 50% less than other providers. Explore modification options.
- View Before You Buy: Preview all blueprints in advance.
Similar Collections You Might Love
- Ranch House Plans
- Small House Plans
- Plans with Screened Porches
- First Floor Owner Suite Plans
- Plans with Kitchen Islands
Frequently Asked Questions
What’s included with this house plan? You’ll receive both editable CAD files and printable PDFs, along with unlimited build rights, free foundation modifications, and structural engineering documentation.
Can this plan be customized? Absolutely! From garage configurations to interior reworks, we offer affordable customization. Contact us here.
Is this house suitable for narrow or compact lots? Yes, its modest footprint and efficient layout make it ideal for a wide range of lot sizes.
Does the plan come with outdoor living options? Yes, including a front porch, screened-in patio, and covered rear porch.
How can I preview the full floor plan? You can view every sheet before purchase to ensure it’s perfect for your needs.
Start Building Your Dream Home Today
Have questions or ready to get started? Reach out to our expert team at [email protected] or contact us online.
Your dream house begins with a smart design—customize this Craftsman Ranch home plan and bring your vision to life!
Original price was: $1,582.56.$896.79Current price is: $896.79.
999 in stock
| Width | 38'-6" |
|---|---|
| Depth | 76'-2" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Owner's Suite on First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
9 FT+ Ceilings | Affordable | Covered Front Porch | Covered Rear Porches | Craftsman | Downstairs Laundry Room | Family Room | First-Floor Bedrooms | Foyer | Front Entry | Kitchen Island | Medium | Owner’s Suite on the First Floor | Ranch | Screened Porches | Simple | Smooth & Conventional | Split Bedroom | Starter Home | Traditional | Walk-in Closet | Walk-in Pantry
All home plans include BOTH the CAD file and PDF file.

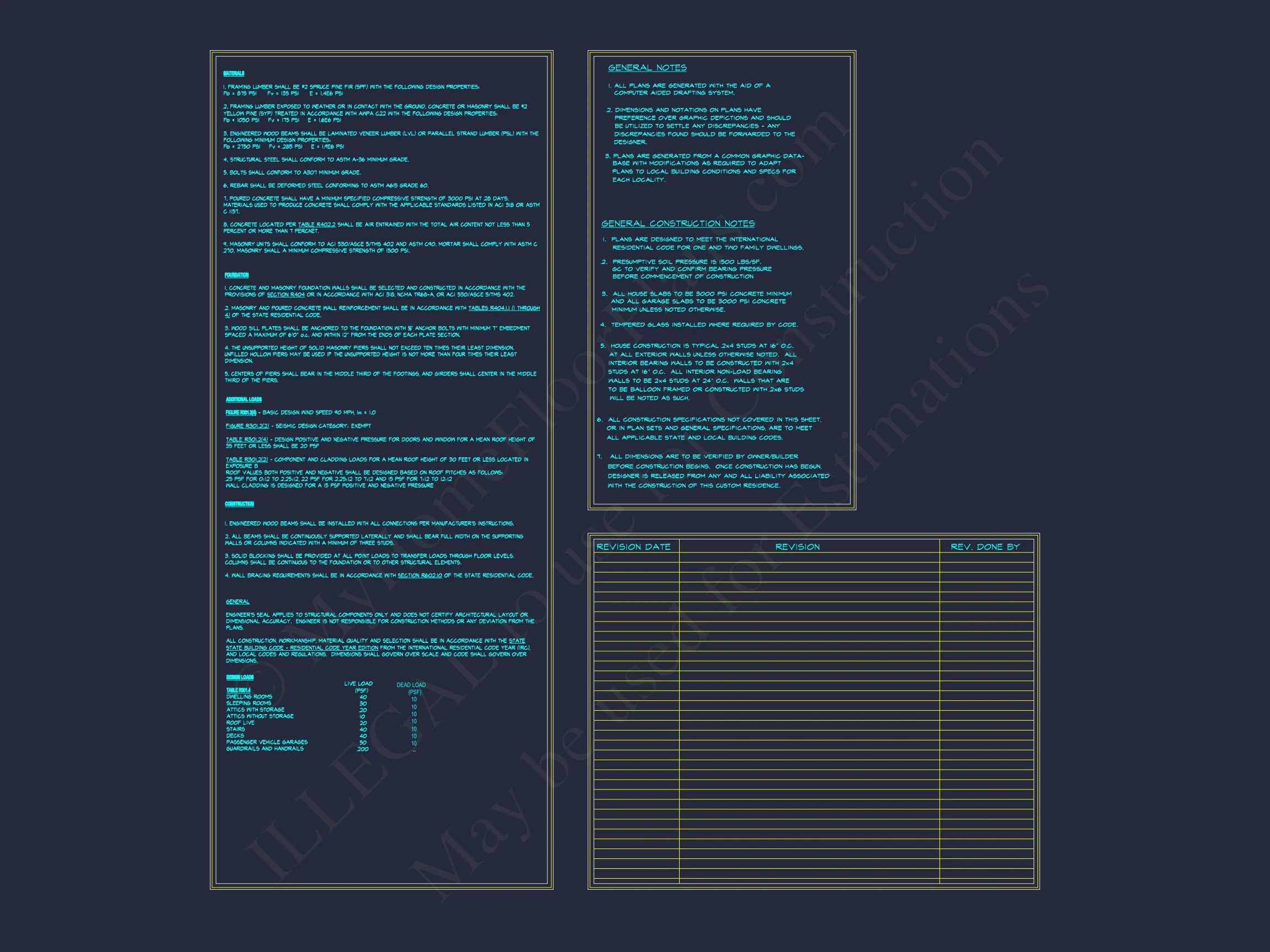

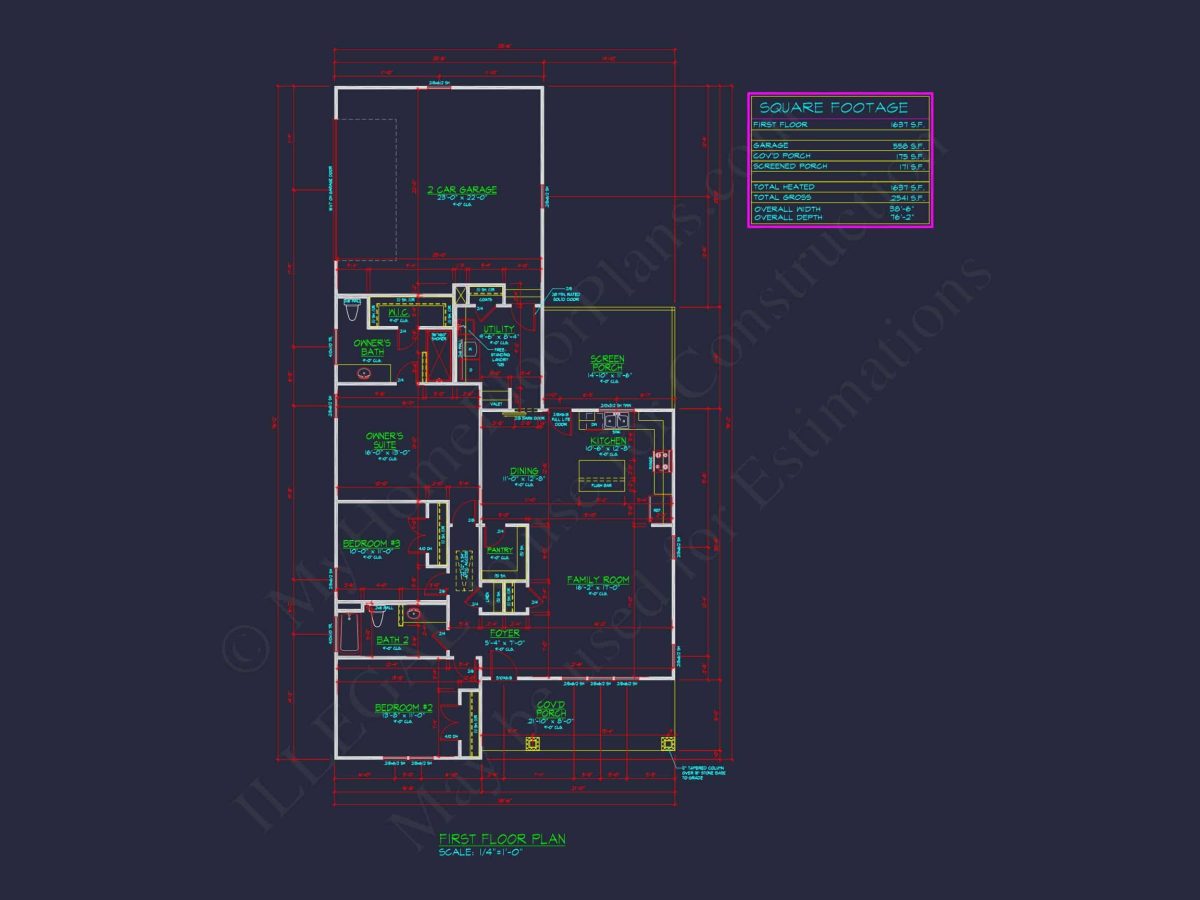

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

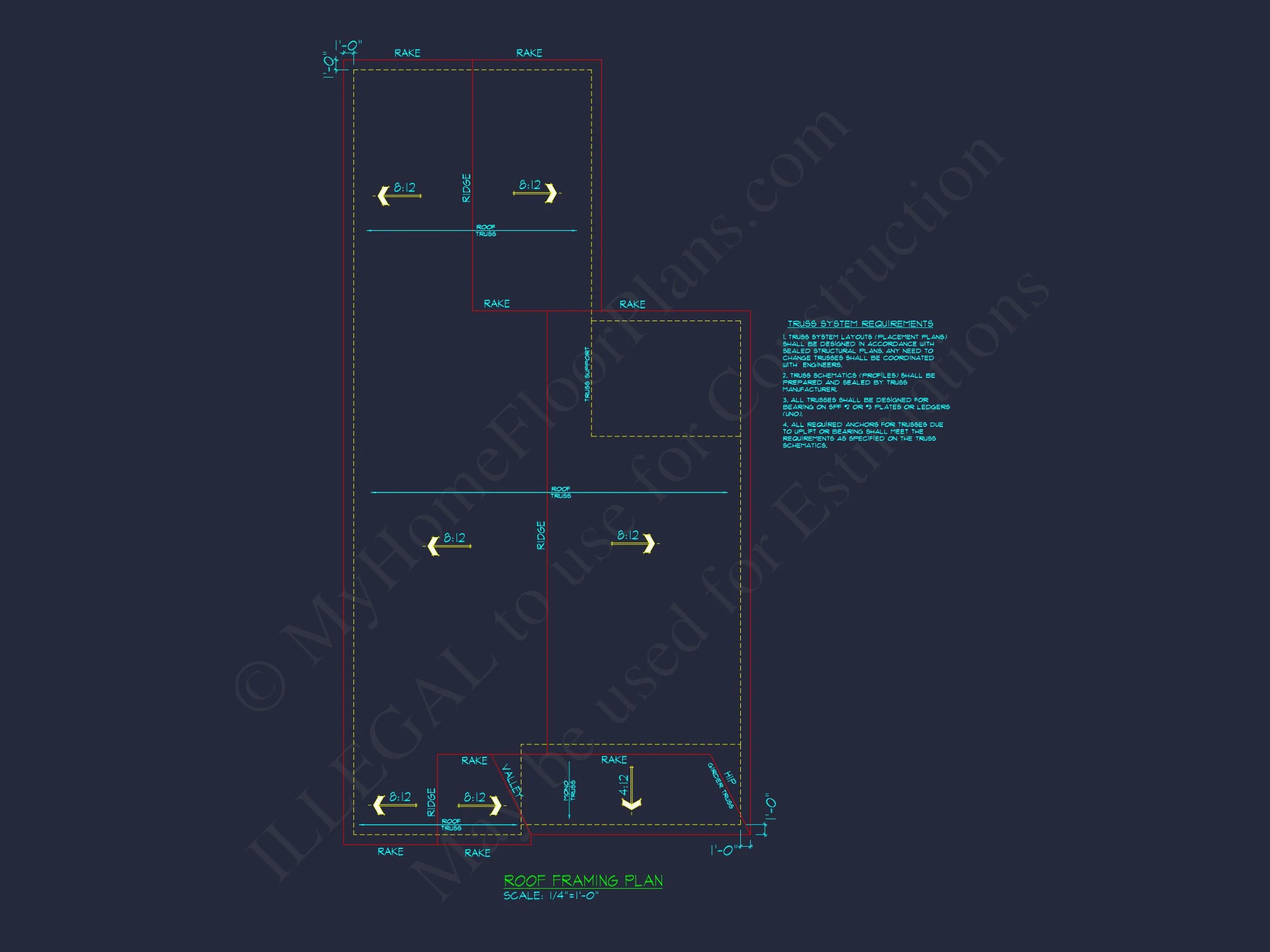

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

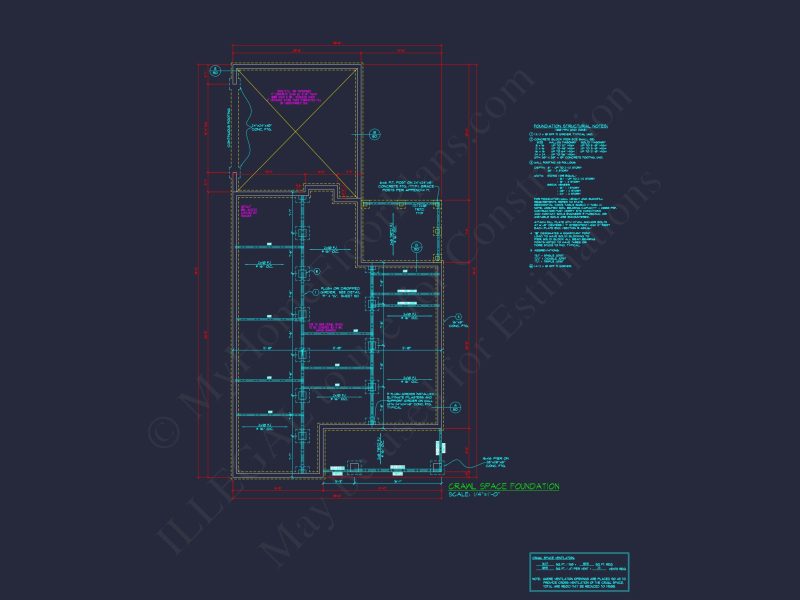

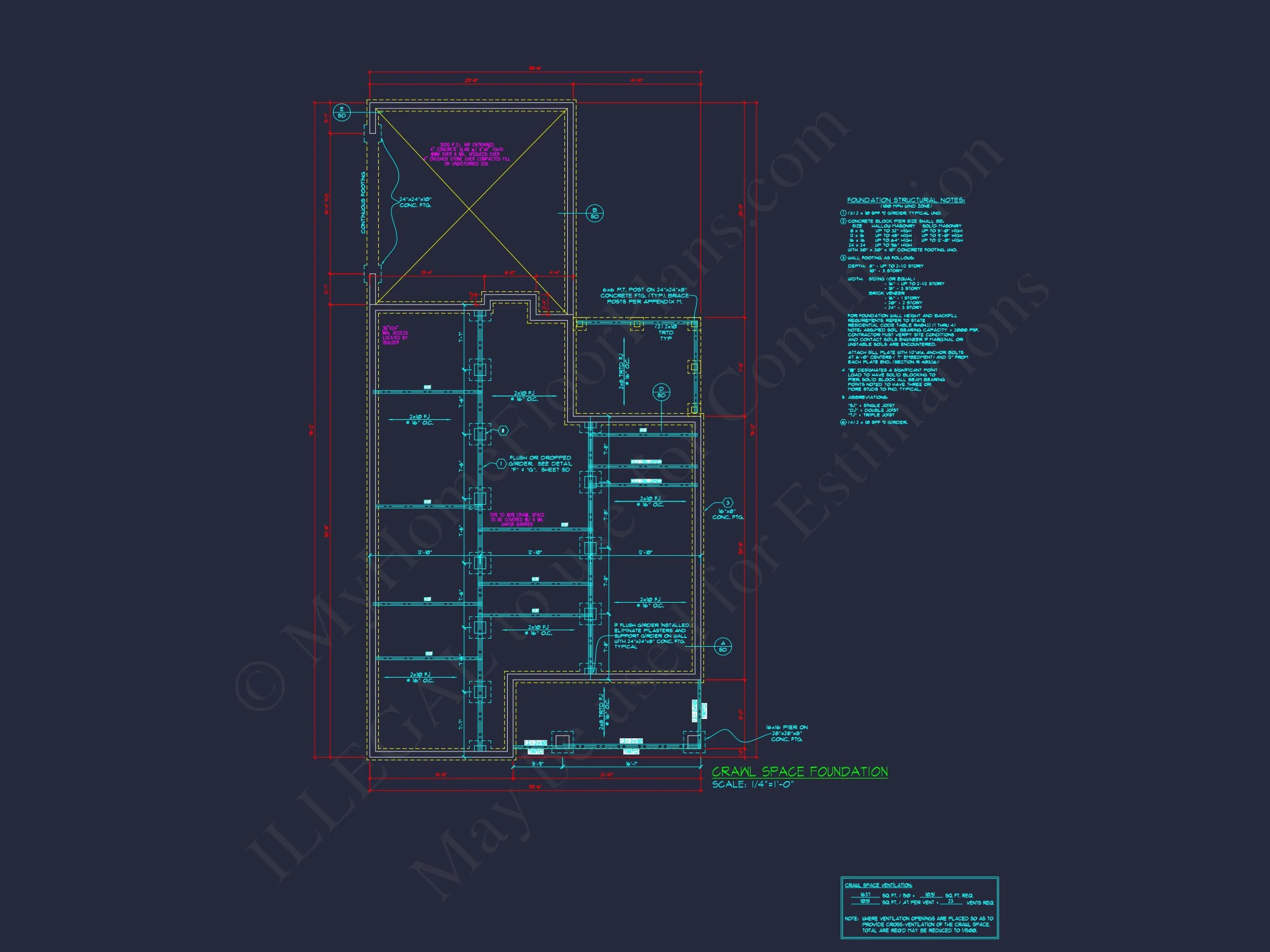

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
16-1048 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
