Craftsman house Plan with CAD Blueprints and Floor Designs
Explore this Craftsman house plan featuring 2 floors, 3 bedrooms, 3 bathrooms, and 2, 649 heated sq ft. Includes CAD blueprints and unique architectural designs.
Original price was: $2,014.56.$1,141.59Current price is: $1,141.59.
999 in stock
| Width | 29'-10" |
|---|---|
| Depth | 52'-5" |
| Htd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Fireplace, Living Room, Office/Study, Open Floor Plan |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Craftsman Home Plan with CAD Blueprints and Floor Designs
Explore this Craftsman home plan featuring 2 floors, 3 bedrooms, 3 bathrooms, and 2, 649 heated sq ft. Includes CAD blueprints and unique architectural designs.
This Craftsman-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 649 sq. ft. across two stories.
- Unheated extras: Detached garage and covered porches.
Bedrooms & Bathrooms
- 3 spacious bedrooms, including a luxurious Owner Suite with a walk-in closet.
- 3 full bathrooms thoughtfully placed for convenience and privacy.
Interior Highlights
- Open floor plan seamlessly connects living, dining, and kitchen spaces. View open layouts.
- Fireplace in the living room adds a warm and inviting atmosphere. Browse fireplace plans.
- Kitchen island offers space for prep and casual meals. Explore kitchen island homes.
- Bonus room and home office/study provide flexible living options.
Garage & Storage Details
- Garage Bays: 2-car detached garage.
- Garage Type: Detached with potential for breezeway connection.
- Storage: Walk-in closets, mudroom area, and upstairs flex space.
Outdoor Living Features
- Covered front and rear porches—perfect for relaxing mornings or evenings outdoors. Explore porch plans.
- Durable fiber cement siding adds both curb appeal and weather resistance.
Architectural Style: Traditional Craftsman
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the Traditional Craftsman style or explore its roots on ArchDaily.
Bonus Features
- Flexible bonus room can serve as a media room, gym, or extra bedroom.
- Dedicated study for remote work or private retreat.
- Narrow lot design—ideal for properties under 40 feet wide. View narrow lot options.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement.
- Structural Engineering Included: Code-compliant and professionally stamped.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- Traditional House Plans
- Narrow Lot House Plans
- Plans with First Floor Owner Suites
- Plans with Kitchen Islands
- Covered Porch House Plans
Frequently Asked Questions
What’s included with this house plan? All plans come with editable CAD files, printable PDFs, unlimited-build rights, structural engineering, and free foundation changes.
Can I customize the layout? Yes! We offer fast and affordable modifications. Get a quote here.
Is this suitable for narrow lots? Absolutely. Its compact footprint and detached garage make it ideal for tight or urban spaces.
How many stories is this home? This is a 2-story layout with living and bonus spaces split across both levels.
Can I preview the blueprints? Yes. Preview every sheet before you buy.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

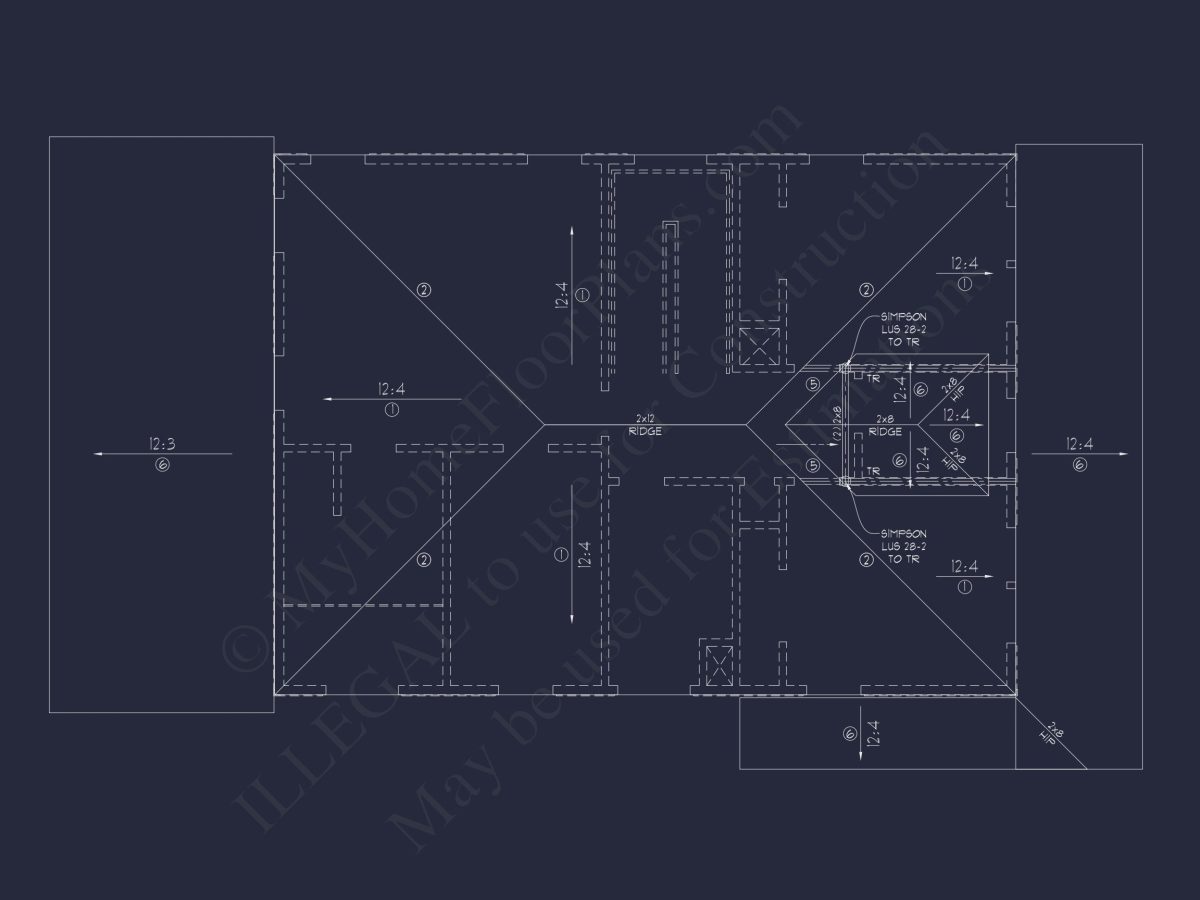

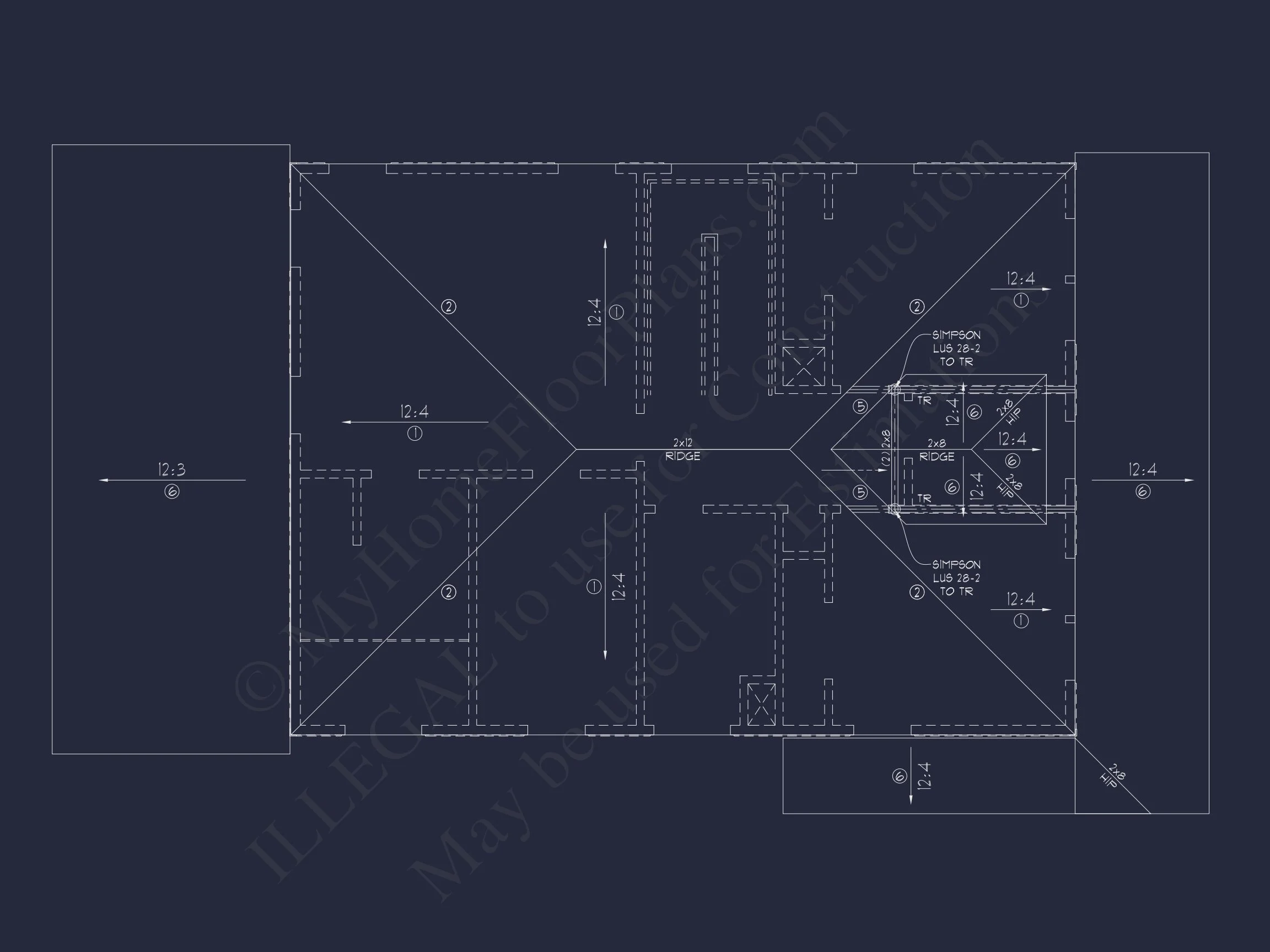

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
