Elegant house Design: 3-Story CAD Floor Plan with Colonial Style
Explore this Colonial-style house design with detailed CAD blueprints. Featuring 3 stories, 5 bedrooms, 6 baths, and stunning indoor & outdoor features.
10 FT+ Ceilings | 9 FT+ Ceilings | Attics | Basement | Bonus Rooms | Breakfast Nook | Colonial | Covered Front Porch | Designer Favorite | Detached | Family Room | Fireplaces | Foyer | Front Entry | Great Room | Jack and Jill | Kitchen Island | Large | Office/Study | Owner’s Suite on Second Floor | Patios | Recreational Room | Screened Porches | Second Floor Bedroom | Traditional | Walk-in Closet | Walk-in Pantry
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 55'-4" |
|---|---|
| Depth | 57'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Basement, Bonus Room, Family Room, Fireplace, Foyer, Great Room, Office/Study, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Elegant 3-Story Colonial House Design with 5 Bedrooms
Explore this classic Colonial-style floor plan featuring 4, 011 heated sq. ft., 3 stories, 5 bedrooms, 6 baths, and CAD-ready blueprints for your dream build.
This Colonial-style house plan offers a perfect mix of historic charm and modern functionality. Designed for timeless living, it features a smart layout and detailed CAD architecture ideal for builders and families alike.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 4, 011 sq. ft. across three stories.
- Unheated extras: Includes a covered front porch, screened patio, and 2-car garage.
Bedrooms & Bathrooms
- 5 generously sized bedrooms, including a luxurious Owner Suite located on the second floor with a walk-in closet and Jack and Jill bathroom layout options.
- 6 well-appointed bathrooms offering both privacy and convenience across all levels.
Interior Highlights
- Great Room ideal for entertaining and family time.
- Dedicated Office/Study perfect for remote work or reading.
- Bonus and Recreational Rooms for gaming, hobbies, or a home gym setup.
- 10ft+ ceilings throughout main areas for added luxury and light.
- Thoughtful open floor plan makes daily living seamless. See more open layouts.
Garage & Storage Details
- Garage Bays: 2-car garage providing ample parking.
- Garage Type: Attached front-entry design for convenience.
- Storage: Includes mudroom space and extra closet areas throughout all floors.
Outdoor Living Features
- Enjoy both a covered front porch and a screened rear patio—perfect for year-round relaxation.
- Exterior blends brick and siding for timeless Colonial curb appeal.
Architectural Style: Colonial Revival
This design pays homage to traditional Colonial architecture while offering the convenience of modern features. It’s perfect for homeowners who appreciate historical roots with an updated touch. Explore the origins of Colonial style homes on ArchDaily.
Bonus Features
- Versatile flex room that can serve as an office, guest room, or workout space.
- Second-floor Owner Suite for privacy and comfort.
- Multiple recreation zones spread across levels.
Included Benefits with Every Plan
- CAD + PDF Files: Professionally drafted, easy to modify, and construction-ready.
- Unlimited Build License: Build as many times as you like—ideal for investors and families.
- Free Foundation Changes: Choose between slab, crawlspace, or basement at no extra cost.
- Structural Engineering Included: Each design is built to code and includes engineering stamps.
- Lower Modification Costs: Customize your blueprint at up to 50% less than competitors.
- View Before You Buy: Preview every sheet in advance.
Similar Collections You Might Love
- Traditional House Plans
- House Plans with Bonus Room
- Home Office House Plans
- Covered Porch House Plans
- 5 Bedroom House Plans
Frequently Asked Questions
What’s included with this house plan? Your purchase includes editable CAD files, high-res PDF blueprints, unlimited build rights, structural engineering, and complimentary foundation changes.
Is this plan customizable? Absolutely! Submit your ideas and get a fast quote on any floor plan changes.
Is this plan suitable for narrow lots? The footprint is balanced but may not be ideal for very narrow lots. View narrow lot plans here.
How many levels does this home have? This is a 3-story house plan with living and entertainment spaces on each floor.
Can I view all blueprint sheets? Yes—you can preview every plan sheet on the website before purchasing.
Start Building Your Dream Home Today
Have questions or want to personalize this elegant Colonial design? Contact our expert team at [email protected] or reach out online.
Your perfect Colonial house starts with a plan that blends classic architecture with smart functionality—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

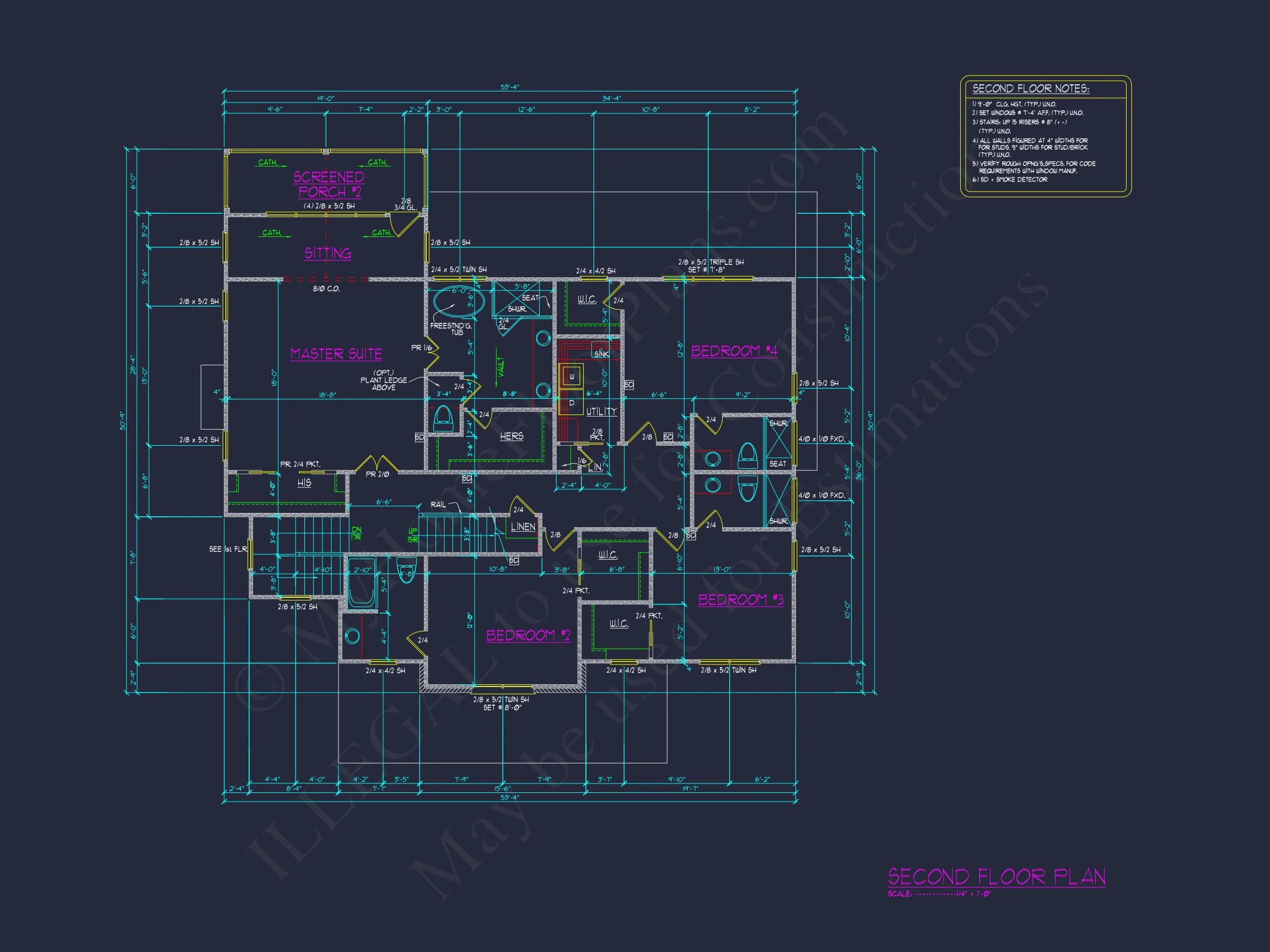

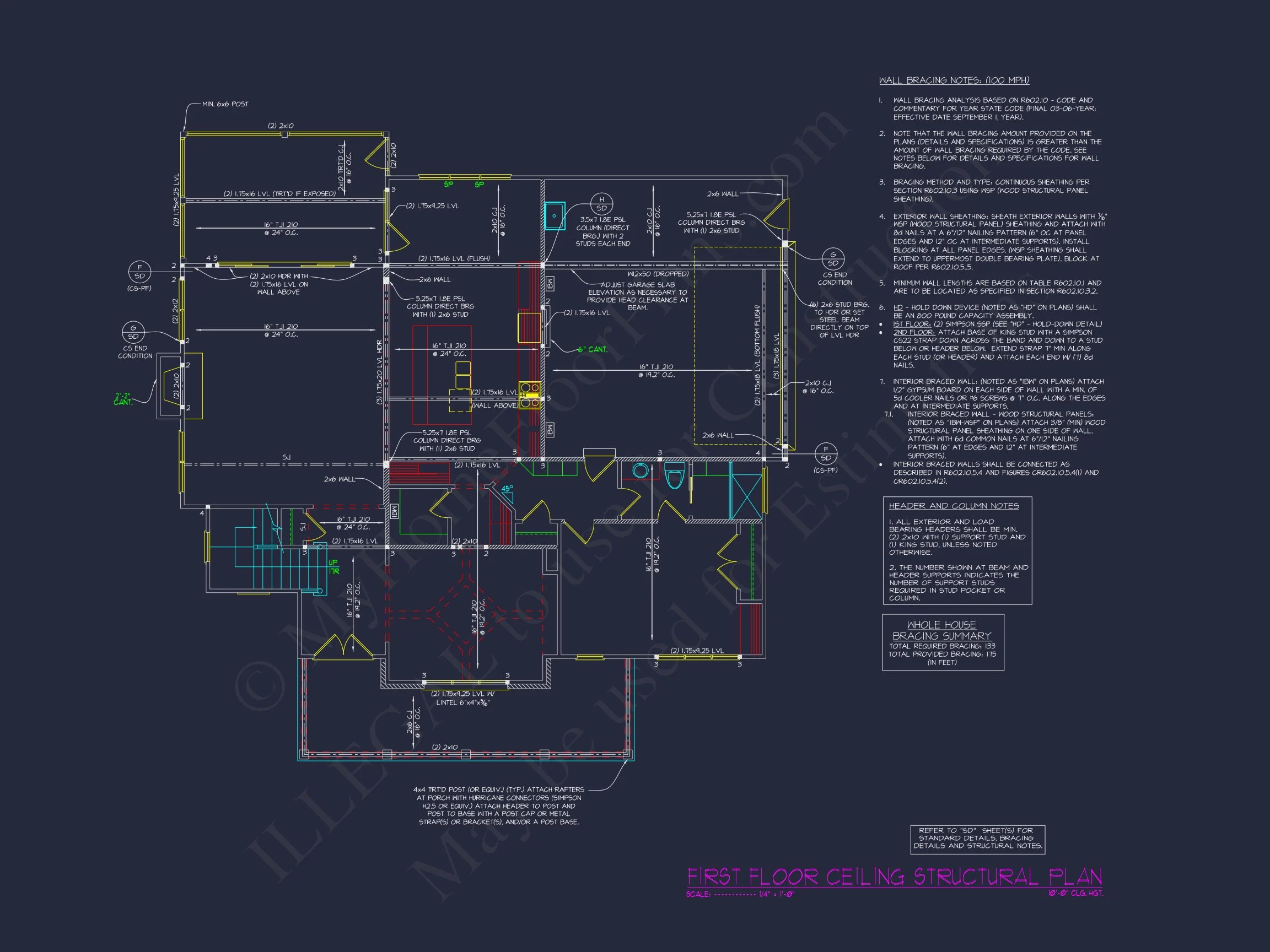

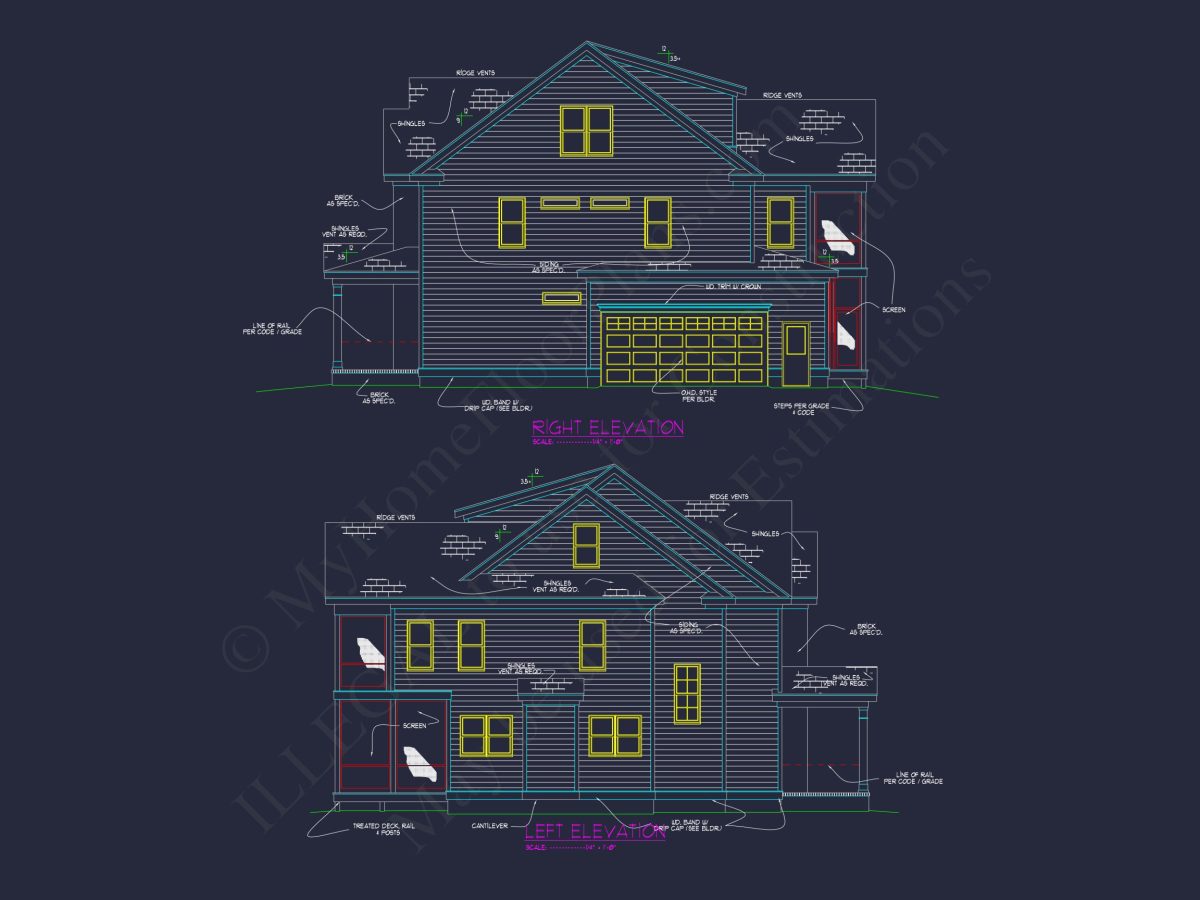

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
