Craftsman house Floor Plan with Spacious Design and CAD Blueprints
Explore this 1.5-story Craftsman house floor plan featuring 3 bedrooms, vaulted ceilings, a detached garage, and CAD blueprints for flexible designs.
Original price was: $1,870.56.$1,059.99Current price is: $1,059.99.
999 in stock
| Width | 46'-4" |
|---|---|
| Depth | 53'-9" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Family Room, Fireplace, Foyer, Great Room, Office/Study, Owner Suite on the First Floor, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Jack and Jill Bathroom, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Craftsman Home Floor Plan with Spacious Design and CAD Blueprints
Explore this 1.5-story Craftsman house plan with 2, 506 heated sq. ft., vaulted ceilings, flexible bonus rooms, and detailed CAD blueprints.
This Craftsman-style house plan offers a perfect blend of functionality, timeless architecture, and comfort. Ideal for families and designers alike, this plan brings together cozy charm and modern layout flexibility.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 506 sq. ft. across 1.5 stories.
- Unheated extras: 650 sq. ft. including porches and a detached two-car garage.
Bedrooms & Bathrooms
- 3 spacious bedrooms including a first-floor Owner Suite with a walk-in closet and luxurious bath.
- 2 full bathrooms designed for comfort and privacy.
Interior Highlights
- Vaulted ceilings create a sense of openness and architectural elegance.
- Open floor plan connects the family room, breakfast nook, and kitchen. View open layouts.
- Bonus room upstairs offers space for a home office, guest room, or play area.
- Recreational room adds versatile space for hobbies or family entertainment. Explore recreation room plans.
Outdoor Living Features

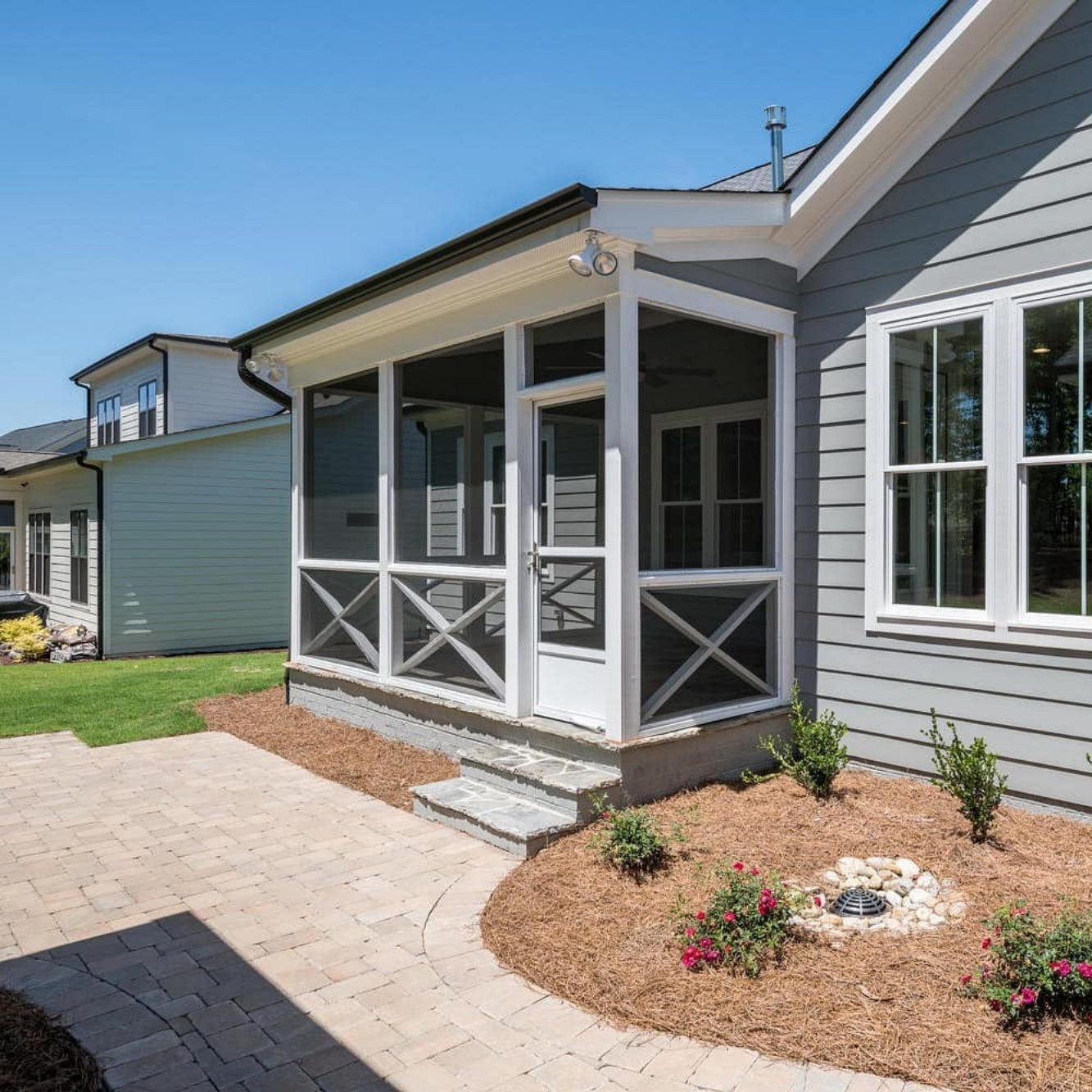

- Screened-in porch lets you enjoy the outdoors comfortably. See screened porch plans.
- Covered front porch enhances curb appeal and offers a welcoming entry.

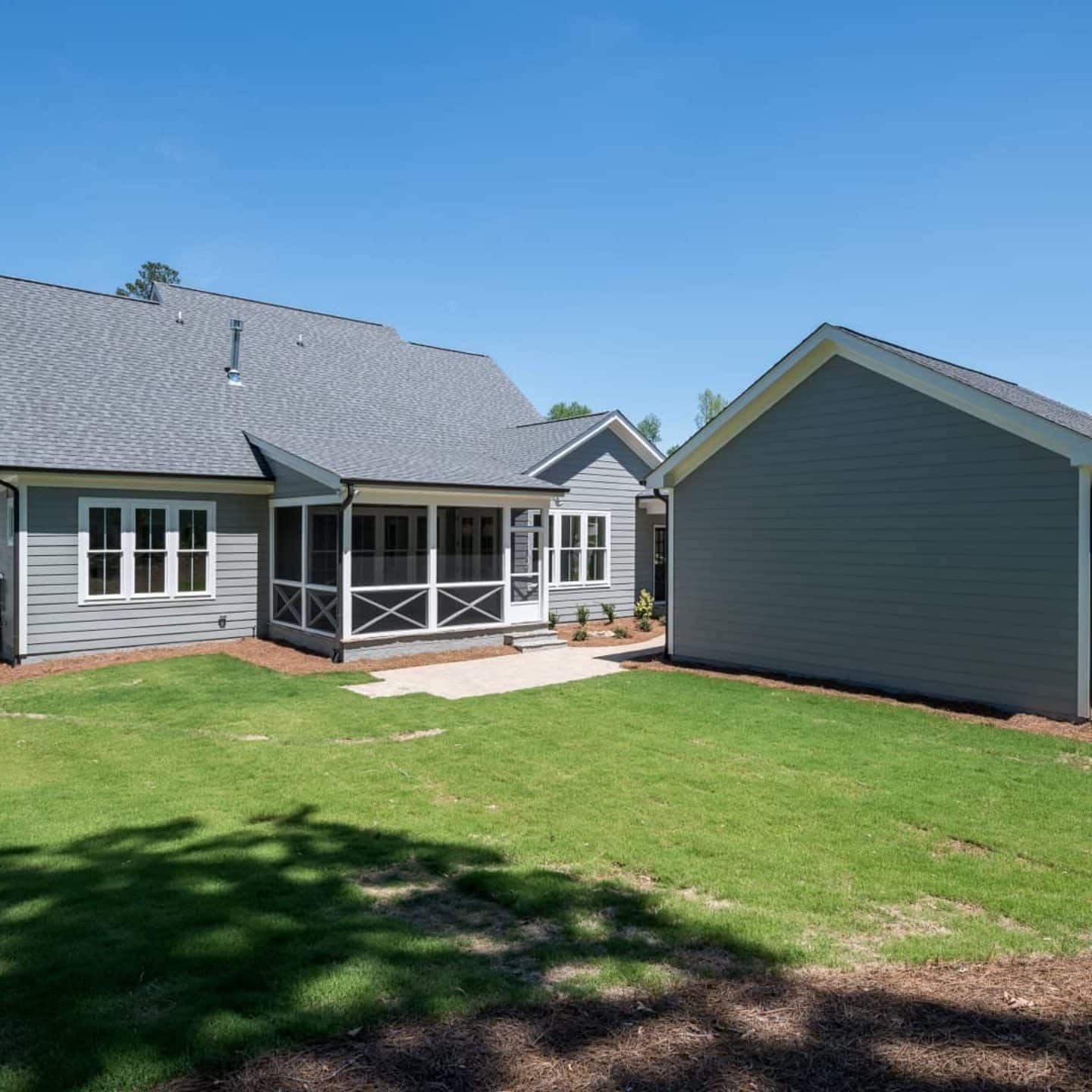

- Detached garage provides 2-car storage and architectural separation for added character. View detached garage layouts.
Architectural Style: Traditional Craftsman
This design features a mix of board & batten, brick, and shingle siding, bringing texture and warmth. Whether you love classic Craftsman curb appeal or need a versatile layout, this house plan delivers both form and function.
Included Benefits with Every Plan
- CAD + PDF Files: Ready-to-build, editable formats included.
- Unlimited Build License: Construct multiple times—no additional cost.
- Free Foundation Changes: Swap between crawlspace, slab, or basement at no charge.
- Structural Engineering Included: Professionally stamped and code-compliant.
- Lower Modification Costs: Up to 50% less than competitors.
- View Before You Buy: Preview every sheet before purchase.
Similar Collections You Might Love
- Traditional House Plans
- House Plans with Bonus Rooms
- First Floor Owner Suite Plans
- Screened-In Porch Plans
- Plans with Detached Garages
Frequently Asked Questions
What’s included with this house plan? You’ll receive editable CAD files, PDFs, a license to build unlimited times, structural engineering, and the ability to change foundations at no extra cost.
Can I customize this plan? Absolutely! Contact us for fast, affordable changes.
Is it good for narrow or irregular lots? Yes—its detached garage and compact footprint allow flexible siting on different lot types.
How many stories is this layout? This is a 1.5-story home, ideal for combining privacy with smart spatial design.
Can I see the full blueprint before buying? Yes. Preview every page here.
Learn More About the Craftsman Style
Want to understand the roots of Craftsman architecture? Check out this in-depth guide from ArchDaily that explores its origins and lasting influence.
Start Building Your Dream Home Today
Have questions or ready to personalize your plan? Email our team or submit a quick request.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

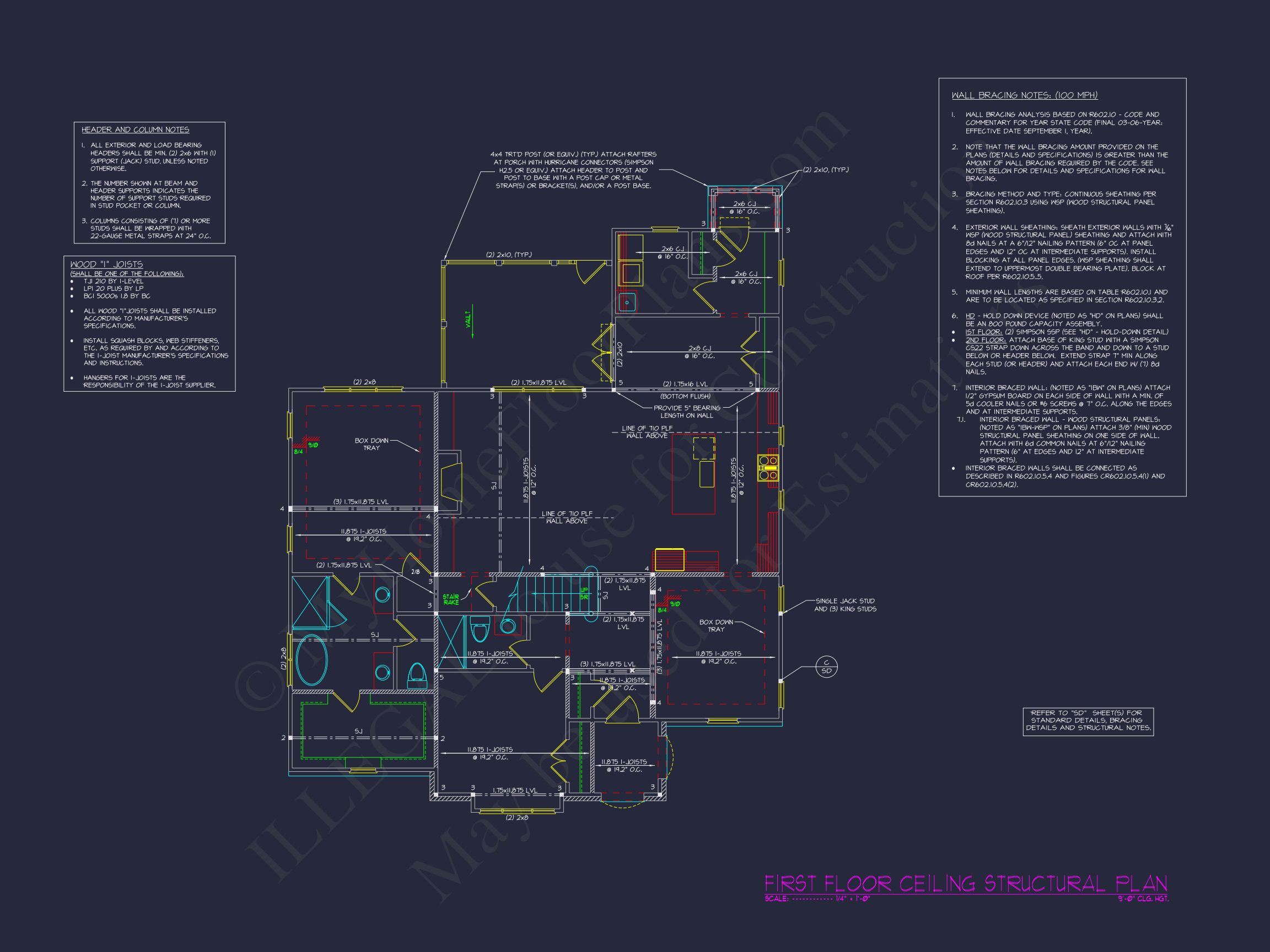

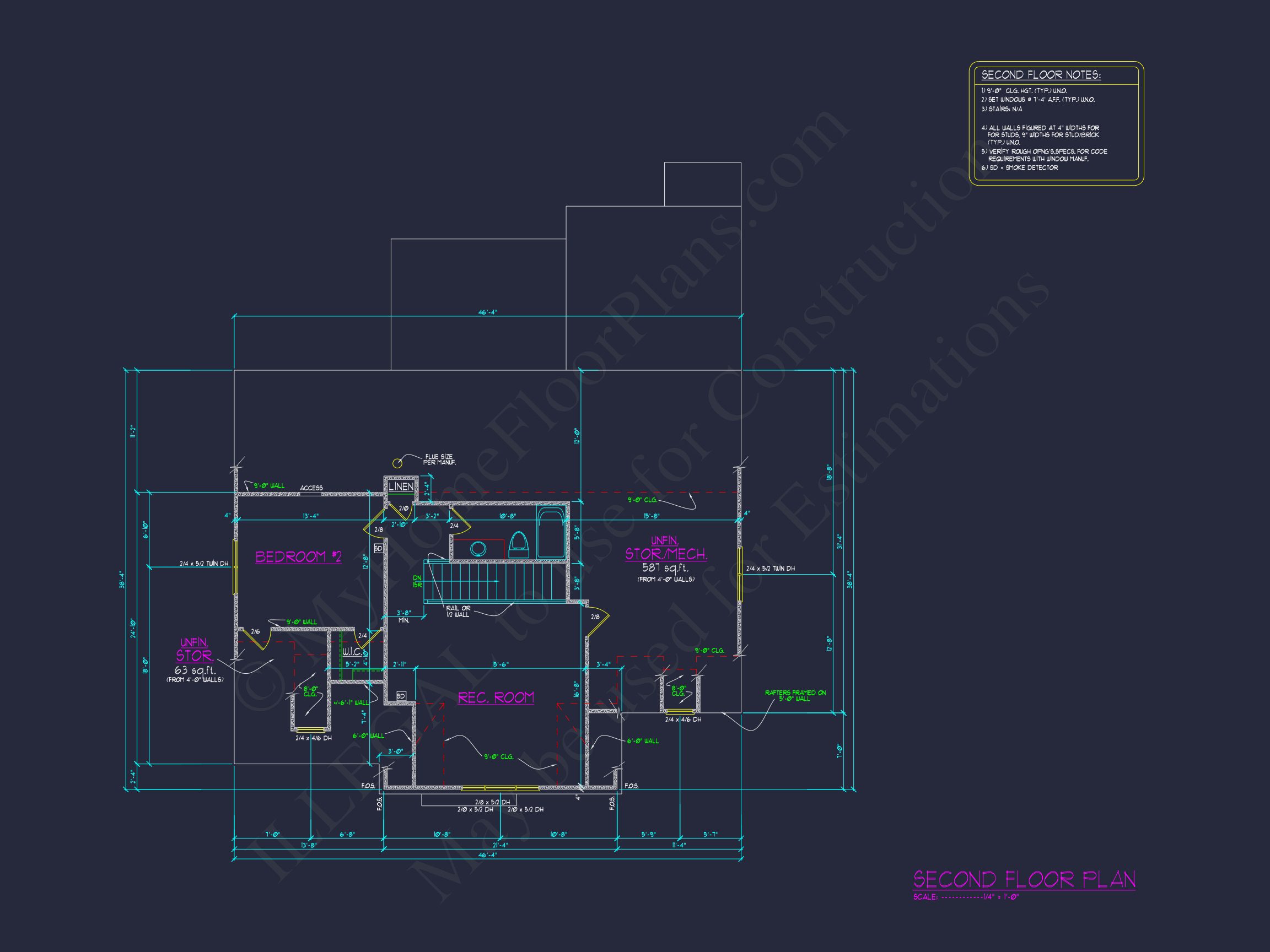

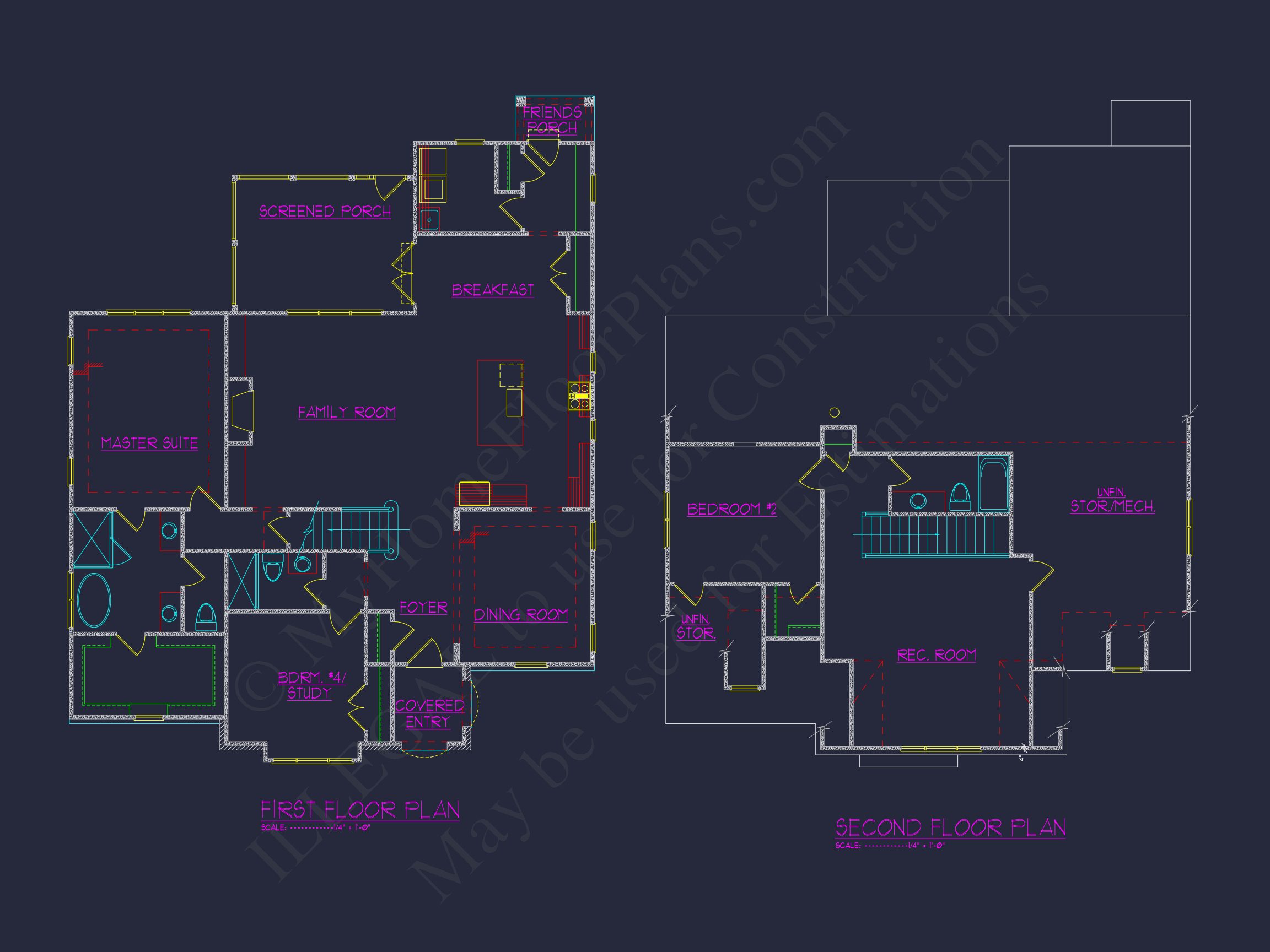

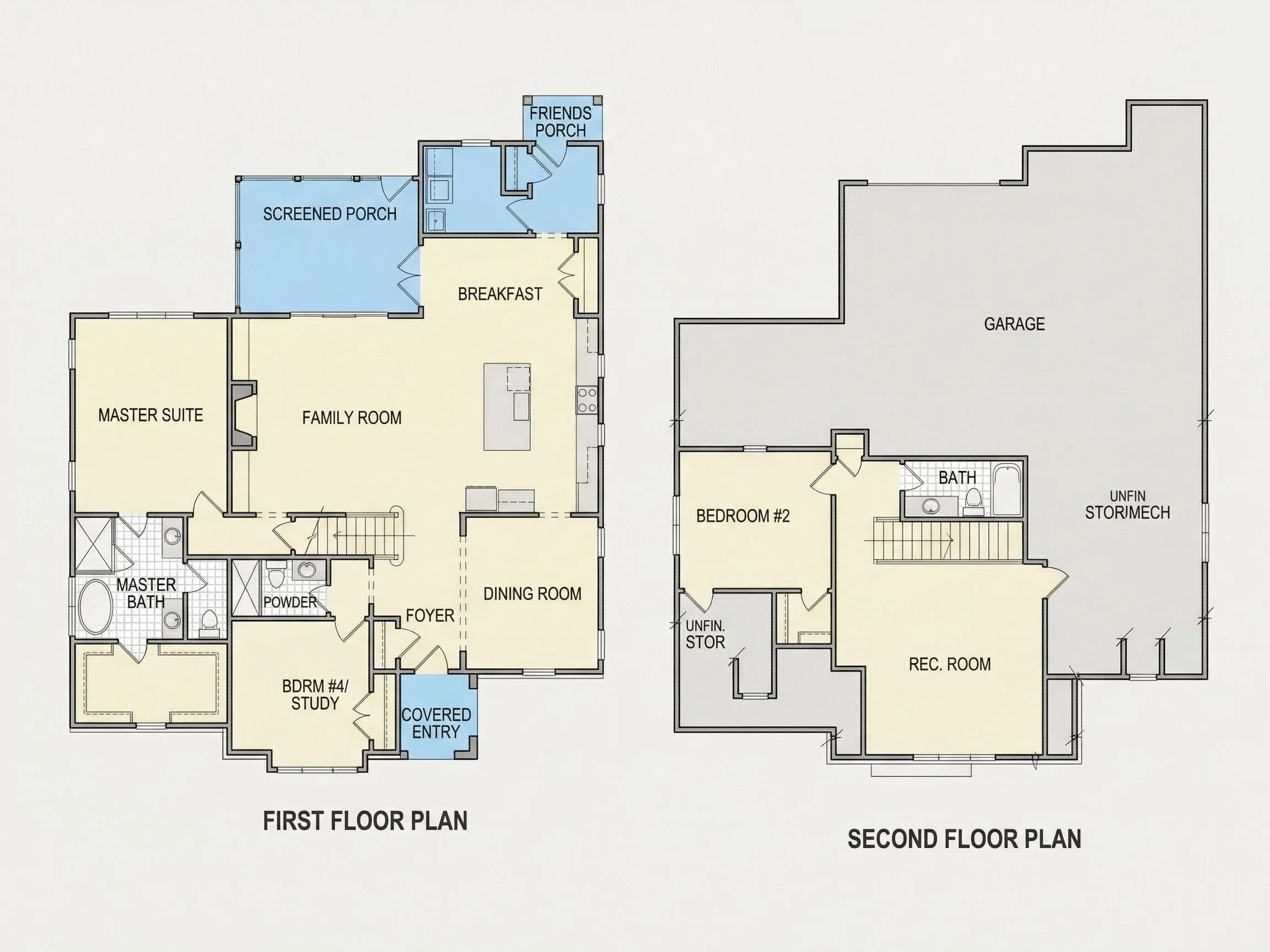

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
