Graceful 2-Story Home Plan with Architectural CAD Blueprint Designs
Explore this stunning 2-story house plan with 5 bedrooms, 3.5 baths, large 3, 815 heated sq. ft., unique architectural designs, and custom CAD blueprints for your dream home.
Discover Your Dream Home Plan
Designing your ideal house plan just got simpler with this spacious 2-story home blueprint. This thoughtfully planned residence features 5 bedrooms, 3.5 baths, and an impressive 3, 815 heated square feet. With a beautiful Craftsman exterior, a mix of brick, wood, and siding, and a unique two-car and single-car garage design, this home combines elegance with functionality.
Exceptional Indoor Features
This architectural gem maximizes livable space with a variety of rooms to accommodate every need:
* Living Room: A comfortable space perfect for entertaining guests or relaxing.
* Family Room: An inviting, cozy retreat for family bonding.
* Study/Office: A private, quiet area ideal for remote work or study.
* Bonus Room and Rec Room: Spacious areas for entertainment or hobbies.
* Mudroom: Keeps your home clean and organized.
* Laundry Rooms: Offers designated laundry spaces both upstairs and downstairs.
* Walk-In Closet: A luxurious storage solution for your Owner suite.
Each space is intentional, ensuring that every inch of the layout serves a purpose while providing exceptional comfort.
Modern Outdoor Amenities
The outdoor area is equally enticing, featuring a screened porch, covered rear porch, and covered front porch. These spaces are perfect for enjoying nature, hosting barbecues, or unwinding with a view of the backyard.
Smart Architectural Features
This 2-story structure, with its wide 70-foot width and 59-foot depth, is designed to cater to modern families. High ceilings of 9-10 feet and elegant touches like vaulted ceilings bring a sense of openness. The home’s side-entry garage and ample driveway space provide added convenience, plus the inclusion of Jack & Jill bathrooms and split bedrooms make it family-friendly.
Benefits Included with Every Plan
All home designs provide you with PDF and CAD files, granting easy customization. Each plan includes an unlimited-build license, free foundational changes, and structural engineering support. Unlike other providers, we let you view all sheets before purchasing, and any modifications come at a highly competitive price.
Build Your Dream Home
Designing your dream home begins with the perfect plan. Reach out to support@https://myhomefloorplans.com today and step closer to the home you’ve always wanted!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

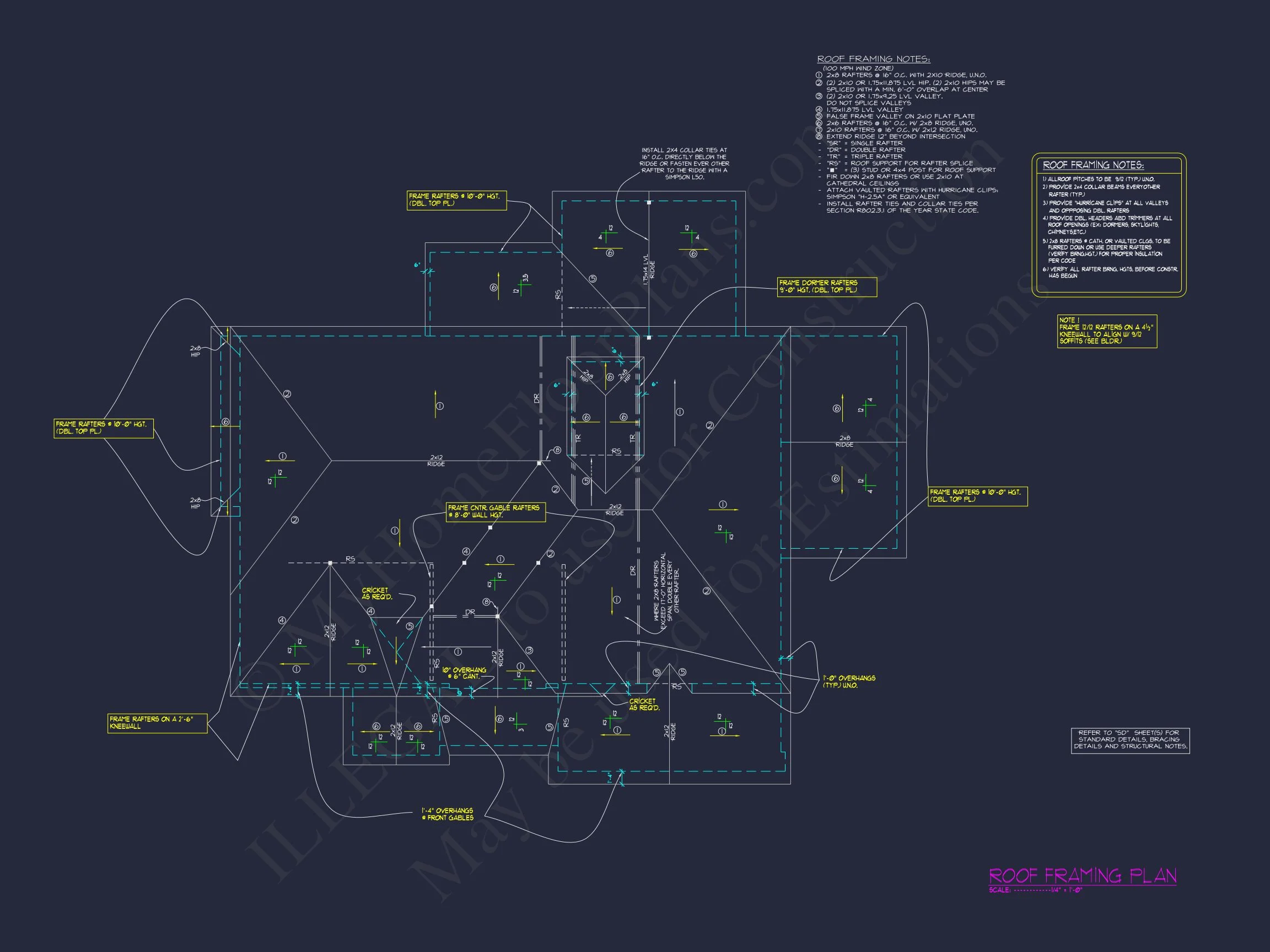

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
17-1853B HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
