Elegant 3-Story house Plan with CAD Floor Designs & Blueprint
Discover this 3-story house plan featuring 5 bedrooms, 4.5 baths, a fireplace, spacious garages, and a screened porch. Includes CAD files and customizable blueprints.
Elegant 3-Story Home Plan with CAD Floor Designs & Blueprint
Discover this 3-story house plan with over 3, 900 heated sq. ft., 5 bedrooms, a fireplace, and spacious outdoor living—CAD files and full blueprints included.
This traditional 3-story house plan offers an impressive mix of elegance and functionality. Designed for growing families and design-minded builders, it features timeless architecture and versatile spaces for modern living.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 900+ sq. ft. across three expansive stories.
- Unheated extras: Spacious 3-car garage, covered front porch, and screened rear porch.
Bedrooms & Bathrooms

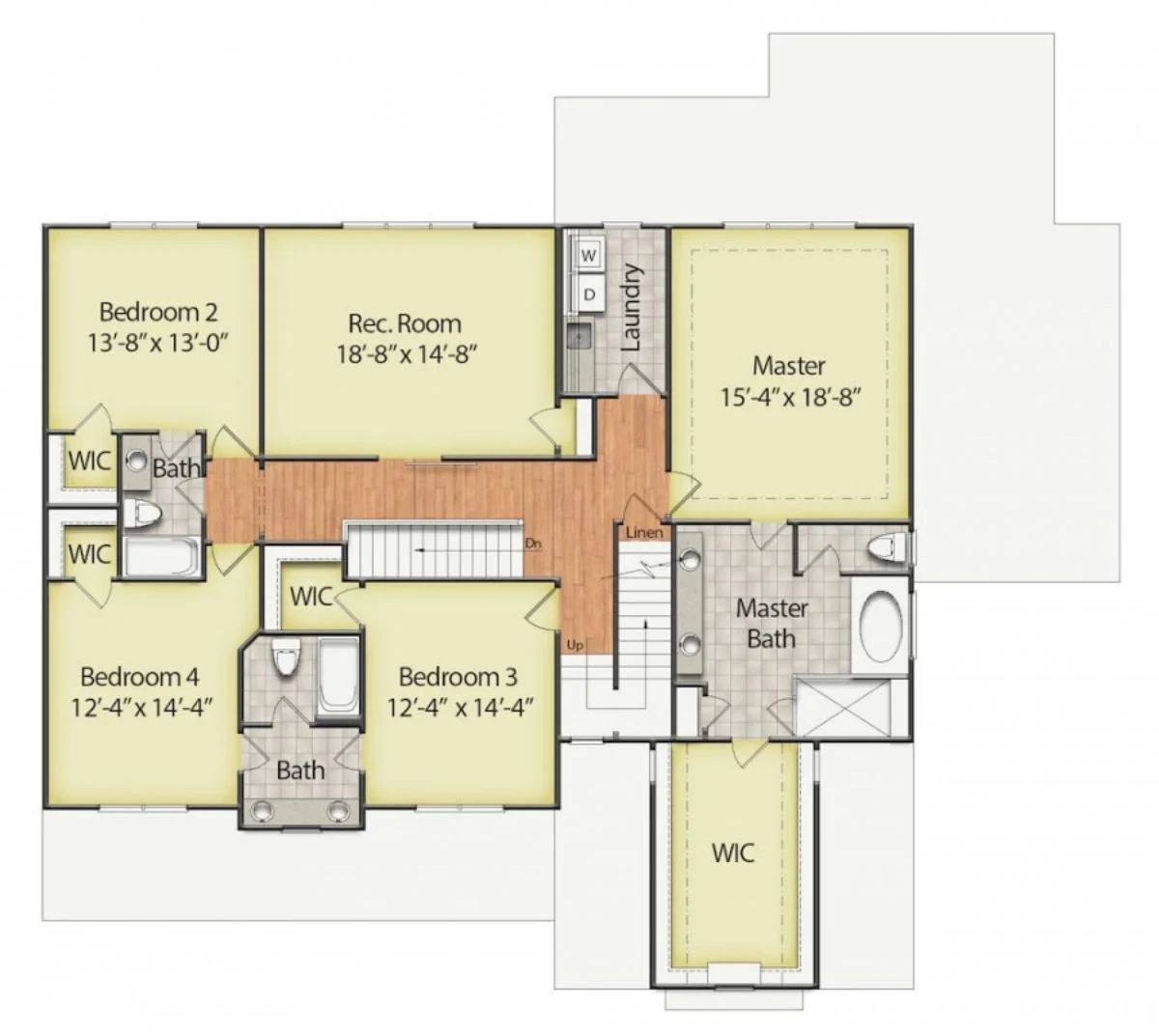

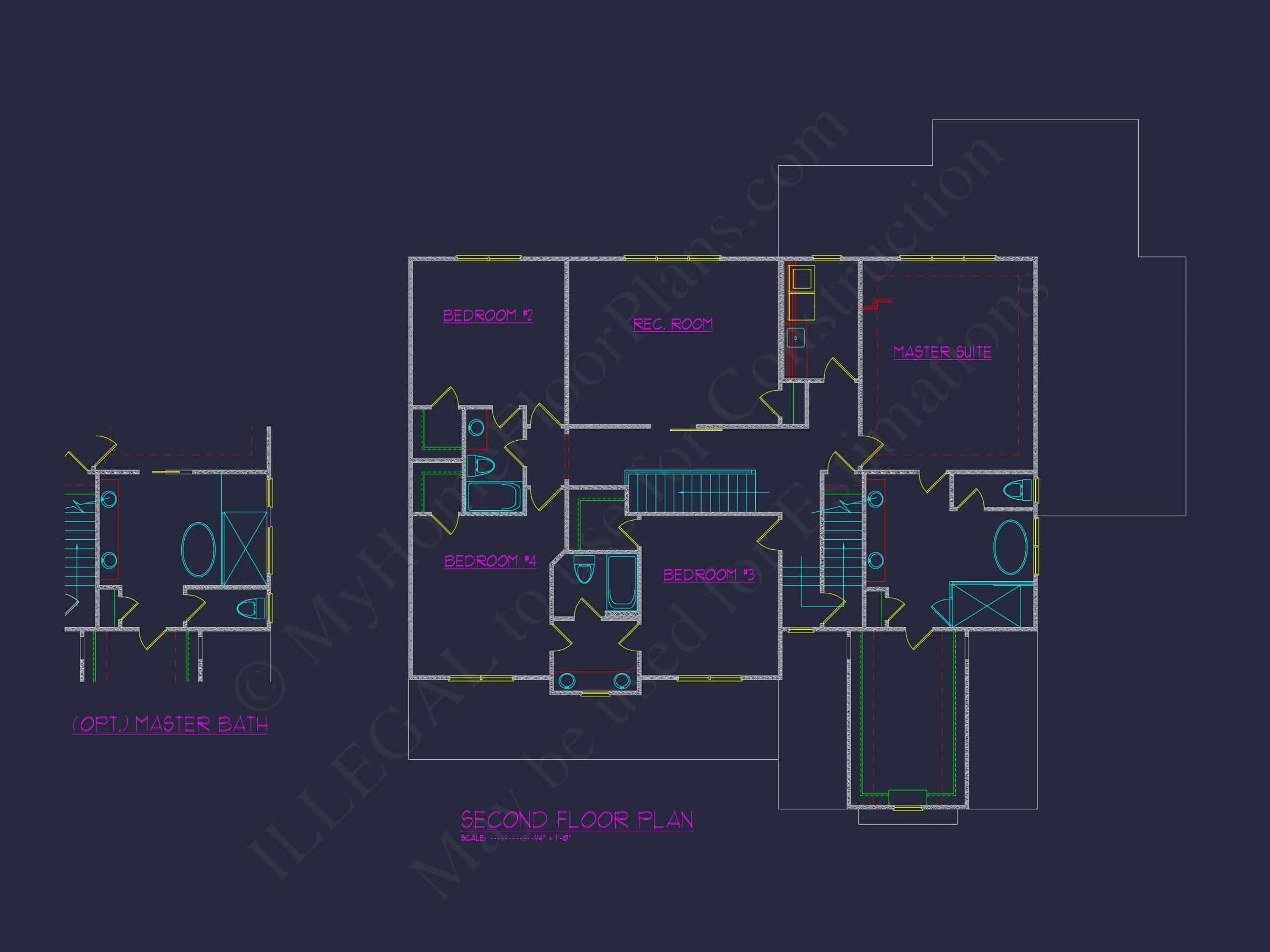

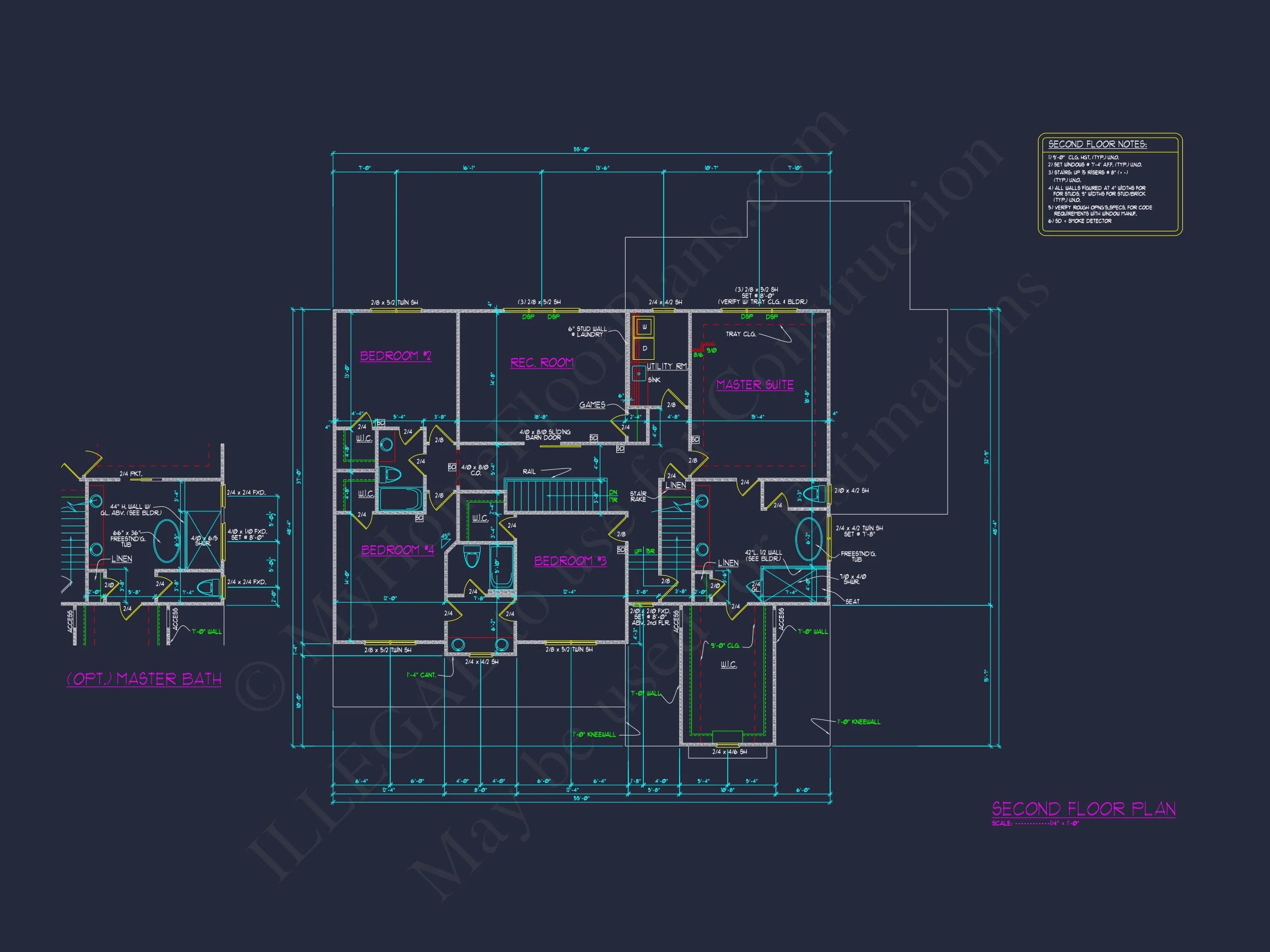

- 5 total bedrooms, including a private Owner Suite with walk-in closet and deluxe bath on the upper level.
- 4.5 bathrooms, with Jack and Jill bathrooms thoughtfully connecting secondary bedrooms.
Interior Highlights
- Open floor plan seamlessly connects living, dining, and kitchen spaces. See open floor plans.

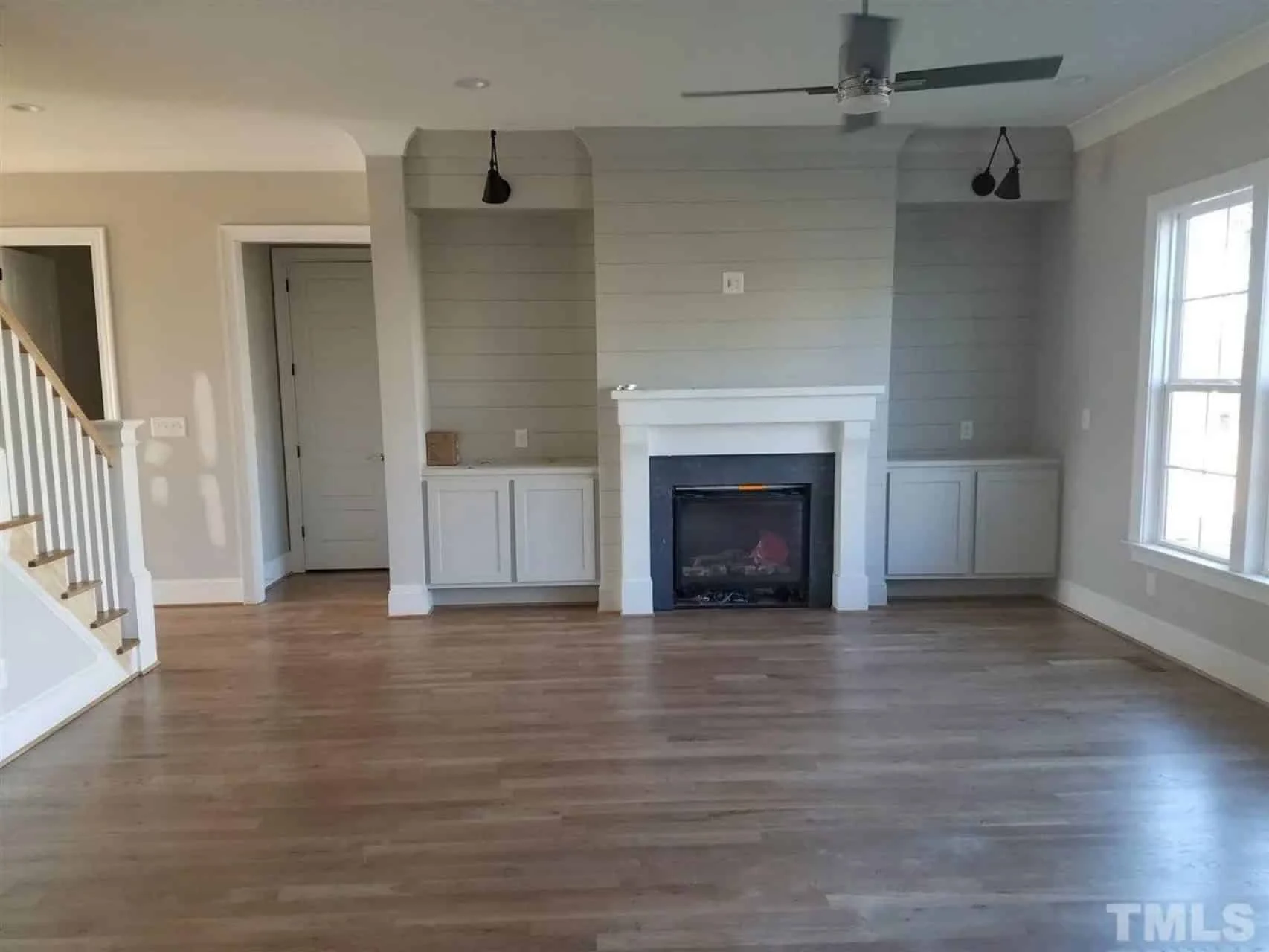

- Fireplace adds warmth and a central focal point to the family room. Explore fireplace house plans.

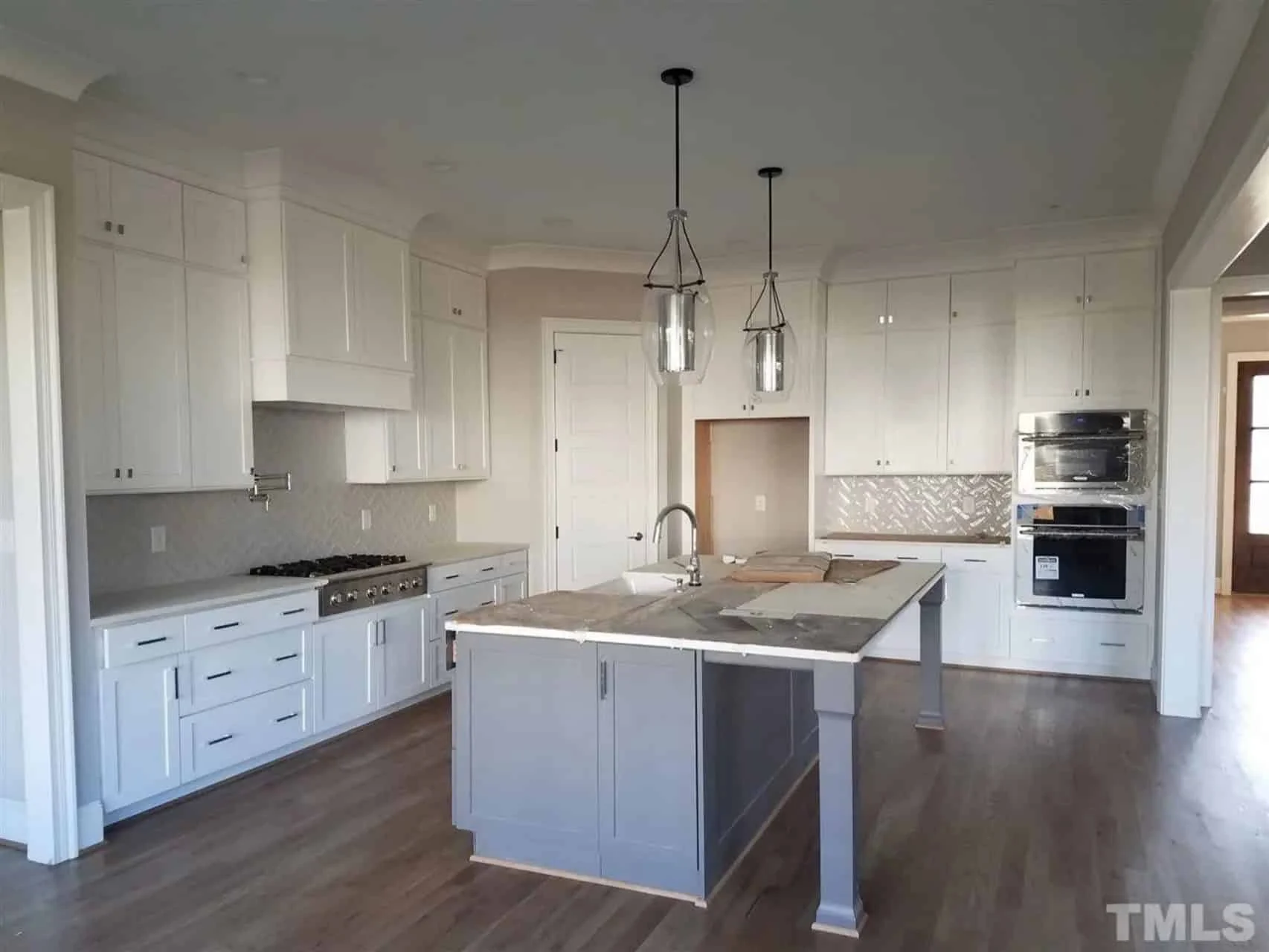

- Kitchen island and breakfast nook encourage casual meals and conversation.
- Study/Office creates the perfect space for working remotely or school projects.
- Recreation room offers a dedicated area for games, media, or hobbies.
Garage & Storage Details
- Garage Bays: 3-car garage ensures ample space for vehicles and gear.
- Garage Type: Front-entry, attached for ease of access.
- Storage: Attic space and additional closets offer flexible storage solutions.
Outdoor Living Features

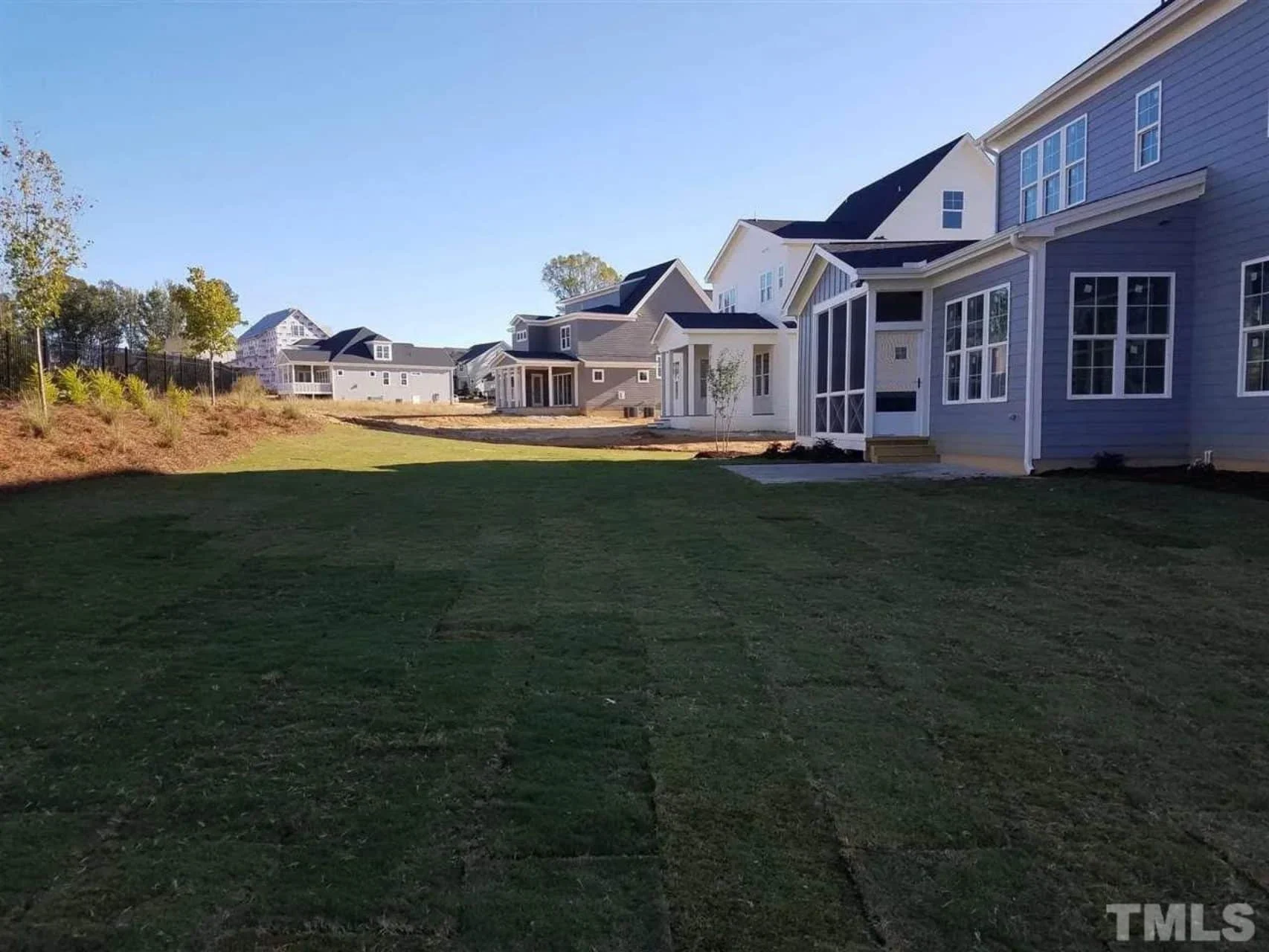

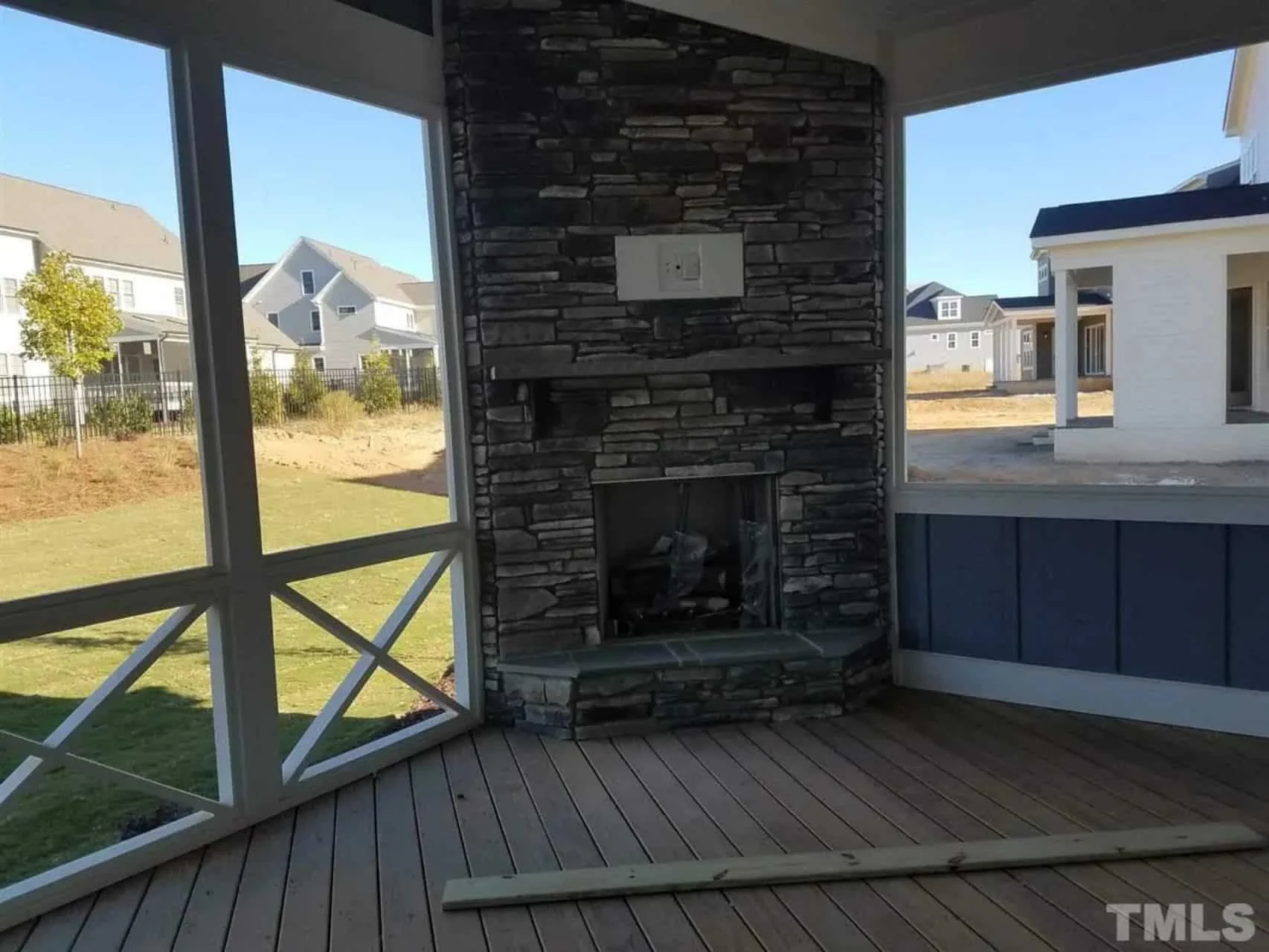

- Screened rear porch for mosquito-free enjoyment and fresh air year-round.

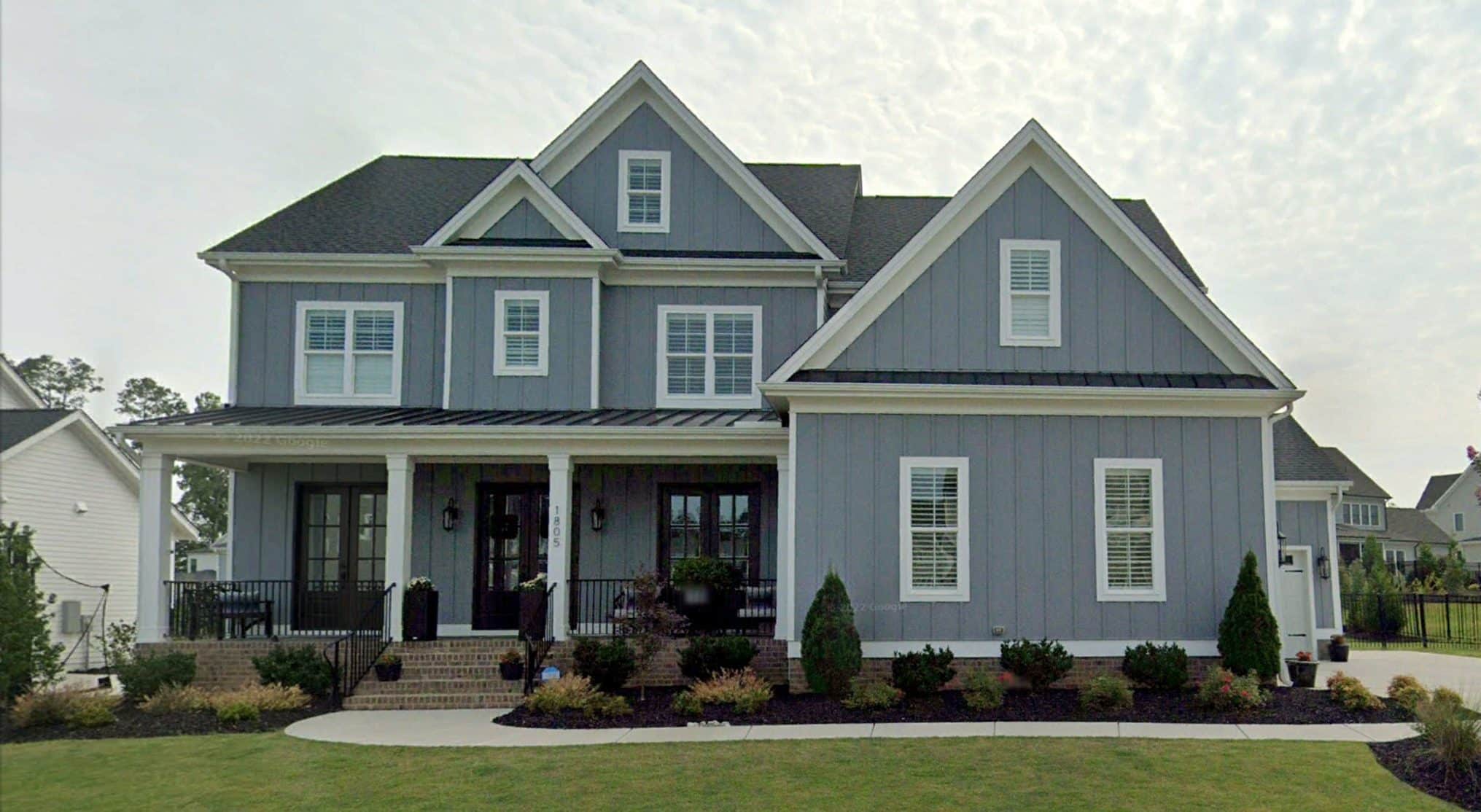

- Covered front porch enhances curb appeal and provides a shaded welcome area.

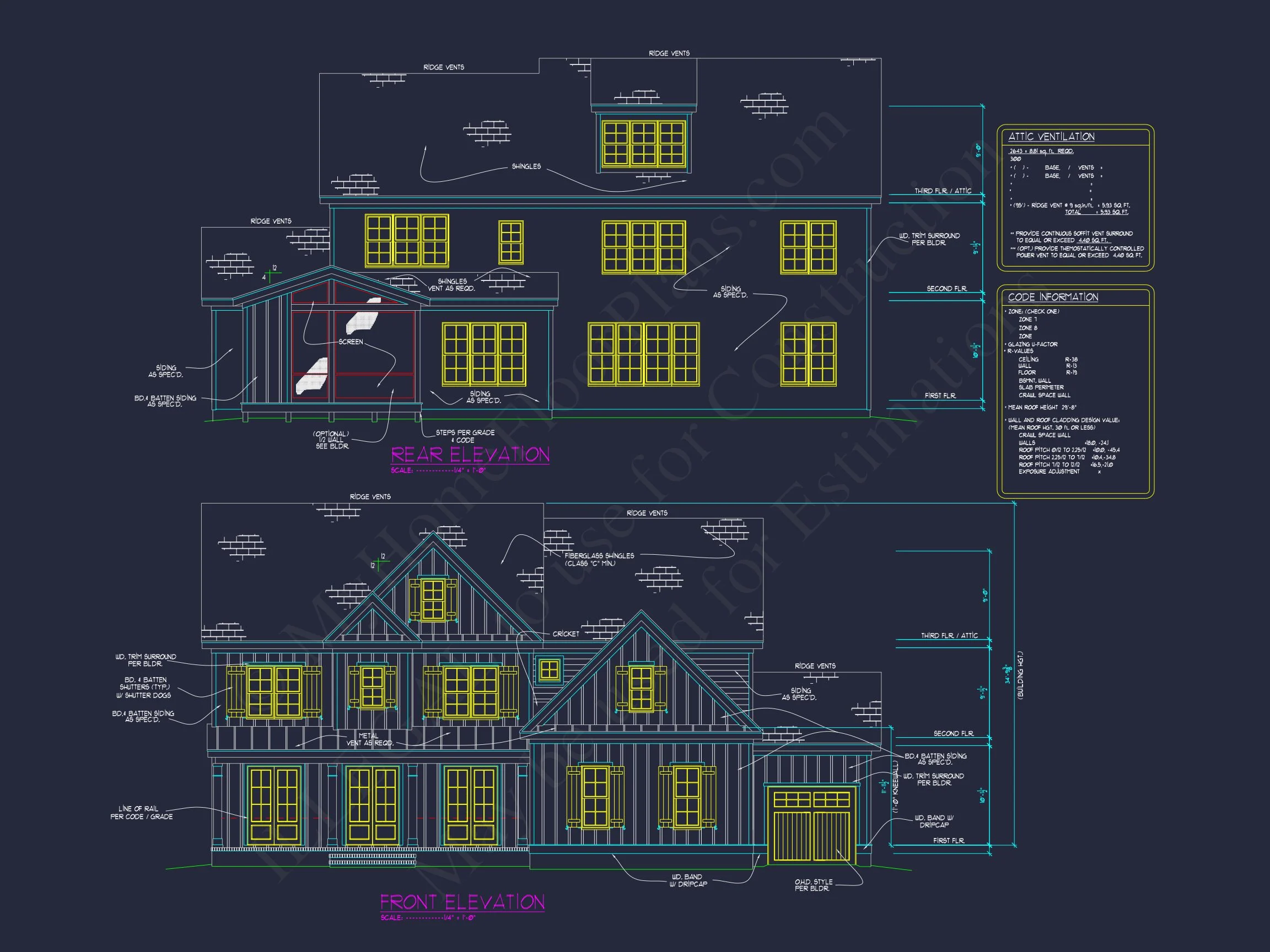

- Board and batten siding delivers classic charm and durability.
Architectural Style: Traditional
This design blends timeless materials and thoughtful details—perfect for families who value elegance and space. Learn more about the Traditional style or explore its roots on ArchDaily.
Bonus Features
- Dedicated study/home office for productivity and quiet space.
- Attic area for future finishing or convenient storage.
- Jack and Jill baths for efficient use of space and privacy.
Included Benefits with Every Plan
- CAD + PDF Files: Editable, printable, and builder-ready for any contractor.
- Unlimited Build License: Build once—or multiple times—without additional fees.
- Free Foundation Changes: Customize between slab, crawlspace, or basement at no cost. Learn about foundation options.
- Structural Engineering Included: Stamped plans meet today’s building codes.
- Lower Modification Costs: Save up to 50% compared to other plan sites. See our affordable customization options.
- View Before You Buy: Preview every plan sheet online.
Similar Collections You Might Love
- 5 Bedroom House Plans
- House Plans with Attic Space
- Plans with Covered Back Porches
- House Plans with Kitchen Islands
- Plans with Home Offices
Frequently Asked Questions
Is this home plan fully customizable? Yes, all our plans are built for flexibility. You can request quick and affordable layout adjustments—contact us for a quote.
Can I build this on a sloped lot? This plan is compatible with many lot types. Ask our team about making it slope-ready.
What blueprint formats do I receive? You’ll get both CAD and PDF versions for easy editing, viewing, and building.
Does the plan include structural engineering? Yes! Every plan is professionally stamped and compliant with building codes.
What makes your plan benefits better? Unlike other sellers, we include foundation changes, engineering, and full previews—saving you time and money.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our contact form.
Your dream house starts here—customize it and build with confidence!
Shortcode is running ✓
Preview: Elegant 3-Story Home Plan with CAD Floor Designs & Blueprint Discover this 3-story house plan with over 3,900 heated sq. ft., 5 bedrooms, a fireplace, and spacious outdoor living—CAD files and full blueprints included. This traditional 3-story house plan offers an impressive mix of eleganc…
Read MoreOriginal price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 68'-0" |
|---|---|
| Depth | 60'-4" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Family Room, Fireplace, Foyer, Office/Study, Open Floor Plan, Recreational Room |
| Outdoor Features | |
| Bed and Bath Features | Jack and Jill Bathroom, Owner's Suite on Second Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

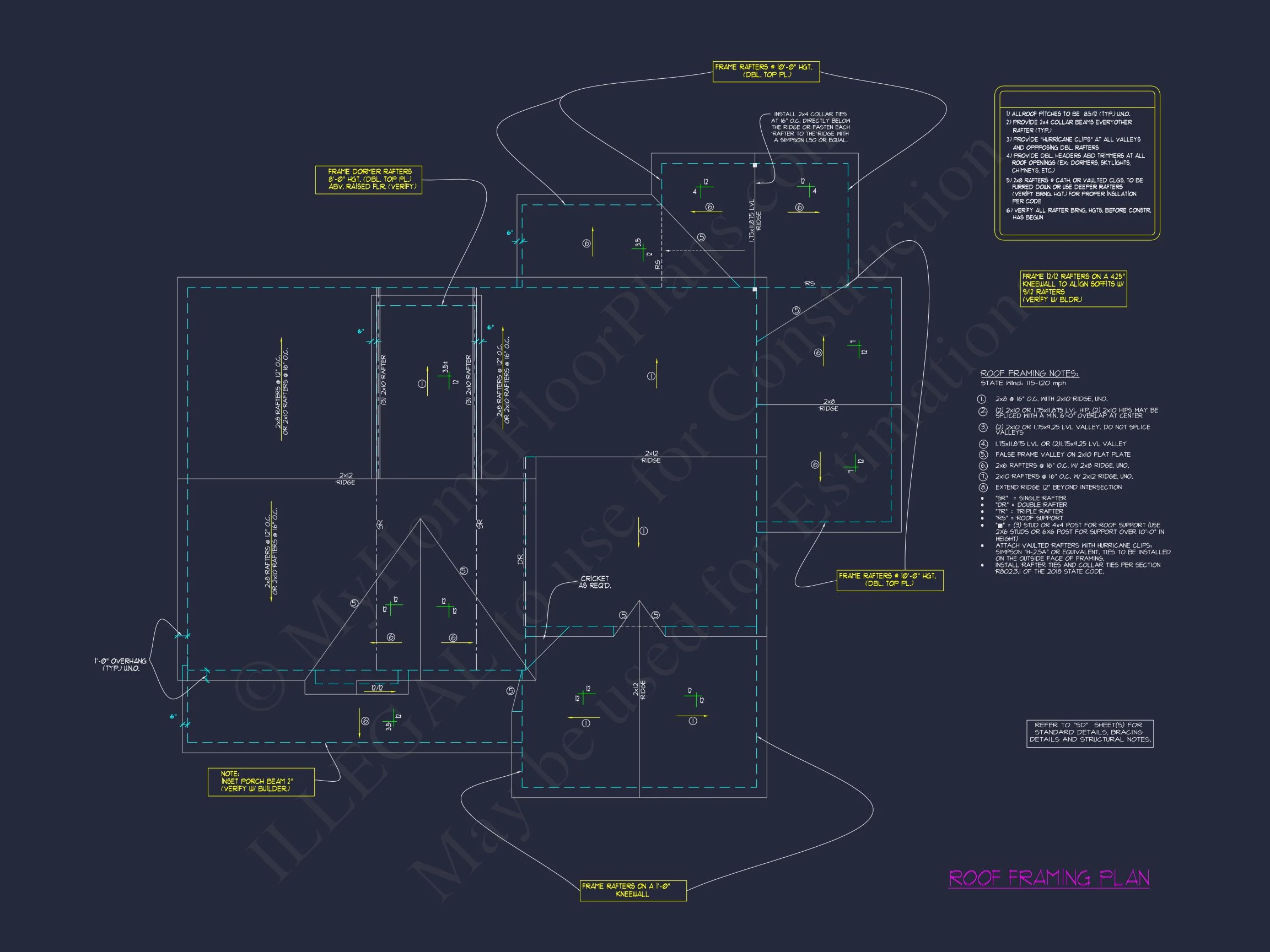

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
19-1190B HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
