Elegant Tudor-Style house Plan with Detailed CAD Blueprints
Explore this stunning Tudor-style house design with 4, 183 heated SF, CAD blueprints, spacious floor plans, luxurious interiors, and architectural charm.
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 73'-10" |
|---|---|
| Depth | 62'-5" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Bonus Room, Family Room, Foyer, Mudroom, Office/Study, Recreational Room, Upstairs Laundry Room |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Jack and Jill Bathroom, Owner's Suite on Second Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Elegant Tudor-Style House Plan with Luxurious Layout
Discover this stunning Tudor-style house plan with 4, 183 heated sq. ft., 2 stories, 5 bedrooms, detailed CAD blueprints, and timeless European charm.
This Tudor-style house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 4, 183 sq. ft. across two beautifully designed stories.
- Unheated extras: Covered front and rear porches, 3-car garage, bonus room, and attic space.
Bedrooms & Bathrooms
- 5 spacious bedrooms including a luxurious first-floor Owner Suite with en-suite bath and dual walk-in closets.
- 5+ bathrooms with private and Jack & Jill configurations for enhanced convenience and privacy.
Interior Highlights
- 10ft+ ceilings with coffered and tray ceiling options for added elegance.
- Open floor plan connecting family, dining, and kitchen areas. Explore open layouts.
- Gourmet kitchen featuring a large island and walk-in pantry for style and function.
- Fireplace in the family room for cozy, inviting ambiance. See fireplace designs.
- Bonus room ideal for a home theater, gym, or playroom.
- Mudroom & laundry room offer everyday practicality.
Garage & Storage Details
- Garage Bays: 3-car garage with side entry.
- Garage Type: Attached, offering convenient access to mudroom.
- Storage: Ample attic space, mudroom built-ins, and oversized closets.
Outdoor Living Features
- Covered front porch with elegant Tudor styling and curb appeal.

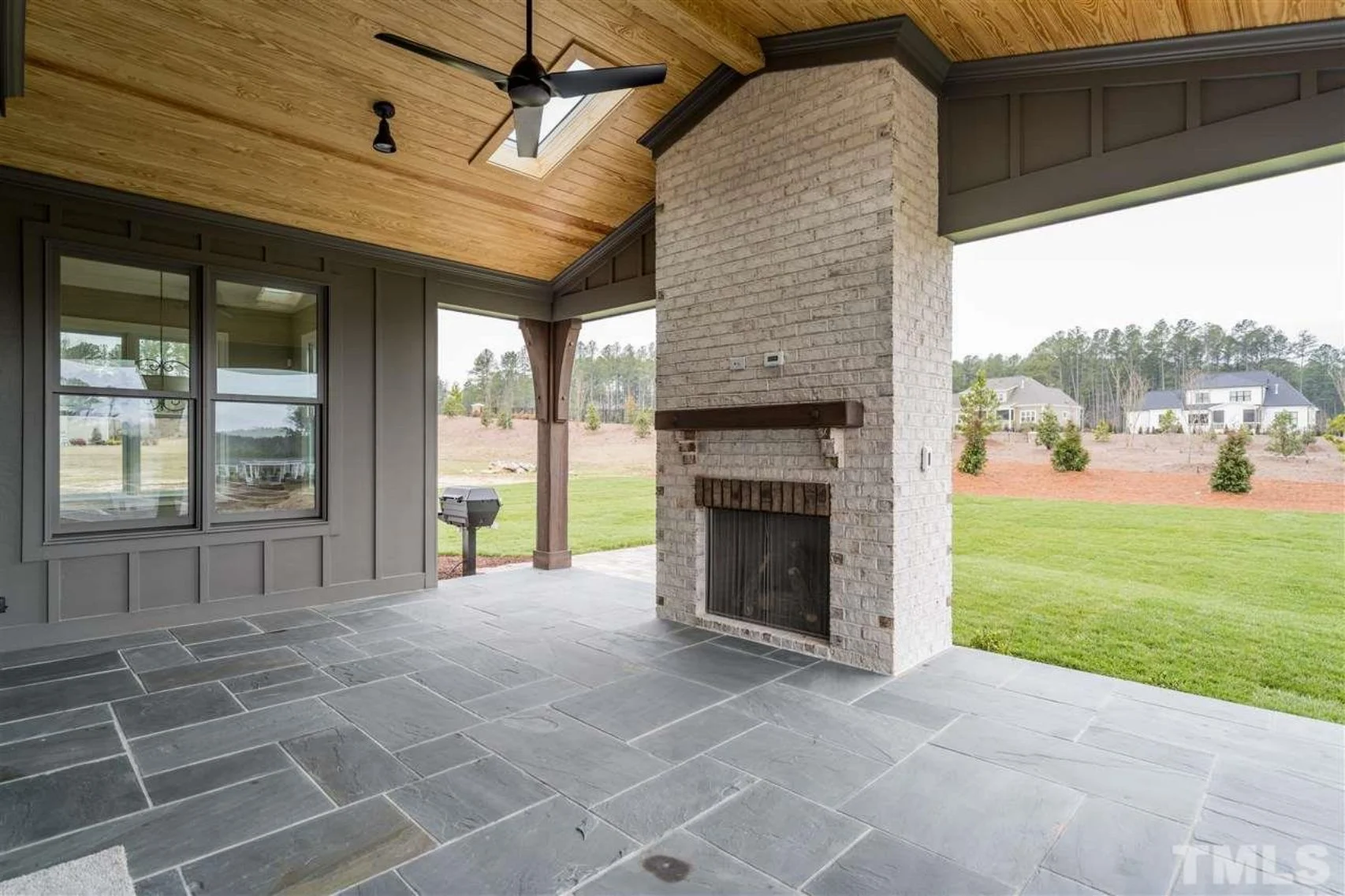

- Spacious covered rear porch for relaxing or outdoor entertaining.
Architectural Style: Tudor
This design blends timeless materials—such as brick, stone, and steep gables—with elegant detailing. Ideal for families seeking a home with character and sophistication. Learn more about the Tudor house style or explore its origins on ArchDaily.
Bonus Features
- Jack and Jill bathrooms for upper-floor bedrooms.
- Flex room options: home office, guest suite, or hobby space.
- Optional attic or basement extensions depending on your lot.
Included Benefits with Every Plan
- CAD + PDF Files: Fully editable and printable for builders and contractors.
- Unlimited Build License: Build your dream house as many times as needed.
- Free Foundation Changes: Easily switch between slab, crawlspace, or basement. See how it works.
- Structural Engineering Included: Professionally stamped for code compliance.
- Lower Modification Costs: Customizations cost up to 50% less than competitors.
- View Before You Buy: Preview all blueprint sheets.
Similar Collections You Might Love
- Traditional House Plans
- Luxury House Plans
- Plans with Owner Suites on Main
- Plans with Bonus Rooms
- Covered Back Porch Plans
Frequently Asked Questions
What’s included with this Tudor-style house plan? You’ll receive editable CAD files, printable PDFs, an unlimited-build license, structural engineering stamps, and free foundation changes.
Can I preview the blueprints before purchasing? Absolutely. View all blueprint sheets here.
Is this plan customizable? Yes! We offer fast, affordable modifications. Request a quote today.
Does this plan include outdoor living space? Yes, it features a covered front porch and a spacious rear porch ideal for outdoor gatherings.
Is this design suitable for families? Definitely. With 5 bedrooms, multiple baths, and flexible living spaces, it’s ideal for growing families.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our contact form.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
