Stylish Home Plan with CAD Designs | Floor Plan & Blueprint
Discover this large, modern craftsman home plan with 5 bedrooms, 4.5 baths, detailed blueprints, CAD designs, and versatile floor plans for ideal living.
Build Your Dream Home: A Fully Detailed Modern Craftsman Blueprint
Perfectly Designed for Maximum Comfort
This beautifully designed Modern Craftsman home plan combines elegance, utility, and spaciousness. Boasting three stories and over 4, 000 square feet of heated space, this home caters to growing families, entertainers, and those seeking a blend of modern and traditional architectural styles.
Key Features of the Plan
With five bedrooms and 4.5 bathrooms, the home includes flexibility in floor planning and upscale design that prioritizes functionality. The first floor includes a cozy family room with a fireplace, a foyer, and a guest suite. The second floor offers a luxurious Owner suite equipped with a soaking tub and additional bedrooms with direct bathroom access. An optional playroom or recreational area is also planned for the third floor, ensuring space for every family need.
Indoor Features You'll Love
Explore an abundance of indoor amenities included in this extraordinary floor plan:
* Fireplace for cozy gatherings.
* Upstairs Laundry Room for convenience.
* Bonus and recreational spaces.
* Spacious walk-in closets.
* An organized kitchen island with a breakfast nook, ideal for dining and entertaining.
Outdoor Design & Appeal
Step outside to admire the home's stone, shake, and siding exterior materials, blending modern aesthetics with traditional charm. Outdoor features include a covered front porch, a screened porch, and a sunny patio, ensuring you'll enjoy every outdoor moment.
Why This Home Design Stands Out
With a heated area of 4, 391 square feet and additional unheated spaces, this plan meets every family's needs. The spacious three-car garage, paired with flexible options for front and side entry, adds unmatched convenience. Its designer-crafted blueprint also features energy-saving ceiling heights and carefully planned attic and storage spaces.
Unbeatable Benefits Included
Every purchase includes comprehensive blueprints, detailed CAD designs, and an unlimited-build license. This ensures you have the resources and flexibility to create your dream home hassle-free. Modifications are available at top value, ensuring your house design stays unique to your preferences.
Are you ready to turn your dream into reality? Contact us today for personalized support and professional advice to kick-start your project. Send inquiries to support@https://myhomefloorplans.com, and let's begin your journey to designing your beautiful home!
All home plans include BOTH the CAD file and PDF file.

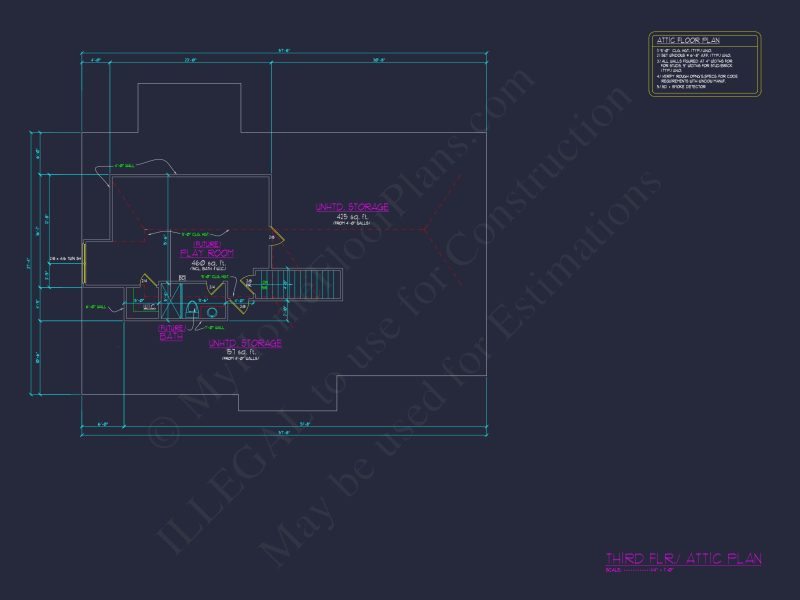

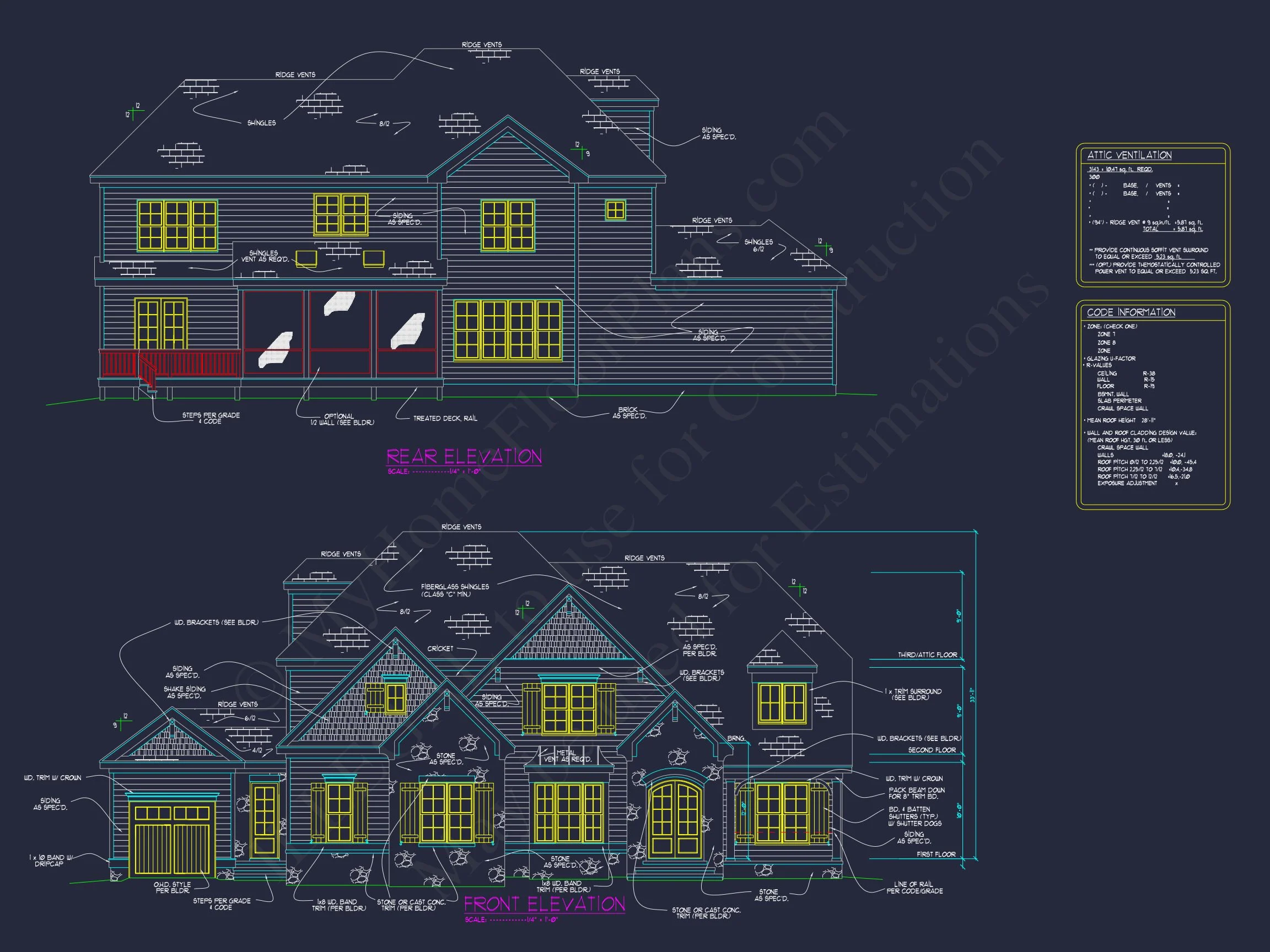

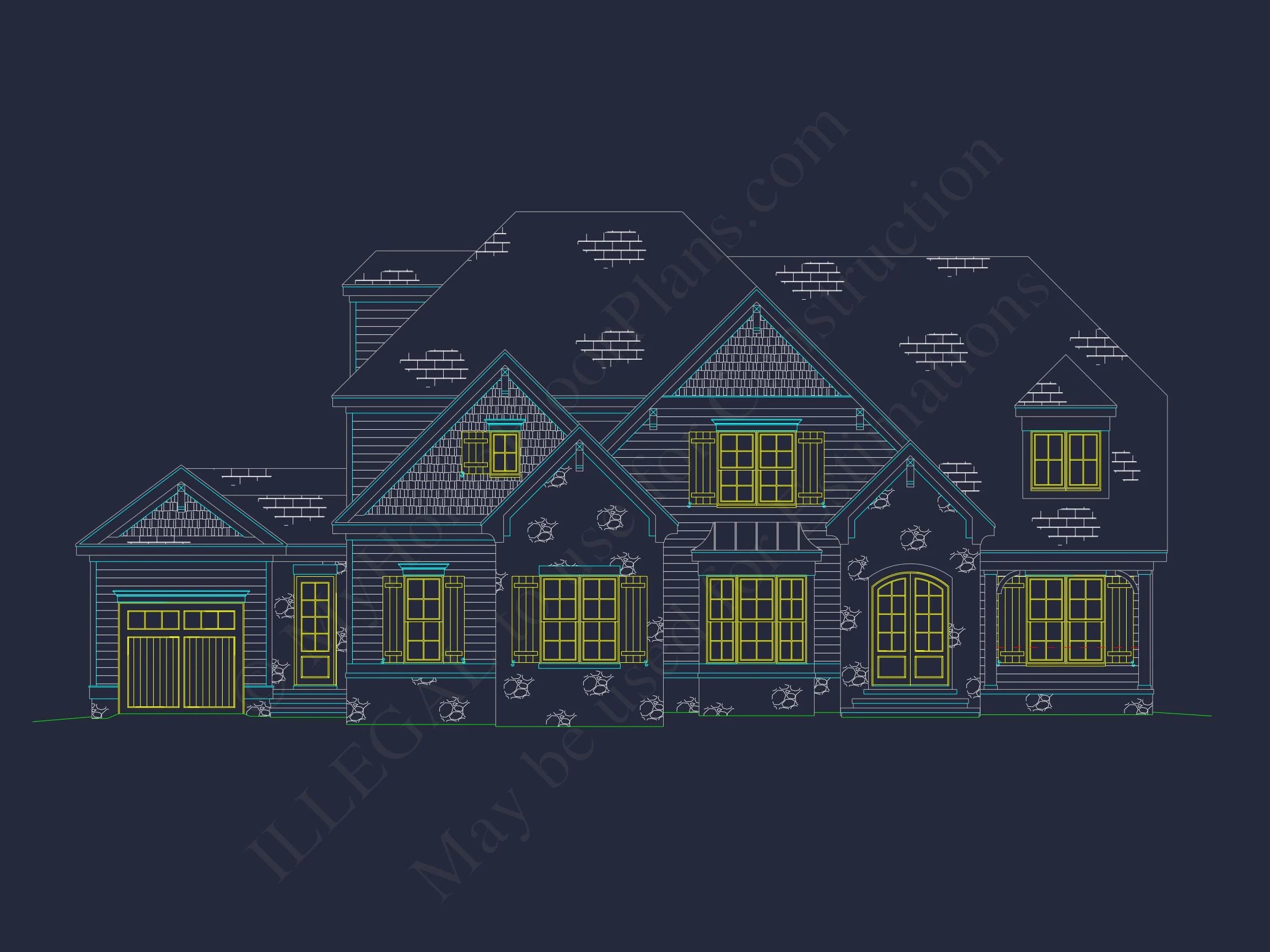

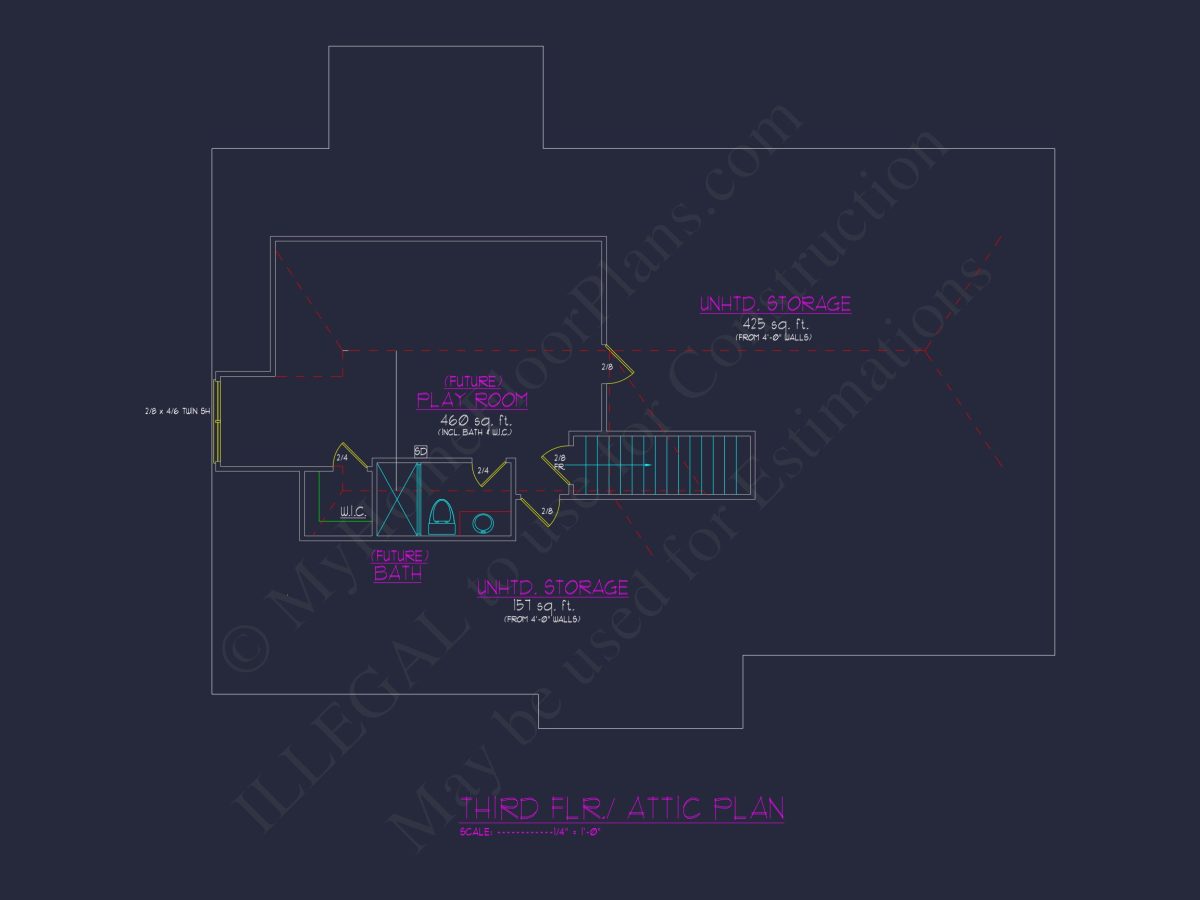

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

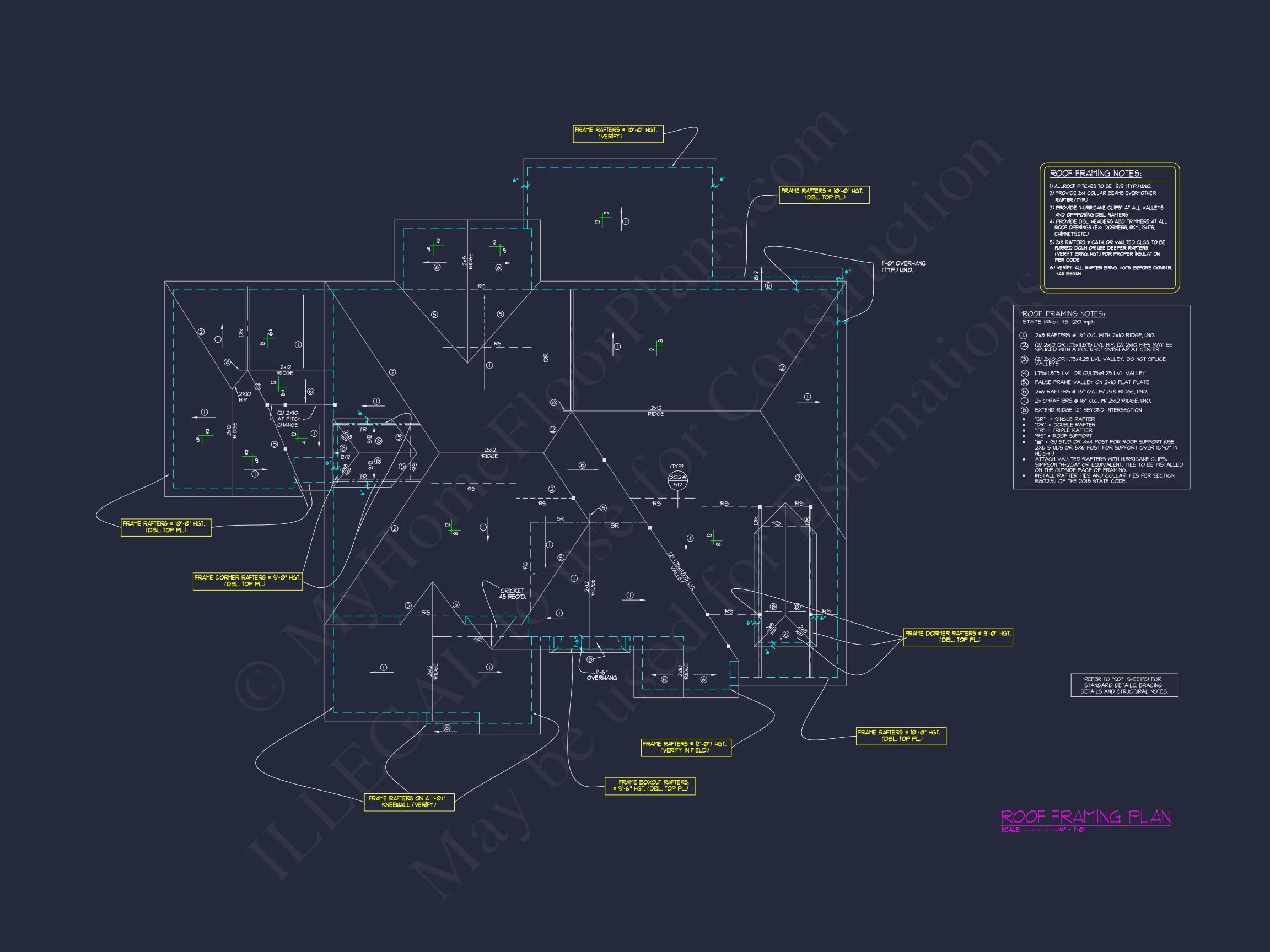

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.

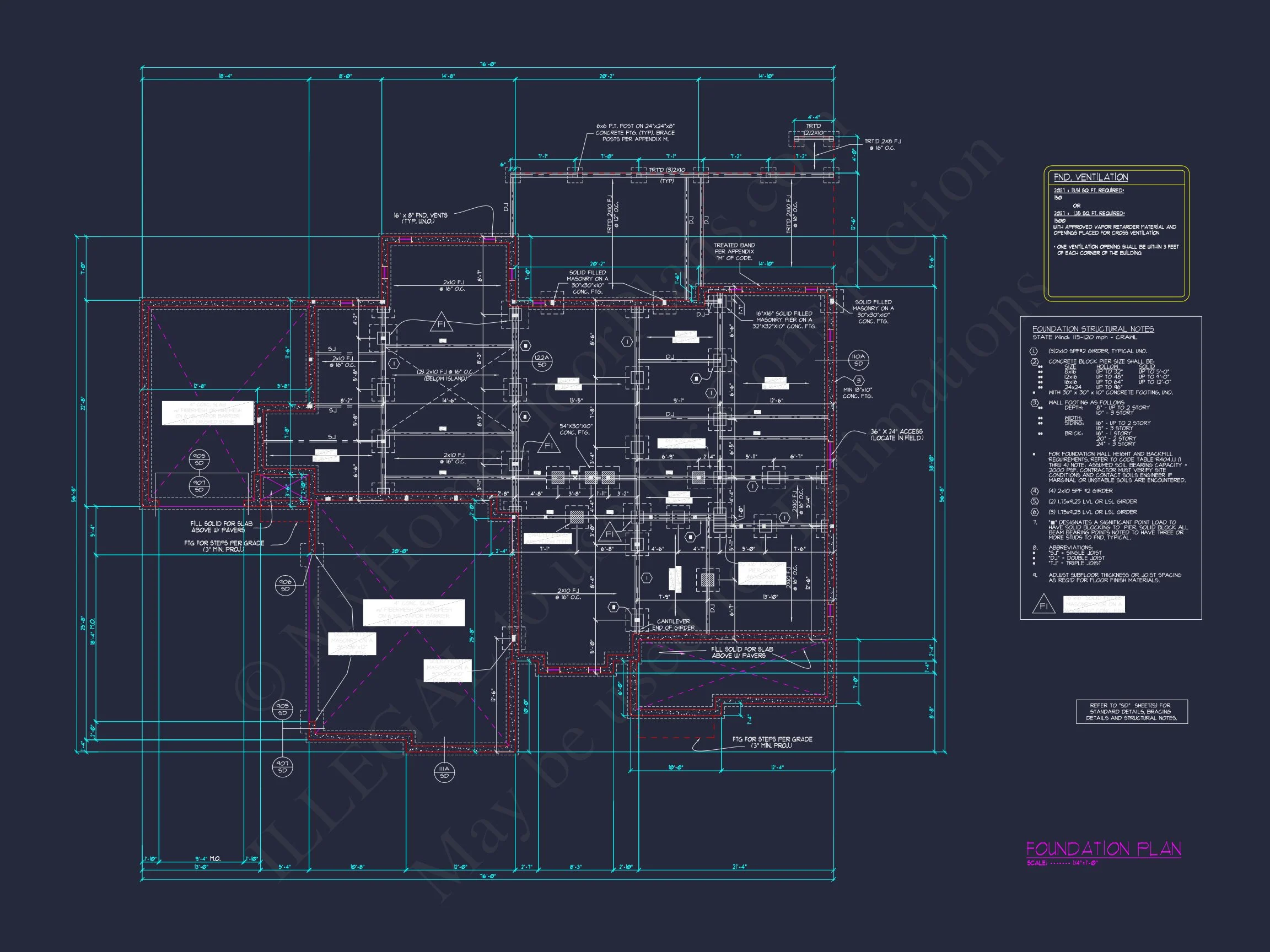

Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
19-1976 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
