Spacious 1-Story 5-Bedroom House Plan with Modern Craftsman Design
Discover this functional one-level layout with 2, 470 heated sq. ft., screened porch, open floor plan, and included CAD blueprints.
This Modern Craftsman house plan offers a perfect mix of comfort and functionality. Designed for modern living, it delivers timeless charm and smart space planning.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 470 sq. ft. on a single story.
- Unheated extras: 3-car garage with workshop space, screened porch, covered front porch (1, 012 sq. ft. total).
Bedrooms & Bathrooms
- 5 well-appointed bedrooms, including a spacious Owner Suite with a walk-in closet (WIC).
- 3 full bathrooms, thoughtfully located for accessibility and privacy.
Interior Highlights
- 9-ft ceilings enhance the open feel throughout the main living areas.

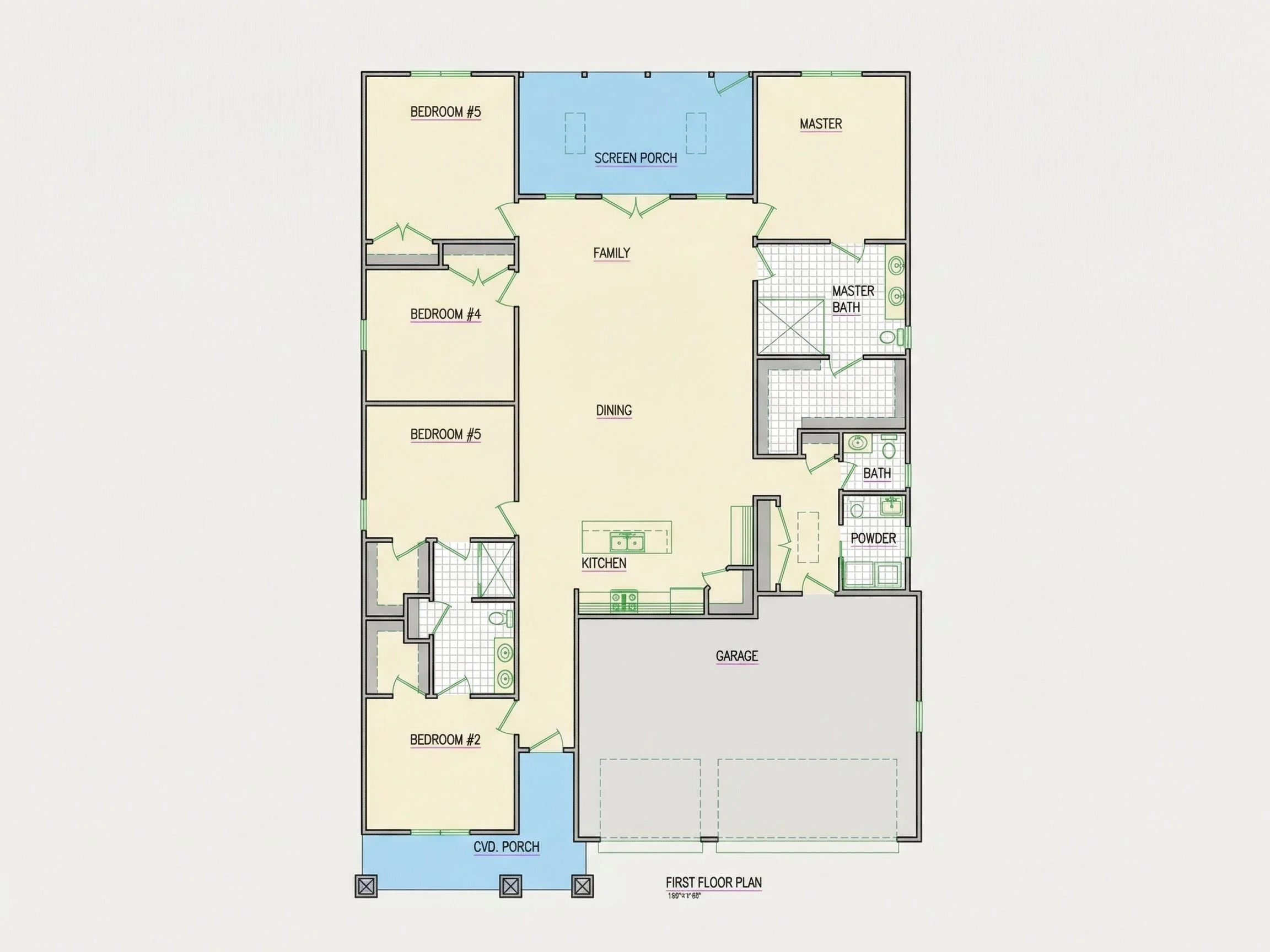

- Open floor plan connects kitchen, dining, and family room for entertaining ease. View open layouts.
- Kitchen island, breakfast nook, and walk-in pantry offer daily convenience.
- Family room fireplace creates a cozy central gathering space. Browse fireplace plans.
- Mudroom adds organization between the garage and main home.
Garage & Storage Details
- Garage Bays: 3-car garage with built-in workshop space.
- Garage Type: Attached, front-entry for convenience.
- Storage: Includes mudroom, walk-in closets, and additional cabinetry throughout.
Outdoor Living Features
- Screened porch and covered front porch provide shaded and protected outdoor areas.
- Exterior combines brick, shake, and siding for classic Traditional and Craftsman curb appeal.
Architectural Style: Modern Craftsman
This design blends timeless materials and thoughtful details—perfect for families who value character and efficiency in one package. Learn more about the Modern Craftsman style or explore its roots on ArchDaily.
Bonus Features
- Workshop space in garage perfect for hobbies or DIY projects.
- Breakfast nook with natural light—ideal for casual family meals.
- Flexible 5-bedroom layout accommodates guests, offices, or multigenerational needs.
Included Benefits with Every Plan
- CAD + PDF Files: Easily editable, printable, and ready to build.
- Unlimited Build License: Build once—or 100 times—with no extra fees.
- Free Foundation Changes: Swap between slab, crawlspace, or basement. Learn more.
- Structural Engineering Included: Code-compliant and professionally stamped for peace of mind.
- Lower Modification Costs: Up to 50% less than competitors. See customization options.
- View Before You Buy: See every sheet in advance.
Similar Collections You Might Love
- 5-Bedroom House Plans
- House Plans with Mudrooms
- Covered Back Porch House Plans
- Plans with Walk-In Pantries
- Kitchen Island House Plans
Frequently Asked Questions
Does this plan include all design files? Yes, it comes with editable CAD files, printable PDFs, and a complete blueprint set.
Is the garage customizable? Absolutely. The garage includes a workshop and can be adjusted to suit different configurations.
Can this plan be built multiple times? Yes! Every plan includes an unlimited-build license—no hidden fees.
Is this a good option for single-level living? Definitely. The layout is ideal for anyone seeking a functional 1-story floor plan with plenty of space.
How soon can I view the plans? Instantly. Preview all included sheets now.
Start Building Your Dream Home Today
Have questions or want to personalize your plan? Contact our expert team at [email protected] or fill out our form.
Your future house starts with a great plan—customize it and build with confidence!
All home plans include BOTH the CAD file and PDF file.

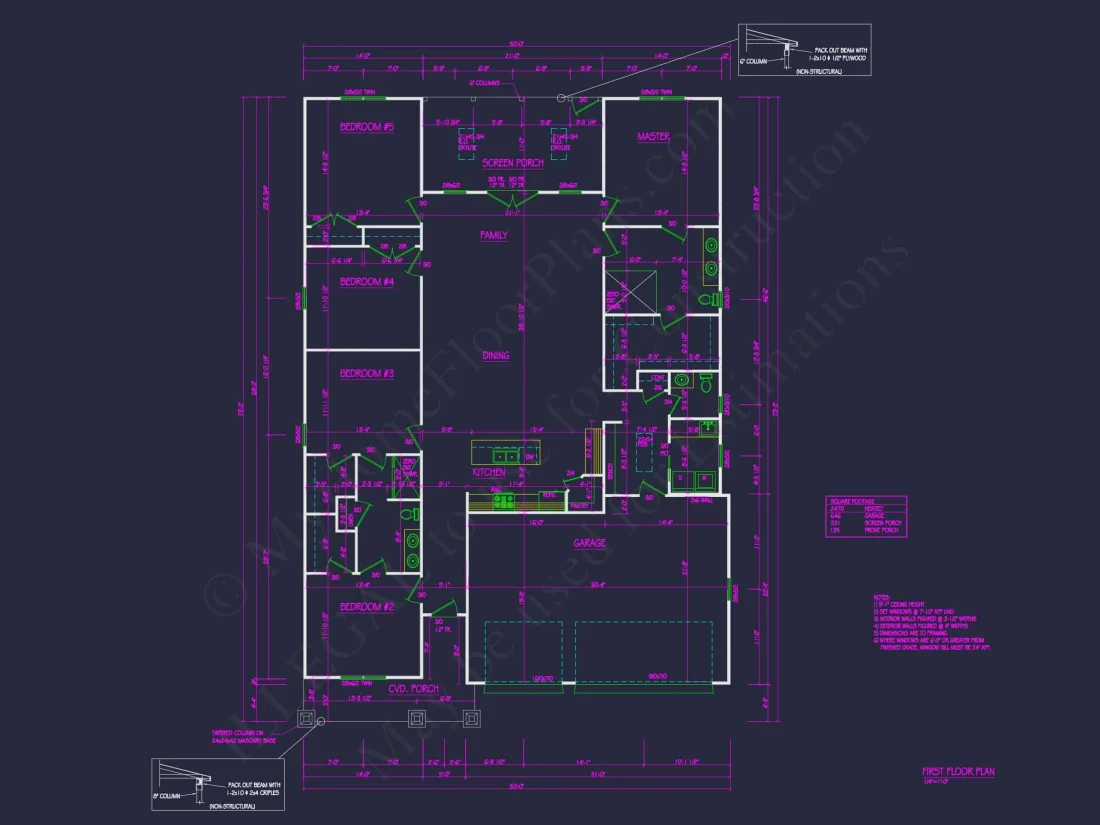

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

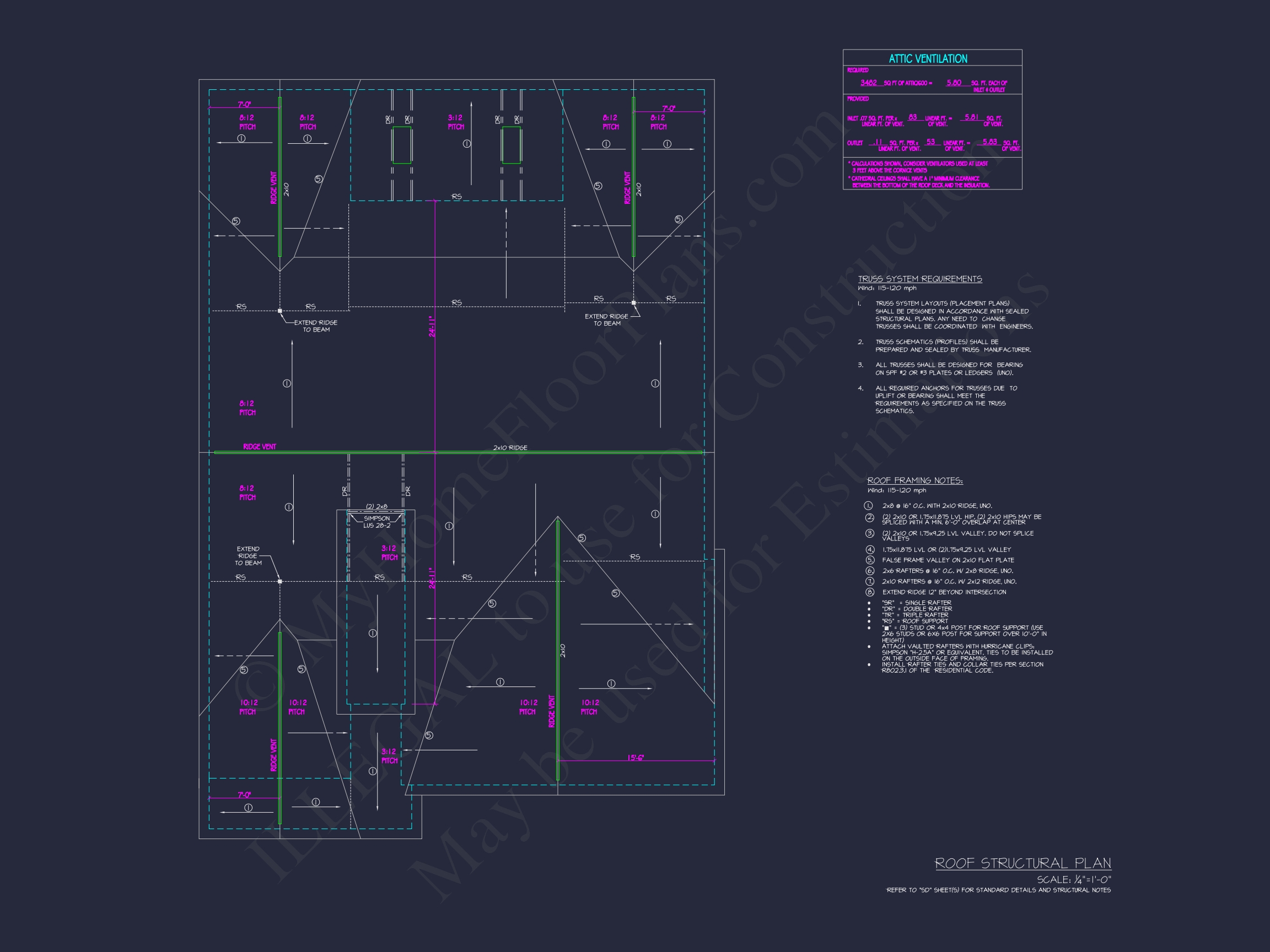

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
