Spacious 2-Story Home Plan with CAD Architecture Blueprint
Explore this 2-story home plan featuring 5 bedrooms, 4 baths, a vaulted ceiling great room, and CAD blueprints for an elegant and functional home design.
A Stunning 2-Story Home Architecture Plan with Versatile Features
Designing the perfect home begins with the right home floor plan that balances style and functionality. This two-story residential design boasts 3, 278 heated square feet, 5 bedrooms, 4 bathrooms, a vaulted-ceiling family room, and ample outdoor areas ideal for any family. The blended features of Craftsman and Traditional Craftsman architecture lend charm and sophistication to its overall layout.
An Overview of the Floor Plan

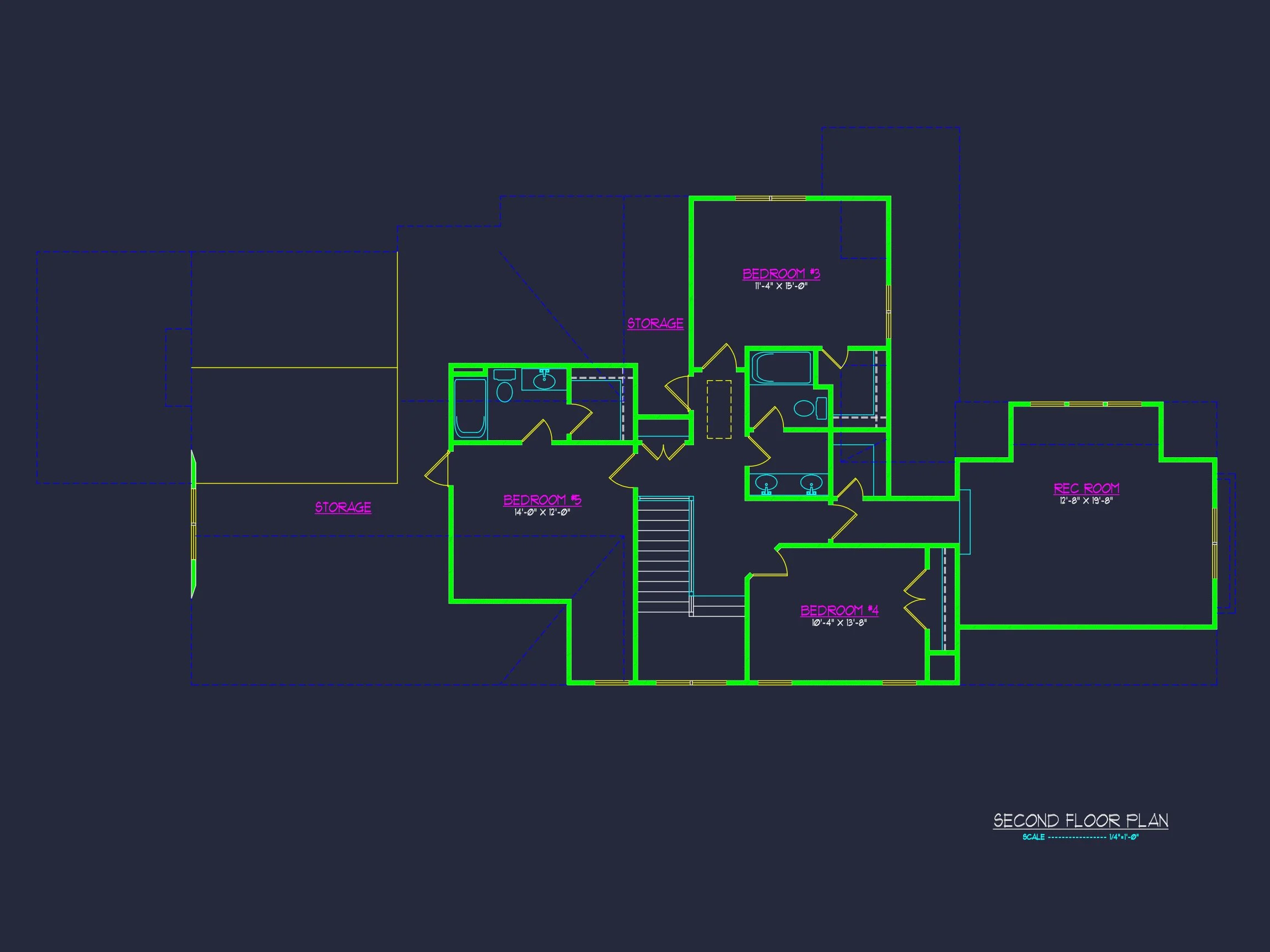

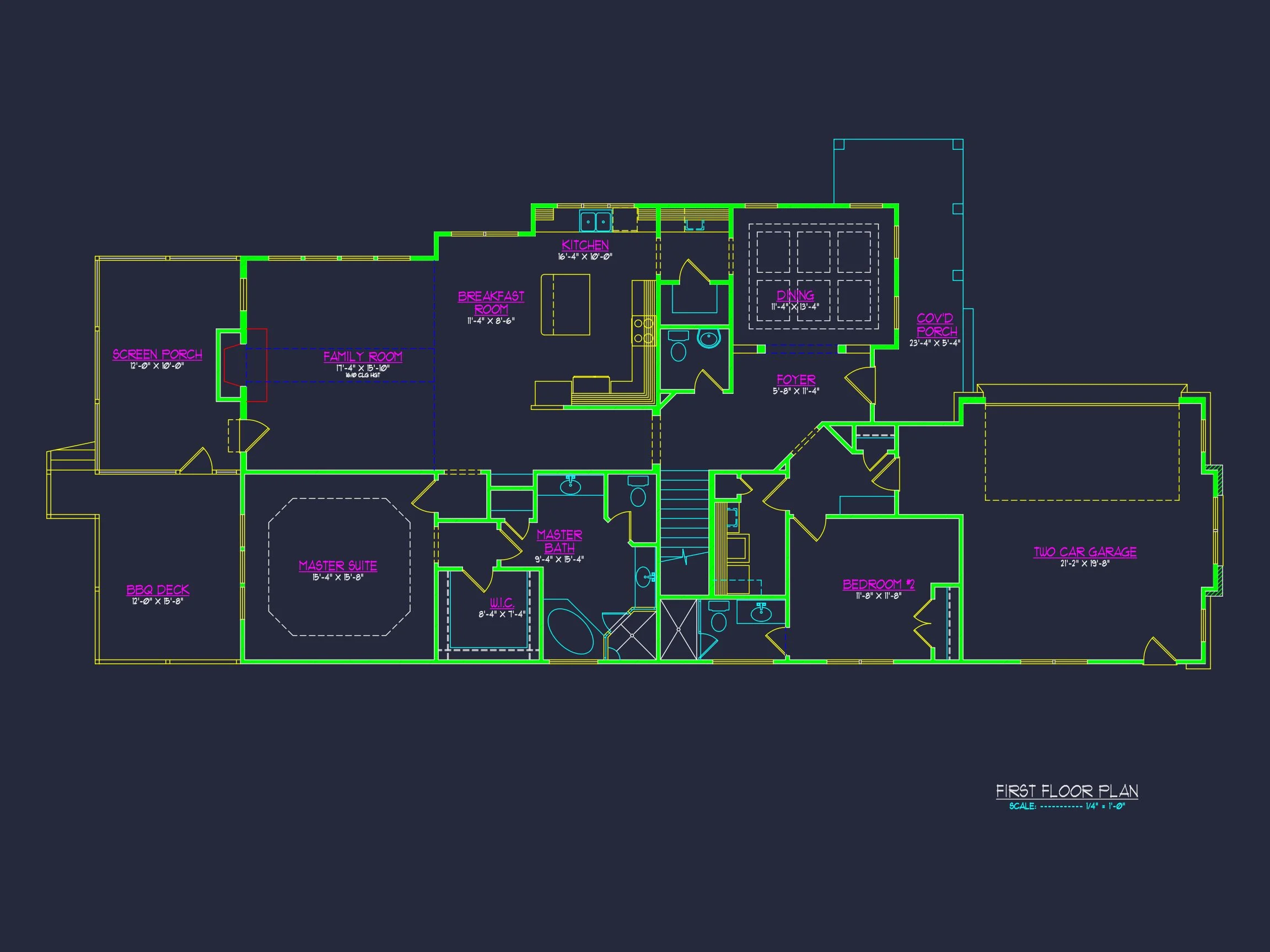

This spacious home spans 43′-4″ wide and 92′-8″ deep, making it perfect for large families or those regularly hosting guests. The first floor offers 1, 964 heated square feet and includes the Owner suite, which provides the privacy and convenience of a downstairs walk-in closet. The open floor plan connects the family room, dining area, and kitchen, making communal spaces a focal point. Upstairs, an additional 1, 314 square feet houses four additional bedrooms, with options like a Jack-and-Jill bathroom for shared convenience.
Indoor Features
This home includes several standout indoor features designed for comfort and functionality:
* Fireplace for cozy evenings
* Open floor plan great for gatherings
* Vaulted ceiling enhancing space and elegance
* Recreational room for entertainment and family fun
* Mudroom for practicality and storage
* Walk-in Pantry in a kitchen with an island and breakfast nook
Outdoor Living
Outdoor enthusiasts will love the screened porch, BBQ deck, and covered front porch for enjoying different weather conditions. These spaces provide an excellent venue for socializing, family meals, or unwinding in serene surroundings.
Unique Features

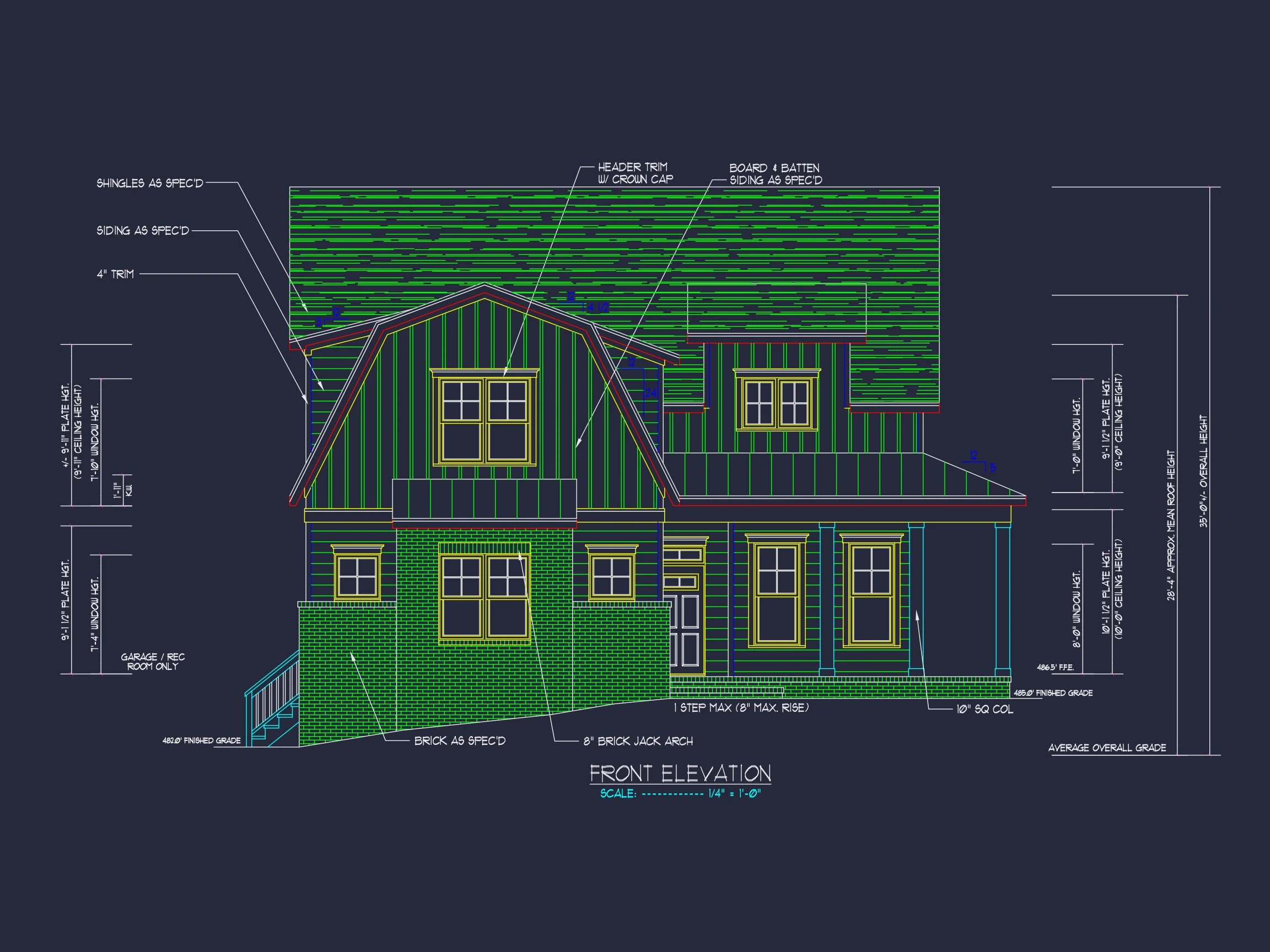

This single-family home sits perfectly on a sloped lot, adding character and charm. The board and batten exterior, brickwork, and shingles complete its authentic aesthetic appeal. Its front- and side-entry garages provide convenience, while the crawlspace foundation adds further functionality.
Why Choose This Home Plan?
All designs, including this thoughtfully crafted plan, come with CAD files and PDFs for ultimate flexibility. Enjoy free foundation modifications and the convenience of unlimited build licenses. With countless customization options, this home becomes the canvas for your dream project.
Are you ready to begin designing your dream home? Contact us at support@https://myhomefloorplans.com, and we’ll bring your vision to life!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.

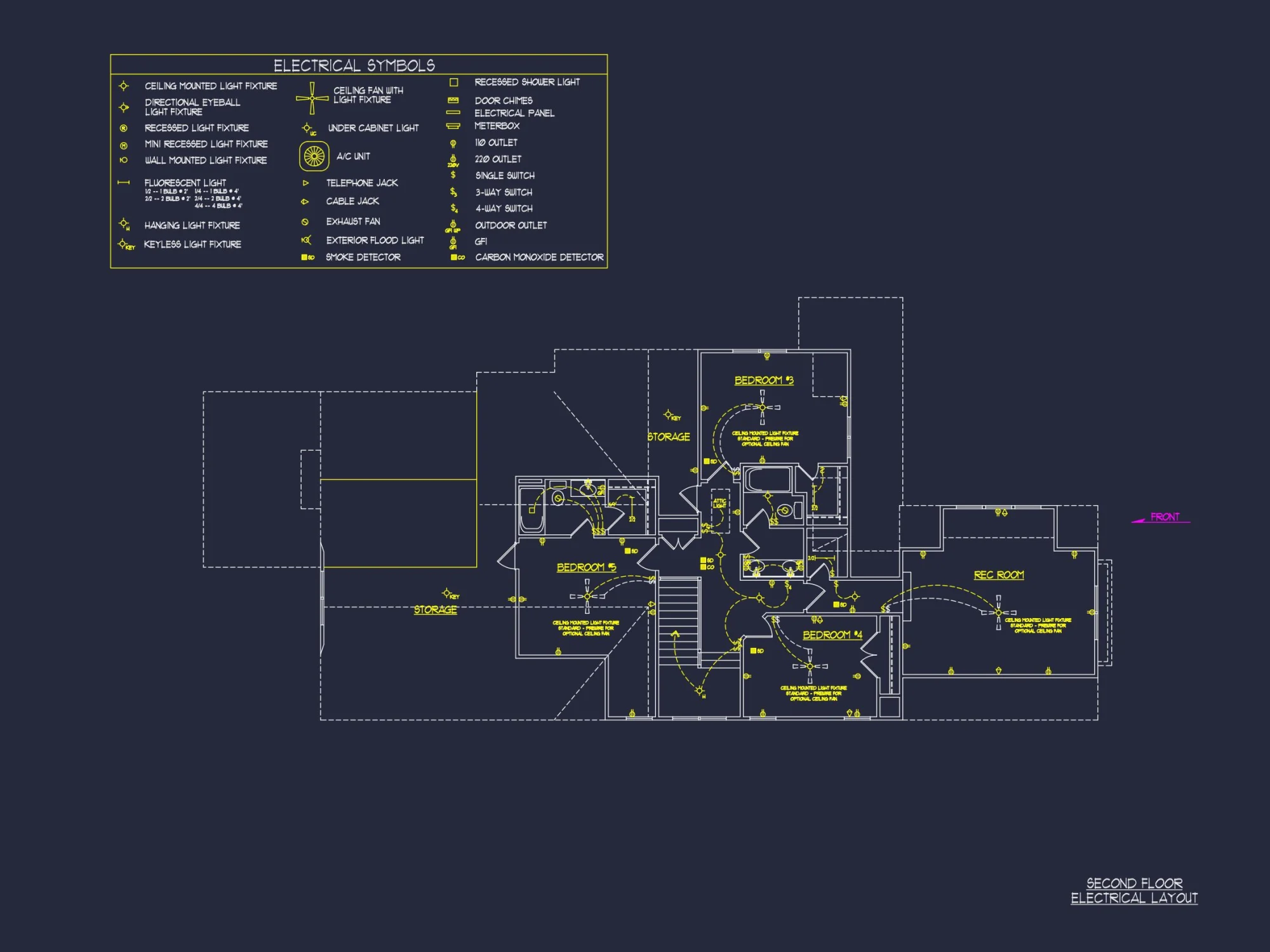

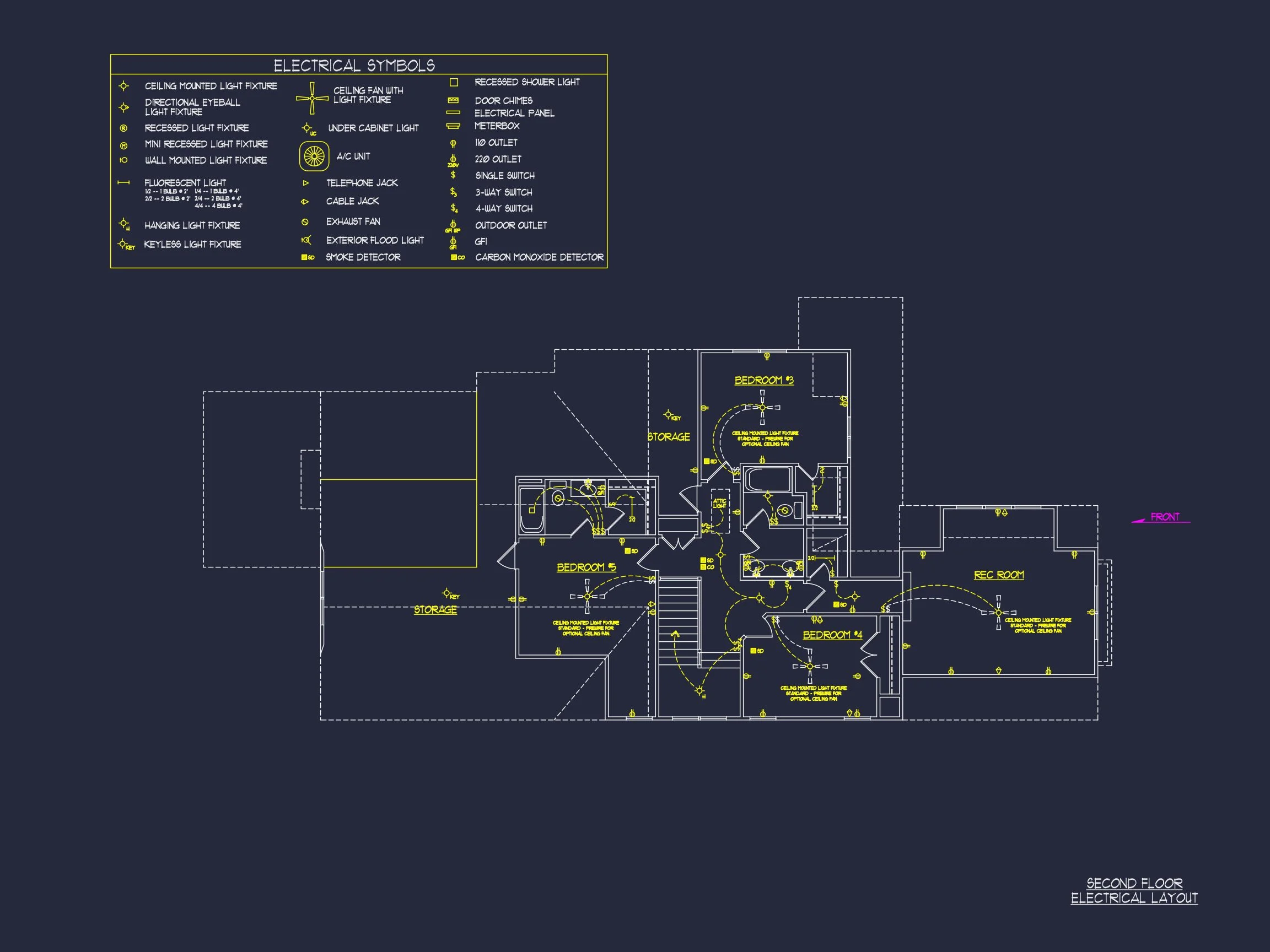

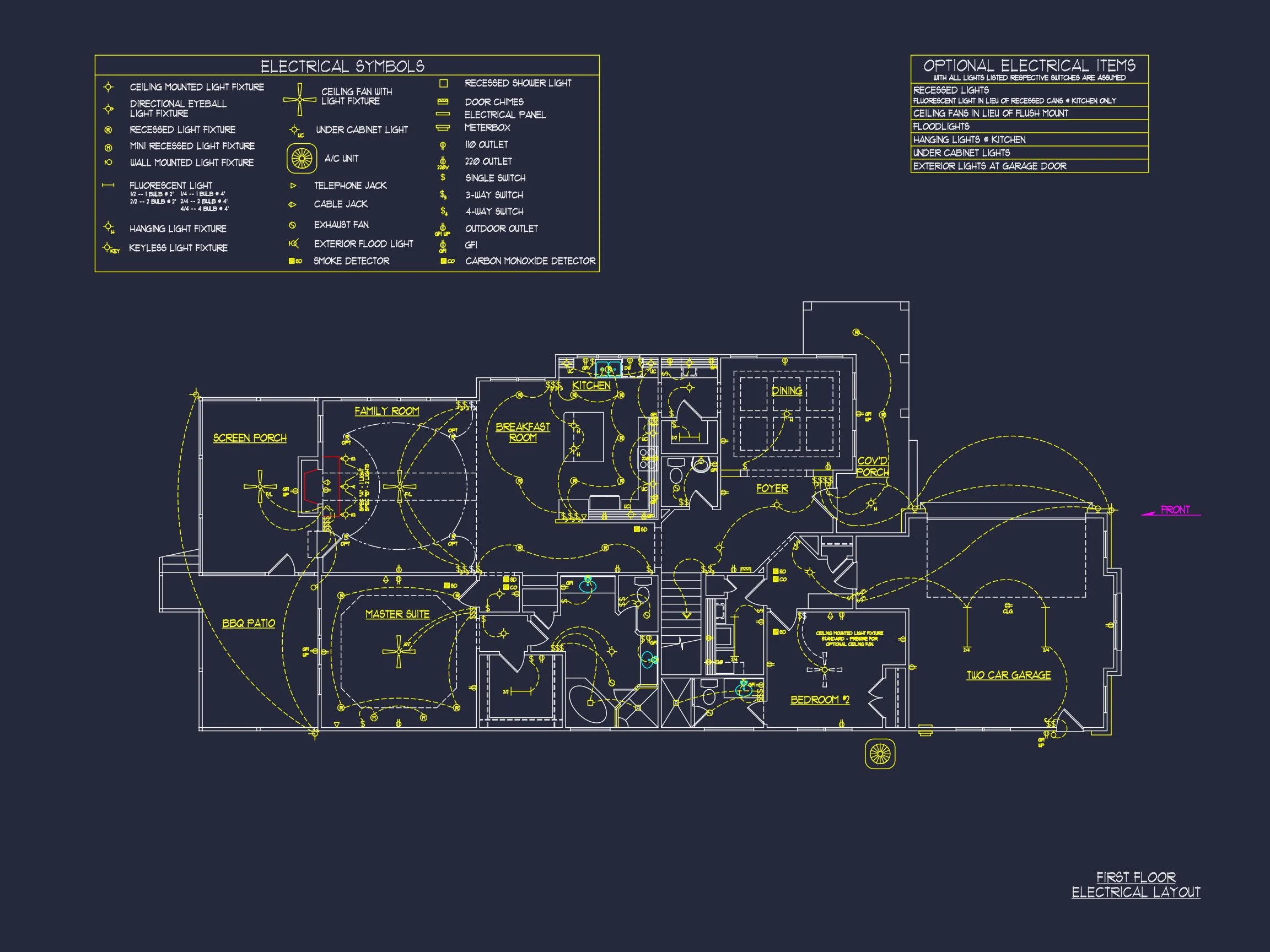

Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
