Colonial Revival house Floor Plan with CAD Blueprint Designs
Explore this elegant Colonial Revival house plan with detailed CAD blueprints. Features include spacious 3 bedrooms, 3 baths, and modern architectural designs.
Original price was: $2,446.56.$1,386.39Current price is: $1,386.39.
999 in stock
| Width | 76'-8" |
|---|---|
| Depth | 72'-8" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Attic, Family Room, Fireplace, Foyer, Mudroom, Office/Study, Open Floor Plan, Sunroom |
| Outdoor Features | Covered Front Porch, Covered Rear Porch, Deck, Wrap Around Porch |
| Bed and Bath Features | Bedrooms on Second Floor, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Colonial Revival Home Floor Plan with Timeless Style & CAD Blueprints
Discover this elegant Colonial Revival house plan with 2, 501 heated sq. ft., 1.5 stories, modern amenities, and full CAD blueprint package.
This Colonial-style house plan offers a perfect mix of classic architecture and modern functionality. Designed for today’s lifestyle, it balances symmetry, charm, and practicality across every square foot.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 2, 501 sq. ft. across 1.5 stories.
- Unheated extras: Includes a wraparound porch, covered front porch, open deck, attic storage, and a two-car garage.
Bedrooms & Bathrooms
- 3 spacious bedrooms including a first-floor Owner Suite with a walk-in closet.
- 3 full bathrooms—strategically located for convenience and privacy.
Interior Highlights
- Open floor plan connects kitchen, dining, and living spaces seamlessly. View open layouts.
- Vaulted ceilings and 9’+ ceiling heights throughout for an airy and spacious feel.
- Fireplace anchors the great room and adds warmth. Browse fireplace plans.
- Kitchen island, walk-in pantry, and breakfast nook create a culinary hub. Explore kitchen island plans.
- Dedicated Office/Study for remote work or quiet reading.
- Sunroom offers natural light and comfort year-round.
Garage & Storage Details
- Garage Bays: 2-car garage with front entry access.
- Garage Type: Attached garage seamlessly integrated into the layout.
- Storage: Attic space, a mudroom, and multiple closets for organized living.
Outdoor Living Features
- Wraparound porch, covered front porch, and open rear deck for entertaining and relaxing.
- Exterior finishes include durable shingles, siding, and stone for lasting curb appeal.
Architectural Style: Colonial Revival
This design reflects the enduring elegance of Colonial Revival architecture, a beloved American style known for symmetry, gable roofs, and classic detailing. Learn more about the Colonial style or explore its influence on ArchDaily.
Bonus Features
- Flex room that can be used as an additional office, guest suite, or hobby area.
- Attic for future expansion or seasonal storage.
- Mudroom to keep daily clutter under control near the garage entry.
Included Benefits with Every Plan
- CAD + PDF Files: Editable, printable, and ready for your contractor.
- Unlimited Build License: Build as many times as you need, anywhere.
- Free Foundation Changes: Easily switch between slab, crawlspace, or basement. Learn about free foundation changes.
- Structural Engineering Included: Professionally stamped and code-compliant plans. See structural plan benefits.
- Lower Modification Costs: Up to 50% less than competitors for changes.
- View Before You Buy: See every blueprint sheet in advance.
Similar Collections You Might Love
- Traditional House Plans
- Colonial House Plans
- Plans with First Floor Owner Suites
- Plans with Attic Storage
- Covered Deck House Plans
Frequently Asked Questions
What’s included with this house plan? This plan includes CAD and PDF files, unlimited build rights, structural engineering, and free foundation customizations.
Can I add a garage or modify the footprint? Yes! All layouts can be adjusted affordably. Request a custom quote.
Is this layout family-friendly? Absolutely. The Owner Suite on the first floor, plus extra upstairs bedrooms, make it ideal for families.
Is attic space usable? Yes, the attic offers ample storage or can be finished as bonus space.
Can I preview this plan? Definitely. View all blueprint pages before purchase.
Start Building Your Dream Home Today
Have questions or need help tailoring the plan to your needs? Contact our expert team at [email protected] or submit your inquiry here.
Your future house begins with a strong foundation—let’s build it right, from the blueprint up.
All home plans include BOTH the CAD file and PDF file.

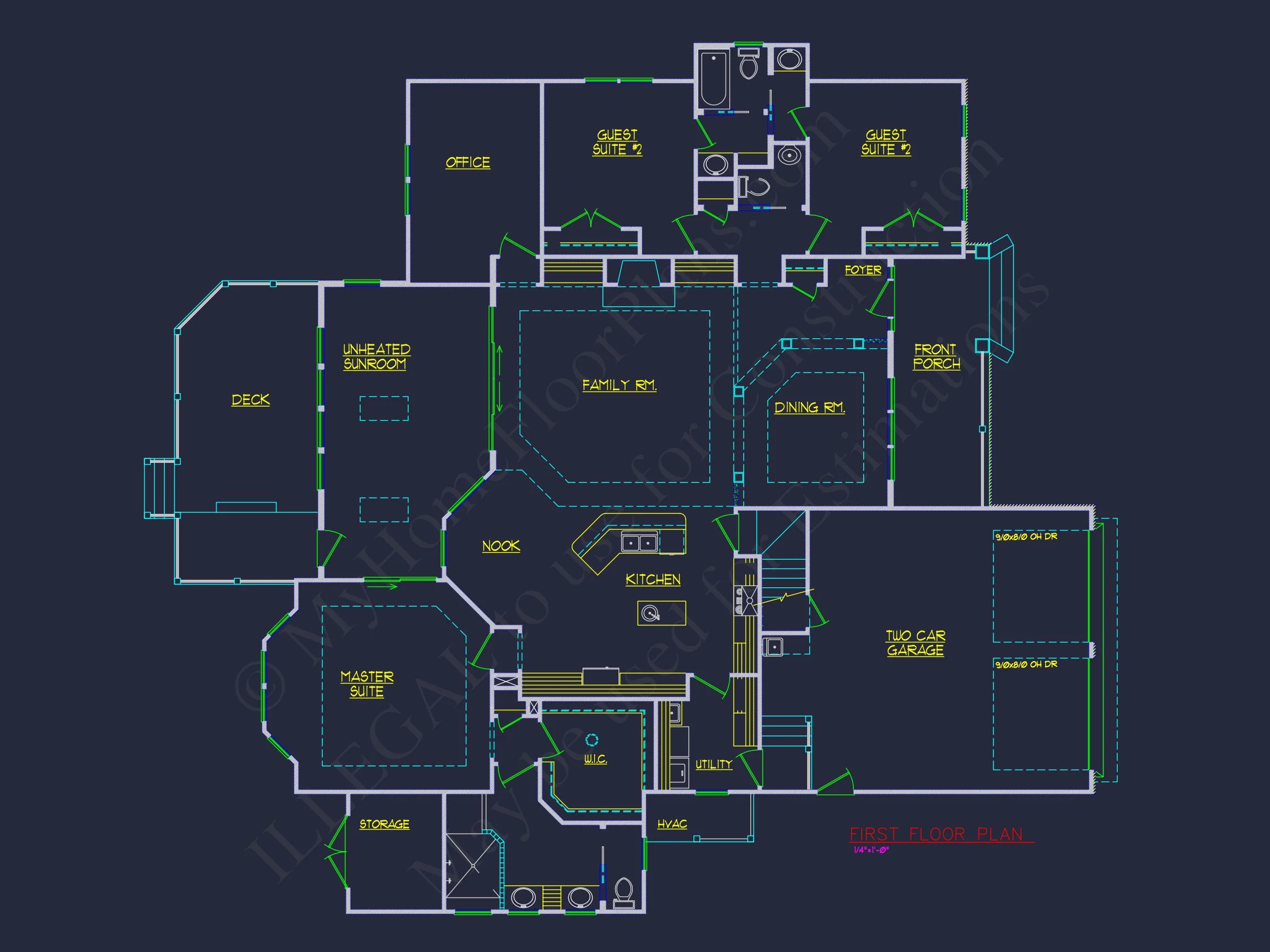

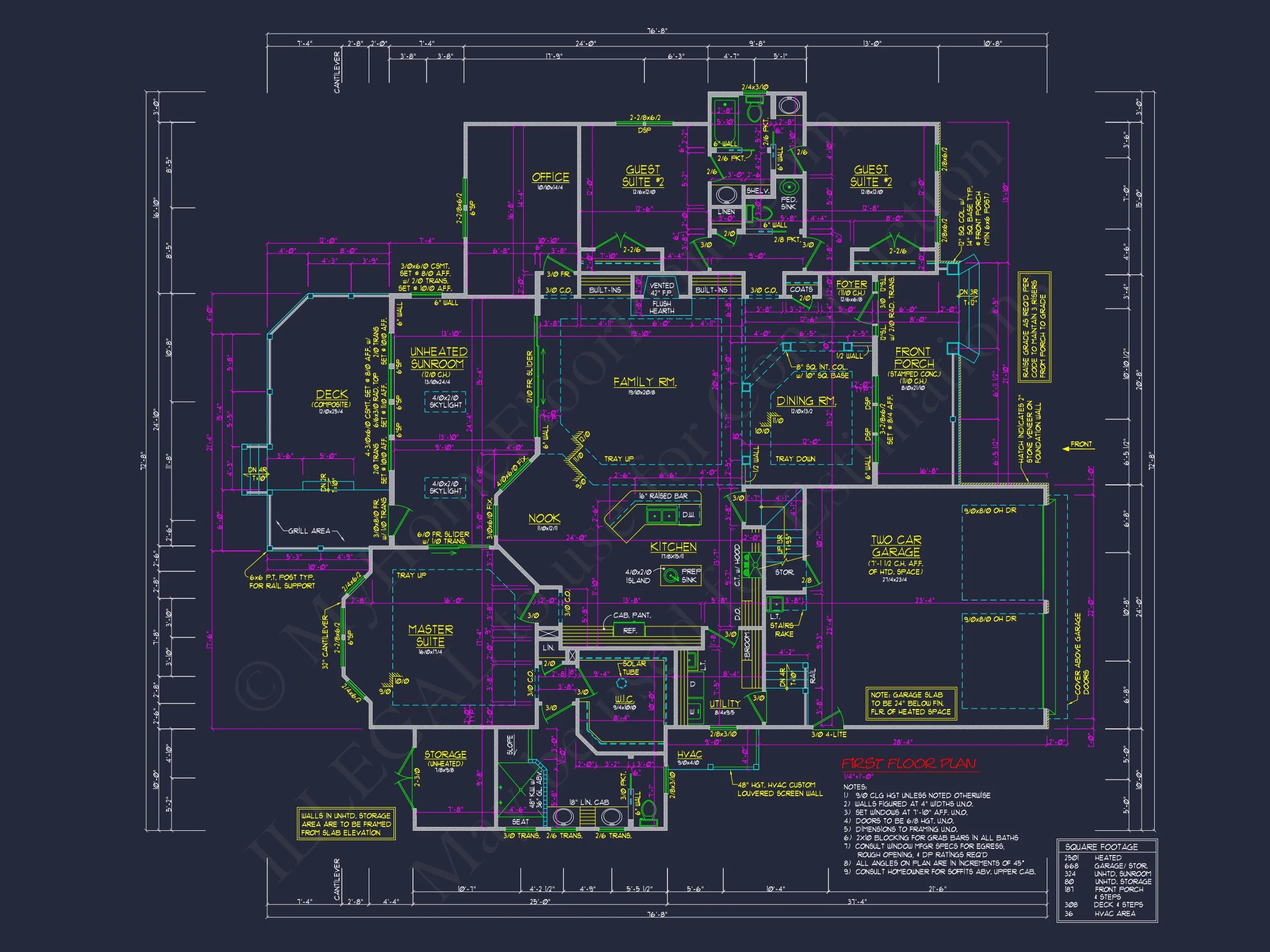

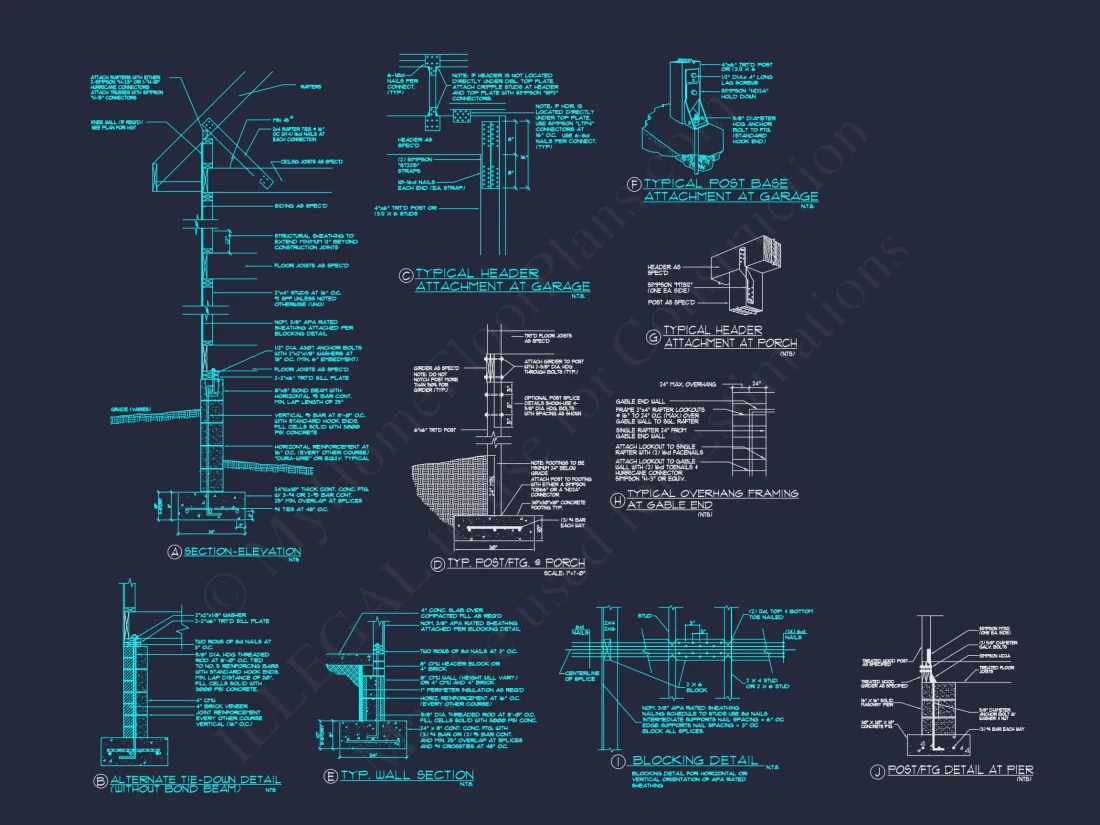

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

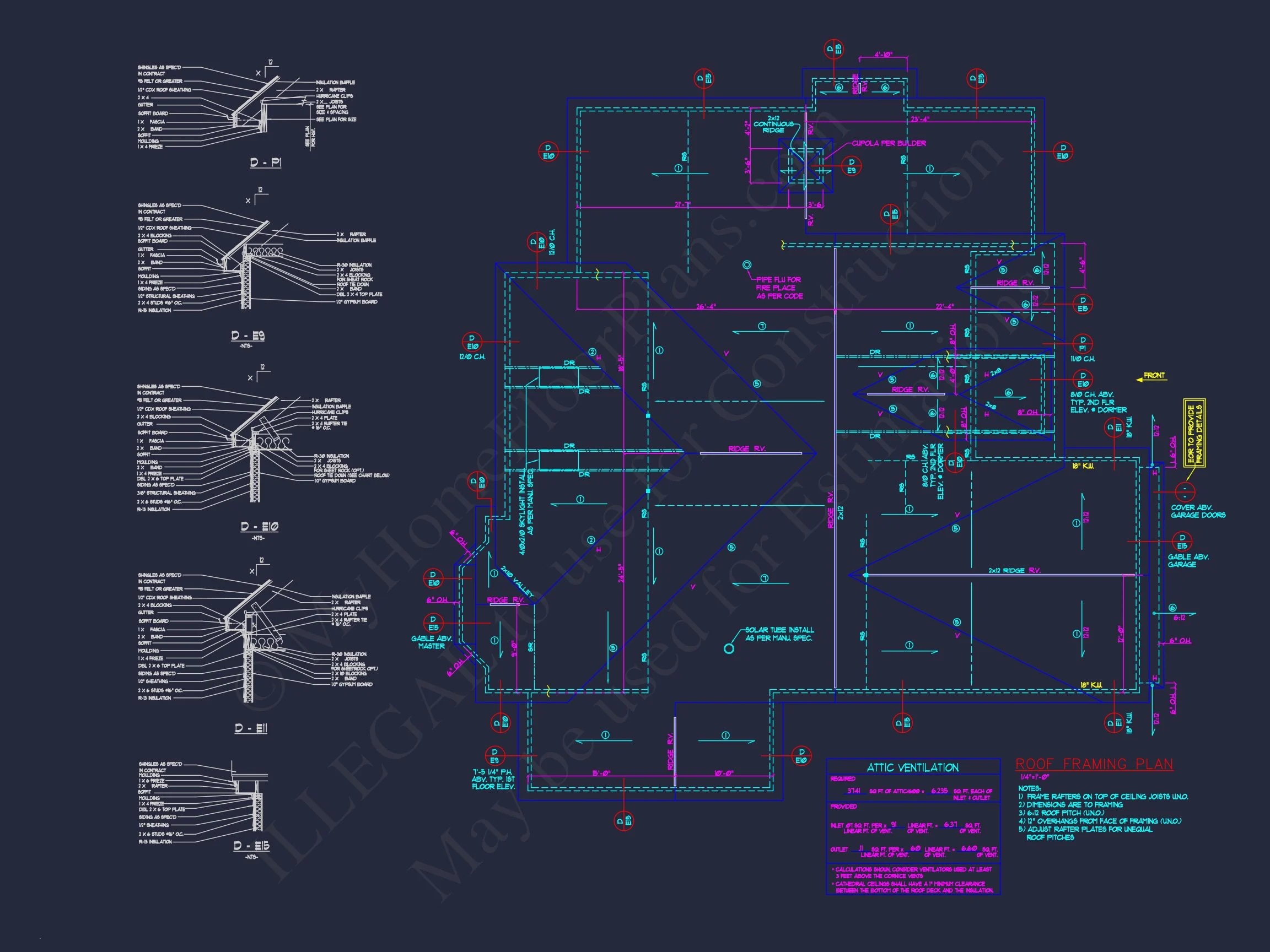

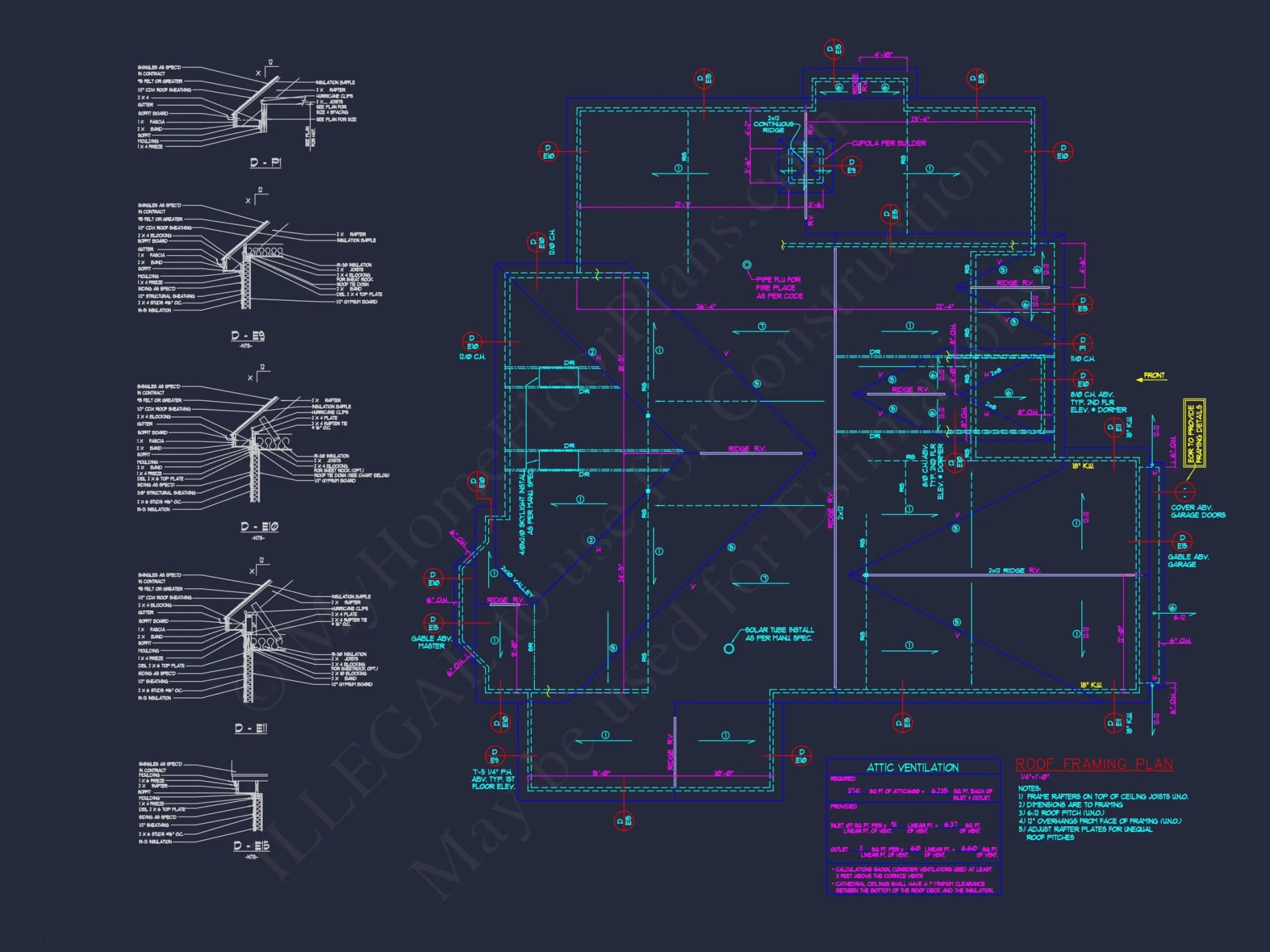

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
