11-1002 HOME PLAN
Original price was: $1,699.00.$1,398.00Current price is: $1,398.00.
| Width | 51'-2" |
|---|---|
| Depth | 58'-6" |
| Htd SF | |
| Unhtd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| Unhtd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | |
| Outdoor Features | |
| Bed and Bath Features | Bedrooms on First Floor, Bedrooms on Second Floor, Owner's Suite on First Floor, Walk-in Closet |
| Kitchen Features | |
| Garage Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Charming Home Plans with Blueprint Designs and CAD Files
Explore this thoughtfully designed home floor plan featuring 4 bedrooms, 3 bathrooms, a family room, fireplace, and a 2-car garage. Includes CAD blueprints.
Discover the Perfect Home Design for Your Dream Build
If you’re looking for the ideal home floor plan to fit a family of any size, this charming design might be perfect for you. Featuring 4 comfortable bedrooms, 3 modern bathrooms, and plenty of heated square footage (2493), this layout combines functionality and style. Including detailed home blueprints, architectural CAD files, and features for both indoor and outdoor living, this plan is perfect for architects, builders, or homeowners ready to bring their vision to life.
Spacious Floor Plan Highlights

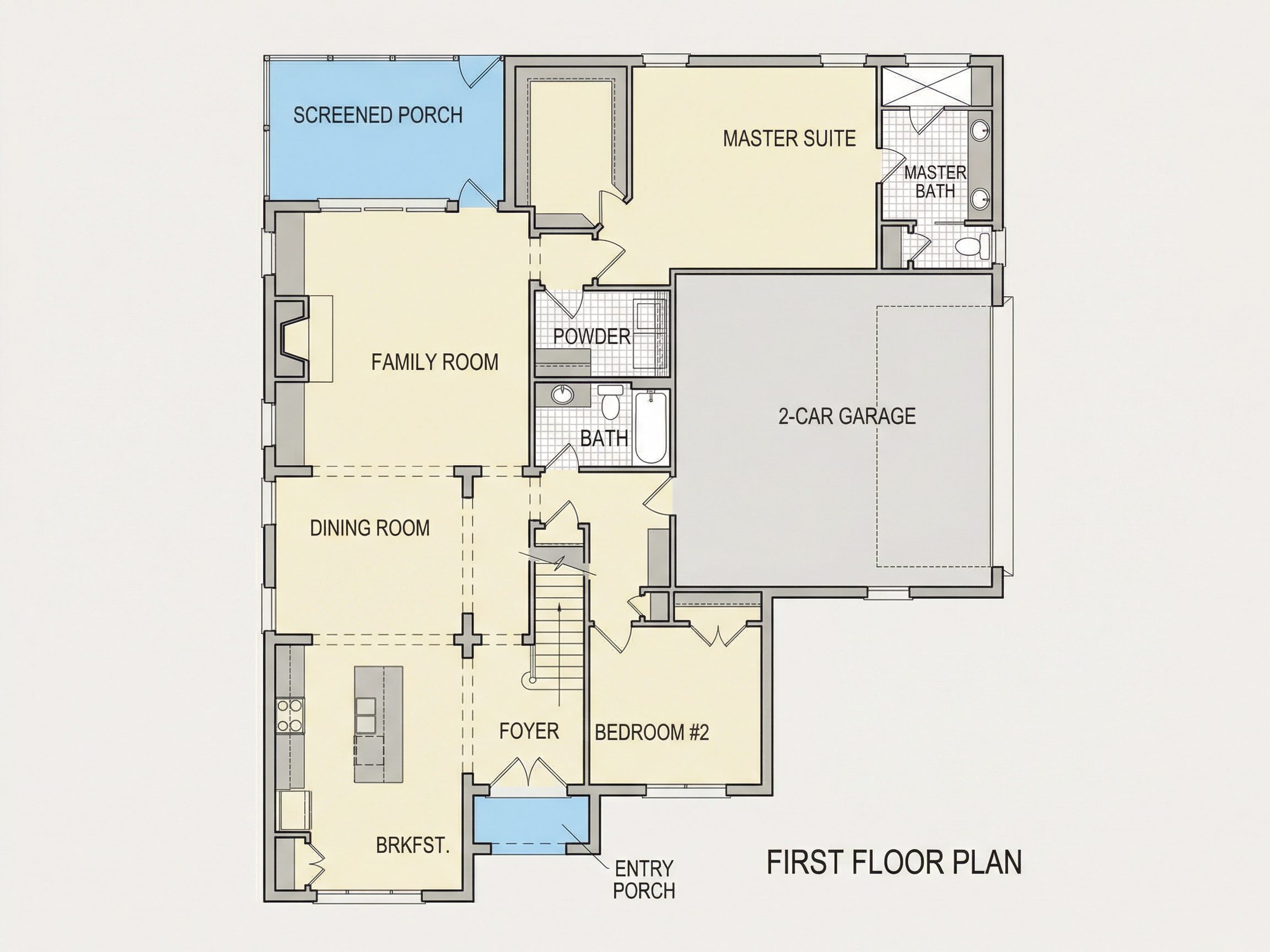

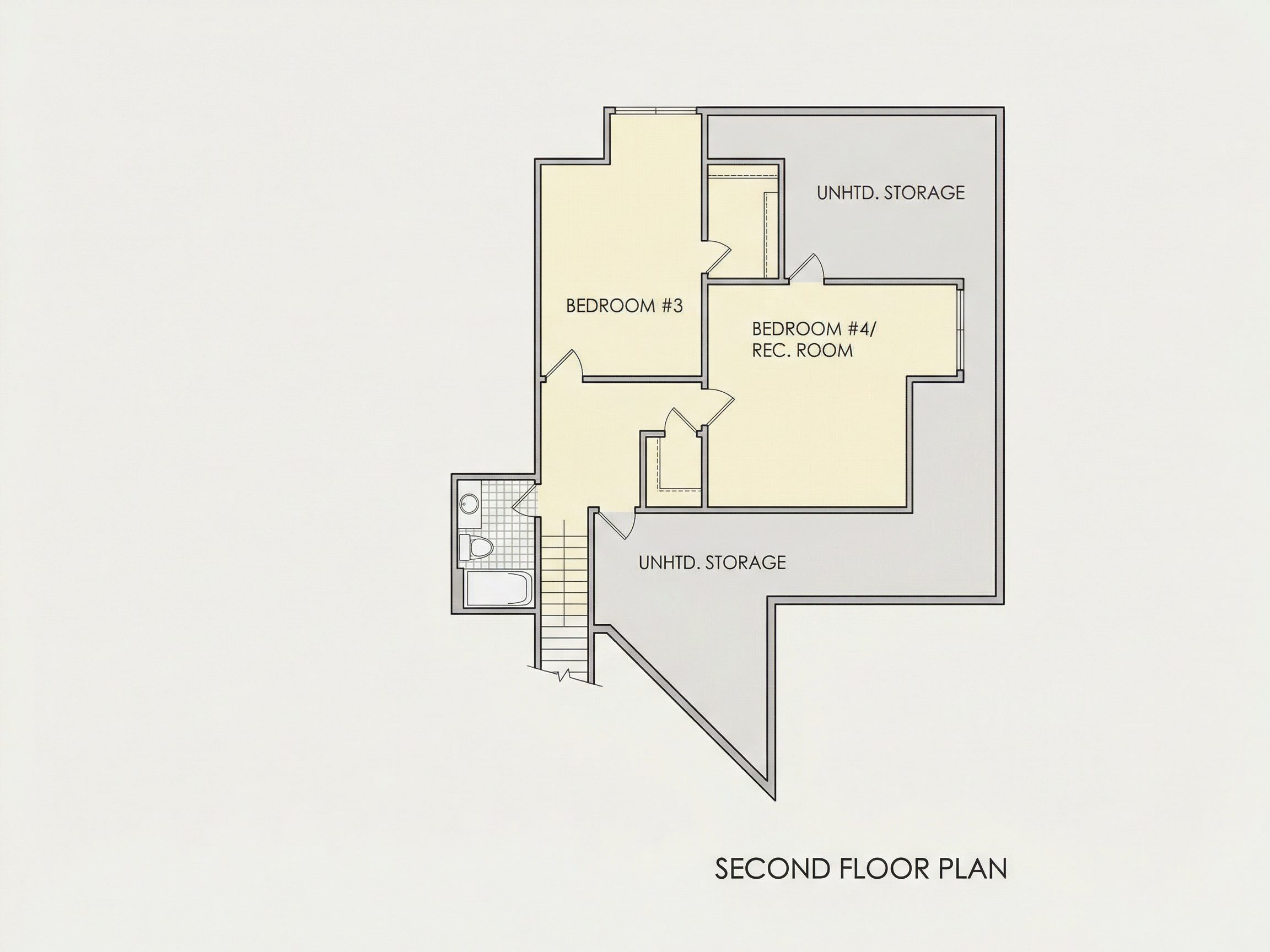

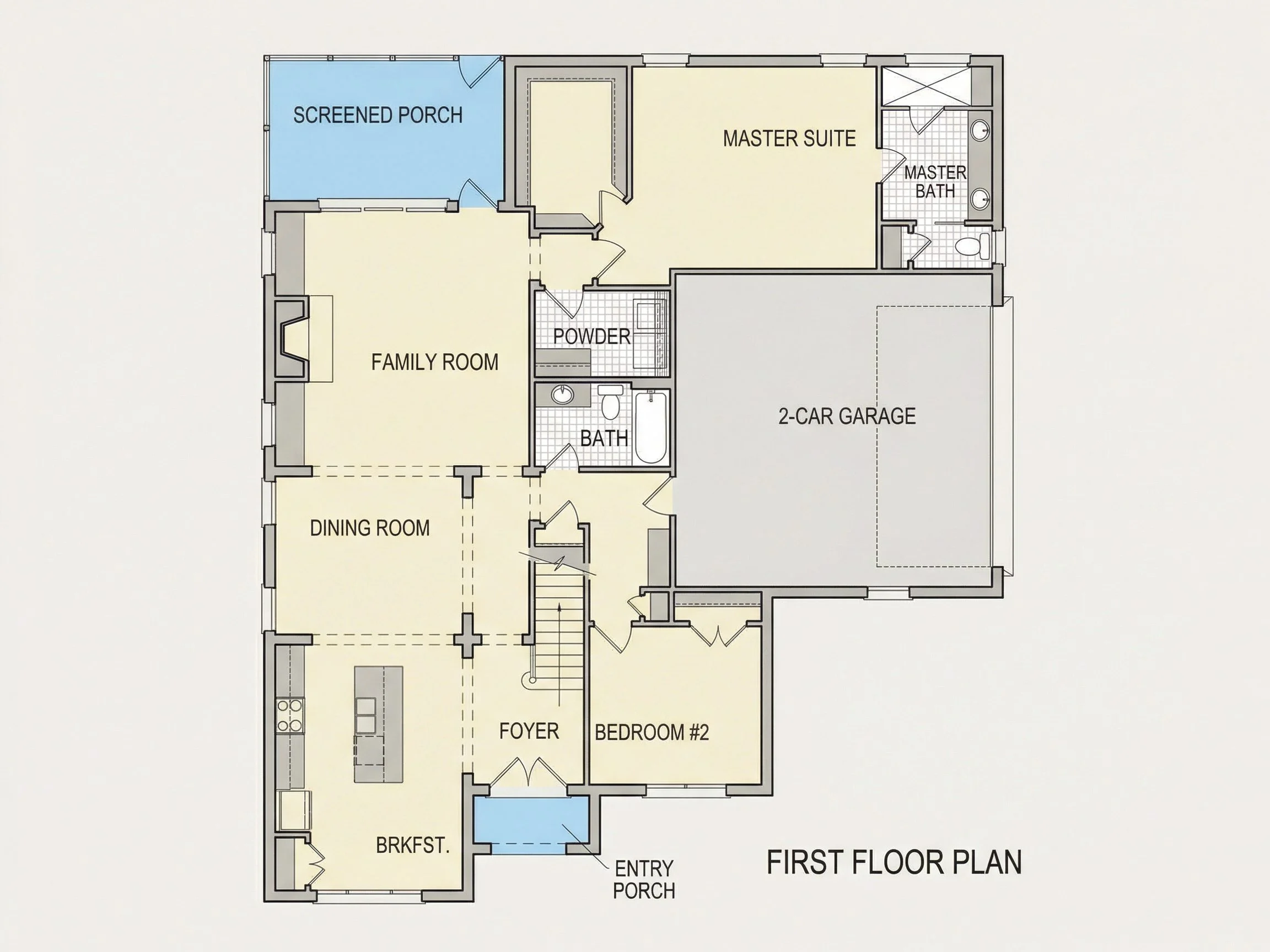

This two-story home design boasts an open layout with plenty of room for living and entertaining. The spacious family room with a cozy fireplace provides a warm and inviting space for relaxation. The Owner suite on the first floor offers convenience and privacy, while additional bedrooms on the second floor ensure ample space for family and guests. A recreational room upstairs provides an excellent area for hobbies or fun activities.
Key indoor features include:
* Large Walk-in Closets for all your storage needs.
* Spacious Kitchen Layout with a breakfast nook, walk-in pantry, and kitchen island for meal preparation and casual dining.
* 9-foot ceilings and tray ceilings, adding elegance and a sense of spaciousness.
* Foyer and family room for seamless entertaining and family gatherings.
Outdoor Spaces Bring Functional Style
Take advantage of the thoughtfully designed outdoor spaces, perfect for outdoor entertainment or peaceful retreats. A covered front porch welcomes visitors with Southern charm, while a screened porch and covered rear porch provide an ideal haven for relaxation, sheltered from the elements.
Elegant Exterior Details
The exterior of this Southern-style home stands out with its classic choices of brick, shake, and shingle materials. These timeless selections contribute to the home’s durability and curb appeal, making it a standout in any neighborhood.
Flexible Features for Your Needs
This design also caters to specific needs with its combination of heated and unheated square footage. It includes 2493 heated and 505 unheated square feet, which falls into the large size category of home designs. The 2-car front entry garage provides convenience, while the foundation options of slab or crawlspace increase flexibility based on your property requirements.
Benefits of the Perfect Home Plan
Each home plan features detailed CAD drawings and PDF architectural blueprints to make customizing and building a breeze. What’s more, with your purchase, you’ll get free foundation changes and enjoy an unlimited-build license! Whether you’re an architect or a homeowner, you’ll benefit from precise designs curated to inspire your perfect living space.
Are you ready to bring this dream home to life? Reach out at support@https://myhomefloorplans.com today to get started!
What's Included
What's NOT Included
Modifications
Plan Pricing
All home plans include BOTH the CAD file and PDF file.

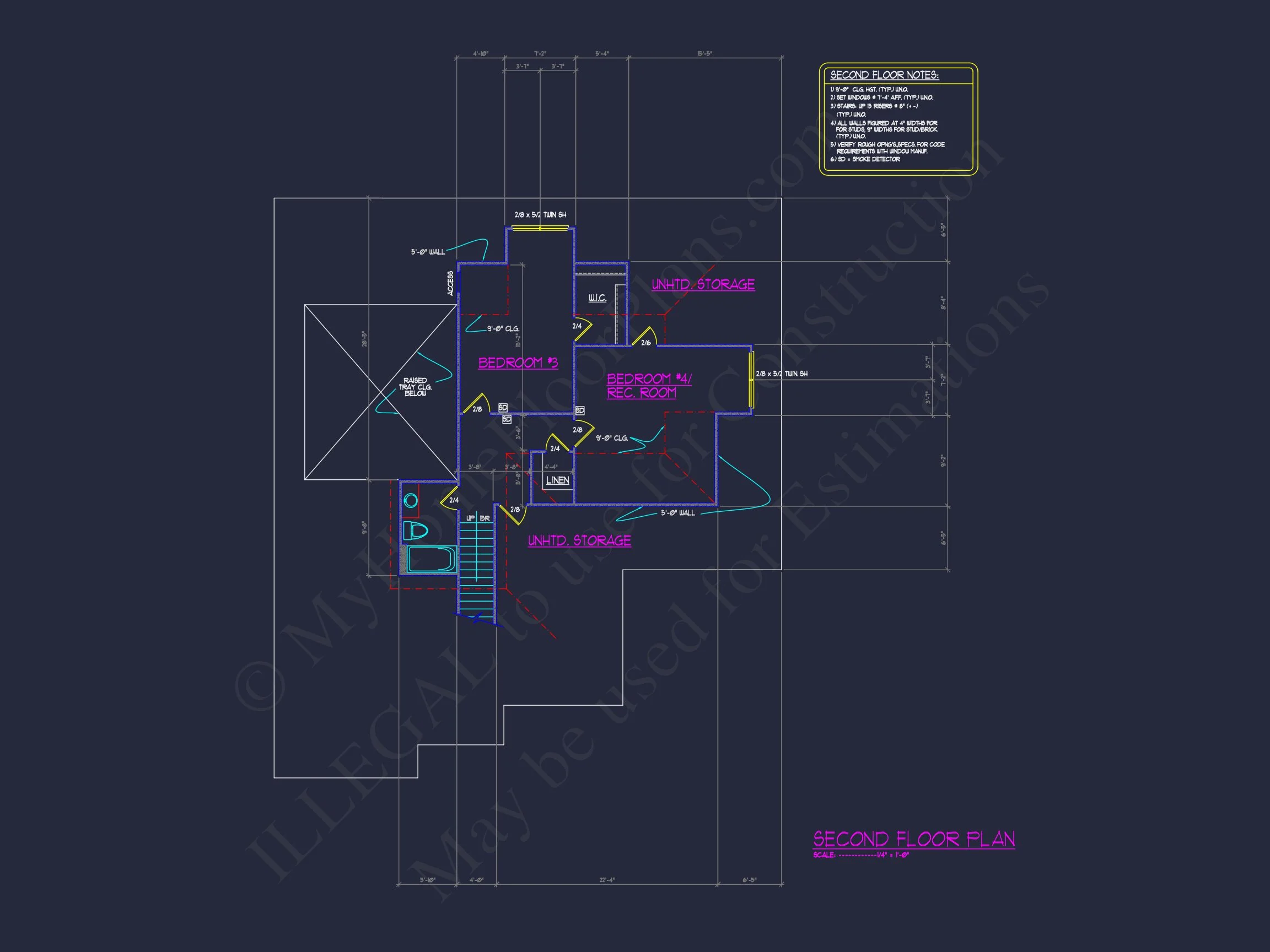

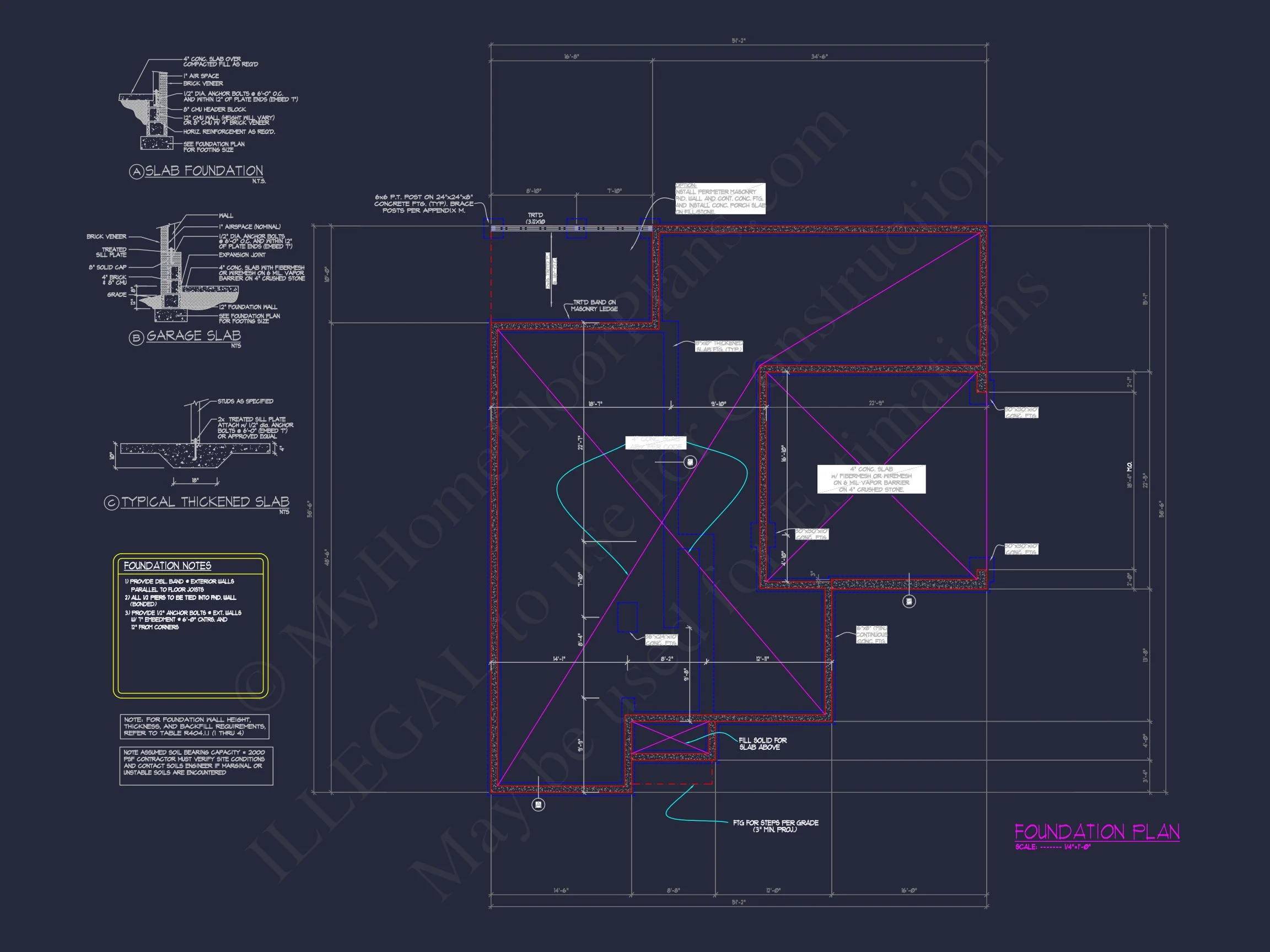

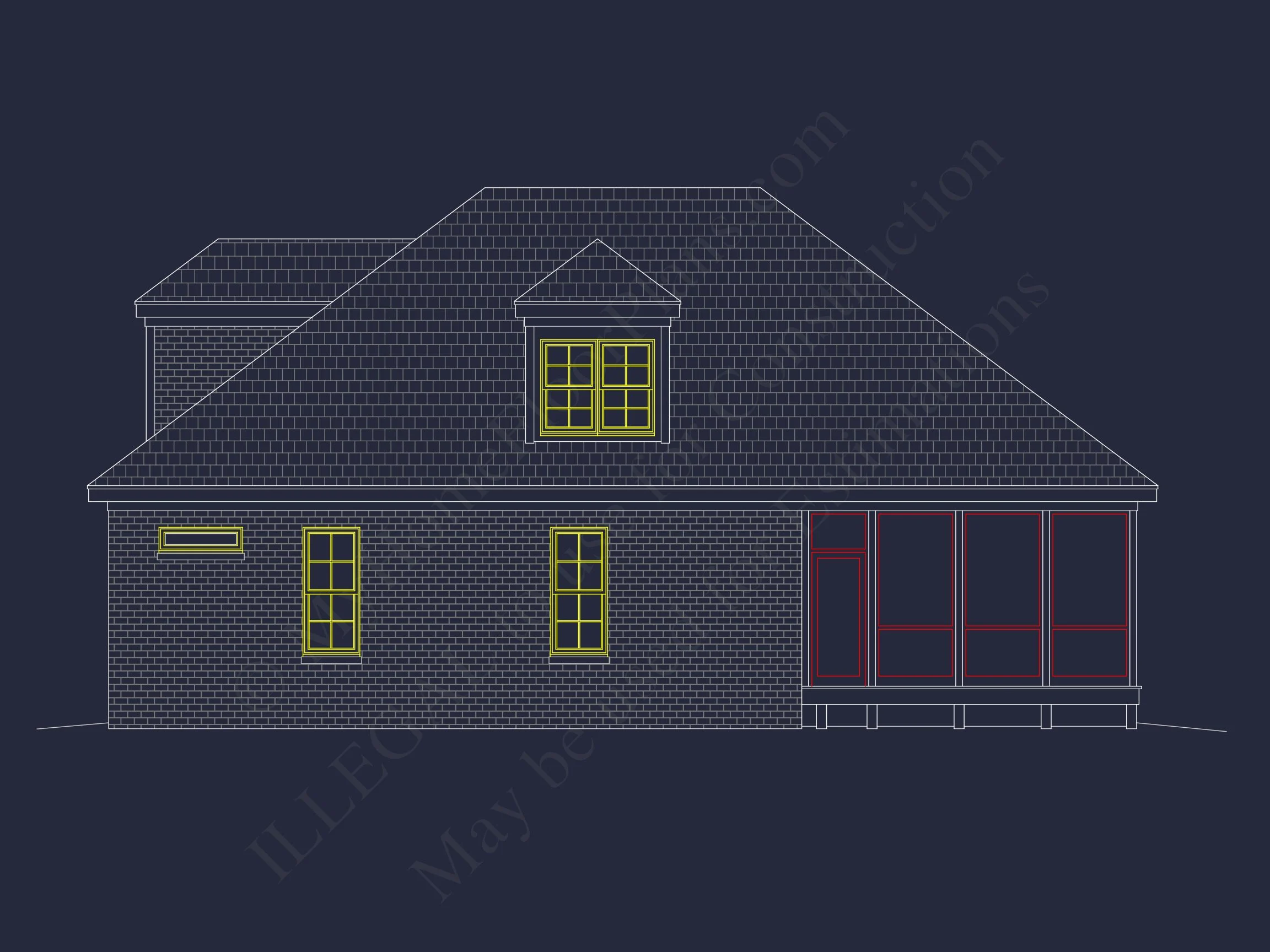

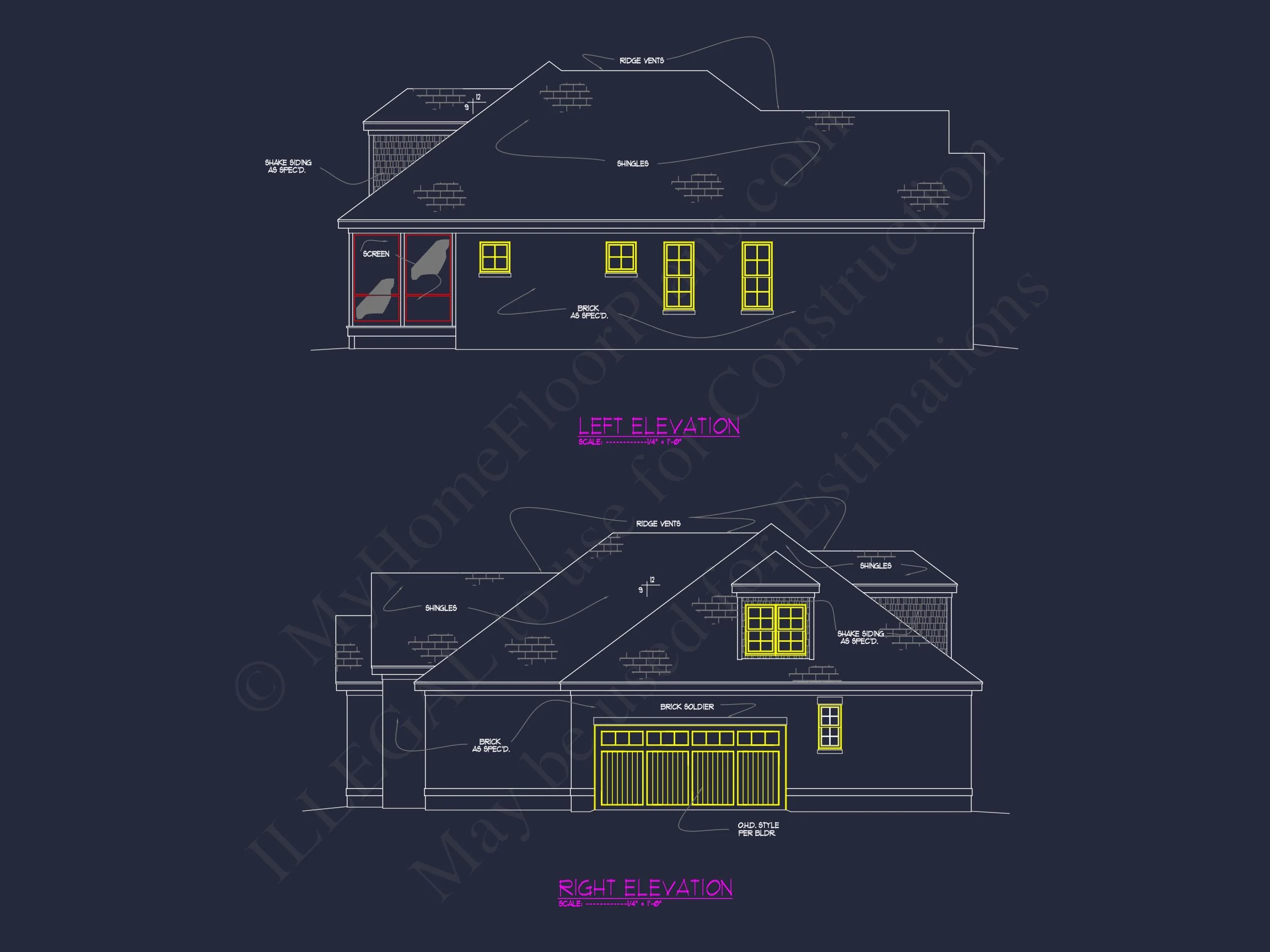

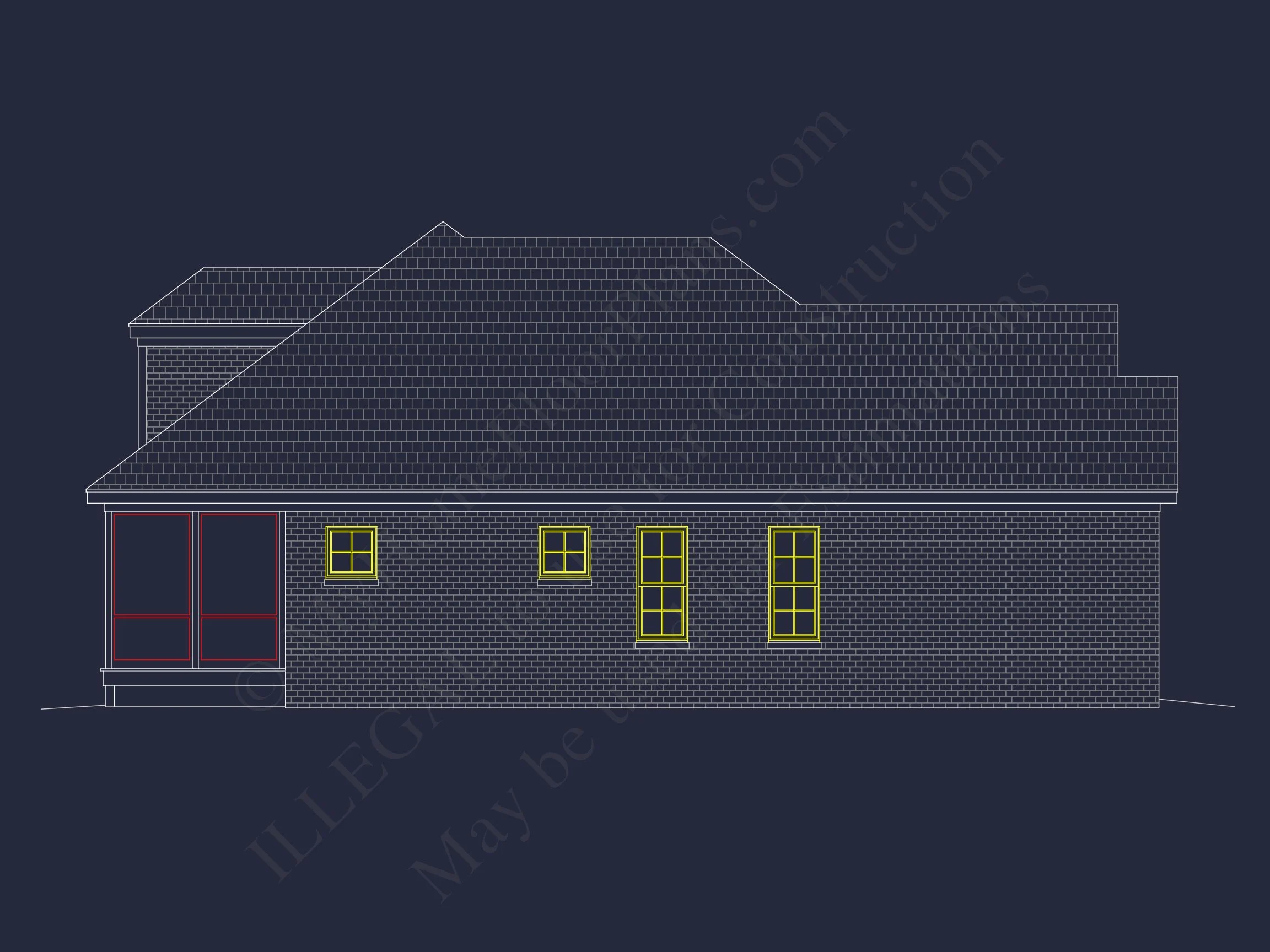

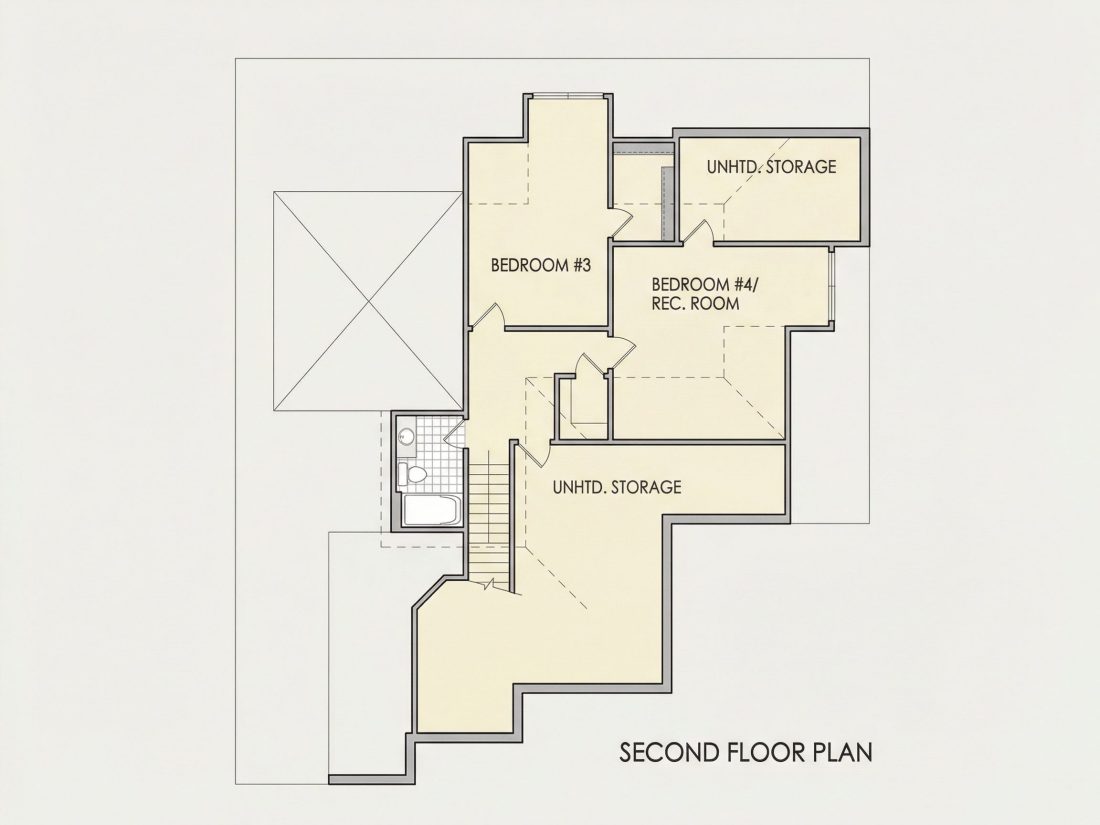

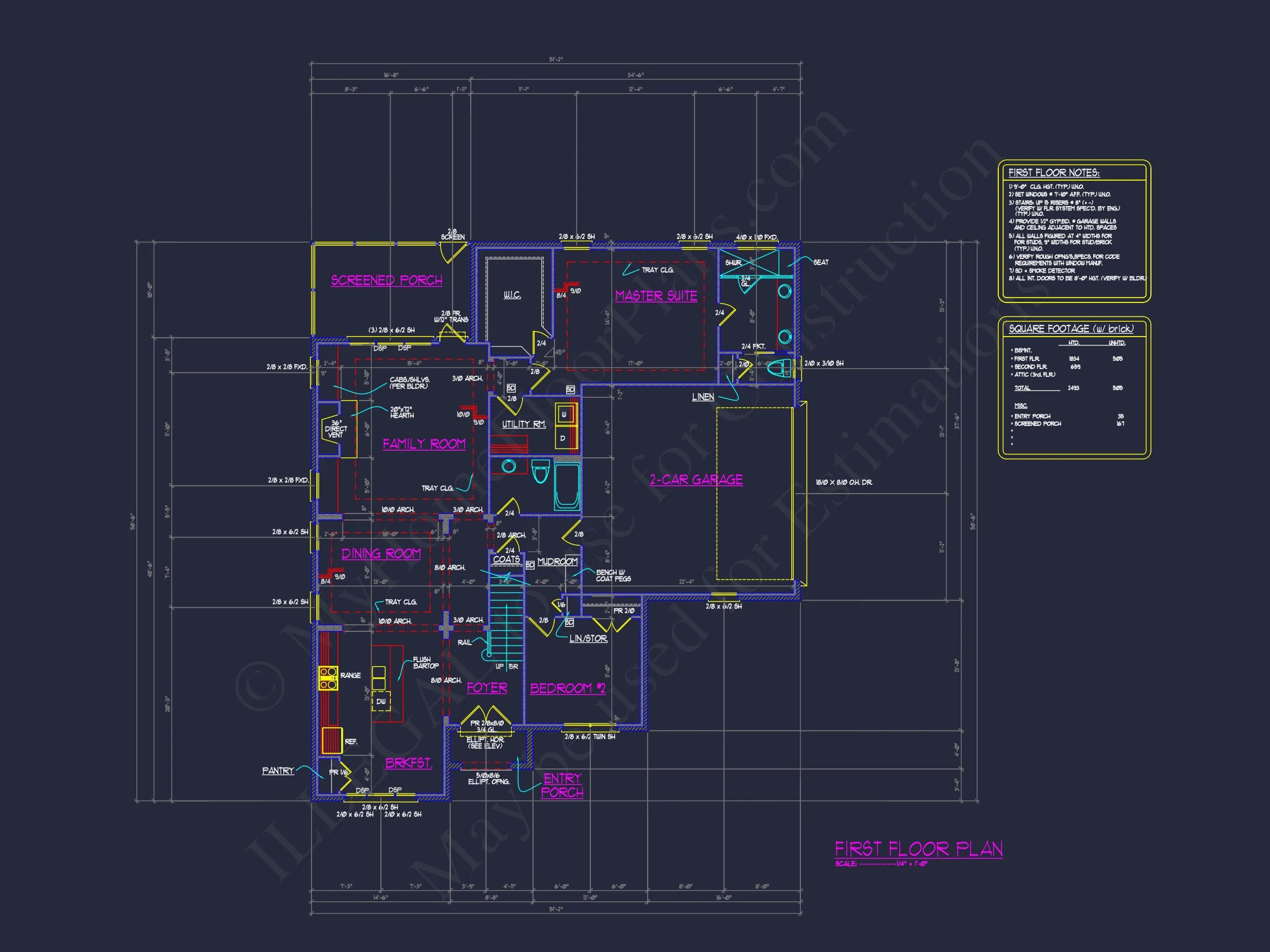

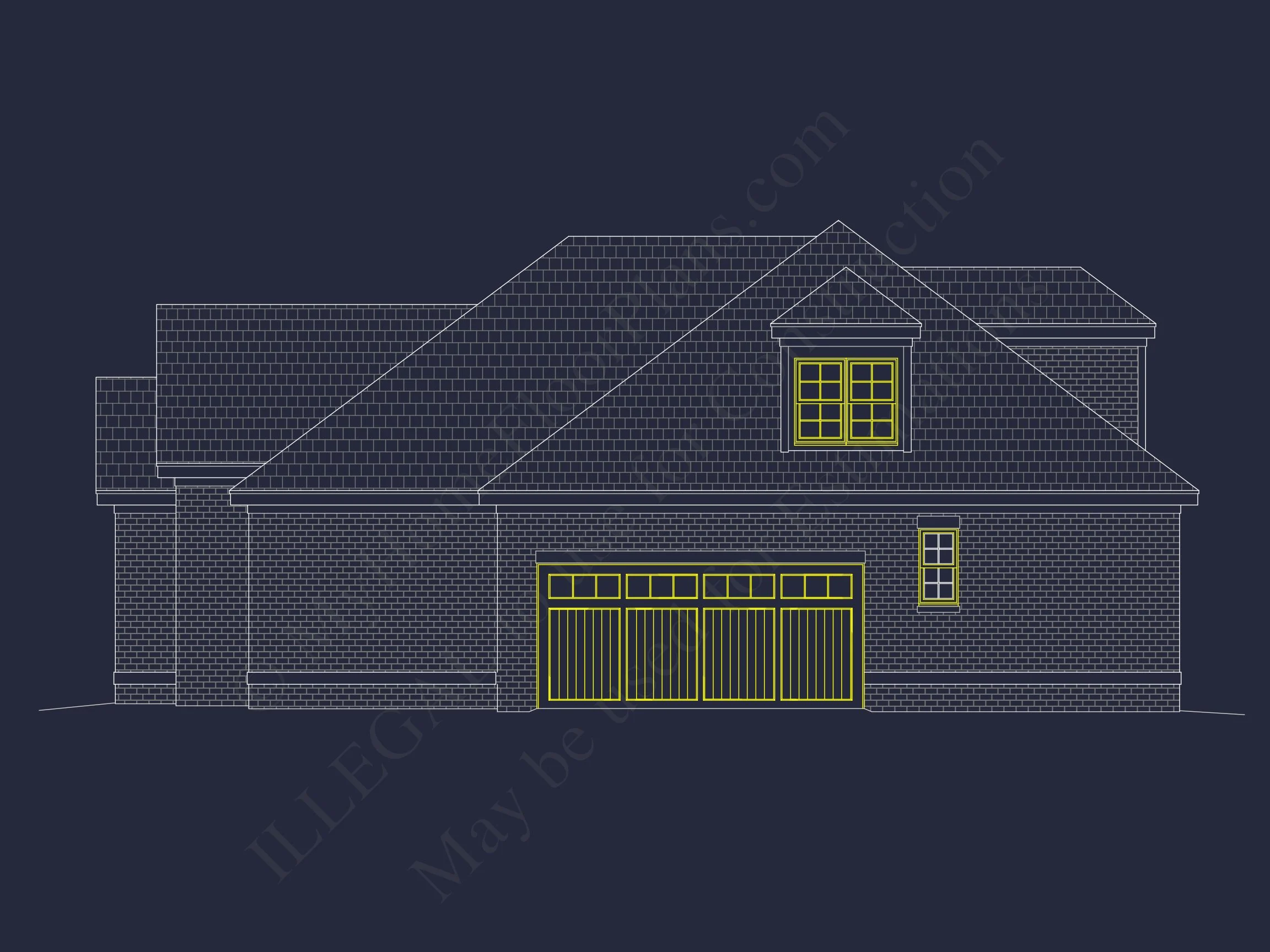

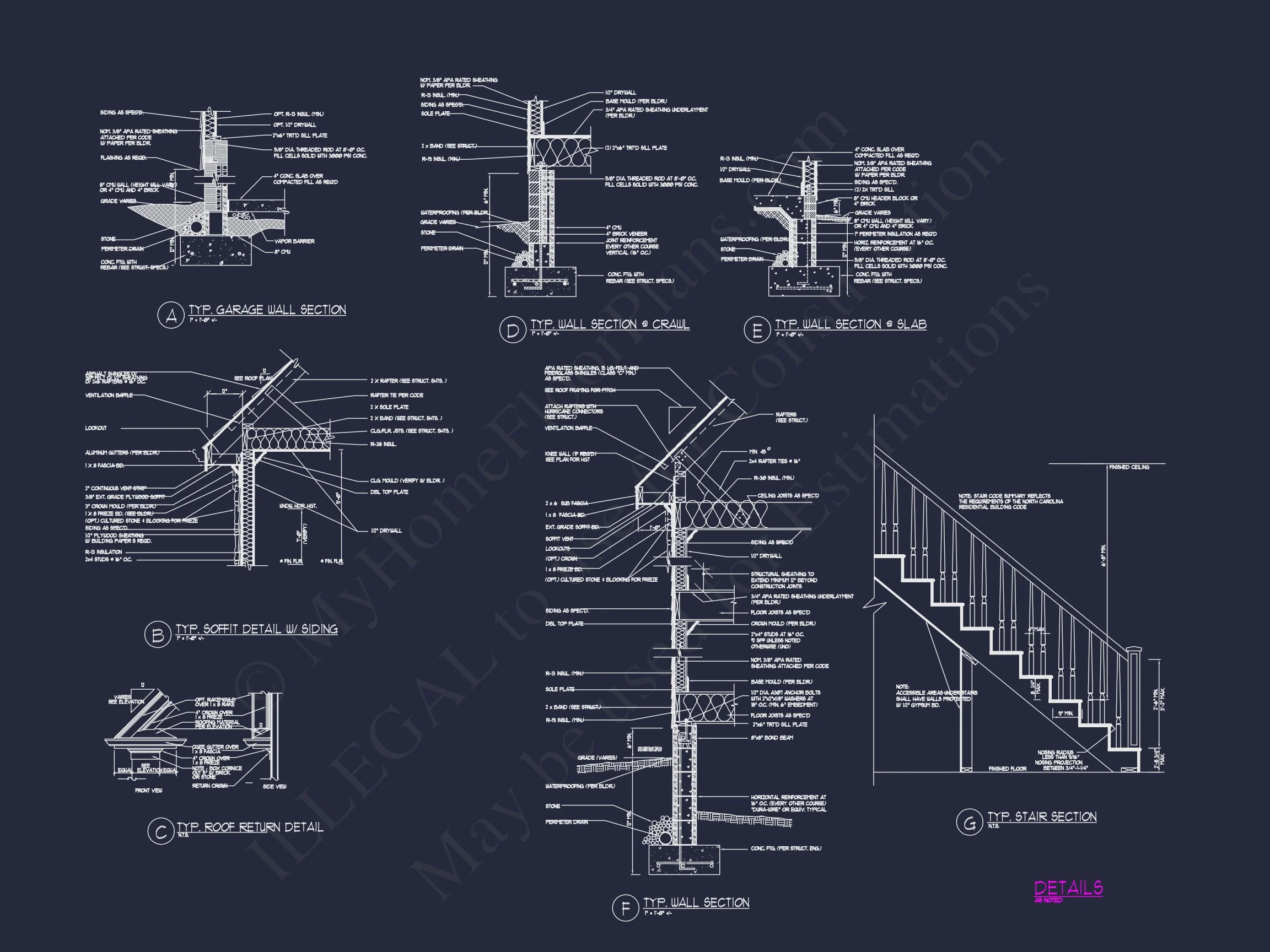

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

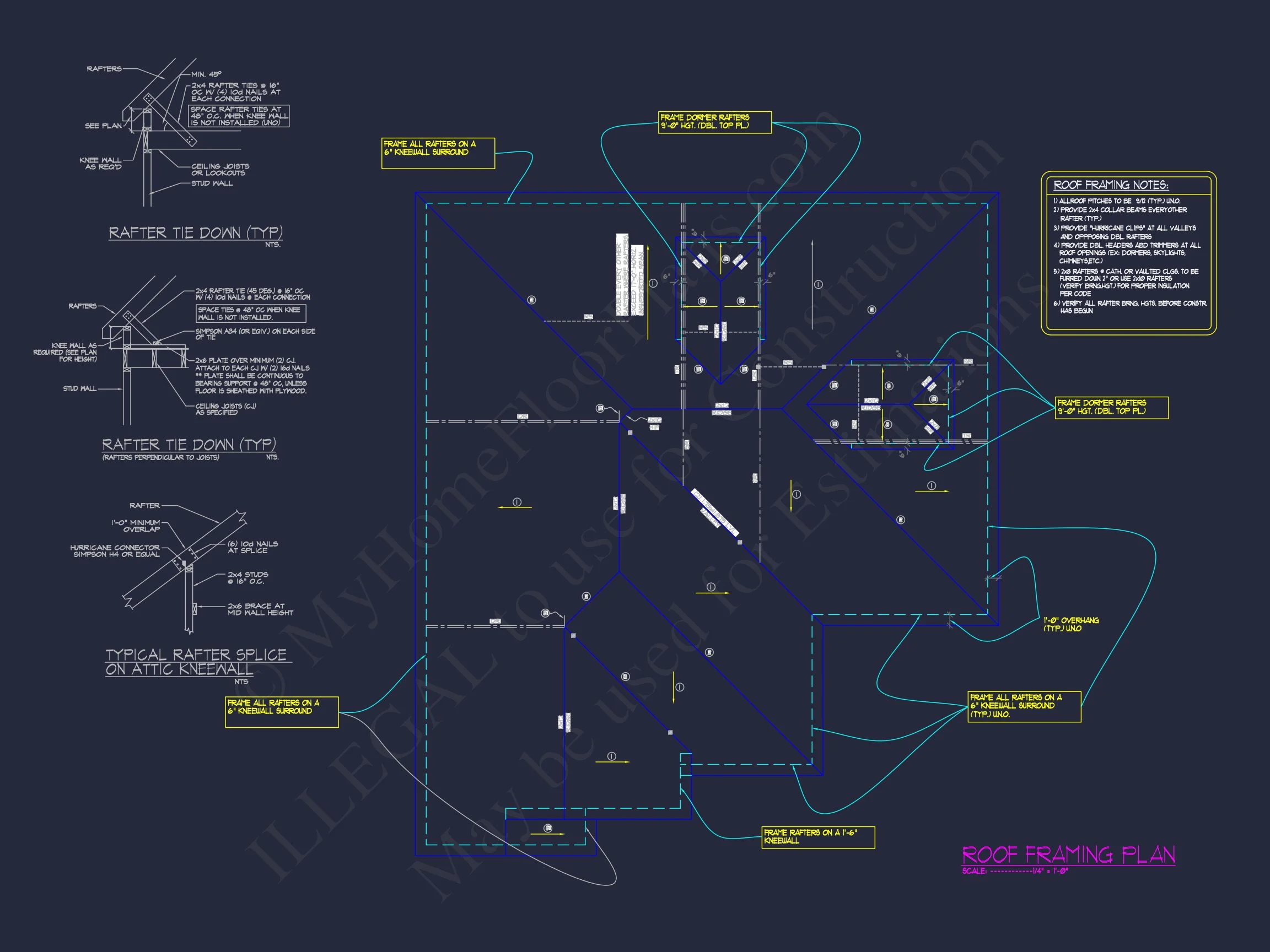

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
11-1002 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
All plans are drawn to scale and include :
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
VERIFY DIMENSIONS, SQ FT, DESCRPTION TO THAT OF PRODUCT IMAGES BEFORE PURCHASE
My Home Floor Plans, Inc. does not assume liability for any deviation of these plans. All information must be confirmed by contractor prior to commencement of construction. Dimension govern over scale.
Reviews
