Stunning 5-Bedroom house Plan with Spacious CAD Designs
Explore this 5-bedroom, 3-bathroom house plan featuring expansive 3, 112 sq. ft., a CAD floor plan, granite countertops, coffered ceilings, and a screened porch.
Original price was: $1,870.56.$1,059.99Current price is: $1,059.99.
999 in stock
| Width | 57'-8" |
|---|---|
| Depth | 51'-8" |
| Htd SF | |
| Bedrooms | |
| Bathrooms | |
| # of Floors | |
| Htd SF Range | |
| # Garage Bays | |
| Architectural Styles | |
| Indoor Features | Custom Built-ins, Eat-In Kitchen, Family Room, Fireplace, Granite Countertops, Great Room, Laundry on Main Level, Office/Study |
| Outdoor Features | Covered Front Porch, Deck, Grilling Patio, Patio, Screened Porch |
| Bed and Bath Features | Owner's Suite on First Floor, Split Bedrooms, Walk-in Closet |
| Kitchen Features | |
| Ceiling Features | |
| Structure Type | |
| Exterior Material | |
| # Front Elevations | |
| Depth Range | |
| Width Range | |
| After Build Photos |
Stunning 5-Bedroom House Plan with Spacious CAD Designs
Explore this 3, 112 sq. ft. 5-bedroom, 3-bathroom layout featuring coffered ceilings, gourmet kitchen, screened porch, and a professionally engineered CAD floor plan.
This Traditional Craftsman-style house plan offers a perfect blend of elegance and smart functionality. Designed with family living in mind, it delivers timeless curb appeal and a thoughtful layout backed by detailed CAD architecture.
Key Features of the Home Plan
Living Areas – Heated & Unheated
- Heated area: 3, 112 sq. ft. across two stories.
- Unheated extras: Screened porch, grilling patio, covered deck, and spacious 2-car garage.
Bedrooms & Bathrooms

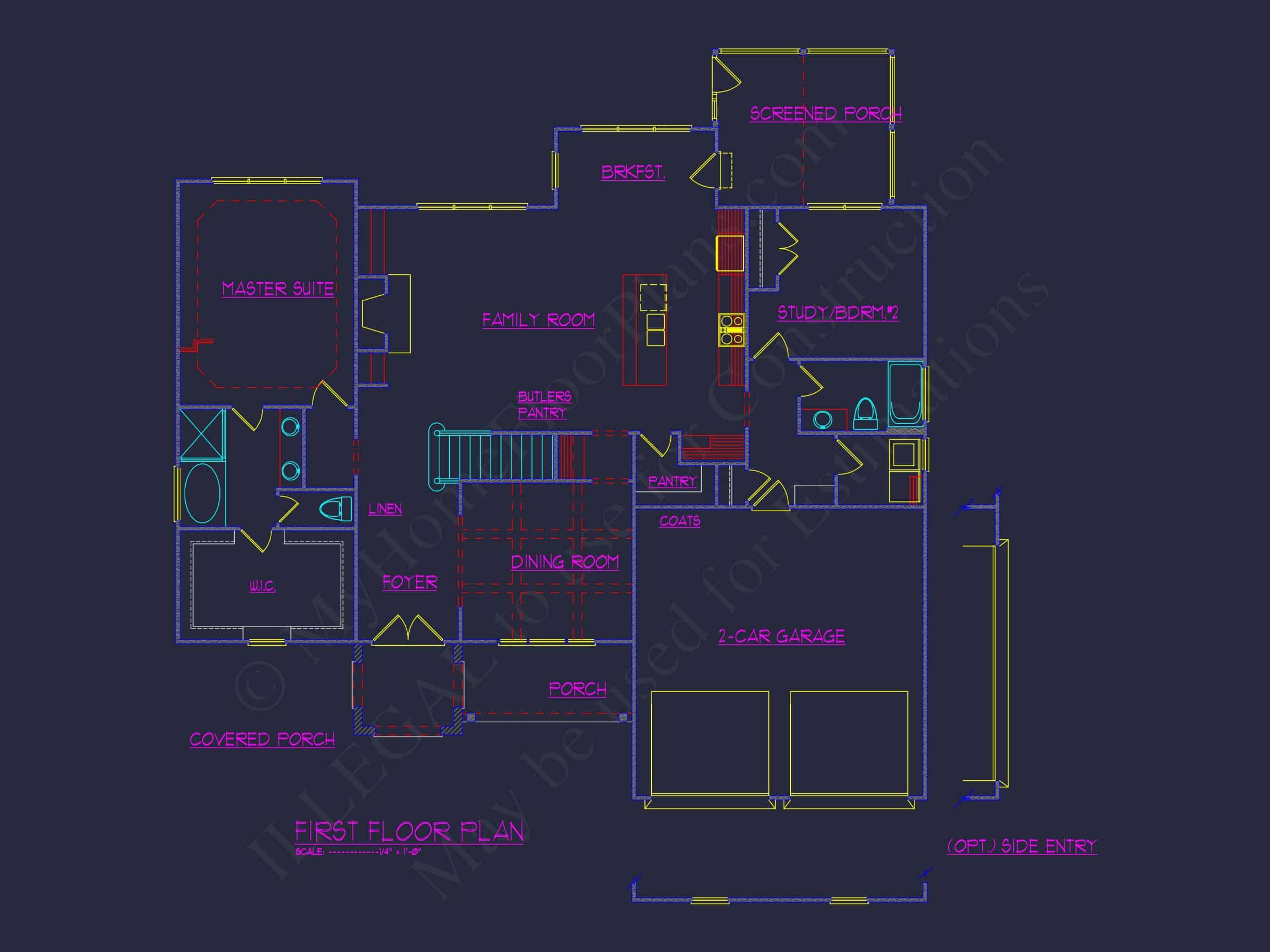

- 5 spacious bedrooms including a first-floor Owner Suite with tray ceiling, luxurious ensuite, and walk-in closet.
- 3 full bathrooms thoughtfully placed for family comfort and guest convenience.
Interior Highlights
- Coffered ceilings in the family room add architectural elegance.
- Open floor plan seamlessly connects the living, dining, and kitchen areas. Explore more open layouts.
- Granite countertops paired with stainless steel appliances and a gas cooktop.
- Walk-in pantry and custom cabinetry for optimal kitchen storage.
- Fireplace provides cozy ambiance. Browse more plans with fireplaces.
Garage & Storage Details
- Garage Bays: 2-car garage with front entry.
- Garage Type: Attached garage with convenient access to interior.
- Storage: Mudroom drop zone, attic potential, and built-in shelving.
Outdoor Living Features
- Screened rear porch for bug-free relaxation year-round.
- Grilling patio and covered deck ideal for outdoor entertaining.
- Wooded buffer in the backyard for privacy and peaceful views.
Architectural Style: Traditional Craftsman
This home design merges classic craftsmanship with refined architectural details. With its high ceilings, hardwood floors, and balanced proportions, it’s a standout among Traditional House Plans. Learn more about the Craftsman style or explore its roots on ArchDaily.
Bonus Features
- Energy-efficient build with tankless water heater and ENERGY STAR appliances.
- Custom drop zone and laundry room on the main level.
- Access to neighborhood swimming pool and beautifully landscaped community space.
Included Benefits with Every Plan
- CAD + PDF Files: Easy-to-edit and printable designs ready for construction.
- Unlimited Build License: Build once or multiple times—no added fees.
- Free Foundation Changes: Switch between slab, crawlspace, or basement as needed.
- Structural Engineering Included: Professionally stamped and compliant with local codes.
- Lower Modification Costs: Up to 50% less than other plan sellers.
- View Before You Buy: Preview all architectural sheets before purchase.
Similar Collections You Might Love
- 5-Bedroom House Plans
- Kitchen Island Floor Plans
- Covered Back Porch Plans
- Plans with Mudrooms
- Walk-In Pantry Plans
Frequently Asked Questions
What’s included with this house plan? You receive editable CAD files, printable PDFs, an unlimited build license, structural engineering, and foundation change options.
Is the Owner Suite on the main level? Yes, the primary suite is located on the first floor and includes a tray ceiling and luxury bath.
Are there outdoor living spaces? Absolutely. Enjoy a screened porch, grilling patio, and wooded backyard retreat.
Can I customize this house plan? Yes, we offer cost-effective modifications tailored to your preferences. Start your custom quote here.
Can I preview the full plan before purchase? Yes! See all blueprint sheets before you buy.
Start Building Your Dream Home Today
Ready to bring this dream house to life? Contact our expert team at [email protected] or reach out via our form.
Every great build begins with a professionally designed plan—start yours today!
All home plans include BOTH the CAD file and PDF file.
See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.

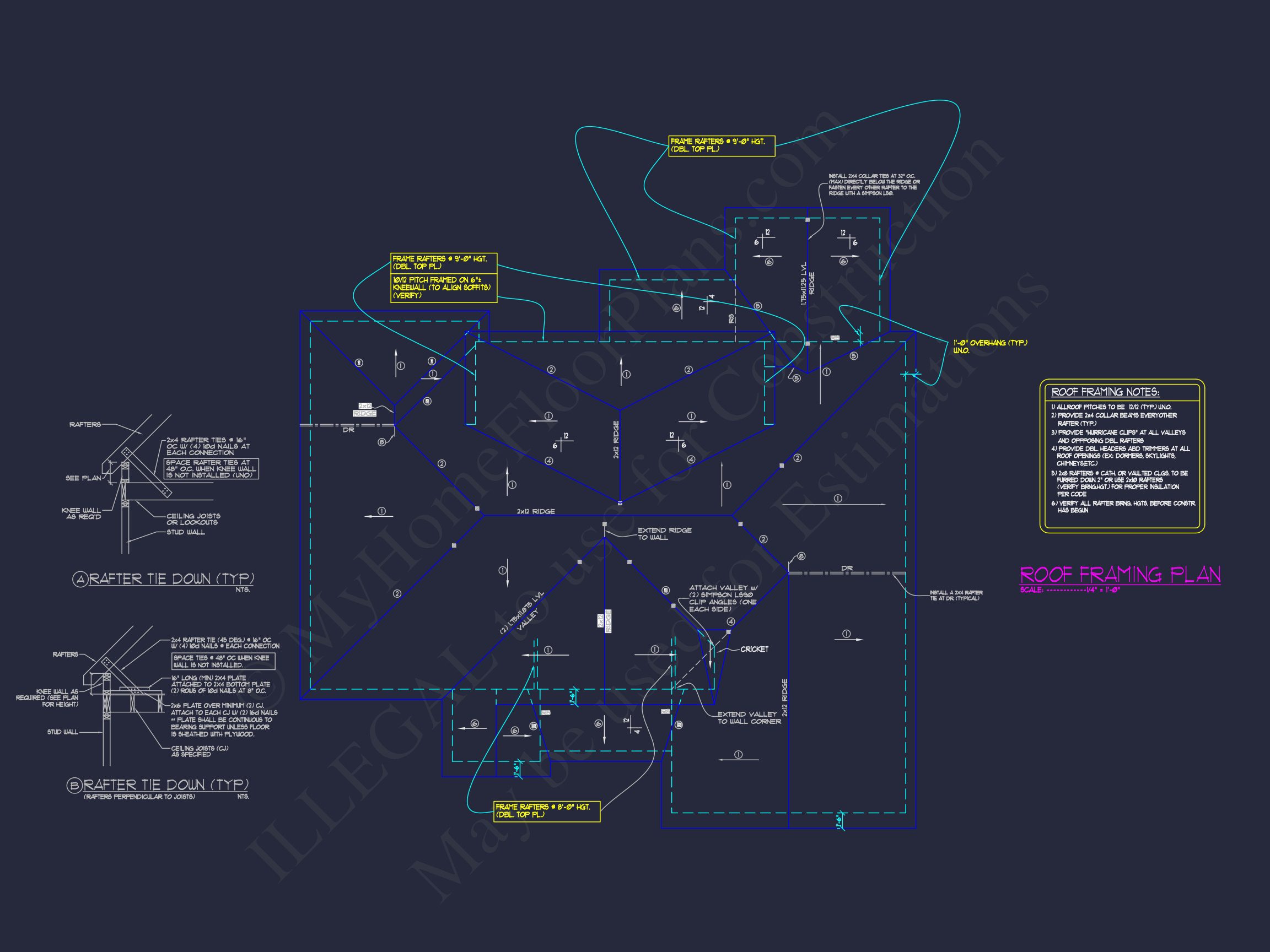

Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
Architectural or Engineering Stamp – handled locally if required
Site Plan
Mechanical Drawings (location of heating and air equipment and duct work) – your subcontractors handle this
Plumbing Drawings (drawings showing the actual plumbing pipe sizes and locations) – your subcontractors handle this
HVAC PLANS are not shown on the blueprints. HVAC system information regarding location of units, what types of units are used, and the duct layout are schematic only and should discuss with your local builder, mechanical (HVAC) contractor, and plumbing contractor. They should be able to provide you with the necessary information based on what your local building codes will allow.
Energy calculations – handled locally when required
Receive a modification estimate within a 24 hours. Our modification team is ready to help you adjust any plan to fit your needs. The modification process is simple and estimates are free!
1. Send photos of markups and email to [email protected]
2. Want to talk to an expert? Call us at 1-800-642-8078
Note: – a sketch of the changes or the website floor plan marked up to reflect changes is a great way to convey the modifications in addition to a written list. You can simply snap a picture and upload/message us HERE.
We are faster, better, and less expensive than our competitors!
When you submit your modification request, a designer will contact you within 24 business hours with a quote.
You can have your plan redesigned in as little as 3- days!
We look forward to hearing from you!
PDF File and CAD File: $ PRICE NOTED NEXT TO ‘ADD TO CART’
PDF File Unlimited Build: $0
Unlimited Build License issued on PDF File Unlimited Build orders.
CAD File: $0
Single Build License issued on CAD File orders.
CAD File Unlimited Build: $0
Unlimited Build License issued on CAD File Unlimited Build orders.
Right Reading Reverse/Mirrored Vertically: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Mirrored Horizontally: $0
All sets will be Readable Reverse copies. Turn around time is usually 3 to 5 business days.
Available Foundation Types: See product photos for the foundation type included with the plan. Substituting for a mono slab, stem-wall, or crawl is free of charge.
11-1040 HOME PLAN
WHAT’S INCLUDED IN THE DELIVERY
BOTH a PDF and CAD file are sent to the email provided.
PDF – Can easily be printed at nearby printing store
CAD Files – Delivered as Autocad format. These are NECESSARY for required structrual engineering. Also very helpful for any modifications.
Plans purchased are for “unlimited” or a multi-use license
*Delivered plans are identical to the product images. With most plans, additional details and notes not pictured are also included. If you wish to inquire of these notes/details, please click “Make an Enquiry for this Product” for more information.
DISCLAIMER
