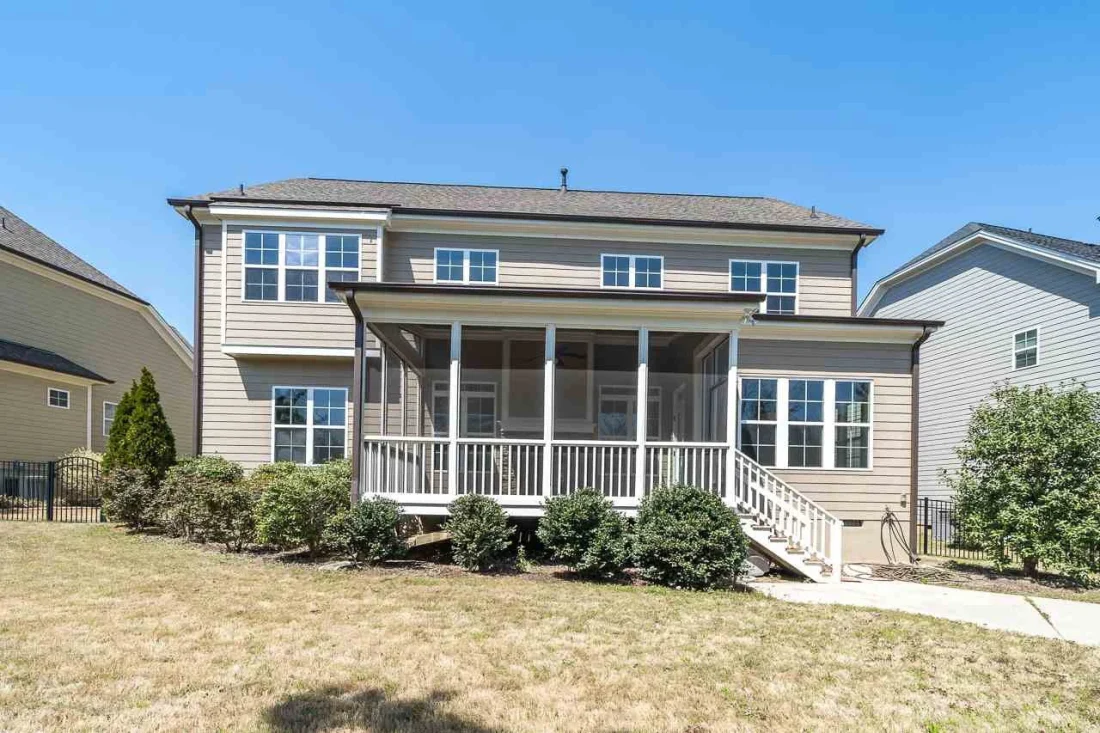

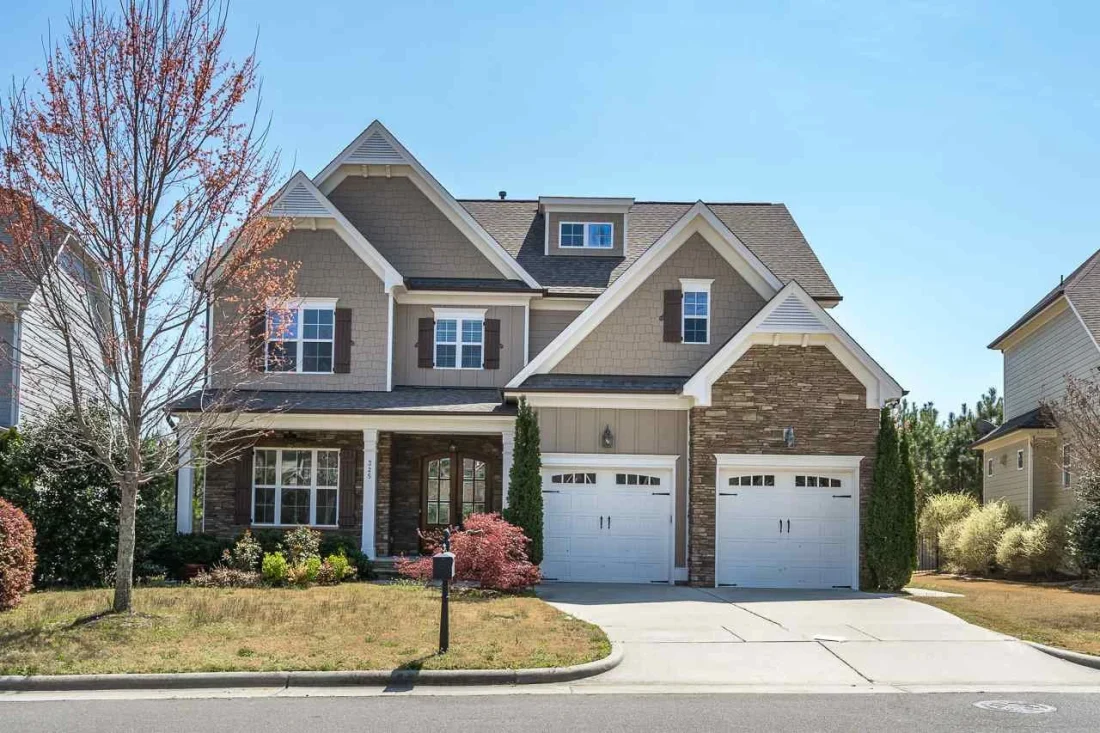

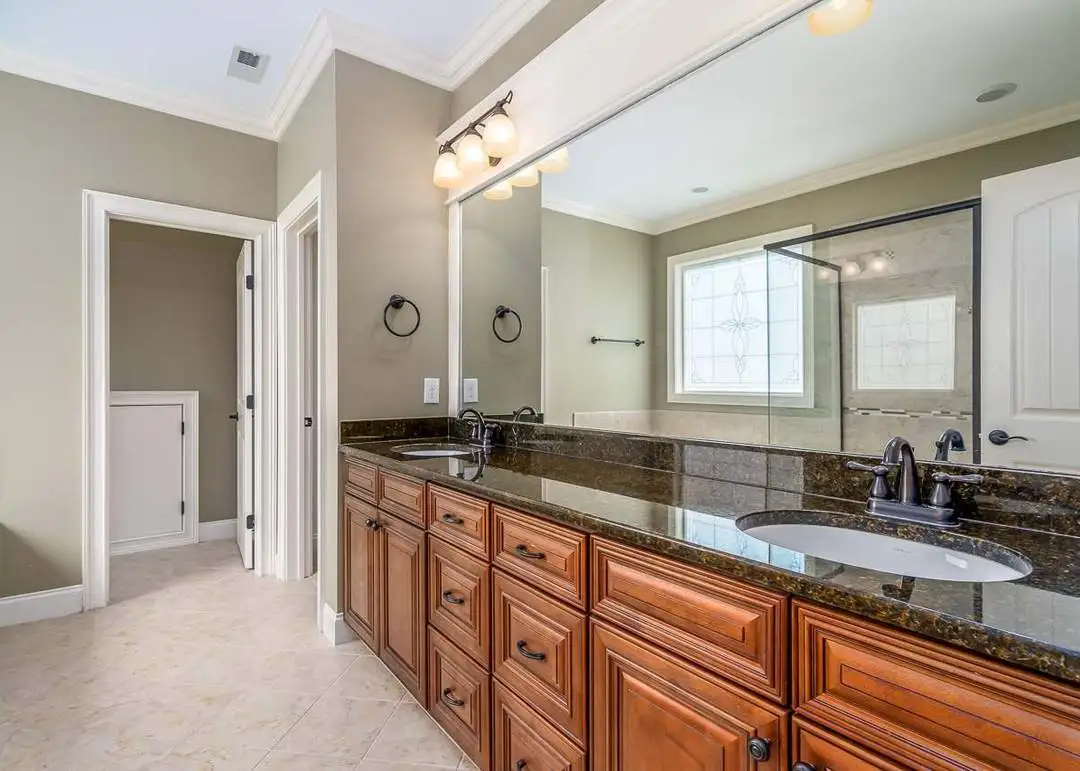

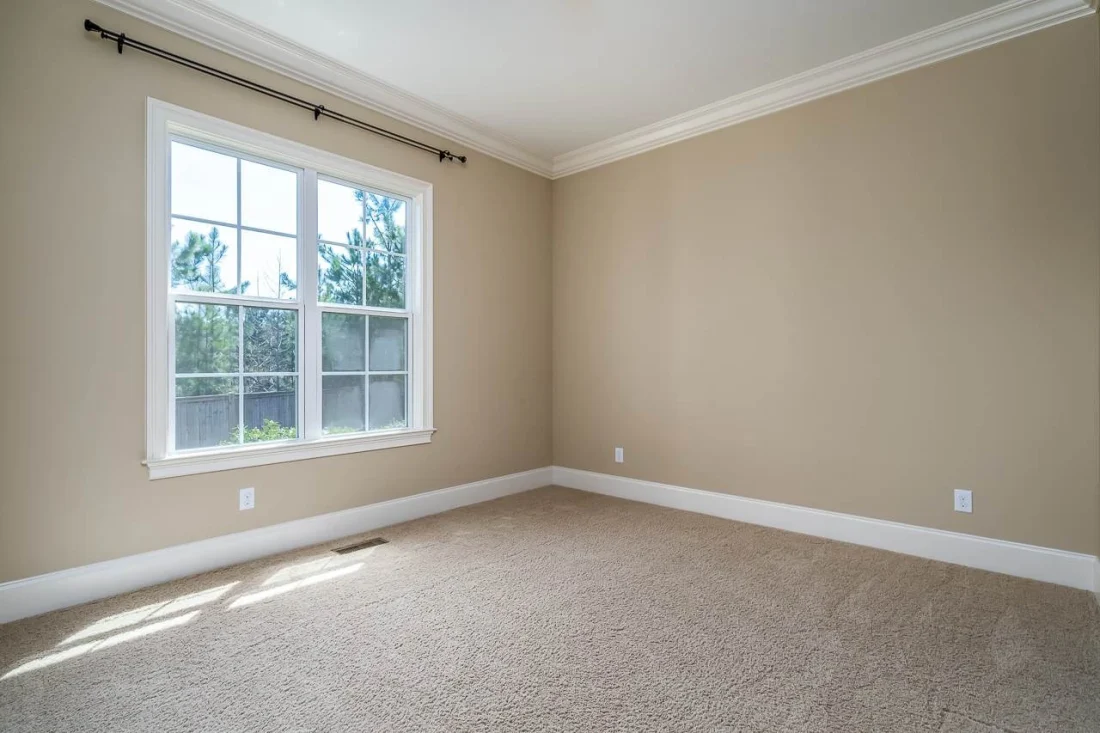

| After Build Photos |
Craftsman Home Design with Floor Plan, CAD & Blueprint Features
Explore this beautiful Craftsman floor plan featuring 4 bedrooms, 3 baths, open floor plan, screened porch, and CAD architecture designs perfect for modern living.
Craftsman Home Design with Unmatched Architectural Style
If you’re looking for a well-designed Craftsman home plan that blends elegance and comfort, this floor plan is a perfect choice. With 3 levels, 4 bedrooms, and 3 baths, it provides ample space with thoughtful details. The home boasts a heated area of 3, 209 square feet, complemented by an additional 1, 511 square feet of unheated space, ensuring practicality and beauty in every corner.
Open Spaces for Functional Living

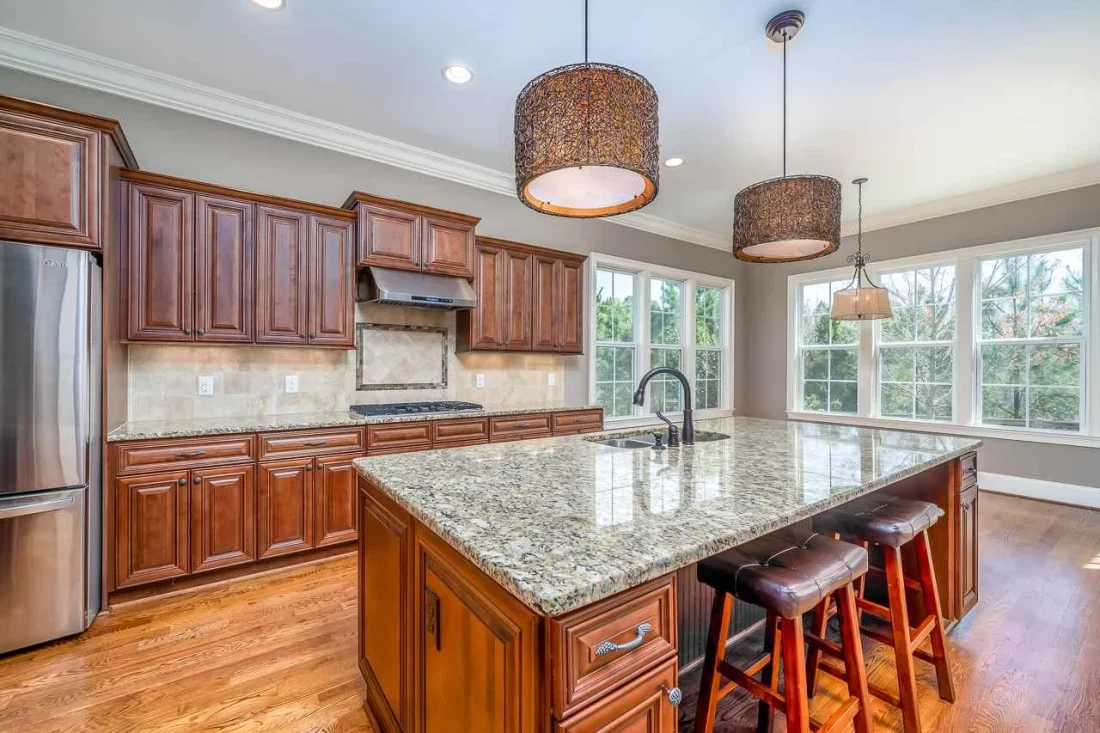

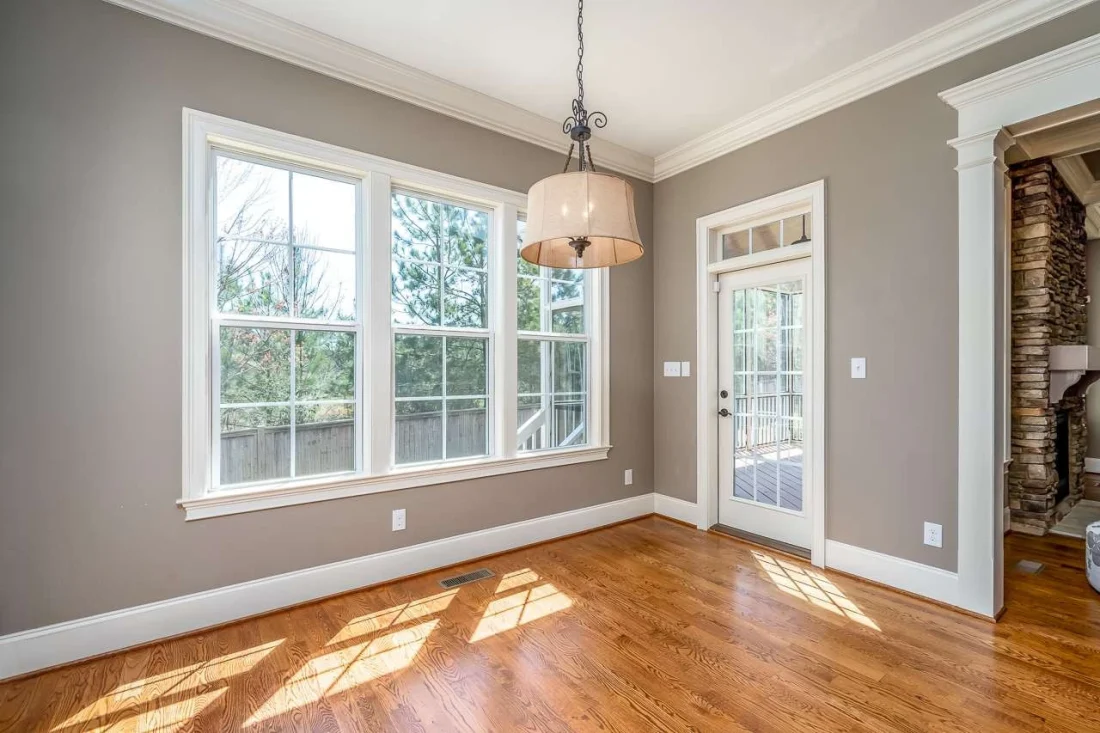

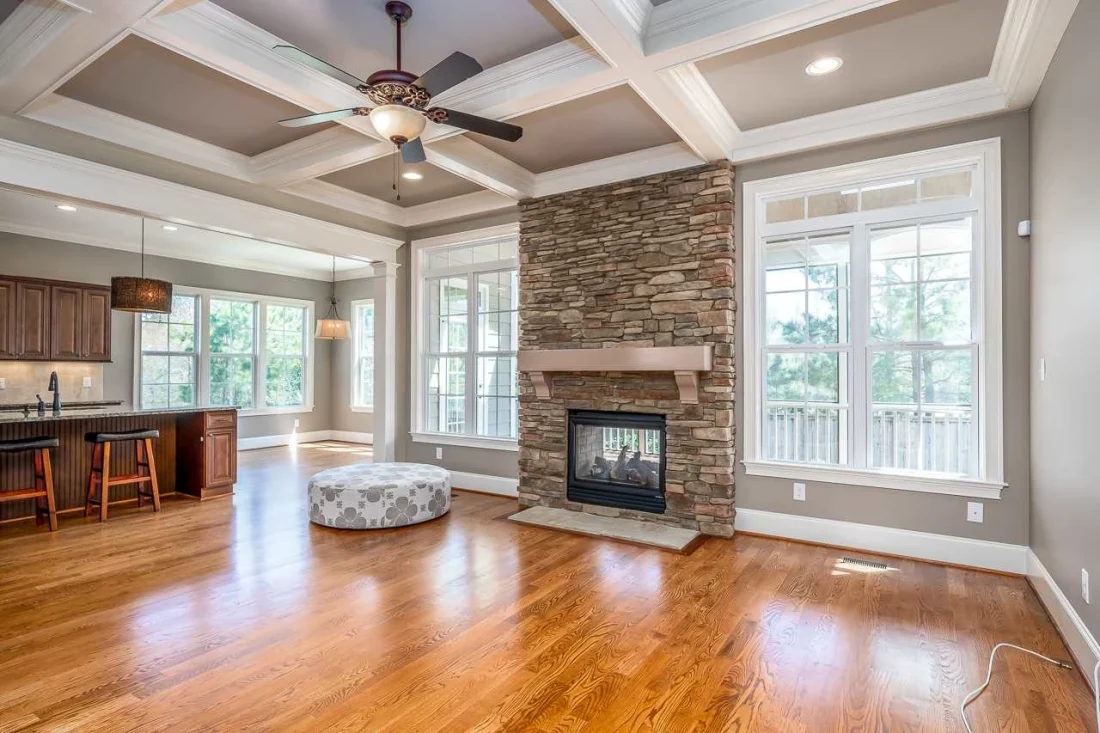

This home features an open floor plan with a generously sized family room, perfect for entertaining guests. The kitchen includes a walk-in pantry, a butler’s pantry, and a spacious island for both cooking and dining needs. Adjacent to the kitchen is a breakfast nook, creating a cozy spot for family meals. Also included is a dedicated office/study, ideal for working from home or handling your creative projects.
Luxurious Bedrooms and Bath Features

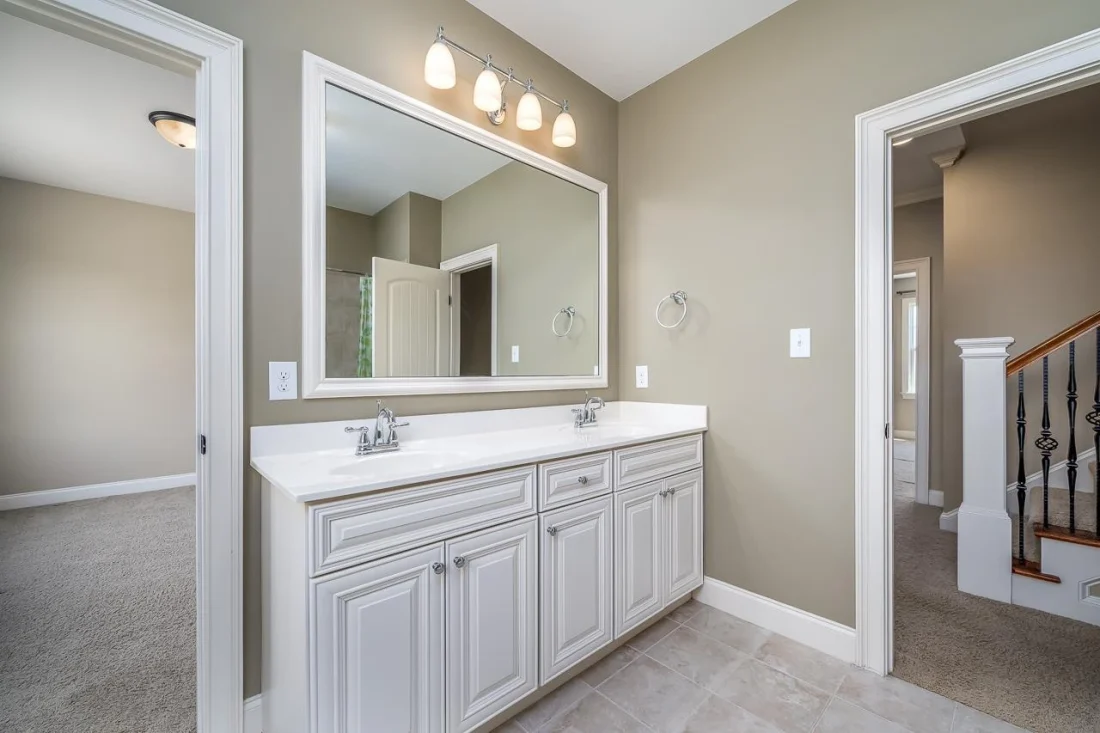

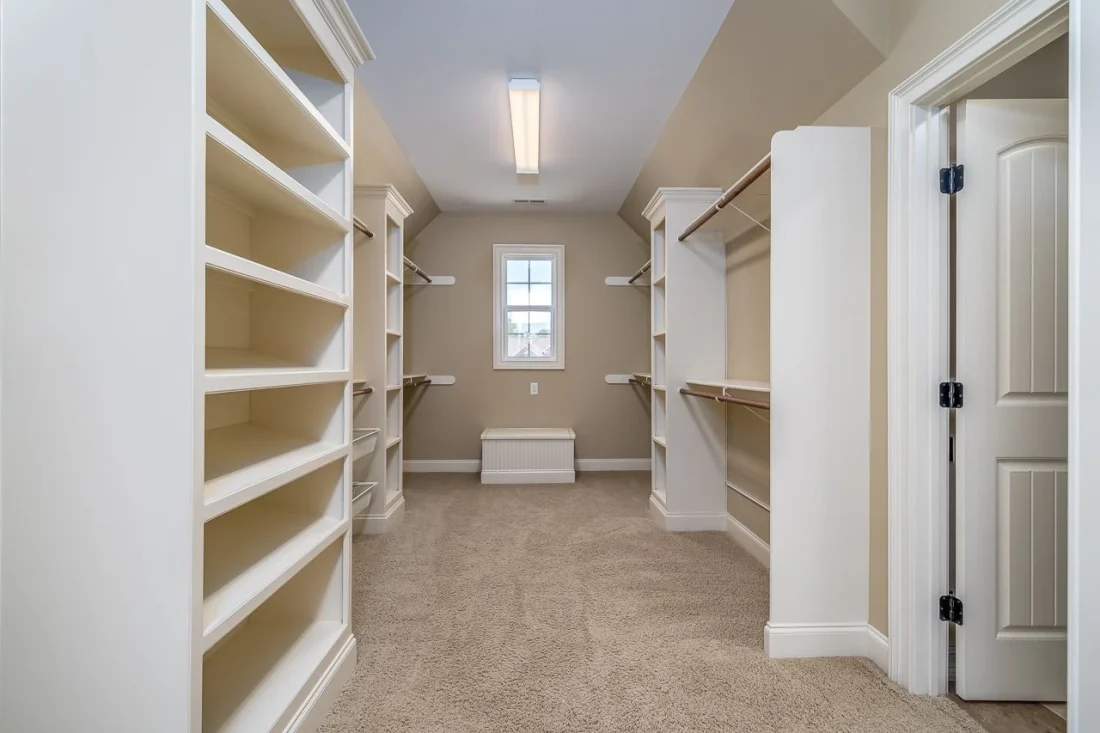

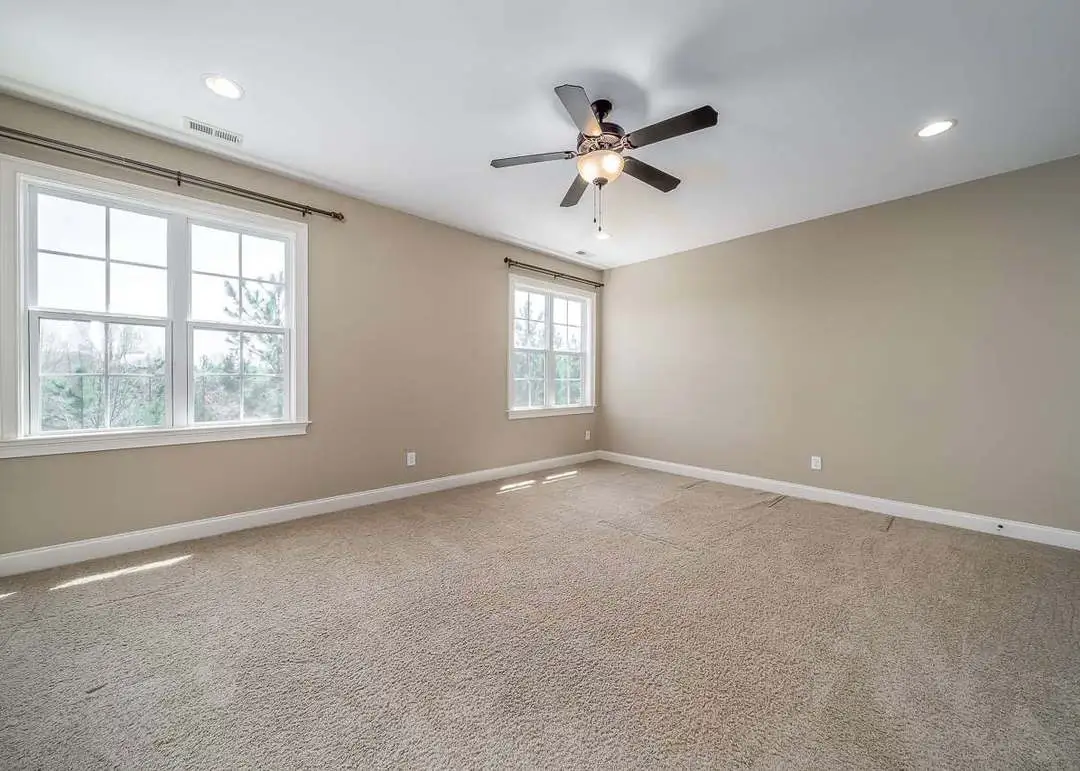

The second floor hosts a Owner bedroom suite with a large walk-in closet (WIC) and spa-style ensuite bathroom. For added convenience, additional bedrooms are divided across the first and second floors, with a Jack-and-Jill bathroom serving two of them. This plan also includes a tasteful half-bathroom for guests.
Indoor Features Built for Convenience
* Recreational Room: A perfect space for entertainment or game nights.

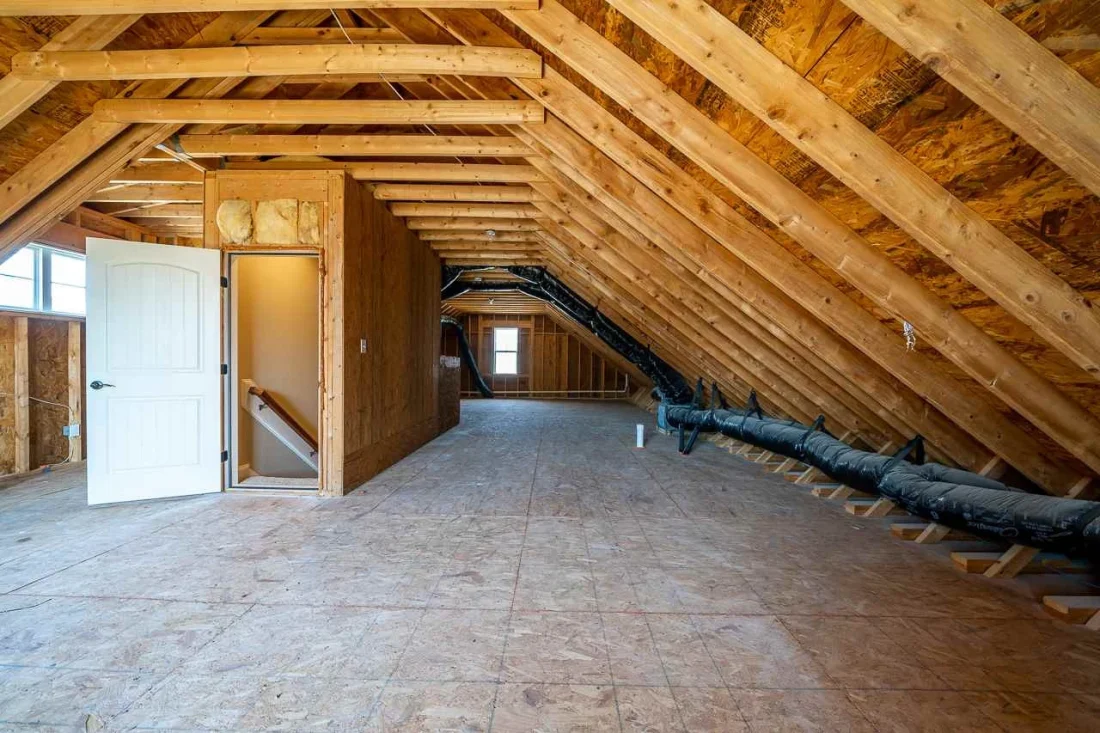

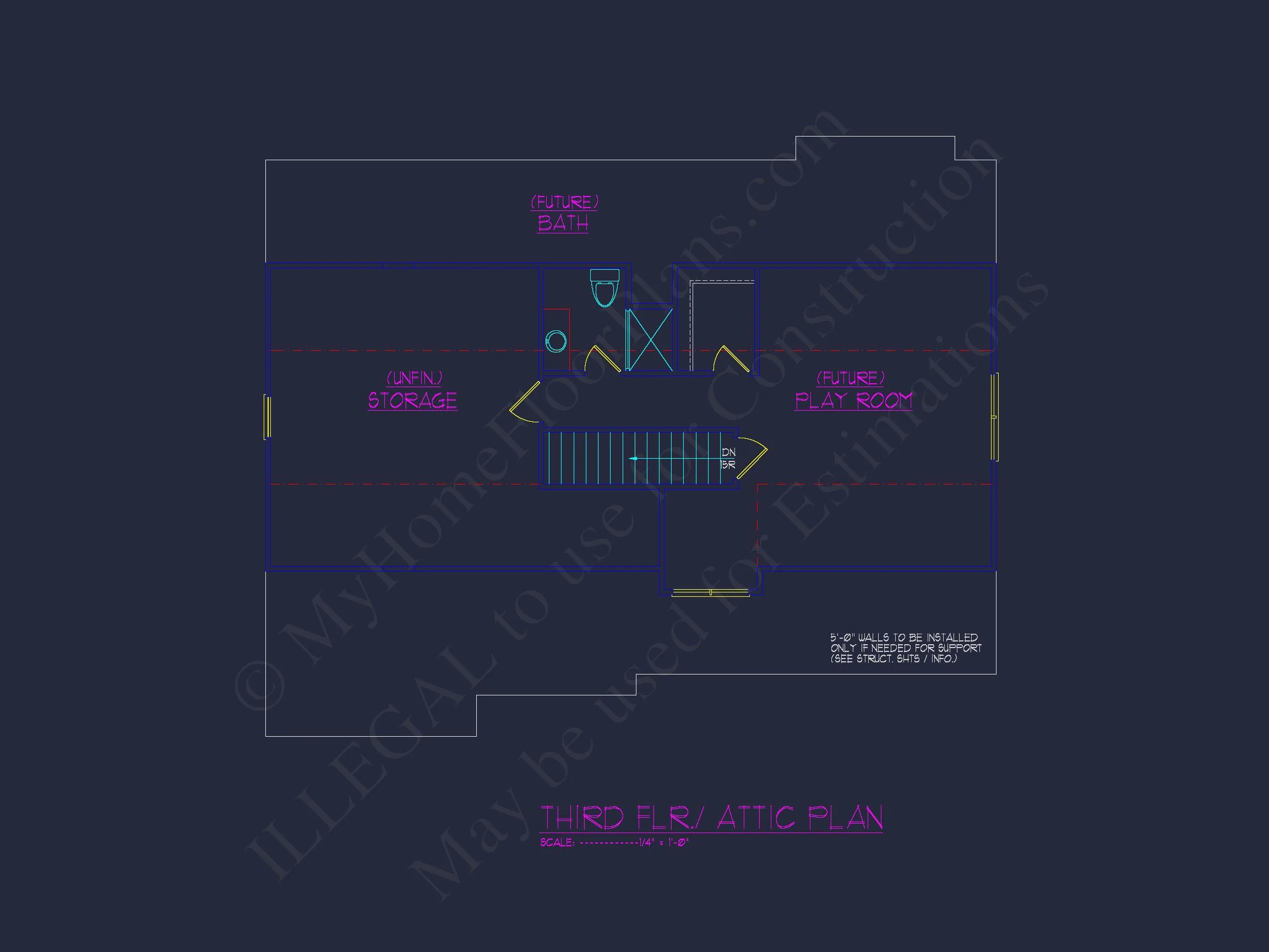

* Bonus Room & Attic: These areas offer versatile and customizable options for storage or hobby spaces.
* Fireplace: Ideal for creating a warm, inviting atmosphere during cool evenings.
Charming Outdoor and Exterior Features

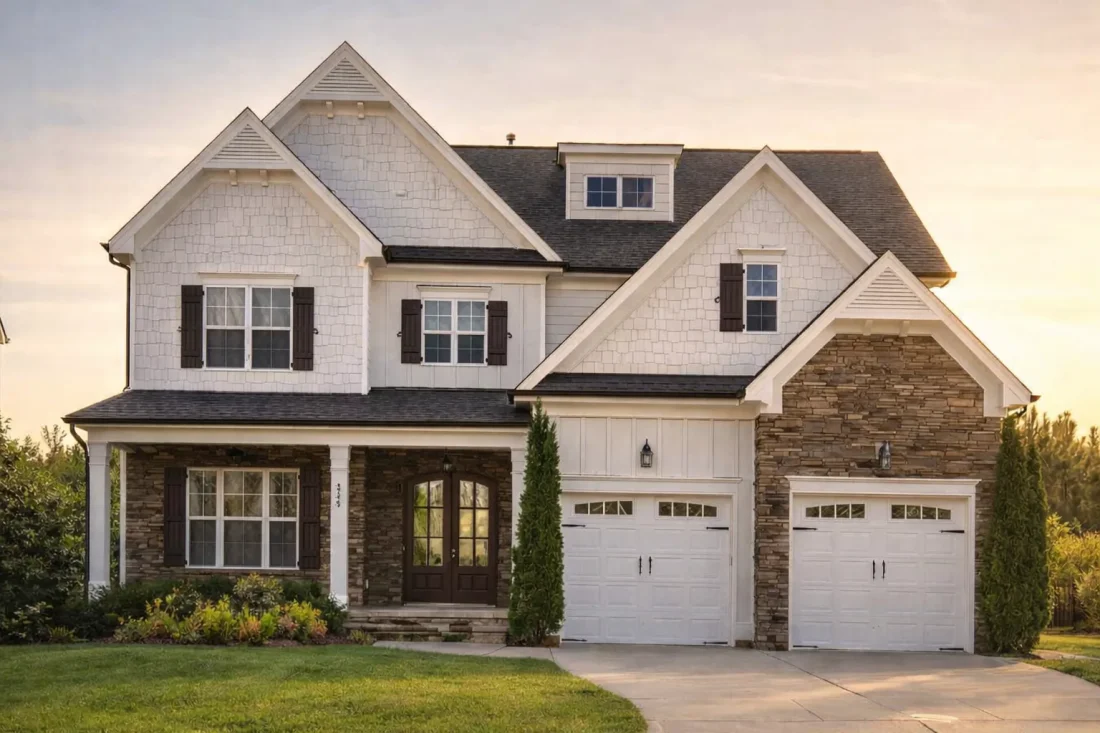

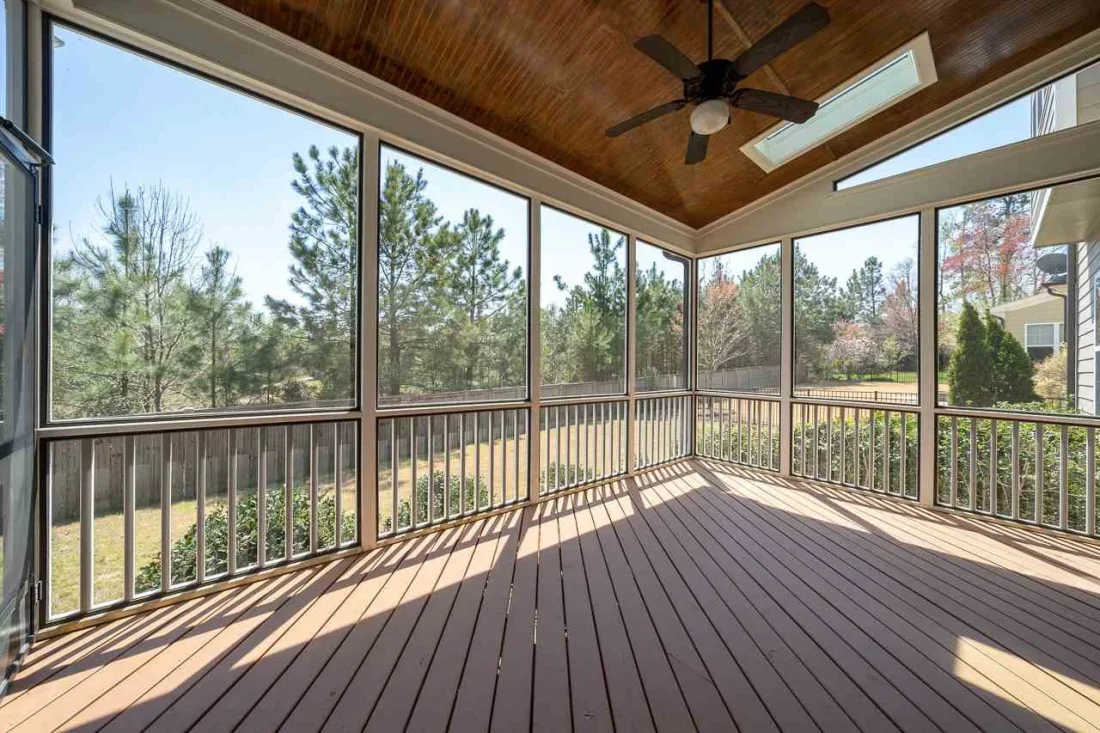

The outdoor spaces of this design are equally stunning. Relax on the screened porch, enjoy lounging on the covered deck, or greet guests with Southern charm on the covered front porch. The exterior boasts classic board & batten siding, brick, shake, and stone materials, ensuring longevity and aesthetic appeal.
Benefits Included with Every Plan
Every home design plan includes CAD files and detailed blueprints to streamline construction. You’ll receive an unlimited-build license and complimentary foundation adjustments tailored to your specific needs. All designs are structurally engineered, ensuring safety and durability throughout the home.
Ready to design your dream home? Contact us today at support@https://myhomefloorplans.com to begin making your vision a reality!
All home plans include BOTH the CAD file and PDF file.

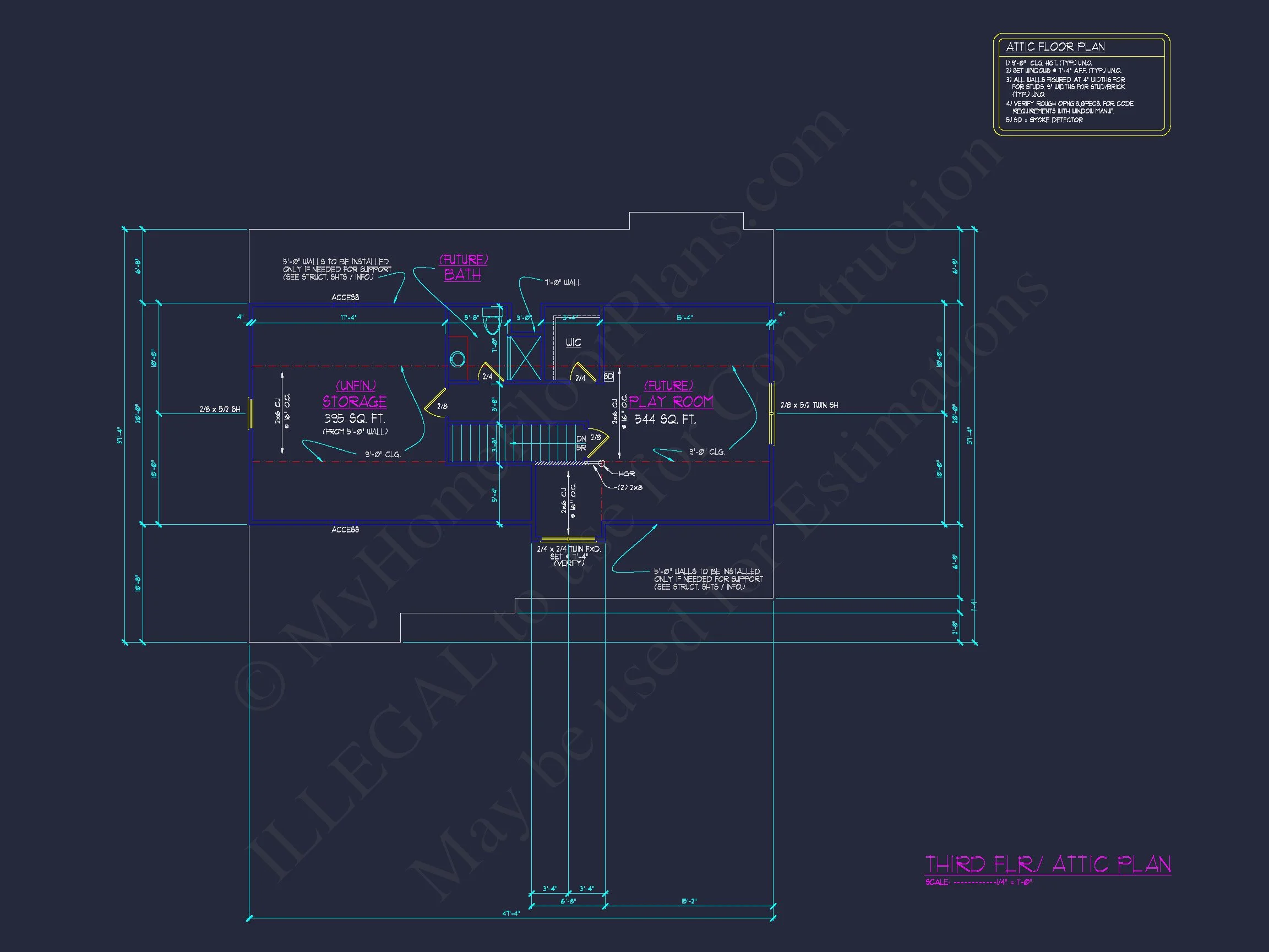

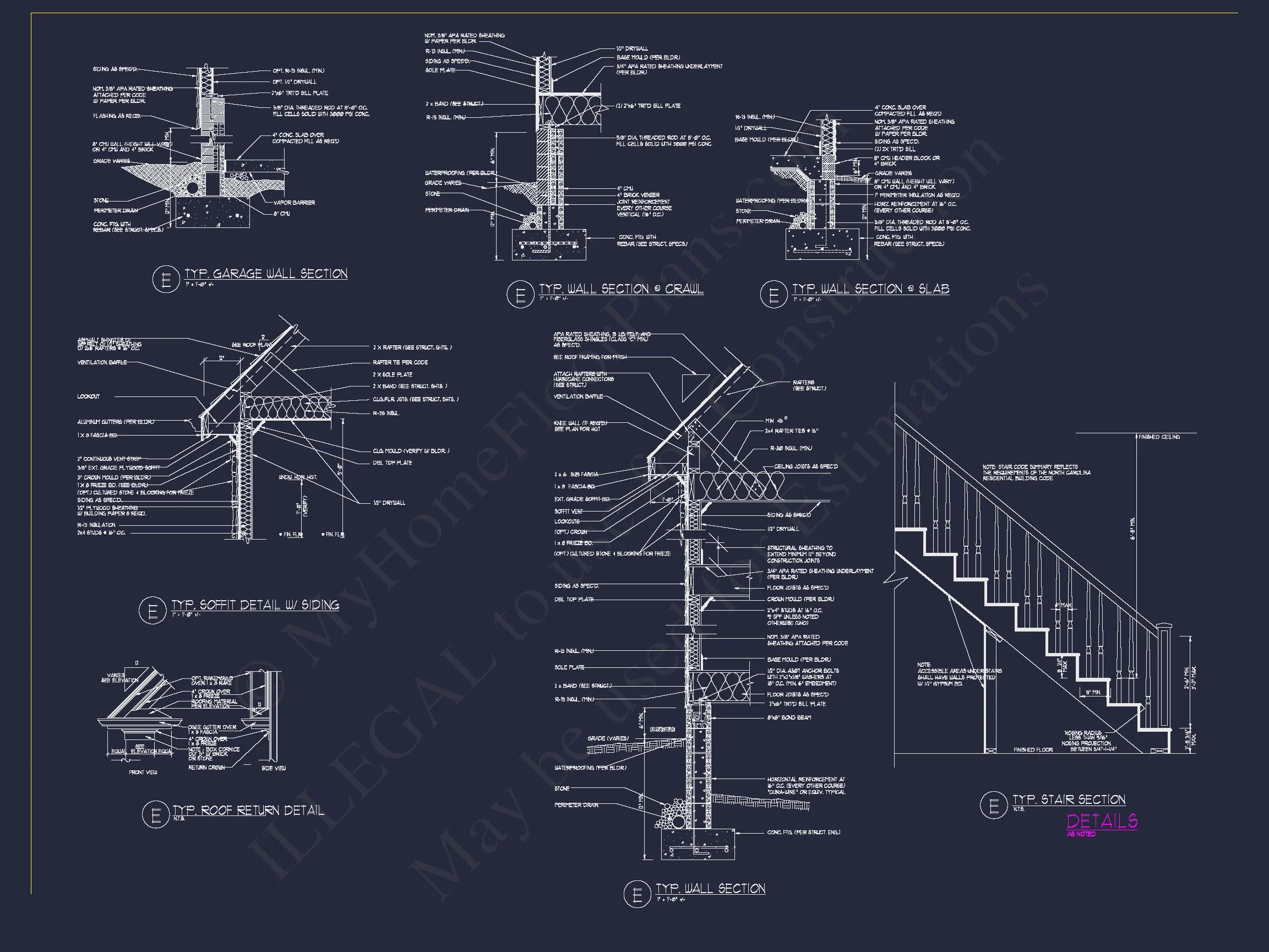

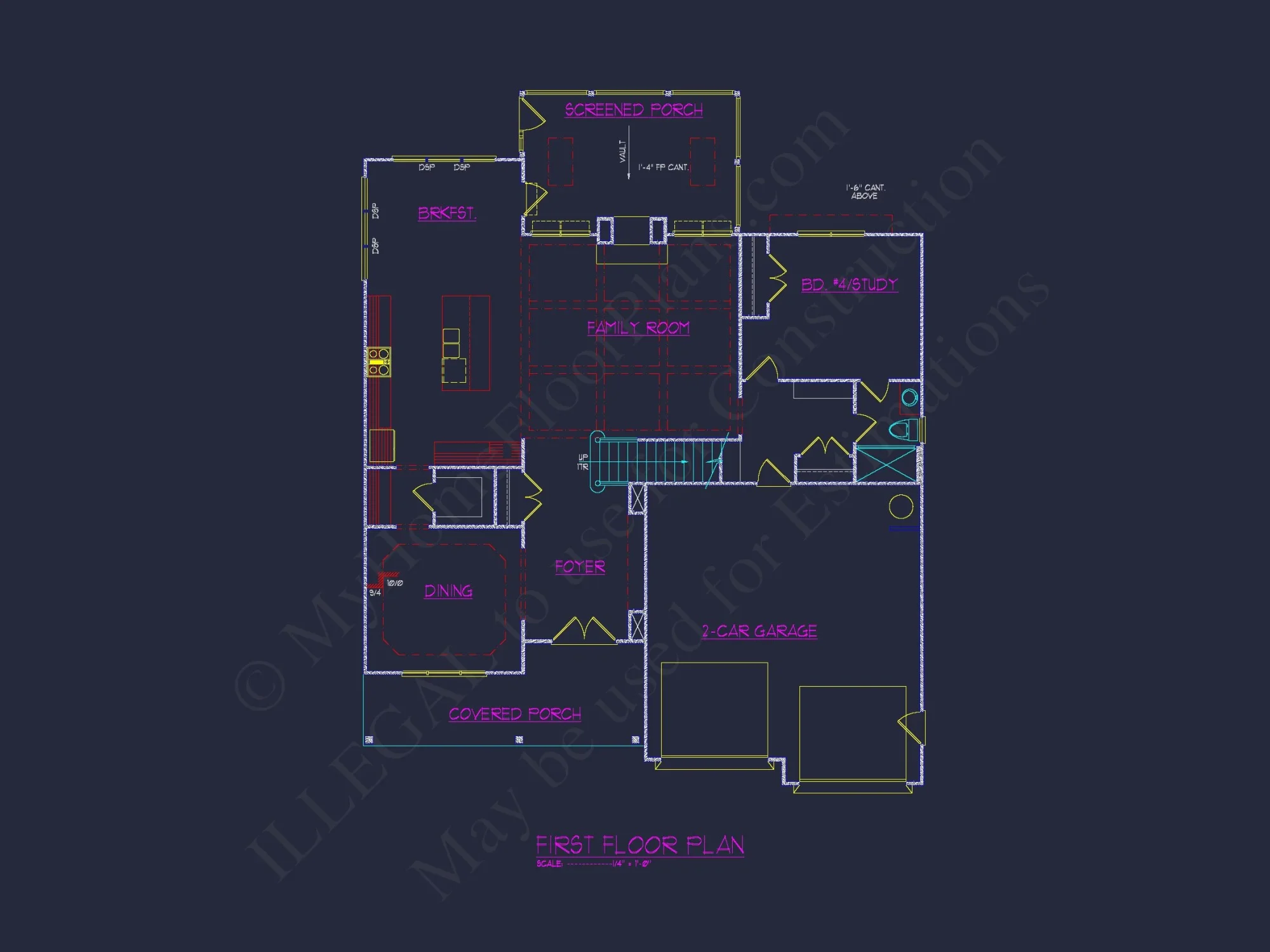

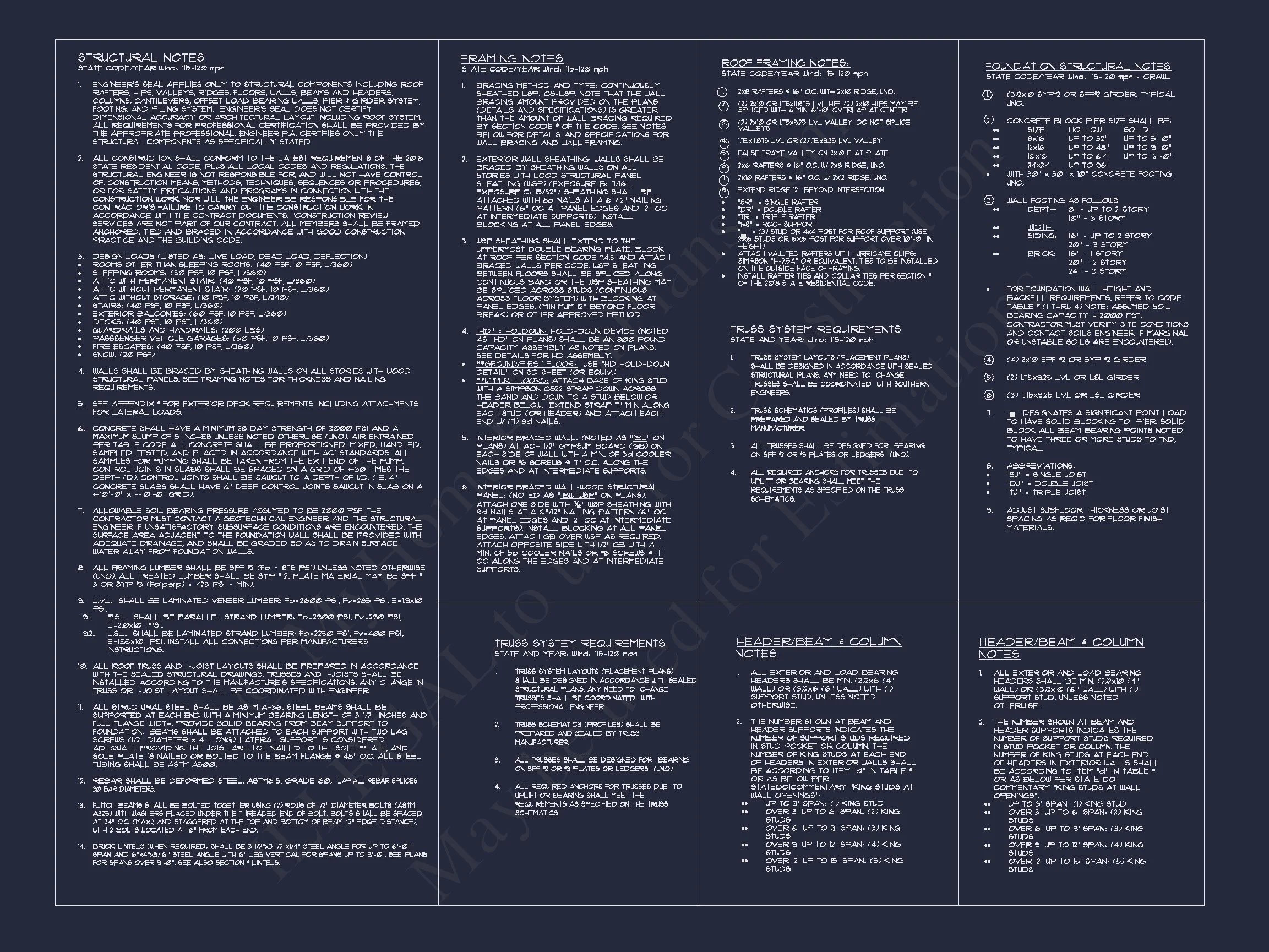

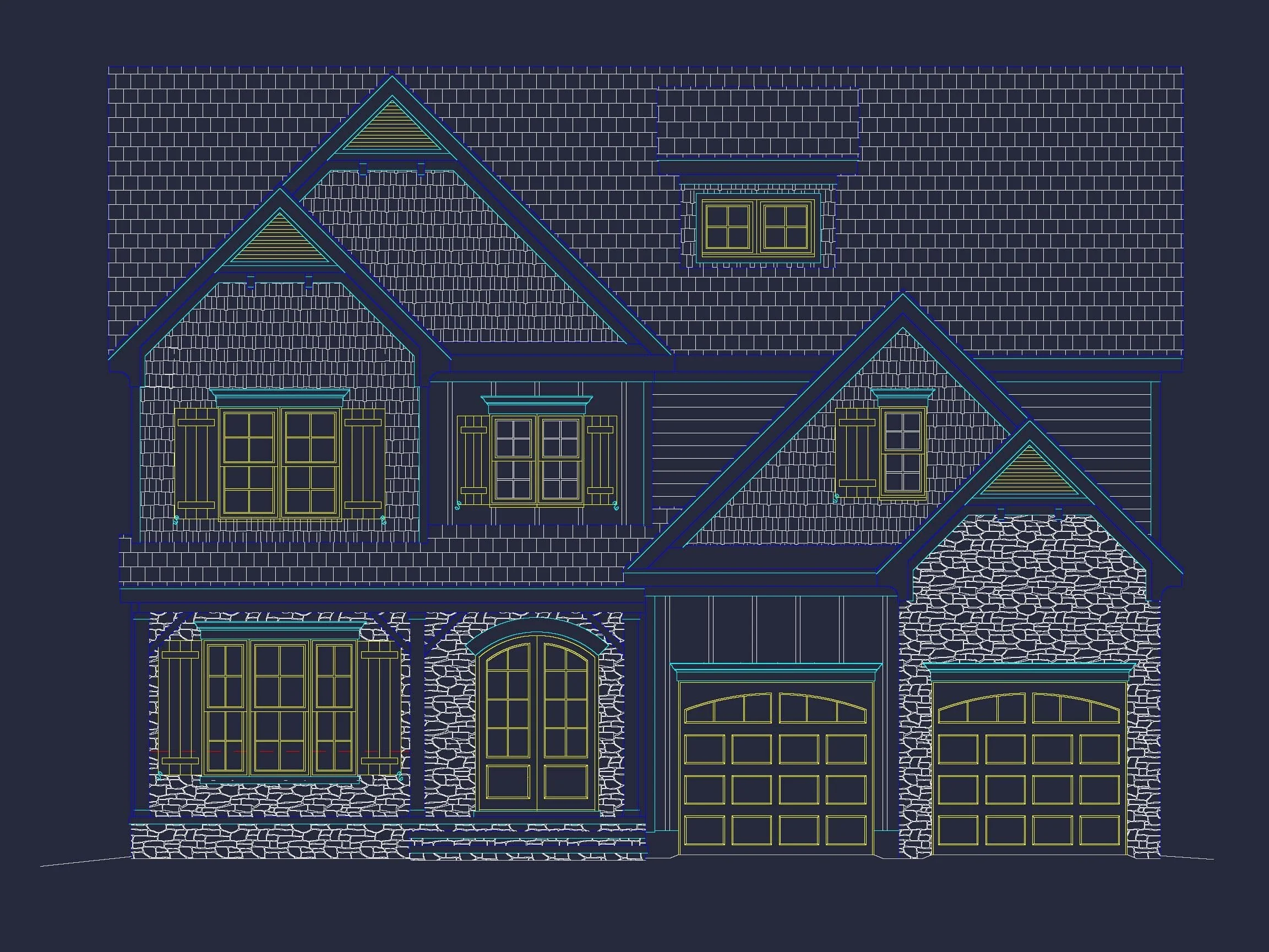

See the photos of the ACTUAL plan you would receive. Scales vary depending on the size of the home and paper size. *Most plans have added notes and/or details that are not shown in photos. These can include various calculations, structural and architectural details. CLICK MAKE AN ENQUIRY and we can update the product with all notes/details.
All plans are FREE for unlimited-build.
Roof plans are provided with every package. This will show all roof slopes and a roof framing detail. Miscellaneous details as needed per house plan.
Unless shown, the plan will not have the electrical layout. We can provide electrical layouts at $100 for 0-1499 sq. ft. home plans and $200 for 1500+ sq. ft. plans. This includes details such as recessed lights, fan/lights, switches, outlets, cable tv & telephone locations, exterior flood light locations, weather proof outlets, heat/vent/light locations…etc. After you receive the electrical layouts, review and mark any desired changes. Take a picture and we will make any and all modifications at NO EXTRA CHARGE. And do not worry if you need to go back and forth a few times. This is inclusive of the $200 fee. Turnaround time averages 2 days.
